ORDER NO.
CRT2887
RECEIVER ASSY RADIO
FH-2427ZF X1H/UC
Service
Manual
FORD
-This service manual should be used together with the manual(s) listed below.
For the parts numbers, adjustments, etc. which are not shown in this manual, refer to the following
manual(s).
Model No. Order No. Mech. Module Remarks
FH-2077ZF/X1H/UC CRT2822
CX-597 CRT1829 S7 CD Mech. Module:Circuit Description, Mech. Description, Disassembly
CX-1011 CRT2406 3L Cassette Mech. Module:Mech.Description, Disassembly
VEHICLE DESTINATION PRODUCED AFTER PART No. ID No. PIONEER MODEL No.
F150 Super Crew U.S.A., CANADA July 2002 3L3T-18C868-BB FH-2427ZF/X1H/UC
Harley Truck

1234
1234
F
E
D
C
B
A
FH-2427ZF/X1H/UC
EXPLODED VIEWS AND PARTS LIST

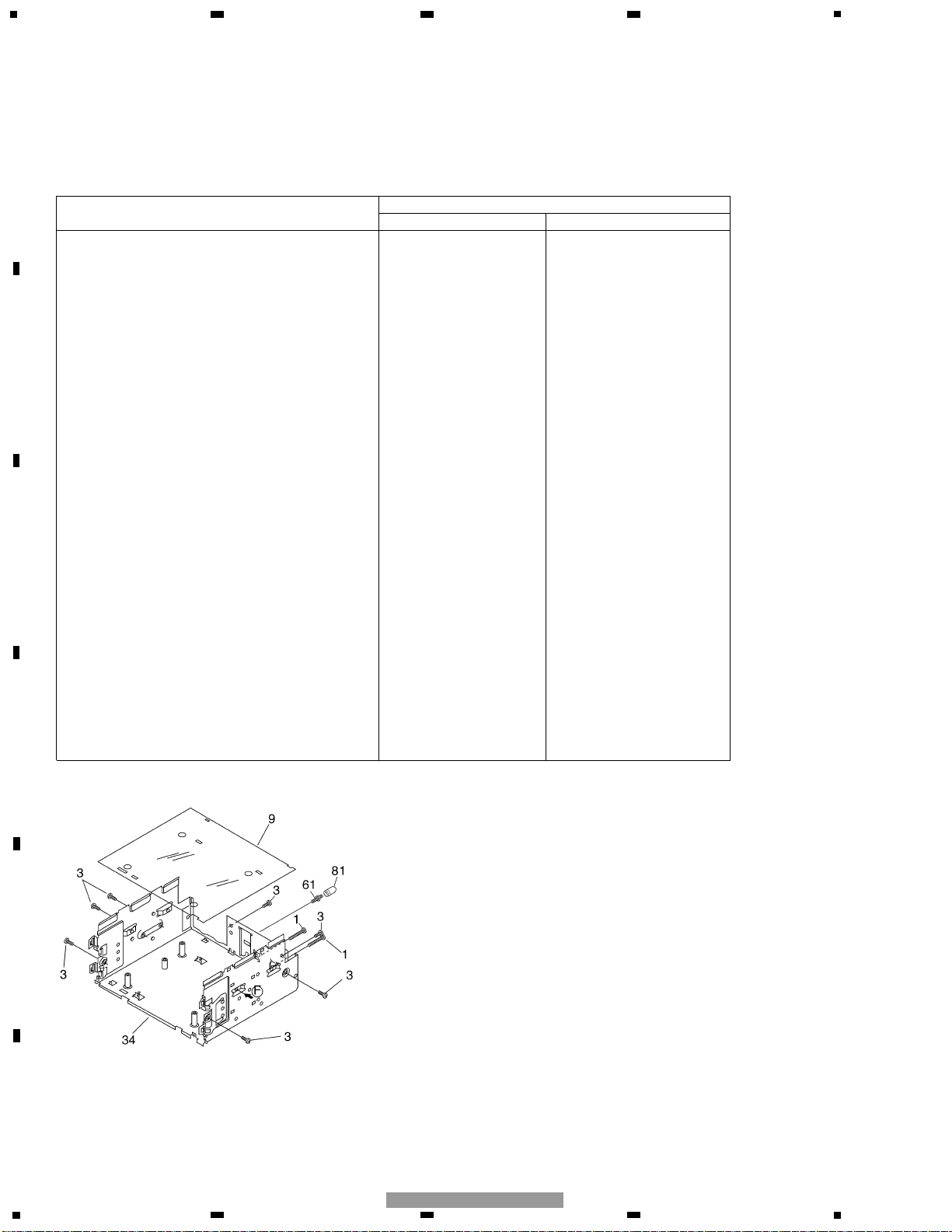

EXTERIOR (Page 4)
-EXTERIOR SECTION PARTS LIST *:Non spare part
Part No.
Mark No. Description FH-2077ZF/X1H/UC FH-2427ZF/X1H/UC
8 Case HNB2059 HNB0206
11 Rail Guide HNV4897 Not used
12 Mother Unit HWM0072 HWM0090
25 Compound Unit HWM0074 HWM0091
34 Chassis Unit HXA8841 HXA0390
36 Knob Assy CXB8377 CXB9536
37 Grille Unit CXB9218 CXB9535
40 Button(EJ) CAC7446 CAC7755
41 Keyboard Unit HWM8124 HWM0092
45 Button(AM) CAC7447 CAC7756
46 Button(FM) CAC7448 CAC7757
48 Button(MUTE) CAC7449 CAC7758
61 Screw HBA1404 CBA1138
67 Button(TAPE) CAC7450 CAC7759
68 Button(CD) CAC7451 CAC7760
69 Button(AUTO,RDS) CAC7452 CAC7761
70 Button(TUNE) CAC7453 CAC7762
71 Button(EJ) CAC7454 CAC7763
72 Button(BASS,TREB) CAC7455 CAC7764
73 Button(BAL,FADE) CAC7456 CAC7765
74 Button(SEL) CAC7457 CAC7766
75 Button(1,2) CAC7458 CAC7767
76 Button(3,4) CAC7459 CAC7768
77 Button(5,6) CAC7460 CAC7769
78 Door CAT2339 *HAT1760
81 Bush Not used CNV4955

3
5678
F
E
D
C
B
A
5678
FH-2427ZF/X1H/UC
ELECTRICAL PARTS LIST(Page 54)
Mother Unit
Part No.
Symbol and Description FH-2077ZF/X1H/UC FH-2427ZF/X1H/UC
IC602 IC PE5315A PE5250A
R364 RS1/10S152J RS1/10S122J
R1227 RS1/16S512J RS1/16S562J
R1249 RS1/10S431J RS1/10S561J
C1205 CKSRYB393K25 CKSRYB333K25

CF
KEYBOARD UNIT
CF
CN953
KEY MATRIX CIRCUIT
BUTTON ILLUMINATION
SWITCH CIRCUIT
A
FF
CN1051
Decimal points for resistor
and capacitor fixed values
are expressed as :
2.2 2R2
0.022 R022
←
←
Symbol indicates a resistor.
No differentiation is made between chip resistors and
discrete resistors.
NOTE :
Symbol indicates a capacitor.
No differentiation is made between chip capacitors and
discrete capacitors.
4
1234
1234
F
E
D
C
B
A
FH-2427ZF/X1H/UC

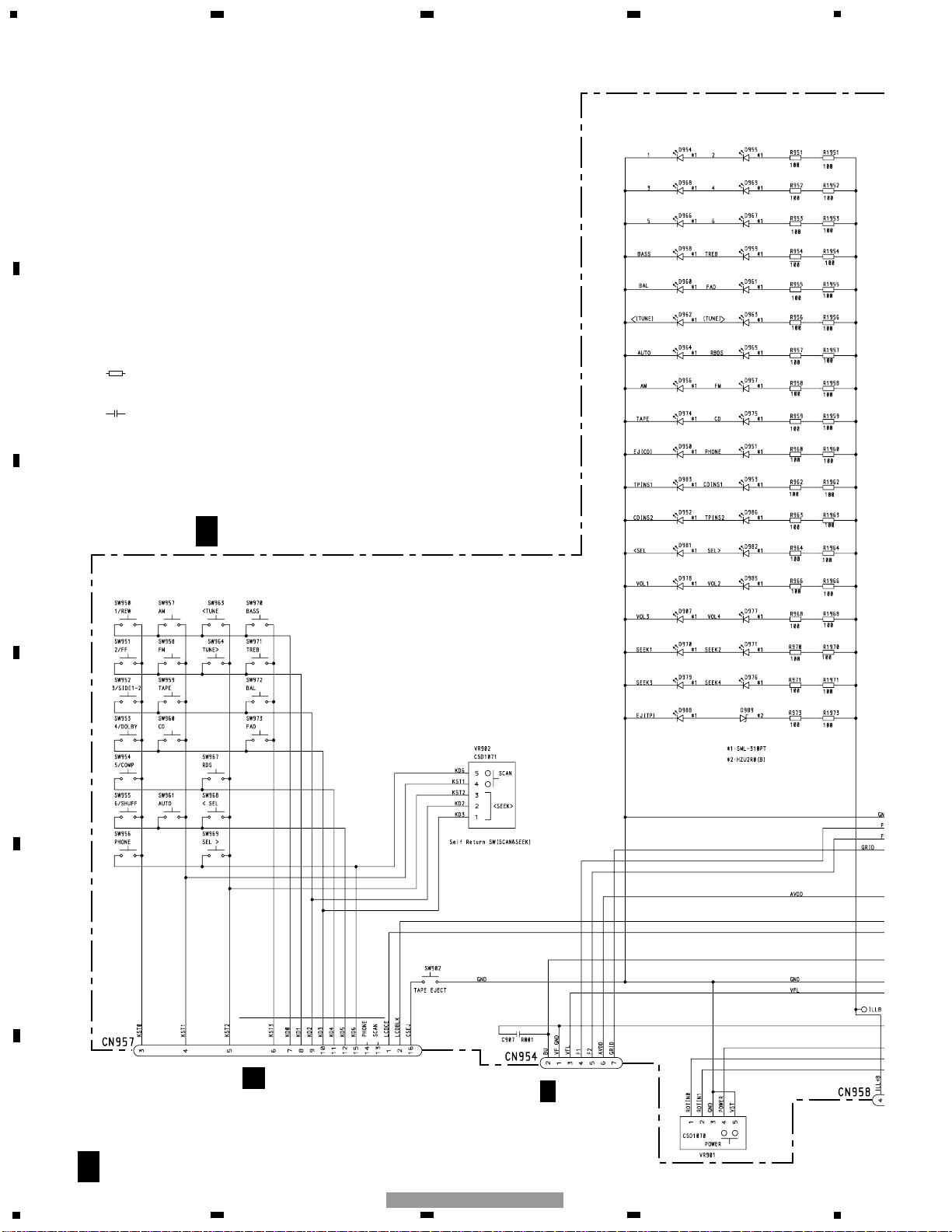

SCHEMATIC DIAGRAM
KEYBOARD UNIT

5
5678
F
E
D
C
B
A
5678
FH-2427ZF/X1H/UC
CF
-8.0V REGULATOR
VF DRIVER IC
CN952
A
VOLTAGE BUFFER FOR VF GRID

6
1234
1234
F
E
D
C
B
A
FH-2427ZF/X1H/UC
EQ PCB
DF
EQ PCB
DF
CN301
COMPOUND UNIT
Consists of
EQ PCB
CONNECTOR PCB
VF SUB PCB
FIX EQ CIRCUIT
A

7
5678
F
E
D
C
B
A
5678
FH-2427ZF/X1H/UC
DF
C225
330P
C226
330P
C271
330P
C272
330P
R256
R257
R258
R259
AUDIO LEVEL
CONTROL CIRCUIT
AUTO LEVEL
CONTROL CIRCUIT
ANALOGUE SWITCH
FOR DUAL PLAY

8
1234
1234
F
E
D
C
B
A
FH-2427ZF/X1H/UC
CONNECTOR PCB
CONNECTOR PCB
EF
EF
AF
CN801
COMPOUND UNIT
Consists of
EQ PCB
CONNECTOR PCB
VF SUB PCB
7.5V OUTPUT FOR SUBWOOFER AMPLIFIER
ACP BUS TRANSCEIVER RECEIVER

9
5678
F
E
D
C
B
A
5678
FH-2427ZF/X1H/UC
VF SUB PCB
VF SUB PCB
FF
FF
CN954
COMPOUND UNIT
Consists of
EQ PCB
CONNECTOR PCB
VF SUB PCB
DC/DC CONVERTOR (-39V)
6.2V REGULATOR 27kHz OSCILLATOR
FOR VF FILAMENT
CF

10
1234
1234
F
E
D
C
B
A
FH-2427ZF/X1H/UC
ELECTRICAL PARTS LIST
NOTE:
-Parts whose parts numbers are omitted are subject to being not supplied.
-The part numbers shown below indicate chip components.
Chip Resistor
RS1/_S___J,RS1/__S___J
Chip Capacitor (except for CQS.....)
CKS....., CCS....., CSZS.....
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
Compound Unit
Consists of
EQ PCB
Connector PCB
VF SUB PCB
Unit Number : HWM0091
Unit Name : Compound Unit
MISCELLANEOUS
IC 201 IC BA14741F
IC 202 IC BA14741F
IC 203 IC BA14741F
IC 204 IC BA4558F-P
IC 205 IC BA3308F
IC 206 IC BA14741F
IC 207 IC BA14741F
IC 208 IC BA14741F
IC 209 IC BA4558F-P
IC 210 IC TC4066BF
IC 211 IC BA3308F
IC 1001 IC DS36277
IC 1051 IC BA4558F-P
IC 1052 IC SC33165ADWR2
Q 201 Transistor 2SA1037K
Q 202 Transistor DTC114EK
Q 1011 Transistor DTC143TK
Q 1012 Transistor DTC143TK
Q 1013 Transistor DTC124EK
Q 1014 Transistor DTC124EK
Q 1015 Transistor 2SA1037K
Q 1051 Transistor DTA124EK
Q 1052 Transistor DTC143EK
Q 1053 Transistor 2SC3113
Q 1054 Transistor 2SD2396
Q 1055 Transistor 2SB1243
Q 1056 Transistor 2SD1859
D 1021 Diode 1SS133
D 1051 Diode MTZ6R8J(B)
D 1052 Diode 1SS133
D 1053 Diode MTZ5R1J(C)
D 1054 Diode ERA83-006
D 1055 Diode SC016-2
L 1051 Coil CTH1202
T 1051 Transformer CTT1067
RESISTORS
R 201 RS1/10S472J
R 202 RS1/10S472J
R 205 RS1/10S122J
R 206 RS1/10S122J
R 207 RS1/10S683J
R 208 RS1/10S683J
R 209 RS1/10S683J
R 210 RS1/10S683J
R 211 RS1/10S122J
R 212 RS1/10S122J
R 213 RS1/10S682J
R 214 RS1/10S682J
R 215 RS1/10S821J
R 216 RS1/10S821J
R 217 RS1/10S122J
R 218 RS1/10S122J
R 219 RS1/10S683J
R 220 RS1/10S683J
R 221 RS1/10S683J
R 222 RS1/10S683J
R 223 RS1/10S122J
R 224 RS1/10S122J
R 225 RS1/10S182J
R 226 RS1/10S182J
R 229 RS1/10S122J
R 230 RS1/10S122J
R 231 RS1/10S683J
R 232 RS1/16S683J
R 233 RS1/10S472J
R 234 RS1/10S472J
R 237 RS1/10S392J
R 238 RS1/10S392J
R 239 RS1/10S682J
R 240 RS1/10S682J
R 241 RS1/10S113J
R 242 RS1/10S113J
R 243 RS1/10S681J
R 244 RS1/10S681J
R 245 RS1/10S392J
R 246 RS1/10S392J
R 247 RS1/10S101J
R 248 RS1/10S101J
R 249 RS1/10S182J
R 250 RS1/10S182J
R 251 RS1/10S332J
R 252 RS1/10S332J
R 253 RS1/10S103J
R 254 RS1/10S103J
R 255 RS1/10S564J
R 256 RS1/16S0R0J
R 257 RS1/8S0R0J
R 258 RS1/16S0R0J
R 259 RS1/16S0R0J
R 261 RS1/10S472J
R 262 RS1/10S472J
R 269 RS1/10S683J
R 270 RS1/10S683J
R 271 RS1/10S122J
R 272 RS1/10S122J
R 273 RS1/10S272J
DFEFFF

11
5678
F
E
D
C
B
A
5678
FH-2427ZF/X1H/UC
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
R 274 RS1/10S272J
R 277 RS1/10S122J
R 278 RS1/10S122J
R 279 RS1/10S683J
R 280 RS1/10S683J
R 281 RS1/10S683J
R 282 RS1/10S683J
R 283 RS1/10S122J
R 284 RS1/10S122J
R 285 RS1/10S681J
R 286 RS1/10S681J
R 287 RS1/16S272J
R 288 RS1/10S272J
R 289 RS1/10S122J
R 290 RS1/10S122J
R 291 RS1/10S683J
R 292 RS1/10S683J
R 293 RS1/16S472J
R 294 RS1/10S472J
R 297 RS1/10S182J
R 298 RS1/10S182J
R 299 RS1/10S332J
R 300 RS1/10S332J
R 1001 RS1/8S223J
R 1002 RS1/8S472J
R 1003 RS1/8S472J
R 1004 RS1/8S472J
R 1005 RS1/8S470J
R 1006 RS1/8S470J
R 1011 RS1/16S821J
R 1012 RS1/16S821J
R 1013 RS1/16S223J
R 1014 RS1/16S223J
R 1021 RD1/4PU103J
R 1022 RD1/4PU101J
R 1024 RS1/16S472J
R 1025 RS1/16S822J
R 1026 RS1/16S472J
R 1051 RS1/10S101J
R 1052 RS1/10S182J
R 1053 RS1/10S103J
R 1054 RS1/10S392J
R 1055 RS1/10S103J
R 1056 RS1/10S103J
R 1057 RS1/10S822J
R 1058 RS1/10S332J
R 1059 RS1/10S101J
R 1060 RS2LMF3R3J
R 1061 RS2LMF1R8J
R 1062 RS2LMF2R2J
R 1063 RS2PMF2R2J
R 1064 RS1/10S332J
R 1065 RS1/10S472J
R 1066 RS1/4S102J
R 1067 RS1PMFR47J
R 1068 RS1/10S333J
R 1069 RS1/10S112J
R 1070 RS1/10S223J
R 1201 RS1/10S103J
R 1202 RS1/10S103J
R 1203 RS1/10S332J
R 1204 RS1/10S332J
R 1205 RS1/10S392J
R 1206 RS1/10S392J
R 1207 RS1/10S101J
R 1208 RS1/10S101J
R 1209 RS1/10S182J
R 1210 RS1/10S182J
R 1211 RS1/10S332J
R 1212 RS1/10S332J
R 1213 RS1/10S103J
R 1214 RS1/10S103J
R 1215 RS1/10S472J
R 1216 RS1/10S473J
R 1217 RS1/10S473J
R 1218 RS1/10S564J
R 1261 RS1/10S392J
R 1262 RS1/10S392J
R 1263 RS1/10S122J
R 1264 RS1/10S122J
R 1271 RS1/10S821J
R 1272 RS1/10S821J
R 1279 RS1/10S273J
R 1280 RS1/10S273J
R 1285 RS1/16S101J
R 1286 RS1/10S101J
CAPACITORS
C 201 CEAL220M16
C 202 CEAL220M16
C 203 CEAL220M16
C 204 CEAL220M16
C 205 CKSQYB223K50
C 206 CKSQYB223K50
C 207 CKSRYB153K25
C 208 CKSRYB153K25
C 209 CKSQYB183K50
C 210 CKSQYB183K50
C 211 CKSQYB103K50
C 212 CKSQYB103K50
C 213 CKSQYB682K50
C 214 CKSQYB682K50
C 215 CKSRYB682K50
C 216 CKSRYB682K50
C 217 CKSRYB821K50
C 218 CKSRYB821K50
C 219 CKSRYB822K50
C 220 CKSRYB822K50
C 221 CKSQYB272K50
C 222 CKSQYB272K50
C 223 CKSRYB122K16
C 224 CKSRYB122K16
C 225 CCSQCH331J50
C 226 CCSQCH331J50
C 229 CKSQYB334K16
C 230 CKSYB334K16
C 231 CKSQYB334K16
C 232 CKSQYB334K16
C 233 CEAL150M10
C 234 CEAL150M10
C 235 CEJA221M6R3
C 236 CEJA221M6R3
C 239 CKSQYB102K50
C 240 CEAL3R3M50
C 255 CKSRYB683K50
C 256 CKSRYB683K50
C 257 CKSQYB333K50
C 258 CKSQYB333K50
C 259 CKSQYB224K16
C 260 CKSQYB224K16
C 261 CKSRYB562K50
C 262 CKSRYB562K50
C 263 CKSRYB152K50
C 264 CKSRYB152K50
C 265 CKSQYB183K50
C 266 CKSQYB183K50
C 267 CKSQYB472K50
C 268 CKSQYB472K50

12
1234
1234
F
E
D
C
B
A
FH-2427ZF/X1H/UC
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
C 269 CKSQYB122K50
C 270 CKSQYB122K50
C 271 CCSQCH331J50
C 272 CCSQCH331J50
C 275 CKSQYB334K16
C 276 CKSQYB334K16
C 277 CKSQYB334K16
C 278 CKSQYB334K16
C 279 CEAL150M10
C 280 CEAL150M10
C 281 CEJA221M6R3
C 282 CEJA221M6R3
C 285 CKSQYB102K50
C 286 CEAL3R3M50
C 1001 CEAL220M10
C 1002 CKSRYB222K50
C 1003 CKSRYB222K50
C 1004 CCSRCH181J50
C 1005 CCSRCH181J50
C 1051 CKSQYB102K50
C 1052 CKSQYB103K50
C 1053 CKSQYB562K50
C 1054 CEJA101M16
C 1056 CASA6R8M30
C 1057 CKSQYB471K50
C 1058 CKSQYB223K50
C 1059 CEAS101M50
C 1061 CEAL100M6R3
C 1071 CKSQYB332K50
C 1081 CKSQYB102K50
C 1082 CKSQYB102K50
C 1083 CKSQYB102K50
Unit Number : HWM0092
Unit Name : Keyboard Unit
MISCELLANEOUS
IC 901 IC LC75725E
Q 901 Transistor 2SC2882
Q 902 Transistor UN2111
Q 903 Transistor UN221D
Q 904 Transistor UN2111
Q 905 Transistor UN221D
Q 906 Transistor UN2111
Q 907 Transistor UN221D
Q 908 Transistor 2SA1037K
Q 909 Transistor UN221D
Q 910 Transistor UN2111
Q 911 Transistor UN221D
Q 912 Transistor UN2111
Q 913 Transistor UN221D
Q 914 Transistor UN2111
Q 915 Transistor UN221D
Q 916 Transistor UN2111
Q 917 Transistor UN221D
Q 918 Transistor DTA124EK
Q 919 Transistor DTC124EK
Q 920 Transistor DTC124EK
D 901 Diode UDZS7R5(B)
D 902 Chip Diode MA151WK
D 907 LED SML-310PT
D 950 LED SML-310PT
D 951 LED SML-310PT
D 952 LED SML-310PT
D 953 LED SML-310PT
D 954 LED SML-310PT
D 955 LED SML-310PT
D 956 LED SML-310PT
D 957 LED SML-310PT
D 958 LED SML-310PT
D 959 LED SML-310PT
D 960 LED SML-310PT
D 961 LED SML-310PT
D 962 LED SML-310PT
D 963 LED SML-310PT
D 964 LED SML-310PT
D 965 LED SML-310PT
D 966 LED SML-310PT
D 967 LED SML-310PT
D 968 LED SML-310PT
D 969 LED SML-310PT
D 970 LED SML-310PT
D 971 LED SML-310PT
D 974 LED SML-310PT
D 975 LED SML-310PT
D 976 LED SML-310PT
D 977 LED SML-310PT
D 978 LED SML-310PT
D 979 LED SML-310PT
D 981 LED SML-310PT
D 982 LED SML-310PT
D 983 LED SML-310PT
D 985 LED SML-310PT
D 986 LED SML-310PT
D 988 LED SML-310PT
D 989 Diode HZU2R0(B)
VR 901 Encoder CSD1070
VR 902 Switch CSD1071
RESISTORS
R 901 RS1/16S562J
R 902 RS1/4S121J
R 903 RS1/16S682J
R 904 RS1/4S103J
R 905 RS1/16S393J
R 906 RS1/16S122J
R 907 RS1/16S122J
R 908 RS1/16S122J
R 909 RS1/16S122J
R 910 RS1/16S103J
R 911 RS1/16S103J
R 912 RS1/16S122J
R 913 RS1/16S122J
R 914 RS1/16S122J
R 915 RS1/16S122J
R 916 RS1/16S223J
R 920 RS1/16S103J
R 921 RS1/16S103J
R 922 RS1/16S103J
R 923 RS1/16S103J
R 924 RS1/16S103J
R 925 RS1/16S103J
R 926 RS1/16S103J
R 927 RS1/16S103J
R 930 RS1/16S393J
R 931 RS1/16S393J
R 932 RS1/16S393J
R 933 RS1/16S393J
R 934 RS1/16S393J
R 935 RS1/16S393J
R 936 RS1/16S393J
R 937 RS1/16S393J
R 938 RS1/16S393J
R 939 RS1/16S393J
R 940 RS1/16S393J
CF

13
5678
F
E
D
C
B
A
5678
FH-2427ZF/X1H/UC
=====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ ------------------------- =====Circuit Symbol and No.===Part Name Part No.
--- ------ ------------------------------------------ -------------------------
R 941 RS1/16S393J
R 942 RS1/16S393J
R 943 RS1/16S393J
R 944 RS1/16S393J
R 945 RS1/16S393J
R 946 RS1/16S393J
R 947 RS1/16S393J
R 948 RS1/16S393J
R 949 RS1/16S393J
R 951 RS1/16S101J
R 952 RS1/16S101J
R 953 RS1/16S101J
R 954 RS1/16S101J
R 955 RS1/16S101J
R 956 RS1/16S101J
R 957 RS1/16S101J
R 958 RS1/16S101J
R 959 RS1/16S101J
R 960 RS1/16S101J
R 961 RS1/16S102J
R 962 RS1/16S101J
R 963 RS1/16S101J
R 964 RS1/16S101J
R 965 RS1/16S472J
R 966 RS1/16S101J
R 967 RS1/16S151J
R 968 RS1/16S101J
R 970 RS1/16S101J
R 971 RS1/16S101J
R 973 RS1/16S101J
R 974 RS1/4S121J
R 976 RS1/16S393J
R 977 RS1/16S393J
R 978 RS1/16S393J
R 979 RS1/16S393J
R 989 RS1/4S103J
R 991 RS1/16S393J
R 994 RS1/16S393J
R 995 RS1/16S393J
R 996 RS1/16S393J
R 997 RS1/16S393J
R 998 RS1/16S393J
R 999 RS1/16S393J
R 1901 RS1/16S471J
R 1902 RS1/16S471J
R 1903 RS1/16S471J
R 1904 RS1/16S471J
R 1906 RS1/16S102J
R 1907 RS1/16S102J
R 1908 RS1/16S102J
R 1909 RS1/16S102J
R 1912 RS1/16S102J
R 1913 RS1/16S102J
R 1914 RS1/16S102J
R 1915 RS1/16S102J
R 1916 RS1/16S332J
R 1951 RS1/16S101J
R 1952 RS1/16S101J
R 1953 RS1/16S101J
R 1954 RS1/16S101J
R 1955 RS1/16S101J
R 1956 RS1/16S101J
R 1957 RS1/16S101J
R 1958 RS1/16S101J
R 1959 RS1/16S101J
R 1960 RS1/16S101J
R 1962 RS1/16S101J
R 1963 RS1/16S101J
R 1964 RS1/16S101J
R 1966 RS1/16S101J
R 1967 RS1/16S181J
R 1968 RS1/16S101J
R 1970 RS1/16S101J
R 1971 RS1/16S101J
R 1973 RS1/16S101J
CAPACITORS
C 901 CCSRCH220J50
C 902 CKSRYB103K50
C 903 CKSRYB103K50
C 904 CKSRYB104K16
C 906 CKSRYB102K50
C 907 CKSRYB102K50
C 910 CKSRYB102K50
C 952 CCSRCH150J50
