Pioneer VSX-D601 User manual

Operating
Instructions
AUDIO/VIDEO STEREO RECEIVER
Vox 160
MOTO D719
PIONEER numeinoee erento seems wee VSX-D7O1S
DEMO MODE |
® Illustration shows model VSX-D701S.
*® The demonstration mode is activated by turning on the power
switch while holding down the RETURN button (from power
standby condition). The demonstration will appear on the display.
® Press the POWER switch to cancel the demonstration.
* Activating the demonstration mode causes memory contents to
return to their original default condition except tuner.
Thank you for buying this Pioneer product.
Please read through these operating instructions so you will know how.
to operate your model properly. After you have finished reading the
instructions, put them away in a safe place for future reference.
in some countries or regions, the shape of the power plug and power
outlet may sometimes differ from that shown in the explanatory
drawings. However, the method of connecting and operating the unit
is the same.
WARNING: To PREVENT FIRE OR SHOCK HAZARD, DO NOT
EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
IMPORTANT NOTICE
[For U.S. and Canadian models]
The serial nurnber for this equipment is located on the rear panel. Please
write this serial number on your enclosed warranty card and keep it in
@ secure area. This is for your security.
Note to CATV system installer
This reminder is provided to cail the CATV system instalier’s attention
to Article 820-40 of the NEC that provides guidelines for proper
grounding and, in particular, specifies that the cable ground shall be
connected to the grounding system of the building, as close to the point
of cable entry as practical.
[For Canadian model]
CAUTION: To PREVENT ELECTRIC SHOCK DO NOT USE THIS
(POLARIZED) PLUG WITH AN EXTENSION CORD, RECEPTACLE OR
OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO
PREVENT BLADE EXPOSURE.
ATTENTION: Pour PREVENIR LES CHOCS ELECTRIQUES NE
PAS UTILISER CETTE FICHE POLARISEE AVEC UN PROLONGATEUR
UNE PRISE DE COURANT OU UNE AUTRE SORTIE DE COURANT,
SAUF SI LES LAMES PEUVENT ETRE INSEREES A FOND SANS EN
LAISSER AUCUNE PARTIE A DECOUVERT.
[ RETURN function
This function returns the unit to a set of initial settings and ready !
to broadcast tuner. This is helpful during troubleshooting or when
no sound is output. For details, refer to page 18.
@
PIONEER’
The Art of Entertainment

IMPORTANT
The byhteing flash with arrowhead. within as equdataral
tangle, ts intended to alert the user to the presenc:
uninsulated “dangerous voltage” within the product's
enciosure that may be af sutfiment magmtude to constitute
anisk of ele shack t6 persons.
READ INSTRUCTIONS -- All the safety and operating
instructions should bs read hefore the appiiance is
operated
RETAIN INSTRUCTIONS ~ The safety and operating
instructions should be retained for future
reference.
HEED WARNING ~ Ali warnings on the appliance andin
the operating instructions should be adhered to.
FOLLOW INSTRUCTIONS - Ali operating anc use
instructions should be followed
WATER AND MOISTURE « The appliance should not
be used near water ~ for example, near a bathtub,
washbow!, kitchen sink, faundry tub, in a wet
basement, or near a swimming pool. ste.
LOCATION - The appliance should be installed in a
stable location.
WALL OR CEILING MOUNTING The appliance
should not be mounted to a wall or ceiling.
VENTILATION ~ The appliance should be situated so
that its location or position does not interfere with
its proper ventilation. For example. the appliance
should not be situated on a bed, sofa, rug, or similar
surface that may block the ventilation openings; or,
placed in a builtin installation, such as a bookcase
of cabinet that may impede the flow of air through
the ventilation openings.
HEAT -- The appliance should be situated away from
heat sources such as radiators, heat registers,
stoves, or other appliances {including amplifiers)
that produce heat
POWER SOURCES - The appliance should be
connected to 2 power supply only of the type
described in the operating instuctions or as
marked 09 the apaliance.
POWER-CORD PROTECTION ~ Power-supply cords
should be routed so that they are rot tikely to be
walked on or pinched by Rems slaced upon or
against them. Pay particular attention to cords at
plugs, convenience receptacles, and the point
where they exit from the appliance.
POLARIZATION if your purchased product is
provided with a polarized power plug, please read
the following instructions. This productis equipped
with a polarized alternating currentiine plug {a plug
having one blade wider than the other), This plug
will fit into the pawer outlet only one way, This is a
safety feature. if you are unable to insert the plug
fully into the outlet, try reversing the plug. If the
plug should still fail to fit, contact your electrician to
replace your obsolete outiet. Oo not defeat the
safety purpose of the polarized plug
CLEANING ~ The appliance should he cleaned only
with @ polishing cloth or a soft dry cloth. Never
clean with furniture wax, benzing, insecticides ar
other volatile liquids since they may corrode the
cabinet.
— SAFETY INSTRUCTIONS —
ee
CAUTION
RISK OF ELECTRIC SHOCK
DO:NOT OPEN
CAUTION
TO PREVENT THE RISK OF ELECTRIC SHOCK, DO
NOT REMOVE COVER (OR BACK}. NO USER
SERVICEABLE PARTS INSIDE. REFER SERVICING TO
QUALIFIED SERVICE PERSONNEL
POWER LINES ~ An outdoor antanna should be located
away from power fines
NONUSE PERIODS - The power cord of the appliance
should be unplugged from the outlet when teft
unused for 2 long periad of time
OBJECT AND LIQUID ENTRY ~ Care should be taken
so that objects do not fail and liquids are not spilled
into the enclosure through openings
DAMAGE REQUIRING SERVICE — The appliance
should be serviced by a Pisnear authorized services
center of quatified service personnel when:
The power-supply cord or the plug has been
damaged
Objects have fallen, or liquid has been spilled into
the appliance.
‘The appliance has been exposed to rain
The appliance does not appear to operate normally
or exhibits @ marked change in performance
The appliance has been dropped or the enclosure
damaged
SERVICING ~ The user should not attempt to service
the appliance beyond that described in the
operating instructions. All other servicing should
be referred to qualified service personnel
ELECTRIC
SERVICE
EQUIPMENT
ee
aoe
™ POWER SERVICE GROUNDING
ELECTRODE SYSTEM
FIG. A (NEC ART 259, PART H)}
Lene ANTENNA
LEAD IN
WIRE
ANTENNA
» DISCHARGE UNIT
{NEC SECTION 810 —- 20}
GROUNDING CONDUCTORS
{NEC SECTION 810 ~~ 21)
tome GROUND CLAMPS:
sete
The exclamation pownt within an equilateral triangle 15
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
erature accompanying the appliance
GUTDOOR ANTENNA GROUNDING ~ If an outside
antenna is connected fo the amenna terminal, be
sure the antenna system is grounded 50 as to
provide some protection against voltage surges
and built-up static charges.
th the U.S.A. section 919 of the National Giectrical
Cade, ANSI/NFPA 70. provides information with
respect to proper grounding of the mast and
supporting structure, grounding of the tead-in wire
to an antenna discharge unit, size of grounding
conductoss, location of antenna discharge unit,
connection to grounding electrades, and
requicements for the grounding electrode. See Fig
A
CART -- An appliance and cart combination should be
moved with care, Quick stops, excessive force, and
uneven surfaces may cause the appliance and vart
combination to averturn
= Ae
NEC — NATIONAL ELECTRIC CODE
|
| ACCESSORY ITEMS
ce
FM T-type Antenna
2
< ARBI380>
En
AM Loop Antenna
{VSX-D7018}
Audio/Video programmable
remote control unit
IVSX-D601]
Audio/Video remote
control unit
Alkaline dry cell batteries
(size “AA” (LR6/AM-3)}

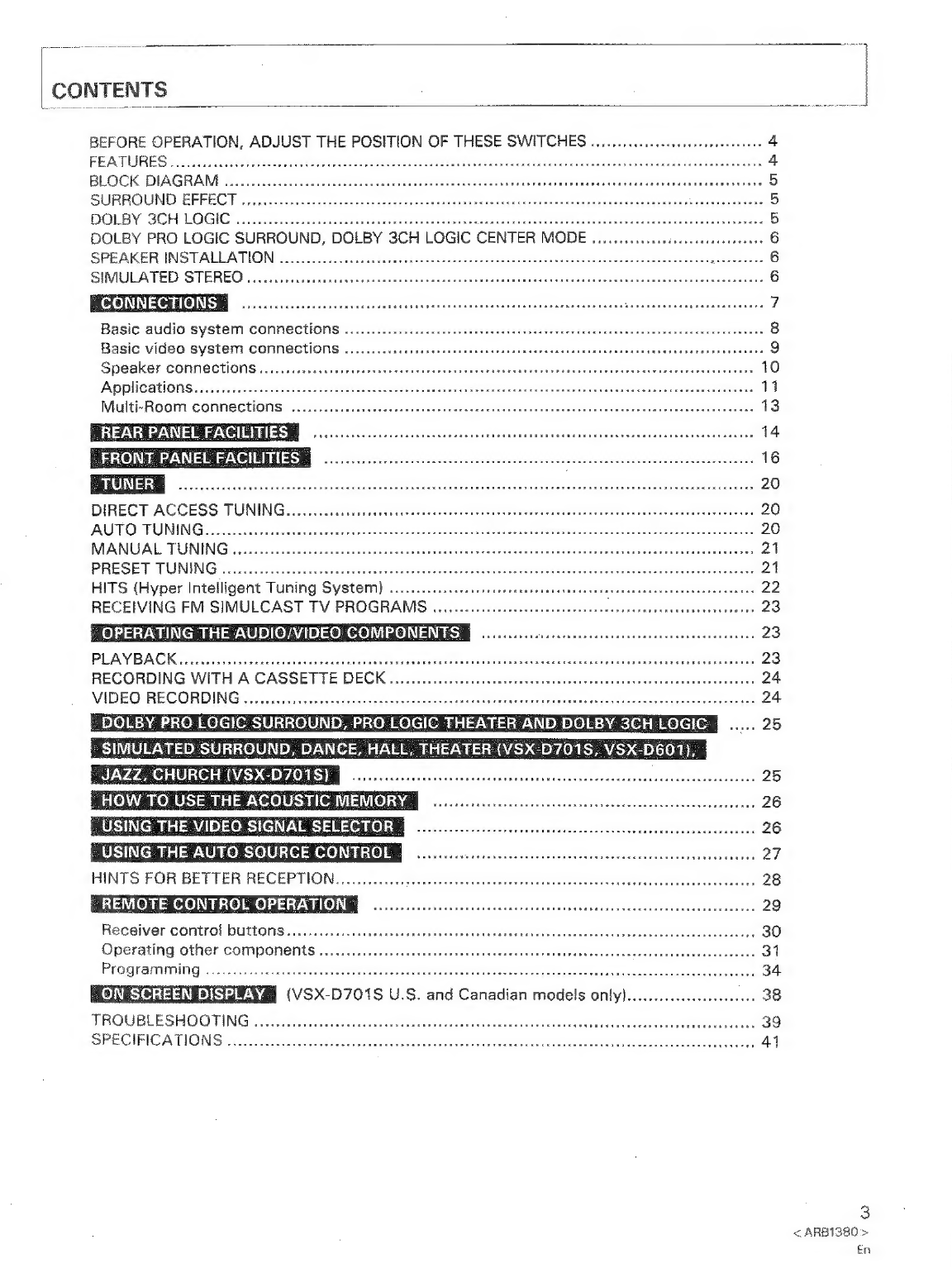

CONTENTS
BEFORE OPERATION, ADJUST THE POSITION OF THESE SWITCHES ........ccsecseeeteereeeeeereee 4
FEATURES Seccccaliase geld flee ashtya cedeh cued dae spans dcahadedueaega(atsdeaadua shade cuadeassatiiaaaagbeetiaateasadtaased 4
BLOCK DIAGRAM .. 5
SURROUND
EFFECT
........-2:000
5
DOLBY SCM LOGIC sya dc oeiaeeusiiuas ae arto ares uapnceeanatenlatinetuns 5
DOLBY PRO LOGIC SURROUND, DOLBY 3CH LOGIC CENTER MODE 6
SPEAKER INSTALLATION a vuceacsvssveesdennesadeiaiccerns de cngneiepraguehantieaey 6
SIMULATED STEREO. 6
CONNECTIONS [Ripper rel rrrer errr errr rSr tres lr rer lSr ESS rrStererrrSrenrS Aablnentealdaleteciiuet 7
Basic audio SySteM CONNECTIONS ............cecceceveneeeneceeneneseasetensneeeectenceesertensecersereerenene 8
Basic Video SYSTEM CONNECTIONS ........ccccseerece eee eee eee ee nee ee rece eee een eD eee ee CEH SOR EEA TED EP OSB E EE ES 9
SPOSKESH COMME CTIONGS silk innbisiavenvesd dihsu suns veicaaievack cavenved nysiva Mana oe ipadvncsdheeed sn sgaani@iaesde 10
Applications aa
MUlticROOMUCONNE CHONG: ...sitskcadereatessaubsers ese see leuasdeagetscdGaasdavsresietsoe hoses Gieterasevedt ses 13
REAR PANEL FACILITIES [RRnnnnnnerernrprrnnrpnre Orr nt ttt tte ttt tt Stet tet tee tee Stet e ett t tere eer eres 14
FRONT PANEL FACILITIES [peepee ccc 16
TUNER wer
DIREC ACCESS TINING: 3 cccackes Ng cdics corsa ceed ataraaevandeies Lap nelacauia Ma cceeadarnulvo aces 20
AUTO. TUNING © 26.0 cotieti eateaacs aise aesamoten snes thre aed bane etd Anna EUS Rt tas eR a aa 20
MANUAL TUNING. sel
PRESET. TUNG osha er esse tN sce Aa od es cae cg aves en pers ten en vicen rey Araceae 21
HITS (Hyper Intelligent Tuning System) ...........cccceeseeeseceee eee neneveece see seereeeteneeetenteneeneee 22
RECEIVING FM SIMULCAST TV PROGRAMS 1... ....:ceeceeeeeeee eset eteneerepen eran penneenaeseneenaees 23
OPERATING THE AUDIO/VIDEO COMPONENTS ([iRRRppRRRRRernrrersenrrnnnprrenenrrnnprnrrnprnnenEn 23
PCE ACR 1 ict Sacha ls vic ated Sates e tera wn dag basta ee atenu ado Way ey Mauch sa anten cata avons hub vale nuemane 23
RECORDING WITH A- CASSETTE DECK ic. nkcccasnesdevpndae ens ushawniea il nasdytubass nam ntonnss reson 24
VIDEO! RECORDING oisssvcsescsteed cvvenenncsns one ucns cnvavdeleadetseetwistas tan sdibatsoeeies dee ssaautsvenaseaes 24
DOLBY PRO LOGIC SURROUND, PRO LOGIC THEATER AND DOLBY 3CH LOGIC [iMMMPds)
SIMULATED SURROUND, DANCE, HALL, THEATER (VSX-D701S, VSX-D601},
JAZZ, CHURCH (VSX-D701S) [RRR 25
HOW TO USE THE ACOUSTIC MEMORY [Rpprererennenenesnnnen tenets sgessnnne sn nDSnpSSennnnn 26
USING THE VIDEO SIGNAL SELECTOR [iRipnnnnsresnnsnnrrtrnt St tS tSSS=0000000 snes ste ssannoe 26
USING THE AUTO SOURCE CONTROL
HINTS:FOR-BET FER RECEPTION ti 20. sacivcredccnccunavicanndeasecuecslsveccecidvctncasedpetueseaiadequidecac es
REMOTE CONTROL OPERATION (iRRRRnnrernrnnrrretp OSS O nt tS tS tt tt Sttt ss StS Sets ss se snnen
Rereiver Gone Gl BUT ONG xa ck ccse nest ai ys cond eee ac ene Veraspgedycehldaio rid lula risen ua aeans sense
Operating other components.
PIOOPOOUTING os ccci acs cck teeaedasg aerererenige
Ol elas eSe ee) (VSX-D701S U.S. and Canadian models only).............cccc0eeeees 38
TROUBLESHOOTING Sete ciate ics fedetauretea ce foubiatvndel Qoeseadvecchcoksyatieit oti ecsoebaiha coat teenies 33
SPECIFICATIONS enc cdicuicd ign cuniaceos cceceitaands cnr catia tag wgeee Wen ideitansanbed Gaecceulesacseeeeeeand 41
3
< ARBI380 >
En

——
_ BEFORE OPERATING, ADJUST THE POSITION OF THESE SWITCHES
_TWO VOLTAGE SELECTOR SWITCHES —_|
Only multi-voltage models are provided with these switches. U.S.,
Canadian, European, U.K. and Australian models are not provided with
these switches.
Mains voltages in Saudi Arabia are 127 V and 220 V only. Never use
this modei with 110 V setting in Saudi Arabia,
The line voltage selector switches are on the rear panel. Before your
model is shipped from the factory, these switches are set to the power
requirements of the destination. Check that they are set properly before
plugging the power cord into the household wall socket. If the voltage
is not properly set or if you move to an area where the voltage
requirements differ, adjust the selector switches as follows,
1, Use a medium-size screwdriver.
2. First, insert a screwdriver in the groove of the voltage selector at
the right, and adjust so that the tip of the groove points to the voltage
value of your area.
3. Next, insert a screwdriver in the groove of the voltage selector at
the left and adjust until the voltage is the same as at the right.
TWO VOLTAGE SELECTORS [
i
110V
129- 127V gi
bs FS
£
oS
3 3
a B
D
220V 220V 240V x
240V &
110V 120- 127V 5
SEE INSTRUCTION MANUAL S
“CHANNEL STEP/FM DE EMPHASIS SWITCH |
| (Not available on U.S. and Canadian modeis) |
The unit has been factory preset to the channel allocation and de:
emphasis value for the area in which it is to be sold. If these values are
set incorrectly, the frequency display may stop at the wrong frequency,
or sound may be distorted, resulting in an inability to reproduce reception
signals at their proper sound quality, For this reason, be sure to confirm
that the values are set correctly before first using the unit.
{100 kH2z/10 kHz/75 zs] position:
Set to this position for areas with an FM reception step of 100 kHz,
AM 10 kHz, and de-emphasis 75 ps.
[50 kHz/9 kHz/50 ys] position:
Set to this position, for areas with an FM reception step of 50 KHz, AM
9 kHz, and de-emphasis 50 gs.
NOTE:
When unsure about the channel ailocation and de-emphasis values for
your area, consult your dealer for correct information.
GHANNEL STEP/
FM DE-
EMPHASIS
BOkHz
(B08 —@ we SkHz
FOOkHz ~@ Bm LOKHZ
1758
FM AM
Both switches must be in the same switch
setting; otherwise, unit can be damaged.
| FEATURES
The VSX-D701S/VSX-D601 combines the functions of receiver,
wireless remote control, audio-visual selector and surround processor.
it will play a central rale in your enjoyment of audio-video media.
¢ DOLBY PRO LOGIC SURROUND performed by a
Digital Signal Processor (DSP).
® DSP provides Sound Field Control (SFC)
simulated surround settings.
* LARGE, MOTOR-DRIVEN VOLUME KNOB
The large volume knob contributes to operational convenience and
positive responses, You can even operate it via remote control. When
you change the volume setting using the remote control unit, the knob
tums by itself, making it easy to keep track of the current setting.
* VIDEO SIGNAL SELECTOR (Simulcast function)
Allows free cornbination of various audio-visual sources during playback
and over-dubbing, enabling you to produce your own original video
product.
*® TWO-WAY VCR COPYING AND MONITORING
VCR 1 — VCR 2: Copying of video cassette tapes can be performed
in either direction.
LD — VCR 1, VCR 2: Allows simultaneous production of twa copies
from video disc or compact disc with video.
* ACOUSTIC MEMORY FUNCTION
Five types (A-—E) of tone control settings can be preset. The settings for
loudness and flat tone response functions can also be selected quickly.
4
<ARB1I380>
En
¢ CUSTOM MEMORY FUNCTION
Stations can be preset according to the genre of the material broadcast,
and Memory Scan of a particular genre can be carried out
¢ 90/60/30-MINUTE SLEEP TIMER FUNCTION
* MULTI-ROOM REMOTE JACK
The optional MR-100 Multiroom remote control unit can be connected
to the Multi-room remote IN jack.
¢ AV PROGRAMMABLE REMOTE CONTROL UNIT
(VSX-D701S)
With the attached programmable remote control unit, you can operate
any Pioneer audio or video component bearing the §@ mark.
if you use the LEARN function, remote cammands of components not
bearing the §f mark can be memorized, giving you remote control over
a component's functions.
You can aiso use the MULTI-COMMAND to memorize up to seven
commands in < der, letting you transmit them at the push of a single
button.
« AV REMOTE CONTROL UNIT (VSX-D601)
With the attached remote control unit, you can operate any Pioneer
audio or video component baring the @ mark.
You can also use the MULTI-CCOMMAND ta memorize up to seven
commands in order, letting you transmit them at the push of a singie
button

Bee Oe ee.
AUBIO %
vo) PRE OUT FRONT
oo TB one
Lire
URR, o%
oL te ie"
Ln pi
SURROUND EFFECT
This unit is equipped with DOLBY PRO LOGIC SURROUND. There’s also
a DSP (Digital Signal Processor), with a choice of five SFC (Sound Field
Control) simulated surround settings.
* SIMULATED SURROUND:
The ‘‘SIMULATED” creates effects of reverberated and reflected sound
from the wails and ceiling similar to a concert hall. These sound-effects
added to the actual sound from the source make you feel as if you were
in a more expanded space.
Choose the SIMULATED SURROUND mode if the source sound signal
is mono.
¢ JAZZ: (VSX-D701S only)
This gives you the sound field of a jazz club.
¢ CHURCH: (VSX-D701S only}
The sound field of a church, ideal for reproducing the rich sound of a
pipe organ.
® DANCE:
A “hot’’ high-energy sound, with extra reverb for greater ambience.
® HALL:
You can enjoy 2 convincing hall sound.
@ THEATER:
Use this when watching a movie sources that have a stereo soundtrack
to enjoy the effect of being in a movie theater.
* PRO LOGIC THEATER
Use with video software bearing the [{][pocsy sunpounp] mark.
The feeling of movement, and outstanding stereo imaging offered by
DOLBY PRO LOGIC SURROUND, together with atmosphere of a movie
theater assure incredible ambience.
* DOLBY PRO LOGIC SURROUND
Choose this setting for movies and music (especially Video Discs and
video tapes bearing the [J{][eovey surrounn] mark) playback.
DOLBY PRO LOGIC SURROUND continuously detects the size and
direction of the dominant signal and cancels undesirable crosstalk,
thereby providing signal emphasis.
{t makes you clearly perceive the directions where music comes from.
Real flow of sound also can be re-created naturally using this feature.
You can feel as if being in the outstanding and expansive sound field.
When using DOLBY PRO LOGIC SURROUND, a delay time setting of
20 ms is commonly used. Use a different setting if you prefer.
Note:
Dolby Surround will not operate correctly if the signal passes through |
a graphic equalizer. }
When using Dolby Surround, turn off the TAPE 2 MONITOR or set
the graphic equalizer for flat response or to its “through” (or off}
setting, if you have one in use.
DOLBY 3CH LOGIC
Combining the rear speaker signal with that of the front speakers results
in your being able to enjoy a regenerated sound field which has
comparatively more presence and 4 more expansive feeling from the
front 3 channels (front L, front R, and center speakers) than that of
ordinary stereo regeneration.
DOLBY 3CH LOGIC can be used with stereo sources not encoded with
DOLBY SURROUND.
Manufactured under license from Dolby Laboratories Licensing
Corporation. Additionally licensed under one or more of the
following patents: U.S. numbers 3,632,886, 3,746,792 and
3,959,590; Canadian numbers 1,004,603 and 1,037,877.
“Dolby” and the double-D symbol [][] are trademarks of Dolby
Laboratories Licensing Corporation,
Fabriqué sous licence de Dolby Laboratories Licensing Corporation
et sous un ou plusieurs des brevets suivants: U.S.A. 3,632,886,
3,746,792, et 3,959,590; Canada 1,004,603 et 1,037,877.
DOLBY et le symbole double-D Oo sont des marques de Dolby |
Laboratories Licensing Corporation.
5
<ARB1380>
En

You can choose from the following settings:
Center Mode Choices:
When using a center speaker:
*® NORMAL -- Low range frequencies, which have little effect on
directionality and positioning, are routed to the left and right front
speakers. So you can use a relatively small size speaker as the center
speaker,
* WIDE — if you use a large size center speaker, choose this setting.
The full frequency range of the Dolby Surround center channel, from
low to high, is routed to the center speaker.
DOLBY PRO LOGIC SURROUND, DOLBY 3CH LOGIC CENTER MODE
When not using a center speaker: DOLBY PRO LOGIC SURROUND
® PHANTOM -- The signal which would have been sent to the center
speaker is divided equally between the left and right front speakers.
With DOLBY PRO LOGIC SURROUND, monaural source sound will be
heard only from the center channel at settings other than the PHANTOM
position.
SPEAKER INSTALLATION
To get the most out of the surround system, place the speakers as
shown below.
An example of speaker positioning
Front left Center speaker Front right
speaker FRONT speaker
Rear left
speaker
Rear right
speaker
If the rear speakers are positioned at an extreme distance, the surround
level becomes unable to adjust and the surround effect will not be fully
achieved.
NOTE:
* To avoid interference with the picture on a nearby TV set, use
magnetically shielded speaker systems. This is particularly important
for the center speaker since it is usually located closest to the TV.
* Position the left and right channel speakers at equal distances from
the TV set and approximately six feet from each other.
*® Position the center speaker above, below, ar behind the TV set. Sound
may not appear to coincide with the picture if you position it next to
the TV set.
* Rear speakers are best positioned stightly above ear level.
Pietilh de hcmcdicdleliecte
This function transforms monaural signals into simulated stereo sound.
Use it when you wish to experience a serise of stereo presence when
listening to AM broadcasts, and other monaural signal sources,
6
<ARBI380>
En
NOTE:
The simulated stereo function can alse be used with stereo sound
sources, but it will result in an effect somewhat different from the normal
stereo sound,

CONNECTIONS
Setting
Up
the
AM
Antenna
|
*
Insert
the
claw
on
the
bottorn
of
the
antenna
into
the
groove
in
the
leg
|
»
Place
the
antenna
on
a
level
surface
and
rotate
it
to
locate
the
orientation
that
yields
the
best
reception.
* Use the attachment hole in the leg te screw to wall or other
location, then insert the claw on the bottom of the antenna into
the groove in the leg (fixing the antenna in the direction that gives
the best reception) |
'
Lead wire ;
Precaution regarding installation po
deck.
If the cassette deck is installed in the @) positions shown in the
drawing below, it may be adversely affected during playback. lf
ition of cassette
possible, it’s better to install it in the (8) position.
POWER-CORD CAUTION
Handle the power cord by the plug. De not pull out the plug by tugging
the cord and never touch the power cord when your hands are wet as
this could cause a short circuit or electric shock. Do not place the unit,
a piece of furniture, etc., on the power cord, or pinch the cord. Never
make a knot in the cord or tie it with other cords, The power cords
should be routed such that they are not likely to be stepped on. A
damaged power cord can cause fire or giva you an electrical shock.
Check the power cord once in a while. When you find it damaged, ask
your nearest PIONEER authorized service center or your dealer for a
replacement.
7
<< ARBI380 >
En

CONNECTIONS
TRAGIC
ALINIO
eVShoin
AO
eee
NOTE
FOR
FM
T-TYPE
ANTENNA
_BASIC
AUDIO
§
YSTEM
CONNECTIONS
eee
|
Stretch
the
antenna
out
to
its
full
fength,
and
affix
it
to
a
wall,
etc.
NOTE
FOR
AM
LOOP
ANTENNA
The
antenna
should
be
Placed
at
a
distance
from
the
receiver,
and
should
not
be
allowed
to
touch
metailic
objects.
Avoid
placing
it
near
CD
pla
yéers,
personal
computers,
television
sets,
and
other
devices
generating
radio
frequencies.
*
lllustration
shows
VSX-D701S
U.S.
and
Canadian
model.
Accessory
FM-T type antenna
Q
Accessory
AM
a
Loop
antenna
Turntable
[Power
cord
connection
example!
Cassette deck 1/DAT
\RB1380 >

CONNECTIONS
| BASIC VIDEO SYSTEM CONNECTIONS 7 ; |
TV monitor
VSX-D701S
a (ae el
5
ar,
eeeemeren
[—
TV tuner
<ARBIZ20>
En

CONNECTIONS
| SPEAKER CONNECTIONS
FRONT
Center/Rear speaker cord cB se LF i |
‘ 313
connection
40
rot
=
Left
@ Push the lever down. :
2)
@ Insert the cord. wr 6
®
Center
© Pull the lever back.
NOTE:
Use speakers of impedance 8 Q — 16 2.
( Ereiit speaker cord connection
@ Push the fever up (or down).
(2) Insert the cord.
@ Pull the lever back.
VSX-D701S
NOTE:
When connecting a super woofer system such as the Pioneer
S-W1000, connect it to the same speaker terminals (A or B) to which
the front speakers are connected. Connecting the front speakers
and super woafer system to terminals A and B respectively will result
in reduced volume from the front speakers.
Front
(R)
Super
woofer
Front
{L)
We ne eee .
10
<ARBIZ80>
En

CONNECTIONS
|
APPLICATIONS
NOTE:
vee DOLBY PRO LOGIC SURROUND and DOLBY 3CH LOGIC will not
Additional Audio and Video Components
operate correctly if the signal passes through a graphic equalizer
When using DOLBY PRO LOGIC SURROUND or DOLBY 3CH LOGIC,
turn off the TAPE 2 MONITOR button or set the graphic equalizer
for flat response or to its “‘through’’ (or off) setting, if you have one
Cassette deck 2 in use.
When using a graphic equalizer
{NPUT OUTPUT. : ;
Graphic equalizer
From L and R ToLandR
REC jacks PLAY jacks
| __ AUDIO
lee
a
|
PS) rn ET
(REC) (PLAY)
in OUT
=
a=
ae
vee VCR (for playback only}, or
another component such as
a TV camera. oa
<ARBIZ80>
En

CONNECTIONS
When used with another power amplifiers Caution for use of AC OUTLETS:
Use these jacks when using a separate amplifier as the power source Components which have electrical power consumption greater than that
instead of this unit, and listening to speakers which are connected to indicated on the rear panel of this unit cannot be connected. Please take
necessary precaution.
the separate amplifier.
FRONT
LEFT
CENTER
RIGHT
=
Power amplifier Power amplifier
POWER IN
V8X-D701S
12
<ARB1380 >
En

CONNECTIONS
[Set-up example]
Speakers B
7
Remote control unit
Sub Room
g
i
Speakers A
Speakers A
including VSX-D701S
or VSX-D601)
Main Room| ‘\ N
| Ww AN oN
Ae
—_
“NOTE:
|
|
i
Be careful not to make the wrong connections
for CONTROL IN/OUT (black) and MULTI
ROOM REMOTE IN (green.
* If you cannect ta the CONTROL jacks of
ather components, such as a CD player or
cassette deck, bearing the §@ mark, you can
also enjoy remote control of these
components from Sub Room. (Far details
concerning connections, refer to page 15.)
Main Room
Speaker (L} TV monitor
Speaker (R}
® Illustration shows VSX-D701S U.S. and
Canadian model.
Speaker {L)
Se MR-100
Speaker (R)
reall
AC wall socket
13
< ARBI380>
En

REAR PANEL FACILITIES
* Illustration shows modal VSX-D701S
@
FM/AM
ANTENNA
terminals
Use
these
antenna
terminals
for
reception
of
normal
FM
and
AM
broadcasts,
@ TAPE 2 MONITOR jacks
Connect the second cassette deck to these jacks.
Connecting for Recording
The
tape
recording
jack
(REC)
on
the
cassette
deck
should
be
connected
to
the
REC
side
of
the
TAPE
2
MONITOR
jack
on
the
receiver
with
a
pin
plug
connecting
cord.
Connecting for Playback
Connect
the
TAPE
PLAY
jack
on
the
cassette
deck
to
the
PLAY
side
of
the
TAPE
2
MONITOR
jack
on
the
receiver
with
a
pin
plug
connecting
cord.
@TAPE 1/DAT jacks
Use
these
to
connect
the
cassette
deck
or
DAT
(digital
audio
tape}
deck.
Connecting
for
Recording
The
tape
recording
jack
(REC}
on
the
cassette
deck
or
DAT
should
be
connected
to
the
REC
side
of
the
TAPE
1/DAT
jack
on
the
receiver
with
a
pin
plug
connecting
cord
Connecting for Playback
Connect
the
PLAY
jack
on
the
cassette
deck
or
DAT
to
the
PLAY
side
of
the
TAPE
1/DAT
jack
on
the
receiver
with
a
pin
plug
connecting
cord.
@ VIDEO OUT (TV MONITOR) jack
Connect
to
monitor
TY
or
to
TV
sets
with
video
input
terminals
for
watching
program
materials
from
a
VCR
1,
2
or
LD
player
connected
to
this
unit.
14
«< ARB1380 >
En
(3) VCR 2 jacks
VIDEO OUT}
When
copying
program
material
from
the
video
component
connected.
to
the
VCR
1
or
LD
jacks,
connect
to
the
VIDEO
INPUT
jacks
of
the
VCR
used
for
recording
AUDIO OUT iL, R}]
When
copying
program
materials
from
the
video
component
connected
to
the
VCR
1
or
LD
jacks,
or
when
recording
music
from
an
audio
component
source,
connect
to
the
AUDIO
INPUT
jacks
of
the
VCR
used
for
recording,
VIDEO IN]
When
monitoring
the
video
fromm
a
VCR
used
for
copying,
connect
its
VIDEO
OUTPUT
jacks
here.
AUDIO IN (L, Rij
When
monitoring
the
audio
channel
from
a
VCR
used
for
copying,
connect
its
AUDIO
GUTPUT
jacks
here.
© VCR 1 jacks
VIDEO OUT]
When
copying
program
material
from
the
video
component
connected:
to
the
VCR
2
or
LD
jacks,
connect
to
the
VIDEO
iNPUT
jacks
of
the
VCR
used
for
recording.
AUDIO OUT (L, Ri]
When
capying
program
material
from
the
video
component
connected
to
the
VCR
2
or
LD
jacks,
cr
when
recording
music
from
an
audio
component
source,
connect
to
the
AUDIO
INPUT
jacks
of
the
VCR
used
for
recording.
‘VIDEO IN]
When
monitoring
the
video
from
a
VCR
used
for
playing,
connect
its
VIDEO
OUTPUT
jacks
here.
AUDIO IN (L, R)]
When
monitoring
the
audio
channel
from
a
VCR
used
for
playing,
connect
its
AUDIO
OUTPUT
jacks
here.

REAR PANEL FACILITIES
) PRE OUT jacks
[FRONT AMP]
When a separate power amplifier is used to drive the front speakers,
connect the power amplifier to these jacks.
{CENTER AMP]
When a separate power amplifier is used to drive the surround center
speaker, connect the power amplifier to this jack.
{REAR AMP]
When a separate power amplifier is used to drive the rear speakers,
connect the power amplifier to these jacks.
(3) CENTER SPEAKER terminals
Connect the center speaker to these terminals.
NOTE:
Da not allow any of the cord’s conductors to protrude trom the terminals
or touch any other conductors. Malfunctioning or breakdowns may
occur when conductors come into contact with each other.
Use center speakers of impedance 8 2 — 16 Q.
(9) REAR SPEAKERS terminals
Connect the rear speakers to these terminals.
NOTE:
Do net allow any of the cord’s conductors to protrude from the terminals
or touch any ather conductors. Maffunctioning or breakdowns may
occur when conductors come into contact with each other.
Use rear speakers of impedance 8 2 — 16 2.
(( FRONT SPEAKERS terminals
A: Connect te the first set.of speakers.
8: Connect to the second set of speakers.
Speaker lead wire preparation and connection.
NOTE:
Do not allow any of the cord’s conductors to protrude from the terminals
or touch any other conductors. Malfunctioning or breakdowns may
occur when conductors come into contact with each other.
Use speakers of impedance 8 2 — 16 0.
@) PHONO input jacks
Connect to the output cables from a turntable.
@) GND terminal
Connect the turntable ground lead to this terminal.
@) CD input jacks
Connect to the output jacks of a compact disc player.
TV jacks {input}
Use these jacks if you wish to connect a TV tuner with both video and
audio outputs.
[VIDEO IN]
Connect the TV tuner’s VIDEO OUTPUT to this jack.
[AUDIO IN (L, R}]
Connect the TV tuner’s AUDIO OUTPUT to these jacks.
LD jacks
[VIDEO IN}
When watching the video image from an LD player, connect its VIDEO
OUTPUT jacks here.
[AUDIO IN (L, RIT
When playing back the audio channel from an LD player, connect its
AUDIO OUTPUT jacks here.
@ CONTROL IN/OUT jacks
IN: Connect this jack to other Pioneer components (main unit or
remote control unit) when using those components to control
this unit.
OUT: Connect this jack to other Pioneer components when using the
remote control of this unit to control the other components.
NOTE:
The receiver's rernote sensor does not function when a plug is inserted
in IN jack. To operate, point the remote control unit at the remote sensor
on the component to which the receiver’s IN jack is connected.
When using the
MR-100
|
M-100
PS
eee
ke
aa
i
Receiver
oe
A. An aes
Pioneer component
bearing the | mark.
+
Remote
i
control
To
the
CONTROL
IN
unit
_f
Remote
jack
of
the
Pioneer
control unit component bearing
the if] mark.
@ MULTI-ROOM REMOTE IN jack
Connect to the separately sold MR-100 Multi-Reom remote contro! unit.
@® AC OUTLETS
{U.S. and Canadian models]
[SWITCHED TOTAL 100 W (0.8 A) MAX}
Power supplied through these outlets is turned on and off by the
receiver’s POWER switch. Total electrical power consumption of
connected equipment should not exceed 100 W {0.8 A).
{UNSWITCHED 100 W (0.8 A} MAX]
Power flows continually to this outlet, regardless of whether the receiver
is switched ON or OFF. Electrical power consumption of the connected
equipment should not exceed 100 W (0.8 A}
The equipment should be disconnected by removing the power plug
from the wall socket when not in regular use, e.g. when on vacation:
[Multi-voitage model]
SWITCHED TOTAL 100 W MAX
Power supplied through these outlets is turned on and off by the
receiver's POWER switch. Total electrical power consumption of
connected equipment should not exceed 100 W
UNSWITCHED 100 W MAX
Power flows continually to this outlet, regardiess of whether the receiver
is switched ON or OFF. Electrical power consumption of the connected
equipment should not exceed 100 VW
NOTE:
® This unit should be disconnected by removing the power plug from
the wall socket wher not in regular use, e.g. when on vacation.
° De not connect appliances with high power consumption such as
heaters, irons, or television sets to these AC OUTLETS in order to
avoid overheating and fire risk
This can cause the receiver to malfunction.
CAUTION: |
DO NOT CONNECT MONITOR OR TV SET.
@ Power cord
15
< ARBIG80 >
En

FRONT. PANEL FACILITIES
® illustration shows model VSX-D7015.
® ®©@ ®@O@OOV® ®O
GP PIQINGER vm) ane
@ POWER STANDBY/ON switch/STANDBY indicator
This is the switch for electric power.
ON: When set to the ON position, power is supplied and the
unit becomes operational.
STANDBY: When set to STANDBY position, the main power flow is
cut and the unit is no longer fully operational. A minute
flow of power feeds the unit to maintain operation
readiness.
The STANDBY indicator lights when the power is
STANDBY, and goes out during ON.
[Timer ON/OFF possible]
When the unit is switched ON, ON/OFF control can be performed by
mearis of the optional timer.
NOTE:
When the power is initially tumed ON, muting will be applied to prevent
sound from being output for about 5 seconds.
@V-SIGNAL (VIDEO SIGNAL) SELECTOR button
Use to change the video signal in sequence leaving the sound
unchanged,
ae T+ VCR 2-— LD —» TV —* VIDEO — OFF =a
The current setting is shown by an indicator on the display section.
16
<ARBI380>
En
@) Remote sensor
(4) AUTO SOURCE CONTROL/MEMORY buttons
{See page 27)
1, 2 buttons:
These buttons are for memorizing and recalling your current settings.
Both 1 and 2 can be used to memorize settings. If you connect another
component, such as a CD player, te the CONTROL OUT jack on the
rear panel, the signals to switch power on and start play are aisc
transmitted.
MEMORY:
Use when memorizing settings to a1, 2 button.
G) MEMORY button (See page 21)
Pressing this button will resu!t in the memorization of the current
broadcast band. reception frequency, and FM AUTO/MONO mode.
This button is also used for custom memary operation.
© CUSTOM MEMO SEL button (See page 21)
Recall a genre name with this button.

@) SCAN button
Operate when the INPUT SELECTOR is set to TUNER. Station
frequencies assigned to the STATION CALL buttons are tuned in, one
after another, beginning with the current station no., for approximately
5 seconds each, The display section SCAN indicator will light. Press
the button again and the tuner remains tuned in to the station playing
when the button was pressed the second time.
Station frequencies not assigned to station numbers in the memory are
skipped.
When you have selected a CUSTOM MEMORY genre, memory scan
is performed on the stations in that genre.
(8) FM Mode AUTO/MONO button
Use to select the auto stereo mode or monaural mode when listening
to FM broadcasts. The monaural mode has been selected when the
FM MONO indicator in the dispiay section is lit.
Auto stereo mode:
Normally, leave in this mode for reception. When a stereo FM broadcast
is received, {it will be automatically reproduced in stereo.
Monaural mode:
When receiving distant stations or stations with weak broadcast signals,
the input signal may be weak, thus resulting in increased noise during
FM stereo broadcasts. In this event, setting the receiver to the monaural
mode will reduce the noise. In this case, however, FM stereo broadcasts
will be reproduced in monaural sound.
NOTE:
This button has no effect en reception of AM broadcasts.
@) Tuning buttons
Use to selact the tuning moda. To select the AUTO tuning mode, press
this button to light the AUTO TUNING indicator in the display section.
To select the MANUAL tuning mode, switch off the AUTO TUNING
indicator.
AUTO tuning
When the — or + TUNING button is pressed, the receiver automatically
scans the broadcast station frequencies. When a broadcast is detected,
the scanning stops at that frequency.
NOTE:
Pressing the TUNING button (- or +} while scanning is taking place
causes scanning to stop.
MANUAL tuning
This lets you manually tune to particular broadcast frequencies. Each
press of the + or -» button raises or lowers the frequency by one tuning
step. For continuous scanning, keep the button pressed, then release
it to stop scanning.
DIRECT ACCESS tuning button: (Page 20)
When this button is pressed, the STATION CALL buttons function as
ten-key number buttons for direct input of the desired reception
frequency. Press again to cancel this mode.
\f the input station falls outside of the receiver's tuning range, the display
section will display a message: “UPPER” if the frequency is too high
and ‘LOWER’ if it is too low.
HITS (Hyper Intelligent Tuning System) button: (Page 22)
Press this button, and search automatically begins up and down the
frequency for stations that can be received. When a station that can
be received is found, the search operation stops.
FRONT PANEL FACILITIES
STATION CALL buttons
Up to 30 FM or AM stations can be preset at random.
These buttons are used to preset and recall desired broadcasting
stations, FM AUTO/MONO mode.
NOTE:
Pressing a STATION CALL button will select TUNER as the source,
regardless of what other listening source or function was selected.
They are also used when performing direct access tuning,
@) SIMULATED STEREO button
Press to produce a simulated stereo effect when listening to monaural
sources (for example, normal AM or TY broadcasts),
“SIMULATED STEREQ” appears on the display section
NOTE:
° This effect is not produced through the rear speakers.
° Use with the SURROUND MODE in the OFF.
@ SURROUND MODE selector buttons
See page 5 ‘SURROUND EFFECT”,
@ BALANCE buttons
Use them to adjust the sound volume balance between left and right
speakers.
L: Press to decrease the sound on the right side.
R: Press to decrease the sound on the left side.
Press L and R together te bring the volume balance back to center.
NOTE:
The left-right sound volume balance cannot be adjusted on the rear
speakers.
(@@ TREBLE control buttons
Use to adjust the high-frequency level. Press the + button to increase
the high-frequency level, and the -- button to decrease it.
The TONE indicator appears on the display section,
When both buttons (-, +} of the TREBLE contro! are pressed
simultaneously, the treble response will be set to the flat (normal)
condition.
@® BASS control buttons
Use to adjust the low-frequency tevel. Press the + button to increase
the low-frequency level, and the -- button to decrease it.
The TONE indicator appears on the display section,
When both buttons (-, +) of the BASS control are pressed
simultaneously, the bass response will be set to the flat (normal)
condition.
@ DSP EFFECT/DELAY TIME buttons
[DSP EFFECT]
When using a surround mode other than DOLBY PRO LOGIC
SURROUND, 10-step adjustment of the effect level is possible from
10 to 100.
[DELAY TIME]
Operates when the DOLBY PRO LOGIC SURROUND mode is ON.
Switches to surround delay time in 8 steps. For DOLBY PRO LOGIC
SURROUND, 20 ms is standard.
Changes in 2 ms steps.
16 ms «+ 18 ms ++--- «+28 ms «+30 ms
7
<ARBIZEO>
En

FRONT PANEL FACILITIES
DOLBY 3CH LOGIC button
Select this setting when stereo-source regeneration and rear speak-
ers are not connected and you wish to use the front L, front R,
and center speakers to enjoy audio/visual material bearing the
OO [pocsy uno] mark.
@§ MASTER VOLUME control
Use it to simultaneously adjust the sound volume from the front, center
and rear speakers.
@® PHONES jack
Connect
the
plug
on
your
headphones
to
this
jack.
Set
all
SPEAKERS
A
and
B
switches
to
OFF
if
you
want
to
cut
the
sound
from
speakers
and
listen
to
it
only
through
the
headphones.
@ SPEAKERS buttons (A, B) & OFF = ON
ON/OFF switches for the A and B speaker systems.
NOTE:
No sound will be heard thorough the speakers when both A and B
buttons are depressed if only one set of speakers has been cannected
to either A or B SPEAKERS terminals.
@ BAND (FM/AM) button
Use this to switch between FM and AM frequency band reception.
@ TUNING buttons
+: Performs tuning from the currently displayed station frequency in
ascending frequency order.
- : Performs tuning in order of descending frequencies.
@® INPUT SELECTOR buttons
VCR 1: Press when performing playback on a first VCR unit.
VCR 2: Press when performing playback on a second VCR unit.
LD: Press when performing playback on an LD player.
TV: Press when using a TV tuner connected to the TV jacks.
VIDEO (VSX-D701S only):
Press when performing playback on a VCR connected to
VIDEO INPUT jacks on the front panel.
TAPE 1/DAT:
Press when performing playback on a DAT or cassette deck.
TAPE 2 MONITOR:
Press when performing playback on a second cassette deck
er second DAT and when monitoring recording.
CD: Press when playing compact discs on a CD player.
TUNER: Press when listening to radio broadcasts.
PHONO: Press when playing records on turntable.
18
< ARB1380 >
En
@
ACOUSTIC
buttons
(See
page
26)
MEMORY:
Pressing this button will result in the memorization of the sound quality
{tone contro! condition). Press again to cancel this mode.
SELECT:
* This button is used to preset the five acoustic memories (A—E).
*
This
button
is
also
used
to
recall
previously
set
sound
quality
settings.
Each
time
you
press
the
button,
the
sound
quality
setting
advances
in
the
order
shown
below,
poe LOUDNESS -+ A ~» B+ ee
FLAT: For flat (normal) frequency response
LOUDNESS: Emphasizes the low- and high- frequency ranges.
Produces a fuller sense of sound, particularly when
listening at low volume,
A-E: Memorized acoustic memory settings.
@ RESET button
Use this when normal operation becomes impossible because of external
influences such as static electricity or lightning, or when operation is
impossible even when operation buttons are pressed. Press this button
to return to normal operating conditions,
If you press this button when the power is ON, the unit switches to
POWER STANDBY, and the entire contents of the memory are erased.
@® RETURN button
Press
this
button
to
return
the
receiver
into
the
initial
state.
TUNER
is
selected
at
this
initia!
state.
Adjust
the
sound
level
by
using
the:
MASTER
VOLUME
control.
» TAPE 2 MONITOR ....... OFF *® FUNCTION oo. TUNER
*#
SURROUND
MODE.......
OFF
*
V-SIGNAL
SELECTOR...
OFF
* MUTING.. . OFF flat
* BALANCE CENTER
The HITS function searches. for broadcast stations among the
frequencies displayed.
NOTE:
lf no sound is output after the RETURN button is pressed, make sure
that SPEAKERS buttons are turned on.
@) MUTING button
Press to temporarily cut off the sound volume. When pressed again,
the sound will return to its previous level,
@) VIDEO INPUT jacks (VSX-D701S only)
VIDEO camponents such as a VCR or TV camera, etc. can be
connected,

FRONT PANEL FACILITIES
‘DISPLAY SECTION
* The illustration shows the VSX-D701S. SURROUND MODE indicators
on the VSX-D601 are different.
®
PT cenren
REAR
ACOUSTIC SIMULATED
LOUDNESS PSTEREO
FLAT 5% nin
oeuay “ff Be 3
Sani lerrect ' {EGER mae RHANTOM|
© © © OD
@ CHARACTER/LEVEL/BALANCE display
*® This displays the name of the component selected with the INPUT
SELECTOR and V-SIGNAL SELECTOR, etc.
® It also displays the level and balance settings during adjustment.
(@ DOLBY 3CH LOGIC indicator
(©) SURROUND MODE indicators
(BD) Frequency/Band display
‘€) TAPE 2 indicator
Lights up when the INPUT SELECTOR is set to TAPE 2 MONITOR ON.
(F) TONE level indicator
Shows the settings of the BASS and TREBLE buttons.
@ ACOUSTIC display
@ DELAY/EFFECT indicator
@ SIMULATED STEREO indicator
(J) ACOUSTIC/DELAY TIME/EFFECT LEVEL/LEVEL/
SLEEP TIME display
e Indicates delay time (ms) when using DOLBY PRO LOGIC
SURROUND.
® Indicates rear level and center level (dB).
¢ Indicates sleep timer settings (min).
® Displays Acoustic memory letters A to E.
¢ Displays surround effect level from 10 to 100.
— sparouno mane —]l > wm gag =, aml
Bocas coene all 9 RG EEG SEC aE ew
POLE COURRCUND| Sa? ket
cose |B (AD MHz
SS SSS) ees]
ars SaNeE)
pee ae)
SCAN STATION
GARCH ‘tg
usr, mig me
inved BELG on
® CENTER MODE indicators
These display the center mode (NORMAL, WIDE, PHANTOM) during
DOLBY PRO LOGIC SURROUND and DOLBY 3CH LOGIC operation
(Refer to pages 5, 6).
@® Tuning indicators
TUNED: Lights up when a station is tuned.
FM MONO: Lights up when the FM MONO mode is selected with the
FM MODE AUTO/MONO button.
STEREO: Lights up when a stereo FM broadcast is being received.
@ SCAN indicator
Lights up during memory scan operation.
@® AUTO TUNING indicator
Lights up when in the auto tuning mode.
@ SEARCH indicator
® STATION display
Indicates the channel (ch) selected with the STATION CALL buttons.
19
< ARBI380 >
En

TUNER
Press the POWER switch to the ON position.
Select TUNER with the INPUT SELECTOR.
Be sure to turn the TAPE 2 MONITOR button OFF when listening
to AM or FM broadeasts.
Switch ON the SPEAKERS button corresponding to the speakers [
__being used.
® illustration shows model VSX-D601
[FM auto stereo reception and monaural reception
Each time you press the FM MODE AUTO/MONDO button, the FM |
MONO indicator in the display section lights or goes out. H
* if an FM stereo broadcast is received when the FM MONO
indicator is out, the STEREO indicator lights, and sound is in sterec.
«lf an FM stereo broadcast is received when the FM MONO
indicator is lit, the sound will be monaural.
if there is interference during STEREO mode reception, switch to |
FM MONO. The sound will become monaural but interference will
be reduced.
eae ES
|
DIRECT ACCESS TUNING —
1 2 3 4
When you know the frequency of the desired station, the frequency
can be input directly using the STATION CALL (number) buttons in the
following way:
1. Select either FM or AM using the BAND FM/AM button.
2. Press the DIRECT ACCESS button
3. input the desired station frequency using the STATION CALL
buttons.
DIRECT
Example: To receive FM 106.00 MHz ACCESS
(STATION CALL buttons}
As
se _
rin
Once the station frequency has been input, the receiver tunes in that
frequency. If the input frequency falls below the lower or higher limit
of the receiver's receivable frequency range “LOWER” or “UPPER” is
displayed, indicating that the frequency which has been input cannot
be tuned in,
4. Adjust the sound volume and tone as desired.
To cancel frequency input
Direct access is canceled when the DIRECT ACCESS button is pressed
again,
Under the following conditions direct access is canceled and the unit
returns to the condition in effect before direct access was selected:
() if there is no key Input for about five seconds after the DIRECT
ACCESS button was pressed.
@® If more than about eight seconds elapse between number input.
Notes regarding direct access tuning
* There is no need to input the last digit ‘OQ’ of the desired station
frequency.
On the multi-voitage model, it is necessary to input the last digit of
the desired station frequency when the channel step switch is set
at the 50 kHz/9 kHz position.
| AUTO TUNING
Auto tuning is convenient when you do not remember the frequency
of a desired station, or when you wish to find stations that you do not
hormally listen to
13 2 4
1. Use the BAND FM/AM button to choose either FM or AM.
20
<ARBI380 >
En
2. Press the AUTO/MANUAL button and the AUTO TUNING indicator
lights.
3. Press the +" or ‘“’~"’ of the TUNING buttons,
° Pressing ‘’ +" causes scanning to take place in the direction of
increasing frequency. Pressing “~'’ causes scanning to take place
in the direction of decreasing frequency. : .
° When a station is received, scanning will stop (the [TU 0]
indicator lights). If you wish to receive a different station, press
the TUNING button 4 or “--" again.
® Pressing either of the TUNING (—, +) butten during auto tuning
causes tuning to stop at the current frequency.
4. Adjust the sound volume and tone as desired.
NOTE:
° When Auto Tuning is used, correct reception may not be possible
for very distant stations or stations with very weak signals. In this
event, Manual Tuning is recommended.
* The z indicator may not light with broadcasts received over
long aces, or when the broadcast signals are extremely weak.
