Pioneer XC-L5 User manual

ORDER NO.
PIONEER ELECTRONIC CORPORATION 4-1, Meguro 1-Chome, Meguro-ku, Tokyo 153-8654, Japan
PIONEER ELECTRONICS SERVICE, INC. P.O. Box 1760, Long Beach, CA 90801-1760, U.S.A.
PIONEER ELECTRONIC (EUROPE) N.V. Haven 1087, Keetberglaan 1, 9120 Melsele, Belgium
PIONEER ELECTRONICS ASIACENTRE PTE. LTD. 501 Orchard Road, #10-00 Wheelock Place, Singapore 238880
PIONEER ELECTRONIC CORPORATION 1998
RRV1997
STEREO CD RECEIVER
XC-L5
1. SAFETY INFORMATION ...................................... 2
2. EXPLODED VIEWS AND PARTS LIST................ 3
3. SCHEMATIC DIAGRAM ..................................... 12
4. PCB CONNECTION DIAGRAM.......................... 24
5. PCB PARTS LIST ............................................... 35
6. ADJUSTMENT .................................................... 40
CONTENTS 7. GENERAL INFORMATION ................................ 43
7.1 PARTS ......................................................... 43
7.1.1 IC ......................................................... 43
7.1.2 DISPLAY.............................................. 49
7.2 DISASSEMBLY ........................................... 51
7.3 BLOCK DIAGRAM........................................ 53
8. PANEL FACILITIES AND SPECIFICATIONS .... 54
THIS MANUAL IS APPLICABLE TO THE FOLLOWING MODEL(S) AND TYPE(S).
Type Model
XC-L5
MYXK
NVXK AC220 – 230V AC230V
Power Requirement Remarks
T – IZK AUG. 1998 Printed in Japan
AUX
STANDBY/ON
PHONES
7
06
¢4
¡
•
+–
•
1
'
VOLUME
UPDOWN
D
R·D·S

2
XC-L5
WARNING!
Lithium batteries. Danger of explo-
sion. Replacement must be done by
qualified personnel and only by fol-
lowing the instructions given in the
service manual.
This
warning is stated on the product or
in the operating instructions. When replac-
ing the lithium batteries, follow the note
below.
Dispose
of the used battery promptly.
Keep away from children. Do not disas-
semble and do not dispose of in fire.
The battery used in this device may present
a fire or chemical hazard if mistreated. Do
not recharge,
disassemble, heat above
100°C or incinerate. Replace only with the
same Part Number. Use of another battery
may present a risk of fire or explosion.
Note: The lithium battery installation po-
sition is shown in the exploded views.
ADVARSEL!
Lithiumbatteri −Eksplosionsfare ved
fejlagtig håndtering. Udskiftning må kun
ske med batteri af samme fabrikat og
type. Levér det brugte batteri tilbage til
leverandøren.
Denne advarsel or angivet på produktet
eller i brugsvejledningen. Ved udskiftning
af lithium batterierne følges nedenstående
anveisning.
Batterierne
må kun udskiftes med batteri-
er af samme type og mærke.
1. SAFETY INFORMATION
LITHIUM BATTERY NOTICE

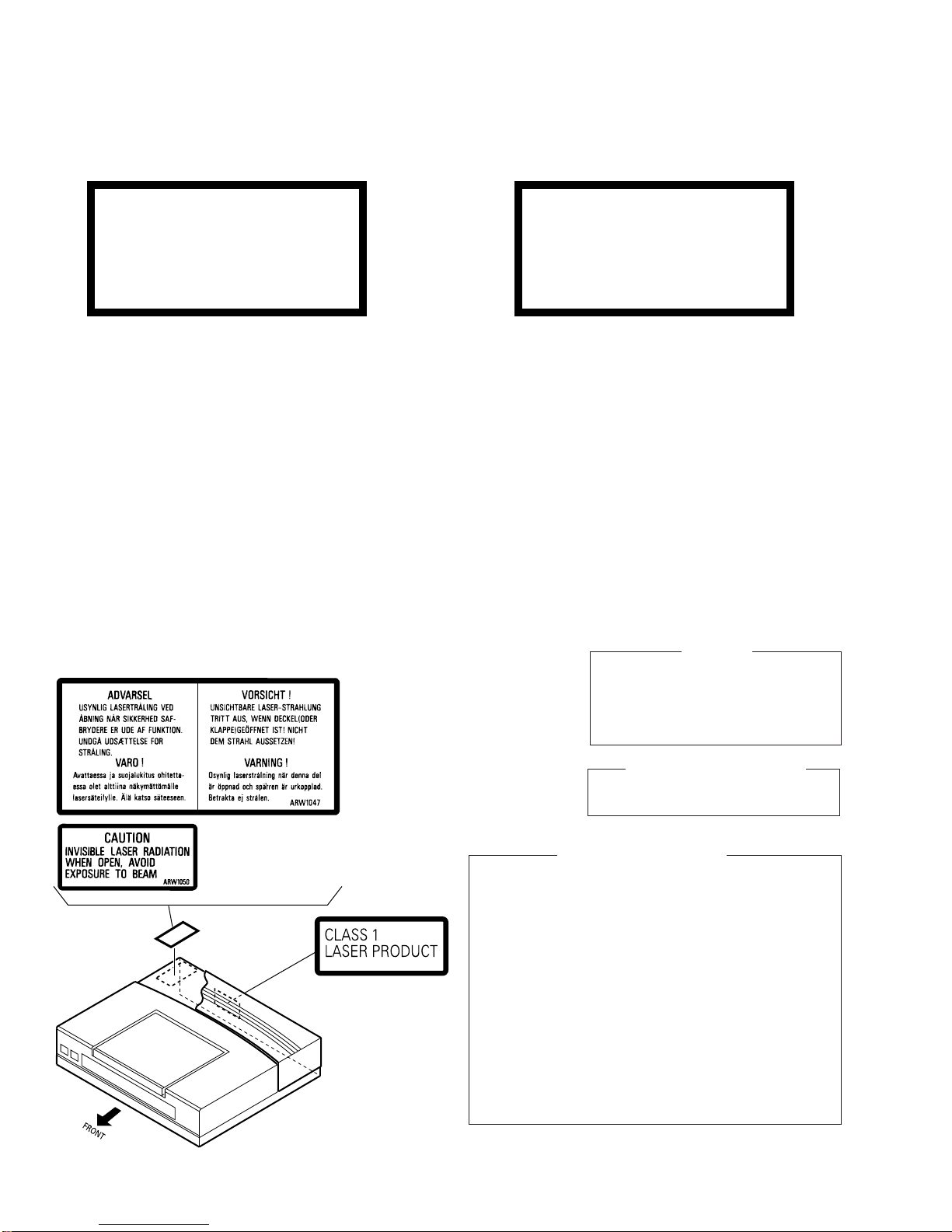

LABEL CHECK
NVXK type
Printed on the Rear Panel
MYXK type
IMPORTANT
THIS PIONEER APPARATUS CONTAINS
LASER OF CLASS 1.
SERVICING OPERATION OF THE APPARATUS
SHOULD BE DONE BY A SPECIALLY
INSTRUTED PERSON.
LASER DIODE CHARACTERISTICS
MAXIMUM OUTPUT POWER: 5 mw
WAVELENGTH: 780 – 785 nm
1. Laser Interlock Mechanism
The loading position detect switch (in CD mechanism
assembly) is set to "CLMP ON(CD CLOSE)" (ON:low
level,OFF:high level) position, the system control
IC(IC5501) get the "CLMP" signal, and hand the laser
"LDON" signal to IC1101.
Then a laser diode can be lighted except when the level of
signal CLMP is low.
The interlock also does not function in the test mode∗.
Laser diode oscillation will continue, if pin 1 of CXA1821M
(IC1101) on the CDMAIN UNIT is connected to GND, or
pin 19 is connected to low level (ON), or else the terminals
of Q1101 are shorted to each other (fault condition).
2. When the cover is opened, close viewing of the objective
lens with the naked eye will cause exposure to a Class 1
laser beam.
∗: Refer to page 41.
Additional Laser Caution

3
XC-L5
Mark No. Symbol and Description Part No. Remarks
MYXK type NVXK type
2 Power Cord ADG7010 Not used
5 Operating Instructions (English/French/German/Italian) ARE7171 Not used
6 Operating Instructions (Dutch/Swedish/Spanish/Portuguese) ARE7172 Not used
18 Packing Case AHD7619 AHD7620
20 Operating Instructions (English) Not used ARB7153
21 Sub Packing Not used AHD7618
22 Power Cord Not used ADG7009
23 Fuse (T5A) Not used AEK7001
7
23
NVXK only
22 17 9
2
MYXK only
3
13
14
18
15(1/2)
15(2/2)
4
12
Litium Battery 1
10
11
20 13
5
8
6
19 16(2/2)
16(1/2)
21
NVXK only
MYXK only
2.1 PACKING (1) PACKING PARTS LIST
Mark No. Description Part No.
2. EXPLODED VIEWS AND PARTS LIST
NOTES: •Parts marked by "NSP" are generally unavailable because they are not in our Master Spare Parts List.
•The mark found on some component parts indicates the importance of the safety factor of the part.
Therefore, when replacing, be sure to use parts of identical designation.
•Screws adjacent to mark on the product are used for disassembly.
1 Remote Control Unit Holder AAH7013
2 Power Cord See Contrast table (2)
3 FM Antenna ADH7005
NSP 4 Vinyl Bag AHG7031
5 Operating Instructions See Contrast table (2)
(English/French/German/Italian)
6 Operating Instructions See Contrast table (2)
(Dutch/Swedish/Spanish/Portuguese)
NSP 7 Demo Caution ARR7016
NSP 8 Warranty Card (E-J) ARY7022
9 AM Loop Antenna ATB7007
10 Remote Control Unit AXD7170
(CU-XC005)
11 Battery Case AZE7116
NSP 12 Lithium Battery (CR2025) VEM1009
13 Polyethylene Bag Z21-038
NSP 14 Technibond431 AEH7006
15 Pad F AHA7219
16 Pad R AHA7220
17 S Pad AHA7230
18 Packing Case See Contrast table (2)
19 Seat Z23-007
20 Operating Instructions See Contrast table (2)
(English)
21 Sub Packing See Contrast table (2)
22 Power Cord See Contrast table (2)
23 Fuse (T5A) See Contrast table (2)
(2) CONTRAST TABLE
MYXK and NVXK type are constructed the same except for the following :

4
XC-L5
A
B
A
B
17
29
7
39
34
30
39
42
40
40
13 18
39
32
39
39
21
22
10
15
14
38
38
38
27
35
35
35
35
4
41
25
35
35
39
39
33
31
35
35 8
6
23
23
5
9
26
38
38
37
36
2
24
35
35
1
35
43
20
12
3
11
19
16
28
Refer to
"2.6 CD MECHA ASSY".
Refer to
"2.3 TOP PANEL ASSY".
2.2 EXTERIOR

5
XC-L5
(1) EXTERIOR PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 CD MAIN UNIT AWU7090
2 CD AMP UNIT AWU7091
3 CD TRANS UNIT AWU7092
4 CD HP UNIT AWU7093
5 CD REG UNIT AWU7121
6 CD RECTIFY UNIT AWU7128
7 CD REM UNIT AWU7130
8 CD POWER UNIT AWU7153
9 FM/AM TUNER MODULE AXQ7077
10 16P F•F•C/30V ADD7096
11 Fuse FU1 (T800mA) AEK1053
12 Power Transformer (T1) ATS7218
13 DC Fan Motor AXM7003
14 Connector CN 5P AKP7040
15 Connector CN 6P AKP7041
16 CD MECHA Assy KSL-2130CCM
17 Leg AEB7090
18 F Cushion AEB7127
19 Center Barrier AEC7140
20 Top Barrier AEC7154
21 Rear Panel See Contrast table (2)
NSP 22 Bottom Plate ANF7010
23 Angle ANG7189
NSP 24 Heat Sink ANH7088
NSP 25 Cord With Plug J DE005VF0
NSP 26 Spacer PNM1135
27 Cord Clamper RNH-184
28 Tray Panel CD AAN7184
29 Lens AAX7639
30 Bottom Base AMA7005
31 Bonnet AMA7007
32 Rear Case AMR7207
NSP 33 Caution Label See Contrast table (2)
34 Name Label ARW7043
35 Screw BBZ30P060FMC
36 Screw BBZ30P140FMC
37 Screw BBZ40P060FMC
38 Screw BPZ30P060FZK
39 Screw BPZ30P100FZK
40 Screw BPZ30P300FMC
41 Screw PDZ30P060FMC
42 Cushion Rubber AEB7068
43 Rivet VEC1178
(2) CONTRAST TABLE
MYXK and NVXK type are constructed the same except for the following :
Mark No. Symbol and Description Part No. Remarks
MYXK type NVXK type
21 Rear Panel ANC7672 ANC7673
NSP 33 Caution Label ARW1047 ARW1050

6
XC-L5
Top View Bottom View
Refer to
"2.4 DISPLAY ASSY".
6
11 10
12
16
19
9
19
1
5
Refer to
"2.5 GEAR HOLDER
ASSY".
19
15
3
17(2/2)
17(1/2)
2
13
14
19
19 19
16
18
4
8
7
19
2.3 TOP PANEL ASSY
•TOP PANEL ASSY PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 CD TRADE UNIT AWU7095
2 CD KEYR UNIT AWU7096
3 CD KEYL UNIT AWU7097
4 CD POSIT UNIT AWU7100
5 17P F•F•C/60V ADD7098
6 Pin AMR7208
7 Holder L AMR7209
8 Holder R AMR7210
NSP 9 Top Plate ANK7042
10 Shaft ANL7010
11 Gear S ANW7120
12 Gear B ANW7121
13 Rivet VEC1178
14 Top Button AAD7476
15 Sub Panel AAP7048
16 Top Panel AMB7513
17 Button A Assy AWL7036
18 Screw IPZ20P060FMC
19 Screw VPZ30P080FZK

7
XC-L5
11
11
9
8
7
5
4
3
10
2
1
6
2.4 DISPLAY ASSY
•DISPLAY ASSY PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 CD FL UNIT AWU7094
2 8P F•F•C/60V ADD7099
3 Cushion Rubber AEB7068
4 D Cushion AEB7126
5 Rack Gear ANW7123
6 Front Plate AAH7012
7 Window AAK7575
8 FL Filter AEC7141
9 Display Panel AMB7517
10 Display Cover AMC7026
11 Screw VPZ30P080FZK

8
XC-L5
4.3 ±0.3mm
3
12
13
8
9
7
13
5
6
13
4
10
2
11
1
2.5 GEAR HOLDER ASSY
•GEAR HOLDER ASSY PARTS LIST
Mark No. Description Part No.
1 CD MOTOR UNIT AWU7098
2 CD SENSE UNIT AWU7099
3 Belt AEB7030
4 Gear Holder ANG7190
5 Gear A ANW7063
6 Gear Pulley A ANW7066
7 Select Gear ANW7067
8 FC Gear ANW7122
9 Motor Pulley PNW1634
10 DC Motor/0.75W PXM1010
11 Screw BBZ30P060FMC
12 Screw PMA26P040FMC
13 Washer WT36D072D025

9
XC-L5
7
6
96
5
8
10 13
14
1516
28
19
20
27 26
12
14
15
29
29
No supplied part
4
18
25
22
23
24
3
1
21 15
12 14 16 15
14
16
13
17
16
6
11 6
2.6 CD MECHA ASSY(1/2)
•CD MECHA ASSY(1/2) PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
1 Tray(C) 2-646-290-01
2 • • • • •
3 Cover(S),Gear 2-625-544-(01)
4 Gear(S),Tray 2-625-535-(01)
5 Plate(S),Chucking 2-625-546-(01)
6 Screw +PTPWH2.6*7 2-626-294-(01)
7 Chucking Yoke(S) 2-625-537-(01)
8 Magnet 1-452-493-(21)
9 Damper(S) 2-625-541-(02)
10 Chucking Pully 2-646-291-(01)
11 Sub Chassis 2130 2-646-288-(01)
12 Coil Spring (Front) 2-627-236-(01)
13 Coil Spring (Back) 2-627-235-(01)
14 Washer 2130 2-646-289-(01)
15 Screw+P2.6*10 NOSLIT 7-685-135-(11)
16 Insulator 2-627-234-(01)
17 MD Assy A-4912-186-A
18 Outsert Main Chassis 2-625-552-(06)
19 Screw +PTPWH2.6*16 3-319-501-(51)
20 Drive Gear (S) 2-625-547-(01)
21 Control Cam(S) 2-625-545-(04)
22 Leaf Switch 1-692-667-(11)
23 Connector Pin 5p 1-564-721-(11)
24 Loading PC Board 1-640-523-(11)
25 Loading Motor Assy X-2625-117-(1)
26 Midway Gear (S) 2-625-534-(02)
27 Loading Pulley (S) 2-625-536-(02)
28 LM Berut 3-653-387-(00)
29 Screw +B2.6*2.5 2-625-279-(01)

10
XC-L5
4
11
10
5
312
12
9
13
1
6
7
2
8
14
No supplied part
•CD MECHA ASSY(2/2) PARTS LIST
Mark No. Description Part No. Mark No. Description Part No.
2.7 CD MECHA ASSY(2/2)
1 Motor Chassis Assy X-2625-984-(1)
2 Motor Gear Assy X-2625-769-(1)
3 Sled Shaft 2-626-908-(01)
4 Gear (A)(S) 2-625-188-(02)
5 Screw +P2*3 7-621-255-(15)
6 Leaf Switch 1-572-085-(11)
7 Motor(6p)(S)PCB 1-639-678-(12)
8 Connector Pin 6p 1-564-722-(11)
9 Gear(B)(RP) 2-627-003-(01)
10 Spring(S)Compression 2-625-191-(01)
11 Ring(LO)(S),Center 2-625-477-(01)
12 Screw2*5,Tapping(S) 2-641-386-(01)
13 Reinforcement(S) 2-625-625-(01)
14 KSS-213C(Pic-up) 8-848-483-(05)
