Piper RIP-1 User manual

ROLL-IN PROOFER
RIP-1, RIP-2
Installation and Operating Manual
For service information call 800-544-3057
Please have the following information available
before calling. Information can be found on the
identification/certification tag:
•Model Number
•Serial Number
•Date of Purchase
•Part Description and number as shown in parts list
IMPORTANT INFORMATION
READ BEFORE USE
Piper Products, Inc
300 South 84th Avenue
Wausau, WI 54401
Phone: [phone] . FAX: [phone]
This manual contains important safety information concerning the maintenance, use and operation of this product.
Failure to follow these instructions could result in damaging equipment, voiding the warranty, serious injury or even death.

TABLE OF CONTENTS
INTRODUCTION
FREIGHT DAMAGE CLAIMS
SAFETY PRECAUTIONS
UNPACKING YOUR EQUIPMENT
INSTALLATION
PLUMBING INFORMATION
OPERATING INSTRUCTIONS
GENERAL CLEANING
MAINTENANCE
TROUBLESHOOTING GUIDE

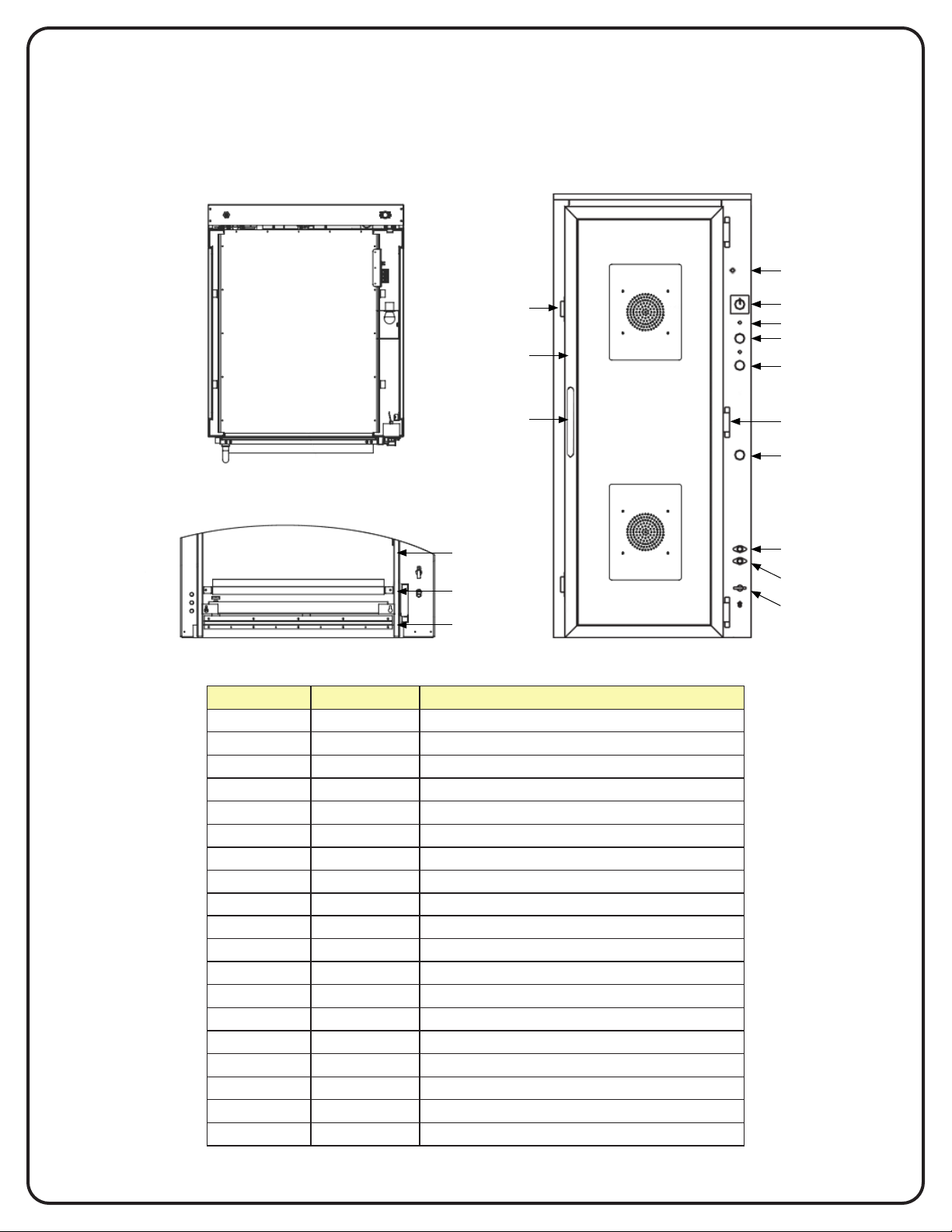

REPLACEMENT PARTS - FRONT
REPLACEMENT PARTS - SIDE

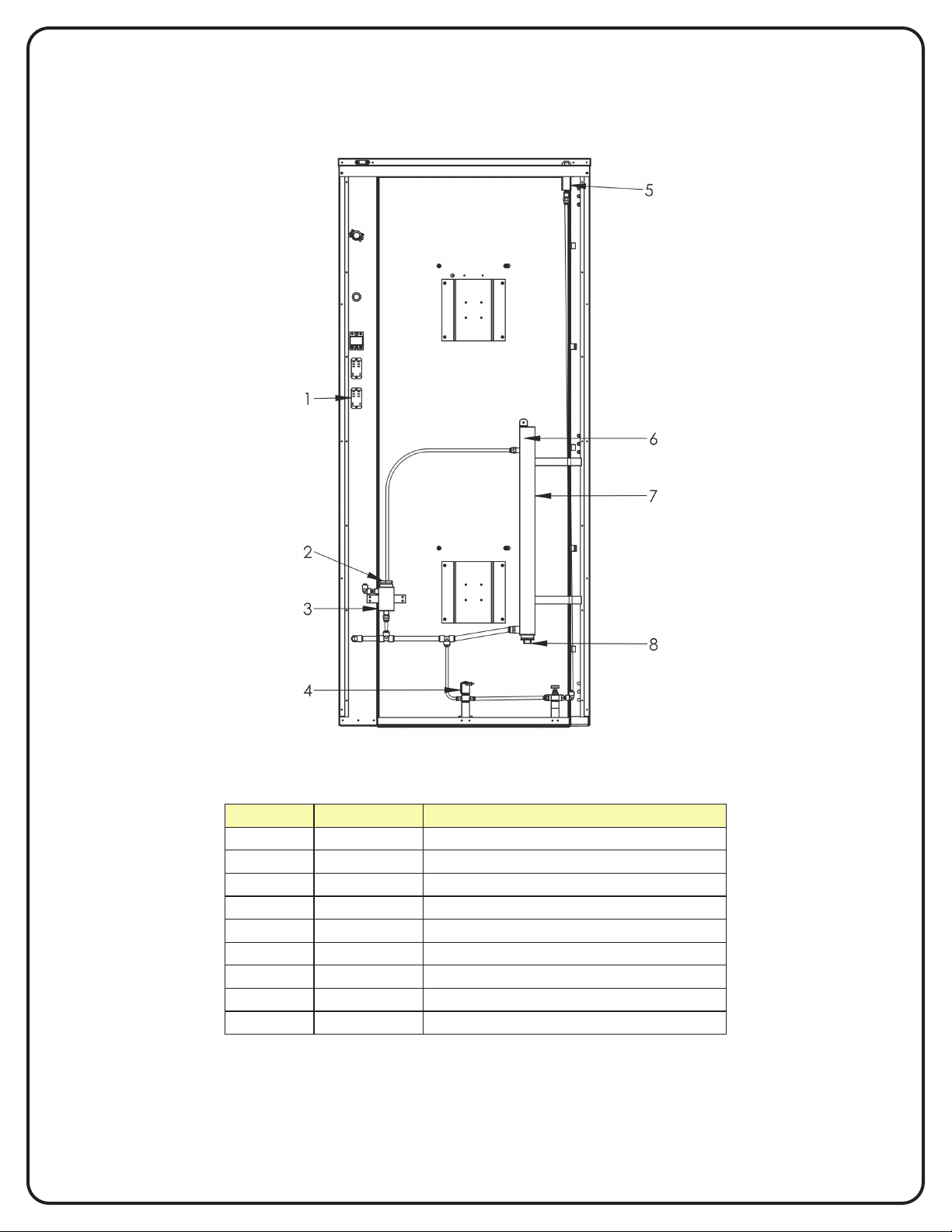

REPLACEMENT PARTS - REAR

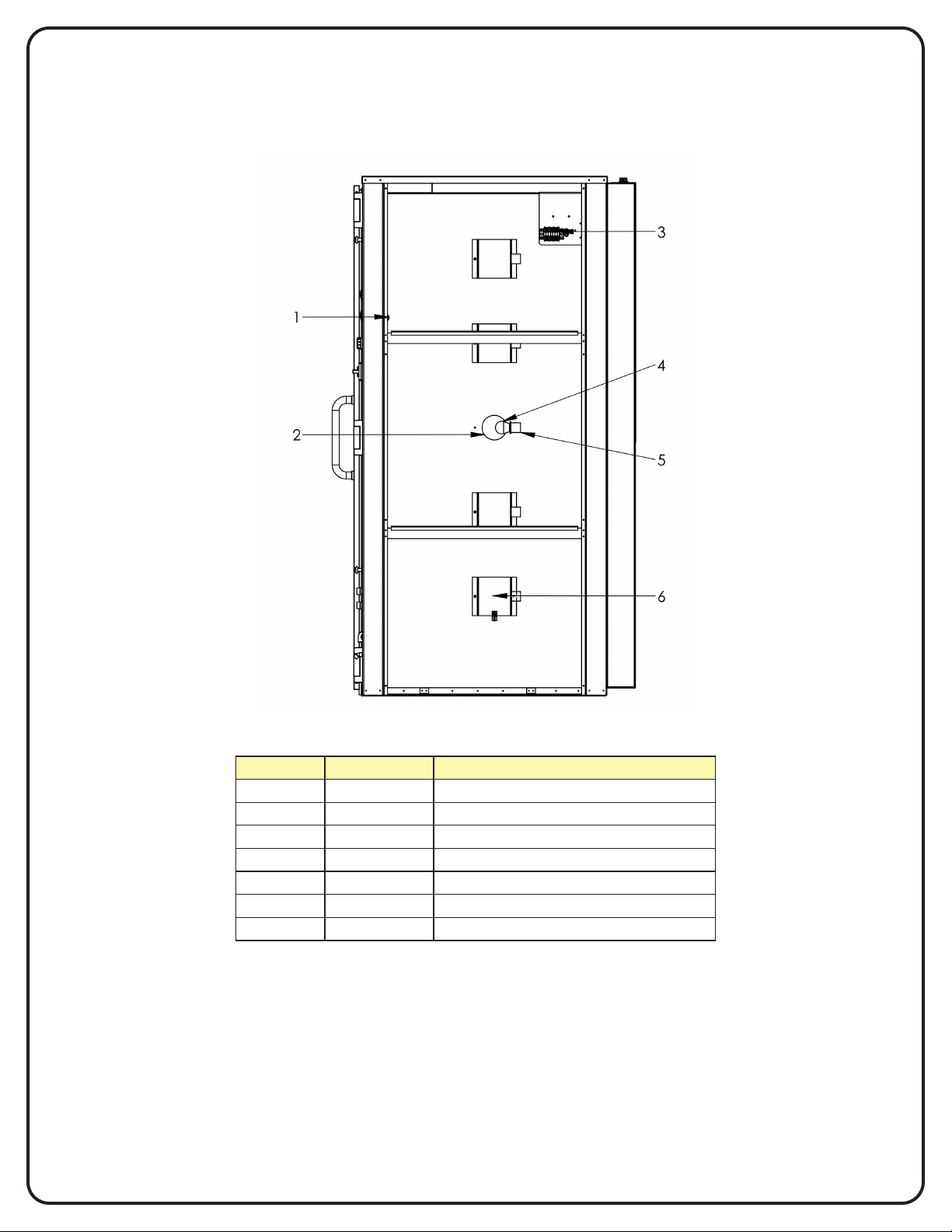

REPLACEMENT PARTS - FAN ASSEMBLY
REPLACEMENT PARTS - RIP-1 AUTO HUMIDITY
REPLACEMENT PARTS - RIP-1 AUTO HUMIDITY
WIRING DIAGRAM - RIP-1 WITH AUTOFILL
WIRING DIAGRAM - RIP-2 WITH AUTOFILL
WARRANTY
2
2
3
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
1

INTRODUCTION
Congratulations! You have just purchased one of the finest pieces of equipment on the
market today. Before installing or operating your new Piper equipment, you should read
through this manual. This manual should be retained for further reference as it contains
installation and operating instructions, service tips, part lists and warranty information.
For your safety, read and follow all cautions and warnings.
FREIGHT DAMAGE CLAIMS
Your Piper equipment was carefully inspected and packed before leaving our factory. The
transportation company assumes full responsibility for safe delivery of this equipment.
Piper Products cannot assume responsibilities for damage or loss incurred in transit.
Visible damage or loss should be noted on the freight bill and signed by the person
making the delivery.
A freight claim should be filed immediately with the transportation company. If damage is
unnoticed or concealed until equipment is unpacked, notify the transportation company
immediately and tell them you want to file a concealed damage claim. This must be done
within five (5) days after delivery was made. Be sure to retain all packing material and
cartons.
WARNING
Installation of this equipment should be done only by persons qualified or licensed
to install electrical equipment. All electrical and plumbing must meet local, state,
and federal codes.
Plumbing installation must be performed by a qualified plumber.
Adjustments and service work should be performed only by a qualified service
technician. Service is available through Authorized Piper Parts and Service
Distributors throughout the United States. For a complete listing of these call or
write Piper Products, Inc. for the name of the nearest distributor.
This equipment is intended for commercial use only. Not for household use.
Use of other than genuine Piper replacement parts or service work performed by
other than an authorized Piper service agent will void the warranty.
Do not use any corrosive cleaners. Piper only approves soap and water for
cleaning stainless steel.
2

SAFETY PRECAUTIONS
1. Read all instructions and warranty before operating unit.
2. Equipment should be installed by a qualified electrician familiar with local electrical
codes.
3. Equipment should be installed on a solid, level floor.
4. Adequate space should be allocated surrounding the unit to allow for proper airflow
and provide access for servicing (see electrical information for more details).
5. Flammable materials should not be stored near the equipment. Do not cover or block
any openings or vents.
6. Surfaces on equipment may become extremely hot. Exercise caution when operating.
7. All warnings and operating instructions should be followed.
8. When replacement parts are required, be sure the service technician has parts
specified by the manufacturer or have the same characteristics as the original part.
Unauthorized substitutions may result in fire, electrical shock or other hazards.
9. This Operators Manual should be retained for future reference.
UNPACKING YOUR EQUIPMENT
1. Check crate for damage upon arrival. Make notation on freight of any damage.
2. Uncrate equipment and check for concealed damage. If damaged, call freight
company immediately to come and inspect the equipment. Save the crate and
packing material for inspection.
TO REMOVE THE EQUIPMENT FROM THE SKID
1. Tilt unit backward at a 45˚ angle.
2. Push down on front of skid breaking off narrow board on back.
3. Remove skid by pulling forward.
YOUR SHIPMENT SHOULD CONSIST OF:
RIP-1
or
RIP-2
3

INSTALLATION
ELECTRICAL CONNECTION
WARNING!!!! DO NOT USE EXTENSION CORDS (VOIDS WARRANTY)
Ground:
The electrical outlet must be provided with an efficient ground, and the voltage and the
frequency of the electrical line matches those indicated on the data plate.
If unsure about the efficiency of the ground, have your electrical circuit checked
by a qualified technician.
• Carefully remove carton or crate from unit. Remove all loose packing materials,
making sure that no small parts or accessories are lost. Inspect the unit for concealed
damage before discarding packing materials.
• It is the responsibility of the installer to comply with all local codes.
• Electrical installation should be made by a licensed electrician.
• Check unit nameplate for electrical requirements. Make sure that the thermostats are
all set to the “OFF” position. Connect the electrical power cord and plug to a properly
sized power source of the correct voltage.
• Supplied voltage must correspond with the voltage specified on the serial plate.
WARNING!: Improper voltage supplied to the unit will void the warranty.
Voltage variation can cause erratic operation and serious damage to the
electrical system.
• All external wiring should conform to the national, state and local electrical code
requirements. See electrical specifications listed in the back of this manual for more
details on your Holding Cabinet.
• Equipment must be properly grounded to prevent electrical shock.
• Equipment must have a separate ground.
• For more details see electrical specifications listed on the wiring diagram in the
back of this manual.
WARNING!: Allow 4” from wall on the rear of the unit for airflow.
4

Parameter Unit Value Parameter Unit Value
Alkalinity ppm 30 Magnesium ppm 1
Aluminum ppb 15
Free Chlorine
Residual
ppm 0.5
Total Hardness ppm 7 PH s.u 8
Calcium ppm 6 Sodium ppm 7
IMPORTANT!
YOUR LOCAL WATER CONDITIONS MAY PERMANENTLY DAMAGE THIS APPLIANCE.
FAILURE TO PROPERLY TREAT WATER MAY RESULT IN DAMAGE AND
WILL VOID YOUR WARRANTY. ENSURE THAT YOUR WATER SUPPLY MEETS
THESE MINIMUM WATER QUALITY SPECIFICATIONS BELOW BEFORE INSTALLING.
FAILURE TO MEET THESE REQUIREMENTS,
AND PROVIDE PROOF OF WATER QUALITY,
WILL VOID MANUFACTURERS WARRANTY.
PLUMBING INFORMATION
A 1/4” FPT (female pipe thread) connector is provided on all units that require a water
hookup. Units with automatic humidity and/or automatic steam injection have plumbing
connections located on the right rear corner post approximately 8” up from the floor.
WARNING!: Improper voltage supplied to the unit will void the warranty.
Voltage variation can cause erratic operation and serious damage to the
electrical system.
NOTE: Piper’s automatic steam and humidity systems MUST be connected to a source
of clean and filtered water. The filter removes solid particles and dissolves minerals
(such as what is commonly found in hard water) to prevent scale build-up on the water
heating element.
5

OPERATING INSTRUCTIONS
• Turn the power switch “ON”.
• Set the thermostat to 100°F. Allow approximately 15-30 minutes to reach temperature
• Set the humidity control to 3 to 4.5. At the proper setting your proofer door will have
a light haze on it. This process will take approximately 15-30 minutes. If water beads
up and runs down the door, the setting is too high. You may need to adjust according
to atmospheric conditions.*
• Drain humidity system DAILY. Drain valve is located on lower front corner post.
Ideal proofing conditions consist of a temperature of 100°F and approximately 60-80%
humidity. Proofing times will vary depending on the handling and the type of dough
products. Sugar and yeast must be able to react properly which takes a certain amount of
time. This cannot be altered by adjusting the settings. Correct proofing is very important
for a successful bake.
Make sure dough is completely thawed and at room temperature (if using frozen dough
products) before placing the products in the proofer. If not, it can take two to three times
longer to proof.
HINT: You may want to place the dough (from the retarder) on a room
temperature pan – not the cold pan it was just sitting on. This helps shorten the
proofing time. When putting cold pans in the proofer, you bring the temperature
down, taking longer for it to get back to the desired 100 degree temperature.
6

7
GENERAL CLEANING
CAUTION: BURN HAZARD: Some exterior surfaces on unit will get hot.
Use caution when touching these areas.
DO NOT clean the unit while it contains any food product. Remove food
product and allow unit to cool completely before cleaning or servicing.
CAUTION: Prior to cleaning or maintenance, turn all switches “OFF” and
disconnect the power.
Stainless Steel and Aluminum:
• Piper only approves soap and water for cleaning stainless steel.
• NOTICE: Do NOT use chlorinated cleaners.
Hardened Foods or Scale Deposits:
• Clean hardened foods or scale deposits by utilizing a plastic scouring pad and a
mild detergent. Rinse completely with warm water and dry.
• NOTICE: Do NOT use steel wool

MAINTENANCE
To obtain the best performance from your equipment, it should be cleaned daily and
maintained in good condition.
SAFETY / ENVIRONMENTAL CAUTION
PERSONAL PROTECTION:
Check your company safety and environmental policy before cleaning or servicing.
Safety Tip! : Utilize protective gloves and safety glasses
ELECTRICAL POWER:
Before performing EXTENDED CLEANING where electrical components can
become wet, the power switch must be turned to OFF and the unit disconnected
from the power source.
WARNING: Do not use any chlorinated or highly caustic cleaners, acids,
ammonia or other corrosive cleaners. These may cause corrosion and/or
damage to the stainless steel. Piper only approves soap and water for cleaning
stainless steel.
REQUIRED MONTHLY MAINTENANCE:
• Check thermostat settings
• Check operating temperature of unit
• Check electrical connection
8

SYMPTOMS REMEDIES
Insufficient heat in the holding
cabinet
Check circuit breaker.
Check if blower is operating.
Check for faulty thermostat. Indicator light should come “ON” when
thermostat is turned up.
Check to see if door fits properly.
Excessive heat in holding
cabinet
Check for faulty thermostat. Indicator light stays “ON” at all times.
Check to see if humidity burner cycles off with the indicator light.
Insufficient humidity in the
holding cabinet
Check fuse.
Check relay for water solenoid valve.
Check water supply to proofer.
Check for faulty solenoid valve.
Check for stuck water float.
Check relay for steam generator heating element
Check for faulty heating element.
Excessive humidity in the
holding cabinet.
Check for water level being too high.
Check float for being stuck in the down position.
Check water solenoid valve for sticking open.
TROUBLESHOOTING GUIDE
If problems are not found by the following checks, then you should contact your Authorized
Parts and Service Dealer for service. They have the necessary parts and training to repair
your unit quickly and efficiently.
DANGER: Disconnect all power to unit before servicing.
NOTE: Piper’s automatic steam and humidity systems MUST be connected to a source
of clean and filtered water. The filter removes solid particles and dissolves minerals
(such as what is commonly found in hard water) to prevent scale build-up on the water
heating element.
Call Piper Products directly at 800-544-3057 if you need further assistance.
9

REPLACEMENT PARTS
FRONT
ITEM NO. PART NUMBER DESCRIPTION
1 305612 MAGNET, S/S ENCASED
2 11-0000067-000 DOOR ASSEMBLY, PROOFER
3 305002 HANDLE, DOOR
4 305613 BUMPER, DOOR STOP
5 705484 SWITCH DISCONNECT, 3-POLE 30 AMP
6 705160 INDICATOR LIGHT, 250V
7 705705 THERMOSTAT, PROOFER 60-125 DEG KIT
8 705757 SWITCH, INFINITE 120V HUMIDITY CONTROL KIT
9 305012 HINGE
10 706155 TIMER, 60 MINUTE
11 705518 FUSE HOLDER, 15 AMP
(w/ HUMIDITY) 13-700171 FUSE HOLDER - 20 AMP
12 705514 FUSE, 15 AMP
(w/ HUMIDITY) 705514 FUSE, 20 AMP
13 701930 BALL VALVE, STEAM/HUMIDITY
701931 KNOB, BALL VALVE
14 11-0000066-000 DRIP TROUGH ASSEMBLY
15 105052 DOOR SWEEP ASSEMBLY
16 305206 DOOR GASKET - 15’
10
1
3
4
5
6
8
11
12
2
9
10
13
7
15
14
16

11
REPLACEMENT PARTS
SIDE
ITEM NO. PART NUMBER DESCRIPTION
1 705532 BUZZER
2 305209 GASKET, LIGHT COVER
2 200001 GLASS, LIGHT COVER 4.5” x 4.5”
3 705366 TERMINAL BLOCK, 75A 3 POLE
4 705146 LIGHT BULB, 40W, 130V
5 705157 ROUND LIGHT SOCKET
6 104075 LIGHT SOCKET HOLDER

12
REPLACEMENT PARTS
REAR
ITEM NO. PART NUMBER DESCRIPTION
1 705426 RELAY, HUMIDITY, 120V
2 705476 SWITCH, FLOAT HUMIDITY LIQUID LEVEL
3 105077 FLOAT CHAMBER, HUMIDITY
4 705864 SOLENOID VALVE, HUMIDITY, 120V
5 701960 AQUA-FLOW, STEAM / HUMIDITY
6 701508 HUMIDITY NOZZLE
7 11-0000511-000 CHAMBER, PROOFER HUMIDITY
8 704300 ELEMENT, IMMERSION - HUMIDITY 120V, 1500W
305213 GASKET FOR HUMIDITY ELEMENT

13
ITEM NO. PART NUMBER DESCRIPTION
1 102059 FAN COVER, PROOFER
2 705821 GUARD, FAN BLADE
3 704761 ELEMENT - U-SHAPE, 120V/750W
4 705846 FAN BLADE, RADIAL 6-1/4”
6 705847 FAN BLADE, RADIAL 4”
7 706400B MOTOR, SHADED POLE
8 12-0003807-000 BRACKET, MOTOR
408902 FINGE NUT
REPLACEMENT PARTS
FAN ASSEMBLY

PIPER PRODUCTS, INC.
THREE PLACE DECIMAL
PIPER PRODUCTS, INC. ANY
DO NOT SCALE DRAWING SHEET 4 OF 4
REV
DRAWING IS THE SOLE PROPERTY OF
PIPER PRODUCTS IS PROHIBITED.
REPRODUCTION IN PART OR AS A WHOLE
THE INFORMATION CONTAINED IN THIS
SCALE: 1:24
WITHOUT THE WRITTEN PERMISSION OF
RIP-1-AUTO PLUMBING
SHEET 4 OF 4 ONLY
UNLESS OTHERWISE SPECIFIED:
DWG. NO.
WEIGHT:
B
PROPRIETARY AND CONFIDENTIAL
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE
NAME
TITLE:
SIZE
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL RIP-1-AUTO
PLUMBING
21
DETAIL A
SCALE 1 : 4
20
22
5 DETAIL B
SCALE 1 : 4
16
8
17
18
19
ITEM
NO. PART NUMBER DESCRIPTION QTY.
1 701915 BRASS FTG BULKHEAD ADAPTER 1/8 1
2 701960 AQUA-FLOW #C-25 1
3 701508 S/S FTG NIPPLE 1/8 x 3 1
4 701540 BRASS PIPER COUPLER 1/8" 1
5 701016 NYLON MALE CONNECTOR PP4MC2 3
6 11-0000511-000 AUTO HUMIDITY STEAM CHAMBER 1
7 701012 NYLON MALE CONNECTOR PP6MC6 1
8 305213 GASKET FOR STEAM;ADAPT-O-MATIC 2
9 704300 ELEMENT, IMMERSION 120V/1500W; 1
10 705786 Needle Valve DC 3000 1
11 701015 NYLON SWIVEL ELBOW PP4MES4 1
12 701027 Nylon Fitting PP4MC4 1
13 705864 SOLENOID VALVE REG.STEAM&HUM 1
14 701020 NYLON UNION TEE PP6TU4 2
15 701024 NYLON ELBOW UNION PP6EU6 1
16 701929 BRASS FTG TANK NUT CTR/HOLE 1
17 701019 Nylon Swivel Elbow PP4MES2 1
18 11-0000510-000 AUTO HUMIDITY FLOAT CHAMBER 1
19 705476 SWITCH FLOAT LIQUID LEVEL 1
20 701018 NYLON SWIVEL ELBOW PP6MES6 1
21 701930 VALVE BALL 3/8 x 3/8 IH4 1
22 701931 KNOB, FOR STEAM BALL VALVE 1
23 701032 1/4" NYLON TUBING
24 701034 3/8" NYLON TUBING
NOTE:
SHORT S/S NIPPLE ONLY FOR STEAM CHAMBER IS PART NUMBER 12-0005134-000
THIS IS MADE BY CUTTING PURCHASE PART NUMBER 701508 CUT IN HALF
23
2
1
3
4
5
5
7
8
9
10
11
1213141415
6
2324
B
A
REPLACEMENT PARTS
RIP-1 AUTO HUMIDITY
PIPER PRODUCTS, INC.
THREE PLACE DECIMAL
PIPER PRODUCTS, INC. ANY
DO NOT SCALE DRAWING SHEET 4 OF 4
REV
DRAWING IS THE SOLE PROPERTY OF
PIPER PRODUCTS IS PROHIBITED.
REPRODUCTION IN PART OR AS A WHOLE
THE INFORMATION CONTAINED IN THIS
SCALE: 1:24
WITHOUT THE WRITTEN PERMISSION OF
RIP-1-AUTO PLUMBING
SHEET 4 OF 4 ONLY
UNLESS OTHERWISE SPECIFIED:
DWG. NO.
WEIGHT:
B
PROPRIETARY AND CONFIDENTIAL
DRAWN
CHECKED
ENG APPR.
MFG APPR.
Q.A.
COMMENTS:
DATE
NAME
TITLE:
SIZE
DIMENSIONS ARE IN INCHES
TOLERANCES:
FRACTIONAL
ANGULAR: MACH BEND
TWO PLACE DECIMAL RIP-1-AUTO
PLUMBING
21
DETAIL A
SCALE 1 : 4
20
22
5 DETAIL B
SCALE 1 : 4
16
8
17
18
19
ITEM
NO. PART NUMBER DESCRIPTION QTY.
1 701915 BRASS FTG BULKHEAD ADAPTER 1/8 1
2 701960 AQUA-FLOW #C-25 1
3 701508 S/S FTG NIPPLE 1/8 x 3 1
4 701540 BRASS PIPER COUPLER 1/8" 1
5 701016 NYLON MALE CONNECTOR PP4MC2 3
6 11-0000511-000 AUTO HUMIDITY STEAM CHAMBER 1
7 701012 NYLON MALE CONNECTOR PP6MC6 1
8 305213 GASKET FOR STEAM;ADAPT-O-MATIC 2
9 704300 ELEMENT, IMMERSION 120V/1500W; 1
10 705786 Needle Valve DC 3000 1
11 701015 NYLON SWIVEL ELBOW PP4MES4 1
12 701027 Nylon Fitting PP4MC4 1
13 705864 SOLENOID VALVE REG.STEAM&HUM 1
14 701020 NYLON UNION TEE PP6TU4 2
15 701024 NYLON ELBOW UNION PP6EU6 1
16 701929 BRASS FTG TANK NUT CTR/HOLE 1
17 701019 Nylon Swivel Elbow PP4MES2 1
18 11-0000510-000 AUTO HUMIDITY FLOAT CHAMBER 1
19 705476 SWITCH FLOAT LIQUID LEVEL 1
20 701018 NYLON SWIVEL ELBOW PP6MES6 1
21 701930 VALVE BALL 3/8 x 3/8 IH4 1
22 701931 KNOB, FOR STEAM BALL VALVE 1
23 701032 1/4" NYLON TUBING
24 701034 3/8" NYLON TUBING
NOTE:
SHORT S/S NIPPLE ONLY FOR STEAM CHAMBER IS PART NUMBER 12-0005134-000
THIS IS MADE BY CUTTING PURCHASE PART NUMBER 701508 CUT IN HALF
23
2
1
3
4
5
5
7
8
9
10
11
1213141415
6
2324
B
A
14

REPLACEMENT PARTS
RIP-1 AUTO HUMIDITY
15
ITEM NO. PART NUMBER DESCRIPTION QTY
1 701915 BRASS FTG BULKHEAD ADAPTOR 1/8 1
2 701960 AQUA-FLOW #C-25 1
3 701508 S/S FTG NIPPLE 1/8 X 3 1
4 701540 BRASS PIPER COUPLER 1/8” 1
5 701016 NYLON MALE CONNECTOR PP4MC2 3
6 11-0000511-000 AUTO HUMIDITY STEAM CHAMBER 1
7 701012 NYLON MALE CONNECTOR PP6MC6 1
8 305213 GASKET FOR STEAM; ADAPT-O-MATIC 2
9 704300 ELEMENT, IMMERSION 120V/1500W 1
10 705786 NEEDLE VALVE DC 3000 1
11 701015 NYLON SWIVEL ELBOW PP4MES4 1
12 701027 NYLON FITTING PP4MC4 1
13 705864 SOLENOID VALVE REG. STEAM & HUMIDITY 1
14 701020 NYLON UNION TEE PP6TU4 2
15 701024 NYLON ELBOW UNION PP6EU6 1
16 701929 BRASS FTG TANK NUT CTR/HOLE 1
17 701019 NYLON SWIVEL ELBOW PP4MES2 1
18 11-0000510-000 AUTO HUMIDITY FLOAT CHAMBER 1
19 705476 SWITCH FLOAT LIQUID LEVEL 1
20 701018 NYLON SWIVEL ELBOW PP6MES6 1
21 701930 VALVE BALL 3/8 X 3/8 IH4 1
22 701931 KNOB, FOR STEAM BALL VALVE 1
23 701032 1/4” NYLON TUBING
24 701034 3/8” NYLON TUBING

SCALE:
N/A
DATE:
SALES #
REVISIONS
SHEET
DRAWN BY:
WIRING DIAGRAM
300 South 84th Ave.
WAUSAU, WI. 54401
PH. [phone]
FAX [phone]
www.piperonline.net Travis N.
1
RIP-1 AUTOFILL 120 volt
04/17/2020
xxxxxxxxxx
PIPER
The Food-Focused Equipment Company
a CFSBRANDS company
L1 L2 N
MAIN BLOCK
T-Stat
A
B
D
timer Buzzer
on off
T1 T2 T3
L1 L2 L3
H1 L1
HC L2
P
float switch
2 4 3 0
1786
750 watts
water valve
Fan
20 amp
15 amp
PL
Fan
1500 watts
750 watts
light
PL
GND
16
WIRING DIAGRAM
RIP-1 WITH AUTOFILL

SCALE:
N/A
DATE:
SALES #
REVISIONS
SHEET
DRAWN BY:
WIRING DIAGRAM
300 South 84th Ave.
WAUSAU, WI. 54401
PH. [phone]
FAX [phone]
www.piperonline.net Travis N.
1
RP-30 & RIP-2 autofill 120 volt
04/20/2020
xxxxxxxxxx
PIPER
The Food-Focused Equipment Company
a CFSBRANDS company
L1 L2 N
MAIN BLOCK
T-Stat
A
B
D
timer Buzzer
on off
T1 T2 T3
L1 L2 L3
H1 L1
HC L2
P
float switch
2 4 3 0
1786
750 watts
water valve
Fan
20 amp
15 amp
PL
Fan
1500 watts
750 watts
light
PL
T-Stat
A
B
D
timer Buzzer
on off
T1 T2 T3
L1 L2 L3
H1 L1
HC L2
P
float switch
2 4 3 0
1786
750 watts
water valve
Fan
20 amp
15 amp
PL
Fan
1500 watts
750 watts
light
PL
GND
WIRING DIAGRAM
RIP-2 WITH AUTOFILL
17

PIPER PRODUCTS, INC. LIMITED WARRANTY
Piper Products, Inc. warrants to the original purchaser that its equipment will be free from defects
in the materials and/or parts for a period of 12 months from date of shipment and reported to the
factory.
The purchaser is responsible for having equipment properly installed, operated under normal
conditions with proper supervision and to perform periodic preventative maintenance. Equipment
failures caused by inadequate water quality, improper cleaning, harsh chemicals, or acids are not
covered under warranty.
The manufacturer’s obligation under this warranty shall be the replacement or repair of defective
parts within the warranty period. Excessive labor (more than 1/2 hour) required to access Piper
equipment built into cabinets, tables or structures by others, is NOT covered under labor warranty.
Example: Piper multiple- or single-well food wells. All labor shall be performed during regular
working hours. Overtime premium will be charged to buyer. After thorough examination, the decision

Any defective parts to be repaired or replaced must be returned to Piper Products, Inc., 300 South
84th Avenue, Wausau, WI 54401, transportation charges prepaid, and they must be properly packed
and tagged. The serial and model number of the equipment and date of original installation of such
equipment must be given. However, after one year we will not assume any responsibility for any

covered by this warranty. Our obligation hereunder to repair or replace a defective part is the
exclusive remedy for breach of this warranty; and we will not be liable for any other damages or
claims, including consequential damages.
If, upon inspection by Piper Products, Inc. or its Authorized Service Agency, it is determined that
this equipment has not been properly installed or has not been used in an appropriate manner, has

or other identifying marks have been removed, defaced or changed or the unit has been repaired or
altered by persons other than expressly approved by Piper Products, Inc., the warranty will be void.
If the equipment has been subjected to misuse or misapplication, neglect, abuse, accident, damage

any situation occurs which voids the warranty the manufacturer shall not be liable for any damage to
any person or any property which may result from the use of the equipment thereafter.
Warranty is limited to Piper manufactured products only and does not apply to other equipment
which may be connected to or installed within.
No representative, dealer, distributor or any other person is authorized or permitted to make any
other warranty or obligate Piper Products, Inc. to any liability not strictly in accordance with this
policy.
This warranty is in lieu of all other warranties expressed or implied, including any warranty of

not be liable to purchaser for any consequential or incidental damages including but not limited to

any breach of warranty.
18
