Welcome
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
1OGU 930500105-A1
Welcome
ABOUT THIS GUIDE This guide describes how to install and configure the DISCUS™ Mul-
tiplay Wireless VoIP AG. This guide is intended for use by those
responsible for installing and setting up network equipment; conse-
quently, it assumes a basic working knowledge of LANs (Local Area
Networks) and Internet Routers.
NAMING CONVENTION Throughout this guide, the DISCUS Multiplay Wireless VOIP AG is
referred to as the “Wireless Router”. Category 5 Ethernet Cables are
referred to as Ethernet Cables throughout this guide.
CONVENTIONS Table 1 and Table 2 list conventions that are used throughout this
guide.
TABLE 1. Notice Icons
Icon Notice Type Description
Information note Information that describes important
features or instructions.

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
2OGU 930500105-A1 Welcome
Caution Information that alerts you to potential
loss of data or potential damage to an
application, system, or device.
Warning Information that alerts you to potential
personal injury.
TABLE 2. Text Conventions
Convention Description
The words “enter” and “type” When you see the word “enter” in this guide, you must type
something, and then press Return or Enter. Do not press
Return or Enter when an instruction simply says “type.”
Keyboard key names If you must press two or more keys simultaneously, the key
names are linked with a plus sign (+). Example:
Press Ctrl+Alt+Del
Words in italics Italics are used to:
•Emphasize a point.
•Denote a new term at the place where it is defined in the
text.
•Identify menu names, menu commands, and software
button names. Examples: “From the Help menu, select
Contents. Click OK.”
TABLE 1. Notice Icons
Icon Notice Type Description

Introduction
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
3OGU 930500105-A1
Introduction
INTRODUCTION The DISCUS™ Multiplay Wireless VoIP AG is designed to provide
a cost-effective means of sharing a single broadband Internet con-
nection between several wired and wireless computers. The Router
also provides protection in the form of an electronic “firewall” prevent-
ing anyone outside of your network from seeing your files or damag-
ing your computers. The Router offers VoIP functionalities through 2
VoIP channels allowing you to use existing analog phones and a fall-
back to old telephony at loss of power, WAN, Internet or VoIP.
The DISCUS™ Multiplay Wireless VoIP AG is an ADSL2+ router,
targeted to residential environments SOHO customers, that provides
routed broadband services from a single and modular access point.
The DISCUS™ Multiplay Wireless VoIP AG is the ideal solution for:
1. Connecting multiple PCs and Video game consoles;
2. Sharing broadband internet connections with all home computers;
3. Sharing printers and peripherals;
4. Performing VoIP connections.
PACKAGE CONTENTS Yo u r n e w DISCUS™ Multiplay Wireless VoIP AG ADSL2+ Router
kit contains the related hardware and software. In it you will find:
1. One DISCUS™ Multiplay Wireless VoIP AG unit
2. One Table Support
3. One Power Supply adapter
4. One ADSL splitter micro filter
5. One USB cable

DISCUS™ Multiplay Wireless VoIP AG
4
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
OGU 930500105-A1 Introduction
6. One phone cable
7. One Ethernet cable
8. One installation CD-ROM
9. One Quick Guide

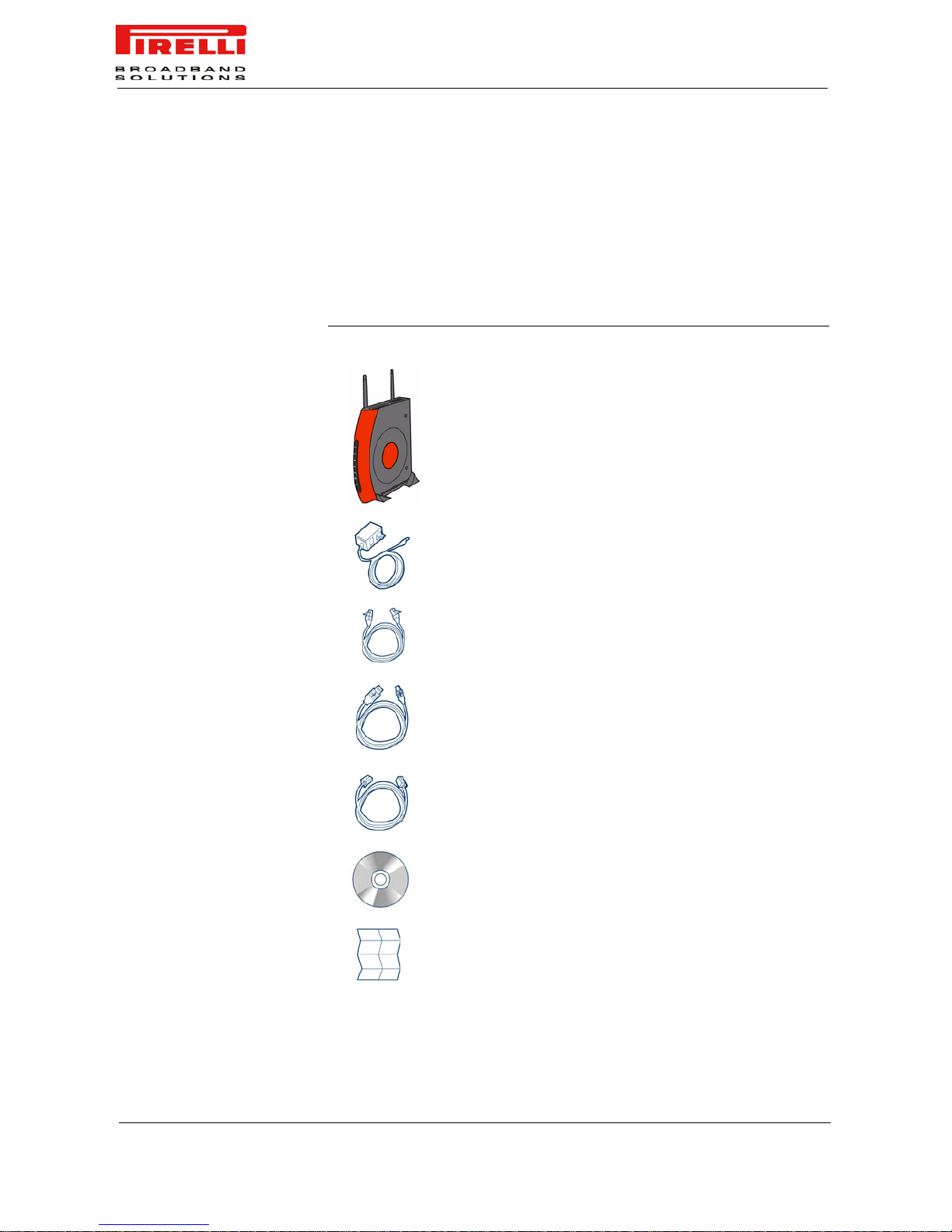

TABLE 1. Kit Material
Quantity DESCRIPTION
1 DISCUS™ Multiplay Wireless VoIP AG
1 Power Supplier
1 Ethernet Cable
1 USB Cable
1 Phone Cord
1 CD-ROM
1QuickGuide

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
5
OGU 930500105-A1
Introduction
If any of these items are missing or damaged, please contact your retailer.
It implements an “always-on” high speed Asymmetric Digital Subscriber Line
(ADSL2/2+) connection to the telephone line on the WAN side, as well several
local connectivity technologies on the LAN side:
•Four switched 10/100 Base-TX Ethernet ports
•One Universal Serial Bus 1.1 (USB) connection to a host PC
•One USB 2.0 Host port for external USB peripherals
•One IEEE 802.11b/g Wireless LAN access point
•Two FXS ports to analog phones
•One FXO port to wall phone socket
Figure 2 shows a sample network, while in Figure 2 an existing SIP account
case is shown: your Router becomes your connection to the Internet. Connec-
tions can be made directly to the Router expanding the number of computers
you can have in your network.
FIGURE 1. Sample Home Network
1 ADSL Splitter Micro Filter
1 Table Support
Quantity DESCRIPTION

DISCUS™ Multiplay Wireless VoIP AG
6
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
OGU 930500105-A1 Introduction

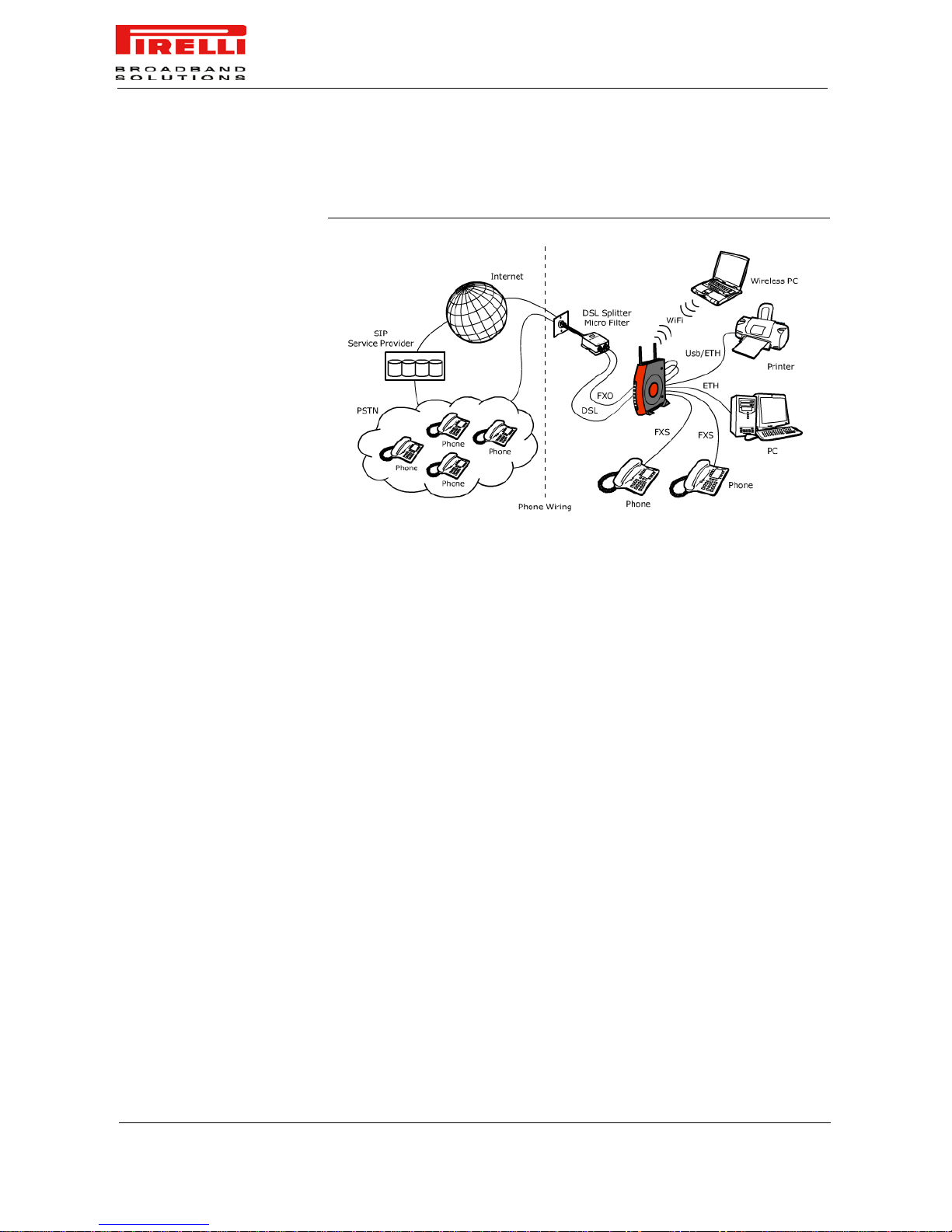

FIGURE 2. Sample Home Network (existing SIP account case)
ROUTER ADVANTAGES The advantages of the Router include:
•Shared Internet connection for both wired and wireless computers
•High speed 802.11b/g wireless networking
•No need for a dedicated, “always on” computer serving as your Internet con-
nection
•Cross-platform operation for compatibility with Windows and Macintosh com-
puters (see Technical description for supported platforms).
•Easy-to-use, Web-based setup and configuration
•Centralization of all network address settings (DHCP)
•a Virtual server to enable remote access to Web, FTP, and other services on
your network
•a Security — Firewall protection — against Internet hacker attacks and
encryption to protect wireless network traffic
•VoIP functionalities supporting existing analog phones
•Communication fallback of ADSL to analog lines in case of power or hard-
ware faults (if supported by your network operator)
•a multi-language GUI.
MINIMUM SYSTEM AND
COMPONENT
REQUIREMENTS
Your Router requires that the computer(s) and components in your network be
configured with at least the following:
•A computer with the Operating Systems that support TCP/IP networking pro-
tocols: Windows 98SE, Windows ME, Windows 2000, Windows XP 32bit or
MAC 10.x

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
7
OGU 930500105-A1
Introduction
•An Ethernet 10Mbps or 10/100 Mbps NIC for each computer to be connected
to one of the three Ethernet port at the rear of the Router
•An USB 2.0 port
•As optional, an 802.11b/g wireless NIC
•At least, 60MB of free hard disk space
•At least, 128 MB of RAM
•Supported Browsers: Internet Explorer 5.5 or higher, Netscape 4.7 or higher
FRONT PANEL The front panel of the Router contains seven indicator lights (LEDs) that help to
describe the state of networking and connection operations.
FIGURE 3. Front Panel LEDs
TABLE 2. LED Description
LED STATUS DESCRIPTION
1Power GREEN on correctly powered on
off not correctly powered
RED on Power on Self Test failure
2Ethernet link/activity GREEN on link active
GREEN blinking data exchange
off no active link
3Wireless activity GREEN blinking data exchange
off no wireless link

DISCUS™ Multiplay Wireless VoIP AG
8
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
OGU 930500105-A1 Introduction
REAR PANEL The rear panel of the Router contains a reset button, a power adapter socket,
four LAN ports, one ADSL port, one USB device port and one USB Host port,
one FXO port and two FXS ports.
GREEN on link established
4USB link/activity GREEN on link active
GREEN blinking data exchange
off no active link
5Phones off Phone line 1 or 2 not regis-
tered
GREEN on At least one of the FXS ports
has been registered with a SIP
Proxy server
GREEN blinking One of the phones is off-hook
6DSL line activity off no DSL line link is active
GREEN on connected
GREEN blinking connection in progress
7Internet activity GREEN on link active
GREEN blinking data exchange
off no active link
RED All Internet connection
attempts failed
TABLE 2. LED Description
LED STATUS DESCRIPTION
Do not force the antenna beyond its mechanical stops. Rotating the antenna further may cause dam-
age.

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
9
OGU 930500105-A1
Introduction
FIGURE 4. Rear Panel LEDs
TABLE 3. Port Description
PORT DESCRIPTION
a Phone DSL connector (ADSL2/2+)
b FXO port
cFXSports
d USB 1.1 port
e USB 2.0 port for external peripherals
f Four Ethernet ports 10/100 Mbps
g Reset to factory default button
h Power button
i Power connector

DISCUS™ Multiplay Wireless VoIP AG
10
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
OGU 930500105-A1 Introduction

Hardware Installation
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
11OGU 930500105-A1
Hardware
Installation
INTRODUCTION This chapter will guide you through a basic installation of the Router
including:
1. Positioning the DISCUS™ Multiplay Wireless VoIP AG
2. Installing Micro Filters
3. Connecting the Router to your network
4. Setting up your computer for networking with the Router
POSITIONING THE ROUTER You should place the Router in such a location to ensure that:
•It is located near an electrical outlet and a phone wall socket
•Water or moisture cannot enter the case of the unit
•It is out of direct sunlight and away from sources of heat
•The cabling is away from power lines, fluorescent lighting fixtures,
and sources of electrical noise such as radios, transmitters and
broadband amplifiers.
Please read carefully the Safety Information in Appendix “A”
A multimedia guided tour on how to connect your device and install the router’s drivers is
available on CD-ROM. It is recommended to follow CD-ROM procedures to easy up device
setup.

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
12 OGU 930500105-A1 Hardware Installation
•It is centrally located to the wireless computers that will connect to the
Router. A suitable location might be on top of a high shelf to optimize wire-
less connections to computers in both horizontal and vertical directions,
allowing wider coverage
INSTALLING MICRO
FILTERS
Before beginning installation you must locate devices in your house requiring a
DSL filter such as phones, fax machines, answering machines, dial-up
modems, Satellite TV dialers or monitored security systems and attach a DSL
filter to any one of them sharing the same phone line as your DSL modem.
To install DSL filters please follow these steps:
1. Disconnect the phone cable from the telephone wall socket
2. Insert the phone cable into the DSL filter socket identified with a phone
symbol
3. Insert the DSL filter cable into the telephone wall socket
FIGURE 1. Micro Filter Installation
You do not need to attach a DSL filter to unused wall sockets.
1
2
3

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
13
OGU 930500105-A1
Hardware Installation
POWERING UP THE
ROUTER
To power up the Router:
1. Plug the power adapter into the power adapter socket located on the rear
panel of the Router
2. Plug the power adapter into a standard electrical wall socket
3. Wait for the power LED to turn steady green
CONNECTING THE ROUTER The first step to install the router is to physically connect it to the telephone
socket and then to connect it to a computer - by means of an Ethernet or an
USB connection - to be able to access the Internet
To connect the phone cable:
1. Connect one end of the phone cable into the DSL filter socket identified with
a computer symbol
2. Connect the other end of the phone cable into the DSL socket of the Router
FIGURE 2. Phone Cable Connection
To connect the Ethernet cable:

DISCUS™ Multiplay Wireless VoIP AG
(C) (2006) Pirelli Broadband Solutions S.p.A. All Rights Reserved. Proprietary Use Pursuant to Cover Page Instructions.
14 OGU 930500105-A1 Hardware Installation
1. Connect one end of the Ethernet cable into one of the four Ethernet sockets
on the rear of the Router
2. Connect the other end of the ethernet cable into the Ethernet plug of your
computer
FIGURE 3. Ethernet Cable Connection
To connect the USB cable:
1. Connect one end of the USB cable into the USB socket on the rear of the
Router.
