pitsco 38757 User manual

45177
MOBILE STORAGE UNIT
Assembly Instructions

Content advising by Jason Lee.
Build creation and SolidWorks® Composer™ renderings by Brian Eckelberry.
Desktop publishing by Todd McGeorge.
©2018 Pitsco, Inc., 915 E. Jefferson, Pittsburg, KS 66762
All rights reserved. This product and related documentation are protected by copyright and are distributed under licenses
restricting their use, copying, and distribution. No part of this product or related documentation may be reproduced in any
form by any means without prior written authorization of Pitsco, Inc.
All other product names mentioned herein might be the trademarks of their respective owners.
V1.0
09/18

Contents
Getting Started
Safety and Recommended/Required Tools .....................................................................................................................................2
Parts Overview .........................................................................................................................................................................................3-4
Mobile Storage Unit Assembly Instructions
Step 1 ...............................................................................................................................................................................................................5
Step 2 ...............................................................................................................................................................................................................6
Step 3 ...............................................................................................................................................................................................................7
Step 4 ...............................................................................................................................................................................................................8
Step 5 ...............................................................................................................................................................................................................9
Step 6 ............................................................................................................................................................................................................10
Step 7 ............................................................................................................................................................................................................11
Step 8 ............................................................................................................................................................................................................12
Step 9 ............................................................................................................................................................................................................13
Step 10..........................................................................................................................................................................................................14
Finished Assembly Views............................................................................................................................................................... 15-16
45177

Safety
• Always wear safety glasses when tightening screws on the Mobile Storage Unit.
• Keep fingers and loose articles of clothing clear of the drill.
Recommended/Required Tools
• Corded or cordless drill/driver
• Driver bits including Philips head, T-25 Torx bit, and T-30 Torx bit
• 9/16" open end wrench for caster adjustment
• 1/16" drill bit or scratch awl for starting 6 x 3/4" wood screw holes (optional)
Getting Started
2

Parts Overview
1x Mobile Storage Unit Back 38758
1x Mobile Storage Unit Right Side 38759
1x Mobile Storage Unit Left Side 38760
1x Mobile Storage Unit Bottom 38761
1x Mobile Storage Unit Top 38762
2x Mobile Storage Unit Inside Panel 38763
Mobile Storage Unit Parts Overview
Getting Started
3

Parts Overview
6x Stafast Sleeve Nut 23204
6x 2" Caster 5/16"-18 x 1/2" 23375
6x 5/16" Flat Washer 20868
12x Countersink Confirmat Screw 20263
24x Flathead Confirmat Screw 20264
36x Plastic Runner for Tray 40545
72x 6 x 3/4" Flat Phillips Head Wood Screw 20987
Getting Started
4

Detail
6x
Stafast Sleeve Nut
23204
6x
5/16" Flat Washer
20868
6x
2" Caster 5/16"-18 x 1/2"
23375
1x
Mobile Storage Unit
Bottom 38761
Step 1.0
Tip: Using the drill with the T-30 Torx bit and the
9/16" open end wrench, install six 2" Casters (23375)
on the Mobile Storage Unit Bottom (38761) first.
You will then need to flip the Storage Unit only
once after all parts are installed. This minimizes
the chances of damaging the storage unit during
construction.
Step 1
Parts Needed
Mobile Storage Unit Assembly Instructions
5

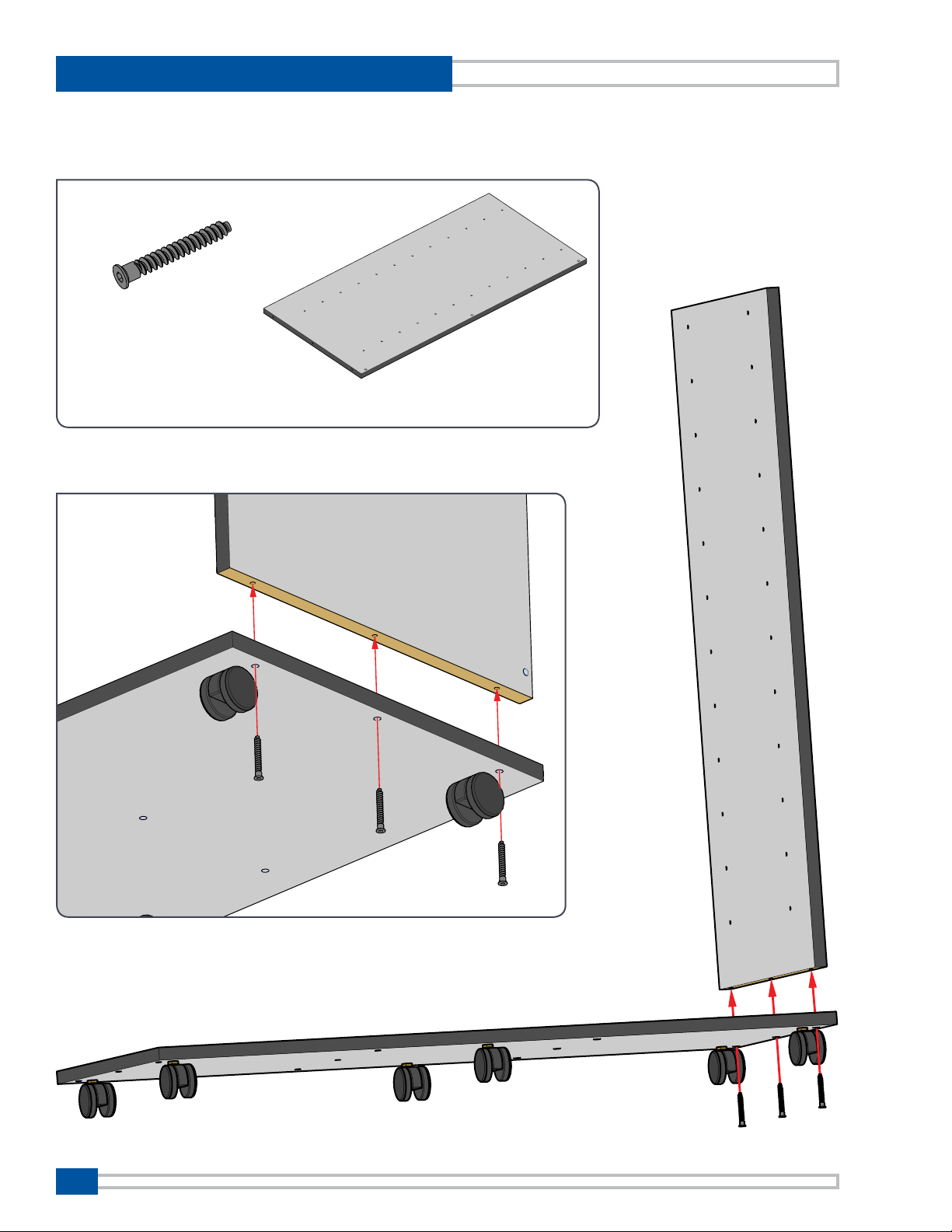

1x
Mobile Storage Unit
Left Side 38760
3x
Countersink
Confirmat Screw
20263
Detail
Step 2.0
Tip: Using a drill with a T-25 Torx bit, insert three
Countersink Confirmat Screws (20263) through the
Mobile Storage Unit Bottom (38761) and tighten. Repeat
for Steps 3-5.
Step 2
Parts Needed
Mobile Storage Unit Assembly Instructions
6

Step 3.0
1x
Mobile Storage Unit
Inside Panel 38763
3x
Countersink
Confirmat Screw
20263
Detail
Step 3
Parts Needed
Mobile Storage Unit Assembly Instructions
7

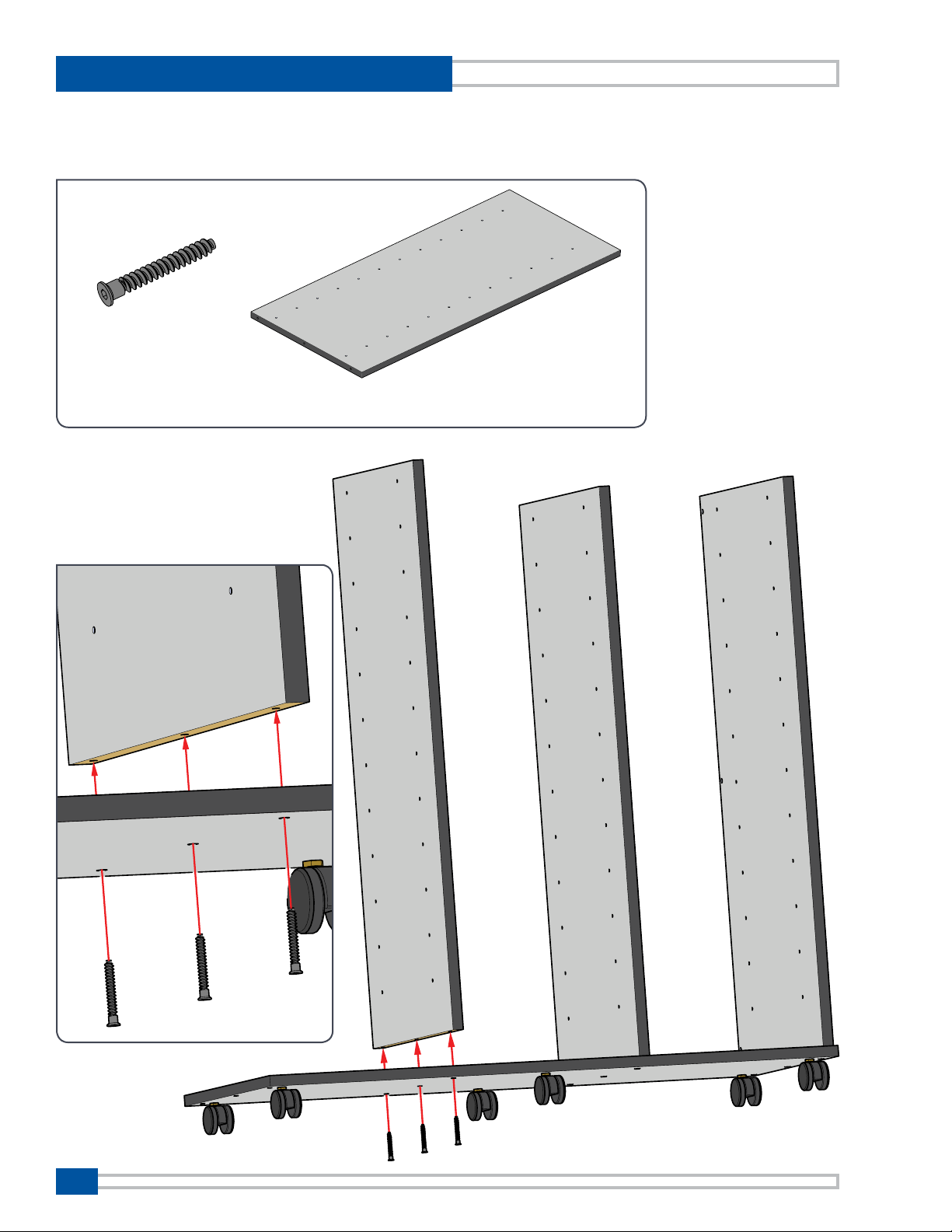

Step 4
Parts Needed
1x
Mobile Storage Unit
Inside Panel 38763
Step 4.0
3x
Countersink
Confirmat Screw
20263
Detail
Mobile Storage Unit Assembly Instructions
8

Step 5
Parts Needed
Detail
1x
Mobile Storage Unit
Right Side 38759
Step 5.0
3x
Countersink
Confirmat Screw
20263
Mobile Storage Unit Assembly Instructions
9

Step 6
Parts Needed
1x
Mobile Storage Unit
Top 38762
Step 6.0
12x
Flathead Confirmat
Screw 20264
Tip: Using a drill with a T-25
Torx bit, insert 12 Flathead
Confirmat Screws (20264)
through the Mobile Storage
Unit Top (38762) and
tighten.
Mobile Storage Unit Assembly Instructions
10

Step 7
Parts Needed
6x
Flathead Confirmat
Screw 20264
1x
Mobile Storage Unit
Back 38758
Step 7.0 Tip: Using a drill with a T-25 Torx bit, insert
six Flathead Confirmat Screws (20264)
through the Mobile Storage Unit Back
(38758) and tighten.
Mobile Storage Unit Assembly Instructions
11

Step 8
Parts Needed
Step 8.0
6x
Flathead Confirmat
Screw 20264
Detail
Tip: Using a drill with a T-25 Torx bit, insert
six Flathead Confirmat Screws (20264)
through the Mobile Storage Unit Right Side
(38759) and Mobile Storage Unit Left Side
(38760) and tighten.
Mobile Storage Unit Assembly Instructions
12

Step 9
Parts Needed
36x
Plastic Runner for Tray
40545
Step 9.0
Tip: When you place the plastic runners for trays, check spacing
between bins using the Gratnell bins. The number of plastic runners
mounted will vary depending on the size of the bins.
Mobile Storage Unit Assembly Instructions
13

Step 10.0
Tip: Using a drill with a Philips bit, install the Flat Phillips Head Wood
Screws (20987) through the Plastic Runner for Trays (40545) and tighten.
Insert the screws through the holes and use the drill to self-start.
Step 10
Parts Needed
72x
6 x 3/4" Flat Phillips Head
Wood Screw 20987
Mobile Storage Unit Assembly Instructions
14

Finished assembly should look like this.
Mobile Storage Unit Assembly Instructions
15

Finished assembly View
Mobile Storage Unit Assembly Instructions
16

Assembly Instructions
HAVE QUESTIONS?
There are a variety of ways
to get in touch with us:
Call us at 800-358-4983.
Email us at [e-mail].
Chat with us on Pitsco.com/support.
MOBILE STORAGE UNIT
