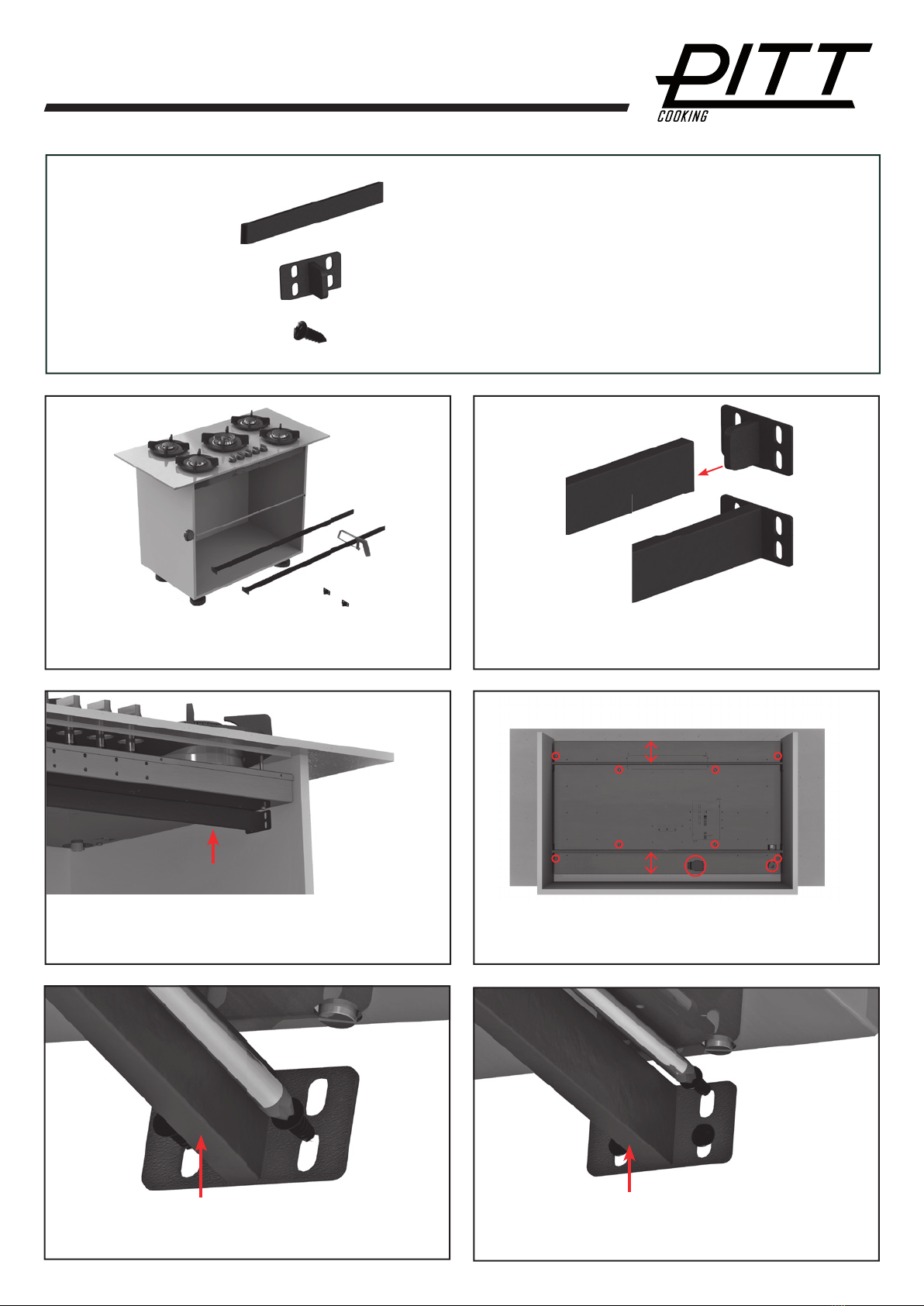

PITT 4000001 Guide

1. Determine the dimensions of the cabinet and cut the support
beams with the saw. ATTENTION! Correct length of the beam =
the dimension of cabinet on the inside - 4 mm.
2. Place the inserts into the ends of the beams that have been
cut to size.
3. Place the beams between the cabinet and position it against
the under side of the PITT®cooking unit. ATTENTION: FOR THE
POSITIONING, SEE STEP 4.
4. Position the beams in such a way that the screws, gas
connection and the electricity block are freely accessible.
*
*
* Minimum distance of 80 mm
5. Push the beams firmly against the underside of the PITT®
cooking unit and tighten the lower two screws by hand. Repeat
this step for the other side of the cabinet.
6. Push the beams firmly against the underside of the PITT®
cooking unit and tighten the upper two screws completely.
Then, tighten the lower screws completely.
Instructions for installation of support set
Contents of package:

2x support beams
4x inserts
16x cross-point screws 4,2x16 mm
Tools needed:
• Measuring tape
• Cross-point screwdriver
• Metallic saw

