Braemar Tudor Romeo User manual

Tudor Romeo
by
Australian Made
GAS COOKTOPS

Dear Customer,
Congratulations and thank you for purchasing an Australian
made TUDOR ROMEO gas cooktop for your home.
Before using your new cooktop, please read the operating
instructions in this manual carefully.
Please also complete the warranty card at the end of this
manual and return it to us so that we can register your cooktop.
This will assist should your cooktop require any service in the
future.
Important safety information
THIS APPLIANCE MUST BE INSTALLED AND SERVICED BY
AUTHORISED PERSONNEL ONLY.
THIS APPLIANCE IS NOT SUITABLE FOR INSTALLATION IN
MARINE CRAFT, CARAVANS OR MOBILE HOMES
DO NOT: Operate this appliance before reading these instructions.
DO NOT: Store flammable materials near this appliance.
DO NOT: Spray aerosols in the vicinity of this appliance while it is operating.
DO NOT: Operate this appliance with any parts removed.
DO NOT: Modify this appliance.
Before requesting a service call please run through the simple checks in the
"Troubleshooting" section on page 5 of this manual.
If required, call Service on 1300 650 276.
For spare parts call 1300 367 437.
If your cooktop stops working
Tudor Romeo
by
1

Different burner options are available for Tudor Romeo gas cooktops.
Cooktops are fitted with different combinations of the following
burners depending on your model selection:
- "SUPER SIMMER" dual-ring burners,
- "LARGE BOILING" single-ring burners, and
- "WOK" dual-ring burners.
Lighting and adjusting the burners
- Depress the knob corresponding to the
required burner to initiate the spark (all
burners will start sparking).
- Turn the knob fully anti-clockwise to the
"HI" position.
- Release the knob once the burner lights.
- Turn the knob to adjust to the required heat
setting.
LARGE BOILING
BURNER
USER INSTRUCTIONS
Inner ring only:
- Depress the knob for the required burner to initiate the spark.
- Turn the knob fully anti-clockwise to the "HI" position.
- Release the knob once the inner burner lights.
- Turn the knob to adjust to the required heat setting.
Inner AND outer ring:
- Depress the knob for the required burner to initiate the spark.
- Turn the knob clockwise to the "HI" position.
- Release the knob once both burners have lit.
- Turn the knob to adjust to the required heat setting.

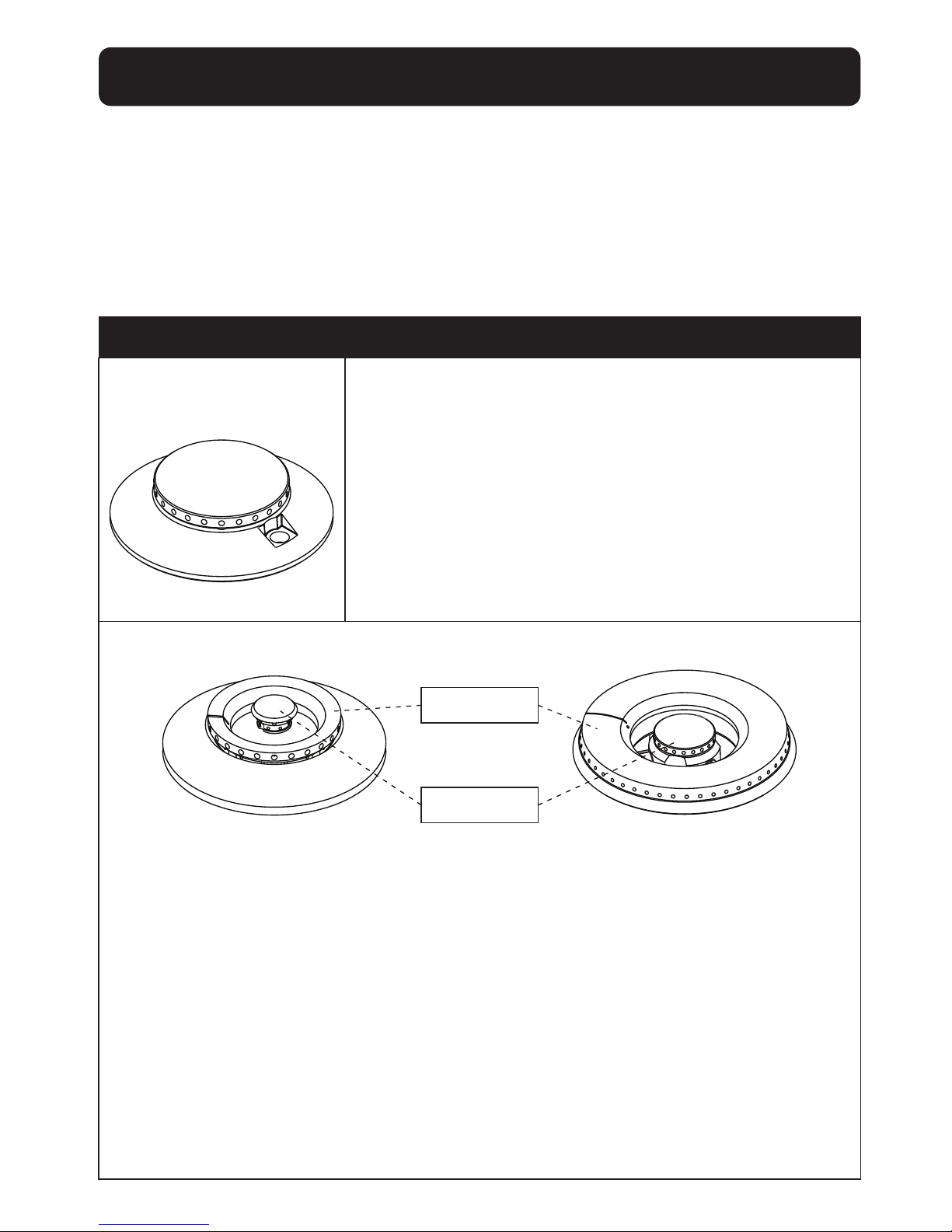

DUAL-RING BURNERS
Super simmer burner Wok burner
Inner ring
Outer ring
2

USER INSTRUCTIONS
Turning the burners off
- Turn the knob corresponding to the
required burner to the marked OFF
position.
All burners
To ensure safe operation

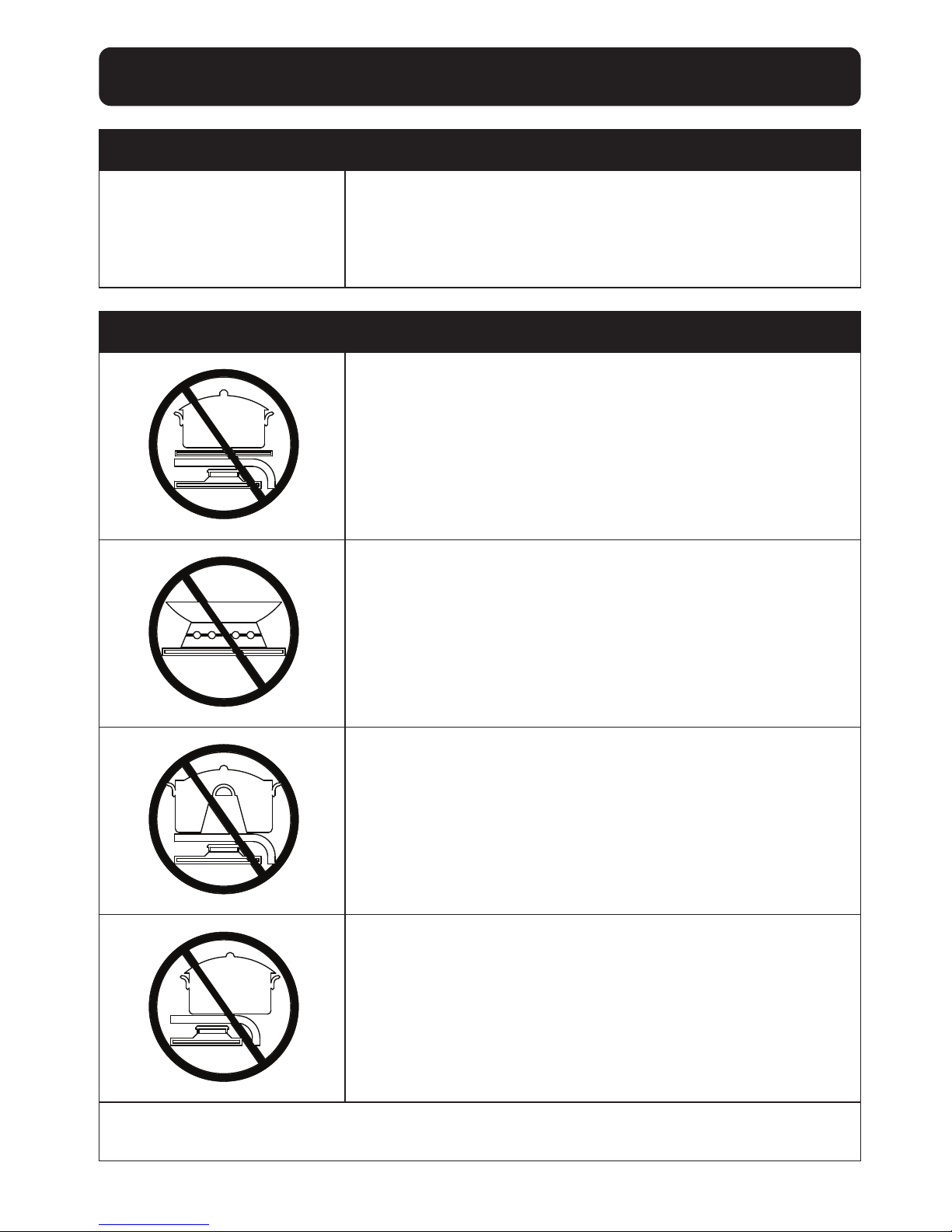

DO NOT place anything (eg, flame tamer,
simmer mat) between the pot and the trivet
as serious damage/glass breakage may
result.
DO NOT remove the trivet and enclose any
burner with a wok stand.
DO NOT use large pots or heavy weights
which could deform the cooktop.
DO NOT allow the pot to protrude past the
edge of the cooktop. Ensure that the pot is
located centrally over the burner.
DO NOT place hot objects directly onto the glass surface.
3

USER INSTRUCTIONS
Cleaning your cooktop
- Use a non-abrasive cleaner or specific
glass cleaner.
- If required a nylon scourer can be used on
stubborn stains.
Glass hob
- DO NOT use abrasive cleaners or steel scourers on any parts of
your cooktop - these can cause damage to the surfaces. This
damage is not covered by your warranty.
- The trivets, burners and knobs can all be removed for cleaning.
- DO NOT remove any other parts.
- Take care to replace any parts that have been removed back in
their original positions.
- Use a non-abrasive cleaner in the direction
of the "grain".
- We recommend a mixture of equal parts of
baby oil and mineral turpentine.
- Apply sparingly and buff off excess with a
clean soft cloth.
Stainless steel hob
- Use a clean soft cloth in warm soapy water
only.
Black burners
- Use a non-abrasive cleaner in warm soapy
water. Do not soak trivets in water as they
may rust. Dry trivets after cleaning.
Trivets
- Use a non-abrasive cleaner and warm
soapy water.
Enamelled spill
bowls
- These can be cleaned with a soft brush
such as a toothbrush.
Spark electrode tips
- Use a non-abrasive cleaner in warm soapy
water.
Plastic knobs
4

USER INSTRUCTIONS
Troubleshooting
- Check appliance is plugged in and power point is
turned on.
No ignition spark.
- If your cooktop is not operating correctly, please run through the following
checks prior to requesting a service call.
- Many service calls are the result of blockages caused by cleaning residues.
Please ensure that you check for this prior to requesting a service call as this is
not covered by your warranty.
- Check gas valve to cooktop is turned on.
- Check spark to all burners.
- Try lighting one of the inner burners with a match.
- Check spark electrode position. Spin electrode to
reseat 3-4mm from edge of inner burner if required.
- Check that burner ports are not blocked - clear with
a needle if required - take care not to damage ports,
do not enlarge ports.
- If using bottle gas, check that bottle is not empty -
have bottle replaced if necessary.
Burners will not light.
- See "Burners will not light" checks above.
- Remove burner and check that injector hole is not
blocked - clear with a fine needle if required.
Inner burner on super
simmer burner will not
light.
- See "Burners will not light" checks above.
- Check that outer burner lights using a match.
- Check that thin "cross-lighting" slot in outer burner is
not blocked - clear with a fine blade or needle if
required.
Outer burner on
dual-ring burners will
not light.
- Check that the burner is correctly located and
seated in position.
Uneven flame
appearance.
If, after running through the above checks, your cooktop is still not operating
correctly, please contact your installer or call Serice on 1300 650 276.
Servicing or replacement of parts within the appliance must be carried out by
qualified personnel ONLY.
5

INSTALLATION INSTRUCTIONS
Regulations
- Check that the appliance model and gas type are as
required.
- Check that the appliance is not damaged - report
any transit damage within 7 days.
- Do not install if damaged.
Pre-installation checks
This Tudor Romeo gas cooktop must be installed in
accordance with these instructions, local gasfitting
regulations, municipal building codes, electrical wiring
regulations, Australian Standard AS5601 and any other
relevant statutory requirements.
THIS APPLIANCE MUST BE INSTALLED AND SERVICED
BY AUTHORISED PERSONNEL ONLY.
Location:
- Select a position away from doors, draughts and
curtains.
Clearance from walls:
- Maintain a minimum clearance of 150mm from the
perimeter of the cooktop and any wall surface.
- If any wall surface is closer than 150mm, it must be
covered with a suitable non-combustible material to
a height of 400mm above the benchtop.
Clearance from range hoods and overhanging
cupboards:
- Maintain a minimum distance of 600mm from the
top of the highest trivet to the underside of a range
hood or overhanging cupboard.
Location and
clearances
Installation
6

INSTALLATION INSTRUCTIONS
40
20
590
467
Gas
entry
Electrical
entry
90
Min depth 40mm
Hob 660 x 535
Bench cut-out
590 x 467
70
427
Electrical
entry
Gas
entry
860
394
Min depth 40mm
105
Hob 930 x 440
Bench cut-out
860 x 394
Bench cut-out dimensions: 900 series cooktops
Bench cut-out dimensions: 600 series cooktops
7

Natural Gas cooktops:
- The cooktop is supplied with a regulator which must
be fitted at the inlet of the cooktop.
Propane cooktops:
- The cooktop is supplied with a short length of
copper pipe which incorporates a pressure test
point. This must be fitted at the inlet of the cooktop.
This cooktop is not suitable for use with a flexible
connection.
Gas connection
- Each cooktop is supplied fitted with a standard 3-pin
240Vac plug and 1-1.2m of lead.
- A conventional 240Vac 10A 3-pin GPO must be
fitted.
- The electrical supply must be 240Vac, 50Hz.
- Ensure that the polarity of the power supply is
corrrect.
- Electrical wiring and fittings must be installed by a
licensed electrician, and in accordance with the
relevant electrical standards and regulations.
Electrical connection
- After the hole is cut in the bench, fit the cooktop into
the opening.
- The cooktop does not require "fixing" to the bench -
it will stay in position under its own weight.
- Ensure that the flange of the sheetmetal base of the
cooktop rests on top of the bench all the way
around.
- DO NOT seal the cooktop into the bench - the small
opening around the perimeter of the glass hob, and
across the rear of the stainless steel hob, is required
to allow combustion air to enter the cooktop.
Fitting the cooktop
INSTALLATION INSTRUCTIONS
Installation
8

- Check the gas line for leaks - rectify any leaks
found.
Check for gas leaks
INSTALLATION INSTRUCTIONS
Testing and commissioning
Natural Gas models:
- The gas pressure test point is located on the outlet
side of the regulator.
- Remove the test point screw and connect a suitable
manometer to the pressure test point.
- Light all burners.
- Check that the pressure is 1.0 kPa - adjust the
regulator if required.
- If you cannot achieve the specified pressure check
the gas supply line. The cooktop requires a
minimum supply pressure of 1.13 kPa at the inlet of
the regulator.
- Once the pressure is set correctly, lock the regulator
adjusting screw, remove the manometer and replace
the test point screw.
- Re-light at least one burner and re-check for leaks
at the pressure test point.
Propane models:
- The gas pressure test point is located on the gas
inlet pipe supplied.
- Remove the test point screw and connect a suitable
manometer to the pressure test point.
- Light all burners.
- Check that the pressure is 2.75 kPa.
- If you cannot achieve the specified pressure check
the gas supply line.
- Remove the manometer and replace the test point
screw.
- Re-light at least one burner and re-check for leaks
at the pressure test point.
Check gas test point
pressure
- Check that ignition to all burners operates correctly.
- Check that flames are even on all burners.
- Check that controls operate correctly between
marked "HI" and "LO" positions.
- Hand instruction manual to customer/home owner
and explain operation.
Check operation and
instruct customer
9

SPECIFICATIONS & SERVICING
Technical data
Burner Injector size (mm)
Nat Gas Propane
Gas rate (MJ/h)
Nat Gas Propane
SUPER
SIMMER
Inner
Outer
WOK
Inner
Outer
LARGE BOILER
0.50 0.25 5.9 5.9
1.00 0.60
1.50 0.90 11.0 11.0
0.65 0.50 18.0 18.0
1.90 1.05

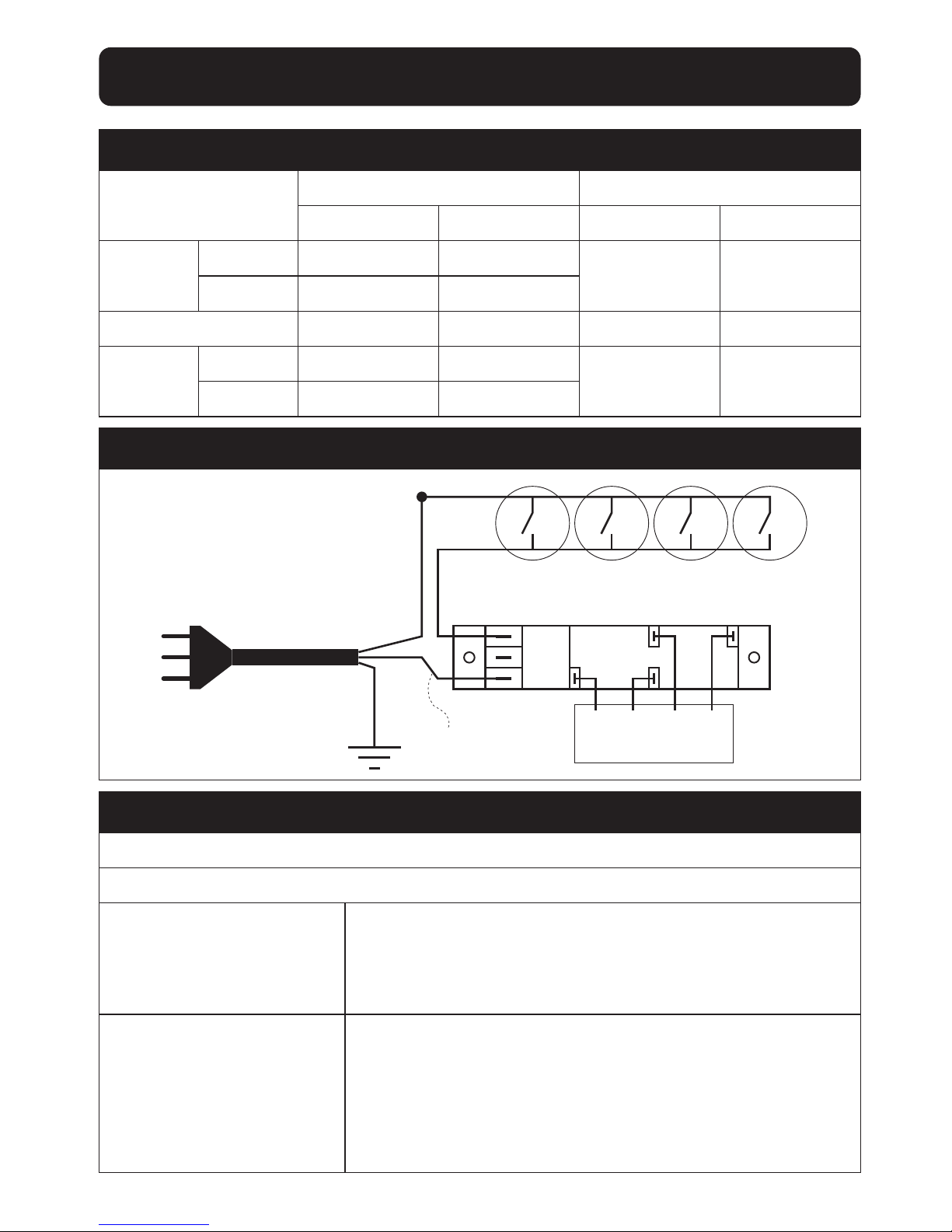

Wiring diagram
A
N
E
Brown
Blue
Blue
Green/yellow Spark electrodes
(1 to each burner)
Ignition switch under each control knob.
Depressing any knob initiates spark to ALL
burners simultaneously.
Blue
240Vac 50Hz
supply
Servicing
SERVICING MUST BE CARRIED OUT BY QUALIFIED PERSONNEL ONLY
- Disconnect electricity supply.
- Remove trivets, burners, spillbowls and knobs.
- Gently lift glass or stainless steel hob upwards to
gain access to all internal components.
Component access
- Refer Troubleshooting section of this manual.
- If parts require cleaning, refer Cleaning Instructions
section of this manual.
- If parts require replacement, replace with only
genuine Tudor spare parts.
- For spare parts call 1300 367 437.
Servicing
DO NOT MODIFY THIS APPLIANCE
10

WARRANTY DETAILS
The manufacturer, Tudor Appliances, warrants that the product is free from defects
in material and factory workmanship. Subject to these terms of warranty, the
manufacturer will repair or replace, at its option, the product or any part thereof
which examination shows to be defective for a period of two (2) years from the date
of purchase when the cooktop is used in personal domestic applications, and for
one (1) year for non-domestic applications.
The warranty applies to all components which form part of the original Tudor
Romeo cooktop but excludes related installation components.
During the period to which the warranty applies, all defective parts shall be
replaced or repaired (at the discretion of the manufacturer) without charge for
either parts or labour during normal working hours.
Travel and freight charges apply for appliance located more than 35km from an
authorised Tudor service agent.
No other person, company or corporation is authorised to offer, or give on our
behalf, any other warranty.
Nothing in this warranty shall be construed as affecting any rights you may have
under all the relevant laws, or Commonwealth or State legislation, which give you
rights which can not be modified or excluded by agreement. The benefits conferred
are in favour of the original retail purchaser, and any person deriving title to the
Tudor Romeo cooktop whilst in its original place of installation.
This warranty does not apply to any consequential loss suffered through, or
resulting from, the non-operation, or defective operation, of the Tudor Romeo
cooktop. This warrranty does not cover damage to the Tudor Romeo cooktop or
other loss resulting from acts of God.
The warranty is conditional on the unit being installed, operated and maintained in
accordance with the instructions provided. The warranty does not apply to damage
or adjustment due to misuse of the cooktop, or faulty installation or commissioning,
or where non-Tudor Romeo replacement parts have been used.
The manufacturer and its Agents reserve the right to refuse service unless safety
and accessibility to the cooktop can be guaranteed. The cost of any equipment
required to provide access to the cooktop for servicing is the responsibility of the
owner. If a service call reveals no fault with the Tudor Romeo cooktop, a charge
for the call will be made.
11

WARRANTY REGISTRATION
Please print clearly. Cut out this section and post.
Name:
Address:
Suburb/city:
State:
Telephone:
New home
Cooktop model:
Serial No:
Installation date:
Retailer:
Postcode:
( )
Replacement
Renovation
12

13
Seeley International Pty Ltd
Reply Paid 164 LONSDALE DC SA 5160

WARRANTY REGISTRATION COPY
Please print clearly. Keep this copy for your records.
Name:
Address:
Suburb/city:
State:
Telephone:
New home
Cooktop model:
Serial No:
Installation date:
Retailer:
Postcode:
( )
Replacement
Renovation
Privacy notice
The information that you include on the warranty registration card will be used to assist in
providing warranty support for the cooktop you have purchased.
Tudor Appliances may also use this information to inform you of other products or services.
Unless you advise otherwise, we may give your information to contractors or other related
organisations that may use it to inform you about their products or services.
If you wish to access your warranty information held by Seeley International, please contact
the privacy officer at Meridian Maestro Pty Ltd, PO Box 140, Melrose Park, SA 5039.
14

Meridian Maestro Pty Ltd
ABN 30 234 688 625
Sales and Marketing by
Part number for this manual: 810560e
