Pittsburgh Automotive 69926 Assembly instructions

Page 2 For technical questions, please call 1-800-444-3353. Item 69926
WARNING SYMBOLS AND DEFINITIONS
This is the safety alert symbol. It is used to alert you to potential personal injury hazards.
Obey all safety messages that follow this symbol to avoid possible injury or death.
Indicates a hazardous situation which, if not avoided,
will result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in death or serious injury.
Indicates a hazardous situation which, if not avoided,
could result in minor or moderate injury.
Addresses practices not related to personal injury.
IMPORTANT SAFETY INFORMATION
General Safety Warnings
WARNING Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury.
Save all warnings and instructions for future reference.
The warnings, precautions, and instructions discussed in this instruction manual cannot cover all possible
conditions and situations that may occur. It must be understood by the operator that common sense
and caution are factors which cannot be built into this product, but must be supplied by the operator.
1. Work area safety
a. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
b. Do not operate the Compressor in explosive
atmospheres, such as in the presence
of flammable liquids, gases or dust.
Compressor motors produce sparks
which may ignite the dust or fumes.
c. Keep children and bystanders away
from an operating compressor.
2. Electrical safety
a. Compressor plugs must match the outlet.
Never modify the plug in any way.
Do not use any adapter plugs with grounded
compressors. Standard plugs and matching
outlets will reduce risk of electric shock.
b. Do not expose compressor to rain or wet
conditions. Water entering a compressor
will increase the risk of electric shock.
c. Do not abuse the cord. Never use the
cord for unplugging the compressor.
Keep cord away from heat, oil, sharp edges
or moving parts. Damaged or entangled
cords increase the risk of electric shock.
3. Personal safety
a. Stay alert, watch what you are doing and
use common sense when operating this
compressor. Do not use this compressor
while you are tired or under the influence
of drugs, alcohol or medication. A moment
of inattention while operating a compressor
may result in serious personal injury.
b. Use personal protective equipment.
Always wear ANSI-approved eye
protection during setup and use.
c. Prevent unintentional starting. Ensure the
switch is in the off-position before connecting
to power source or moving the compressor.
4. Compressor use and care
a. Do not use the compressor if the switch
does not turn it on and off. Any compressor
that cannot be controlled with the switch
is dangerous and must be repaired.
b. Disconnect the plug from the power source
before making any adjustments, changing
accessories, or storing the compressor.
Such preventive safety measures reduce the
risk of starting the compressor accidentally.
c. Store an idle compressor out of the reach
of children and do not allow persons
unfamiliar with the compressor or these
instructions to operate it. A compressor is
dangerous in the hands of untrained users.

Page 3For technical questions, please call 1-800-444-3353.Item 69926
d. Maintain the compressor. Keep the
compressor clean for better and safer
performance. Follow instructions for
lubricating and changing accessories.
Keep dry, clean and free from oil and grease.
Check for misalignment or binding of moving
parts, breakage of parts and any other
condition that may affect the compressor’s
operation. If damaged, have the compressor
repaired before use. Many accidents are
caused by a poorly maintained compressor.
e. Use the compressor in accordance with
these instructions, taking into account
the working conditions and the work to
be performed. Use of the compressor for
operations different from those intended
could result in a hazardous situation.
5. Service
a. Have your compressor serviced by a
qualified repair person using only identical
replacement parts. This will ensure that the
safety of the compressor is maintained.
Air Compressor Safety Warnings
1. Risk of fire or explosion - do not spray flammable
liquid in a confined area or towards a hot surface.
Spray area must be well-ventilated. Do not
smoke while spraying or spray where spark or
flame is present. Arcing parts - keep compressor
at least 20 feet away from explosive vapors,
such as when spraying with a spray gun.
2. Risk of bursting - do not adjust regulator higher
than marked maximum pressure of attachment.
3. Risk of injury - do not direct air
stream at people or animals.
4. Do not use to supply breathing air.
5. Do not leave compressor unattended
for an extended period while plugged in.
Unplug compressor after working.
6. Keep compressor well-ventilated.
Do not cover compressor during use.
7. Start and run the vehicle engine
during inflation period.
8. Do not remove the valve cover or
adjust internal components.
9. Compressor head gets hot during operation.
Do not touch it or allow children nearby during
or immediately following operation.
10. Do not use the air hose to move the compressor.
11. The use of accessories or attachments not
recommended by the manufacturer may
result in a risk of injury to persons.
12. All air line components, including hoses, pipe,
connectors, filters, etc., must be rated for a minimum
working pressure of 150 PSI, or 150% of the
maximum system pressure, whichever is greater.
13. Maintain labels and nameplates on the
compressor. These carry important safety
information. If unreadable or missing, contact
Harbor Freight Tools for a replacement.
14. This product is not a toy.
Keep it out of reach of children.
15. Operate unit on level surface.
16. People with pacemakers should consult their
physician(s) before use. Electromagnetic fields in
close proximity to heart pacemaker could cause
pacemaker interference or pacemaker failure.
17. WARNING: The brass components of
this product contain lead, a chemical
known to the State of California to cause
birth defects (or other reproductive harm).
(California Health & Safety code § 25249.5, et seq.)
18. This Compressor will automatically shut
off on overload or under excessive heat.
Should this occur, turn the Power Switch to
its “OFF” position. Wait until the Compressor
cools. Then, turn the Power Switch to
its “ON” position to resume work.
SAVE THESE INSTRUCTIONS.

Page 4 For technical questions, please call 1-800-444-3353. Item 69926
Specifications
Electrical Rating 12 VDC
Maximum Air Pressure 100 PSI
Air Flow Capacity 0.88 CFM
Components and Controls
Figure A
Air Hose
Nozzles
Pressure Gauge
Air Nozzle Grip
Cigarette Lighter
Adapter
Fuse
(Inside
Adapter)
Operating Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
General Operation
1. Turn the On/Off Switch to the “OFF” position.
2. Connect the Air Hose to the Compressor.
3. Select the desired Nozzle accessory and
attach it to the end of the Air Nozzle.
4. Turn on the car engine.
a. Plug the Cigarette Lighter Adapter into
the vehicle’s cigarette lighter socket.
5. Turn the Compressor On/Off
Switch to the “ON” position.
Note: Turn the Compressor on before connecting
to the tire valve to prevent blowing the fuse.
6. Be sure the valve stem is clean and free of dirt.
Holding the Air Nozzle Grip, connect the Nozzle
to the valve stem of the item to be inflated.
7. Monitor the Pressure Gauge carefully
to avoid over-inflating the item.
8. Continue inflating until the recommended
pressure is reached.
9. Turn the compressor On/Off Switch
to the “OFF” position.
10. Remove the Nozzle from the object.
11. Verify tire pressure with a tire pressure
gauge (not included), then replace the
valve cap where applicable.
12. If the pressure is low, repeat the
steps beginning with Step 5.
CAUTION! Do not inflate the item beyond
the manufacturer’s inflation rating.
13. When finished, turn off the car engine and
unplug the Cigarette Lighter Adapter.
CAUTION! The metal parts of the compressor and
hoses will become hot during use. Do not touch them.
14. Allow the Compressor to cool, then wipe
down and replace into the included storage
bag. Return the Nozzles to the small storage
bag attached to the Compressor Hose.
15. Store in a dry location.

Page 5For technical questions, please call 1-800-444-3353.Item 69926
Maintenance and Servicing
Procedures not specifically explained in this manual must
be performed only by a qualified technician.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch “OFF” and disconnect the Battery Clamps before
performing any inspection, maintenance, or cleaning procedures.
TO PREVENT SERIOUS INJURY FROM COMPRESSOR FAILURE:
Do not use damaged equipment. If abnormal noise or vibration occurs,
have the problem corrected before further use.
Cleaning, Maintenance, and Lubrication
1. BEFORE EACH USE, inspect the general
condition of the air compressor. Check for:
• loose hardware,
• misalignment or binding of parts,
• cracked or broken parts,
• damaged electrical wiring, and
• any other condition that may
affect its safe operation.
2. AFTER USE, wipe external surfaces of
the compressor with a clean cloth.
3. Store the Air Compressor in a clean, dry,
safe location out of reach of children
and other unauthorized people.
4. If the Fuse needs to be replaced,
unthread the cap on the end of the
Cigarette Lighter Adapter and remove the glass fuse.
Replace the old Fuse with a new Fuse (included
in the inflator nozzle bag), and replace the Cap.
WARNING! To prevent fire, replace fuse
only with fuse of same type and rating.
Do not replace with any other object.
5. Maintenance to be performed by a
qualified service technician:
a. AFTER USING 20 TIMES, lubricate
the Shaft and Piston Ring.
b. AFTER EVERY 500 HOURS OF
REGULAR USE, replace the Compression
Ring and Inlet and Outlet Valves.
Troubleshooting
Problem Possible Causes Likely Solutions
Decreased output 1. Not enough air pressure
and/or air flow.
2. Air leaking from loose
housing or connections.
3. Mechanism contaminated.
1. Check for loose connections.
2. Make sure housing and connections
are properly assembled and tight.
3. Have qualified technician clean and where
possible, lubricate mechanism.
Severe air leakage
(Slight air leakage
is normal,
especially on older
tools)
1. Cross-threaded housing
components.
2. Loose housing.
3. Dirty, worn or damaged valve.
1. Check for incorrect alignment and uneven gaps.
If cross-threaded, disassemble and
replace damaged parts before use.
2. Tighten housing assembly. If housing cannot be
tightened properly, internal parts may be misaligned.
3. Clean or replace valve assembly.
No output 1. Poor connection.
2. Power Switch in Off (O) position.
3. Run-down battery.
4. Blown Fuse.
1. Check that Cigarette Lighter Adapter is completely
inserted into the Cigarette Lighter Socket.
2. Turn Power Switch to On (I) position.
3. Recharge battery.
4. Replace Fuse.
Follow all safety precautions whenever diagnosing or servicing the tool.
Disconnect from battery before service.

Page 6 For technical questions, please call 1-800-444-3353. Item 69926
Parts List and Diagram
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List
Part Description Qty
1 Air Intake Cover 1
2 Bolt 3
3 Foot 4
4 Front Cover 1
5 Piston and Connecting Rod 1
6 Motor Holder 1
7 Bearing 2
8 Rotor 1
9 Motor Housing 1
10 Air Hose 1
11 Nozzle Set 1
12 Brush Holder 1
13 Nut 2
14 Motor Rear Cover 1
15 Bolt 2
16 Pressing Plate 1
17 Bolt 2
18 Rear Cover 1
19 Power Switch 2
20 Cigarette Lighter Adapter 1
Part Description Qty
21 Cord 1
22 Grommet 1
23 Air Outlet Tube 1
24 Handle 2
25 Handle Foam 1
26 Handle Holder 1
27 Air Outlet 1
28 Thermal Protector 1
29 Nut 2
30 Bolt 2
31 Bolt 2
32 Cylinder Liner 1
33 Radiator 1
34 Seal 1
35 Bolt 4
36 Cylinder Head 1
37 T-Ring 1
38 Spring 1
39 Pressure Gauge with Cover 1

Page 7For technical questions, please call 1-800-444-3353.Item 69926

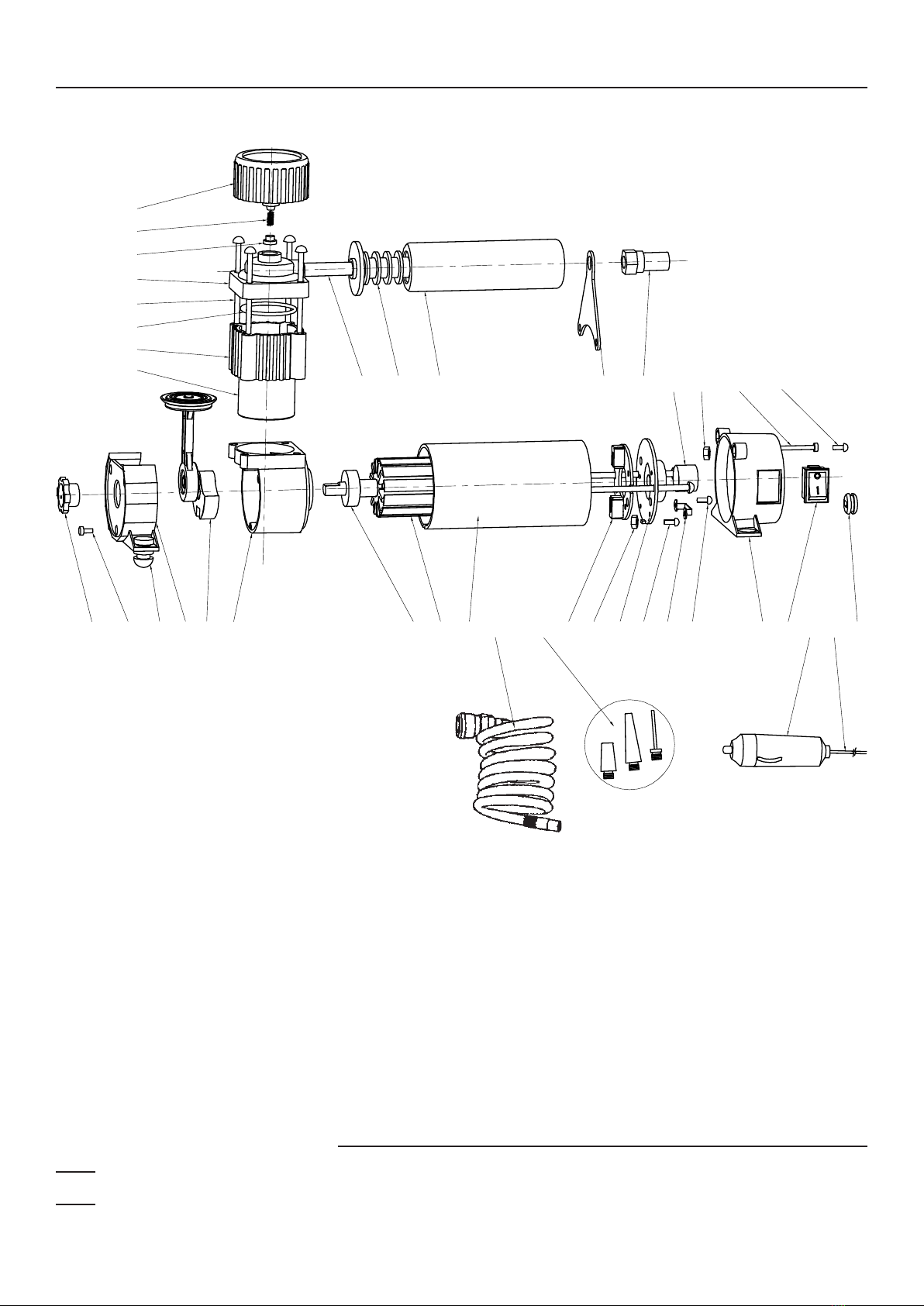

Assembly Diagram
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only,
and are not available individually as replacement parts.
1 2 3 4 6 8 9 10 1175 12 13 14 15 16 17 18 19 20 21 22
23 24 25 26 27 29 30 31
32
33
34
35
36
37
38
39
28

Limited 90 Day Warranty
Harbor Freight Tools Co. makes every effort to assure that its products meet high quality and durability standards,
and warrants to the original purchaser that this product is free from defects in materials and workmanship for the
period of 90 days from the date of purchase. This warranty does not apply to damage due directly or indirectly,
to misuse, abuse, negligence or accidents, repairs or alterations outside our facilities, criminal activity, improper
installation, normal wear and tear, or to lack of maintenance. We shall in no event be liable for death, injuries
to persons or property, or for incidental, contingent, special or consequential damages arising from the use of
our product. Some states do not allow the exclusion or limitation of incidental or consequential damages, so the
above limitation of exclusion may not apply to you. THIS WARRANTY IS EXPRESSLY IN LIEU OF ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED, INCLUDING THE WARRANTIES OF MERCHANTABILITY AND FITNESS.
To take advantage of this warranty, the product or part must be returned to us with transportation charges
prepaid. Proof of purchase date and an explanation of the complaint must accompany the merchandise.
If our inspection verifies the defect, we will either repair or replace the product at our election or we may
elect to refund the purchase price if we cannot readily and quickly provide you with a replacement. We will
return repaired products at our expense, but if we determine there is no defect, or that the defect resulted
from causes not within the scope of our warranty, then you must bear the cost of returning the product.
This warranty gives you specific legal rights and you may also have other rights which vary from state to state.
3491 Mission Oaks Blvd. • PO Box 6009 • Camarillo, CA 93011 • [phone]
