Planar LA1550TS User manual

LA1550TS
USER MANUAL
www.planar.com

LA1550TS User Manual 2
The information contained in this document is subject to change without notice. This
document contains proprietary information that is protected by copyright. All rights are
reserved. No part of this document may be reproduced, translated to another language
or stored in a retrieval system, or transmitted by any means, electronic, mechanical,
photocopying, recording, or otherwise, without prior written permission. Windows is
registered trademark of Microsoft, Inc.
Other brand or product names are trademarks of their respective holders.
Important Recycle Instruction:
Lamp(s) inside this product contains mercury. This product may contain other electronic
waste that can be hazardous if not disposed of properly. Recycle or dispose in
accordance with local, state or federal laws. For more information, contact the
Electronic Industries Alliance at www.eiae.org. For lamp specific disposal information,
check www.lamprecycle.org.

LA1550TS User Manual 3
Table of Contents
I. Usage Notice 4
Precautions 6
II. Package Overview 7
III. Installation 8
Product Overview 8
VESA Mount your Monitor 9
Connect the Display 10
Warning-Explosion Hazard 10
Special installation Instructions 11
IV. User Controls 12
Front Panel Controls 12
How to use the OSD 13
On-Screen Display Menus 14
V. Appendix 15
Troubleshooting 15
Warning Signal 146
Product Dimensions 147
Compatibility Modes 16
Manufacturer’s Instructions 18
Compliance Information 20

LA1550TS User Manual 4
I. Usage Notice
This apparatus is suitable for use in Class I, Division 2 group A, B, C, D or
unclassified locations.
WARNING- EXPLOSION HAZARD –DO NOT DISCONNECT EQUIPMENT
UNLESS POWER HAS BEEN SWITCHED OFF OR THE AREA IS KNOWN TO BE
NONHAZARDOUS.
AVERTISSEMENT –RISQUE D’ECPLOSION – AVANT DE DECONNECTER
L’EEQUIPEMENT, COUPER LE COURANT OU S’ASSURER QUE L’EMPLACEMENT
EST DESIGNE NON DANGEREUX.
WARNING- SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY
FOR CLASS1, DIVISION 2.
AVERTISSEMENT –RISQUE D’EXPLOSION – LA SUBSTITUTION DE
COMPOSANTS PEUT RENDRE CE MATERIEL INACCEPTABLE POUR LES
EMPLACEMENTS DE CLASSE I, DIVISION 2.
Warning –Please do not open or disassemble the product as this
may cause electric shock.

LA1550TS User Manual 5
Precautions
Follow all warnings, precautions and maintenance as recommended in this user’s
manual to maximize the life of your unit.
Do:
Disconnect the power plug before cleaning
Touch screen surfaces may be cleaned using a soft clean cloth moistened
with mild window glass commercial cleaners or 50/50 mixture of water and
isopropyl alcohol.
Use a soft cloth moistened with mild detergent to clean the display housing.
Use only high quality and safety approved AC/DC adapter.
Disconnect the power plug from AC outlet if the product is not going to be
used for an extended period of time.
Don’t:
Do not touch the LCD display screen surface with sharp or hard objects.
Do not use abrasive cleaners, waxes or solvents for your cleaning.
Do not operate the product under the following conditions:
Extremely hot, cold or humid environment
Areas susceptible to excessive dust and dirt
Near any appliance generating a strong magnetic field
In direct sunlight

LA1550TS User Manual 6

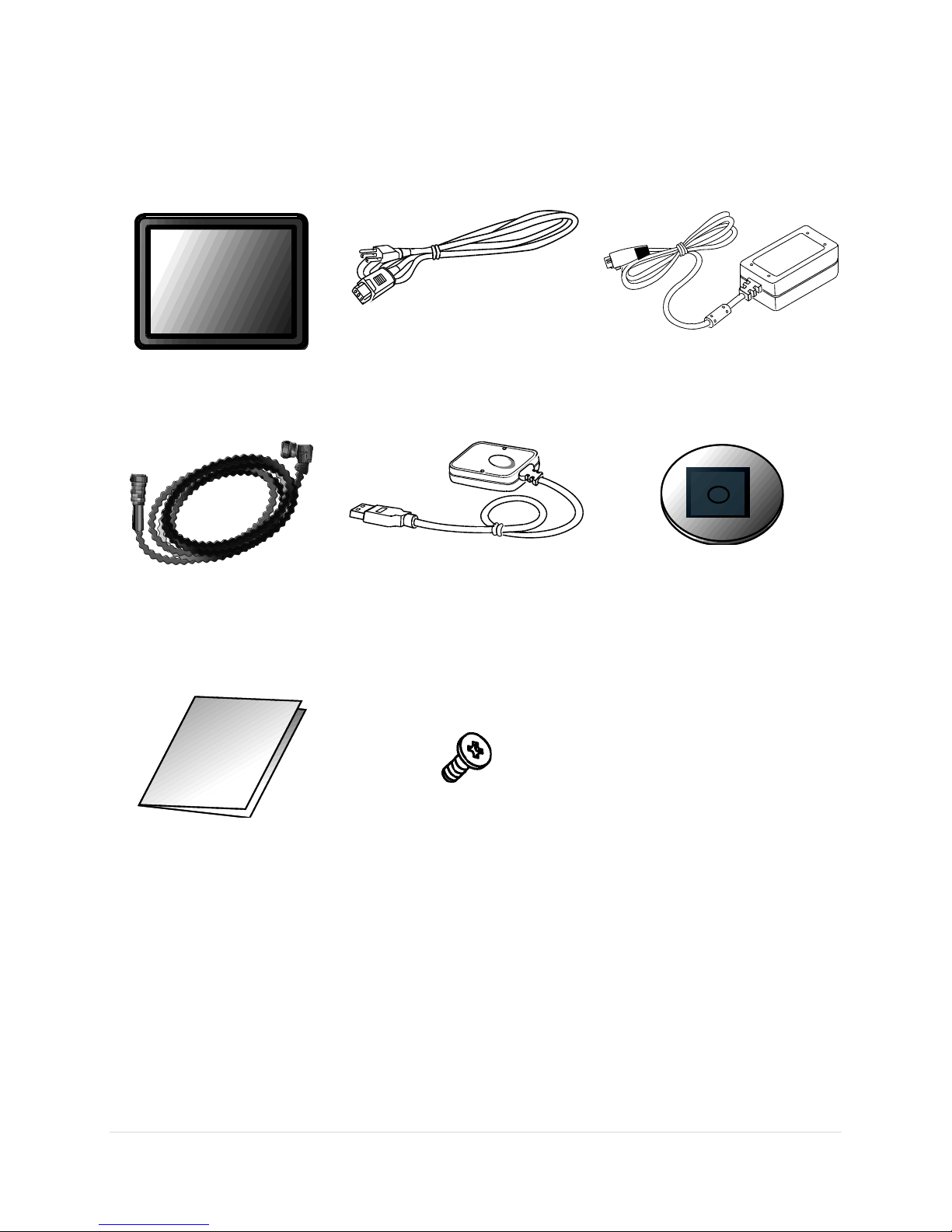

II. Package Overview
LCD Display
Power Cord
DC Power Supply
Wall to monitor
Cable
USB Transmitter
Touch Driver CD
Manual
VESA Mount Screws
M4*8

LA1550TS User Manual 7
III. Installation
Product Overview
• Front View

LA1550TS User Manual 8

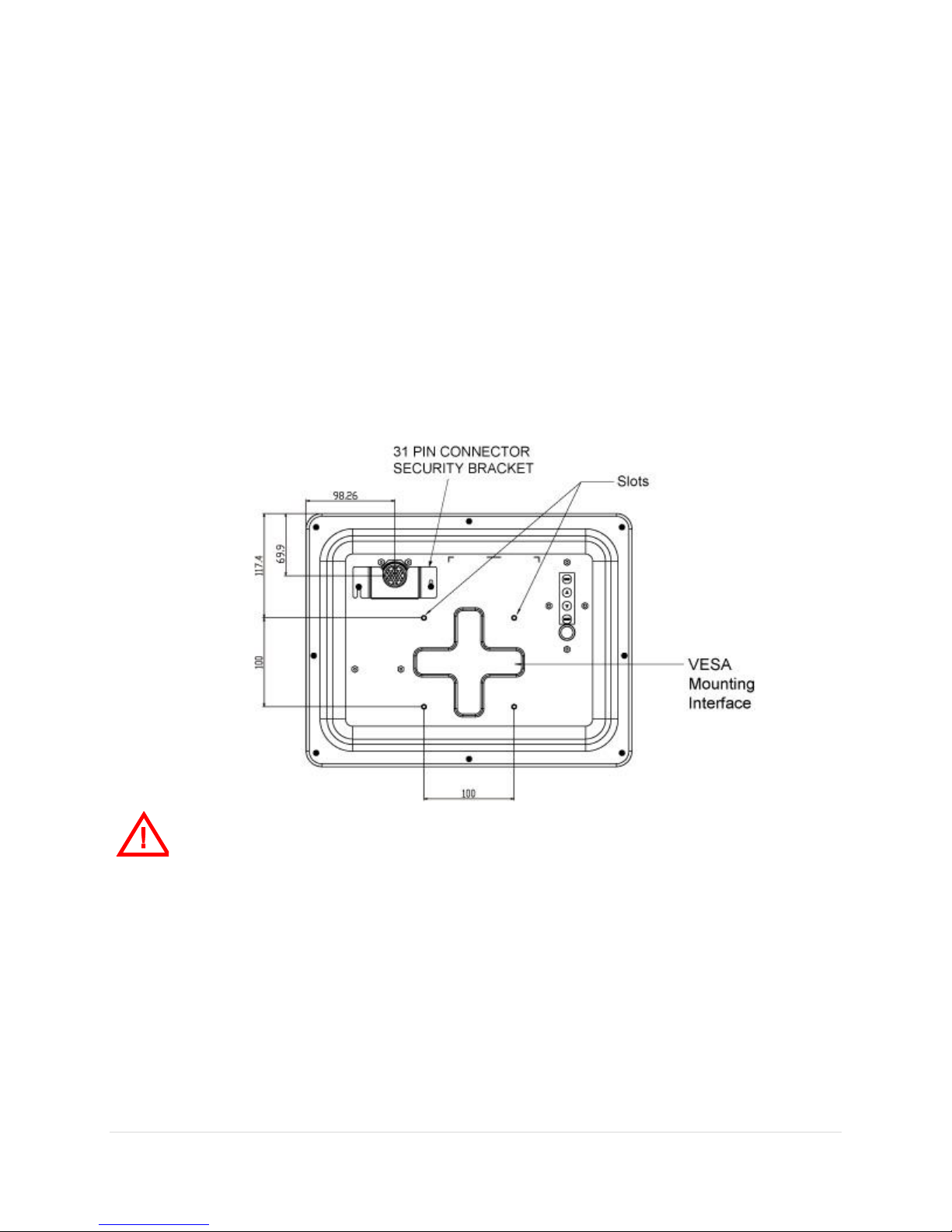

VESA Mount your Monitor
This monitor conforms to the VESA Flat Panel Mounting Physical Mounting Interface
Standard which defines a physical mounting interface for flat panel monitors, and
corresponding with the standards of flat panel monitor mounting devices, such as wall
and table arms. The VESA mounting interface is located on the back of your monitor.
To mount the monitor on a swing arm or other mounting fixture, follow the instructions
included with the mounting fixture to be used. Please note to mount your monitor to the
devices (either mounting fixture or swing arm) what conforms to the UL listed.
Warning!
Please select the proper screws! The distance between the back cover surface and the
bottom of the screw hole is 8mm. Please use four M4 screws diameter with the
maximum length of 8mm to mount your monitor.
Please note the mounting stand shall be able to sustain at least 7Kg weight.

LA1550TS User Manual 9
Connecting the Display
To setup this display, please refer to the following figure and procedures.
1. Be sure all equipments are turned off.
2. Connect the Paint Booth Cable to the connector on the back cover of the monitor.
3. Connect the Extension Cable to the Paint Booth Cable and the other end to PC.
4. Connect D-SUB connector from the extension Cable to VGA output connector on
PC.
5. Connect RJ-45 connector from extension cable to USB Transmitter device and
connect USB Transmitter device to PC USB port.
6. Connect power connector to 110VAC power brick..
7. Connect Power cord to power brick and the other end into AC socket.
Notice!
To ensure the LCD display works well with your computer, please configure the display
mode of your graphics card to make it less than or equal to 1024 x 768 resolution and
make sure the timing of the display mode is compatible with the LCD display.
We have listed the compatible “Video Modes” of your LCD display in the appendix
(on page 18) for your reference.
Attention
This equipment is suitable for use in Class I, Division 2, Group A, B, C, D, or Non-
Hazardous Locations Only.

LA1550TS User Manual 10
Warning-Explosion Hazard
Do not disconnect equipment unless power has been switched OFF or the area is
known to be non-hazardous.
Special installation Instructions
Install system as per diagram above by qualified personnel in accordance with
NFPA 70 (NEC) Article 500 (contact an electrician if you have any questions or
concerns about the installation).
