PlayActive JE118 User manual

• Suitable for 37~96 Months
•Maximum user weight: 30kg
•Adult assembly required
Please keep this manual for future reference as it contains important
information.
Before first time use, charge the battery for at least 4-6 hours.
OWNER'S MANUAL with Assembly Instructions
Read and understand this entire manual before using!
CHILDREN'S
ELECTRIC TOY CAR
Products features may vary
from the picture above.
With remote control function

Use the vehicle on generally level ground ONLY!
caution
About Your New Vehicle
Thank you for your purchasing our products, we wants your child to enjoy this product for years to
come. Keep these points in mind as you read this guide:
FOR THE SAFETY OF YOUR CHILD, PLEASE READ ALL WARNINGS AND
ASSEMBLY/USE INSTRUCTIONS. KEEP THIS GUIDE FOR FUTURE REFERENCE.
• ADULT ASSEMBLY REQUIRED. The product contains small parts, which are for
adult assembly only. Keep children away when assembling.
• Always remove protective material and poly bags and dispose before assembly.
WARNING!
Suitable age: 37~96 months
6V4AH x1(Fuse: 7A) or 6V7AH x1(Fuse: 7A) or 6V10AH x1 (Fuse:7A)
Load Capacity:
Under 30KGS
Size of car:
118 x 81 x 67 CM
Speed: 3KM/H 3~5KM/H
Power way:
Charging type
Charger: Input: depend on local voltage
Output: DC 6V500mA or DC6V1A
or DC12V1A
Average
battery life:
Approximately
300 times
Charge time: 8-12 Hours
Battery &
Fuse:
1WD
2WD
1WD
1WD
2WD
2WD
IMPORTANT
WARNING
This label means the information or assembly for One Wheel Drive version ONLY!
This label means the information or assembly for Two Wheels Drive version ONLY!
CHOKING HAZARD - Small parts.
Not suitable for children under 37
months.
VER:SMS-XX-EN-111212
6V7AH x1 (Fuse: 10A)
VER:SMS-JE118-EN-120503VER:SMS-JE118-EN-RC-120503

1
1
4
8
1
1
2
1
1
1
1
x1
x2
x3
x2
x1
x2
x1
x2
x4
x8
x3
x2
2
1
1
1
4
12

2
2
3
A
B
C
D
4
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
2
3
1
1
24
25
2
Parts List
PART
NO.
REMARKS
Assembly package
1WD
2WD
1WD
2WD
1WD
2WD
1WD
2WD
1WD
2WD
1WD
2WD
PART NAME
Q’ty (pcs)
Vehiclebody
Viewmirrors
Ø10Locknut
Ø10Washer
Seat
Ø5nut
Sidesupport
Steeringcolumn
Rearaxle
Steeringwheel
M5x35machinescrew
Drivingwheel
Wheel
Gearbox
Motorhood
Ø4x12flathead
screw
Ø10bushing
M5x16machinescrew
Windshield
Backrest
Charger
Capnut
Ø4x12roundheadscrew
Splitpin
Spanner
Ø10Washer
4pcsplacedonthefrontaxle,
4pcsplacedontherearaxle.
2pcsplacedonthefrontaxle,
2pcsplacedontherearaxle.
Placedonthesteeringwheel
Placedonthesteeringwheel
1pcslabeled“R”,1pcslabeled“L”
1PCSFORSPARE
Exhaust
Decorativestrip
M5x25machinescrew
Remotecontroller
1pcsplacedonthesteeringwheel,
1pcsplacedonthesteeringcolumn.

1
22
3
A
4
4
16
5
B
B
C
4
7
D
8
9
10
11
6
12
13
23
14
15
2
2
17
20
21
D
19
18
6
24
25
Tools Required
Screwdriver(not included)
Spanner
Pliers(not included)
Parts Diagram
NOTE: Some parts shown are assembled on both sides of vehicle
PART NOT SHOWN : Decorative strip x3

2
1x4
Assembly Steps
• Your new vehicle requires adult assembly. Please set aside at least 40 minutes for
assembly. Children can be harmed by small parts, sharp edges and sharp points in the
vehicle's unassembled state. Care should be taken in unpacking and assembly of the
vehicle. Children should not handle parts, or help in assembly of the vehicle.
• Please identify all parts before assembly and save all packaging material until assembly
is complete to ensure that no parts are discarded.
• Assembly tool for need: screwdriver(provide for oneself) and spanner.

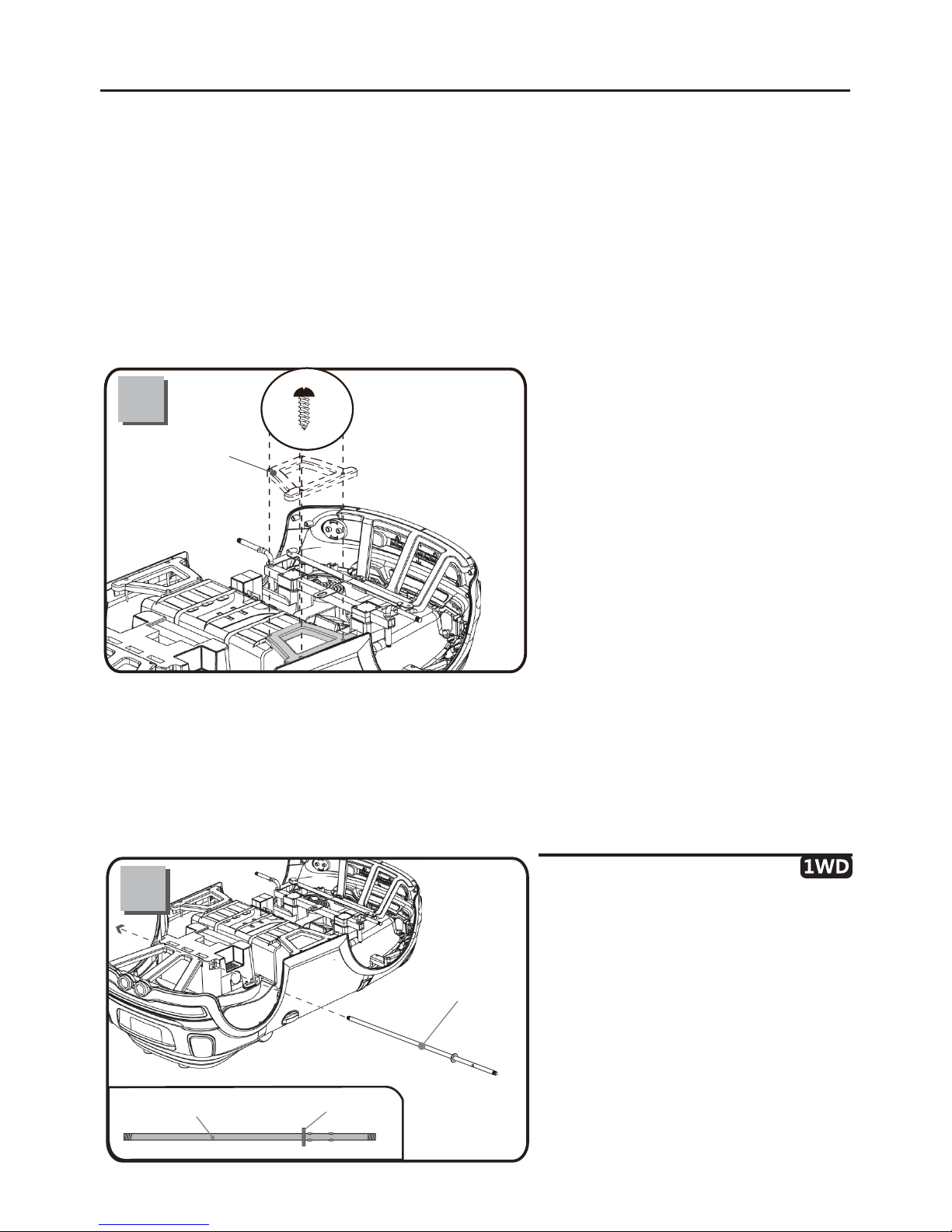

● Remove all the parts from the rear
axle.
● Slide a Ø10 washer onto the rear axle
from the longer end.
● Insert the rear axle through the hole in
vehicle body.
Ø10 Washer
Rear axle
Rear axle
●Turn the vehicle body downside
up.
●
Fit the side support to the vehicle
body.
● Insert four Ø4x12 round head
screws and tighten with a screwdriver.
●Repeat for the other side.
Ø4x12 round
head screw
Side support

3
Assembly Steps
2WD
2WD
●Turn the vehicle body downside up.
● Remove all the parts from the rear axle.
● Insert the rear axle through the hole in the
vehicle body.
Rear axle
Hint: An extra spanner has been provided to hold the Ø10 locknut on the other side
of the front axle while tightening the locknut on the other side.
●Fit the gear box onto the rear axle
from the left side (Standing at the rear of the
vehicle body). And make the motor on the
gear box pass through the hole in the vehicle
body.
●Fit the driving wheel onto the rear axle,
keep it match with the gear box.
●Fit a Ø10 washer onto the rear axle.
●Fit a Ø10 locknut to the end of the rear
axle.
●Insert the tabs on the hubcap into slots in
the driving wheel.
●Slide the gear box (standing at back of vehicle body) onto the rear axle. “R” labeled gear box should be fit
to the “R” side of vehicle body; “L” labeled gear box should be fit to “L” side of vehicle body.
●Slide the driving wheel onto rear axle, make it match with the gear box.
●Slide a
Ø 10 washer.
●Tighten the
Ø 10 locknut with a spanner.(Do not over tighten)
●Repeat this procedure to assemble the other driving wheel to the rear axle.
●Fit the hubcap to the driving wheel.
Driving wheel
Ø10
Locknut
Gear box
Rear
axle
Ø10
Washer
Hubcap

4
5
5-1
5-2
5-
1
5-2
5
5-1
Assembly Steps
Ø10 Washer
Split pin
Ø10
Washer
Steering column
●Turn the vehicle body on its side.
●Remove the screw and nut from the steering column.
●Slide a
Ø 10 washer onto the steering column from the straight end (PIC 5-1).
●Insert the straight end of steering column up through the hole in vehicle body and out through
the hole in the dash.
●Insert the bent end of steering column through the hole in the front axle plate, fit a
Ø 10 washer
onto the steering column and insert a split pin into the hole in the steering column, bend the ends
of split pin back using a pair of pliers (PIC 5-2).
Hubcap
Ø10
Washer
Ø10
washer
Ø10
bushing
Front
axle
Wheel
Ø10
Locknut
●Remove the parts from the front axle.
●Fit a
Ø 10 washer onto the axle.
●Fit a
Ø 10 bushing onto the axle.
●Fit a wheel onto the axle, make the wheel
match with the bushing.
●Fit a
Ø 10 washer onto the axle.
●Tighten the
Ø 10 locknut with a spanner. (Do
not over tighten)
●Insert the hubcap.
●Repeat for the other wheel(s).
Direction
gear box
Steering
column
M5x25
Machine screw
●Turn the vehicle body on its side.
●Remove the screw and nut from the steering column.
●Insert the straight end of steering column up through the hole in vehicle body and out through
the hole in the dash.
●Insert the bent end of steering column through the hole in the front axle plate.
●Line up the holes in the direction gear box with the hole in the steering column. Tighten the
M5x25 machine screw and
Ø5 nut back in the same location (PIC 5-1).
●Fit a Ø 10 washer onto the bent end of the steering column and insert a split pin into the hole in
the steering column, bend the ends of split pin back using a pair of pliers (PIC 5-2).
Ø5 nut

6
7
8
Assembly Steps
Ø4x12 round
head screw
Windshield
UP
Steering wheel
M5x35
Machine screw
Ø5 Nut
Fuse box
Power connector
Motor connector
Vehicle connector
●Turn the vehicle body upright.
●Fit the tabs on the windshield into the
slots in the vehicle.
●Insert two
Ø4x12 round head screws
and tighten with a screwdriver.
●Remove the M5x35 machine screw
and
Ø 5 nut from the steering wheel.
●Insert the steering wheel to the end of
the steering column.
●Insert the M5x35 machine screw
through the steering wheel and steering
column, and tighten the
Ø 5 nut back in
the same location.
●Plug the power connector into the
terminal on battery as shown.
●Plug the vehicle connector(s) into the
motor connector(s).

10
11
9

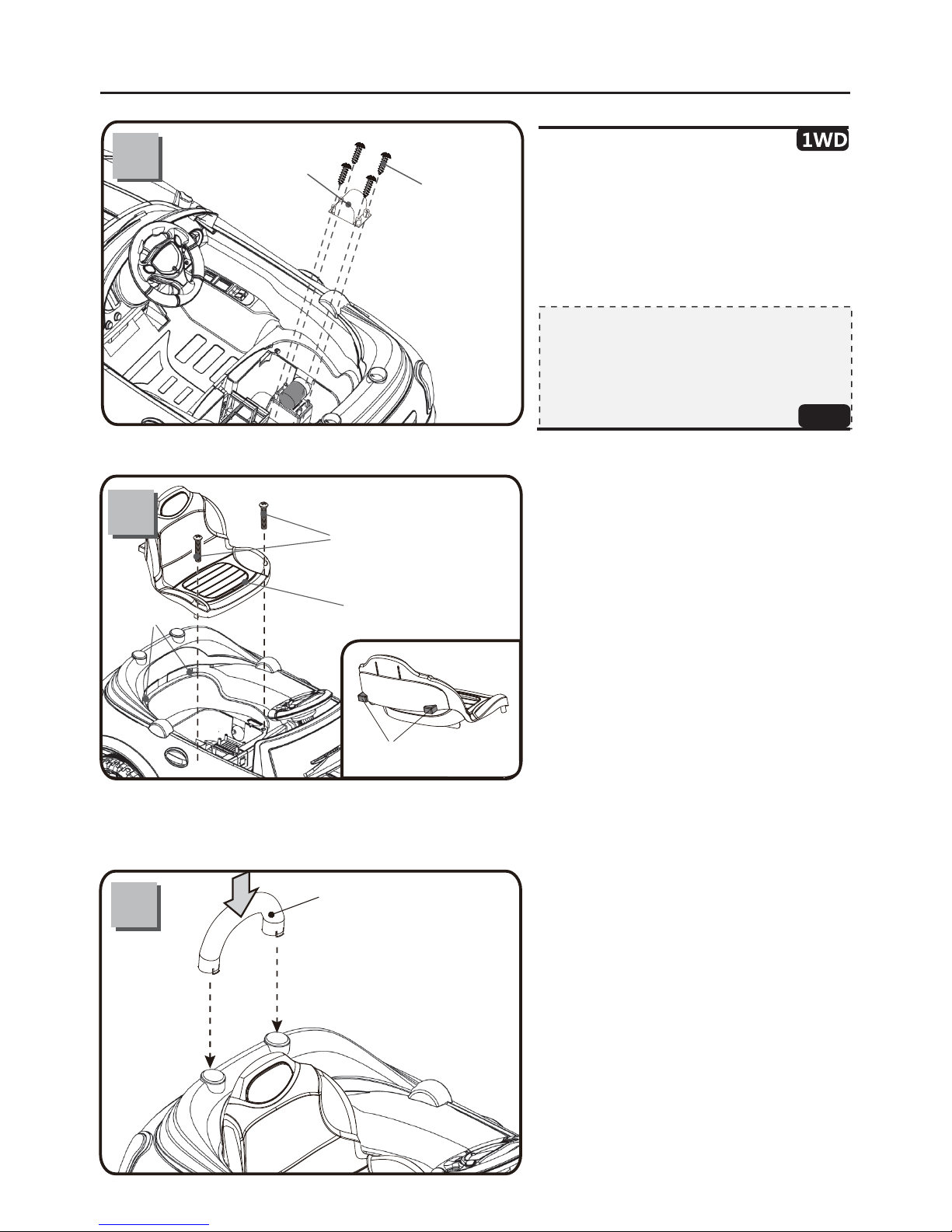

Assembly Steps
Backrest
Ø4x12
flat head
screw
Tabs
Seat
Slots
Motor hood
M5x16 machine
screws
2WD
●Fit the motor hood on the motor.
●Tighten four
Ø 4x12 flat head screws to
secure it.
●Repeat for the other side.
●Fit the motor hood on the motor.
●Tighten four
Ø 4x12 flat head screws to
secure it.
●Insert the tabs at the back of the seat
into the slots in the vehicle body.
●Insert two M5x16 machine screws, and
tighten with a screwdriver.
●Insert the backrest into the hole in the
vehicle body and push until you hear this
click into place.

12
13

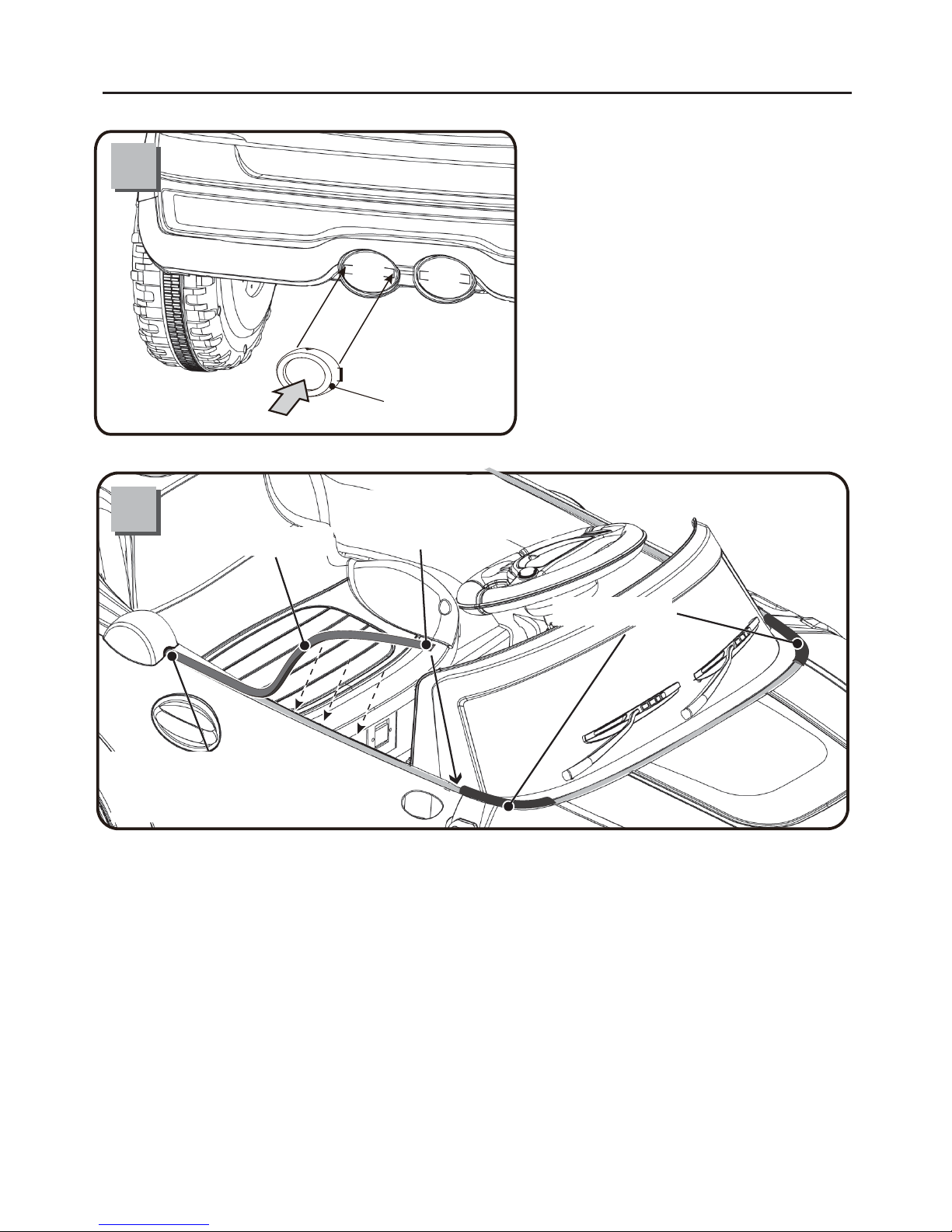

Assembly Steps
Exhaust
(Grooved side up)
Decorative strip
Vehicle clamps
●Wash your hands before applying the decorative strips.
●Before applying the decorative strips, wipe the surface of the vehicle with a clean,
dry cloth to remove any dust or oils.
●Place the decorative strips exactly as shown in the illustrations.
●Remove the backing from the decorative strip. Insert the end of the decorative strip into the hole
in the vehicle body, and apply the decorative strip to the vehicle body. Keep the other end of the
decorative strip under the vehicle clamp.
●Repeat for the other side.
●When fitting the decorative strip to the bonnet, remember to keep the both sides of decorative
strip under the vehicle clamps.
●Insert the tabs on the exhaust
(grooved side up) into the hole in the
vehicle body and push until you hear this
click into place.
●Repeat for the other exhaust.
HINT:
Inset the end of the decorative
strip into the hole in the
vehicle body.
Keep the other end
under the vehicle clamp

14
Assembly Steps
IMPORTANT SUPPLEMENT TO INSTRUCTION MANUAL
After assembling any wheel to the axles, please check the gap
between the screw thread and the collapsible (refer to below
picture), if the gap is too big, please add two or three washers inside
the wheel, But after tightening the nut outside the wheel, please turn
the wheel by your finger to check if the wheel can run smoothly, this
is very important, because if the wheel can run smoothly, it is ok, but
if the nut press the wheel and the wheel can’t run smoothly, the
motor will be broken easily! Then you need to decrease one or two
washers to make sure the wheel can run smoothly!
GAP
View mirrors
●Insert the view mirror into the hole in
the vehicle body and push until you hear
this click into place.
●Repeat for the other side.

How To Operate Your Vehicle
PREVENT INJURIES AND DEATHS:
• NEVER LEAVE CHILD UNATTENDED. DIRECT ADULT SUPERVISION IS REQUIRED.
Always keep child in view when child is in vehicle.
• This toy should be used with caution since skill is required to avoid falls or collisions causing
injury to the user or third parties.
• Protective equipment should be worn.
• Never use in roadways, near cars, on or near steep inclines or steps, swimming pools or
other bodies of water.
• Always wear shoes.
• Always sit on the seat.
• Not to be used in traffic.
• This toy is unsuitable for children under 37 months due to its maximum speed; Maximum
user weight is 30 kgs.
• This toy has no brake.
Rules for Safe Riding
READTHESE RULESALOUDTOYOUR CHILDANDTHEIR PLAYMATES AND MAKE SURE
THEY UNDERSTAND THEM!
• Important! Before using the vehicle for the first time, the battery needs to be charged for 4 to 6 hours, no
more than 10 hours. Only an adult can charge and recharge the battery.
• Check all the screws, cap nuts and protective coverings regularly and tighten as required. Check plastic
parts on a regular basis for cracks or broken pieces.
Must confirm before using that following work which is already finished:
• This vehicle has adjustable play seat belts. please instruct children how to tie the safety belt before using,
guarantee the security.
• Keep Children within Safe Riding Areas:
- Never use in roadway, near motor vehicles, on lawn space, on or near steep inclines or steps,
swimming pools or other bodies of water;
• Use the toy only on flat surfaces. Such as inside your house, garden or playground.
• Never use in the dark. A child could encounter unexpected obstacles and have an accident. Operate the
vehicle only in the daytime or a well-lit area.
• It is not recommended to drive the vehicle on wet surfaces or on lopes of greater than 15 degrees.
• Do not use this vehicle outdoors when it is raining or snowing.
• Make sure you come to a complete stop before changing directions from forward to back.
• Please follow the correct weight and age limits allowed to drive this vehicle.
• It is prohibited to change the circuit or add other electric parts
• Inspect wires and connections of the vehicle periodically.
• In order to avoid accidents, please ensure the vehicle is safe before riding.
• Do not let any child touch the wheels or be near them when the car is moving .
WARNING!

How To Operate Your Vehicle
Use Operation
Forward-backward
switch
Foot pedal
Power switch
Volume knob
Sound buttons
Battery condition
meter (OPTIONAL) Audio input
FORWARD
1.Press the “Forward-backward switch” on the “Forward” position.
2.Press the “Foot pedal”, the vehicle drives forward.
STOP
The vehicle will stop automatically, when your child’s foot remove from the “Foot pedal”.
REVERSE
1.Press the “Forward-backward switch” on the “Backward” position.
2.Press the “Foot pedal”, the vehicle drives backward.
SOUNDS BUTTON
Press the buttons on the steering wheel for sound playing.
VOLUME KNOB
Turn the knob clockwise to increase the volume; Turn the knob counterclockwise to decrease the
volume.
BATTERY CONDITION METER (OPTIONAL)
The indicators will go out from top to bottom to indicate how much the battery remaining. When one red
indicator only, recharge the battery.
Always stop vehicle when changing the speed or direction to avoid damage
the gears and motor.
IMPORTANT!
Power switch
CONVERSION
SWITCH

HOW TO USE THE REMOTE CONTROLLER
1. Press the CONVERSION SWITCH on the vehicle to the “Remote control” position.
2. Press the ON-OFF SWITCH on the remote controller to the “ON” position, the
indicator light will be lighting.
3. Push the LEFT JOY STICK to the front, the vehicle goes forward, pull the LEFT
JOY STICK to the back, the vehicle goes backward.
4. Push the RIGHT JOY STICK to the left, the vehicle turn left, push the RIGHT JOY
STICK to the right, the vehicle turns right.
ON-OFF SWITCH
ASSEMBLY
OPERATION
INDICATOR LIGHT
RIGHT JOY STICK
LEFT JOY STICK
ADULT OPERATING REQUIRED
1. Insert the the antenna into the controller by tweak the antenna clockwisely;
2. Lift the the battery compartment door on the back of the controller and insert two
AA(LR6) batteries.
NOTE: This product does not includ theAA(LR6) batteries.

Charging Your Vehicle
ONLY AN ADULT CAN CHARGE AND RECHARGE THE BATTERY!
• PREVENT FIRE AND ELECTRIC SHOCK:
- Use the only rechargeable battery and charger supplied with your vehicle. NEVER substitute the battery
or the charger with another brand. Using another battery or charger my cause a fire or explosion.
- Do not use the battery or charger for any other product. Overheating, fire or explosion could occur.
- NEVER modify the electric circuit system. Tampering with the electric system may cause a shock, fire or
explosion or my permanently damage the system.
- Do not allow direct contact between battery terminals. Fire or explosion can occur.
- Do not allow any type of liquid on the battery or its components.
- Explosive gasses are created during charging. Do not charge near heat or flammable materials. Charge
the battery in a well-ventilated area ONLY.
- NEVER pick up the battery by the wires or charger. Damage can occur to the battery and may cause a
fire. Pick up the battery by the case ONLY.
- Charge the battery in a dry area ONLY.
• Battery posts, terminals and related accessories contain lead and lead compounds, chemicals
known to the State of California to cause cancer and reproductive harm. Wash hands after
handling.
• Do not open the battery. Battery contains lead acid and other materials that are toxic and
corrosive.
• Do not open the charger. Exposed wiring and circuitry inside case may cause electric shock.•
Only adults may handle or charge the battery. NEVER allow child to handle or charge the
battery. Battery is heavy and contains lead acid (electrolyte).
• Do not drop the battery. Permanent damage to the battery could occur or cause serious injury.
• Before charging the battery, check for wear or damage to the battery, charger, its supply cord
and the connectors. DO NOT charge the battery if any damage to parts has occurred.
• Do not allow the battery to drain completely. Recharge the battery after each use or once a
month if not used regularly.
• Do not charge battery upside down.
• Always secure the battery with the bracket. Battery can fall out and injure a child if vehicle tips
over.
WARNING!
• The charging input socket is UNDER THE SEAT.
• The POWER SWITCH must be turned in OFF position when charging.
• Before the first use, you should charge the battery for 4-6 hours. Do not recharge the battery for more than
10 hours to avoid overheating the charger.
• When the vehicle begins to run slowly, recharge the battery.
• After each use or once a month minimum recharge time as 8 to 12 hours, less than 20 hours at most.

1
2
Charging Your Vehicle
1. Plug the charger port into the input socket.(The socket is under the seat)
2. Plug the charger plug into a wall outlet. The battery will begin charging.
WARNING!
This product with CHARGING PROTECTION: When charging, all the functions will be cut off!

Troubleshooting Guide
PROBLEM: The vehicle does not run
PROBLEM CAUSE: The battery may low on power.
After each use, or once a month minimum, charge the battery for a full 10 hours. Do not leave the
battery on the charger for more than 20 hours.
POSSIBLE CAUSE: Thermal fuse has tripped.
POSSIBLE CAUSE: Wheel nuts are loose.
POSSIBLE CAUSE: Battery connector or wires are loose.
POSSIBLE CAUSE: Battery is dead.
POSSIBLE CAUSE: Electric system is damaged.
Water may have corroded the system, or loose dirt, gravel or sand might have jammed the switch.
Make sure the battery connector and adapter connector are firmly plugged together.
Make sure the charger is plugged into the wall outlet and the power flow to the outlet is on.
POSSIBLE CAUSE: Motor is damaged.
The motor needs professional repair.
If the nuts are not tight, the wheels will not engage the forward gears. Tighten the nut with the nut wrench.
Make Sure the battery connectors are firmly plugged in to each other.
Have you properly maintained the battery according to the directions? Is the battery old? Your
battery may need to be replaced.
■
■
PROBLEM: The battery will not recharge.
POSSIBLE CAUSE: Battery connector or adapter connector is loose.
POSSIBLE CAUSE: Charger is not plugged in.
POSSIBLE CAUSE: Charger is not working.
Is the charger warm while charging? If not, the charger may be broken and may need to be replaced.
To avoid the fuse cut off the power, follow these
guidelines:
DO NOT overload the vehicle, Maximum weight
allowed :30kg
DO NOT tow anything behind the vehicle.
DO NOT drive up steep slopes.
DO NOT drive into fixed objects, which may cause the
wheels to spin, causing the motor to overheat.
DO NOT drive in very hot weather, components may
overheat.
DO NOT tamper with the electric system, Doing so may
create a short circuit, causing the fuse to trip.
The vehicle is equipped with a self-resetting fuse. When the vehicle is overloaded or operated
incorrectly; the self-resetting fuse will be cut off for 5-20seconds before becoming operational
again. The self-resetting fuse is under the seat (Refer to the picture.)
Fuse
Battery

Troubleshooting Guide
Maintaining Your Vehicle
POSSIBLE CAUSE: Battery may be undercharged.
POSSIBLE CAUSE: Battery is old.
PROBLEM: Battery buzzes or gurgles when charging.
PROBLEM: Charger feels warm when recharging battery.
This is normal and not a cause for concern.
PROBLEM: The vehicle does not run very long.
■
■
■
You may not be charging the battery long enough. After each use, or once a month minimum, charge the
battery for 8 to 10 hours. Do not leave the battery on the charger for more than 20 hours.
The battery will eventually lose the ability to hold a charge. Depending on the amount of use, and
varying conditions, the battery should operate for one to three years. Replace the battery with a
new one.
This is normal and not a cause for concern. It may also be silent when charging, which is also normal.
• It is parents' responsibility to check main parts of the toy before using, Must regularly examine for potential
hazard, such as the battery, charge,cable or cord, plug, screws are fastening enclosure of other parts and
that in the event of such damage, the toy must not be until that damage had been properly removed.
• Make sure the plastic parts of the vehicle are not cracked or broken.
• Occasionally use a lightweight oil to lubricate moving parts such as wheels.
• Park the vehicle indoors or cover it with a tarp to protect it from wet weather.
• Keep the vehicle away from sources of heat, such as stoves and heaters. Plastic parts may melt.
• Recharge the battery after each use. Only an adult can handle the battery. Recharge the battery at least
once a month when the vehicle Raider is not being used.
• Do not wash the vehicle with a hose. Do not wash the vehicle with soap and water. Do not drive the vehicle
in rainy or snowy weather. Water will damage the motor, electric system and battery.
• Clean the vehicle with a soft, dry cloth. To restore shine to plastic parts, use a non-wax furniture polish. Do
not use car wax. Do not use abrasive cleaners.
• Do not drive the vehicle in loose dirt, sand or fine gravel which could damage moving parts, motors or the
electric system.
• When not using, all the electrical source should be turn off. Turn off the power switch and disconnect the
battery connection.

Disposal Of Battery
DisposalOfBattery
●Your sealed lead-acid battery must be recycled or disposed of in an environmentally
sound manner.
●Do not dispose of your lead-acid battery in a fire. The battery may explode or leak.
●Do not dispose of a lead-acid battery in your regular, household trash. The incineration,
land filling or mixing of sealed lead-acid batteries with household trash is prohibited by
law.
●Return an exhausted battery to your local approved lead-acid battery recycle, such as a
local seller of automotive batteries.
●Contact your local waste management officials for other information regarding the
environmentally sound recycling and disposal of lead-acid batteries.
Our products are suitable for
ASTM F963; GB6675; EN71 and EN62115 standard.
