Plura ELC User manual

Functional Description and Specifications
Version: 2.1
September 25, 2019

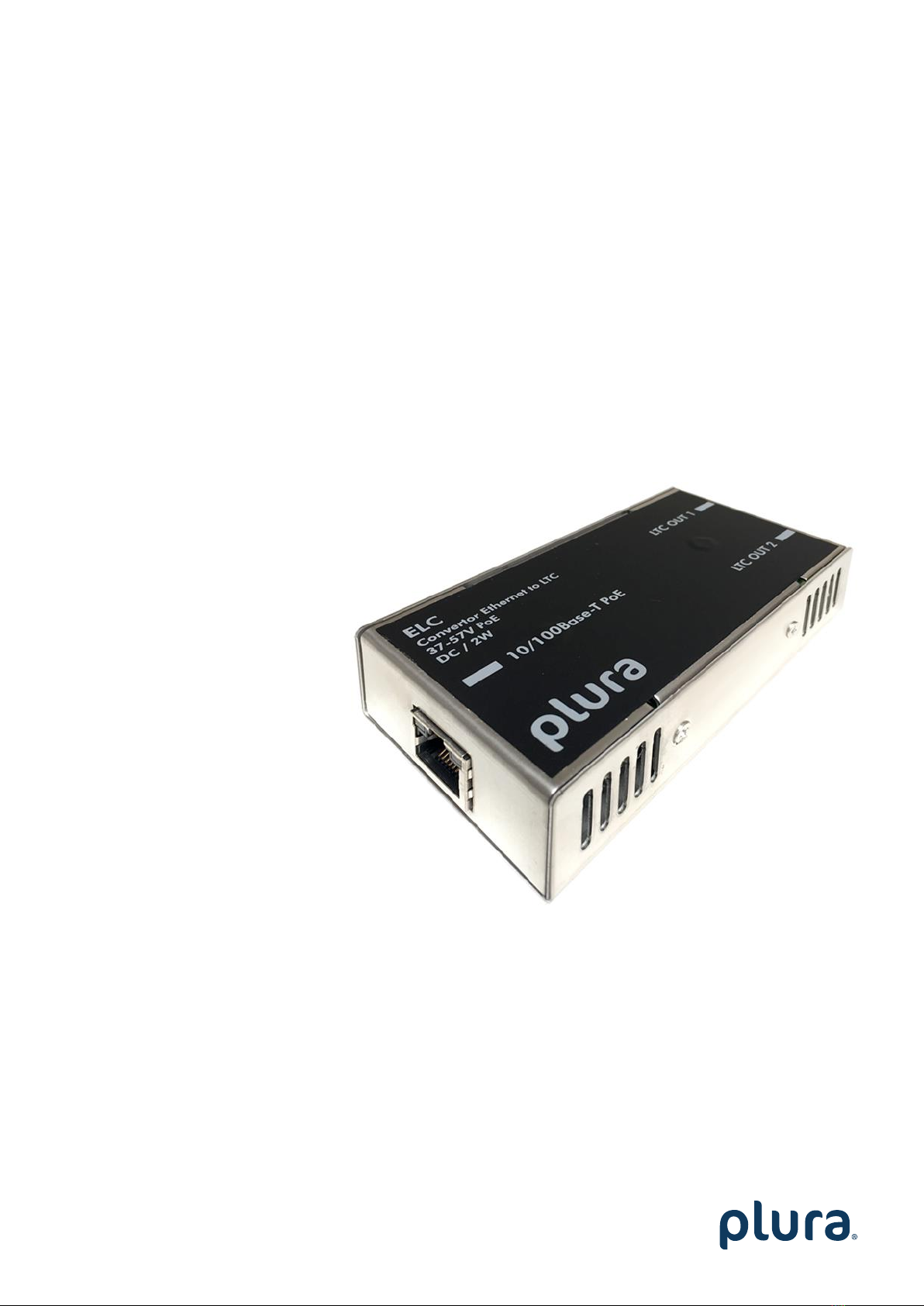

ELC
Ethernet to LTC Convertor

Functional Description and Specifications ELC
Page 3
CONTENTS
A1 REVISION HISTORY
A2 COPYRIGHT
A3 CERTIFICATIONS & COMPLIANCES
A4 WARRANTY
A5 UNPACKING/SHIPPING/REPACKAGING INFORMATION
1DESCRIPTION 8
1.1 INTRODUCTION 8
1.2 CONNECTIONS AND SPECIFICATIONS 9
1.3 POWER SUPPLY 10
1.4 STATUS INDICATION BY LED 11
1.5 MOUNTING 12
2FIRMWARE UPDATE 13
3SOFTWARE TOOLS FOR ELC 14

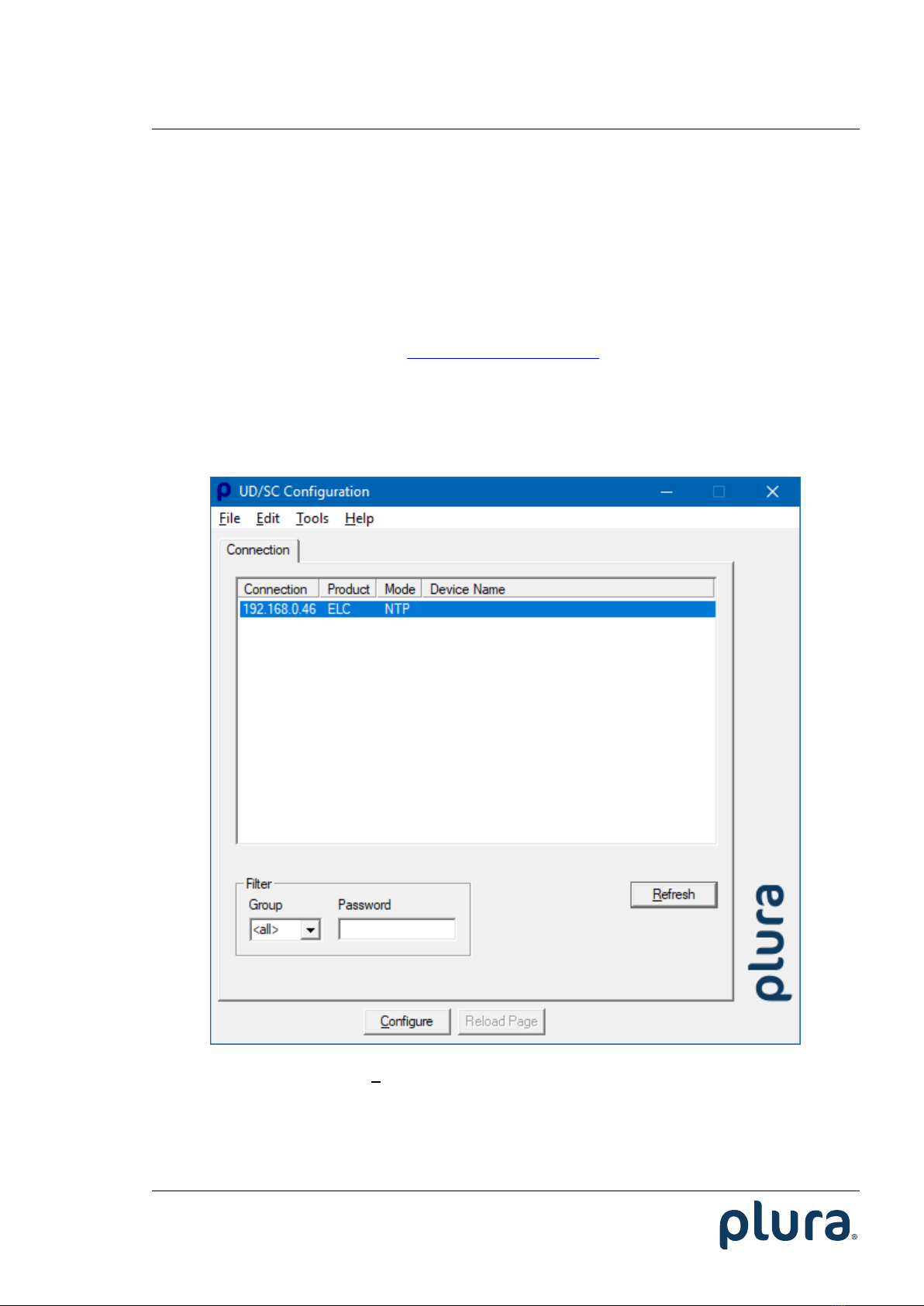

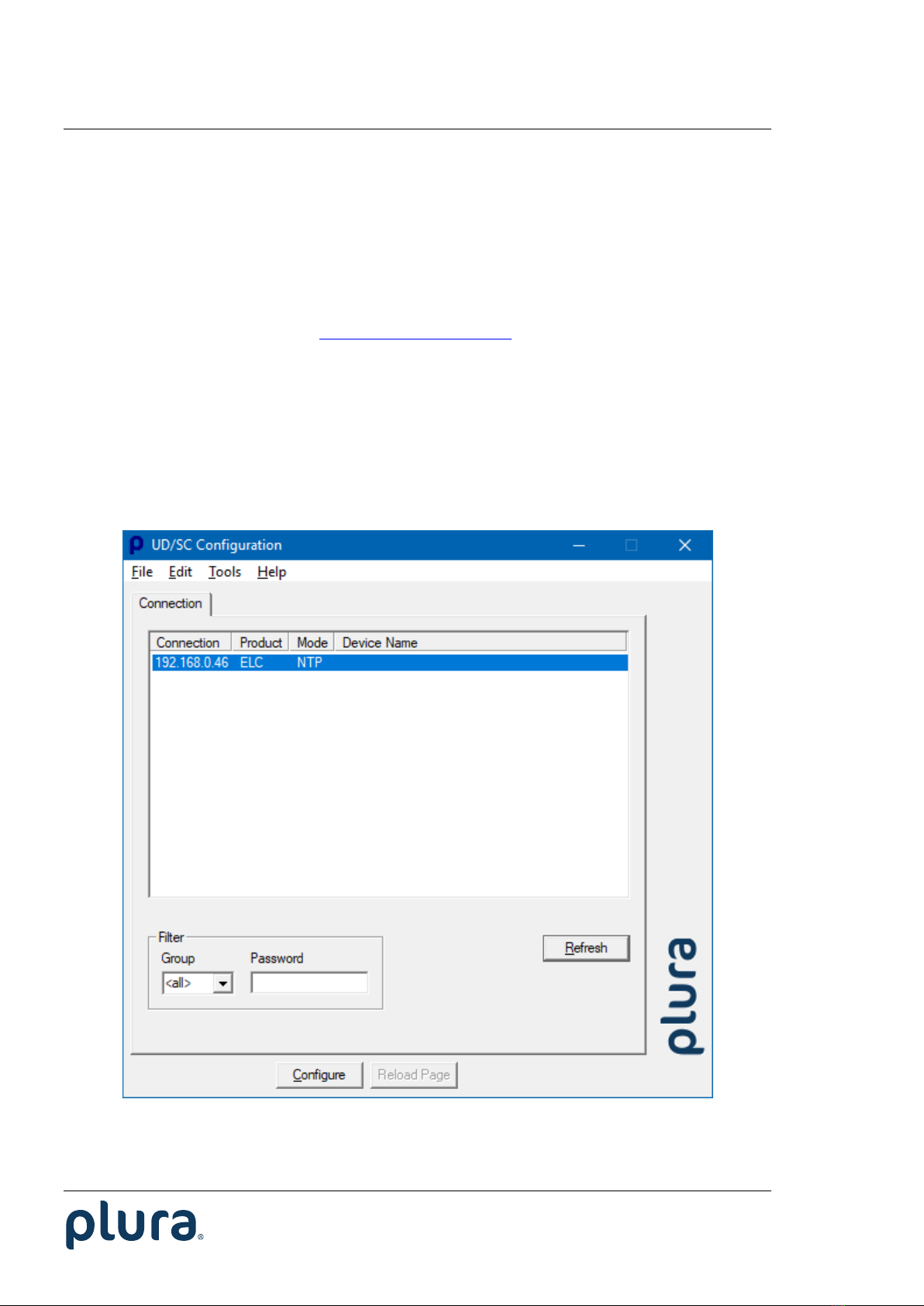

3.1 THE UD/SC CONFIGURATION PROGRAM 14

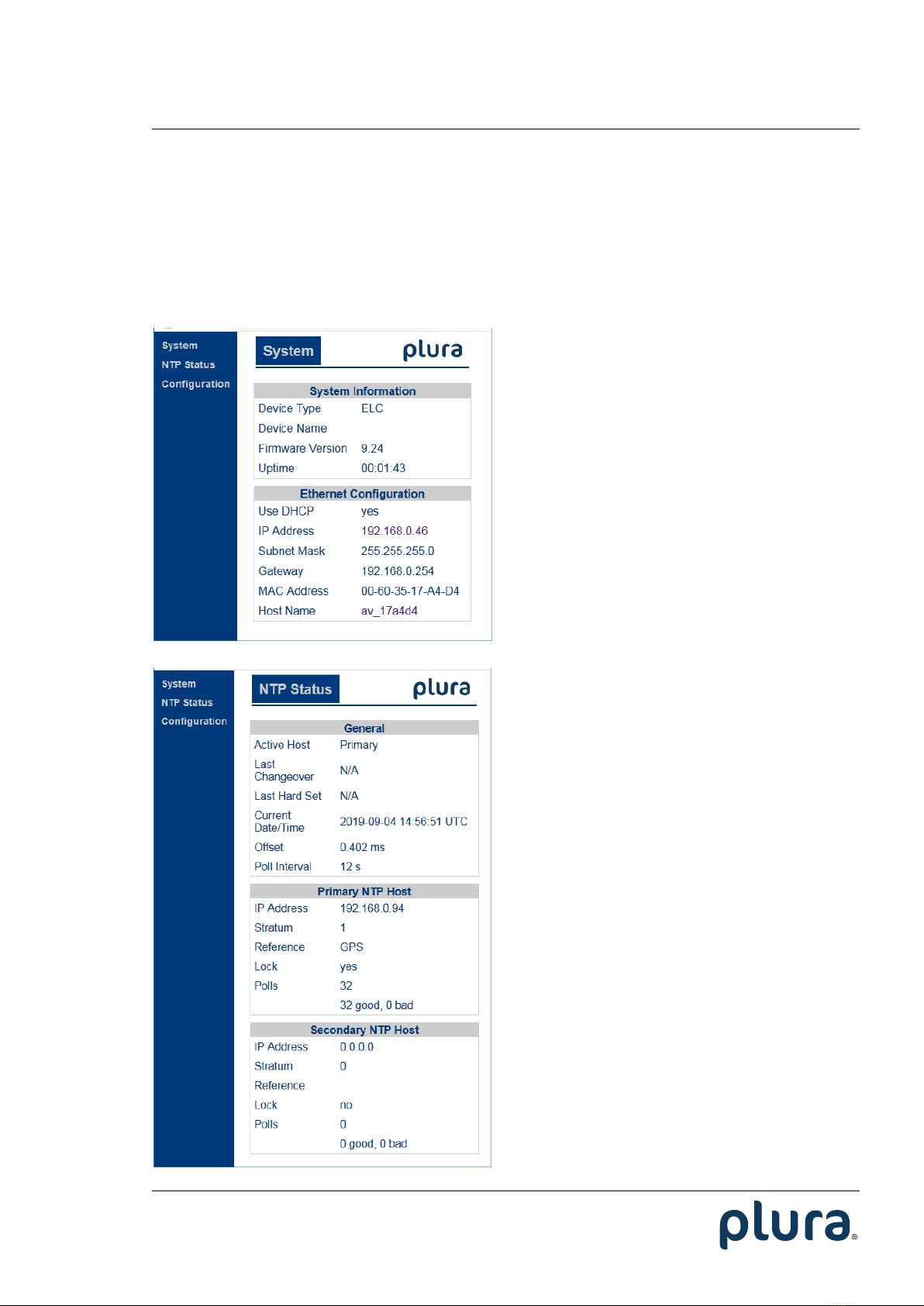

3.2 THE INTEGRATED ETHERNET SERVER 15
3.3 CONFIGURATION 16
3.3.1 General 16

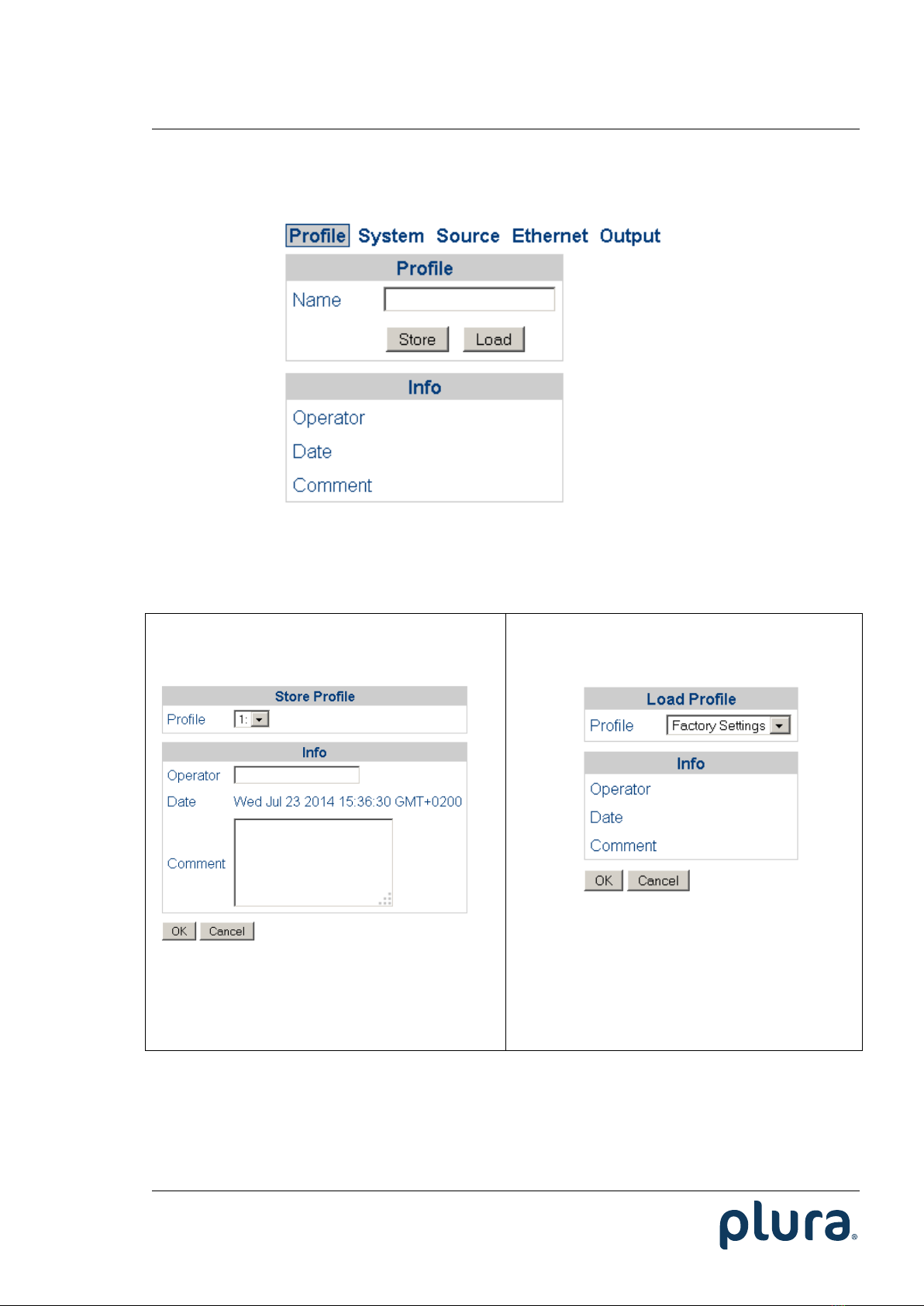

3.3.2 “Profile“: Store and Load a Complete Set-Up 17

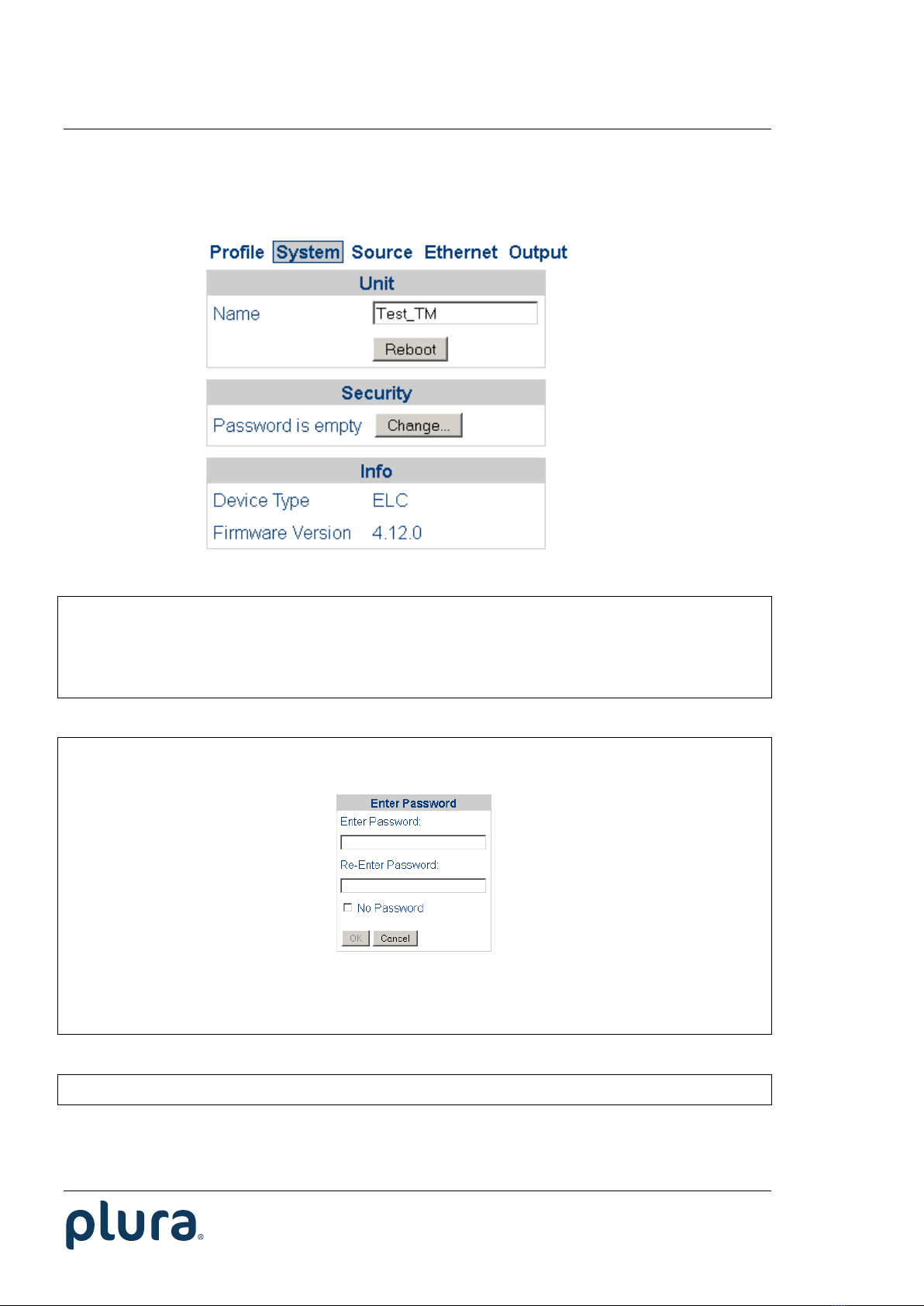

3.3.3 “System“: View and Change System Parameters 18
3.3.4 “Source“: Select the Signal Source 19
3.3.5 “Ethernet“: Set-Up of Network Parameters 20
3.3.6 “Real-Time“: NTP Real-Time Parameters 22
3.3.7 “Output“: Set-Up of LTC Outputs 23
4APPLICATIONS 27
4.1 MTD TIMER SYSTEM AND LTC DISPLAYS 27
4.2 GENERATE LTC - UTC AND LTC - LOCAL TIME 28

Functional Description and Specifications ELC
Page 4
A1 Revision History
No.
Date
Subject
0.n
Preliminary documents, changes without notice.
1.0
October 16, 2012
First release.
1.1
November 30, 2012
Chapter “Output – Set-Up of LTC Outputs” revised.
1.2
April 02, 2014
Chapter “System: View and Change System Parameters”: added note if password is lost.
2.0
July 23, 2014
Completely revised. Set-up can now be done via integrated Ethernet server.
2.1
September 25, 2019
Changed address of Plura Europe GmbH.
Due to constant product development the features of ELC are subject to change. The current
functional description always refers to the current firmware and the current configuration tool.
You can download the latest version of the standard firmware from
https://www.plurainc.com.
Please be sure to use the latest configuration program after having done an update. You can
download the latest version from the address above.

Functional Description and Specifications ELC
Page 5
A2 Copyright
Copyright © Plura Europe GmbH 2012-2019. All rights reserved. No part of this publication
may be reproduced, translated into another language, stored in a retrieval system, or
transmitted, in any form or by any means, electronic, mechanical, photocopying, recording, or
otherwise without the prior written consent of Plura Europe GmbH.
Printed in Germany.
Technical changes are reserved.
All brand and product names mentioned herein are used for identification purposes only and
are trademarks or registered trademarks of their respective holders.
Information in this publication replaces all previously published information. Plura Europe
GmbH assumes no responsibility for errors or omissions. Neither is any liability assumed for
damages resulting from the use of the information contained herein.
For further information please contact your local dealer or:
Plura Europe GmbH
Binger Weg 12
D- 55437 Ockenheim
Phone: [phone]
Fax: [phone]
E-Mail: [e-mail]
Internet: http://www.plurainc.com
A3 Certifications & Compliances
CE-Declaration ELC:
We,
Plura Europe GmbH
Binger Weg 12
D- 55437 Ockenheim
herewith declare under our sole responsibility that the
ELC
meets the intent of the following directives, standards and specifications:
2004/108/EC EMC Directive
applying the following standards:
EN 55022:2006 Emission
EN 55024:1998 + A1:2001 + A2:2003 Immunity

Functional Description and Specifications ELC
Page 6
A3 Warranty
Plura warrants that their products will be free from defects in materials and workmanship for a
period of two years from the date of shipment. If this product proves defective during the
warranty period, Plura, at its option, will repair or replace the defective product without
charge, provided this product are returned to Plura freight prepaid.
In order to obtain service under this warranty, Customer must notify Plura of the defect before
expiration of the warranty period and make suitable arrangements for the performance of
service. Customer shall be responsible for packaging and shipping the defective product to
Plura, please notice the Shipping Information given below.
This warranty shall not apply to any defect, failure or damage caused by abuse, misuse,
improper use, negligence, accident, modification, alteration, or improper or inadequate
maintenance and care.
This warranty is given by Plura with respect to this product in lieu of any other warranties,
express or implied. Plura and its vendors disclaim any implied warranties of merchantability or
fitness for a particular purpose. Plura’s responsibility to repair or replace defective products is
the sole and exclusive remedy provided to the customer for breach of this warranty. Plura and
its vendors will not be liable for any indirect, special, incidental, or consequential damages
irrespective of whether Plura or the vendor has advance notice of the possibility of such
damages.

Functional Description and Specifications ELC
Page 7
A4 Unpacking/Shipping/Repackaging Information
This product has been carefully inspected, tested and calibrated before shipment to ensure
years of stable and trouble-free service.
The shipping carton and pads provide protection for the product during transit. Retain the
shipping cartons in case subsequent shipment becomes necessary.
Carefully unpack the product from its transit material and carefully check the product for signs
of damage. In the event that the product has been damaged during transit, contact the carrier
and your Plura dealer.
Please confirm that all items listed on the packing list have been received. Check the items
against your original order to ensure that you have received the correct parts. If any item is
missing, please contact your Plura dealer.
Ensure that all packaging material is removed from the product and its associated
components before installing the unit.
Products returned to Plura for servicing or repair should have a tag attached showing:
•Name and complete address of the owner and the name of the person that can be
contacted.
•Unit’s serial number and a description of the service required, or failure detected.
Products returned should be shipped prepaid in the original packaging material if possible. If
the original packaging is not available or is unfit for use, supply an adequate packaging
which should meet the following criteria:
•Packaging must be able to withstand the product weight.
•Product must be held rigid within the packaging.
•Allow at least one inch of space between the product and the container.
•The corners of the product must be protected.
•Seal the carton with shipping tape or an industrial stapler.
If the product is still within the warranty period, the product will be returned by prepaid

Functional Description and Specifications ELC
Page 8
1 Description
1.1 Introduction
ELC serves as an LTC generator with two output stages. The data content within the LTC time
code is either fed from an NTP server or an MTDoE master device. Both LTC output signals are
phase locked to UTC time which is available as well in NTP mode as in MTDoE mode. Time
addresses as well as user data (binary groups) of the LTC can be independently configured
and generated.
These are the key features of ELC:
•PoE power supply.
•Connectors: 1 x RJ45 for Ethernet/PoE, 2 x RJ45 for LTC outputs.
•Set-up and firmware update possible via the “UD SC Config“ program.
•Set-up and status display possible via the integrated Ethernet server.
•All settings will be stored at a non-volatile memory, so the latest set-up will not get lost
if ELC was powered off.
•Frame rate of LTC outputs selectable: 24/25/30/29.97 frames per second.
•LTC signal level adjustable for each output separately.
•Source = NTP:
▪One “Primary“ and one “Secondary“ NTP Server can be addressed.
▪Various date formats can be transported in the binary groups (user data) of the
LTC.
▪Based on UTC received from the NTP Server, ELC can output a time & date LTC of
any time zone, with or without Daylight Saving Time switching.
•Source = MTD:
▪Selectable MTDoE group.
▪Time addresses of LTC can be a local real-time or a time of any MTD counter.
▪A date can be transported in the binary groups (user data) of the LTC.

Functional Description and Specifications ELC
Page 9

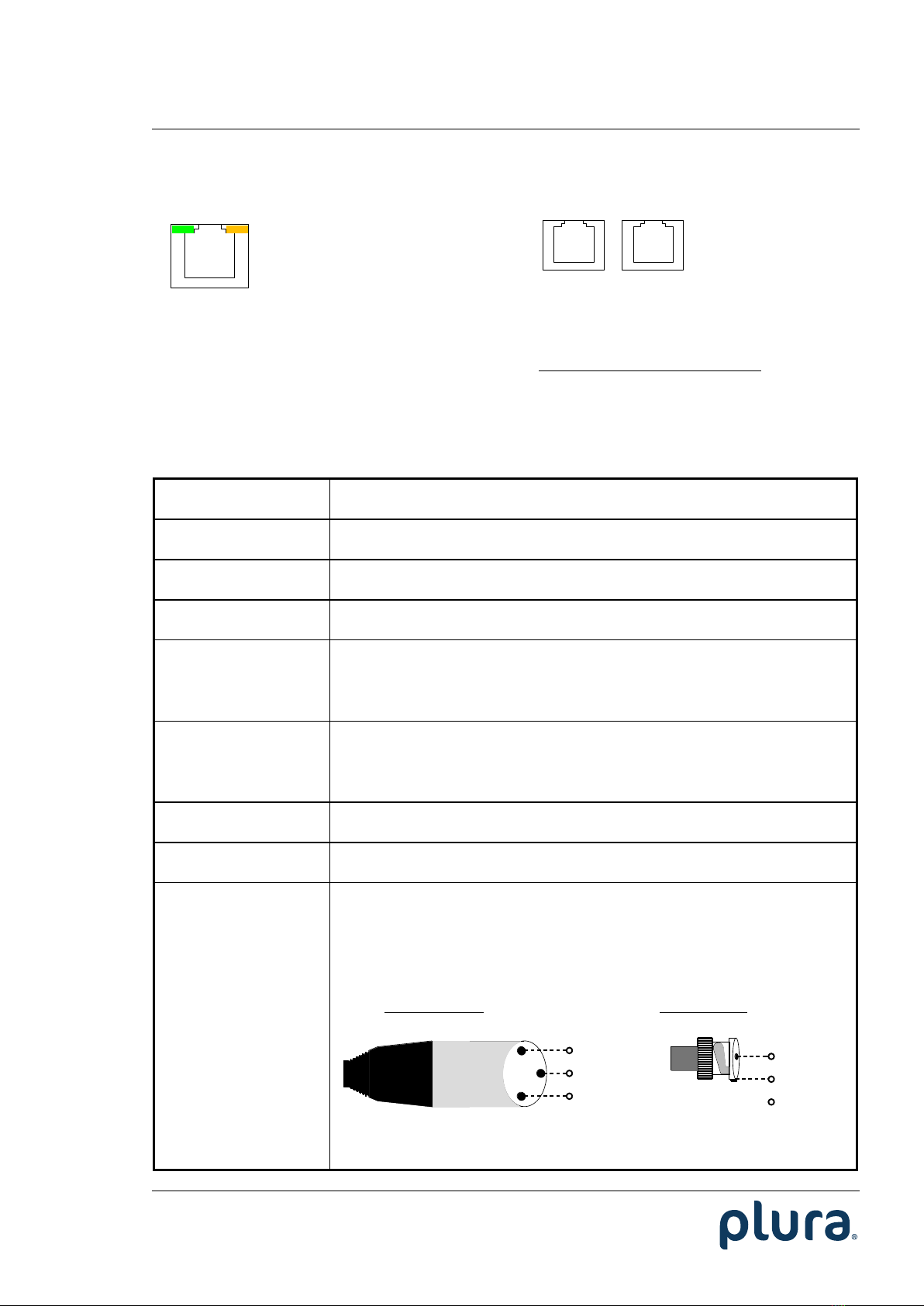

1.2 Connections and Specifications
STAT ACT
Green LED STAT
indicates status.
Yellow LED ACT
indicates Ethernet
activity.
10/100Base-T PoE
RJ45 jack
1: Tx+ / VPoE+
2: Tx–/ VPoE+
3: Rx+ / VPoE–
4: VPoE+
5: VPoE+
6: Rx–/ VPoE–
7: VPoE–
8: VPoE–
LTCOUT2 LTCOUT1
2 x RJ45 jack
Pin assignment of both outputs and
adaption to XLR3 connector:
Signal RJ45 XLR3
GND 4 1
LTC OUT + 3 2
LTC OUT –6 3
Operating voltage
According to PoE specification (48 VDC nominal)
Power consumption
≤ 2 W
Weight
0.2 kg
Dimensions
W x H x D: 100 x 26 x 56 mm; 3.94 x 1.02 x 2.20 inches
Environmental
characteristics,
operating
Temperature: 5 °C to 40 °C
Relative humidity: 30 % to 85 %, non-condensing
Environmental
characteristics, non-
operating
Temperature: -10 °C to +60 °C
Relative humidity: 5 % to 95 %, non-condensing
Ethernet connector
RJ45 jack 10/100 BASE-T
Ethernet
10/100Base-T
LTC output
Balanced LTC (Linear Time Code) outputs.
Format: according to SMPTE 12M-1-2008
Output impedance: < 50 
Connecting and signal levels (adjustable):
balanced use unbalanced
toXLR3F
21
3
GND
LTCOUT-
LTCOUT+
toCinch/RCA/BNC LTC OUT+
GND
LTCOUT-
Minimum: –16.1 dBu/0.3 Vpp –22.2 dBu/0.17 Vpp
Maximum: +8.5 dBu/5.8 Vpp +2.5 dBu/2.9 Vpp

Functional Description and Specifications ELC
Page 10
1.3 Power Supply
ELC receives power via “Power over Ethernet“ (PoE). Power over Ethernet or PoE technology
describes a system to pass electrical power, along with data, on Ethernet cabling. Just connect
ELC to a PoE port of a switch.
PoE 10/100Base-TPoE
ELCPoE Switch
If no PoE port is available, use the PI external PoE injector. You can order this part with order
number 14085015.
Power-over-Ethernet Injector
~
Non-PoE Switch
10/100Base-T PoE
ELC
External Power Supply:
Option PI
AC Power

Functional Description and Specifications ELC
Page 11
1.4 Status Indication by LED
The green LED STAT indicates the operating status of the unit.
Event
Status
LED
Power just turned
on
No IP address assigned for the unit, DHCP is still
running.
No LTC output.
Flickering
First NTP query
First NTP query after power has turned on or after
changing the set-up regarding NTP server.
No LTC output.
Off,
lights up shortly
once per second
Synchronization
NTP query has been successful, but synchronization
still is running.
No LTC output.
On,
turns off shortly
once per second
Synchronized
Normal operation.
As long as the LTC output is switch on, LTC will be
generated –even if synchronization will be lost.
On
Faults
DHCP successful,
but no
communication
“Source = MTD”: No MTD master found yet.
“Source = NTP”: Invalid NTP server address (e.g.
0.0.0.0).
No LTC output.
Flashing:
1 s on –1 s off
NTP server not
available
No return from NTP server at all.
No LTC output.
Off,
turns off shortly
twice per second
NTP server lost
“Source = NTP”: Timeout, communication between
ELC and NTP server is disrupted.
As long as the LTC output is switch on, LTC will be
generated.
On,
turns off shortly
twice per second
MTD master lost
“Source = MTD”: Timeout, communication between
ELC and MTD master is disrupted.
As long as the LTC output is switch on, LTC will be
generated.
On,
turns off shortly
twice per second

Functional Description and Specifications ELC
Page 12
1.5 Mounting
There are two threaded holes (M3) at the bottom of the unit.
Maximum screw-in depth: 15 mm/0.59 inches.
Alpermann+Velte
100 mm
56 mm
50 mm
Drawing not to scale!
PREVENT OVERHEATING
To prevent product overheating, position the unit only where sufficient air
circulation can be maintained. Good air circulation is essential to prevent internal
heat build-up, do not block any ventilation openings. Do not expose the unit to
direct sun light or any other strong lights. Keep the unit away from heat sources.
PROVIDE PROPER ENVIRONMENT
Dust, humidity, shocks and strong electromagnetic fields must be avoided. Do not
expose this unit to dripping or splashing water. Ensure that no objects filled with
liquid are placed on the unit.

Functional Description and Specifications ELC
Page 13
2 Firmware Update
Firmware updates require a computer with the UD SC Config program and an Ethernet con-
nection. Computer and ELC have to be connected to the same network. When using a
firewall, either disable it or ensure that the computer can connect to the unit on UDP port
8051 for both incoming and outgoing traffic.
Please have the new firmware (.tcf file) stored on your computer. The latest firmware is
available at:
https://www.plurainc.com.
Execute UD SC Config on your computer. The program gives a list of all MTD devices found
in the network. ELC should be on this list. Access via Ethernet can be protected by a password
(please refer to chapter “System”: View and Change System Parameters).
Select the ELC line, open the File menu, choose Flash Update..., and open the .tcf file.
During the flash update the operation of the device stops!

Functional Description and Specifications ELC
Page 14
3 Software Tools for ELC
3.1 The UD/SC Configuration Program
Via the UD SC Config program, you can locate and setup ELC units in your network. It runs
on a computer (32/64-bit Windows operating systems 2000/XP/2003/Vista/2008/7). You can
download the latest version of the program from:
https://www.plurainc.com.
ELC set-up is done via Ethernet; the computer must be connected to the same network. Access
via Ethernet can be protected by a password (please refer to chapter “System”: View and
Change System Parameters).
Firmware update is performed by this program as well. Please refer to chapter “Firmware
Update”.
After program start a list is given of all MTD devices and their IP addresses found in your local
network:
Select the ELC line and click button “Configure”, or double click on the line. Additional tabs
will be shown. On these tabs you can check or change the set-up as described in chapter
“Configuration”.

Functional Description and Specifications ELC
Page 15
3.2 The Integrated Ethernet Server
Start an Internet Browser and type in the IP address of ELC. If you do not know the IP address,
start the UD SC Config program (refer to chapter “The UD/SC Configuration Program”).
The menu at the left border offers three links: System and NTP Status –where you can have
status information; and Configuration –which enables to set-up the ELC module (please
refer to chapter “Configuration“).
System indicates the installed
firmware and the current network
parameters.
NTP Status indicates the most
relevant information regarding
the NTP Client functionality.

Functional Description and Specifications ELC
Page 16
3.3 Configuration
3.3.1 General
You can do a set-up of ELC via the UD SC Config PC program or via the integrated Ethernet
server.
Set-up via UD SC Config:
After program start the ELC module should appear in the list. Select the ELC line and
click button , or double click on the line –this opens the configuration.
Additional tabs will be shown which will be described in the following chapters.
Set-up via integrated Ethernet server:
Start an Internet Browser and type in the IP address of the ELC module. Click
Configuration in the menu at the left border –this opens the configuration. A new
menu appears which shows a list of all configuration pages which are currently
available. With a click on one of these entries of the menu a configuration page will be
opened where you can see and change parameters. Each configuration page will be
described in the following chapters.

Functional Description and Specifications ELC
Page 17
3.3.2 “Profile“: Store and Load a Complete Set-Up
Configuration options (example shows a screen shot of the Ethernet server):
This feature enables to easily change the complete set-up of the unit during normal operation.
During installation, the current set-up can be stored as a “profile”. You can enter a name in
the “name” entry before storing. Now choose a different set-up and store this as a different
profile. Fife profiles are available.
Five different set-ups can be stored into the
non-volatile memory of the unit.
Click Store:
Profile: Select 1 –5.
Info Operator: You may enter a text.
Comment: You may enter a text.
Click OK to store the current set-up.
Any set-up stored as a profile can replace
the current set-up.
Click Load:
Profile: Select “Factory Settings“ or 1 – 5.
“Factory Settings“ installs the
default set-up.
Click OK to replace the current set-up by
the selected profile. If no valid set-up has
been stored, an error message is given.

Functional Description and Specifications ELC
Page 18
3.3.3 “System“: View and Change System Parameters
Configuration options (example shows a screen shot of the Ethernet server):
Unit
Name Give the device a significant name. This name appears wherever ELC devices can
be found.
Enter a text (10 characters) in the Name field. Complete with Enter or Tab key.
Reboot Warm boot of the unit.
Security
It is provided to protect the unit against non permission or unintentional access via Ethernet.
With a click on the Change button the following entry opens:
Enter the password twice and press the OK button.
Clear an existing password by checking No Password.
Password forgotten? →Please read chapter “Passwords” of “The MTD System” manual.
Info
Indicates some device status, e.g. the version of the installed firmware.

Functional Description and Specifications ELC
Page 19
3.3.4 “Source“: Select the Signal Source
Configuration options (example shows a screen shot of the Ethernet server):
MTD ELC is able to convert data of an MTDoE system to LTC. These data include six
independent programmable timers, real-time, date, and a time of a time code.
Each timer can show a stop timer, a remaining time, a time difference, a time
of a time zone etc.
For a detailed description of the MTDoE system please read the manual The
MTD System –Installation and Operation Manual.
NTP ELC transfers a time & date into LTC. The reference time, received from an NTP
server, can get a programmable offset. It is possible to enable a Daylight-
Saving Time handling.

Functional Description and Specifications ELC
Page 20
3.3.5 “Ethernet“: Set-Up of Network Parameters
Configuration options (example shows a screen shot of the UD SC Config PC program):
“Source = MTD““Source = NTP“
Current Settings
This box indicates the current network parameters of the device.
Only available with the UD SC Config PC program:
A click on Change... enables to change parameters:
Use DHCP If checked, the device will automatically request its IP parameters (IP address,
subnet mask, and gateway) from a DHCP server. In this case the “IP Address”,
“Subnet Mask”, and “Gateway” boxes have no relevance.
Please let the device restart (power off –on) if you select this mode.
