PNI L805 User manual

MANUAL DE UTILIZARE / USER
MANUAL
PNI L805 DISPLAY 5 INCH

1
EN
Declaration
•Product features may change without prior notice. We apologize for any inconvenience caused.
•Our company is not responsible for the loss of data due to the lack of a backup.
•Please read carefully the operations and instructions in this user manual and use only original
accessories to avoid unexpected damage. Implementing other programs on this device without being in
compliance with your own programs or connecting incompatible accessories may void your warranty
and even endanger your safety and others. The Company assumes no responsibility in these cases.
•Sometimes due to the development of infrastructure and the construction of new streets, etc.,
there may be non-conformities between the data indicated by GPS and traffic signs. In these cases,
please follow the traffic signs.
•Be careful when operating the navigator while driving, inattention in traffic can cause serious
road accidents. The company does not assume responsibility for accidents or any losses from this cause.
Precautions
 Do not shake or hit the device. Improper handling can cause damage, loss of data, or
errors in file playback
 Keep the device away from direct sunlight or high temperatures to prevent overheating of
the device and its batteries, which may cause malfunctions or explosion hazards
 Keep the device away from humidity and rain. Moisture can cause the device to
malfunction
 Do not suddenly disconnect the device from the power supply
 Keep the device in a clean and dust-free environment
 Using your device near strong radio waves or radioactive light can affect its performance
 Insert the plug completely into the electrical socket to prevent static electricity
 Ensure that all cables are securely connected to the device to avoid damage to the device
caused by the improper arrangement
 Do not press hard on the LCD screen, keep the screen away from direct sunlight, as
malfunctions may occur. Clean the dust off the screen surface with a soft cloth
 If the device does not work properly, please send it to an authorized repair service
 Copy data from SD / MMC card to a computer regularly to prevent data loss
 Watch media compatibility. Only files in accordance with the device design rules will be
played back
 Movies, music, and images can not be played back without copyright. Playing these files
without permission would violate copyright law

2
•Do not use metal objects to short-circuit the feeder or input of the device. This can damage
your device.
•Use the device after placing it on a flat surface. Placing it on a blanket, pillow, or carpet will
cause the working temperature to be too high for the device and may fail.
•When the system performs read-write operation for the memory card, do not disconnect it from
the source, so the data on the card may be destroyed or lost
•Do not turn off power when navigating, playing back movies, music, or viewing images
•Do not store batteries or charge them in cold or hot areas, battery performance may be impaired
•Do not leave the device or charger in the reach of children
•Strong blows or walking can damage the device or spoil its appearance. Please take care
•Do not use the volume to the full, may affect your hearing and even cause permanent hearing
damage
Introduction
The PNI L807 is mainly used for GPS navigation, but it also has other features such as audio /
video playback, image viewing, etc.
Mainfeatures:
•High performance processor
•User-friendly interface for easy use
•Transfer data by connecting to a computer using the data cable in the package
•Excellent reception: Location precision provides excellent navigation services
•Entertainment Provider: MP3 / MP4 File Playback Features
Packagecontents:
Ensure that all items are included in the navigation package:
•GPS navigation
•Car charger
•Data cable
•Windscreen support
•User manual

3
ProductAppearance
1
On/off button
5
microSD card slot
2
LCD touch screen
6
miniUSB port
3
LED indicator
7
Speaker
4
Jack plug
8
Reset

4
Powersupply
The navigator can be powered in four ways: from the internal battery, from the computer through
the data cable, or from the car to the 12V / 24V cigarette lighter.
When not connected to a power source, the GPS navigator is powered by the internal battery.
The icon [ ]in the upper right corner of the screen indicates the battery level.
NOTE: This navigator uses an integrated Li-Ion battery that can not be removed. Generally, if
the screen illumination is set to be low and the battery is fully charged, then the device can operate for
up to 3 hours on the battery. Some features (audio, video, high-light, etc.) play more power, which will
obviously reduce operating time to a new power.
Charging with a power adapter
1 . Connect one end of the car charger to the miniUSB of the GPS navigator
2. Connect the other end of the power supply to the cigarette lighter
CAUTION: Please connect the cigarette lighter to the cigarette lighter after starting the car to
avoid possible damage from unstable current at engine start.
Basicoperations
Switching on/off
Please press the power button [ ] from the top of the browser to stop it. The system enters
the hibernation state. When you turn it on again, the machine will return to the operating mode used
before the shutdown
NOTE: If you want to save the battery, you can press the on / off switch to close the device.
Using the vehicle bracket to fix a navigator
Attach the device to the windscreen of the vehicle using the support included in the package for
use when driving.
CAUTION: Carefully place the support on the windscreen. Ensure that the GPS navigator does
not obstruct your road visibility. Ensure that the browser is locked in a proper place, not by accident. Do
not place it in the airbag area.

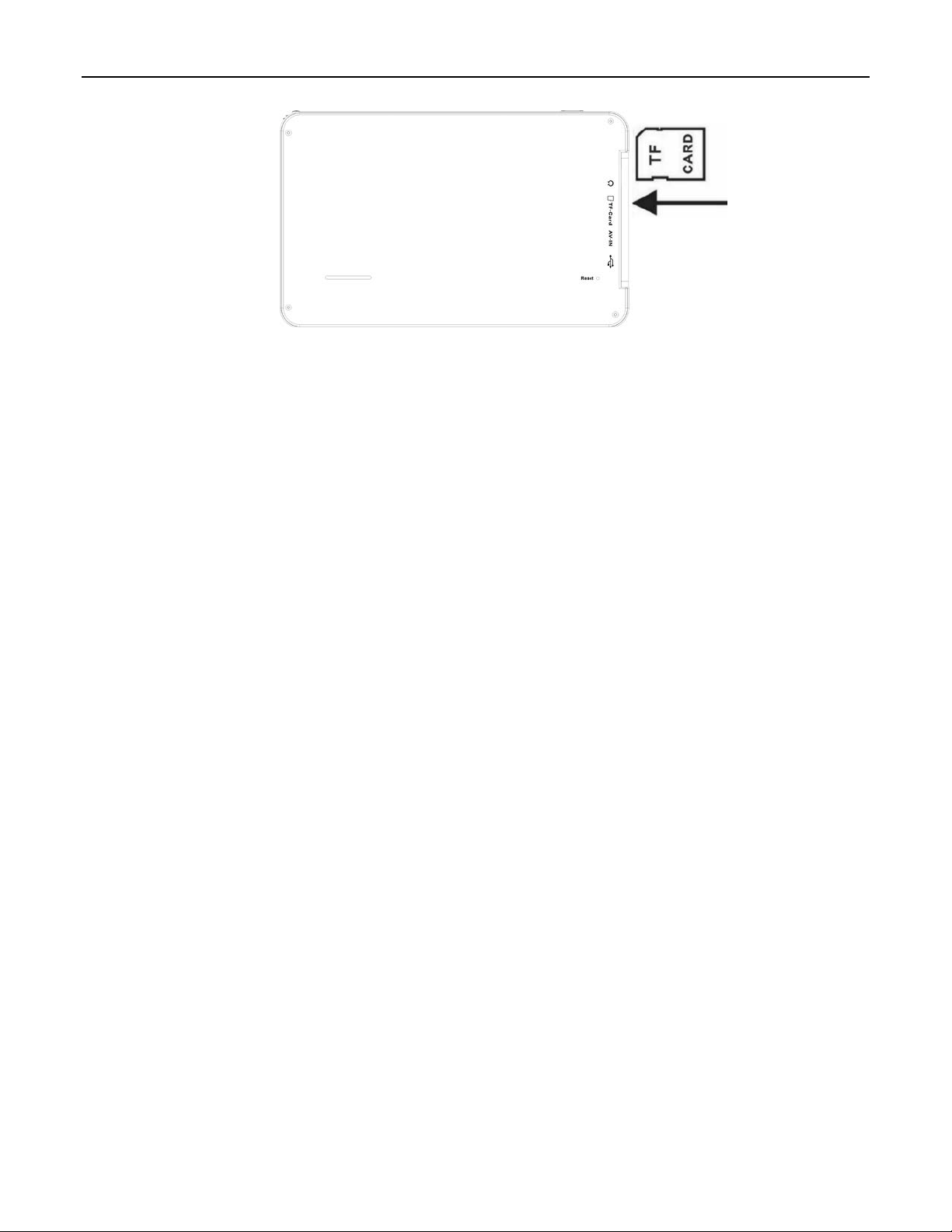

Using TF Memory card
If you want to play audio / video files or view pictures on your GPS device, you can store the
desired files on a microSD card that you can insert as shown below:

5
CAUTION: Do not remove the card from the device when the system plays a media file.
1. Do not press hard and do not bend the SD card. Prevent falling and hitting the card.
2. Do not store the card in areas with high temperature, high humidity or direct sunlight. Keep
the card away from liquids and corrosive substances.
3. Pay special attention to the insertion position of the card into the card slot. Wrong insertion
can cause damage to both the slot and the card.
Connecting to a Computer
The connection to a computer via the miniUSB interface is on the right side of the browser. You
can copy files from the browser to the collar and vice versa, or you can keep the data from the browser
on your computer for future use.
•Ensure that the browser is open - ON;
•Make sure that the miniUSB of the data cable is plugged into the miniUSB interface on the left
side of the device and the standard USB plug into a USB input of the computer;
•When making the connection, your computer automatically identifies the new hardware
•When you have finished transferring data, remove the data cable from the browser and it will
work the same way as before.
CAUTION: Data Security: Please copy the system data to an external storage device before
updating. The company does not take responsibility for data loss.
Maintaining the GPS navigator
Proper maintenance allows the GPS navigator to be your trusted partner for
navigation and entertainment. Please use the navigator by following the criteria below to
ensure a long service life.
Screen protection: Do not press too hard on the screen. Clean the screen lightly
using a soft cloth sprayed with a little commercial glass cleaning product, avoiding direct
splashing on the screen.
WARNING: please turn off the GPS navigator before cleaning the touch screen.
Do not drop the navigator, hitting may damage the screen and other components.
WARNING: Accidental damage is not covered by the warranty. Avoid using in the
following situations: high temperature variations, high temperature (60 °C or higher),

6
temperature too low (below 0 °C), high voltage under dust or humidity conditions. Keep
the device away from erosion, corrosive liquids, and do not put any liquid into it. Avoid
radiation interference: radiation interference from other electronic equipment may affect
the performance of the navigator screen. Remove the interference source and the screen
will return to normal.
ATTENTION: If air transport is required, it is recommended to store the GPS in
the luggage compartment and pass it through the X-ray detection system for security
control. Avoid checking the navigator to a magnetic-head detector or magnetic stripe
detector (the hand-held scan tool), these devices may cause data loss in the system.
Avoid exposing the navigator to direct light: Keep the GPS navigator away from
strong ultraviolet light to increase life.
Main menu
Maininterface:
Main functions:
Navigation
Open navigation software
Music
Open the list of audio files and play them
Video
Open video list and play them
Ebook
Open the list of txt files and view them
Photos
Open the list of pictures and view them
Settings
Open device settings menu
Play audio files
This chapter describes how to use the audio player in your GPS navigator to play your favorite
music
The audio player supports WMA, MP3 and WAV time files. You can set the random play order.
Please copy the audio files to a memory card before playback.

7
Interfaces and Operations:
•Select the "Music" option in the main menu to access the song list:
Back
Press to return to the main menu
Previous page
Press to select the previous track of songs
Next Page
Press to select the next song page
 •Select the desired track to activate the audio player:
Hang up
Press to return to the main menu
Start
Press to start playing the song

8
Pause
Press to pause the song
Stop
Press to stop playing the song
Previous
Press to select the previous track
Next
Press to select the next track
Volume
adjustment
Select the desired volume level. Pull to the left to shrink
and to the right to increase the volume
Progress
play song
Shows the progress of the current song
Back
Press to display the files in a folder
Time elapsed
Tap to display the time elapsed from a song
Cyclic play
Press to cycle all songs in a folder
Shuffle
playback
Press to randomly play songs in a folder
Viewimages
This chapter provides information on how to view images on the GPS navigator.
•Supported formats: JPG, JPEG, BMP and PNG.
•Rotate and view images across the screen, one after the other, automatically
Please copy the images to a memory card before playback.
Interfaces and Operations
•Select the "Photo" option in the main menu to access the list of images
Back
Press to return to the main menu
Previous page
Press to select the previous page with pictures
Next Page
Press to select the next image page
 Select the desired viewing image:

9
Hang up
Press to return to the main menu
Hide
Press to start viewing on the entire screen
Rotate
clockwise
Press to rotate the image clockwise to 90 °
Previous
Click to view the previous image
Next
Click to view the next image
enlarge
Click to enlarge the image
Reduce
Press to decrease the image
Back
Press to return to the image directory
View text files
 This chapter provides information on how to use the GPS navigator to view text files.
 Supported formats: TXT
 Please copy the text files to the memory card to view them on the navigator.
Interfaces and Operations
 Select the "Ebook" option in the main menu to access the list of text files:
Back
Press to return to the main menu
Previous
page
Press to select the previous page with text files
Next Page
Press to select the next text file page

10
 Select the file you want to view:
Back Press to return to the previous menu
Last Click to view the previous page
Next Click to view the next page
Text Font Press to select the character font
Text color Press to select the color of the text
Save Selection Click to save your selection beforehand
List Selected Saved Click to access the saved save list
Hang up Press to return to the main menu
Play video files
 This chapter provides information on how to use the GPS navigator to play video files.
 Supported files: WMV, MPEG, MPG, MP4, 3GP, ASF and AVI
 Play on full screen, select progress and select the file
 Please copy the video files to the memory card to play them on the navigator
Interfaces and Operations
 Select the "Video" option to access the video file list:

11
Back
Press to return to the main menu
Previous
page
Press to select the previous page with video files
Next Page
Press to select the next video file page
 Select the file you want to view:
Hang up
Press to return to the main menu
Start
Press to start playing the clip

12
Pause
Press to pause the clip playback
Stop
Press to stop playing the clip
Previous
Press to select the previous clip
Next
Press to select the next movie
Volume
adjustment
Select the desired volume level. Pull to the left
to shrink and to the right to increase the volume
Progress
play song
Shows progress of current video playback
Adjust
lighting level
Pull to the left to shrink and to the right to
increase screen brightness
Back
Press to display the files in a folder
Time
elapsed
Press to display the elapsed time of a clip
Cyclic
play
Click to cycle all the clips in a folder
Shuffle
playback
Tap to play clips in a folder randomly
Settings
Select the "Settings" option in the main menu to access the system settings menu.

13
Backlight
- Set screen illumination
Hang up
Press to return to the previous menu
Reduce
lighting level
Press to decrease the level of the screen illumination
Enhancement
of
illumination
level
Press to increase the level of screen illumination
light
Press one of the buttons to select how long you want the
screen to light up

14

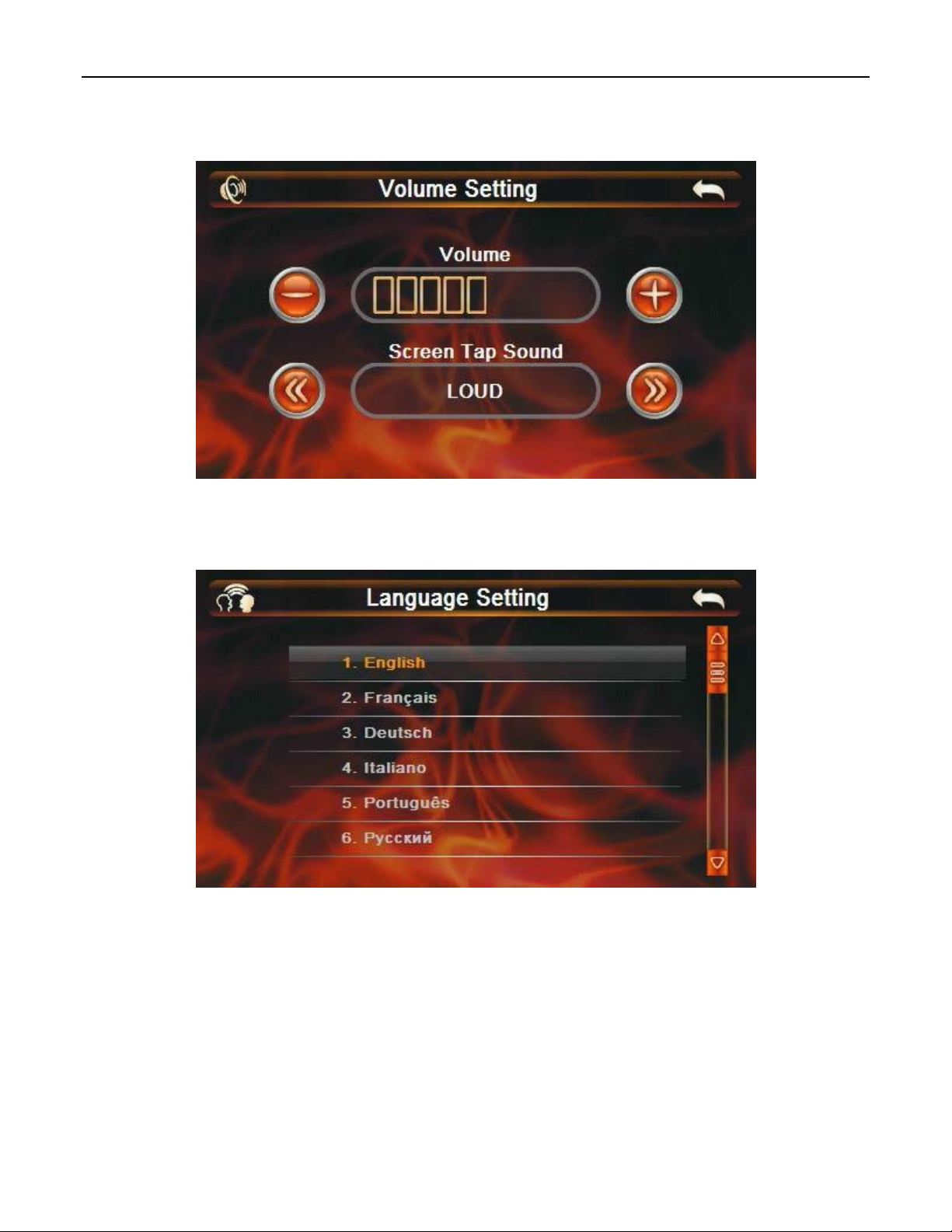

Volume
-Set Voice / Audio Volume and Touch Screen Volume
Language
-Select the menu language

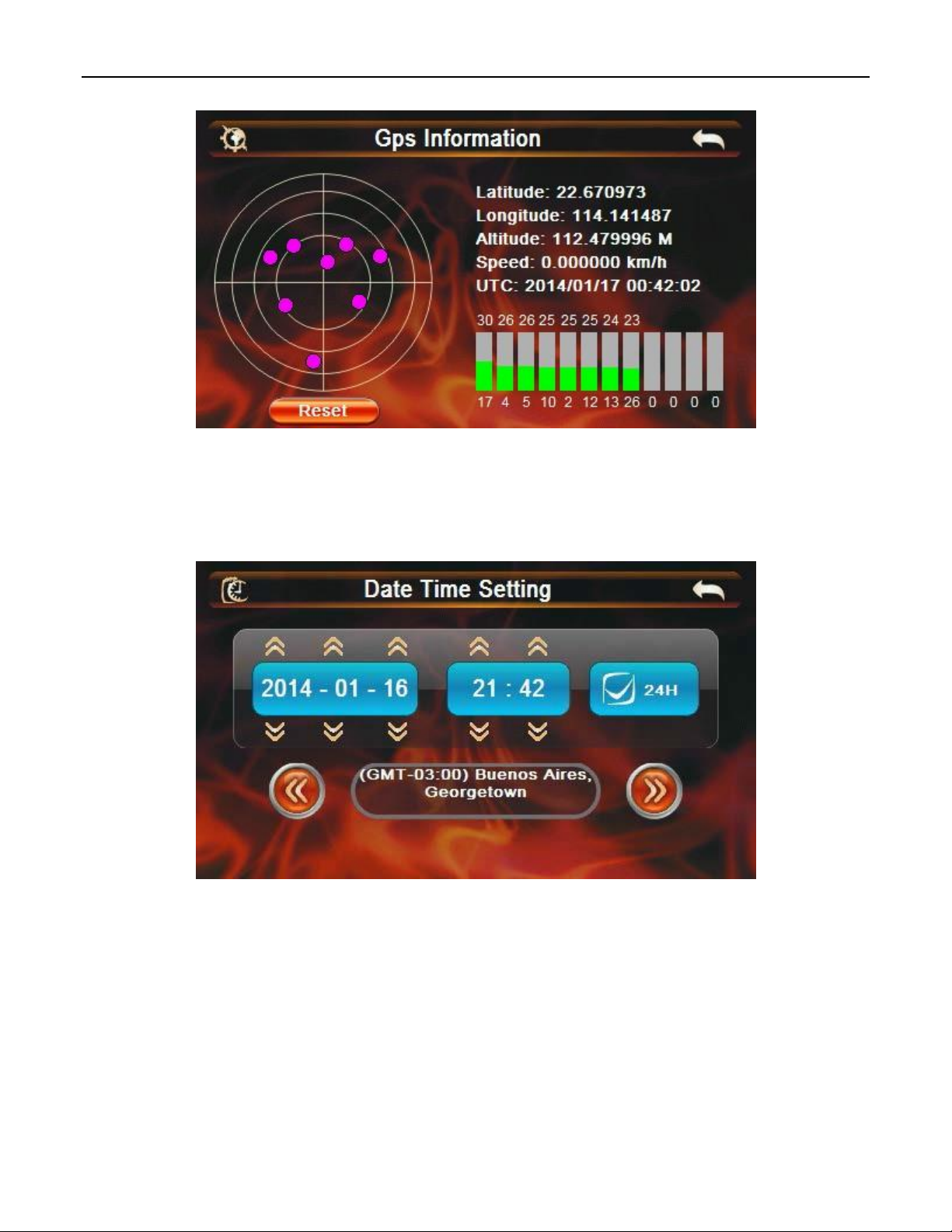

GPS Info
-View GPS information: how many satellites were found, their signal strength, latitude,
longitude, altitude, speed, date / time

15
To start a new search for satellites, press the button: Reset.
Date/Time
-Set the date and time of the system
Calibration
-Touchscreen calibration

16
Select "Yes" to go to the screen calibration page. To calibrate, click on the cross
If you select "No", you will return to the previous menu without calibrating the screen.
Navipath
-Set path to navigation software
Power
-View battery level

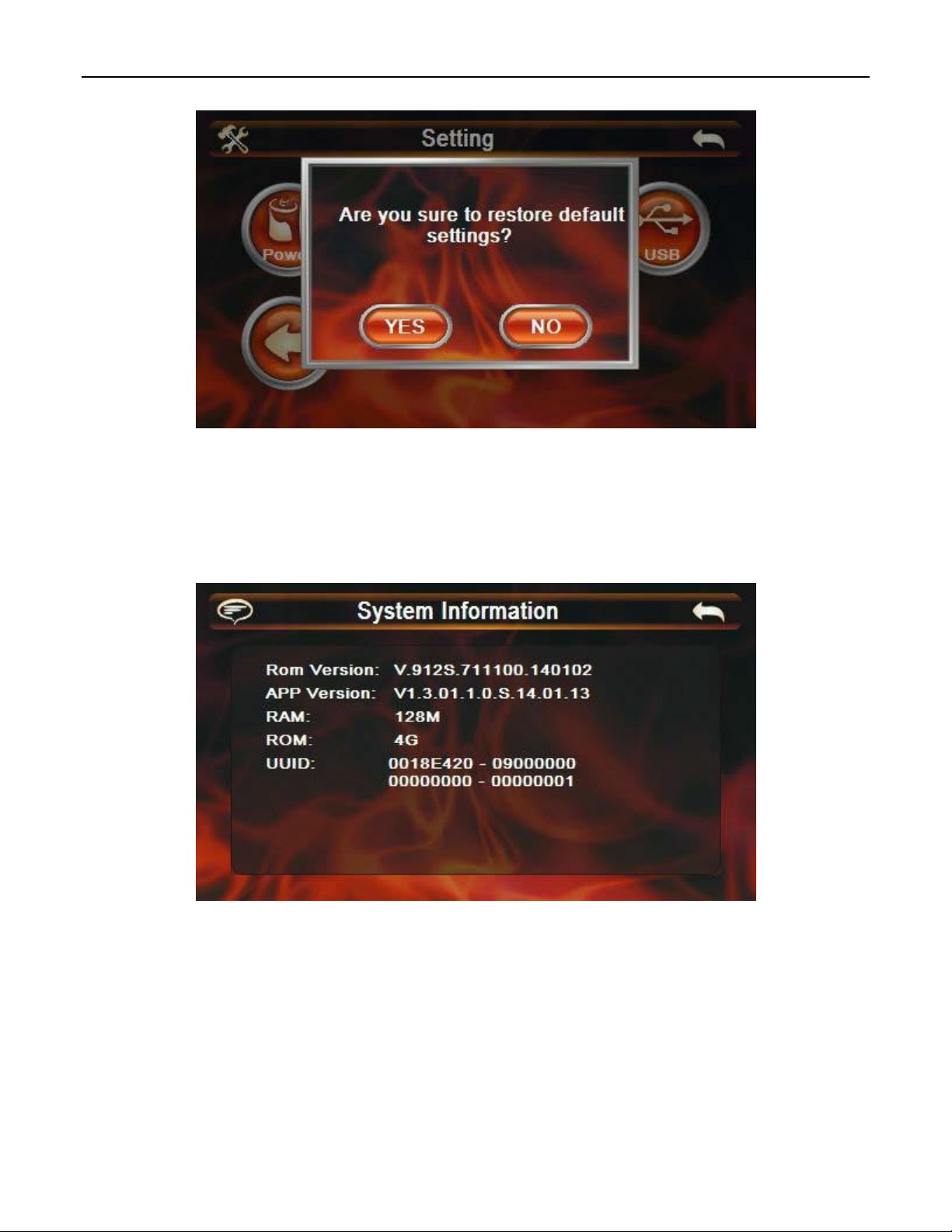

Restore Set
-Return to factory settings - all settings will be reset, including screen calibration

17
Select the "Yes" option if you want to reset all settings to the factory default values. Select the "No"
option to return to the previous menu without changing anything.
Systeminfo
-View system information
USB
-USB settings

18
FM
-Activate / deactivate the FM broadcast function
The FM broadcast function is used to access FM reception equipment and play radio stations via
the navigator.
NOTE: The searcher frequency in the navigator must be the same as the frequency received by
the receiving equipment; Do not use another frequency, radio station to avoid disturbing reception.

19
Technical specifications
processor
MSTAR2531 800MHz
Operating system
WinCE 6.0
Screen
7 inch
Resolution
800x480
RAM
256MB DDR3
Internal memory
8GB
USB
miniUSBx1
SD card slot
microSD, maxim 32GB
Battery
Li-Ion, 2400mAh
loudspeaker
1.5W@4ohm
Supported audio files
WMA/MP3/WAV
Supported video files
AVI\MPEG\MPG
Supported images
JPG/JPEG/BMP/PNG
Supported Ebook Files
TXT
Working temperature
-26°C ~ +60°C
Storage and transport temperature
-20 °C ～70 °C
Average use humidity
35% ～70%(40°C)
Medium storage and transport
humidity
30% ～85%（40°C）
Language
Spanish, Portuguese, English, etc .
Dimensions
180.37 x 112.37 x 13.5mm
Weight
290 g
