Point of View TV-HDMI-200BT User manual

Point of view TV-HDMI-200BT English
Contents
Contents...............................................................................................................................1
General notices for use........................................................................................................2
Disclaimer............................................................................................................................2
Box Contents .......................................................................................................................2
1. HDMI TV dongle ..............................................................................................................3
1.1. Product display..........................................................................................................3
1.2. Instructions for use....................................................................................................3
1.3. Desktop.....................................................................................................................3
1.4. Wi-Fi settings.............................................................................................................3
1.5. Browse the file or folder.............................................................................................4
1.6. USB connection.........................................................................................................5
1.7. Other application.......................................................................................................5
1.8. Specifications of appendix.........................................................................................6
2. Mini Bluetooth Keyboard..................................................................................................6
2.1 Touchpad ...................................................................................................................6
2.2 Bluetooth Pairing Mode..............................................................................................6
2.3 Auto sleep and wake feature......................................................................................6
2.4 Charging the battery...................................................................................................6
2.5 Laser pointer ..............................................................................................................7
2.6 Technical Specifications of appendix.........................................................................7
2.7 Troubleshooting..........................................................................................................7

English Point of view TV-HDMI-200BT
General notices for use
This product is a highly advanced electronics device, disassembly, customization or repairs without the
appropriate knowledge and pre-cautions can lead to dangerous situations with chance on damaging the
product and serious injuries.
Avoid use in extreme conditions such as high and low temperatures, high humidity or moist environments and
around magnetic fields. Also avoid long-time exposure to sunlight.
Only use by the manufacturer permitted accessories to avoid damages to the product with possibly warranty
loss.
Please follow the relevant local environmental regulations to deal with obsolete machines and accessories.
Use a protective folder to avoid extreme physical shocks to the device (i.e. of dropping).
Disclaimer
The screenshots are for Android reference only. They may be made on a device with a different resolution or
hardware configuration than yours and therefore can be slightly different that the final product.
The manufacturer takes no responsibility for loss of information or data caused by hardware or software failure.
The user is responsible for performing timely backups of important data.
All information and images used in this user manual are provided ‘as is’ and are subject to change without
notice.
The manufacturer accepts no liability for the information offered in this document.
Box Contents
- HDMI TV dongle
- Mini RF keyboard
- Device charger (DC / 5V – 1.5A)
- User manual
- HDMI Cable
- Mini USB cable
- Micro USB cable
Dear customer,
Thank you very much for your purchase of a POINT Of VIEW product.
This product comes with 2 year hardware warranty. Exception is the battery; it comes with 6 months
warranty.
Please register your purchase product within 30 days on our website. By means of this registration,
we can bring you the best technical support.
On this website you can also obtain more information about the warranty.
www.pointofview-online.com/club
If you have further questions, please contact with Point of View Service Center, through the e-mail
address:
[e-mail]

Point of view TV-HDMI-200BT English
1. HDMI TV dongle
1.1. Product display
1.2. Instructions for use
The Smart TV dongle and television can be connected through the HDMI port, or connected by a
HDMI extension line. Turn on the TV, use the TV remote control or mouse to operate TV menu, then
select the source to the HDMI.
1.3. Desktop
After booting into the main system interface, the desktop will be shown as below:
Through the remote control or the mouse cursor, select the program icon which you want to open by
pressing the confirm button of the remote or left click the mouse.
1.4. Wi-Fi settings
There are two ways of Wi-Fi setting: Open “Settings” on the desktop interface, and then select Wi-Fi
setting. Choose the network which you want to connect; you may need to fill in a password to be
accepted on the network.

English Point of view TV-HDMI-200BT
When selecting the option ‘WiFi setting’ the contents will be displayed. The switch
allows you to quickly toggle Wi-Fi on and off.
You can view the Wi-Fi networks that have been detected by the device. You may need to fill in a
password to be accepted on the network. Please contact your system or network administrator for
the correct information.
1.5. Browse the file or folder
1. Open “Applications” in the Desktop interface, and click into the “Explorer."
2. You can open the file or folder by click on the required file or folder.
3. Press the “Esc” button on the mini keyboard or click “Back” icon on the right top of the screen to
return to the previous level folder.

Point of view TV-HDMI-200BT English

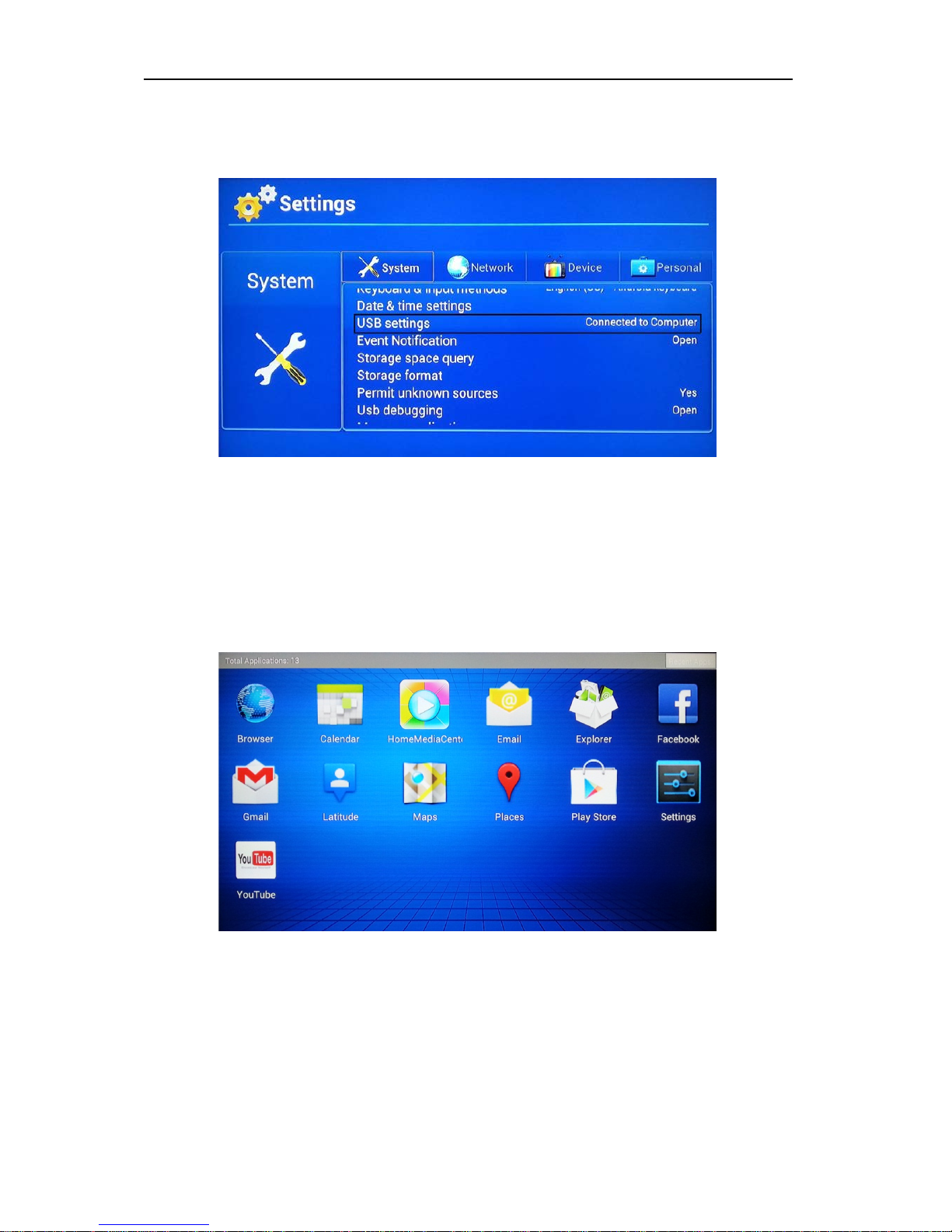

1.6. USB connection
Make sure that your device and computer are connected by USB cable.
Open “settings on the Desktop interface choose USB settings, left click to connect to computer.
If successful, your computer will be appearing a new removable disk.
On the computer desktop to open "My Computer", double-click the new removable disk and the data
will appear. Left click again to disconnect to computer.
1.7. Other application
Multimedia
Smart TV dongle can support HD video playback, photo viewing, and music.
Copy music, video, and photos to the mini SD card or storage in mobile hard disk.
Click the application icon, after enter, and click on the corresponding icon, such as “video” picture
music into the corresponding interface.
Click the file to play.

English Point of view TV-HDMI-200BT
1.8. Specifications of appendix
System parameters
CPU RK3066
Main Frequency Cortex-A9, Up to 1.6GHZ
Inner memory 1G DDR3
Memory 4G
SD card reader Up to 32 GB
Operating system Android 4.0
Interface definitions and specifications
USB USB HOST 2.0
SD card MINI SD card
HDMI 1.3
Voltage parameters 5V-1.5A
Appearance description
Display Through the HDMI output display
Dimensions 90 x 40 x 13 mm (L x W x H)
2. Mini Bluetooth Keyboard
2.1 Touchpad
The touchpad can be used in horizontal or vertical position.
To switch between horizontal and vertical mode, please
hold the “Fn” key and hit the “Alt” key.
2.2 Bluetooth Pairing Mode
1. Make sure the power switch is turned to the “on”
position: the Blue LED will illuminate for 2 seconds.
2. Press the “Bluetooth Pair/Connect Key” on the
keyboard: the Blue LED will blink intermittently.
3. Go to the Bluetooth settings of your device and select the keyboard “Bluetooth 3.0 Marco
Keyboard” to pair. You may be asked to enter a password. Type in the code (displayed on your
device) and confirm with “Enter”.
2.3 Auto sleep and wake feature
If there is a long period of inactivity, the keyboard will automatically go into a sleep mode. During the
sleep mode, the user can wake it up by pressing any key.
2.4 Charging the battery
The device with built-in lithium-ion battery, please only use approved data lines and chargers.
Note: Fully charge the unit before operating for the first time. This device can be used when

Point of view TV-HDMI-200BT English
charging, but will extend the charging time;
When the battery is low, the low-voltage light will flash to warn the user. The unit will automatically
turn off if the battery has been depleted.
2.5 Laser pointer
Using the laser pointer only requires that the keyboard will be turned on. Press the Laser Switch as
long as you want to use the laser pointer.
2.6 Technical Specifications of appendix
Measurements : 154 x 62.5 x 12 mm ((L x W x H)
Weight (grams) : 66g
Operational Range : up to 15 meters
Transmit power : +4db Max.
Operation voltage : 3.3V
Operation current : < 80mA
Charging current : < 300mA
Sleep current : < 1mA
OS Support : Windows 2000 / XP / Vista / CE / 7, Linux
2.7 Troubleshooting
Problem Possible issue Solution
Unit does not respond. - Low battery power.
- Unit is not turned on.
- Charge the device for at least 15 minutes.
- Check if the switch selected to the “ON” position.
Keyboard can’t establish
connection to main device
- Generic Bluetooth error
-
Possible wireless interference with
another device.
- Retry the Bluetooth pairing process
- Restart main device
Mouse pointer doesn’t
function properly
- Device may not be within optimal range
of the receiver
- Dust or oil on the touchpad.
- Bring the unit closer to the receiver.
- Clean the touchpad with a damp cloth.
The unit does not charge. - Defective battery.
- Check connections.
- Check if the device is securely connected to the
charger.
- Contact your local dealer for replacements.
