Polar Electro DM075-A User manual

Display Chiller
Instruction manual
Model
CD984-A DM075-A DM076-A

2
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out installation and any repairs if required.
• Do not remove any components or service panels on this product.
• Consult Local and National Standards to comply with the following:
• Health and Safety at Work Legislation
• BS EN Codes of Practice
• Fire Precautions
• IEE Wiring Regulations
• Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance (e.g. heaters, ice-cream makers etc.).
• DO NOT allow oil or fat to come into contact with the plastic components or door seal. Clean
immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be sealed and placed vertically in the
refrigerator.
• Always carry, store and handle the appliance in a vertical position and move by holding the base of the
appliance.
• Always switch off and disconnect the power supply to the unit before cleaning.
• Keep all packaging away from children. Dispose of the packaging in accordance with the regulations of
local authorities.
• If the power cord is damaged, it must be replaced by a POLAR agent or a recommended qualified
technician in order to avoid a hazard.
• This appliance is not intended for use by persons (including children) with reduced physical, sensory
or mental capabilities, or lack of experience or knowledge, unless they have been given supervision or
instruction concerning the use of the appliance by a person responsible for their safety.
Product Description

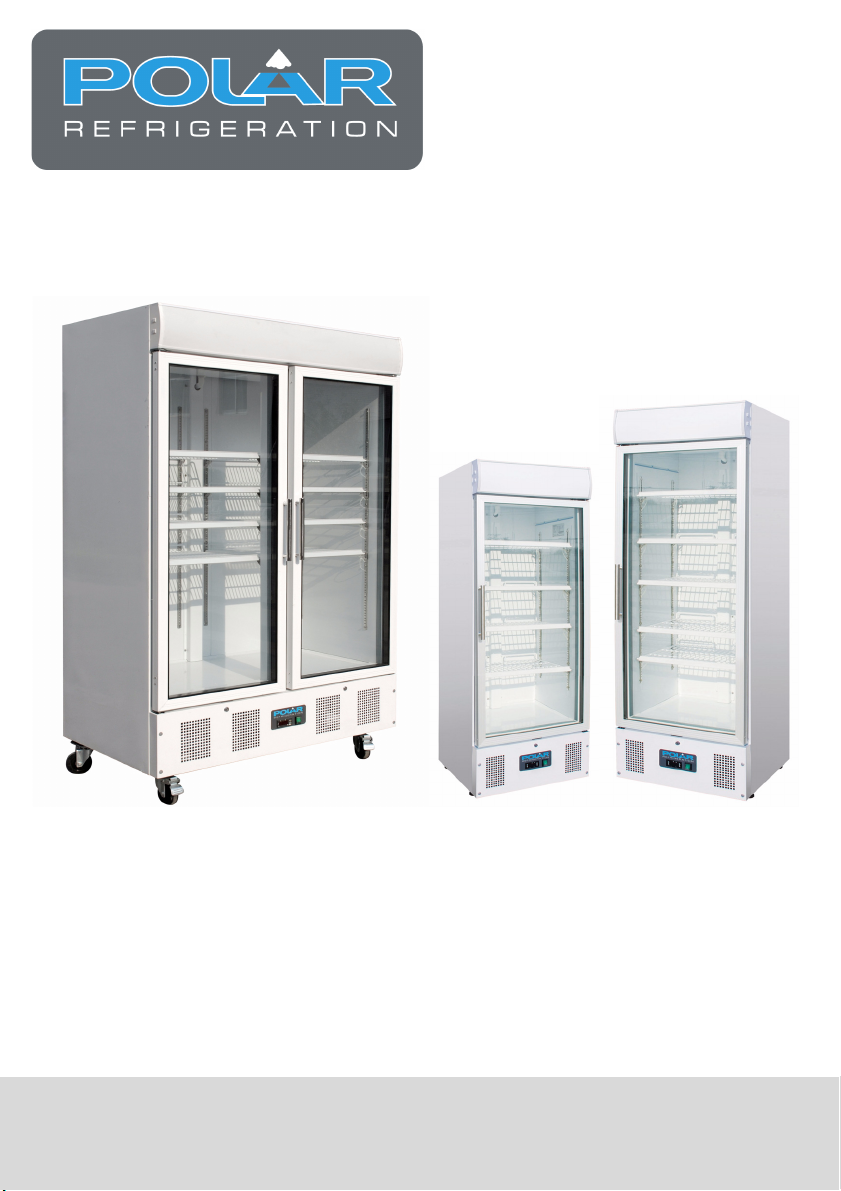

• CD984-A - 944 litre Double Door Display Chiller
• DM076-A - 336 litre Single Door Display Chiller
• DM075-A - 218 litre Single Door Display Chiller
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your POLAR product.

3
Telephone Helpline: 1300225960
Pack Contents
The following is included:
POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are supplied
fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.
Installation
1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are
thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.
Increase this distance if the obstacle is a heat source.
Operation
Control Panel
The control panel is located below the doors on the front of the
appliance.
Tu r n O n
1. Close the door of the appliance.
2. Connect the appliance to a mains power supply.
3. Turn the light switches On [I] or Off [O] as desired.
Set the Operating Temperature
1. Press the button. The display will flash.
2. Press the or buttons to display the required temperature.
3. Press the button to store the temperature.
Note: If the unit has not been moved or stored in an upright position, let it stand upright
for approximately 12 hours before operation. If in doubt allow the appliance to stand.
Note: Before using the appliance for the first time, clean the shelves and interior with
soapy water.
• POLAR Display Chiller
•Shelves
•Keysx2
• Instruction manual

4
Storing Food
To get the best results from your POLAR appliance, follow these instructions:
• Only store foodstuffs in the appliance when it has reached the correct operating temperature.
• Do not place uncovered hot food or liquid inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods of time.
Lock/Unlock the Doors
A lock is fitted to the doors to ensure foodstuffs are kept secure within your POLAR appliance.
Use the keys provided to lock/unlock the door.
Cleaning, Care & Maintenance
• Switch off and disconnect from the power supply before cleaning.
• Clean the interior of the appliance as often as possible.
• Do not use abrasive cleaning agents. These can leave harmful residues.
• Clean the door seal with water only.
• Always wipe dry after cleaning.
• Do not allow water used in cleaning to run through the drain hole into the evaporation pan.
• A POLAR agent or qualified technician must carry out repairs if required.
Replacing the Interior Lamp
1. Turn Off and disconnect the appliance from the mains power supply.
2. Unscrew the plastic lamp cover.
3. Remove the lamp by twisting it from the lamp sockets.
4. Insert the new lamp and replace the cover.
Cleaning the Condenser
Periodically cleaning the condenser can extend the life of the appliance.
POLAR recommend that a POLAR agent or qualified technician clean the condenser.
WARNING: Allow the lamp to cool before replacing. The lamp remains hot immediately
after use.

5
Telephone Helpline: 1300225960
Tro u b l e s h o o t i n g
If your POLAR appliance develops a fault, please check the following table before making a call to the
Helpline.
Technical Specifications
Fault Probable Cause Action
The appliance is not
working
The unit is not switched on Check the unit is plugged in correctly and switched on
Plug and lead are damaged Call POLAR agent or qualified Technician
Fuse in the plug has blown Replace the fuse
Power supply Check power supply
Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns
on, but the
temperature is too
high/low
Too much ice on the condenser Defrost the appliance
Condenser blocked with dust Call POLAR agent or qualified Technician
Doors are not shut properly Check doors are shut and seals are not damaged
Appliance is located near a heat
source or air flow to the
condenser is being interrupted
Move the refrigerator to a more suitable location
Ambient temperature is too
high
Increase ventilation or move appliance to a cooler position
Unsuitable foodstuffs are being
stored in the appliance
Remove any excessive hot foodstuffs or blockages to the fan
Appliance is overloaded Reduce the amount of food stored in the appliance
Factory default parameters
adjusted
Call POLAR agent or qualified Technician
The appliance is
leaking water
The appliance is not properly
levelled
Adjust the screw feet to level the appliance (if applicable)
The discharge outlet is blocked Clear the discharge outlet
Movement of water to the drain
is obstructed
Clear the floor of the appliance (if applicable)
The water container is damaged Call POLAR agent or qualified Technician
The appliance is
unusually loud
Loose nut/screw Check and tighten all nuts and screws
The appliance has not been
installed in a level or stable
position
Check installation position and change if necessary
The display lamp
does not illuminate
Lamp needs replacing Call POLAR agent or qualified technician
Model Voltage Power Current Temperature
Range
Capacity
(litres) Refrigerant
Dimensions
H x W x D
(mm)
Weight
(Kg)
CD984-A 230V
50Hz
550W 4A 2°C to 8°C 944 R134a 2050 x 1200 x
710
204
DM076-A 230V
50Hz
340W 2A 2°C to 8°C 336 R134a 1900 x 620 x
570
134
DM075-A 230V
50Hz
240W 1.5A 2°C to 8°C 218 R134a 1610 x 530 x
575
124

6
Electrical Wiring
This appliance is supplied with a 3 pin, molded, BS1363 plug and lead, with a 13 amp fuse as standard.
The plug is to be connected to a suitable mains socket.
This appliance is wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow ) to terminal marked E
This appliance must be earthed, using a dedicated earthing circuit.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible
for waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal
authorities.
POLAR products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means,
electronic, mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right
to change specifications without notice.

DECLARATION OF CONFORMITY
I, the undersigned, hereby declare that the equipment specified above
conforms to the above Legislation and Standard(s).
Equipment
Type
Refrigerator
Model DM075-A, DM076-A, CD984_A
Legislation C-Tick
AS/NZ 3820 Essential Safety Requirements for Low
Voltage Electrical Equipment
Standards EN 55014-1:2006, EN 55014-2:1997+A1
EN 61000-3-2:2006,
EN 61000-3-3:1995+A1+A2, EN 61000-3-11:2000,
EN 55015:2006, EN 61547:1995+A1
AS/NZS 60335.2.89:2002+A1:2003+A2:2005+A3:2007
with: AS/NZS
60335.1:2002+A1:2004+A2:2007+A3:2007
AS 1731.14 :2003
Producer Name POLAR
Producer
Address
15 Badgally Road
Campbelltown,
NSW 2560
Date 09/07/12
Signature
Full Name Richard Cromwell
Position Marketing Director

CD984A_DM075A_DMO76A_ML_A5_v4
