Polar Electro CD080-A User manual

Model • Modèle • Modell • Modello • Modelo • Malli:
CD080-A/CD081-A/CD082-A/CD083-A/CD084-A/CD085-A/CD610-A/CD611-A/
CD612-A/CD613-A/CD614-A/CD615-A/CD086-A/CD087-A/CD088-A
600 / 400 / 150 litre series
Refrigerators/Freezers
Instruction manual
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 1 2018/8/30 18:06

2
AU Telephone Helpline: 1300225960
Safety Tips
• Position on a flat, stable surface.
• A service agent/qualified technician should carry out
installation and any repairs if required. Do not remove any
components or service panels on this product.
• Consult Local and National Standards to comply with the
following:
- Health and Safety at Work Legislation
- Fire Precautions
- Wiring Regulations
- Building Regulations
• DO NOT use jet/pressure washers to clean the appliance.
• DO NOT use the appliance outside.
• DO NOT use this appliance to store medical supplies.
• DO NOT use electrical appliances inside the appliance
(e.g. heaters, ice cream makers etc.).
• DO NOT allow oil or fat to come into contact with the plastic
components or door seal. Clean immediately if contact occurs.
• DO NOT store products on top of the appliance.
• Bottles that contain a high percentage of alcohol must be
sealed and placed vertically in the refrigerator.
• Always carry, store and handle the appliance in a vertical
position and move by holding the base of the appliance.
• Always switch off and disconnect the power supply to the unit
before cleaning.
• Keep all packaging away from children. Dispose of the
packaging in accordance with the regulations of local
authorities.
• If the power cord is damaged, it must be replaced by a POLAR
agent or a recommended qualified technician in order to avoid
a hazard.
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 2 2018/8/30 18:06

3
AUAU
Telephone Helpline: 1300225960
• This appliance is not intended for use by persons (including
children) with reduced physical, sensory or mental capabilities,
or lack of experience or knowledge, unless they have been
given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
• Children should be supervised to ensure that they do not play
with the appliance.
• Polar recommend that this appliance is PAT tested on an
annual basis to ensure the product remains safe.
Caution Risk of Fire
• Do not store explosive substances such as aerosol cans with a
flammable propellant in this appliance.
Warning: Keep all ventilation openings clear of
obstruction. Unit should not be boxed in without
adequate ventilation.
• Warning: Do not use mechanical devices or other means
to accelerate the defrosting process, other than those
recommended by the manufacturer.
• Warning: Do not damage the refrigerant circuit.
• Warning: Do not use electrical appliances inside the food
storage compartments of the appliance, unless they are the
type recommended by the manufacturer.
Product Description
• CD080-A - 150 litre Refrigerator
• CD081-A - 140 litre Freezer
• CD082-A - 400 litre Refrigerator
• CD083-A - 365 litre Freezer
• CD084-A - 600 litre Refrigerator
• CD085-A - 600 litre Freezer
• CD086-A - 150 litre Glass-Door Refrigerator
• CD087-A - 400 litre Glass-Door Refrigerator
• CD088-A - 600 litre Glass-Door Refrigerator
• CD613-A - 365 litre Freezer
• CD614-A - 600 litre Refrigerator
• CD615-A - 600 litre Freezer
• CD610-A - 150 litre Refrigerator
• CD611-A - 140 litre Freezer
• CD612-A - 400 litre Refrigerator
Introduction
Please take a few moments to carefully read through this manual. Correct maintenance and operation of
this machine will provide the best possible performance from your POLAR product.
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 3 2018/8/30 18:06

4
AU Telephone Helpline: 1300225960
Pack Contents
The following is included:
• POLAR Refrigerator / Freezer
• Shelves - Refrigerator only
CD610-A/ CD080-A x 3/ CD086 x 3
CD612-A/ CD082-A x 4 / CD087 x 4
CD614-A x 4 / CD084-A / CD088 x 4
• Keys x 2
• Spacers x 2
• Instruction Manual
POLAR prides itself on quality and service, ensuring that at the time of packaging the contents are
supplied fully functional and free of damage.
Should you find any damage as a result of transit, please contact your POLAR dealer immediately.
Installation
Note: If the unit has not been stored or moved in an upright position, let it stand
upright for approximately 12 hours before operation. If in doubt allow to stand.
1. Remove the appliance from the packaging. Make sure that all protective plastic film and coatings are
thoroughly removed from all surfaces.
2. Maintain a distance of 20cm (7 inches) between the unit and walls or other objects for ventilation.
NEVER LOCATE NEXT TO OR NEAR A HEAT SOURCE.
Note: Before using the appliance for the first time, clean the shelves and interior
with soapy water.
The appliance is supplied with feet by default. However, castors can be supplied
as an option from serial number range: 8128595-AU onwards.
Reversing the door
Depending on the location of the appliance, it may be necessary to change the direction the door opens
by changing the side of the door handle.

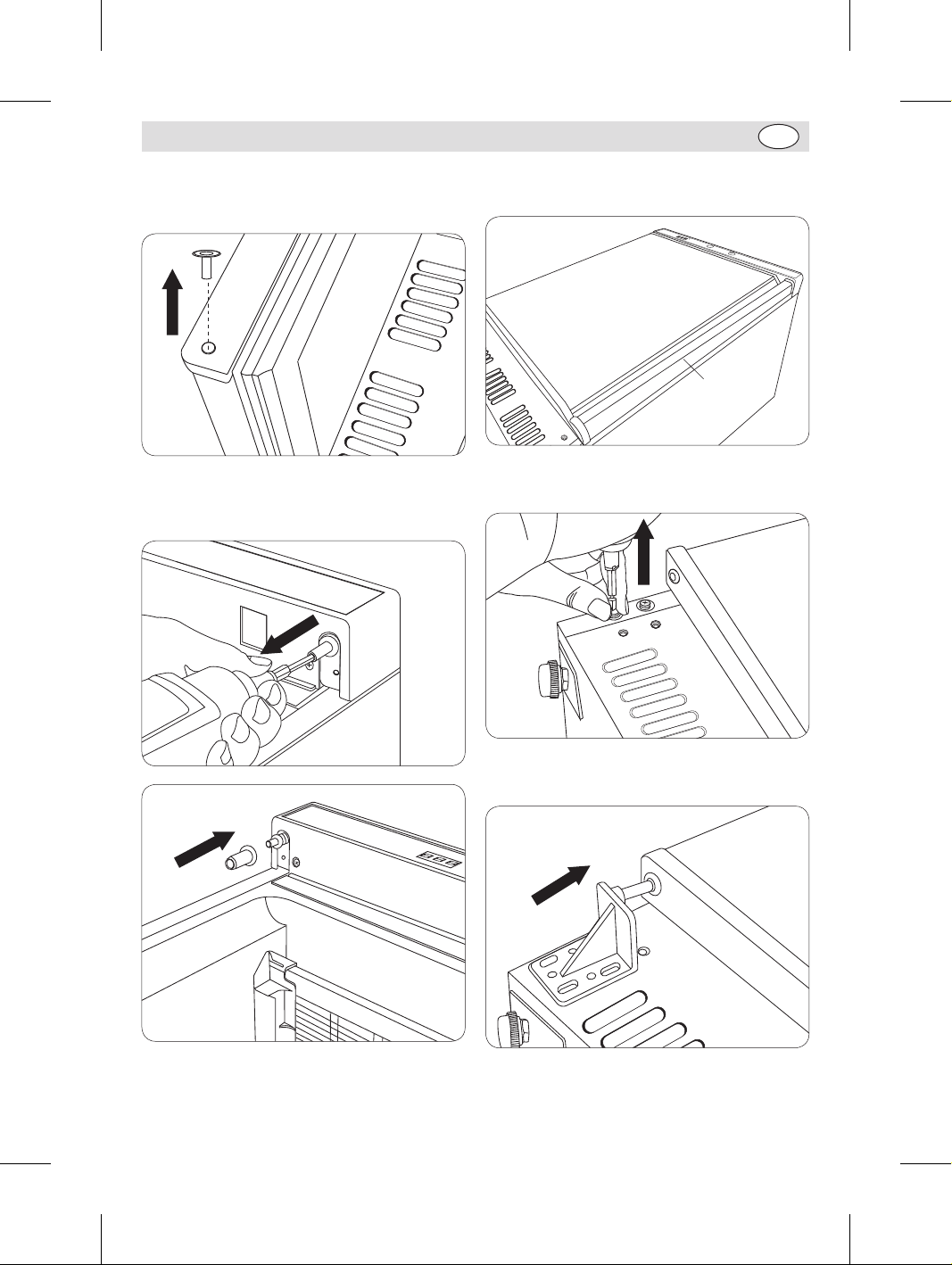

To reverse the door handle:

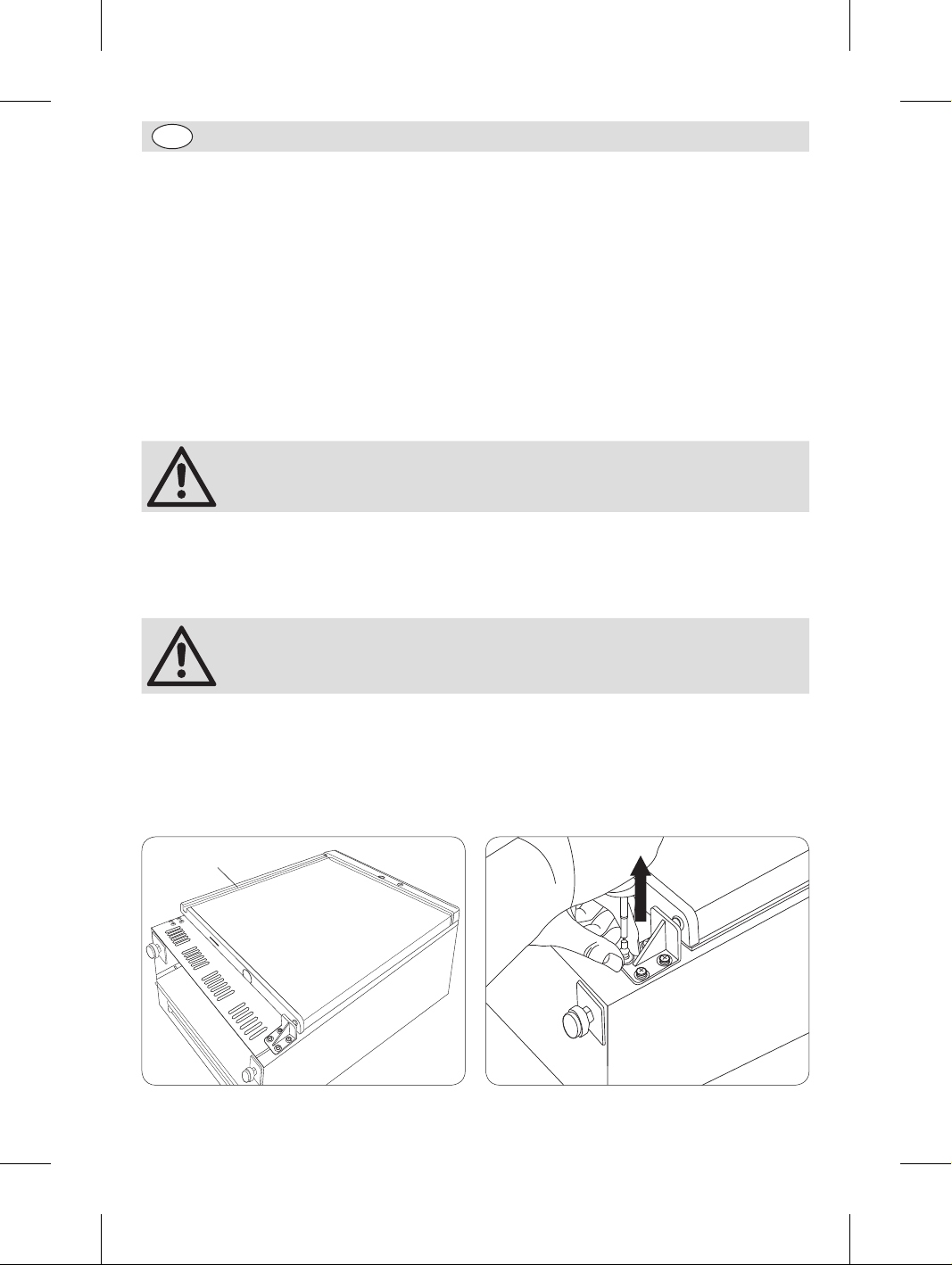

1. The door handle is on the left side. Disassemble the right lower hinge.
Door handle
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 4 2018/8/30 18:06

5
AUAU
Telephone Helpline: 1300225960
2. Remove the door from the right upper hinge.
Then remove the hinge sleeve from the door
top.
3. Remove the right upper hinge and install it
on the left side. Afterwards, install the hinge
sleeve onto the hinge.
4. Reverse the door and hang it onto the left
upper hinge.
Door handle
5. Remove the pre-mounted screws on the left
lower side.
6. Install the previously removed right lower
hinge on the left side.
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 5 2018/8/30 18:06

6
AU Telephone Helpline: 1300225960
7. Secure the hinge in place using the previously
removed screws.
8. Now the door handle is installed on the right
side.
Operation
Control Panel
The control panel is located on the front of the
appliance.
Turn On
1. Close the door of the appliance.
2. Connect the appliance to a mains power
supply.
Set the Operating Temperature
1. Press the SET button. The display will flash.
2. Press the or buttons to display the
required temperature.
3. Press the SET button to store the temperature.
Manual Defrost
Press and hold the defrost button “aux” for
2 seconds to begin a manual defrost. The defrost
light illuminates.
Storing Food
To get the best results from your POLAR appliance,
follow these instructions:
• Only store foodstuffs in the appliance when it
has reached the correct operating temperature.
• Do not place uncovered hot food or liquid
inside the appliance.
• Wrap or cover food where possible.
• Do not obstruct the fans inside the appliance.
• Avoid opening the doors for prolonged periods
of time.
Lock/Unlock the Doors
• A lock is fitted to the doors to ensure foodstuffs
are kept secure within your POLAR appliance.
• Use the keys provided to lock/unlock the door.
Cleaning, Care &
Maintenance
Switch off and disconnect
from the power supply before
cleaning.
• Clean the interior of the appliance as often as
possible.
• Do not use abrasive cleaning agents. These
can leave harmful residues.
• Clean the door seal with warm soapy water.
• Always wipe dry after cleaning.
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 6 2018/8/30 18:06

7
AUAU
Telephone Helpline: 1300225960
• Do not allow water used in cleaning to run
through the drain hole into the evaporation
pan.
• Take care when cleaning the rear of the
appliance. Sharp edges can cut.
• A POLAR agent or qualified technician must
carry out repairs if required.
Cleaning the Condenser
Periodically cleaning the condenser can extend the
life of the appliance.
POLAR recommend that a POLAR agent or qualified
technician should clean the condenser.
Replacing the Lamp (CD086-
A,CD087-A,CD088-A)
1. Switch Off and disconnect the appliance from
the power supply
2. Remove the plastic cover
3. Twist the lamp in its socket and release
4. Remove the lamp and replace the new one of
the same power rating
5. Replace the plastic cover
Troubleshooting
If your POLAR appliance develops a fault, please check the following table before making a call to the
Helpline or your POLAR dealer.
Fault Probable Cause Solution
The appliance is not
working
The unit is not switched on Check the unit is plugged in correctly and
switched on
Plug and lead are damaged Call POLAR agent or qualified Technician
Fuse in the plug has blown Replace the fuse
Power supply Check power supply
Internal wiring fault Call POLAR agent or qualified Technician
The appliance turns on,
but the temperature is
too high/low
Too much ice on the evaporator Defrost the appliance
Condenser blocked with dust Call POLAR agent or qualified Technician
Doors are not shut properly Check doors are shut and seals are not
damaged
Appliance is located near a
heat source or air flow to the
condenser is being interrupted
Move the refrigerator to a more suitable
location
Ambient temperature is too high Increase ventilation or move appliance to a
cooler position
Unsuitable foodstuffs are being
stored in the appliance
Remove any excessive hot foodstuffs or
blockages to the fan
Appliance is overloaded Reduce the amount of food stored in the
appliance
The appliance is
leaking water
The appliance is not properly
levelled
Adjust the screw feet to level the appliance
(if applicable)
The discharge outlet is blocked Clear the discharge outlet
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 7 2018/8/30 18:06

8
AU Telephone Helpline: 1300225960
Fault Probable Cause Solution
The appliance is
leaking water
Movement of water to the drain is
obstructed
Clear the floor of the appliance (if
applicable)
The water container is damaged Call POLAR agent or qualified Technician
The appliance is
unusually loud
Loose nut/screw Check and tighten all nuts and screws
The appliance has not been
installed in a level or stable
position
Check installation position and change if
necessary
Technical Specifications
Model Voltage Power Current Temperature
Range
Capacity
(litres) Refrigerant
Dimensions
H x W x D
mm
Weight
(kg)
CD610-A
CD080-A
220-240V
50Hz
150 1.0A -2°C to 8°C 150 R134a (75g) 850 x 600 x
600
44
CD611-A
CD081-A
220-240V
50Hz
150 1.0A -10°C to -25°C 140 R134a (75g) 850 x 600 x
600
44.5
CD612-A
CD082-A
220-240V
50Hz
185 1.5A -2°C to 8°C 400 R134a
(170g)
1850 x 600 x
600
69
CD613-A
CD083-A
220-240V
50Hz
210 2A -10°C to -25°C 365 R134a
(185g)
1850 x 600 x
600
71
CD614-A
CD084-A
220-240V
50Hz
185 1.5A -2°C to 8°C 600 R134a
(210g)
1890 x 777 x
695
90
CD615-A
CD085-A
220-240V
50Hz
350 3.5A -10°C to -25°C 600 R134a
(290g)
1890 x 777 x
695
94
CD086-A 220-240V
50Hz
150 1.0A -2°C to 8°C 150 R134a (75g) 850 x 600 x
600
47
CD087-A 220-240V
50Hz
185 1.5A -2°C to 8°C 400 R134a
(170g)
1850 x 600 x
600
72
CD088-A 220-240V
50Hz
185 1.5A -2°C to 8°C 600 R134a
(290g)
1890 x 777 x
695
93
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 8 2018/8/30 18:06

9
AUAU
Telephone Helpline: 1300225960
Electrical Wiring
The plug is to be connected to a suitable mains socket.
POLAR appliances are wired as follows:
• Live wire (coloured brown) to terminal marked L
• Neutral wire (coloured blue) to terminal marked N
• Earth wire (coloured green/yellow) to terminal marked E
This appliance must be earthed.
If in doubt consult a qualified electrician.
Electrical isolation points must be kept clear of any obstructions. In the event of any emergency
disconnection being required they must be readily accessible.
Compliance
The WEEE logo on this product or its documentation indicates that the product must
not be disposed of as household waste. To help prevent possible harm to human
health and/or the environment, the product must be disposed of in an approved and
environmentally safe recycling process. For further information on how to dispose of
this product correctly, contact the product supplier, or the local authority responsible for
waste disposal in your area.
POLAR parts have undergone strict product testing in order to comply with regulatory
standards and specifications set by international, independent, and federal authorities.
POLAR products have been approved to carry the following symbol:
All rights reserved. No part of these instructions may be produced or transmitted in any form or by any means, electronic,
mechanical, photocopying, recording or otherwise, without the prior written permission of POLAR.
Every effort is made to ensure all details are correct at the time of going to press, however, POLAR reserve the right to
change specifications without notice.
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 9 2018/8/30 18:06

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 10 2018/8/30 18:06

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 11 2018/8/30 18:06

CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830
http://www.polar-refrigerator.com/
CD610-A-CD615-A_CD080-A-CD088-A_A5_v8_20180830.indb 12 2018/8/30 18:06
