Polario RG51F User manual

IMPORTANT NOTE:
REMOTE CONTROLLER
OWNER’S MANUAL
Thank you for purchasing our air conditioner. Please read this manual carefully
before operating your new air conditioning unit. Make sure to save this manual
for future reference.

Table of Contents
Remote Controller Specifications ......................................................02
Handling the Remote Controller ....................................................03
Buttons and Functions ...................................................................04
Remote Screen Indicators ..............................................................08
How to Use Basic Functions ..........................................................09
How to Use Advanced Functions ..................................................11
01

FIT BATTERIES
POINT REMOTE TOWARD UNIT
PRESS POWER BUTTON
SELECT MODE SELECT TEMPERATURE
SELECT FAN SPEED
1
6
2
5 4
My Mode Follow Me LED Turbo
Ioniser
Swing
Timer
SelfClean
Mode On/Off Fan
Sleep
AUTO
COOL
DRY
HEAT
FAN
HIGH
MED
LOW
SETTEMPERATURE
AUTO
LOW
MED
HIGH
3
AUTO
COOL
DRY
HEAT
FAN
NOT SURE WHAT A FUNCTION DOES?
Refer to the How to Use Basic Functions and How to Use Advanced Functions sections
of this manual for a detailed description of how to use your air conditioner.
SPECIAL NOTE
• Button designs on your unit may differ slightly from the example shown.
If the indoor unit does not have a particular function, pressing that function’s button on
the remote control will have no effect.
When there are wide differentces between “Remote controller Manual” and “USER’S
MANUAL” on function description, the description of “USER’S MANUAL” shall prevail.
•
•
02
Remote Controller Specifications

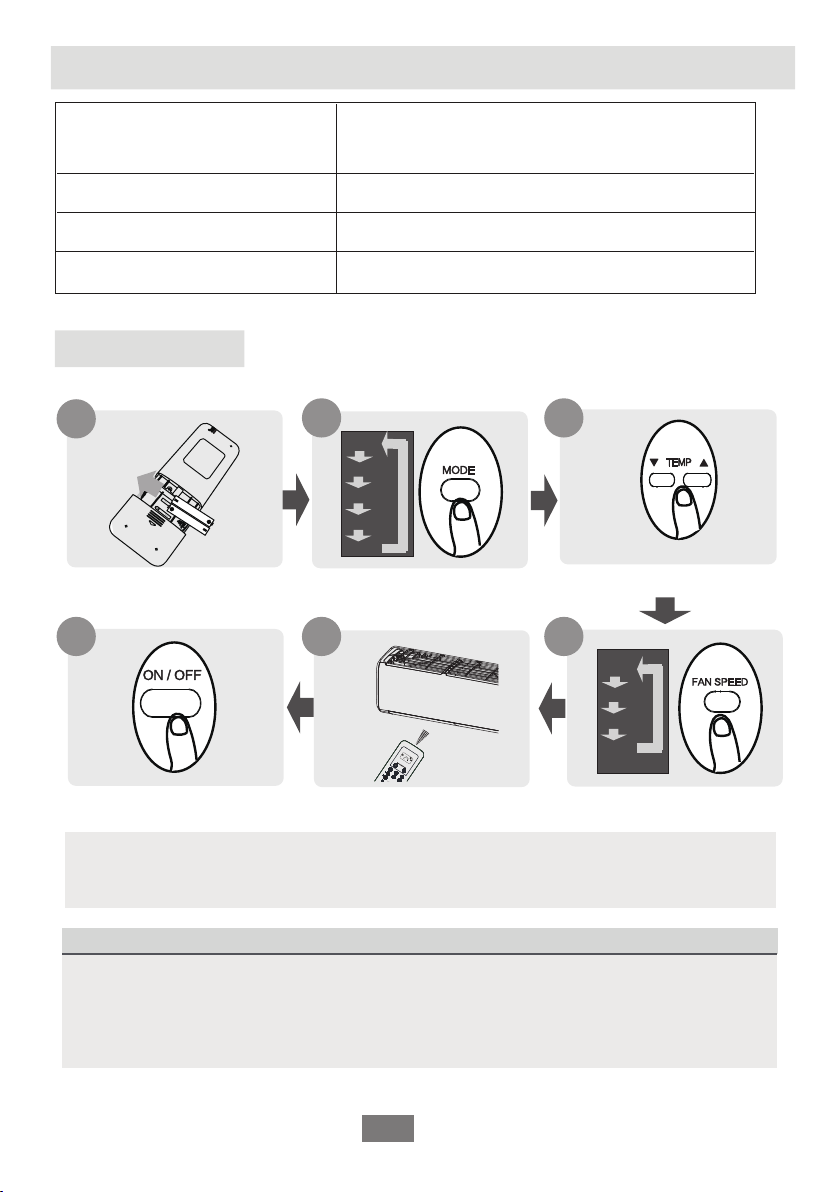

Quick Start Guide
RG51F/EF, RG51F2(1)/EFU1, RG51F4/E, RG51F5(1)/EU1,
RG51H(1)/EF, RG51H1(1)/EF, RG51H2(1)/EFU1-M,
RG51H3(1)/EU1-M
Model
Rated Voltage
8m
3.0V( Dry batteries R03/LR03×2)
Environment
Signal Receiving Range
-5°C~60°C(23°F~140°F)

TIPS FOR USING REMOTE CONTROL
CAUTIONS FOR USING REMOTE CONTROL
• The remote control must be used within 8
meters of the unit.
The unit will beep when remote signal is
received.
Curtains, other materials and direct sunlight
can interfere with the infrared signal receiver.
Remove batteries if the remote will not be
used more than 2 months.
•
•
•
•
•
Inserting and Replacing Batteries
Your air conditioning unit may come with two
batteries(some units). Put the batteries in the
remote control before use.
1. Slide the back cover from the remote control
downward, exposing the battery compartment.
Insert the batteries, paying attention to match
up the (+) and (-) ends of the batteries with
the symbols inside the battery compartment.
Slide the battery cover back into place.
2.
3.
BATTERY NOTES
For optimum product performance:
• Do not mix old and new batteries, or
batteries of different types.
•
Do not leave batteries in the remote control
if you don’t plan on using the device for more
than 2 months.
BATTERY DISPOSAL
Do not dispose of batteries as unsorted
municipal waste. Refer to local laws for proper
disposal of batteries.
The device could comply with the local national
regulations.
In Canada, it should comply with
CAN ICES-3(B)/NMB-3(B).
In USA, this device complies with part 15 of the
FCC Rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference,
and
(2) this device must accept any interference
received, including interference that may
cause undesired operation.
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television reception,
which can be determined by turning the equipment
off and on, the user is encouraged to try to correct
the interference by one or more of the following
measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment
and receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
Consult the dealer or an experienced radio/TV
technician for help.
Changes or modifications not expressly approved
by the party responsible for compliance could
void user’s authority to operate the equipment.
03
Handling the Remote Controller

Buttons and Functions
Before you begin using your new air conditioner, make sure to familiarize yourself with its remote
control. The following is a brief introduction to the remote control itself. For instructions on how to
operate your air conditioner, refer to the How to Use Basic Functions section of this manual.

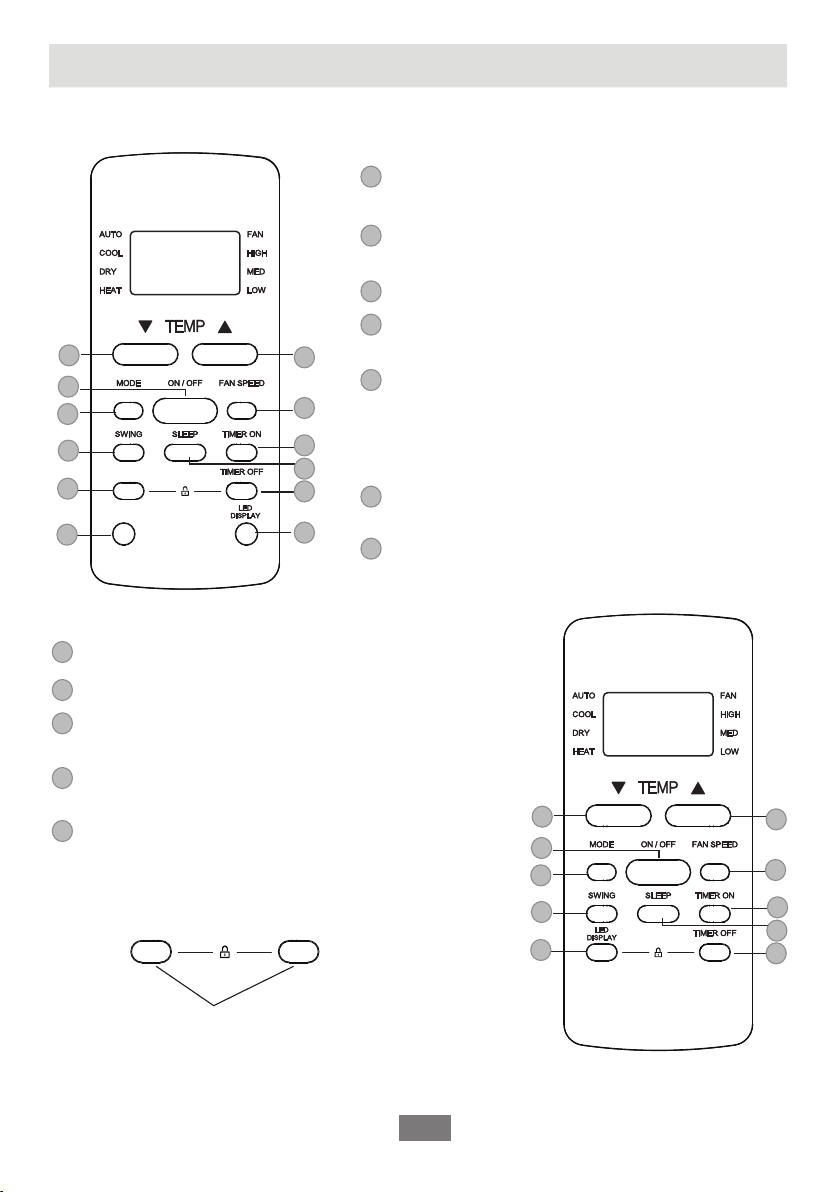

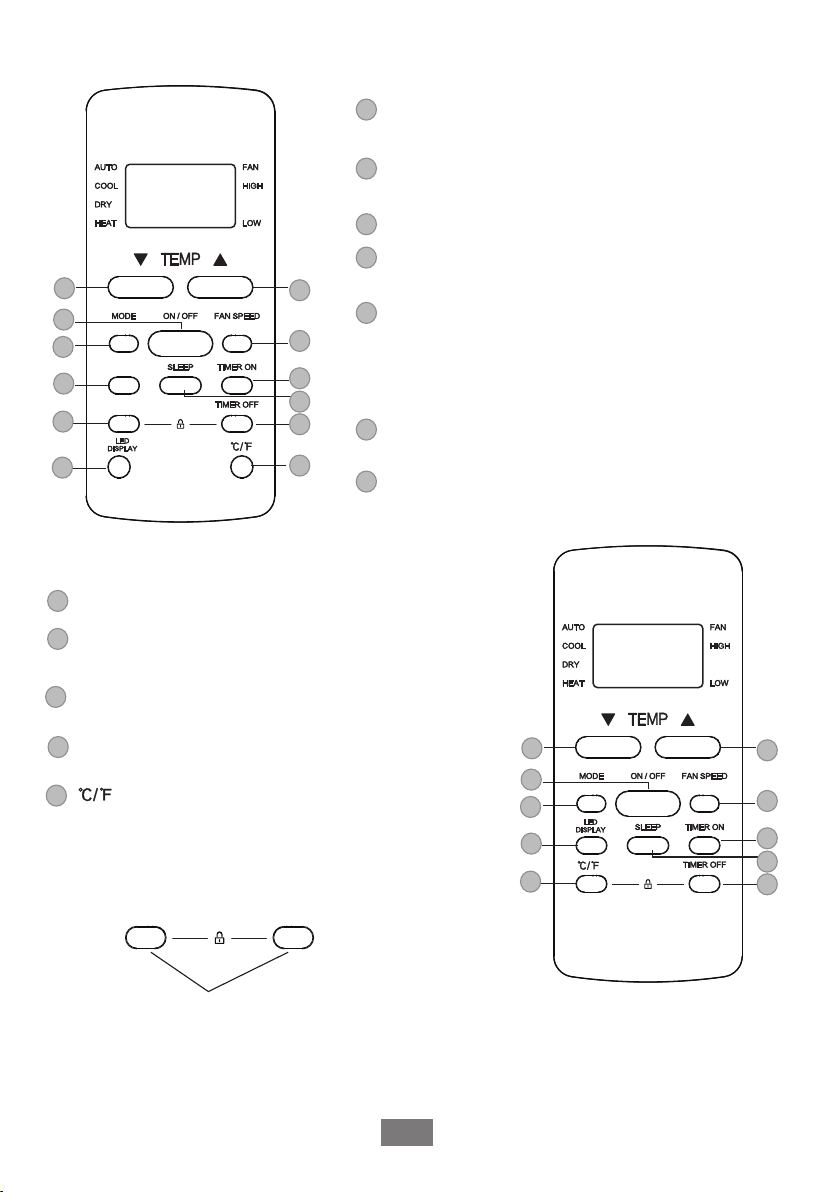

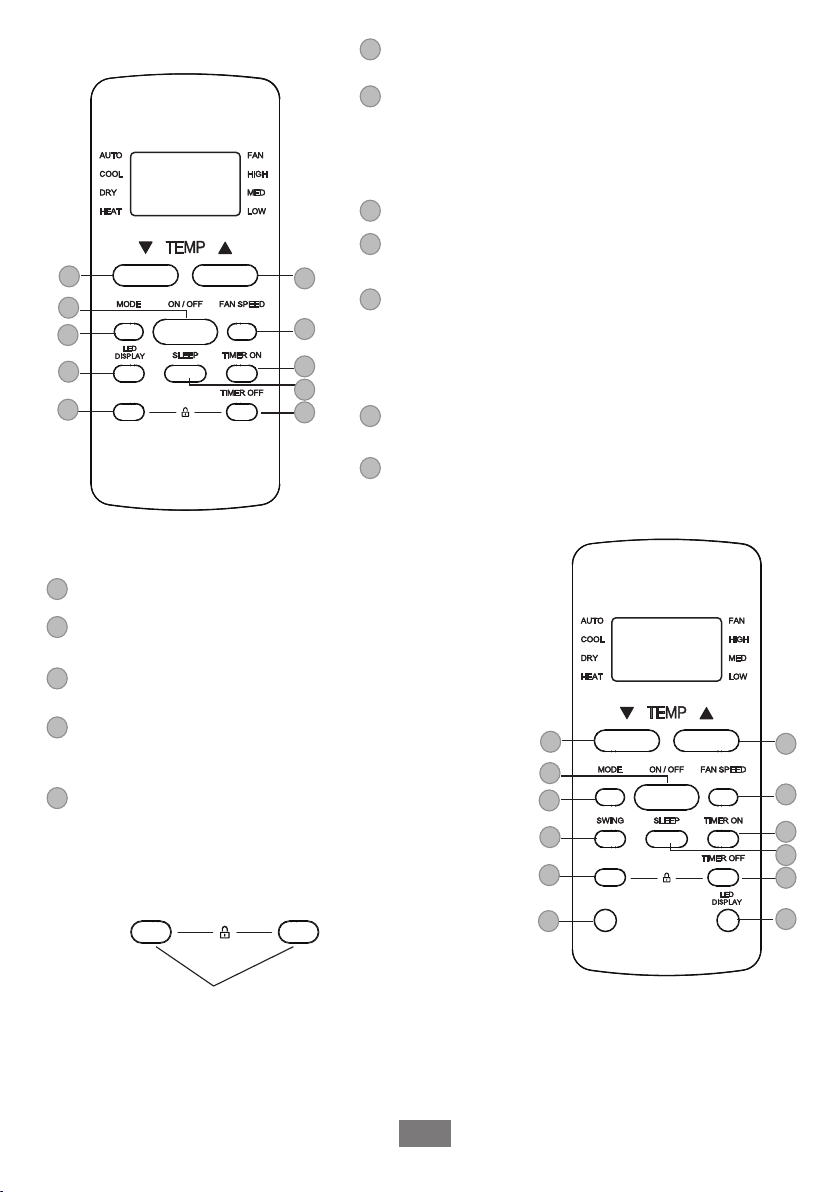

ON/OFF: Turns the unit on or off.
MODE: Scrolls through operation modes as follows:
SWING: Starts and stops the horizontal louver
movement. Hold down for 2 seconds to initiate
vertical louver auto swing feature(some units) .
AUTO COOL DRYHEAT FAN
FAN SPEED: Selects fan speeds in the following order:
AUTOLOW MED HIGH
TEMP : Decreases temperate in 1°C increments.
Min. temperature is 17°C.

TIMER ON: Sets timer to turn unit on (see How to
Use Basic Functions for instructions).
TIMER OFF: Sets timer to turn unit off (see How to Use
Basic Functions for instructions).
I SENSE: Temperature sensing and room temperature
display button.
NOTE: Press together the two buttons simultaneously for
5 seconds to lock the keyboard. Press together the two
buttons for 2 seconds to unlock the keyboard.
04
SHORT CUT
I SENSE
Model: R51F/EF
Model: R51F4/E
Press together simultaneously
NOTE: Please do not select HEAT mode if the
machine you purchased is cooling only type. Heat
mode is not supported by the cooling only appliance.
1
3
5
7
9
11
1
TEMP : Increases temperate in 1°C increments.
Max. temperature is 30°C.
2
3
5
7
SLEEP: Saves energy during sleeping hours .
SHORT CUT: Sets and activates your favorite pre-settings
9
11
2
4
6
8
10
12
4
6
8
10
12
1
3
5
7
12
2
4
6
8
10
LED DISPLAY: Press this button to turn on and turn off
the display on the indoor unit.

05
: Press this button to alternate the temperature
display between the °C & °F.
ON/OFF: Turns the unit on or off.
MODE: Scrolls through operation modes as follows:
SWING: Starts and stops the horizontal louver
movement. Hold down for 2 seconds to initiate
vertical louver auto swing feature(some units) .
AUTO COOL DRYHEAT FAN
FAN SPEED: Selects fan speeds in the following order:
AUTOLOW MED HIGH
TEMP : Decreases temperate in 1°F increments.
Min. temperature is 62°F.

TIMER ON: Sets timer to turn unit on (see How to
Use Basic Functions for instructions).
TIMER OFF: Sets timer to turn unit off (see How to Use
Basic Functions for instructions).
I SENSE: Temperature sensing and room temperature
display button.
LED DISPLAY: Press this button to turn on and turn off
the display on the indoor unit.
NOTE: Press together the two buttons simultaneously for
5 seconds to lock the keyboard. Press together the two
buttons for 2 seconds to unlock the keyboard.
I SENSE
Model: R51F2(1)/EFU1
Model: R51F5(1)/EU1
Press together simultaneously
NOTE: Please do not select HEAT mode if the
machine you purchased is cooling only type. Heat
mode is not supported by the cooling only appliance.
1
3
5
7
9
11
1
TEMP : Increases temperate in 1°F increments.
Max. temperature is 86°F.
2
3
5
7
SLEEP: Saves energy during sleeping hours .
SHORT CUT: Sets and activates your favorite pre-settings.
9
11
2
4
6
8
10
12
SHORT CUT
1
3
5
7
9
11
2
4
6
8
10
12
4
6
8
10
12

06
LED DISPLAY: Press this button to turn on and turn off
the display on the indoor unit.
: Press this button to alternate the temperature
display between the °C & °F.
ON/OFF: Turns the unit on or off.
MODE: Scrolls through operation modes as follows:
AUTO COOL DRYHEAT FAN
FAN SPEED: Selects fan speeds in the following order:
AUTOLOW HIGH
TEMP : Decreases temperate in 1°F increments.
Min. temperature is 62°F.

TIMER ON: Sets timer to turn unit on (see How to
Use Basic Functions for instructions).
TIMER OFF: Sets timer to turn unit off (see How to Use
Basic Functions for instructions).
I SENSE: Temperature sensing and room temperature
display button.
NOTE: Press together the two buttons simultaneously
for 5 seconds to lock the keyboard. Press together the
two buttons for 2 seconds to unlock the keyboard.
I SENSE
Model: R51H2(1)/EFU1-M
Model: R51H3(1)/EU1-M
Press together simultaneously
NOTE: Please do not select HEAT mode if the
machine you purchased is cooling only type. Heat
mode is not supported by the cooling only appliance.
1
3
5
7
9
11
1
TEMP : Increases temperate in 1°F increments.
Max. temperature is 86°F.
2
3
5
7
SLEEP: Saves energy during sleeping hours .
SHORT CUT: Sets and activates your favorite
pre-settings.
9
11
2
4
6
8
10
12
SHORT CUT
1
3
5
11
12
2
4
6
8
10
4
6
8
10
12

NOTE: Press together & buttons at the same
time for 3 seconds will alternate the temperature
display between the °C & °F.
07
ON/OFF: Turns the unit on or off.
MODE: Scrolls through operation modes as follows:
AUTO COOL DRYHEAT FAN
FAN SPEED: Selects fan speeds in the following order:
AUTOLOW MED HIGH
TEMP : Decreases temperate in 1°C increments.
Min. temperature is 17°C.

TIMER ON: Sets timer to turn unit on (see How to
Use Basic Functions for instructions).
TIMER OFF: Sets timer to turn unit off (see How to Use
Basic Functions for instructions).
I SENSE: Temperature sensing and room temperature
display button.
NOTE: Press together the two buttons simultaneously
for 5 seconds to lock the keyboard. Press together the
two buttons for 2 seconds to unlock the keyboard.
I SENSE
Model: R51H(1)/EF
Model: R51H1(1)/EF
Press together simultaneously
NOTE: Please do not select HEAT mode if the
machine you purchased is cooling only type. Heat
mode is not supported by the cooling only appliance.
1
3
5
7
9
1
TEMP : Increases temperate in 1°C increments.
Max. temperature is 30°C.
2
3
5
7
SLEEP: Saves energy during sleeping hours .
9
2
4
6
8
10
4
6
8
10
11
12
SWING: Starts and stops the horizontal louver movement.
Hold down for 2 seconds to initiate vertical louver auto
swing feature(some units) .
FRESH: Starts and stops the Fresh feature. It will help
to purify the air in the room.
LED DISPLAY: Press this button to turn on and turn off
the display on the indoor unit.
 
FRESH
I SENSE
1
3
5
11
12
9
2
4
6
8
10
7

Information are displayed when the remote controller is power up.
Note:
All indicators shown in the figure are for the
purpose of clear presentation. But during the
actaul operation, only the relative function signs
are shown on the display window.
08
Remote Screen Indicators
Displayed when data transmitted.
Displayed when remote controller is ON.
Low speed
NO display
Medium speed(some units)
High speed
Auto fan speed
Displayed when TIMER ON time is set
Displayed when TIMER OFF time is set
Indicated all the current settings are
locked
Shows set temperature or room
temperature, or time under TIMER setting
HIGH
MED
LOW
AUTO
COOL
DRY
HEAT
AUTO
HEAT
COOL
FAN
DRY
Mode display
Fan speed indication
FAN
HIGH
MED
LOW
Displayed when I SENSE feature is
activated(some units)
Displayed when SLEEP feature is activated

09

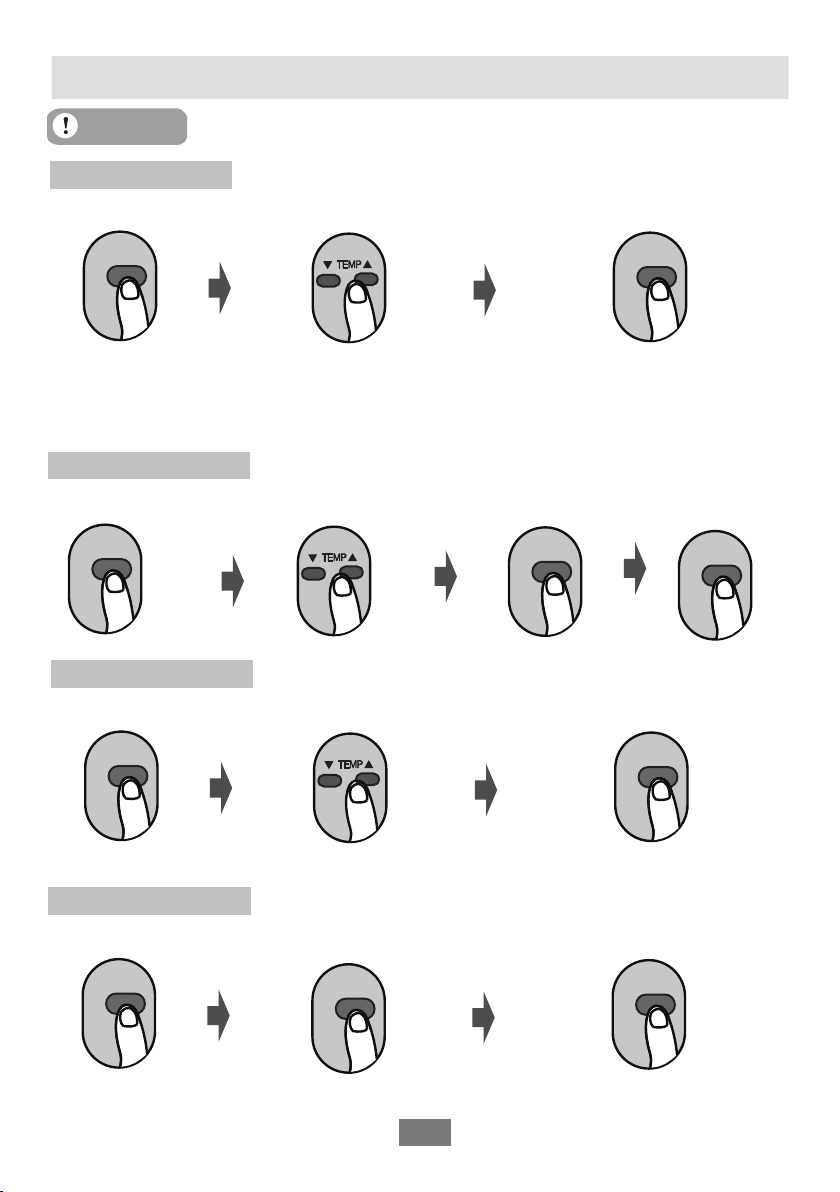

How to Use Basic Functions
AUTO Mode
COOL or HEAT Mode
DRY Mode
MODE
ON/OFF
MODE
FAN SPEED
ON/OFF
Select AUTO mode Set your desired temperature
NOTE:
1. In AUTO mode,
the unit will automatically select the COOL, FAN, or HEAT function based on
the set temperature.
2. In AUTO mode, fan speed can not be set.
Turn on the air conditioner
MODE
ON/OFF
Select DRY mode Set your desired temperature Turn on the air conditioner
FAN Mode
MODE
ON/OFF
Select FAN mode Turn on the air conditioner
Select COOL/HEAT mode Set the temperature Turn on the air
conditioner
Set the fan speed
FAN SPEED
Set the fan speed
NOTE: In DRY mode, fan speed can not be set since it has already been automatically controlled.
NOTE: In FAN mode, you can’t set the temperature. As a result , no temperature displays in remote screen.
Before operation, please ensure the unit is plugged in and power is available.
ATTENTION

10
Setting the TIMER
TIMER ON setting
TIMER OFF setting
TIMER ON & OFF setting(example)
TIMER ON/OFF - Set the amount of time after which the unit will automatically turn on/off.
Press TIMER ON button to
initiate the ON time sequence. Press Temp. up or down button for
for multiple times to set the desired
time to turn on the unit.
Press Temp. up or down button for
for multiple times to set the desired
time to turn off the unit.
NOTE:
1. When setting the TIMER ON or TIMER OFF, the time will increase by 30 minutes increments with each
press, up to 10 hours. After 10 hours and up to 24, it will increase in 1 hour increments. (For example,
press 5 times to get 2.5h, and press 10 times to get 5h,) The timer will revert to 0.0 after 24.
2. Cancel either function by setting its timer to 0.0h.
Point remote to unit and wait 1sec,
the TIMER ON will be activated.
Press TIMER OFF button to
initiate the OFF time sequence. Point remote to unit and wait 1sec,
the TIMER OFF will be activated.
Current
time 1PM
2:00PM 3:00PM 4PM 5PM 6PM
Timer starts Unit turns
ON
Unit turns
OFF
2.5 hours later
5 hours later
3:30PM
Example: If current timer is 1:00PM,
to set the timer as above steps, the
unit will turn on 2.5h later (3:30PM)
and turn off at 6:00PM.
ON/OFF
MODE
FAN
SHORT
CUT
TIMERON
TIMEROF
F
TEMP
SLEEP
1sec
ON/OFF
MODE
FAN
SHORT
CUT
TI
M
E
R
O
N
TIMEROF
F
TEMP
SLEEP
ON/OFF
MODE
FAN
SHORT
CUT
TI
M
E
R
O
N
TIMEROF
F
TEMP
SLEEP
ON/OFF
MODE
FAN
SHORT
CUT
TIMERON
TIMEROF
F
TEMP
SLEEP
1sec
x5
TIMER ON
TIMER ON
TIMER OFF
TIMER OFF
xn xn
x10
xn
Keep in mind that the time periods you set for both functions refer to hours after the current time.

SWING
11

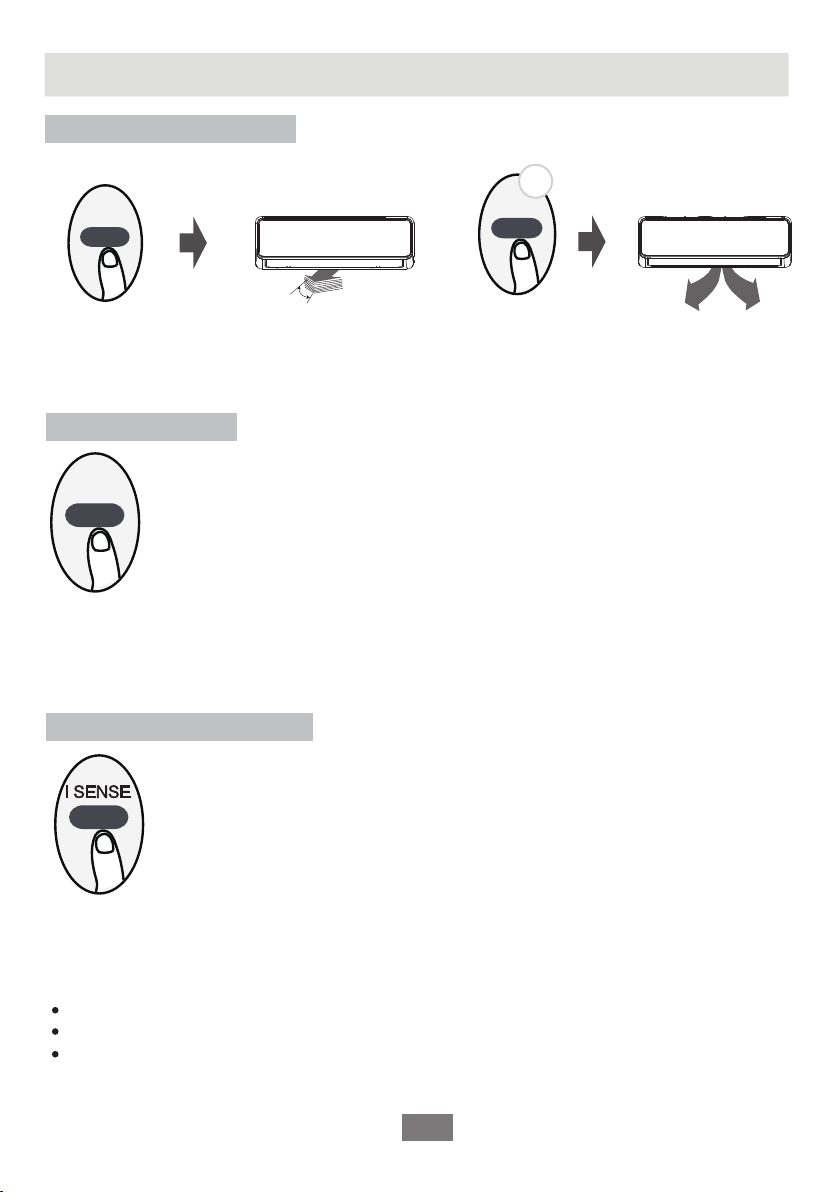

How to Use Advanced Functions
Swing function(some units)
I SENSE function(some units)
SLEEP function
Press Swing button
The horizontal louver will swing up and down
automatically when pressing Swing button.
Press again to make it stop.
Keep pressing this button more than 2 seconds,
the vertical louver swing function is activated.
(Model dependent)
SWING
2s
SLEEP
The SLEEP function is used to decrease energy use while you sleep (and don t need the same
temperature settings to stay comfortable). This function can only be activated via remote control.
The sleep function is not available in Fan or Dry mode.Please refer to the OWNER’S MANUAL for
more details.
When the I SENSE function is activated, the remote display is actual temperature at its location.
The remote control will send this signal to the air conditioner every 3 minutes interval until press
the I SENSE button again.
OF
NOTE: Press this button for seven seconds to start/stop memory feature of I SENSE function.
If the memory feature is activated, “ ” displays for 3 seconds on the screen.
If the memory feature is stopped, “ ” displays for 3 seconds on the screen.
While the memory feature is activated, press the ON/OFF button, shift the mode or power failure
will not cancel the I SENSE function.
On

12
SHORTCUT function(some units)
SHORT CUT
Used to restore the current settings
or resume previous settings.
Push this button when remote controller is on, the system will automatically revert back to the
previous settings including operating mode, setting temperature, fan speed level and sleep
feature(if activated).
If pushing more than 2 seconds, the system will automatically restore the current operation
settings including operating mode, setting temperature, fan speed level and sleep feature
(if activated ).
FP function
The unit will operate at high fan speed (while
compressor on) with temperature automatically
set to 8 C/46 F.
2
Press this button 2 times during one second under HEAT Mode and setting temperature of
17 C/62 F to activate FP function.
Press On/Off, Sleep, Mode, Fan and Temp. button while operating will cancel this function.
Note: This function is for heat pump air conditioner only.

The design and specifications are subject to change without prior
notice for product improvement. Consult with the sales agency or
manufacturer for details.
