Polaroid HD-Ready Widescreen LCD TV User manual

Questions?
Need some help?
This manual should help you
understand your new product.
Or visit
www.polaroid.com/support.
If you still have questions, call
our help line found on the
insert with this icon:
26”/ 32”/ 37”/ 42” Digital HD-Ready LCD TV
Your TV may look different from the one pictured above.

This TV incorporates High-Definition Multimedia Interface (HDMITM)
technology. HDMI, the HDMI logo and High-Definition Multimedia Interface
are trademarks or registered trademarks of HDMI Licensing LLC.
This sign indicates that this product may not be disposed of with your regular
household waste. The recycling and separate collection of such products
is your responsibility. Please drop off the above-mentioned waste at a
designated place for recycling waste electrical and electronic equipment. If
you do not know where to drop off your waste equipment for recycling, please
contact your local city office or household waste collection service.
Cleaning Your LCD TV
You can increase the life of your LCD display by taking the following precautions:
• Before cleaning, always disconnect the power line and all connection cables.
• Do not use any solvents, caustic or gaseous cleaning agents.
• Clean the display with a soft, lint-free cloth.
• Ensure that no water droplets remain on the screen. Water can cause permanent
discolouration.
There are no parts which can be serviced or cleaned
inside the TV’s cabinet.
The UK is going Digital!
Find out if you already have a digital signal or when your area will switch off the old
signal by visiting:
http://www.digitaluk.co.uk/
Even if you don’t have a digital signal yet, it will be coming to you soon. In the
meantime, if you are having problems getting good reception, call our helpline
customer service number. Look for the insert with the phone icon at the bottom of this
page for the service number for your area.
Your LCD TV’s Digital Tuner

ENGLISHENGLISH
1
Warnings and Precautions
Warnings and Precautions
To reduce the risk of fire or electric shock, do not expose this equipment to rain or moisture.
This symbol is intended to alert the user to avoid the risk of electric shock.
This equipment must not be disassembled by anyone except qualified service
personnel.
This symbol is intended to alert the user to the presence of important operating and
maintenance instructions in the literature accompanying the appliance.
▪TO REDUCE THE RISK OF ELECTRIC SHOCK,
▪DO NOT REMOVE COVER (OR BACK).
▪NO USER-SERVICEABLE PARTS INSIDE.
▪REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
Use of controls, adjustments or performance of procedures other than those specified herein
may result in hazardous radiation exposure.
Important Safety Instructions
To prevent any injuries, the following safety precautions should be observed in the installation, use,
servicing and maintenance of this equipment.
Before operating this equipment, please read this manual completely, and keep it nearby for future
reference.
▪Do not place the equipment on any uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage to
the equipment itself.
▪Use only a cart or stand recommended by the manufacturer. This equipment and
recommended cart or stand should be handled with care. Quick stops, excessive force, and
uneven surfaces may cause the equipment and cart/stand to overturn.
▪Do not disable the 3-wire grounding type plug. The grounding pin on the 3-prong plug is an
important feature. Removing the grounding pin will increase the risk of damaging the
equipment.
▪If you can not fit the plug into the electrical outlet, contact an electrician to install a grounding
outlet.
▪Always operate this equipment from the type of power source indicated on the rear of the
serial/model information label.
▪Never overload wall outlets and extensions.
This symbol indicates
caution points.
This symbol indicates
actions that should not
be done.
This symbol indicates actions
that must be performed.

2
Warnings and Precautions
▪Use and handle the power cord with care. Do not place any heavy objects on the AC
power cord.
▪Do not pull the AC power cord. Do not handle the AC power cord with a wet hand.
▪Do not touch the power cord and antenna cable during lightning.
▪Remove the plug from the wall outlet, if the equipment will not be used for a long period
of time.
▪Do not place, use or handle this equipment near water.
▪Never expose the equipment to liquid, rain, or moisture.
Seek for service if any of the above is spilled into the equipment.
▪Do not expose the equipment to extreme temperature or to direct sunlight, as the
equipment may heat up and suffer damage.
▪Do not install the equipment near any heat sources such as radiators, heat registers,
stoves, or any other apparatus that might produce heat.
▪Do not attempt to service the equipment yourself.
▪Opening and removing the covers may expose you to dangerous voltage or other
hazards and may void your warranty. Refer service to qualified personnel.
▪Do not place or drop any other objects on top.
▪Do not insert anything into the ventilation holes of your equipment.
Inserting any metal or flammable objects may result to fire or electric shock.
▪Do not place the equipment on uneven or unstable carts, stands, tables, shelves etc.
The equipment may fall, causing serious injury to children or adults and serious damage
to the equipment itself. Always place the equipment on the floor or on a surface that is
sturdy, level, stable and strong enough to support the weight of the equipment.
▪Do not block any ventilating openings. Leave an open space around the equipment.
Never place the equipment :
on a bed, sofa, rug, or any other similar surfaces; too close to drapes/curtains/walls, in a
bookcase, built-in cabinet, or any other similar places that may cause poor ventilation.
▪Unplug this apparatus during lightning storms or when unused for long periods of time.
▪Refer all servicing to qualified service personnel. Servicing is required when the
apparatus has been damaged in any way, such as power-supply cord or plug is
damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus
has been exposed to rain or moisture, does not operate normally, or has been dropped.
▪Always remove the power cord from the outlet before cleaning the equipment.
▪Never use liquid or aerosol cleaners on the equipment.
Clean only with a soft dry cloth.
▪Only use attachments/accessories specified by the manufacturer.

ENGLISHENGLISH
3
Warnings and Precautions
Outdoor Antenna Safety Instructions
Antenna lead-in wire
Antenna discharge unit
Grounding conductors
Ground clamps
Power service grounding
Ground clamps
Electric service
equipment
If an outdoor antenna is connected, follow the precautions below:
EXAMPLE OF OUTDOOR ANTENNA GROUNDING
▪An outdoor antenna should not be located in any area where it could come in contact with
overhead power lines, or any other electric light or power circuits.
▪When installing an outdoor antenna system, extreme caution should be taken to prevent
contact with power lines. Direct contact with power lines may be fatal and should be avoided
at all costs.

4
TABLE OF CONTENTS
WARNINGS AND PRECAUTIONS
Important Safety Instructions....................................................................................... 1
Antenna Safety Instructions......................................................................................... 2
INTRODUCING THE LCD TV
Key Features ............................................................................................................... 5
Package Contents ....................................................................................................... 6
Setting Your LCD TV.................................................................................................... 7

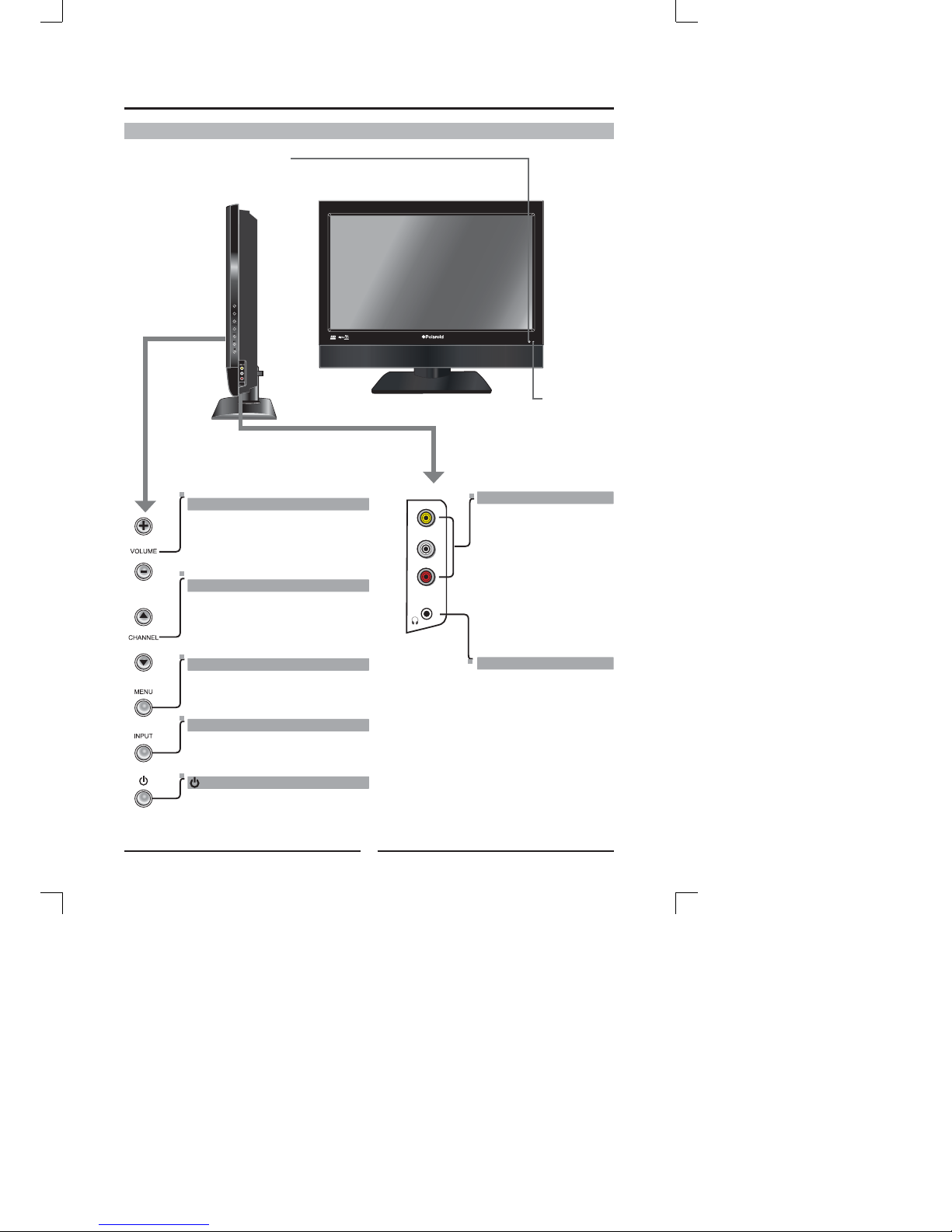

Your LCD TV.............................................................................................................. 10

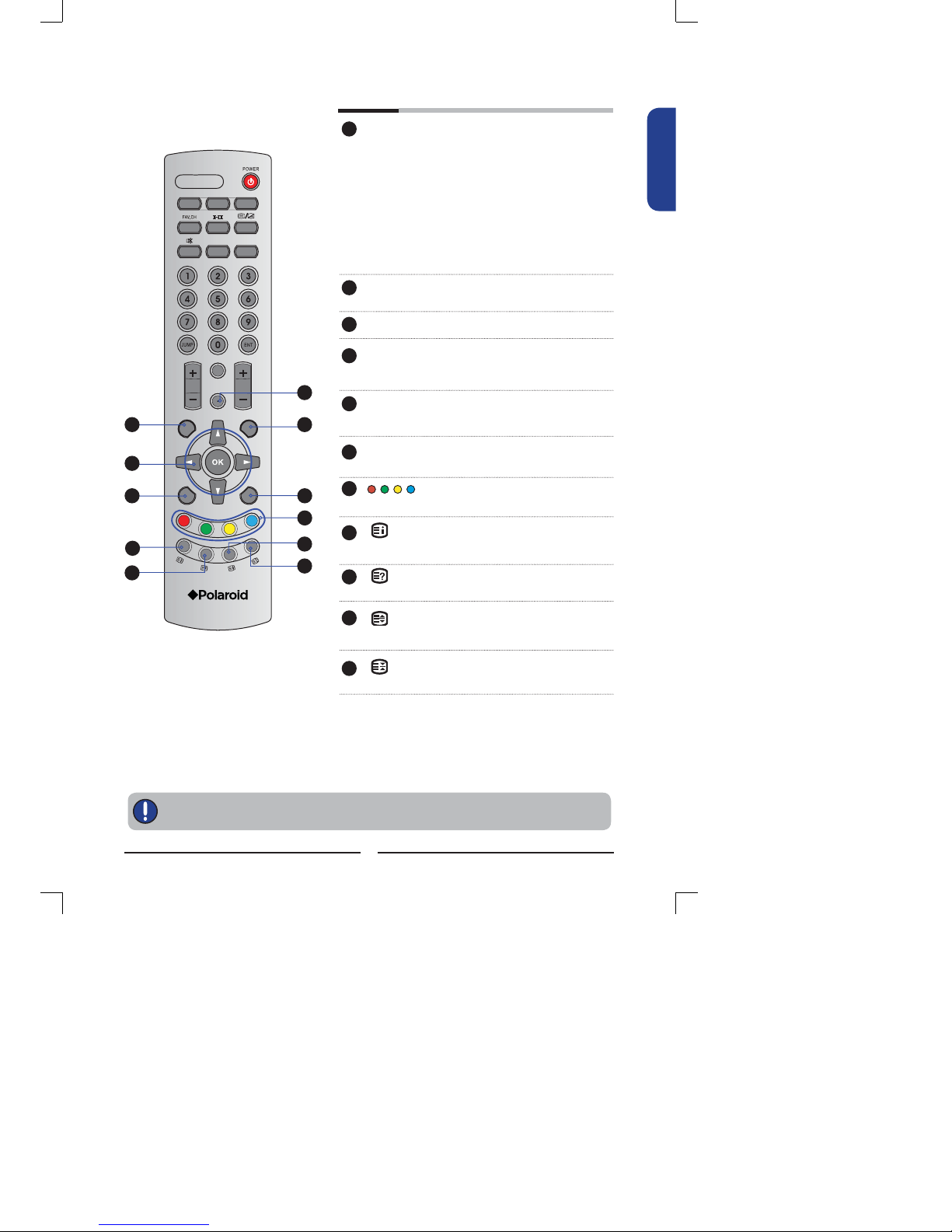

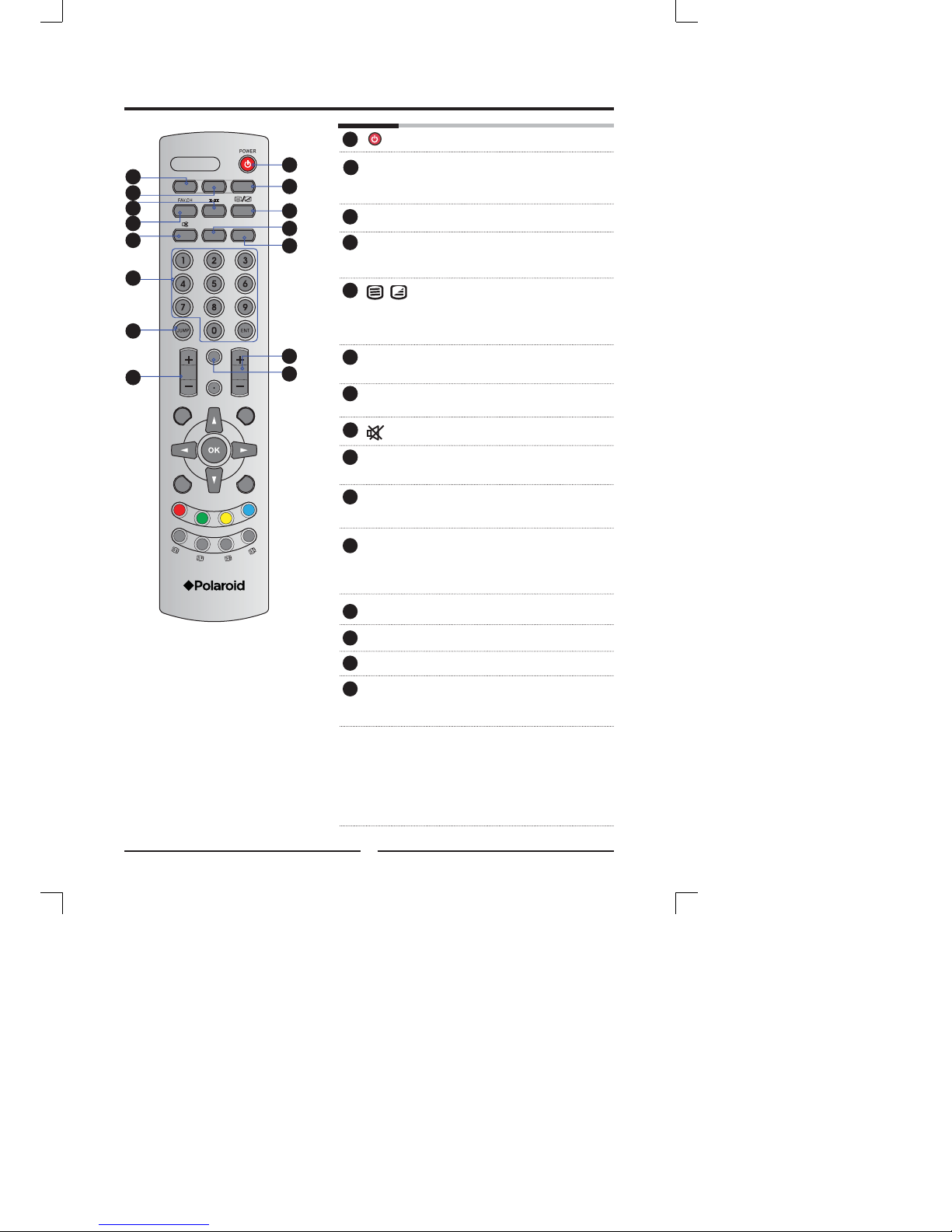

Your Remote Control ................................................................................................. 12
CONNECTING YOUR LCD TV

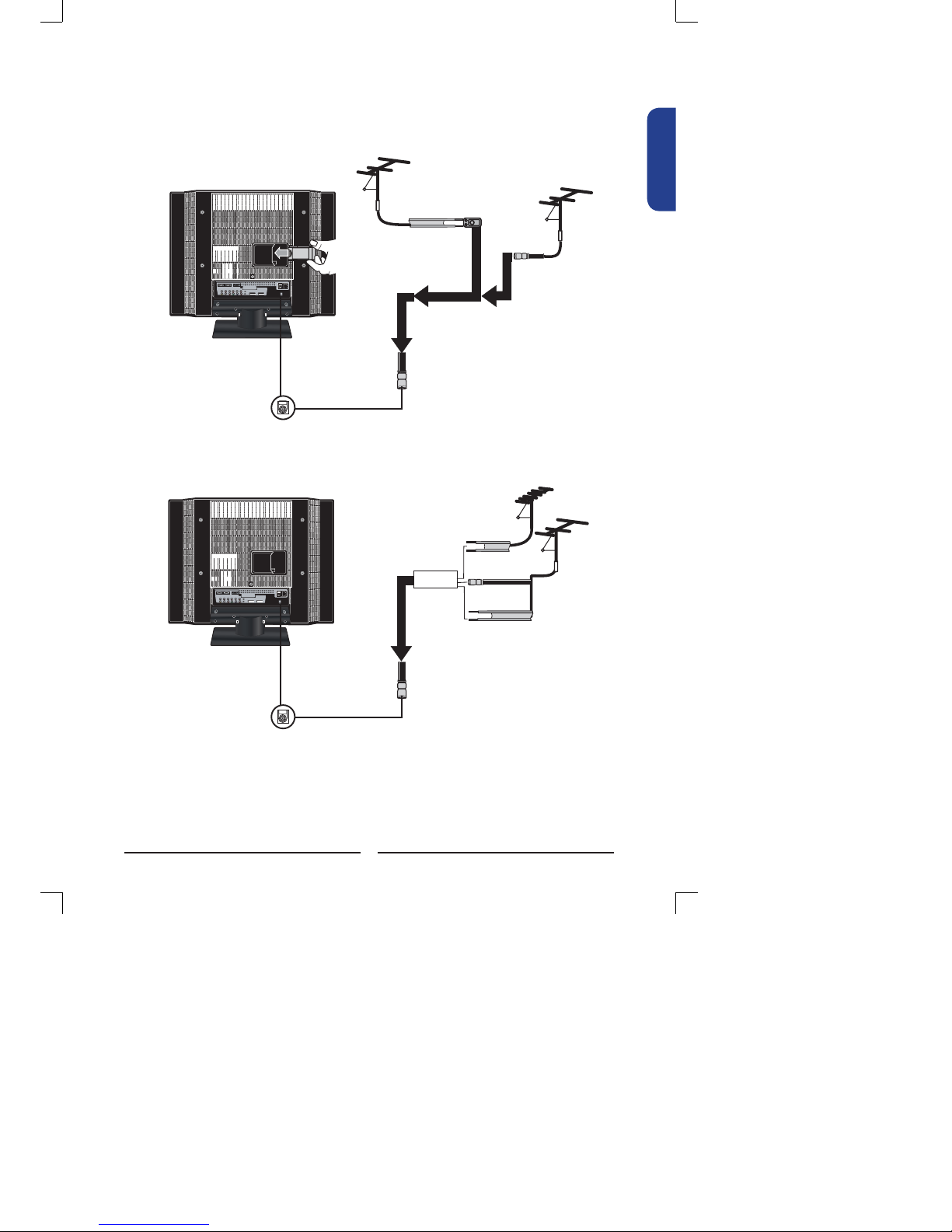

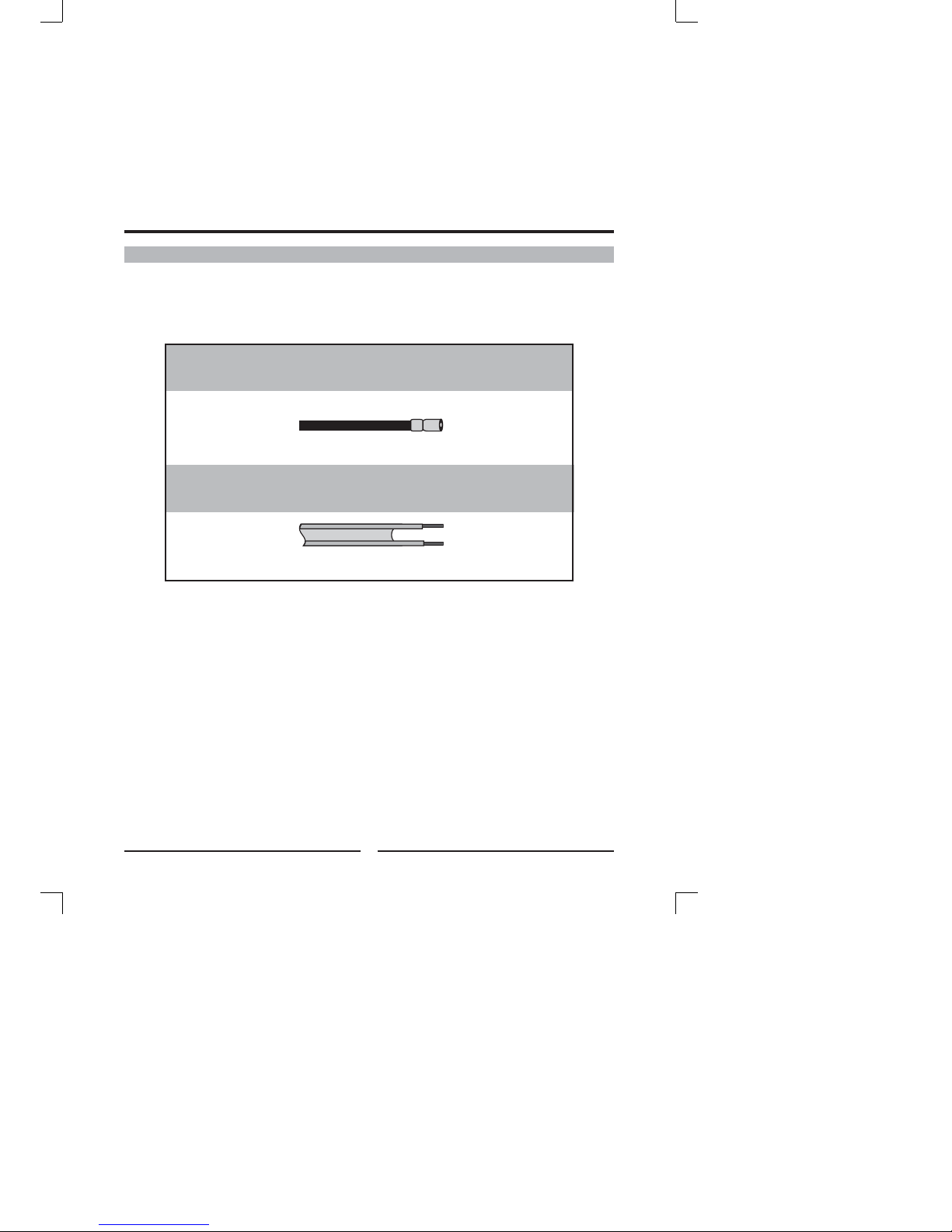

Connecting a TV Cable or an Antenna ...................................................................... 14
How to use CI (Common Interface) card ....................................................................... 19
Connecting optional AV Equipment
Connecting a VCR .............................................................................................. 21
Connecting a Video Camera or Game Console.................................................. 22
Connecting an AV Equipment with YPbPr Connector......................................... 23
Connecting an AV Equipment with HDMI Connector .......................................... 24
Connecting an AV Equipment with DVI Connector ............................................. 25
Connecting an AV Equipment with SCART Connector ....................................... 26
Connecting a PC................................................................................................. 27
Connecting an Audio Receiver ........................................................................... 28
USING THE TV FEATURES
Wide Screen Viewing ......................................................................................29
Operating the Menu........................................................................................30
Customizing the VIDEO Settings ......................................................................32
Customizing the AUDIO Settings ......................................................................34
Customizing the SETUP Settings......................................................................36
Using the Parental Settings..............................................................................37
Customizing the TV Settings ............................................................................39
TROUBLESHOOTING
......................................................................................................................................... 41
DISPLAY MODES
......................................................................................................................................... 42
SPECIFICATIONS
......................................................................................................................................... 43

ENGLISH
5
Introducing the LCD TV
Various Audio/Video terminals for external equipment connection
▪2 sets of composite A/V input terminals
▪2 SCART input terminals
▪1 set of component Video input terminals
▪1 VGA/ Audio input terminal
▪2 HDMI™/Audio input terminals
▪1 SPDIF terminal
▪1 Audio out COAXIAL terminal
▪1 Headphone terminal
High Definition Multimedia Interface (HDMI™)
▪High Definition Multimedia Interface (HDMI™) is a small, user-friendly interconnect that
can carry up to 5 Gbps of combined video and audio in a single cable. This system
eliminates the cost, complexity and confusion of multiple cables used to connect
current A/V systems.
HD-Ready Component Video Inputs
▪Offers the best video quality for DVD(480p) and digital set-top-box (HD1080i, 720p)
connections.
3D Digital Noise Reduction
▪This function can digitally reduce image noise to provide better picture quality.
Film-Mode Detection (3:2 Reverse Pull Down)
▪This function can automatically detect content derived from film and adjust the
interlacer’s frame matching to provide a more natural-looking, clearer image of the
moving picture.
INTRODUCING THE LCD TV
Key Features

6
Introducing the LCD TV
Make sure all of the following contents are included. If you are missing any items,
please call customer service.
 LCD TV
Make sure all of the following contents are included.
 Power Cord
These items are all you need to set up and operate the LCD TV in its basic configuration.
Package Contents
 Remote Control/
AAA Batteries x 2
 User Guide  Quick Guide Warranty Card
SLEEP P.SIZE
VOL. CH.
INFO
INPUT
MENU
EXIT
S.MODE P.MODE
FREEZE SUBTITLE GUIDE
The power cord type may be different
depending on your country’s power type.
 TV Stand /
Screw Driver

ENGLISH
7
Introducing the LCD TV
If you prefer to mount your new Polaroid TV on a wall instead of attaching it to the stand,
please reference the instructions included in the wall mounting kit (not included).
Setting Your LCD TV

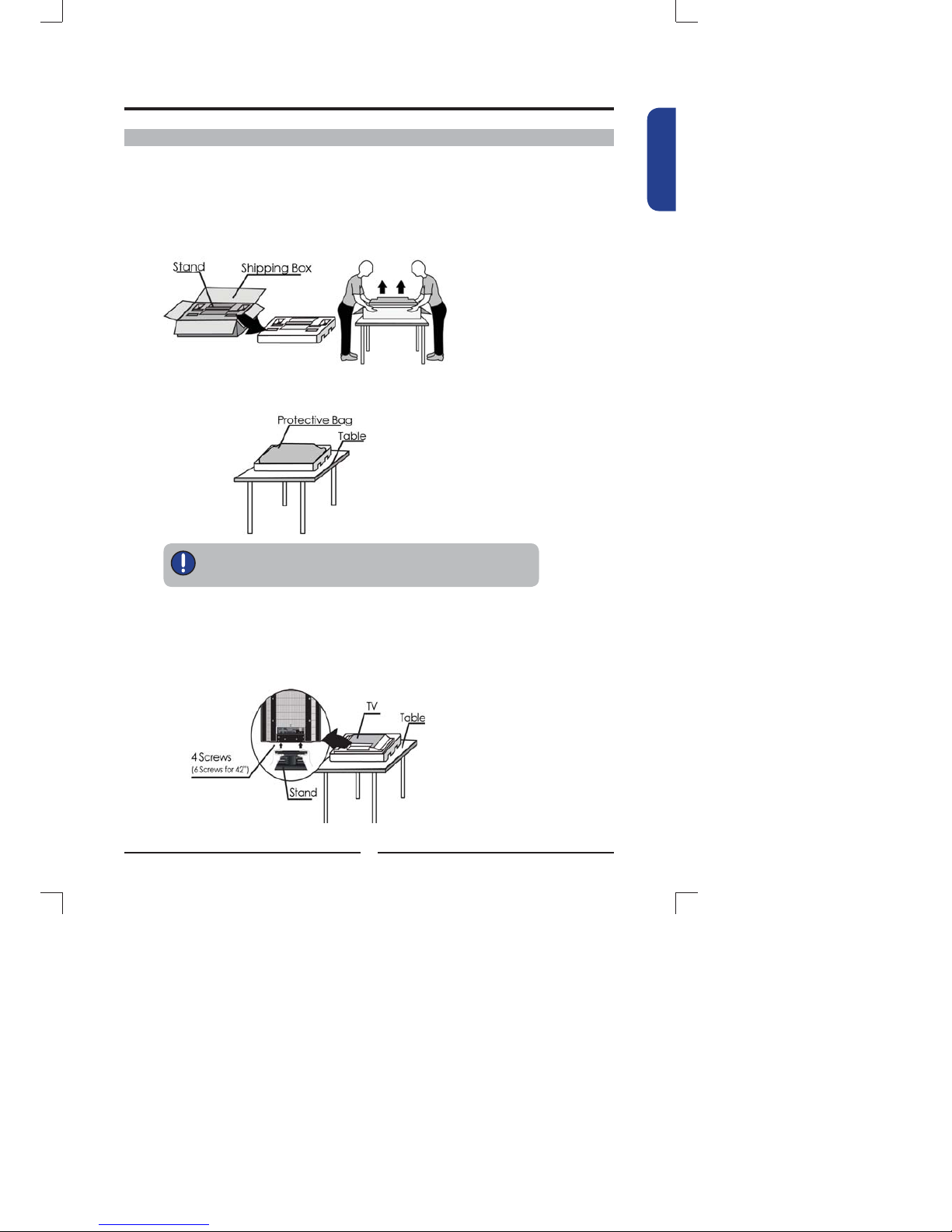

How to install the TV Stand
Do not remove the packaging material from the TV before the
stand is attached.
Read all instructions before continuing with the stand installation.
Lift LCD out of the box, with the bottom foam packaging material still attached, and
place onto a stable surface.
Remove protective bag from LCD unit, but DO NOT remove the bottom foam packaging
material from the TV.
Locate the place on the back of the TV to attach the stand. Secure the stand to the LCD
with all screws.
Lift foam packaging material from the top of the LCD out of the box.

8
Introducing the LCD TV

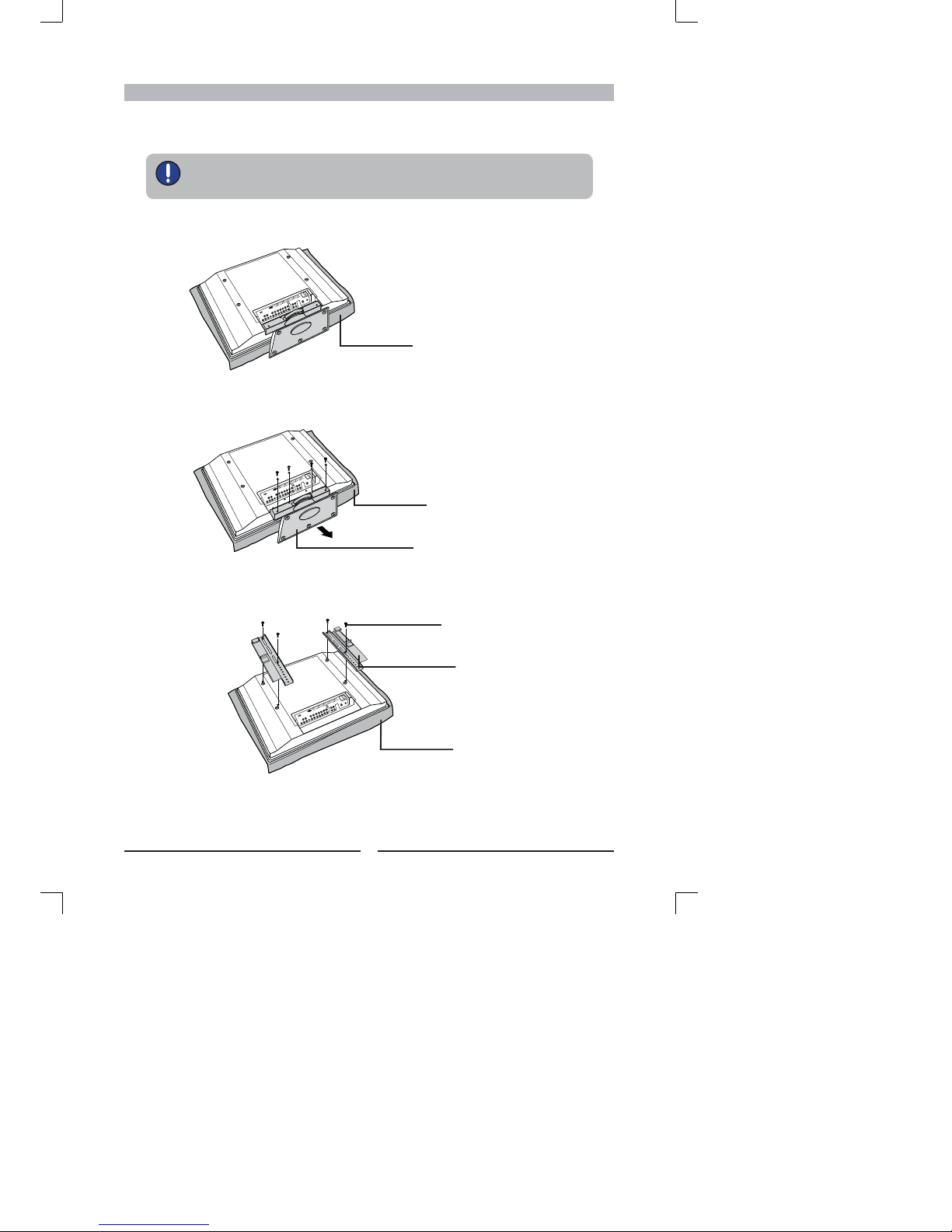

If you prefer to mount your new Polaroid TV on a wall instead of attaching it to the stand, please
reference the instructions included in the wall mounting kit (sold separately).
 Remove the screws of the TV stand and detach the stand from the TV.
 Align the holes on the wall mounting unit with the corresponding holes on the rear of the TV
and fasten with four screws.
How to remove the TV Stand
 To prevent damaging the surface of the LCD TV, place the TV on a soft cloth.
Verify your TV’s model and be sure to use the wall mounting kit specified
for your TV model only. Contact customer service for assistance when
installing the wall mounting kit.
 Before installing the TV on a wall, please read the installation instructions supplied with
the wall mounting kit (sold separately).
Soft cloth
Soft cloth
Table stand
Soft cloth
Wall mounting hook
(supplied with the wall
mount kit)
4 screws
(supplied with the wall
mount kit)

ENGLISH
9
Introducing the LCD TV
How to setup the TV
Donotusecausticcleaners(porcelain,stainlesssteel,toilet,orovencleaneretc.)onthe
remote, as it may cause damage to the remote control.
 Use a supplied antenna cable to connect the VHF/UHF signal to the LCD TV’s ANT. terminal
(refer to page 17).
 Connect the AC power cord at the back of the TV and connect the power cord to wall outlet.
 Insert the 2 batteries supplied in remote control.
 Connect other an external A/V device (refer to page 19-28).
Step1 Slide the back cover up to open the
battery compartment of the remote
control.
Step2 Insert two AAA size batteries.
Make sure to match the (+) and
( - ) ends of the batteries with
the (+) and ( - ) ends indicated
in the battery compartment.
Slide the cover back into place.

R
L
AUDIO
VIDEO
L
R
VIDEO1 IN
AUDIO
VIDEO
10
Introducing the LCD TV
Your LCD TV
LED
The LED light indicates when the LCD
TV is activated.
MENU
Press once to display the OSD (on
screen display), press again to turn the
OSD off.
VOLUME▲▼
Press to adjust the volume up and
down. Selects the main-menu item and
change values for items when in the
OSD mode.
Turns the LCD TV on and into standby mode.
CHANNEL▲▼
Press to scan up and down through
channels. Selects sub-menu item when in
the OSD mode.
INPUT
Choose from different input signal
sources.
Front/Right Side View and Controls
Headphone
Connects to the external
headhone for private
listening.
VIDEO1 IN
Connects to the composite
Video and Audio output jacks
on external video equipment.
IR
Remote control
sensor

HDMI 1 IN HDMI 2 IN
LR
LR
VGA/PC IN
COAXIAL
SPDIF
SCART 1 SCART 2
VIDEO
HDMI
LR
VGA
LR
YPbPr
VHF/UHF IN
ENGLISH
11
Introducing the LCD TV
Rear View and Jacks
VHF/UHF IN
Connects RF input from VHF/UHF antenna or cable.
VGA/ PC and VGA AUDIO(L/R) IN
Connects the PC, or other AV equipment with VGA and AUDIO(L/R)
output jacks.
SCART1/SCART2 IN
Connects a piece of AV equipment with a SCART socket.
The SCART interface offers multiple signals(RGB, AV) with audio input/output between the TV
and external video equipment.
VIDEO and AUDIO(L/R) IN
Connects to the composite VIDEO and AUDIO(L/R) output jacks on
external video equipment.
HDMI 1/HDMI 2 and HDMI AUDIO(L/R) IN
Connects the all digital AV equipment with HDMI connector.
Or connects DVI signal to HDMI connector. The AUDIO(L/R) of
HDMI IN is for DVI connection.
AC IN/ POWER SWITCH
Connects to the AC power cord.
AUDIO OUT-SPDIF/COAXIAL
Connects to the Digital Audio jack on the digital/standard 5.1
audio system.
COMPONMENT and AUDIO(L/R) IN
Connects to the DVD player, Digital Set-Top-Box, or other AV
equipment with component(YPbPr) video and audio output jacks.

12
Introducing the LCD TV
SLEEP P.SIZE
VOL. CH.
INFO
INPUT
MENU
EXIT
S.MODE P.MODE
FREEZE SUBTITLE GUIDE
Your Remote Control
Turns the LCD TV standby on and off.
FREEZE Pressing FREEZE to freeze the current
picture, press again to restore the
picture.
SUBTITLE Cycles through the TV subtitle options
GUIDE Displays the Program Guide on the
screen. Pressing again to turn GUIDE
off.
/ Turns on and off the Teletext function.
(Press ▲/▼buttons to select the
page, and press ◄/►buttons to select to
the sub-page).
I-II Cycles through the TV sound options
(NICAM) : MONO/STEREO
FAV.CH Pressing FAV.CH displays favourite
channels.
Mutes and restores the audio
SLEEP Cycles through the LCD TV sleep timer:
OFF/10/20/30/40/50/60/90/120 minutes
P. S I Z E Cycles through Widescreen mode
settings: NORMAL/FULL/WIDE/ZOOM/
AUTO
0-9/ENT Pressing a number selects a channel.
Following selection, pressing ENT
activates the channel, or channel
activates automatically in 3 seconds.
JUMP Returns to previously selected channel.
VOL.+- Increases and decreases volume.
CH.▲▼ Scans up and down the channels.
INFO Pressing once displays a variety of
information such as the current channel
and the input source.
1
2
3
4
5
6
7
8
9
10
11
12
13
14
3
1
5
4
8
15
2
9
10
14
15
12
7
11
13
6

ENGLISH
13
Connecting Your LCD TV
SLEEP P.SIZE
VOL. CH.
INFO
INPUT
MENU
EXIT
S.MODE P.MODE
FREEZE SUBTITLE GUIDE
17
18
19
Effective range:
The remote can control the LCD TV from up to 5m away, if pointed directly at the receiver.
20
21
23
24 24
25
26
22
18
19
17
20
22
23 25
26
MENU Displays the OSD menu on the
screen.
EXIT Exits the OSD menu.
▲▼►◄ Cycles through OSD options and
OK selects individual menu items. OK
confirms option settings.
S.MODE Selects sound effect options: OFF/
SURROUND/LIVE/DANCE/TECHNO/
CLASSICAL/SOFT/ROCK/POP
P. M O D E Selects picture mode: USER/VIVID/
HIGH-BRIGHT/CINEMA/SPORT
Accesses the TELETEXT items or
corresponding pages.
Reveals hidden information such as
the answer to a quiz in TELETEXT
mode.
Displays the main index in TELETEXT
mode.
Displays the top, bottom or all of
page, to easily read in TELETEXT
mode.
Freezes a multi-page passage on
screen inTELETEXT mode.
16
21
INPUT Pressing INPUT displays the source
list, use ▲▼ to select the video
equipment connected to the video
inputs of your LCD TV : TV /
VIDEO1(SIDE) / VIDEO2(REAR) /
VIDEO3(SCART1) /
VIDEO4(SCART2) / VIDEO5(YPbPr) /
VIDEO6(HDMI1) / VIDEO7(HDMI2) /
COMPUTER(VGA)
▪In TV Menu, use the ▪(Input button)
with 0-9 buttons to specify the
frequency (for example 55.2MHz)
16

14
Connecting Your LCD TV
INSTALLING THE LCD TV
Refer to the owner’s manual of any external equipment to be connected.
When connecting any external equipment, do not connect any AC power cords to wall outlets
until all other connections are completed.
Antenna Connection
The antenna requirements for good colour TV reception are more important than those for a black &
white TV reception. For this reason, a good quality outdoor antenna is strongly recommended.
The following is a brief explanation of the type of connection that is provided with the various antenna
systems.
75-ohm coaxial cable (round)
IEC-type connector
300-ohm twin-lead cable (flat)
■A 300-ohm system is a flat twin-lead cable (not included) that can
be attached to a 75-ohm terminal through a 300-75-ohm adapter
(not included).
Connecting a TV Cable or an Antenna
■A 75-ohm system is generally a round cable (not included) with IEC-
type connector that can easily be attached to a terminal without
tools.

ENGLISH
15
Connecting Your LCD TV
OUT IN
300-ohm twin-
lead cable
300-ohm twin-
lead cable
75-ohm
coaxial cable
UHF
Antenna
VHF
Antenna
Combiner
(not included)
A. Combination VHF/UHF antenna
300-ohm twin-
lead cable
75-ohm
coaxial cable
VHF/UHF
Antenna
VHF/UHF
Antenna
300/75-ohm adapter
(not included)
B. Separate VHF and/or UHF antennas
Use one of the following two diagrams when connecting an outdoor antenna.
A: Shows how to use a VHF/UHF combination outdoor antenna.
B: Shows how to use a separate VHF and/or UHF outdoor antenna.

16
Connecting Your LCD TV
A
IN
B
OUT
Cable TV Line
2 set signal
splitter
(not included)
RF switch
(not included)
Cable TV converter/
descrambler
(not included)
Cable TV (CATV) Connection
■The RF switch (not included) is required to provide two inputs (A and B). Setting
the RF switch to position A allows viewing of all unscrambled channels by using
the TV channel keys.
■Setting the RF switch to position B allows viewing of all scrambled channels via
the converter/descrambler by using the converter channel keys.
■A 75-ohm coaxial cable connector is built into the set for easy Hook-
up.
When connecting the 75-ohm coaxial cable to the set, connect the 75-
ohm cable into the ANT. terminal.
■Some cable TV companies offer premium pay channels. Since the
signals of these premium pay channels are scrambled, a cable TV
converter/descrambler is generally provided to the subscriber by the
cable TV company.
This converter/descrambler is necessary for normal viewing of scrambled channels.
(Set your TV to channel 3 or 4, typically one of these channels is used. If this is unknown,
consult your cable TV company.)
For more specific instructions on installing cable TV, consult your cable TV company.
One possible method of connecting the converter/descrambler provided by your cable TV
company is shown in the diagram below.
VHF/UHF IN

ENGLISH
17
Connecting Your LCD TV
 Use a supplied antenna cable to connect the TV signal to the LCD TV’s TV CABLE
terminal.
 Connect the AC power cord at the back of the TV and connect the power cord to wall
outlet.
 Press the button on the remote to turn on the LCD TV.
Always disconnect the LCD TV from the power outlet when the LCD TV will
not be used for a long period of time.
The button on the front panel is only used for switching the LCD TV into
standby, it does not disconnect the device from the main voltage. To
completely disconnect the main voltage, please remove the power plug from
the socket.
 Press the INPUT button on the remote to display the Source List. Use the ▲▼ buttons to
select TV, and press the OK button.
Input Source
TV
VIDEO1 (SIDE)
VIDEO2 (REAR)
VIDEO3 (SCART1)
VIDEO4 (SCART2)
VIDEO5 (YPbPr)
VIDEO6 (HDMI1)
VIDEO7 (HDMI2)
COMPUTER(VGA)

18
Connecting Your LCD TV
 Press the MENU button on the remote control to display the Main menu, and use the
◄► buttons to select the TV.
 Press the ▼button to select Country and select your country by the ◄► buttons.
 Press the ▼button to select Channel Scan, and press the OK button. The Channel Scan
automatically creates a list of receivable channels in digital and analogue mode.
Channel 901 and above are for analogue channels.
Press the MENU button at any time to interrupt the memorization process.(the list
cannot be created if interrupted)
Status: Scanning..... Cable
Digital Channels: 0
Analog Channels: 25
47%
 Press the number buttons or CH ▲▼ to select a TV channel.
Country United Kingdom
CI
Channel Scan
Update Scan
Channel Skip
Channel Sort
Channel Edit
Favourite List
Channel Decode
Analogue Ch.Fine Tune
TV Select Exit
Enter
OK
