Polaroid FLM-1511 User manual

FLM-1511
Operating Manual
15” LCD Television
20050314

Contents Index
Congratulations on your purchase of this LCD TV.
We recommend that you read this manual thoroughly before use to fully enjoy the
many functions and excellent features of this unit.
Keep this manual in an easily accessible location for future reference.
Note:Screen displays and illustrations in this manual may differ from the actual
model.
Important safety information 1
Important safety cautions 2
Identification of controls 5
Control buttons 5
Back 6
Remote control 7
Installation 9
Basic operations 17
Main on-screen-display (OSD) introduction 18
Operations 19
Picture adjustment 19
System setting 20
Audio setting 25
Channel setting 27
Selecting channel 29
OSD setting 30
Timer setting 31
Operations in VGA/YbPr mode 32
TV troubleshooting 34
Specifications 35

1
The lightning flash with the arrowhead symbol within an equilateral triangle is
intended to alert the user to the presence of uninsulated “DANGEROUS
VOLTAGE” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The Exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (Servicing instructions in
the literature accompanying the product).
This Equipment has been tested and found to comply with the limits for a TV Broadcast Receiver, pursuant
to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and can radiate radio frequency
energy and, if not installed and used in accordance with the instructions, may cause harmful interference to
radio communications If this equipment does cause or receive interference, which can be determined by
turning equipment off and on, the user is encouraged to try to correct the interference by one of the
following measures:
?? Reorient or relocate the TV antenna
?? Increase the separation between TV and other equipment.
?? Connect TV into separate outlet from equipment.
? ?Consult the dealer or an experienced radio/TV technician for help
FCC Caution: Any changes or modifications not expressly approved by the party responsible for
compliance could void the user’s authority to operate this equipment
Federal Communication Commission
Information (FCC)
Important Safety Information

Important Safety Cautions
When any unusual situation occurs, turn off the power supply at once and remove
the plug from the wall outlet. Contact a qualified service department in your local
area.
Do not expose this unit to rain or spattering liquids. Do not use this product near
water - for example, near a bathtub, washbowl, kitchen sink, or laundry tub, in a wet
basement, or near a swimming pool, and the like. Do not use immediately after
moving from a low temperature to high temperature environment, as this causes
condensation, which may result in fire, electric shock, or other hazards.
Heat sources-Keep the product away from heat sources such as radiators,
heaters, stoves and other heat generating products (including amplifiers).
Requirement of environment temperature:
o o o o
0 C~50 C for storage; 5 C~40 C for working
The vents and other openings in the cabinet are designed for ventilation. Do not
cover or block these vents and openings since insufficient ventilation can cause
overheating and/or shorten the life of the product.
Do not place the product on a bed, sofa, rug or other similar surface, since they can
block ventilation openings.
This product is not designed for built-in installation; do not place the product in an
enclosed place such as a bookcase or rack, unless proper ventilation is provided
or the manufacturer's instructions are followed.
Unplug this product from the wall outlet before cleaning. Do not use liquid cleaners
or aerosol cleaners. Use a damp cloth for cleaning.
Do not place the product on an unstable trolley, stand, tripod or table. Placing the
product on an unstable base can cause the product to fall, resulting in
serious personal injuries as well as damage to the product. Use only a trolley,
stand, tripod, and bracket or table recommended by the manufacturer or sold with
the product.
2

When relocating the product placed on a trolley, it must be moved with the utmost
care. Sudden stops, excessive force and uneven floor surfaces can cause the
product to fall from the trolley.
The power cords must be routed properly to prevent people from stepping on them
or objects from resting on them. Check the cords at the plugs and product. Power-
supply cords should be routed so that they are not likely to be walked on or
snagged by items placed upon or against them. Pay particular attention to cords at
doors, plugs, receptacles, and the point where they exit from the product.
If the power cord or the plug is damaged contact a qualified service department for
service.
High Voltage exists in this TV set. Do not remove the cover.
In case the product needs replacement parts, make sure that the service person
uses replacement parts specified by the manufacturer, or those with the same
characteristics and performance as the original parts. Use of unauthorized parts
can result in fire, electric shock and/or other danger.
For added protection for this television equipment during a lightning storm, or
when it is left unattended and unused for long periods of time, unplug it from the
wall outlet and disconnect the antenna. This will prevent damage to the equipment
due to lightning and power-line surges.
The LCD panel used in this product is made of glass. Therefore, it can break when
the product is dropped or impacted upon by other objects. Be careful not to be
injured by broken glass pieces in case the LCD panel breaks.
Don't try to push anything into the cabinet or place any vessel with water on the TV
set.
Do not overload wall outlets, extension cords, or convenience receptacles on other
equipment as this can result in a risk of fire or electric shock.
Important Safety Cautions
3

4
Important Safety Cautions
Important Information Regarding use of
Video Games, Computer, captions or other
fixed images displays
The extended use of a fixed image program material can cause permanent “Shadow Image” on
the LCD panel. This image is visible during normal programs as stationary fixed images. This
type of irreversible LCD panel deterioration can be limited by observing the following steps:
* Reduce the Brightness and Contrast settings to a minimum viewing level
* DO NOT display the fixed image for extended periods of time
* Turn the power OFF when not in actual use
Recycling
This product utilizes tin-lead solder, and has a fluorescent lamp containing a small amount of
mercury. Disposal of these materials may be regulated in your community due to environmental
considerations. For disposal or recycling information please contact your local authorities, or the
Electronics Industries Alliance Environment at: http://www.eiae.org/

Identification of controls
Control buttons
Power On/
Standby
Control Panel
Select Input Signal
Menu
Volume Down/Up
Channel Down/Up
Speaker
Note:
1. SOURCE
To access the SOURCE select menu
2. MENU
Press this button to access the MENU main page.
3. CH +/-
Change the TV channel.
In OSD Menu, press these buttons to choose the OSD items.
4. VOL +/-
Increase or decrease the sound volume level.
In OSD Menu, press these buttons to adjust the value or setting of each item
5. POWER ( )
Press this button to turn the unit ON from STANDBY mode. Press it again to turn the set back to
STANDBY.
SOURCE, MENU, CH+/-, VOL+/- and POWER( ) on the main unit have the same functions as the
corresponding buttons on the remote control.
This operation manual provides a description based on operating functions with the remote control.
The Power Indicator light will glow
yellow when the set is turned on,
and glows red when the set is in
the standby mode.
5
Speaker

Back
RF
1235678
1. DC POWER input
Connect to the DC output of the Power Adapter.
2. VGA input / PC- Audio in
Connect to the VGA/audio output 3.5mm jacks on your PC.
3. HDTV input (Y, Pb, Pr, Audio L, R)
Connect to the Y/Pb/Pr (or Y/Cb/Cr) and audio output jacks of a Set-Top Box or DVD player.
4. Headphone 3.5mm jack
5. AV outputs (Video, Audio L, R)
Connect to the VCR input jacks to record programs.
DC 12V VGA -
PC AUDIO PHONE -
S VIDEO
LRY P
bP
rL LR R
AUDIOAUDIO AUDIO
AV OUT AV INHDTV IN
VIDE O VIDEO
7. S-Video input
Receive a S-Video signal from external source such as VCR or DVD player.
6. AV inputs (Video, Audio L, R)
Receive video/audio signals from external sources such as VCR or DVD player.
4
8.Coaxial cable & Antenna input
6
Identification of controls (continued)

Remote Control
Display the current state
Mute
Previous channel
Auto correct picture
Channel up/down selector.
In menu operations, used
to select item.
Power on/standby
Direct channel selector
Select the input signal source
Setting sleep timer
Exit the menu
Sound preset mode selector
Change audio to mono, stereo or SAP
Volume up/down selector;
In the menu operation,
adjust the selected item
Access the menu
7
Select OSD menu position
Adjust the bass
Adjust the treble
Flip the cover open as shown.
Select picture mode between
Bright, Nature, Soft & User
S.M

Please install the batteries before using the remote control.
Effective range of the remote control
Notes:
1.When the remote control will not be used for a
long period of time or when the batteries are
worn out, remove the batteries.
2.Do not drop or dampen the remote control.
3.Do not disassemble the remote control.
4.There should be no obstacle between the TV
and the transmitter.
5.Use the remote control within the effective
range as shown in the figure on the left.
6.If the remote control does not work, please
check whether the batteries are exhausted or
if they have been installed properly.
7.When direct sunlight, and incandescent
lighting, fluorescent lamp or any other strong
light shines on the remote sensor of the TV,
the remote operation can be come erratic.
8.Do not mix different types of batteries in the
remote.
8

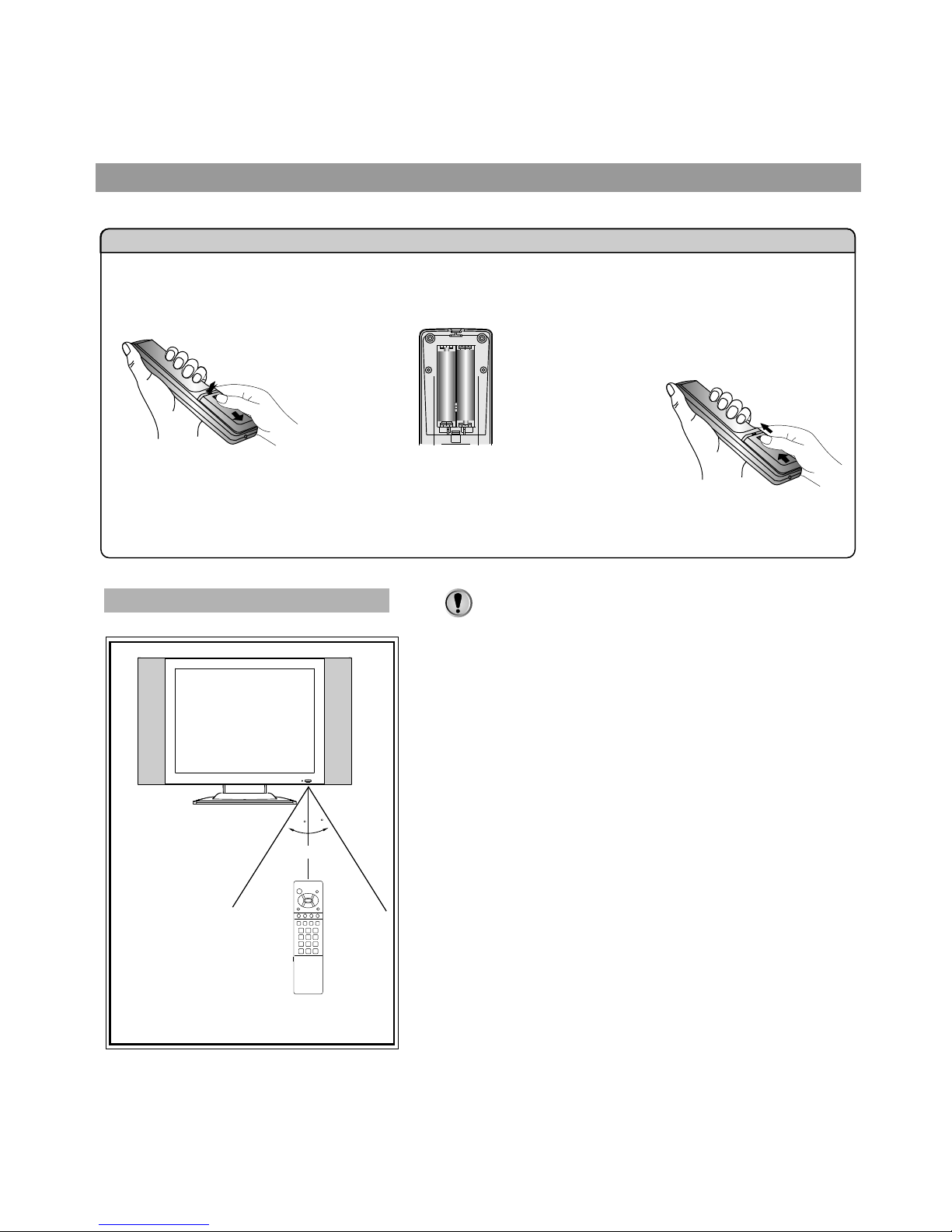

Batteries for the Remote Control
If the remote control fails to operate the LCD TV functions, replace the batteries in the remote control.
<(Slide the cover while
pressing down.)
<(Place the batteries with their
terminals corresponding to the (+)
and (-) indications in the battery
compartment.)
Open the battery cover.
1Insert two size-AAA batteries. 2
Replace the cover and slide
in reverse until the lock
snaps.
3
30
30
5m
Preparing the Remote Control

Installation
Install the unit in a room where direct light will not fall upon the screen.
Total darkness or a reflection on the picture screen may cause
eyestrain. Soft and indirect lighting is recommended for comfortable
viewing.
Antenna connections
OUTDOOR VHF/UHF ANTENNA CONNECTION (ANTENNA NOT INCLUDED)
Follow the instructions for the type of antenna system you intend to use. If using Cable or satellite, see
the next page.
Combination VHF/UHF
Antenna (Single 75 Ohm cable
or 300 Ohm twin-lead wire)
Connect the 75 Ohm cable from
combination VHF/UHF antenna
to the antenna jack.
OR
If your combination antenna has
a 300 Ohm twin-lead wire, use a
300-75 Ohm matching
transformer (NOT SUPPLIED).
Connect the UHF twin-lead wire
to a combiner (NOT SUPPLIED).
Connect the VHF twin-lead to a
300-75 Ohm matching
transformer (NOT SUPPLIED).
Attach the transformer to the
combiner. Attach the combiner to
the antenna jack.
Connect the 75 Ohm cable from
the VHF antenna and the UHF
antenna twin-lead wire to a
combiner (NOT SUPPLIED).
Attach the combiner to the
antenna jack.
NOTE: If your VHF antenna has
a twin-lead wire use a 300-75
Ohm matching transformer, then
connect the transformer to the
combiner.
Combination VHF/UHF
Antenna (Separate VHF and
UHF 300 Ohm twin-leads)
VHF 300
Ohm VHF 75 Ohm
Combiner
Combiner
UHF 300 Ohm UHF 300 Ohm
9
VHF/UHF
75 OHM
Ohm

FOR SUBSCRIBERS TO SCRAMBLED CABLE TV SERVICE OR SATELLITE
FOR SUBSCRIBERS TO UNSCRAMBLED BASIC CABLE TV SERVICE
WITH SCRAMBLED PREMIUM CHANNELS
If you subscribe to a satellite service or a cable TV service which requires the use of a converter/
descrambler box, connect the incoming 75 Ohm coaxial cable to the converter/descrambler box. Using
another 75 Ohm cable, connect the output of the converter/descrambler or satellite box to the antenna jack
on the TV. Follow the connections shown below. Set the TV/VCR to the output channel of the
converter/descrambler or satellite box (usually 3 or 4) and use the converter/descrambler or satellite box to
select channels.
If you subscribe to a satellite service or a cable TV service in which basic channels are unscrambled and
premium channels require the use of a converter/descrambler box, you may wish to use a signal splitter
and an A/B switch box (available from the cable company or an electronic supply store). Follow the
connections shown below. With the switch in the "B" position, you can directly tune any nonscrambled
channels on your TV. With the switch in the "A" position, tune your TV to the output of the
converter/descrambler box (usually channel 3 or 4) and use the converter/descrambler box to tune
scrambled channels.
Cable (CATV)/satellite connections
This TV has an extended tuning range and can tune most cable channels without using a Cable TV converter box.
Some Cable TV companies offer "premium pay channels" in which the signal is scrambled. Descrambling these
signals for normal viewing requires the use of a descrambler device which is generally provided by the cable
company.
FOR SUBSCRIBERS TO BASIC CABLE TV SERVICE
For basic cable service not requiring a converter/descrambler box,
connect the CATV 75 ohm coaxial cable to the VHF/UHF jack on the
rear of the TV.
75 Ohm CABLE
TO TV/VCR
INCOMING
75 Ohm
CATV CABLE
INCOMING
75 Ohm
CATV CABLE
75 Ohm
CABLE
CONVERTER/DESCRAMBLER
OR SATELLITE BOX (NOT SUPPLIED)
CONVERTER/DESCRAMBLER
(NOT SUPPLIED)
SPLITTER
(NOT SUPPLIED)
A/B SWITCH
(NOT SUPPLIED)
10
A
B
Installation

Power connection
Power cord
11
Installation(continued)
Household
power outlet
AC adapter
Connect to the DC input
socket of the back of the
product.
Be sure to fully insert plug
into the connection and
confirm it is secure.
1. Connecting the female plug to the AC socket on AC adapter.
2. Connecting the AC adapter to the DC power input of the set.
3. Connecting the male plug to the wall outlet as illustrated.
Note:
<
<This product should only be operated with the type of power source marked on the label on the
unit.
<Always unplug the AC adapter from the product and power outlet when the LCD TV is not in
use for an extended period of time of time.
<The illustration of power cord and power outlet is only for your reference and may vary
depending on your area.
Always turn off the Power to the LCD TV when connecting the AC adapter.
11
2
3

Elevation adjustment
You can adjust the angle of the LCD TV as follows.
o o
The elevation can be adjusted from -5 to +10 average.
12
Installation(continued)
10
-5

Connecting the Video/Audio equipment
Composite Video signal connection
You can connect the unit to a DVD or VCR to enjoy playback with high quality picture and sound.
Please refer to the instruction manual of the equipment to be connected.
R
R
Y
Y
w
w
VCR, DVD etc.
Note: Composite video is the most common used signal, but the picture quality is not as high as S-video.
S-Video is a signal format which transfers the color and brightness of the picture with higher quality than a
Composite connection.The S-Video signal connection is recommended to produce the best picture.
Connect the composite video signal terminal on the TV to the output of AV equipment through composite cable.
If you select the video signal, please set the input signal source of LCD TV to AV mode.
S-VIDEO Signal Connection
Connect the S-video terminal on the TV to the output of AV equipment using a S-video cable.
If you select S-video signal, please set the input signal source of LCD TV to SVIDEO mode.
To video output
To video input
To audio outputs
To audio inputs
13
RF
DC 12V VGA -
PC AUDIO PHONE -
S VIDEO
LRY P
bP
rL LR R
AUDIOAUDIO AUDIO
AV OUT AV INHDTV IN
VIDE O VIDEO
w
R
YYellow (video)
White (audio, L)
Red (audio, R)
To S-VIDEO input
To S-VIDEO output
1. Carefully check the terminals for position and type before making any connections.
2. Loose connectors will result in image or color problems. Make sure that all connectors are securely inserted into their
terminals.
3. When connecting an external device, turn off the power of the main unit first to prevent any possible damage.
(NOT SUPPLIED)
Installation(continued)
Notes about connection

The PC input signal connection
Connect the VGA (D-sub) input interface on the TV to the output of the PC D-sub 15 pin cable as illustrated.
For the audio connection, use an audio cord that matches the audio output terminal on the computer.
If you select PC signal, please set the input signal source of LCD TV to VGA mode.
Notes:
1.The native display resolution is . If the signal resolution exceeds this resolution, it may not be
possible to show fine detail with sufficient clarity.
2. We strongly recommend that you set the refresh rate on the PC to 60Hz. If you set it above 60Hz, the unit
may not display correctly. (Control Panel/Display Settings)
3. Use the OSD to make final image adjustments.
1024 x 768
14
Audio cable
VGA
cable
RF
DC 12V VGA -
PC AUDIO PHONE -
S VIDEO
LRY P
bP
rL LR R
AUDIOAUDIO AUDIO
AV OUT AV IN
HDTV IN
VIDE O VIDEO
(3.5mm - 3.5mm)
Installation(continued)

AV OUT connection
How to connect:
1. Connect cables as shown above.
2. Turn on the LCD TV and select source.
3. Turn on the VCR and insert the tape.
4. Select the video input from the VCR menu that corresponds to the AV in on the VCR.
5. Press the “RECORD” button to begin recording.
1. Connect cables as shown above.
2. Turn the volume of the Audio amplifier to minimum.
3. Turn on the LCD TV and select source.
4. Connect the RCA (Red/White) cable from the TV AV OUT to the AUX input on the back of the Audio Amplifier.
5. Set the Audio Amplifier to AUX INPUT.
6. Turn on the audio amplifier and adjust for a proper volume.
How to record the TV program:
How to enjoy high quality sound by Audio amplifier:
Connect the video/audio output terminals on the TV set to the signal input terminals of the VCR equipment or the
video/audio input terminals on other TV set through a video/audio cable.
Connect the audio output terminals on the TV set to the Audio amplifier through audio cable.
15
RLVIDEO AUDIO
WW
YYRR
WW
YYRR
AV OUT
RLVIDEO AUDIO -
S VIDEO ANT INANT OUT
AV IN
Rear of the VCR
VCR for recording
RF
DC 12V VGA -
PC AUDIO PHONE -
S VIDEO
LRY P
bP
rL LR R
AUDIOAUDIO AUDIO
AV OUT AV IN
HDTV IN
VIDE O VIDEO
Audio amplifier
(Not Supplied)
w
R
YYellow (video)
White (audio, L)
Red (audio, R)
WW
RRTo audio inputs
To video output To audio outputs
To video input
To audio inputs
(Not Supplied)
Installation(continued)

YPbPr input connection
Use the YPbPr input terminals on the TV set for better picture quality. Connect the audio outputs with the
corresponding audio input terminals on the TV set.
If you select YPbPr signal, please set the input signal source of the LCD TV to YPbPr / YCbCr mode.
16
HDTV OUT
WW
RR
-
S VIDEO
AV OUT
R L VIDEO
AUDIO
Rear of the STB, DVD
L
RAUDIO
WW
YY
RR
GG
BB
Yellow (video)
white (audio L)
red (audio R, Pr)
Green (Y)
Blue (Pb) RRGGBB
WW
RRRRGGBB
AUDIO
ANT
Set-Top Box, DVD player, etc.
RF
DC 12V VGA -
PC AUDIO PHONE -
S VIDEO
LRY P
bP
rL LR R
AUDIOAUDIO AUDIO
AV OUT AV IN
HDTV IN
VIDE O VIDEO
YPb Pr
Audio
cable
Video
cable
Notes:
The Y, Pb, Pr outputs on your DVD player are sometimes labeled Y, Cb, Cr. If so, connect the cables to like
colors.
(Not Supplied)
Installation(continued)

Basic Operations
Turning on
Turning off
Selecting input signal
1 Connect the AC power and the red indicator lights up to show the unit
is in STANDBY mode.
2 Press the POWER ( )button on the remote control or on the unit to
turn on the TV set.The indicator LED will turn to yellow.
If you want to turn off the power completely, unplug the power cord
from the wall outlet.
Note: Do not switch the unit on and off quickly. Wait at least 5 seconds
between switching the unit off or on.
With the power on, press the POWER ( ) button to turn off the TV and
put the TV in STANDBY mode, the indicator LED will turn to red.
1 Press the SOURCE button on the unit or
button on the remote control. The screen
displays the menu as shown on the right.
2 Press CH5/6 to highlight your desired
input signal source. Press VOL+/- or wait
for about 4 seconds and the desired signal
SOURCE
TV
AV
SVIDEO
YPbPr/YCbCr
VGA
Note: All buttons shown in the manual are located on the
remote control unless otherwise indicated.
17
1
2
S.M
TV

Picture Setting Menu
System Setting Menu Picture Position MENU
Audio Setting Menu
Channel Setting Menu
OSD Setting Menu
Signal Information Menu
TV/AV/S-VIDEO MODE YPbPr/YCbCr/VGA MODE
Main On-Screen-Display (OSD)
introduction
18
OSD Setting Menu
Signal Information Menu
System Setting Menu
Audio Setting Menu
Picture Setting Menu
brightness brightness
blue screen h position
language
channel number
sleep time
on
- - - -
on
minutes20
9
off
contrast contrast
v position
OSD position
SRS
antenna/cable antenna cable
color color temp
customer temp setting
phase
OSD background
CC 1
opaque
30 seconds
translucent
sharpness
ccd mode settings
frequency
OSD timeout
bass
add/erase add erase
fine tune
tint
treble
balance
50 50
50 50
5000K
7300K
9300K
user
50
50
15
866
0
0
0
18
0
32
video type: 650 X 462/60Hz resolution: 640 X 480/60Hz
mode: 3 mode: 40
language
OSD position
OSD background opaque
30 seconds
translucent
OSD timeout
on off
mono stereo SAP
SRS
MTS
bass
treble
balance 0
0
0
channel search
48
backlight 6
Back light 6
Note: in AV/S-VIDEO mode, Channel Setting menu
can not be accessed and there is no MTS menu item
in Audio Setting menu.
English English
1 Press MENU button to display menu screen.
2 Press VOL+/- to select the menu.
3 Press CH to access the menu.
4 Press CH to select the item.
5 Press VOL+/- to adjust the item.
6
5/6
6. Press EXIT button twice to exit the menu.
Note: in YPbPr/YCbCr mode, there are no color
temp and customer temp setting menu items in
Picture Setting menu.
parental control settings
