SANDOR PLUS SMA
Product code SANDOR PLUS SMA
DOUBLE OPTIC PERIMETER BARRIER
INSTALLATION AND MOUNTING MANUAL VERSION 2.6

Table of contents
2
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
1.Introduction…………………………………………………………………………………………………………………………….……...3
2.Product description…………………………………………………………………………………………….........……………..3
3.General warnings…………………………………………………………………………………………………………………...…..…. 4
3.1 Additional warnings for devices powered by mains voltage
3.2 Installation warnings
4.List of main components ………………………………………………………………………………………….........……………..5
5.Preparation for installation .................................................. ............................................................... 6
5.1 Preparation of the barrier parts before installation
5.2 It is advisable to carry out
6.Assembly / fixing examples ………………………………………………………. ……………………………………...………… .7
6.1 Installation placement and height
6.2 Placement and assembly
7.Evaluations before installation………………………………… .. ………………………………………………..….….… ..9
7.1 Introduction to barriers
8.Barrier positioning………………………………………. ……………………………… .. ……………………....…… .. …… .10
8.1 Precautions before installation
9.Installation examples …………………….…. ………………………………………………………………………………… ... 11
9.1 Barrier control
10.Wiring…………………………………..………………………………………………………………………………....………… ... 12
10.1 Type of cable
10.2 Connection of cables from power supply to barrier
11.Connections to the terminal board……………………………………………………………………………………………….14
11.1 Wire synchronism
11.2 Connection for synchronism
12.Barrier alignment……………………………………………………..…………………...............………………………………..17
12.1 Calibration using SMA system
12.2 Alignment
12.3 Parallel beam calibration
12.4 Calibration with active crossing function
13.Optical synchronism ……………………………………………………………. …………………………………………….… ..… .21
14.Basic functions ………………………………………………………………… .. …………….………………………………… ... ... 22
14.1 Basic settings and programming - MES9012 board
15.Intervention time adjustment…………………………………………………………………….............…………..……......23
16.Appendix A: motherboard setting and programming (MES9012) …………….......……………. ………… .... 24
16.1 Motherboard components
16.2 LED signal operation
16.3 Characteristics of settings
17.Appendix B: optical board configuration …………………………………………………….…..... ……………………… 28
17.1 Transmitter optics
17.2 Receiver optics
18. Appendix C: configuration with 3/2 receivers …………………………………………………………. …………….… 30
18.1 Setting 3 RX models
18.2 Setting 2 RX models
19.Appendix D: serial connection to the Adebus concentrator …………. ………….…. …………… .. ………… .31
19.1 Serial port connection for each barrier
20.Appendix E: single barrier with optical synchronism ……. ………………. ……………………..……. ………… ..32
21.Technical characteristics ………. ……………. ……………………………………………………………..……………. …… ..33
22.F.A.Q………………………………….………………….……………………………………………………………………….…………….34
23.Product disposal ………………………………. ………. …………………………. …………………..........………. …………… 36

1.Introduction
3
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
Congratulations on having purchased the Politec perimeter barrier.This appliance guarantees
long-lasting and reliable operation if installed correctly.For correct and effective use, it is
necessary to read this instruction manual carefully.
The system has been designed to detect intrusions and activate the alarm; it is not a
device that prevents intrusion.Politec is not responsible for damage, injury or loss
caused by accidents, theft, force majeure (including momentary lightning-induced
overcurrent), abuse, improper or incorrect use, faulty installation or inadequate
maintenance.
2. Product description
The double optic infrared perimeter barrier consists of an infrared receiver and transmitter.
Operation is based on the "AND" logical operations: in other words, the alarm is activated only in
the event of simultaneous interruption of two superimposed beams.
This barrier is ideal for perimeter protection of internal and external areas.
It is equipped with a system for selecting the operating frequency that allows you to install
multiple barriers on the same site without them interfering with each other.The main features of
this barrier are:
•Adjustable intervention time which allows you to adapt to the characteristics of the site to be
protected;
•Protection beam angle adjustment both vertically and horizontally;
•Set up for mounting on a wall, on a pole and on aluminium columns;
•Optical alignment with viewfinder and signal measurement points;
•Contact signalling barrier opening.
Instructions/Warnings
Mounting, installation of the barrier and connection to the mains must be carried out
by expert and qualified personnel, in compliance with rules and regulations applicable
to electrical systems.

3.General warnings
4
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
This installation manual contains important information regarding safety for installation: it is
necessary to read all the instructions before proceeding with the installation.
Keep this manual for future use.
•If you have any questions or doubts during installation, do not carry out any operations and contact
the support service.
•Use of these products for purposes other than those specified in these instructions is prohibited.
•You must not make any change to the components of the product unless stated in the manual in
order not to void the warranty; such operations can only lead to malfunctions; Politec assumes no
liability for malfunctions or damage due to modified products.
•Depending on the specific situation of use, check for the need for additional devices: detectors or
signalling devices.
•During installation, mounting and use of the product, make sure no foreign objects (solids, metals
or liquids) are able to penetrate inside the open devices.
•Manufacturer's liability:Politec assumes no liability for failures resulting from incorrect installation;
lack of maintenance, incorrect assembly or use.
•Politec is also not liable for incorrect or incomplete operation of the product or failure to detect
intrusion.
•Warranty (summary of conditions):Politec guarantees its products for a period of 2 years from the
production date.The warranty is applied to those purchasing directly from Politec; there is no
warranty for the end user who, in the event of breakdowns or faults, must contact the installer or
dealer.
•The warranty excludes aesthetic parts as well as parts subject to normal wear and parts subject to
normal consumption such as batteries and accumulators.
3.1 Additional warnings for devices powered by mains voltage
This manual is intended only for technical personnel qualified to install such devices.
•Assessing the hazards that may occur during installation and use of the system, in order to achieve
complete safety, it is necessary that installation takes place in full compliance with applicable laws,
methods, rules and regulations.
•Before accessing the internal terminals of the product, it is necessary to disconnect all the power
circuits.
•If automatic circuit breakers or fuses trip, before resetting them it is necessary to identify the fault
and repair it.
3.2 Installation warnings
•Check that all the material to be used is in excellent condition and suitable for use.
•Before proceeding with the installation, check the environmental class of the products in the
"technical specifications" chapter.
•Check, by comparing with the values shown in the paragraph "technical specifications", that the
range of the devices is equal to or greater than the physical distance between the barriers.
•Check that the barrier is positioned in areas protected against potential impact, in flat areas and on
fixed supports to avoid oscillations.
•Do not place the system components close to heat sources as they could be damaged.
•Each barrier has its own operating principle: check the instructions for choosing the right position
in the respective instruction manual.

4.List of main components
5
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6

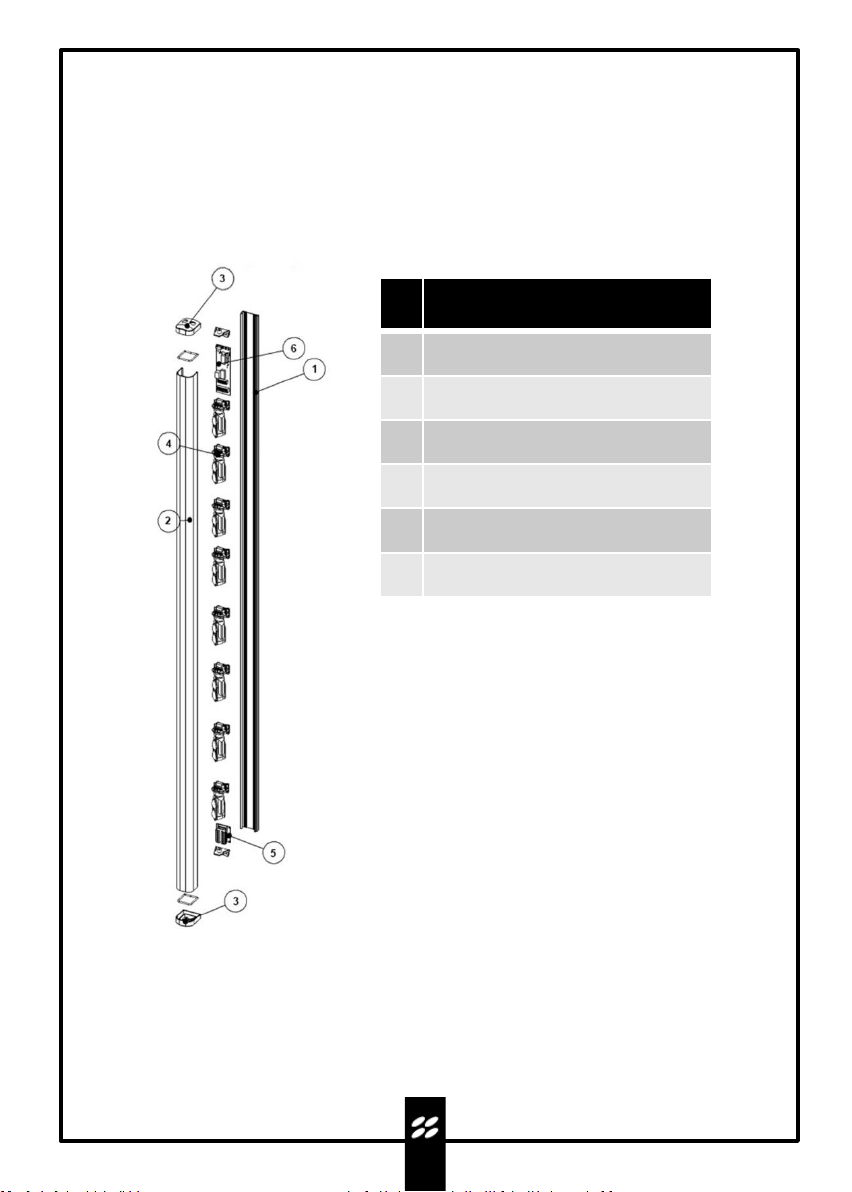

The package contains the following components and accessories.
When opening the package, check that everything has been included.
No
.
COMPONENT
1
Aluminium profile
2
Polycarbonate black cover
3
Caps
4
Transmitter
\ Receiver optics
5
MES9C Terminal board
6
MES9012
Motherboard

5.Preparation for installation
6
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
5.1 Preparation of the barrier parts before installation
Since the communication between the barriers can take place wired, via wireless and their alignment
can be done optically, it is advisable to firstly check all the component parts of the barriers and any
accessories before beginning the installation.
5.2 It is advisable to carry out:
•device configuration on a table;
•a check on the operation of the optical and acoustic alignment
•the permanent fixing of each device;
•the preparation and carrying out of electrical connections.
In order to avoid errors, operating and installation problems, it is advisable to proceed as follows:
a) Place all the products with the package open on a table;
b) For the low consumption barrier version for wireless models with universal electronic board
housing, insert and connect the radio transmitter, and connect it to the barrier receiver board
c) Power up the barriers and program them
d) Test barrier operation;
e) Place (without fixing) the barriers at the planned points;
f) Place (without fixing) all the other devices at the planned points;
g) Check for each barrier that there is sufficient field for radio communication (for wireless versions);
h) Permanently fix the barriers.
Before proceeding with the installation, it is necessary to check the integrity of the product, the
adequacy of the model chosen and the suitability of the environment intended for installation:
• Check that all conditions of use fall within the "limits of use" and in the "Technical specifications of
the product".
• Check that the environment chosen for the installation is compatible with the total footprint of the
product.
• Check that the surface chosen for the installation of the product is solid so as to ensure stable fixing
and that it is adequately protected from possible impacts or atmospheric agents.

6.Assembly/fixing examples
7
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
6.1 Installation placement and height

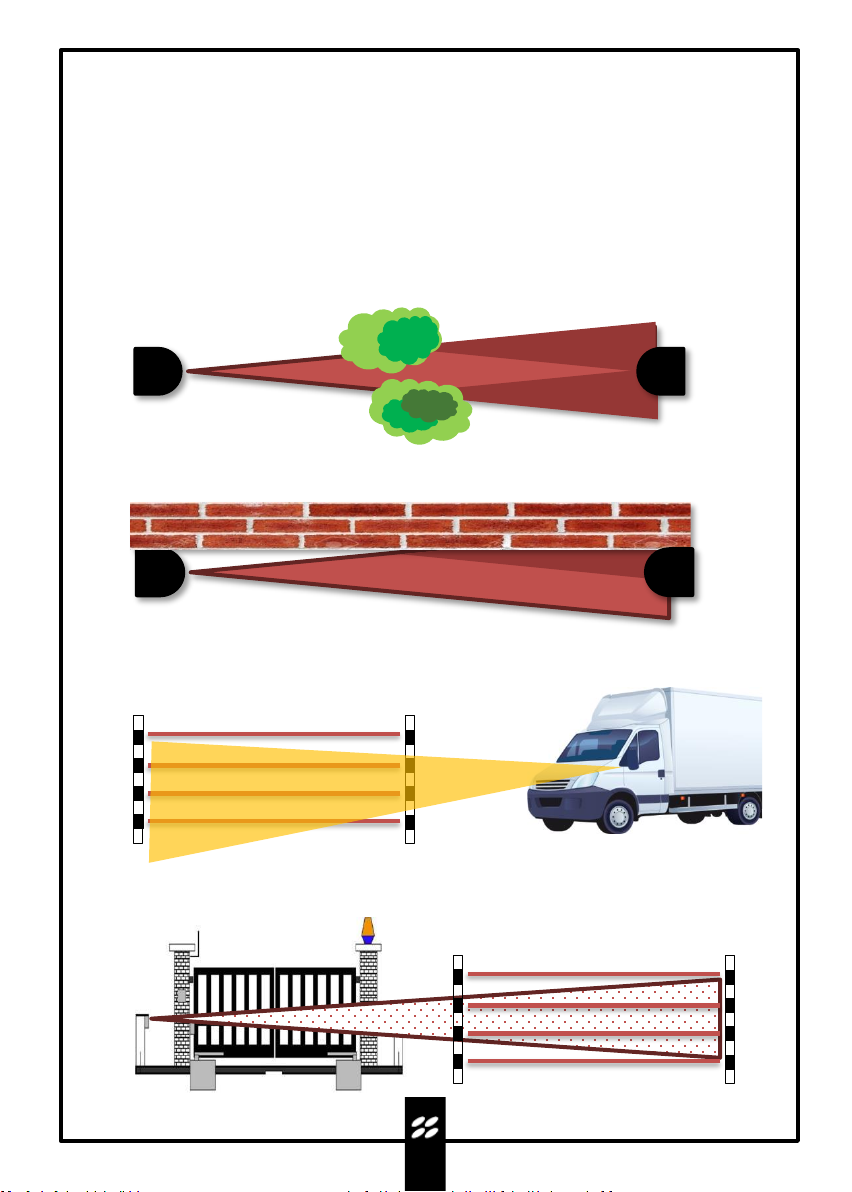

Position the barrier considering the type of surrounding environment and the protection distance for
correct and effective operation.
Position it in such a way that there are no obstacles in its range of action (trees/plants or objects that
can swing or move with the wind or rain).
Position the barrier so that the sunlight does not hit it directly near the RX sensors.
However, it is necessary to take into consideration the specific beam diffusion of each model, to avoid
reflection of the rays caused by the ground or by adjacent objects.

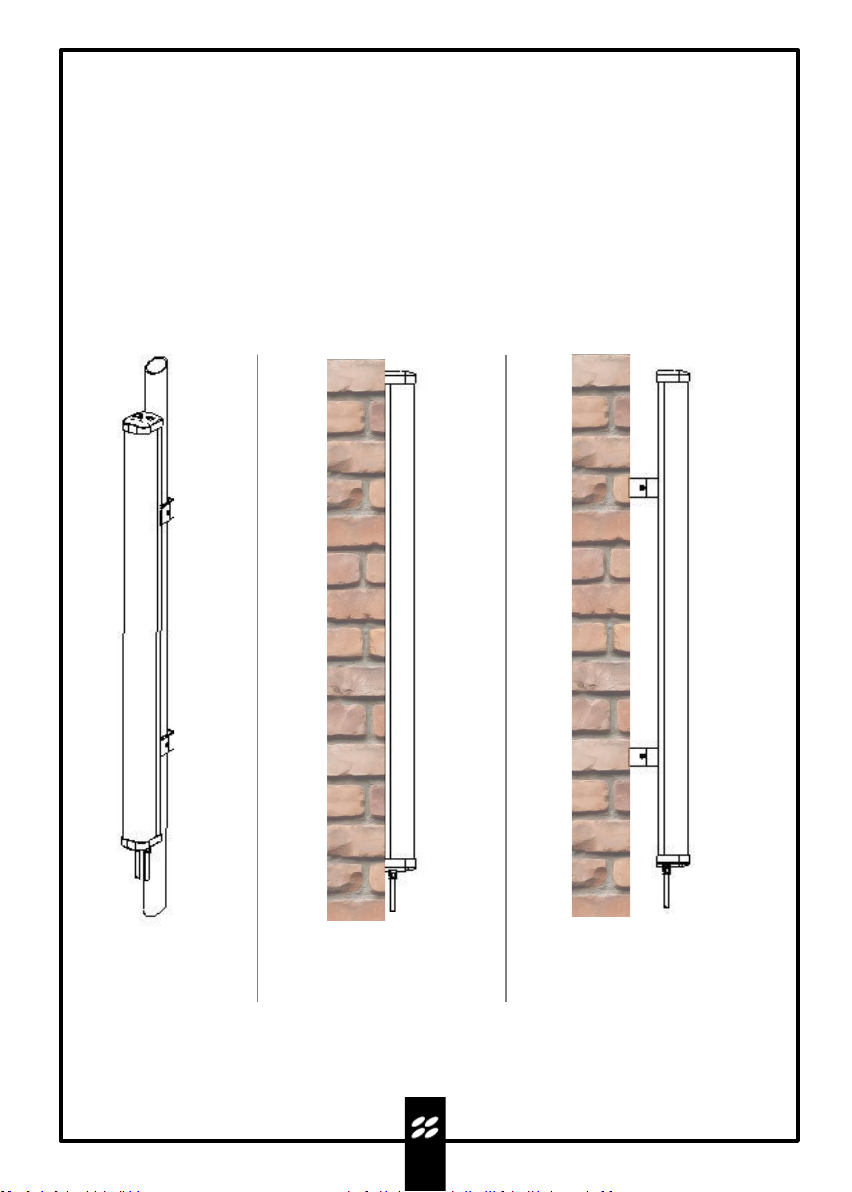

Pole mounting
with SAN/PL brackets Wall mounting with SAN/SD brackets Wall mounting with SAN/PL pole brackets
(recommended for
protection of sections
along the wall)

8
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
6.2 Placement and assembly
It is highly recommended to always request and use the accessory brackets for fixing the columns,
avoiding to drill the aluminium structure.
Pole mounting with SAN/PL
SAN/PL brackets allow fixing on poles type
SAN/TB1 and SAN/TB2 with a diameter of 48 -
50mm in a very simple way as seen in the figure.
•Each column requires a minimum of 2
brackets or more if the column is very high.
•The poles are equipped with a base for fixing
to the floor or to the POB30 cable pit to be
cemented into the ground, also with the
function of branch junction box.
•The connection cables enter from the lower
cover of the column, equipped with O rings
and cable glands.
Wall mounting with SAN/SD
The SAN/SD brackets supplied in akit of 2
pieces allow wall mounting and are invisible, as
seen in the figure.
•These brackets are recommended when the
columns are placed in front of each other or
the internal optics are rotated to less than
90° horizontally.
•Each column requires a kit consisting of two
brackets, which are fixed to the ends of the
column, leaving only the holes for wall fixing
visible.
•Once all the installation and functional
operations have been completed, the two
covers will hide the part with the fixing
holes.
Wall mounting with SAN/PL
The SAN/PL brackets also allow fixing to the
wall, in a very simple way as seen in the figure.
•It is recommended to use these, when
protecting windows, doors, etc., along the
wall, in order to avoid small obstacles, such
as hinges, edges of the windowsills, which
could be in the beams creating an
attenuation of the signal.
•Each column requires a minimum of 2
brackets or more if the column is very high.
WARNING:
Product warranty is invalid if there is any hole in the aluminium profile or any component

7.Evaluations before installation
9
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
2°
50 m
2 m
View from above
TX RX
TX
HEATERS
It is recommended to power the thermostating system as, in conditions of high humidity, the
condensation that is created on the screen can lead to a significant decrease in the IR signal up to the
alarm.For obvious reasons, for battery powered barriers, there is no thermostat control even if set
up, therefore to minimise the problem, it is necessary to reduce the working distance between TX
and RX, thus ensuring a good amount of signal constantly, even in case of particular climatic
conditions.
Signal interruption:ALARM
A barrier can be composed of several TX transmitters and RX receivers mounted inside specific
different columns.
The infrared barriers have multiple controls that significantly limit false alarms, as the genuine
alarm signal is given by the complete interruption of the infrared signal.
7.1 Introduction to barriers
The Active Infrared Barrier is characterised by two components, a TX transmitter that impulsively
emits an infrared signal, towards the RX receiver.This signal is constantly controlled by a CODED
SYNCHRONISM which can be WIRED or OPTICAL according to the different types of barriers.

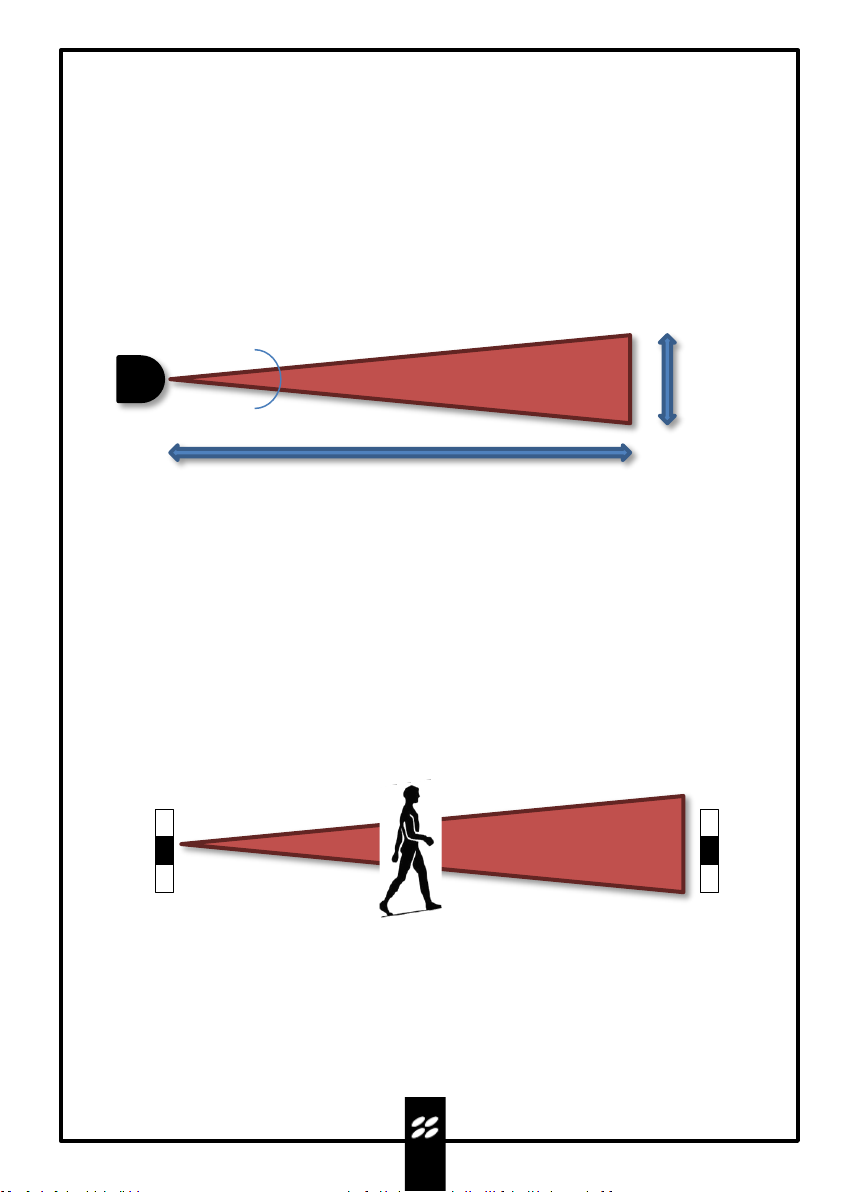

The transmitted infrared beam takes on a conical shape: the greater the distance between TX and RX,
the greater the diameter of the cone when it arrives.

8.Barrier positioning
10
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
8.1 Precautions before installation
Before placing the barriers outdoors, you must bear in mind that the infrared beam has a conical shape:
the greater the distance between the column, the greater the diameter of the cone when its arrives.
In order not to generate false alarms, you must place the barriers away from reflecting surfaces, away
from walls or anything that can attenuate the signal.
DO NOT place the barriers if there are plants, bushes or fixed objects in the range that obstruct
the signal and create "grey areas".Leave a corridor of 50cm for distances between columns
greater than 50m
TX RX
TX RX
DO NOT place barriers close to roads: vehicle lights directed towards the RX could create
disturbances
DO NOT place barriers near automatic gates: photocell signals can create interference.
RX
DO NOT place the barriers close to walls, without spacing the columns with adequate
brackets: the signal quality may decrease

9.Installation examples
11
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
9.1 Barrier control
All Politec products can be customised according to the installation needs, including column height
and consequently the number of beams inside which can vary in different ways and work in parallel or
crossing.
The barriers can have both TX and RX inside, or they can be terminal barriers that have only TX or RX
inside them.
It is possible to create perimeter protection of any shape and size.

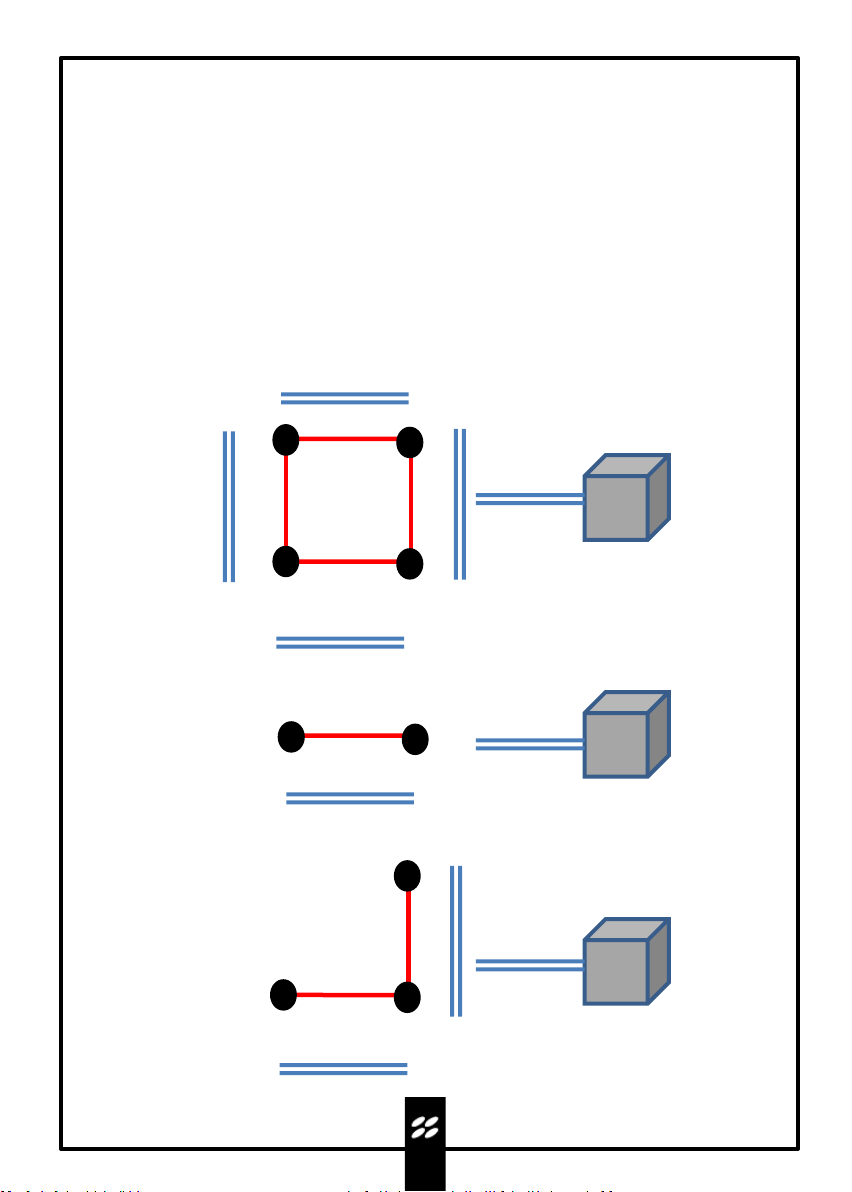

Arrangement of barriers according to protection needs.
TX
RX
TX
RX TX
TX
RX
RX
RX TX
RX
TX
TX
RX
Placing barriers in a closed perimeter
Single barrier system
Placing barriers in an open perimeter
Mixed columns
Terminal columns
Mixed and terminal columns

10.Wiring
12
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
10.1 Type of cable
Wiring requires you to SEPARATE the SHIELDED cable of the 12Vdc power supply plus all the signals
towards the control unit and the synchronism between the columns (e.g.2x0.50 +Nx0.22), from the
power cable of the 24Vac heaters (e.g.2x0.75)to prevent the input of alternating voltage disturbances
on the barrier.
N.B. it is absolutely necessary to shield the cable that supplies the 12 Vdc power supply and to
ground the metal braid.
The sizing of the cables depends on the consumption of the columns and on the resistance of the
cable itself according to the distances involved.
The table shows the cable cross-sections and the relative distances to ensure optimum performance
using the LAR22 power supply (12Vdc-2.5A/24Vac-300W) and a SANDOR PLUS SMA barrier (4TX +
4RX).
The LAR22 can supply up to 4 columns at the maximum extension (4TX +4RX).The LAR22 container is
metallic, so it must be placed inside a room or inserted in a watertight container if used outdoors.A
battery up to 18Ah can be housed in the container.
Alternatively, the LAR18 power supply (12Vdc-0.9A / 24Vac-60W) can be used to power a single
column (maximum configuration 4TX +4RX).The power supply is kept in a PVC container and can offer
IP68 protection if the junction boxes are made with suitable products available on the market.The
LAR18 can be combined with the LARB4 battery housed in a PVC container like the LAR18 but not with
the same IP rating.
CONDUCTOR CROSS-
SECTION POWER SUPPLY BOARDS 12Vdc POWER SUPPLY HEATERS 24Vac
0.5 mm² 165 m 35 m
0.75 mm² 245 m 50 m
1.5 mm² 490 m 100 m
2.5 mm² 820 m 165 m
4 mm² 1310 m 265 m
6 mm² 1975 m 400 m

13
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
It is recommended to make a star-shaped connection to avoid excessive voltage drops on the
power cables
TX
RX
TX
RX TX
TX
RX
RX
Power supply
RX TX
Power supply
RX
TX
TX
RX
Power supply

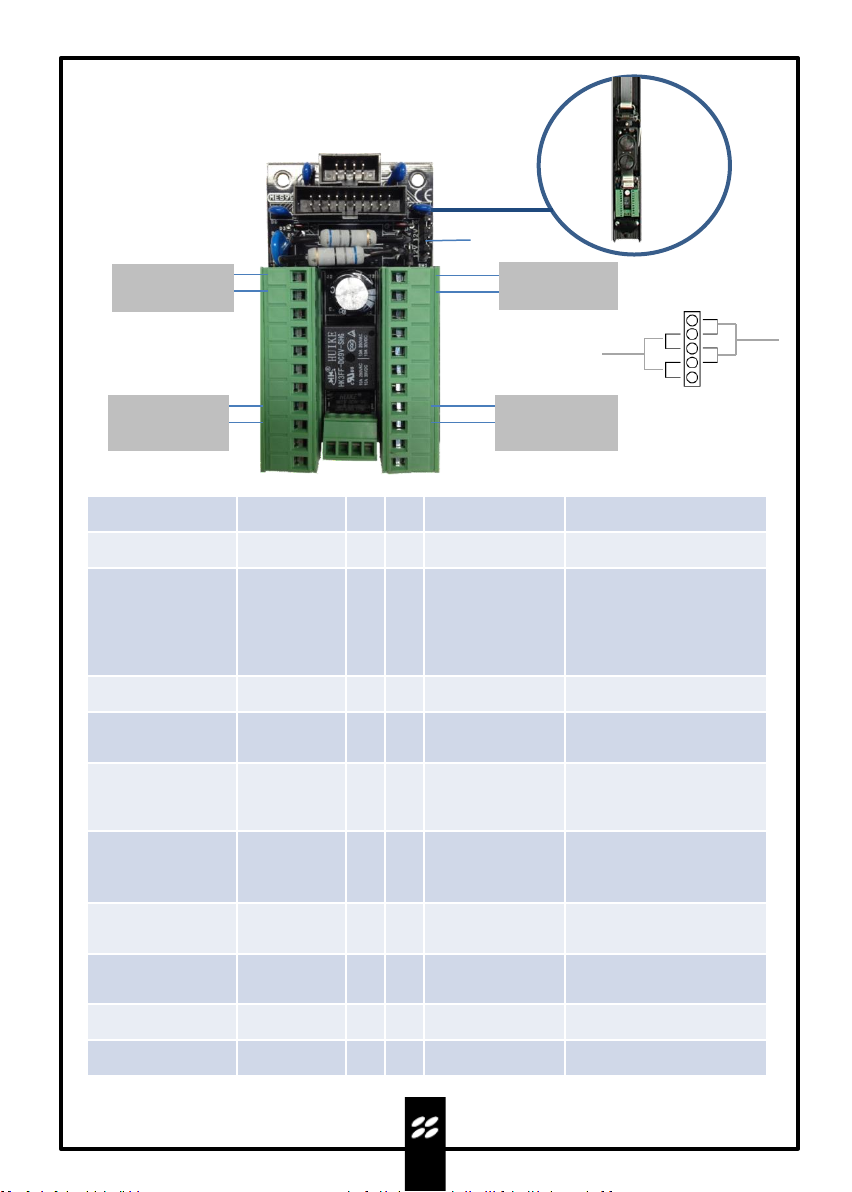

10.2 Connection of cables from power supply to barrier

Power supply positive
+12/30 Vdc
112
12/24 Vac (or Vdc)
Heater power supply
Power supply negative
GND
213
12/24 Vac (or Vdc)
Heater power supply
Tamper output
(TMP)
314
BARRIER INHIBITION
ON COMMAND
(G.IN)
Bring negative for barrier
inhibition for one minute with
external impulse command
.
Reset is automatic after the
elapsed time
Tamper output
A/P
(TMP)
415
AND REMOTE
(AND)
+12 Vdc for AND RX1 + RX2
0V for AND RANDOM
Alarm output
(Normally open)
ALARM RELAY
(NO)
516
BEAM EXCLUSION
.
+12 Vdc -
exclusion RX1
0 V -
exclusion RX1 + RX2
Alarm output
(Normally closed)
ALARM RELAY
(NC)
617
DISQUALIFICATION
OUTPUT
(S.LOW)
Normal conditions high
impedance;
with fog negative voltage
Alarm output
(Common)
ALARM RELAY
(COM)
718
ANTIMASKING
OUTPUT
(A.MASK)
Normal conditions high
impedance;
in case of masking negative
voltage
Input positive
synchronism (TX => RX)
+
SYNCHRONISM
(+ S.IN)
819
+ SYNCHRONISM
(+ S.OUT)
Output positive synchronism (TX
=> RX)
Input negative
synchronism (TX => RX)
- SYNCHRONISM
(-
S.IN)
920
-
SYNCHRONISM
(- S.OUT)
Output negative synchronism
(TX => RX)
Not in use
AME COAXIAL
10 21
AME COAXIAL
Not in use
Not in use
TRESSE COAXIAL
11 22
TRESSE COAXIAL
Not in use
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
11.Connections to the MES9C terminal board
14
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
Power supply
Heaters
Input
Synchronism
Output
Synchronism
Power supply (>
12V)
SW4
12V
24V
SW4 Heater
power supply
selector
switch

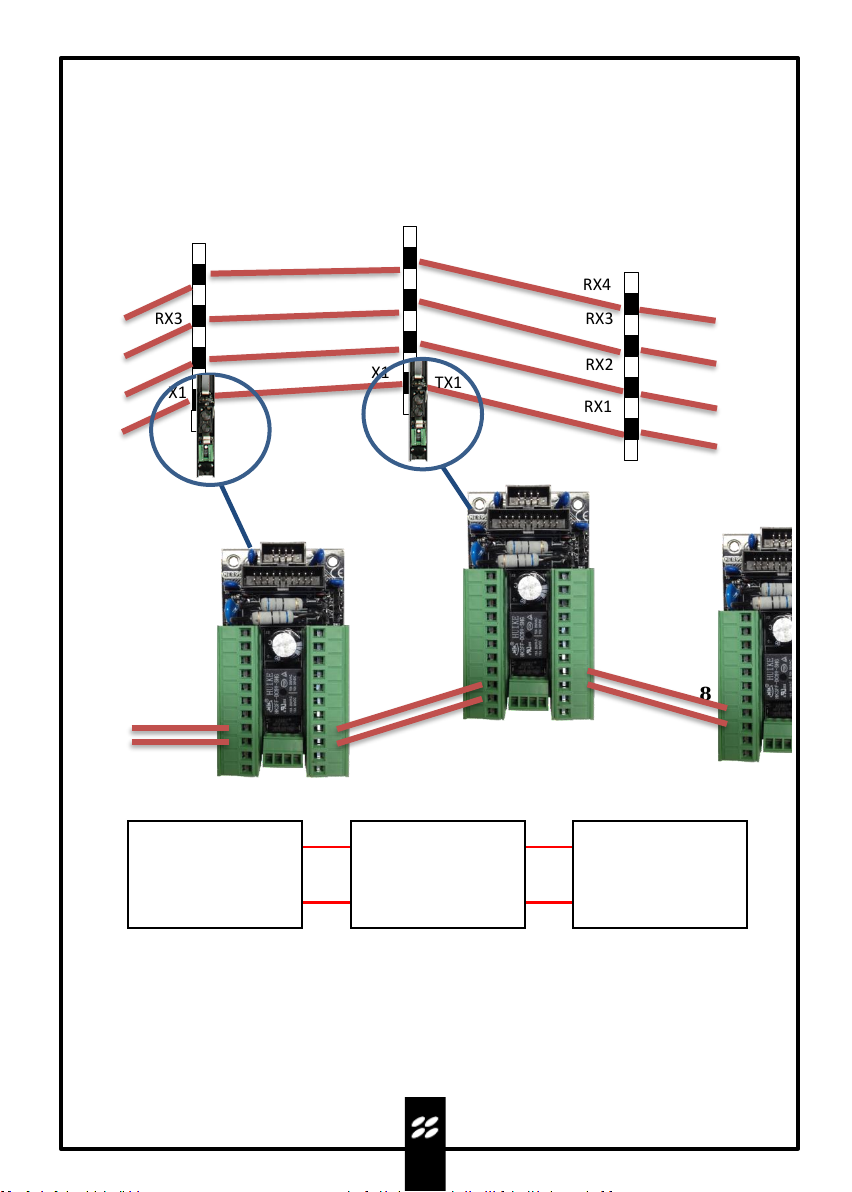

11.1 Wire synchronism
TX/RX arrangement for synchronism connection
The synchronisms are to be connected as per the above diagram.The SYNC OUT corresponds to the
part of the TX column and must be connected to the SYNC IN of the opposite RX column.
N.B.:It is also necessary to connect the power supply negative in common between the columns and
to use shielded cables (2x0.22mm²) for the synchronisms preferably separated from the power
supply, with the braid connected to the negative.
8
9
15
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
RX3
RX4
RX2
RX1
TX1
TX2
TX3
TX4
RX3
RX4
RX2
RX1
RX4
TX1
TX2
TX3
TX4
RX2
RX1
TX1
TX2
TX3
TX4
RX3
8
9
8
9
19
20
19
20
RX
TX
RX
TX
RX
TX
SYNC IN+
(Mors. 8)
SYNC OUT+
(Mors. 19)
SYNC IN+
(Mors. 8)
SYNC OUT+
(Mors. 19)
SYNC IN+
(Mors. 8)
SYNC OUT+
(Mors. 19)
SYNC IN-
(Mors. 9)
SYNC OUT-
(Mors. 20)
SYNC IN-
(Mors. 9)
SYNC OUT-
(Mors. 20)
SYNC IN-
(Mors. 9)
SYNC OUT-
(Mors. 20)

16
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
11.2 Connection for synchronism
The barrier synchronism connections can be made directly between the columns or they can be
made directly in the control unit or in a junction box.
Using a cable with a shielded 2X0.22mm² cross-section, connections up to 500 m can be made.
In the event of joints, the braid and shield connections must also be restored.
TX
RX
TX
RX TX
TX
RX
RX
Sin Sout
Sin
Sout
Sout
Sin
Control unit
RX TX
Sout Sin
Sin Sout
Control unit
RX
TX
TX
RX
Sout
Sin
Sin Sout
Control unit

12.Barrier alignment
17
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
For correct alignment, once the columns are installed, orient the optical units of the transmitters and
the optical units of the receivers towards each other, adjusting the lens holder horizontally through
manual movement, after loosening the locking screw on the joint and vertically through the front
screw located to the left of the lens.
Vertical orientation Horizontal adjustment
JOINT LOCKING
SCREW
N.B.:Tighten the joint locking screw after the adjustment

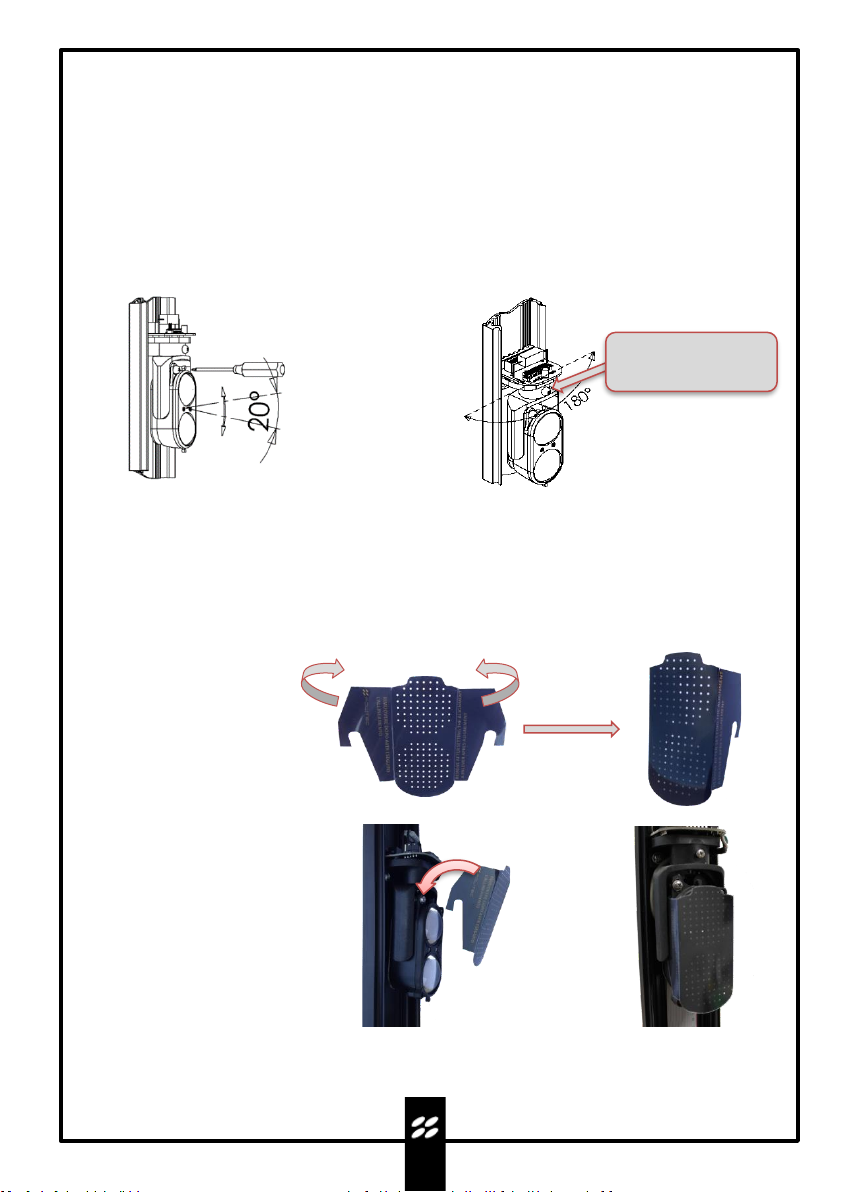

12.1 Calibration using SMA system
It is possible to improve the calibration by using the supplied filter.
1. Fold the device
following the pre-
set folds
2. Position the filter in
front of the TX optic
inserting the two
hooks on the pins of
the optic fork.The
filter is designed to
refine the search for
the alignment signal
under critical
conditions.
It is sufficient to apply the filter only on the TX, there is no need to repeat the operation also on the
RX.

18
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6

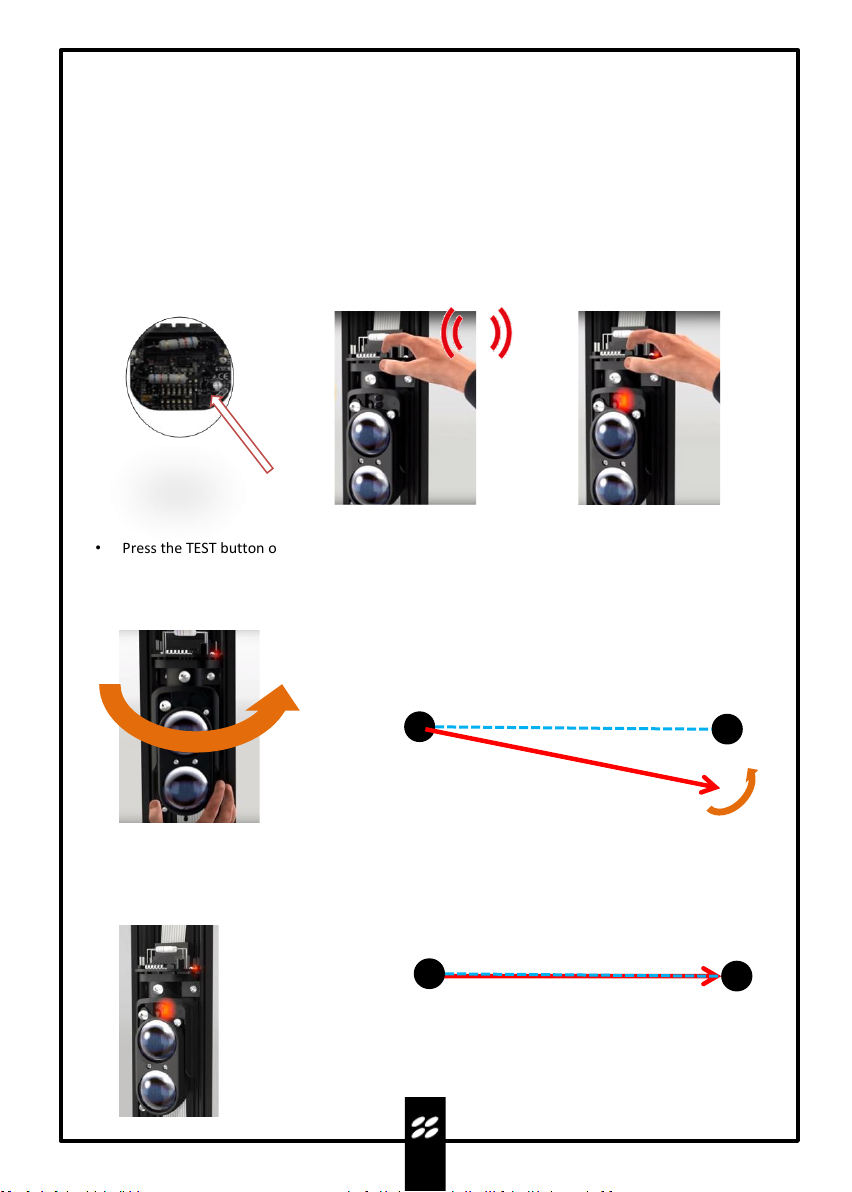

12.2 Alignment
•Power the unit electrically
•Starting from one of the system columns, press the TEST button on the first RX optic for 3 seconds
or until the buzzer emits an intermittent acoustic signal, accompanied by the equally intermittent
flashing of the long-range high intensity LEDs.
N.B.The frequency of the intermittent flashing is determined by the quality/quantity of signal
received.
•Press the TEST button on the TX optic of the corresponding column for 5 seconds, in this case only
the orange TEST led will light up.
•Orient the TX optic towards the RX optic, vertically and horizontally acting as explained above,
until you find the maximum alignment.
•The maximum alignment condition will be reached when the high intensity LEDs are on steady
and the buzzer will emit a continuous sound, for this reason, it may be necessary to act with small
movements also on the RX optic.
TX RX
TX RX

19
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
N.B.: the fixed buzzer sound has a maximum duration of 3 minutes.To obtain a good alignment it is
necessary to complete a FULL rotation on the horizontal axis of the RECEIVER optic, thus performing
the SCANNING of the optical signal.This operation is very useful to understand if the alignment of the
optics is taking place directly on the same axis and not through reflection, therefore deceptive,
because the signal value is much lower, despite having reached the hypothetical maximum alignment
signal.
•The partial or total misalignment condition is signalled by the infrequent flashing of the LEDs and
by the non-continuous whistle of the buzzer.
•After calibration, tighten the horizontal adjustment screw, and exit the test function by pressing
the TEST button on the TX and RX optics for 3 seconds.
•Repeat all the operations on each beam of the barriers that make up the system.
At the end of the operation, remove the screen which acts as an attenuator, making sure to have
found the optimal value.
N.B.:If the barriers work with optical synchronism,
to be absolutely certainty that the alignment of the
optics is correct (and therefore there are no false
alignments due to other infrared sources, such as
gate photocells), cover the TRANSMITTER optic with
your hand: if the RECEIVER continues to give a
continuous beep, it means that it sees another
infrared source that must be turned off and
eliminated.

20
SANDOR PLUS SMA POLITEC | INSTALLATION MANUAL - VER.2.6
RX 1 TX 1
RX 2 TX 2
RX 3 TX 3
RX 4 TX 4
N.B.:During the alignment test phase, the
activation of aTX transmitter determines the
automatic shutdown of the other TX optics in
the column.
12.3 Parallel beam calibration
Test the TX1and RX1 optics and proceed with the calibration as explained.Then repeat the
operation for each pair of optics.
12.4 Calibration with active crossing function
To activate the function, set DIP 2 to ON on the 12 DIPSWITCH unit of the MES9012.
ON
RX 1 TX 1
RX 2 TX 2
RX 3 TX 3
RX 4 TX 4
1 2 3 4 5 6 7 8 9 10 11 12
Test the TX1and RX1 optics and proceed with the calibration as explained above but, having
found the maximum alignment, keep the TX1 optic in test and exit the test only with RX1, then
repeat the same operations with RX2, RX3and RX4.
At the end, exit the test of TX1and repeat the operation for each TX optic on each RX.
At the end of all operations, make sure that TX1and TX4, being at the ends and most susceptible
to orientation movements, are still optimally aligned with the corresponding RX1and RX4.
WARNING: a too close a distance
between the TX and RX columns does
not allow calibration with the crossing
function.
