INPUT
W1RELESSID
@ @ @
~.
~
123.
ec ....
lR eFE
DC5V lA
FIRST THINGS FIRST
Caution: Subwoofers are heavy. Exercise caution when unpacking your subwoofer.
Please check to ensure you have everything in your Polk Audio
PSWi225 Wireless Subwoofer carton. Inside, you should find:
Take Inventory
• PSWi225 Wireless Subwoofer
• Transmitter
• 5' RCA Cable
• Power Supply For Transmitter
• Owners Manual
• Transmitter Wall Mount Template
• Online Registration Card
If anything is missing or damaged, or if your Polk Audio
PSWi225 fails to operate, please notify your dealer immediately.
We recommend keeping your original carton and packing
materials in case you need to ship the unit in the future.
WHERE TO LOCATE YOUR WIRELESS
SUBWOOFER FOR THE BEST SOUND
The PSWi225 Wireless subwoofer can be placed anywhere in the room, up to 30'
(10 meters) from its transmitter. Your Wireless Subwoofer is really easy to place
and can go just about anywhere in the room. Plus you don't have to worry about
connecting wires, because the only wire you have to plug in is the power cord
to an AC outlet and the transmitter wires to your receiver or pre-amp.
Note: Placing your subwoofer in a corner of your room will reinforce
the subwoofer's output. making it sound louder.
HOW TO CONNECT YOUR WIRELESS SUBWOOFER
Wireless ID Switches-The Wireless 10 Switches, found on both the
subwoofer and the transmitter, select the channel for the wireless signal.
The switch settings change the frequency of the wireless signal the transmitter
sends to the Wireless Subwoofer. The Switch provides four possible settings
in the event there is interference from other devices in your home. The two
switches must be set to the same position for the subwoofer to receive
a signal.
Transmitter Inputs
o 00
Q
o Audio Inputs-Where you connect your transmitter to your receiver.
Use the 5' analog L/R or LFE audio cable provided.
o Wireless 10 Switch-Selects the "channel" for the Wireless
Subwoofer signal. Don't forget to select the same "channel"
on the Wireless Subwoofer itself.
o Power Connection-The transmitter power supply is connected here.
o LED-Indicates transmitter is active.
Wireless Subwoofer Controls
•
!
Dimensions
We do recommend placing your subwoofer in different locations
within your room to learn what produces the best sound quality
based upon your listening preferences.
Specifications
12 1/2' Wx 12 1/2' 0x 13" H
________ (31.75c~~J .75cm x 33.02cm_1 _
System Powe,-r __ -c-lO::..:O,--'W'-'-=att=s-'----_
Subwoofer Weight 21 Ibs (9.53kg)
o
PHASE ~
00
0
.·o~ ':I
POWl:R ~
.£ ,.~L, V
~,,.
OV
o'
I \
MIN MAX
WIRELESS 10
c:::=:J
... _-_ " ... 11;II;-""'_.
_..._ _nJ"' __ W
___ "'lII" '"
---_ ... _.-
__ "<l:._
1tIoU-1 _
(00 __ ."_'''_''' _
_ .. e-.c:~_
o
For more information on subwoofer placement. go to:
www.polkaudio.com/education/article.php?id=20.
o Volume-Adjusts the volume of the Wireless Subwoofer.
o Power Mode LED-Shines green when the Wireless Subwoofer
is on and red when it's in standby mode or off.
o Wireless 10 Switch-Selects the "channel"
for the Wireless Subwoofer signal.
o Power Switch-Turns the Wireless Subwoofer on and
off, but you can leave it on all the time if you wish.
" Low Pass-Adjusts the frequency range over
which the subwoofer operates.
o Phase Switch-See page 5.
Customer Service Hours of Operation: Monday-Friday, 9AM-6PM EST
[email protected]
3
INPUT
W1RELESSID
@ @ @
~.
~
123.
ec ....
lR eFE
DC5V lA
FIRST THINGS FIRST
Caution: Subwoofers are heavy. Exercise caution when unpacking your subwoofer.
Please check to ensure you have everything in your Polk Audio
PSWi225 Wireless Subwoofer carton. Inside, you should find:
Take Inventory
• PSWi225 Wireless Subwoofer
• Transmitter
• 5' RCA Cable
• Power Supply For Transmitter
• Owners Manual
• Transmitter Wall Mount Template
• Online Registration Card
If anything is missing or damaged, or if your Polk Audio
PSWi225 fails to operate, please notify your dealer immediately.
We recommend keeping your original carton and packing
materials in case you need to ship the unit in the future.
WHERE TO LOCATE YOUR WIRELESS
SUBWOOFER FOR THE BEST SOUND
The PSWi225 Wireless subwoofer can be placed anywhere in the room, up to 30'
(10 meters) from its transmitter. Your Wireless Subwoofer is really easy to place
and can go just about anywhere in the room. Plus you don't have to worry about
connecting wires, because the only wire you have to plug in is the power cord
to an AC outlet and the transmitter wires to your receiver or pre-amp.
Note: Placing your subwoofer in a corner of your room will reinforce
the subwoofer's output. making it sound louder.
HOW TO CONNECT YOUR WIRELESS SUBWOOFER
Wireless ID Switches-The Wireless 10 Switches, found on both the
subwoofer and the transmitter, select the channel for the wireless signal.
The switch settings change the frequency of the wireless signal the transmitter
sends to the Wireless Subwoofer. The Switch provides four possible settings
in the event there is interference from other devices in your home. The two
switches must be set to the same position for the subwoofer to receive
a signal.
Transmitter Inputs
o 00
Q
o Audio Inputs-Where you connect your transmitter to your receiver.
Use the 5' analog L/R or LFE audio cable provided.
o Wireless 10 Switch-Selects the "channel" for the Wireless
Subwoofer signal. Don't forget to select the same "channel"
on the Wireless Subwoofer itself.
o Power Connection-The transmitter power supply is connected here.
o LED-Indicates transmitter is active.
Wireless Subwoofer Controls
•
!
Dimensions
We do recommend placing your subwoofer in different locations
within your room to learn what produces the best sound quality
based upon your listening preferences.
Specifications
12 1/2' Wx 12 1/2' 0x 13" H
________ (31.75c~~J .75cm x 33.02cm_1 _
System Powe,-r __ -c-lO::..:O,--'W'-'-=att=s-'----_
Subwoofer Weight 21 Ibs (9.53kg)
o
PHASE ~
00
0
.·o~ ':I
POWl:R ~
.£ ,.~L, V
~,,.
OV
o'
I \
MIN MAX
WIRELESS 10
c:::=:J
... _-_ " ... 11;II;-""'_.
_..._ _nJ"' __ W
___ "'lII" '"
---_ ... _.-
__ "<l:._
1tIoU-1 _
(00 __ ."_'''_''' _
_ .. e-.c:~_
o
For more information on subwoofer placement. go to:
www.polkaudio.com/education/article.php?id=20.
o Volume-Adjusts the volume of the Wireless Subwoofer.
o Power Mode LED-Shines green when the Wireless Subwoofer
is on and red when it's in standby mode or off.
o Wireless 10 Switch-Selects the "channel"
for the Wireless Subwoofer signal.
o Power Switch-Turns the Wireless Subwoofer on and
off, but you can leave it on all the time if you wish.
" Low Pass-Adjusts the frequency range over
which the subwoofer operates.
o Phase Switch-See page 5.
Customer Service Hours of Operation: Monday-Friday, 9AM-6PM EST
[email protected]
3

AC POWER CONNECTION AND AUTO ON/OFF
Off/Auto/On Switch
Your PSWi225 Subwoofer uses a 3-position power switch, which
selects your subwoofer's operational mode. The three modes are:
Off, Auto and On.
• Off
o With the switch in this position, the subwoofer is inactive.
CONNECTING THE SUBWOOFER TO
THE SYSTEM-HOOKUP OPTIONS
IMPORTANT NOTE: USE ONLY ONE OF THESE OPTIONS.
NEVER COMBINE HOOKUP OPTIONS.
OPTION #1 Receivers that include a "SUB our feature-
the most common hookup method with Dolby Digital®and DTS® receivers.
SUB-OUT
W
o
Auto
In the "Auto" position, your subwoofer automatically turns on when it senses
an audio signal and the LED located on the back of the subwoofer will turn green.
We recommend the" Auto" mode if your subwoofer is always receiving
power (i.e., if it's plugged into a wall outlet). When no signal is present. the
subwoofer will enter a "waiting" state after 15 minutes and the LED will turn red.
On
The subwoofer is always on and fully active in this mode. The LED on the back
of the subwoofer will be green. This mode is best if the subwoofer is plugged
into a switched power outlet.
Note: You may want to leave your subwoofer unplugged during extended
periods of non use, such as during a vacation.
CENTER CHANNEL
WIRELESS TRANSMITTER
The two switches
must be set to the
same position for the
subwoofer to receive
a signal.
WIRELESS SUBWOOFER
opoIQIdicr
, '.0-
o 31. .. '£L.
• Connect a single RCA cable from the "SUB our of your receiver
to the LFE input of the transmitter.
• Connect all other speakers directly to the receiver.
• Adjust your receiver's speaker configurations as follows:
Front Speakers = SMALL
Center and Surrounds = SMALL
Subwoofer = ON, YES, or PRESENT
• Depending on your front speakers' bass output capabilities, set the crossover
frequency on the receiver to 80Hz for tower and bookshelf speakers (speakers
with a woofer 5 1/4" in diameter or larger) and 1 DO-120Hz for satellite speakers.
Consult your receiver's owner's manual for instructions.
4 Polk Audio Customer Service 800-377-7655 (Outside USA & Canada: 410-358-3600)
AC POWER CONNECTION AND AUTO ON/OFF
Off/Auto/On Switch
Your PSWi225 Subwoofer uses a 3-position power switch, which
selects your subwoofer's operational mode. The three modes are:
Off, Auto and On.
• Off
o With the switch in this position, the subwoofer is inactive.
CONNECTING THE SUBWOOFER TO
THE SYSTEM-HOOKUP OPTIONS
IMPORTANT NOTE: USE ONLY ONE OF THESE OPTIONS.
NEVER COMBINE HOOKUP OPTIONS.
OPTION #1 Receivers that include a "SUB our feature-
the most common hookup method with Dolby Digital®and DTS® receivers.
SUB-OUT
W
o
Auto
In the "Auto" position, your subwoofer automatically turns on when it senses
an audio signal and the LED located on the back of the subwoofer will turn green.
We recommend the" Auto" mode if your subwoofer is always receiving
power (i.e., if it's plugged into a wall outlet). When no signal is present. the
subwoofer will enter a "waiting" state after 15 minutes and the LED will turn red.
On
The subwoofer is always on and fully active in this mode. The LED on the back
of the subwoofer will be green. This mode is best if the subwoofer is plugged
into a switched power outlet.
Note: You may want to leave your subwoofer unplugged during extended
periods of non use, such as during a vacation.
CENTER CHANNEL
WIRELESS TRANSMITTER
The two switches
must be set to the
same position for the
subwoofer to receive
a signal.
WIRELESS SUBWOOFER
opoIQIdicr
, '.0-
o 31. .. '£L.
• Connect a single RCA cable from the "SUB our of your receiver
to the LFE input of the transmitter.
• Connect all other speakers directly to the receiver.
• Adjust your receiver's speaker configurations as follows:
Front Speakers = SMALL
Center and Surrounds = SMALL
Subwoofer = ON, YES, or PRESENT
• Depending on your front speakers' bass output capabilities, set the crossover
frequency on the receiver to 80Hz for tower and bookshelf speakers (speakers
with a woofer 5 1/4" in diameter or larger) and 1 DO-120Hz for satellite speakers.
Consult your receiver's owner's manual for instructions.
4 Polk Audio Customer Service 800-377-7655 (Outside USA & Canada: 410-358-3600)

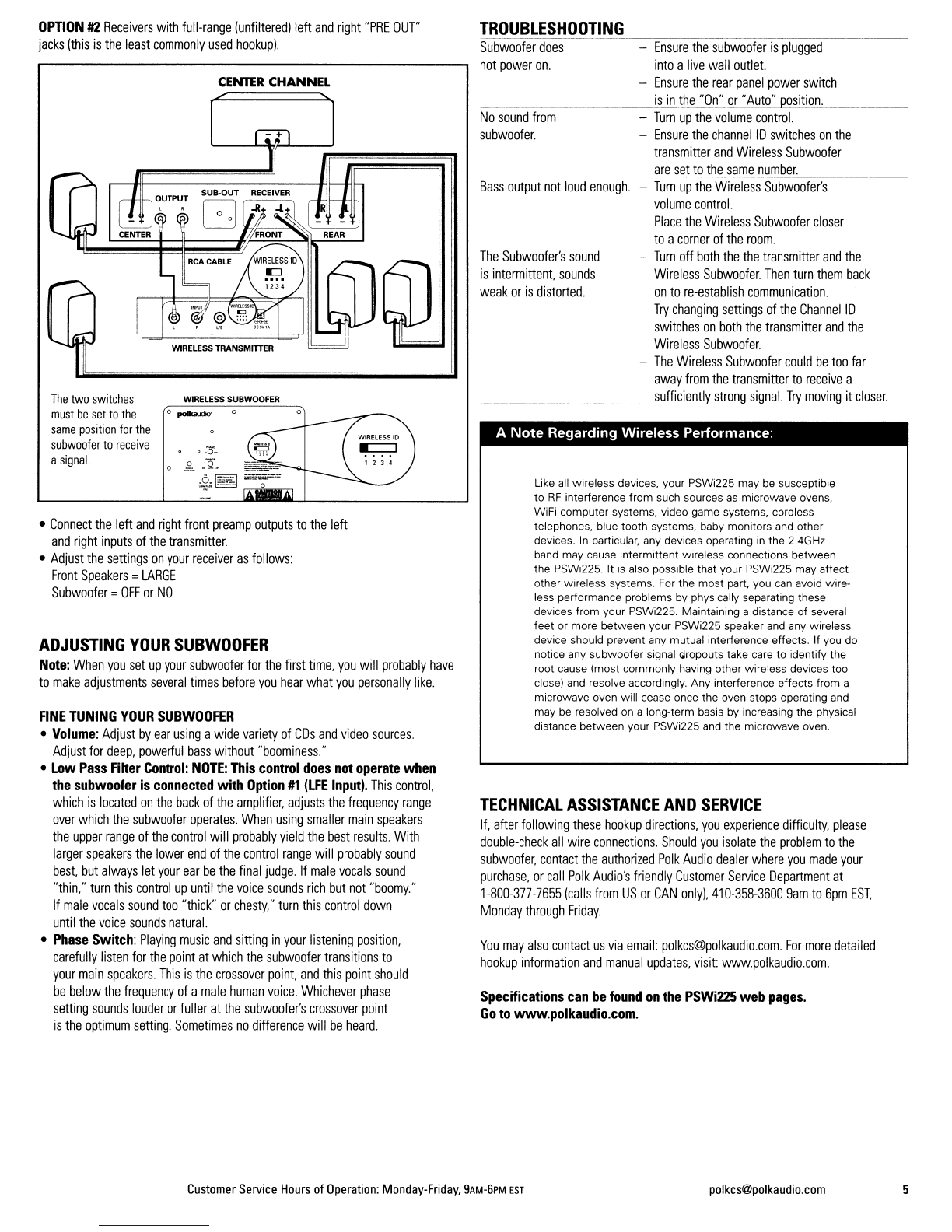

CENTER CHANNEL
OPTION #2 Receivers with full-range (unfilteredlleft and right "PRE our
jacks (this is the least commonly used hookupl.
The Subwoofer's sound
is intermittent, sounds
weak or is distorted.
Like all wireless devices, your PSWi225 may be susceptible
to
RF interference from such sources as microwave ovens,
WiFi computer systems, video game systems, cordless
telephones, blue tooth systems, baby monitors and other
devices.
In particular, any devices operating in the 2.4GHz
band may cause intermittent wireless connections between
the PSWi225. It
is also possible that your PSWi225 may affect
other wireless systems. For the most part, you
can avoid wire-
less performance problems by physically separating these
devices from your PSWi225. Maintaining adistance of several
feet or more between your PSWi225 speaker and any wireless
device should prevent any mutual interference effects. If you do
notice any subwoofer signal aropouts take care to identify the
root cause (most commonly having other wireless devices too
close) and resolve accordingly. Any interference effects from a
microwave oven will cease once the oven stops operating and
may be resolved on along-term basis by increasing the physical
distance between your PSWi225 and the microwave oven.
Specifications can be found on the PSWi225 web pages.
Go to www.polkaudio.com.
You may also contact us via email: [email protected]. For more detailed
hookup information and manual updates, visit: www.polkaudio.com.
TECHNICAL ASSISTANCE AND SERVICE
If, after following these hookup directions, you experience difficulty, please
double-check all wire connections. Should you isolate the problem to the
subwoofer, contact the authorized Polk Audio dealer where you made your
purchase, or call Polk Audio's friendly Customer Service Department at
1-800-377-7655 (calls from US or CAN only), 410-358-3600 gam to 6pm EST.
Monday through Friday.
A Note Regarding Wireless Performance:
No sound from
subwoofer.
Bass output not loud enough.
TROUBLESHOOTING~--=-_-,--~--;---:---;-~~_
Subwoofer does - Ensure the subwoofer is plugged
not power on. into a live wall outlet.
- Ensure the rear panel power switch
is in the "On" or "Auto" position.
- Turn up the volume control.
- Ensure the channel 10 switches on the
transmitter and Wireless Subwoofer
are set to the same number.
- Turn up the Wireless Subwoofer's
volume control.
- Place the Wireless Subwoofer closer
to a corner of the room.
---------
- Turn off both the the transmitter and the
Wireless Subwoofer. Then turn them back
on to re-establish communication.
- Try changing settings of the Channel 10
switches on both the transmitter and the
Wireless Subwoofer.
- The Wireless Subwoofer could be too far
away from the transmitter to receive a
sufficientl'{~!"-Of![sigrlal. Try moving it closer.
WIRELESS SUBWOOFER
o poIkaudicr
0.0_
o o'
o_7.'':' ~ ........
-+
The two switches
must be set to the
same position for the
subwoofer to receive
a signal.
FINE TUNING YOUR SUBWOOFER
• Volume: Adjust by ear using a wide variety of CDs and video sources.
Adjust for deep, powerful bass without "boominess."
• Low Pass Filter Control: NOTE: This control does not operate when
the subwoofer is connected with Option #1 (LFE Input). This control,
which is located on the back of the amplifier, adjusts the frequency range
over which the subwoofer operates. When using smaller main speakers
the upper range of the control will probably yield the best results. With
larger speakers the lower end of the control range will probably sound
best, but always let your ear be the final judge. If male vocals sound
"thin," turn this control up until the voice sounds rich but not "boomy."
If male vocals sound too "thick" or chesty," turn this control down
until the voice sounds natural.
• Phase Switch: Playing music and sitting in your listening position,
carefully listen for the point at which the subwoofer transitions to
your main speakers. This is the crossover point, and this point should
be below the frequency of a male human voice. Whichever phase
setting sounds louder or fuller at the subwoofer's crossover point
is the optimum setting. Sometimes no difference will be heard.
ADJUSTING YOUR SUBWOOFER
Note: When you set up your subwoofer for the first time, you will probably have
to make adjustments several times before you hear what you personally like.
• Connect the left and right front preamp outputs to the left
and right inputs of the transmitter.
• Adjust the settings on your receiver as follows:
Front Speakers = LARGE
Subwoofer = OFF or NO
Customer Service Hours of Operation: Monday-Friday, 9AM-6PM EST
[email protected]
5
CENTER CHANNEL
OPTION #2 Receivers with full-range (unfilteredlleft and right "PRE our
jacks (this is the least commonly used hookupl.
The Subwoofer's sound
is intermittent, sounds
weak or is distorted.
Like all wireless devices, your PSWi225 may be susceptible
to
RF interference from such sources as microwave ovens,
WiFi computer systems, video game systems, cordless
telephones, blue tooth systems, baby monitors and other
devices.
In particular, any devices operating in the 2.4GHz
band may cause intermittent wireless connections between
the PSWi225. It
is also possible that your PSWi225 may affect
other wireless systems. For the most part, you
can avoid wire-
less performance problems by physically separating these
devices from your PSWi225. Maintaining adistance of several
feet or more between your PSWi225 speaker and any wireless
device should prevent any mutual interference effects. If you do
notice any subwoofer signal aropouts take care to identify the
root cause (most commonly having other wireless devices too
close) and resolve accordingly. Any interference effects from a
microwave oven will cease once the oven stops operating and
may be resolved on along-term basis by increasing the physical
distance between your PSWi225 and the microwave oven.
Specifications can be found on the PSWi225 web pages.
Go to www.polkaudio.com.
You may also contact us via email: [email protected]. For more detailed
hookup information and manual updates, visit: www.polkaudio.com.
TECHNICAL ASSISTANCE AND SERVICE
If, after following these hookup directions, you experience difficulty, please
double-check all wire connections. Should you isolate the problem to the
subwoofer, contact the authorized Polk Audio dealer where you made your
purchase, or call Polk Audio's friendly Customer Service Department at
1-800-377-7655 (calls from US or CAN only), 410-358-3600 gam to 6pm EST.
Monday through Friday.
A Note Regarding Wireless Performance:
No sound from
subwoofer.
Bass output not loud enough.
TROUBLESHOOTING~--=-_-,--~--;---:---;-~~_
Subwoofer does - Ensure the subwoofer is plugged
not power on. into a live wall outlet.
- Ensure the rear panel power switch
is in the "On" or "Auto" position.
- Turn up the volume control.
- Ensure the channel 10 switches on the
transmitter and Wireless Subwoofer
are set to the same number.
- Turn up the Wireless Subwoofer's
volume control.
- Place the Wireless Subwoofer closer
to a corner of the room.
---------
- Turn off both the the transmitter and the
Wireless Subwoofer. Then turn them back
on to re-establish communication.
- Try changing settings of the Channel 10
switches on both the transmitter and the
Wireless Subwoofer.
- The Wireless Subwoofer could be too far
away from the transmitter to receive a
sufficientl'{~!"-Of![sigrlal. Try moving it closer.
WIRELESS SUBWOOFER
o poIkaudicr
0.0_
o o'
o_7.'':' ~ ........
-+
The two switches
must be set to the
same position for the
subwoofer to receive
a signal.
FINE TUNING YOUR SUBWOOFER
• Volume: Adjust by ear using a wide variety of CDs and video sources.
Adjust for deep, powerful bass without "boominess."
• Low Pass Filter Control: NOTE: This control does not operate when
the subwoofer is connected with Option #1 (LFE Input). This control,
which is located on the back of the amplifier, adjusts the frequency range
over which the subwoofer operates. When using smaller main speakers
the upper range of the control will probably yield the best results. With
larger speakers the lower end of the control range will probably sound
best, but always let your ear be the final judge. If male vocals sound
"thin," turn this control up until the voice sounds rich but not "boomy."
If male vocals sound too "thick" or chesty," turn this control down
until the voice sounds natural.
• Phase Switch: Playing music and sitting in your listening position,
carefully listen for the point at which the subwoofer transitions to
your main speakers. This is the crossover point, and this point should
be below the frequency of a male human voice. Whichever phase
setting sounds louder or fuller at the subwoofer's crossover point
is the optimum setting. Sometimes no difference will be heard.
ADJUSTING YOUR SUBWOOFER
Note: When you set up your subwoofer for the first time, you will probably have
to make adjustments several times before you hear what you personally like.
• Connect the left and right front preamp outputs to the left
and right inputs of the transmitter.
• Adjust the settings on your receiver as follows:
Front Speakers = LARGE
Subwoofer = OFF or NO
Customer Service Hours of Operation: Monday-Friday, 9AM-6PM EST
[email protected]
5

LIMITED WARRANTY
Polk Audio, Inc., warrants to the original retail purchaser only. This warranty will terminate automati·
cally prior to its stated expiration if the original retail purchaser sells or transfers the Product to any
other party.
Polk Audio, Inc., warrants, to the original retail purchaser only, that the LOUDSPEAKERISI, PASSIVE
CROSSOVER COMPONENTISI and ENCLOSURE on this Polk Audio Loudspeaker Product will be free
from defects in material and workmanship for a period of five (51 years from the date of original retail
purchase from a Polk Audio Authorized Dealer.
Furthermore, Polk Audio, Inc., warrants, to the original retail purchaser only, that any AMPLIFIER OR
OTHER ELECTRONIC COMPONENT that may be included in this Polk Audio Loudspeaker Product will be
free from defects in material and workmanship for a period of three (31 years from the date of original
retail purchase from a Polk Audio Authorized Dealer.
To allow Polk Audio to offer the best possible warranty service, please register your new product
online at: www.polkaudio.com/registration or call Polk customer service 800-377-7655 in
the USA and Canada (outside the USA: 410-358·36001 within ten (101 days of the date of original pur-
chase. Be sure to keep your original purchase receipt.
Defective Products must be shipped, together with proof of purchase, prepaid insured to the Polk
Audio Authorized Dealer from whom you purchased the Product, or to the Factory at 2550 Britannia
Boulevard, Suite A, San Diego, California 92154. Products must be shipped in the original shipping
container or its equivalent; in any case the risk of loss or damage in transit is to
be borne by you. If upon examination at the Factory or Polk Audio Authorized Dealer it is determined
that the unit was defective in materials or workmanship at any time during this Warranty period, Polk
Audio or the Polk Audio Authorized Dealer will, at its option, repair or replace this Product at no addi-
tional charge, except as set forth below. All replaced parts and Products become the property of Polk
Audio. Products replaced or repaired under this warranty will be returned to you, within a reasonable
time, freight prepaid.
This warranty does not include service or parts to repair damage caused by accident. disaster, misuse,
abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in
excess of the rated maximum of the unit. cosmetic appearance of cabinetry not directly attributable to
defect in materials or workmanship, or service, repair, or modification of the Product which has not
been authorized or approved by Polk Audio. This warranty shall terminate if the Serial number on the
Product has been removed, tampered with or defaced.
This warranty is in lieu of all other expressed Warranties. All implied warranties on this Product are
limited to the duration of this expressed Warranty. Some states do not allow limitation on how long an
implied Warranty lasts, so the above limitations may not apply to you. This Warranty gives you specific
legal rights, and you also may have other rights which vary from state to state.
If this Product is defective in materials or workmanship as warranted above, your sale remedy shall be
repair or replacement as provided above. This warranty does not cover service, parts, or supplies to
repair damage to property other than the Product. In no event will Polk Audio, Inc. be liable to you for
any incidental or consequential damages arising out of the use or in-ability to use the Product. even if
Polk Audio, Inc. or a Polk Audio Authorized Dealer has been advised of the possibility of such damages,
or for any claim by any other party. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limita-
tion and exclusion may not apply to you.
This Warranty applies only to Products purchased in Canada, the United States of America, its posses-
sions, and U.S. and NATO armed forces exchanges and audio clubs. The Warranty terms and condi-
tions applicable to Products purchased in other countries are available from the Polk Audio Authorized
Distributors in such countries.
C€
GARANTIE L1MITEE
La garantie de Polk Audio, Inc., n'est valide que pour I'acheteur au detail original. La garantie sera
automatiquement annulee avant sa date d'expiration specitiee si I'acheteur original vend ou transfere
Ie produit a tout autre parti.
Polk Audio, Inc .. garantit -a I'acheteur au detail original seulement - que Ie ou les HAUT-PARLEUR(SI,
COMPOSANTEISI DE FILTRE PASSIF et CAISSON(S) de ce produit Polk Audio seront exempts de tout
defaut attribuable aux pieces d'origine et a la main d'oeuvre pour une periode de cinq 15) ans a partir
de la date de I'achat au detail original chez un revendeur agree Polk Audio.
En outre, Polk Audio, Inc., garantit -a I'acheteur au detail original seulement - que TOUT AMPLIFICA-
TEUR OU TOUT AUTRE COMPOSANTE ELECTRONIQUE qui pourrait faire partie ce produit Polk Audio
sera exempt de tout defaut attribuable aux pieces d'origine et a la main d'oeuvre pour une peri ode de
trois (3) ans a partir de la date de I'achat au detail original chez un revendeur agree Polk Audio.
Pour permettre a Polk Audio de vous offrir Ie meilleur service de garantie possible, veuillez enregistrer
votre nouveau produit en Iigne a I' adresse web www.polkaudio.com/registration - ou contactez Ie
Service a la Clientele de Polk au 800-377-7655 aux Etats-Unis et au Canada (a I'exterieur des E.U.:410-
35B-36001 dans les dix (10) jours suivant la date de I'achat original. Assurez-vous de conserver votre
re,u d'achat original.
Les produits dMectueux doivent etre expedies, avec une preuve d'achat, francs de port et assures, au
revendeur agree Polk Audio de qui vous avez achete Ie produit, ou a I'usine Polk Audio, 2550 Britannia
Boulevard, Suite A, San Diego, California 92154.
Les produits doivent etre expedies dans leur carton d'expedition original ou dans un contenant equiva-
lent. Le proprietaire doit assumer tout risque de perte ou de dommage en transit.
Si, suite a I'examen du produit a I'usine Polk ou chez Ie marchand agree Polk Audio, il est determine
que la dMectuosite est imputable aux materiaux d'origine ou a la main d'oeuvre au cours de la periode
de la garantie speciMe, Polk Audio ou Ie revendeur Polk Audio, a sa guise, reparera ou remplacera Ie
produit sans frais additionnels et selon les conditions decrites ci-dessous.
Toute piece ou produit remplace devient la propriete de Polk Audio. Les produits repares ou remplaces
sous la garantie vous seront expedies francs de port dans un delai raisonnable.
Cette garantie n'inclut pas Ie service ou les pieces necessaires a la reparation des dommages provo-
ques par accident, desaslre, abus, negligence, mode d'expedition ou emballage inadequat, utilisation
commercia Ie, tensions superieures au maximum prescrit pour I'unite, aspect visuel du meuble non
directement attribuable a un defaut de pieces d'origine ou de main d'oeuvre, ou par Ie service, la
reparation, ou toute modification du produit qui n'a pas ete autorise ou approuve par Polk Audio.
Cette garantie sera annulee si Ie numero de serie sur Ie produit a ete enleve, altere ou falsiM.
Cette garantie prend preseance sur toutes autres garanties enoncees. Si la defectuosite de ce
produit est imputable aux pieces d'origine ou a la main d'oeuvre selon les conditions de la garantie
exprimees ci-dessus, votre seul recourt sera la reparation ou Ie rem placement selon les conditions
dec rites ci-dessus.
Dans aucun cas Polk Audio, Inc. pourra-t-elle etre tenue responsable pour tout dommage accessoire
ou indirect cause par I'utilisation ou par I'incapacite d'utilisation du produit. meme si Polk Audio, Inc.
ou un revendeur agree Polk Audio, a ete avise de la possibilite de tel dommage, ou pour toute recla-
mation par tout autre parti.
Certains etats ne permettant pas I'exclusion ou la limitation des dommages indirects, les limitations
et exclusions exprimees ci-dessus pourraient ne pas s'appliquer dans votre cas.
Toutes les garanties tacites sur ce produit sont Iimitees a la duree de la garantie enoncee. Certains
etats ne permettant pas la limitation de la duree d'une garantie tacite, les limitations ci-dessus pour-
raient ne pas s'appliquer dans votre cas. Cette garantie vous accorde des droits legaux specifiques;
vous pourriez egalement avoir d'autres droits qui pourraient varier d'etat en etat.
Cette garantie s'applique seulement aux produits achetes au Canada, aux Etats-Unis d'Amerique et
ses possessions, et dans les clubs audio et d'echange des forces armees des E.U. et de I'OTAN. Les
modalites et les conditions de garantie applicables aux produits achetes dans d'autres pays sont
disponibles chez les distributeurs agrees Polk Audio etablis dans ces pays.
26 Polk Audio Customer Service 800-377-7655 (Outside USA & Canada: 410-358-36001
LIMITED WARRANTY
Polk Audio, Inc., warrants to the original retail purchaser only. This warranty will terminate automati·
cally prior to its stated expiration if the original retail purchaser sells or transfers the Product to any
other party.
Polk Audio, Inc., warrants, to the original retail purchaser only, that the LOUDSPEAKERISI, PASSIVE
CROSSOVER COMPONENTISI and ENCLOSURE on this Polk Audio Loudspeaker Product will be free
from defects in material and workmanship for a period of five (51 years from the date of original retail
purchase from a Polk Audio Authorized Dealer.
Furthermore, Polk Audio, Inc., warrants, to the original retail purchaser only, that any AMPLIFIER OR
OTHER ELECTRONIC COMPONENT that may be included in this Polk Audio Loudspeaker Product will be
free from defects in material and workmanship for a period of three (31 years from the date of original
retail purchase from a Polk Audio Authorized Dealer.
To allow Polk Audio to offer the best possible warranty service, please register your new product
online at: www.polkaudio.com/registration or call Polk customer service 800-377-7655 in
the USA and Canada (outside the USA: 410-358·36001 within ten (101 days of the date of original pur-
chase. Be sure to keep your original purchase receipt.
Defective Products must be shipped, together with proof of purchase, prepaid insured to the Polk
Audio Authorized Dealer from whom you purchased the Product, or to the Factory at 2550 Britannia
Boulevard, Suite A, San Diego, California 92154. Products must be shipped in the original shipping
container or its equivalent; in any case the risk of loss or damage in transit is to
be borne by you. If upon examination at the Factory or Polk Audio Authorized Dealer it is determined
that the unit was defective in materials or workmanship at any time during this Warranty period, Polk
Audio or the Polk Audio Authorized Dealer will, at its option, repair or replace this Product at no addi-
tional charge, except as set forth below. All replaced parts and Products become the property of Polk
Audio. Products replaced or repaired under this warranty will be returned to you, within a reasonable
time, freight prepaid.
This warranty does not include service or parts to repair damage caused by accident. disaster, misuse,
abuse, negligence, inadequate packing or shipping procedures, commercial use, voltage inputs in
excess of the rated maximum of the unit. cosmetic appearance of cabinetry not directly attributable to
defect in materials or workmanship, or service, repair, or modification of the Product which has not
been authorized or approved by Polk Audio. This warranty shall terminate if the Serial number on the
Product has been removed, tampered with or defaced.
This warranty is in lieu of all other expressed Warranties. All implied warranties on this Product are
limited to the duration of this expressed Warranty. Some states do not allow limitation on how long an
implied Warranty lasts, so the above limitations may not apply to you. This Warranty gives you specific
legal rights, and you also may have other rights which vary from state to state.
If this Product is defective in materials or workmanship as warranted above, your sale remedy shall be
repair or replacement as provided above. This warranty does not cover service, parts, or supplies to
repair damage to property other than the Product. In no event will Polk Audio, Inc. be liable to you for
any incidental or consequential damages arising out of the use or in-ability to use the Product. even if
Polk Audio, Inc. or a Polk Audio Authorized Dealer has been advised of the possibility of such damages,
or for any claim by any other party. Some states
do not allow the exclusion or limitation of incidental or consequential damages, so the above limita-
tion and exclusion may not apply to you.
This Warranty applies only to Products purchased in Canada, the United States of America, its posses-
sions, and U.S. and NATO armed forces exchanges and audio clubs. The Warranty terms and condi-
tions applicable to Products purchased in other countries are available from the Polk Audio Authorized
Distributors in such countries.
C€
GARANTIE L1MITEE
La garantie de Polk Audio, Inc., n'est valide que pour I'acheteur au detail original. La garantie sera
automatiquement annulee avant sa date d'expiration specitiee si I'acheteur original vend ou transfere
Ie produit a tout autre parti.
Polk Audio, Inc .. garantit -a I'acheteur au detail original seulement - que Ie ou les HAUT-PARLEUR(SI,
COMPOSANTEISI DE FILTRE PASSIF et CAISSON(S) de ce produit Polk Audio seront exempts de tout
defaut attribuable aux pieces d'origine et a la main d'oeuvre pour une periode de cinq 15) ans a partir
de la date de I'achat au detail original chez un revendeur agree Polk Audio.
En outre, Polk Audio, Inc., garantit -a I'acheteur au detail original seulement - que TOUT AMPLIFICA-
TEUR OU TOUT AUTRE COMPOSANTE ELECTRONIQUE qui pourrait faire partie ce produit Polk Audio
sera exempt de tout defaut attribuable aux pieces d'origine et a la main d'oeuvre pour une peri ode de
trois (3) ans a partir de la date de I'achat au detail original chez un revendeur agree Polk Audio.
Pour permettre a Polk Audio de vous offrir Ie meilleur service de garantie possible, veuillez enregistrer
votre nouveau produit en Iigne a I' adresse web www.polkaudio.com/registration - ou contactez Ie
Service a la Clientele de Polk au 800-377-7655 aux Etats-Unis et au Canada (a I'exterieur des E.U.:410-
35B-36001 dans les dix (10) jours suivant la date de I'achat original. Assurez-vous de conserver votre
re,u d'achat original.
Les produits dMectueux doivent etre expedies, avec une preuve d'achat, francs de port et assures, au
revendeur agree Polk Audio de qui vous avez achete Ie produit, ou a I'usine Polk Audio, 2550 Britannia
Boulevard, Suite A, San Diego, California 92154.
Les produits doivent etre expedies dans leur carton d'expedition original ou dans un contenant equiva-
lent. Le proprietaire doit assumer tout risque de perte ou de dommage en transit.
Si, suite a I'examen du produit a I'usine Polk ou chez Ie marchand agree Polk Audio, il est determine
que la dMectuosite est imputable aux materiaux d'origine ou a la main d'oeuvre au cours de la periode
de la garantie speciMe, Polk Audio ou Ie revendeur Polk Audio, a sa guise, reparera ou remplacera Ie
produit sans frais additionnels et selon les conditions decrites ci-dessous.
Toute piece ou produit remplace devient la propriete de Polk Audio. Les produits repares ou remplaces
sous la garantie vous seront expedies francs de port dans un delai raisonnable.
Cette garantie n'inclut pas Ie service ou les pieces necessaires a la reparation des dommages provo-
ques par accident, desaslre, abus, negligence, mode d'expedition ou emballage inadequat, utilisation
commercia Ie, tensions superieures au maximum prescrit pour I'unite, aspect visuel du meuble non
directement attribuable a un defaut de pieces d'origine ou de main d'oeuvre, ou par Ie service, la
reparation, ou toute modification du produit qui n'a pas ete autorise ou approuve par Polk Audio.
Cette garantie sera annulee si Ie numero de serie sur Ie produit a ete enleve, altere ou falsiM.
Cette garantie prend preseance sur toutes autres garanties enoncees. Si la defectuosite de ce
produit est imputable aux pieces d'origine ou a la main d'oeuvre selon les conditions de la garantie
exprimees ci-dessus, votre seul recourt sera la reparation ou Ie rem placement selon les conditions
dec rites ci-dessus.
Dans aucun cas Polk Audio, Inc. pourra-t-elle etre tenue responsable pour tout dommage accessoire
ou indirect cause par I'utilisation ou par I'incapacite d'utilisation du produit. meme si Polk Audio, Inc.
ou un revendeur agree Polk Audio, a ete avise de la possibilite de tel dommage, ou pour toute recla-
mation par tout autre parti.
Certains etats ne permettant pas I'exclusion ou la limitation des dommages indirects, les limitations
et exclusions exprimees ci-dessus pourraient ne pas s'appliquer dans votre cas.
Toutes les garanties tacites sur ce produit sont Iimitees a la duree de la garantie enoncee. Certains
etats ne permettant pas la limitation de la duree d'une garantie tacite, les limitations ci-dessus pour-
raient ne pas s'appliquer dans votre cas. Cette garantie vous accorde des droits legaux specifiques;
vous pourriez egalement avoir d'autres droits qui pourraient varier d'etat en etat.
Cette garantie s'applique seulement aux produits achetes au Canada, aux Etats-Unis d'Amerique et
ses possessions, et dans les clubs audio et d'echange des forces armees des E.U. et de I'OTAN. Les
modalites et les conditions de garantie applicables aux produits achetes dans d'autres pays sont
disponibles chez les distributeurs agrees Polk Audio etablis dans ces pays.
26 Polk Audio Customer Service 800-377-7655 (Outside USA & Canada: 410-358-36001

polkaudio®
Wireless Transmitter Wall MountTemplate
Gabarit Pour Montage Mural
Du Transmetteur Sans Fil
Plantilla
De Montaje En La Pared Del Transmisor Inalilmbrico
PSWi225
Wireless Transmitter
The PSWi225 Wireless Subwoofer
Transmitter has built-in key
hole slots, which allow it to
be wall mounted.
1 Determine where you want to
locate the transmitter on a wall,
and using the transmitter wall
mount template, mark the screw
holes (see illustration) and attach
#8 pan head
screws to the wall
leaving 1/8" -1/4" (4mm) exposed.
2Slide the transmitter down on
the screw head to catch the
keyhole slots.
Le
transmetteur du subwoofer
sans fil PSWi225 est dote de
fentes en trou de serrure qui vous
permettent de Ie monter au mur.
1 Determinez I'endroit ou vous
desirez monter Ie transmetteur
au mur, puis, a I'aide du gabarit
de montage mural, marquez la
position des vis (voir illustration).
Vissez ensuite des vis #8 a tete
tronconique dans Ie mur, les
laissant depasser d'environ 4
a6mm.
2Glissez Ie transmetteur sur les vis
jusqu'a ce qu'elles s'enclenchent
solidement dans les fentes en
trou de serrure du transmetteur.
EI transmisor inahlmbrico del
subwoofer PSWi225 tiene ran-
uras integradas en forma de
ojo de cerradura para montarlo
en la pared.
1 Determine d6nde quiere ubicar
el transmisor en la pared, marque
los agujeros para los tornillos con
la plantilla de montaje en la pared
(vea la
ilustraci6n) y atornille los
tornillos numero 8de cabeza
troncoc6nica en la pared dejando
expuesto de 1/8 de pig. a1/4 de
pig. (4
mm) del tornillo.
2Deslice el transmisor hacia abajo
sobre la cabeza del tornillo de
manera que la ranura en forma
de ojo de cerradura se enganche
en la cabeza del tornillo.
Screw location for
transmitter mounting
Position
des vis pour
Ie montage mural
du transmetteur
Ubicaci6n
de los
tomillos para el
montaje del transmisor
Screw location for
transmitter mounting
Position des vis pour
Ie montage mural
du transmetteur
Ubicaci6n
de los
tomillos para el
montaje del transmisor
polkaudio®
Wireless Transmitter Wall MountTemplate
Gabarit Pour Montage Mural
Du Transmetteur Sans Fil
Plantilla
De Montaje En La Pared Del Transmisor Inalilmbrico
PSWi225
Wireless Transmitter
The PSWi225 Wireless Subwoofer
Transmitter has built-in key
hole slots, which allow it to
be wall mounted.
1 Determine where you want to
locate the transmitter on a wall,
and using the transmitter wall
mount template, mark the screw
holes (see illustration) and attach
#8 pan head
screws to the wall
leaving 1/8" -1/4" (4mm) exposed.
2Slide the transmitter down on
the screw head to catch the
keyhole slots.
Le
transmetteur du subwoofer
sans fil PSWi225 est dote de
fentes en trou de serrure qui vous
permettent de Ie monter au mur.
1 Determinez I'endroit ou vous
desirez monter Ie transmetteur
au mur, puis, a I'aide du gabarit
de montage mural, marquez la
position des vis (voir illustration).
Vissez ensuite des vis #8 a tete
tronconique dans Ie mur, les
laissant depasser d'environ 4
a6mm.
2Glissez Ie transmetteur sur les vis
jusqu'a ce qu'elles s'enclenchent
solidement dans les fentes en
trou de serrure du transmetteur.
EI transmisor inahlmbrico del
subwoofer PSWi225 tiene ran-
uras integradas en forma de
ojo de cerradura para montarlo
en la pared.
1 Determine d6nde quiere ubicar
el transmisor en la pared, marque
los agujeros para los tornillos con
la plantilla de montaje en la pared
(vea la
ilustraci6n) y atornille los
tornillos numero 8de cabeza
troncoc6nica en la pared dejando
expuesto de 1/8 de pig. a1/4 de
pig. (4
mm) del tornillo.
2Deslice el transmisor hacia abajo
sobre la cabeza del tornillo de
manera que la ranura en forma
de ojo de cerradura se enganche
en la cabeza del tornillo.
Screw location for
transmitter mounting
Position
des vis pour
Ie montage mural
du transmetteur
Ubicaci6n
de los
tomillos para el
montaje del transmisor
Screw location for
transmitter mounting
Position des vis pour
Ie montage mural
du transmetteur
Ubicaci6n
de los
tomillos para el
montaje del transmisor

polkaudio®
This is your Product Model and Serial Number.
Enter this number in the "Serial Number" space
when registering your product online. Keep
this card handy for Model and Serial Number
reference when calling Polk Customer Service.
AM
Register Your New Polk Audio Product
Online NOW for a Chance to win
$500 of Polk Product
www.polkaudio.com/registration/
~ Creates apermanent record of your purchase, in case you misplace your original receipt.
~ Enters you in our monthly FREE drawing for $500-worth of Polk Audio Speakers.
~ Allows you to enroll in Club Polk: for informative Polk Website Forums, special discounts
in the Polk Webstore, advance notice of Polk Promos, and discounts on Authorized
Polk Audio parts.
~ Keeps you up to date when there is news and announcements about your product.
~ Gives you the option to "opt-in" for Polk Audio's Audio Enjoyment Enhancers:
Our Monthly Emails, with news, reviews and tips on everything audio; and our
FREE Polk Audio Newspaper.
We take your privacy seriously. Polk Audio does not share or sell
infonnation to any other parties, unless directed by court order.
Registering your product has no effect on your warranty.
Warranties apply
as stated in your product manual.
Please be sure to keep your original purchase receipt.
No Internet access? Call Polk Audio Customer Service
800·377·7655 {US & Canada only). Qutside the US &
Canada, call 410·358·3600. We'ltw'alk you through the
simple registration processl . .
Ouestions? Concerns? Contact Polk Audio Customer Service, gam - 6pm. M-F, EST {USA}
800-377-7655 US & Canada only • 410-358-3600 outside US & Canada • [email protected]
RM0320-7
polkaudio®
This is your Product Model and Serial Number.
Enter this number in the "Serial Number" space
when registering your product online. Keep
this card handy for Model and Serial Number
reference when calling Polk Customer Service.
AM
Register Your New Polk Audio Product
Online NOW for a Chance to win
$500 of Polk Product
www.polkaudio.com/registration/
~ Creates apermanent record of your purchase, in case you misplace your original receipt.
~ Enters you in our monthly FREE drawing for $500-worth of Polk Audio Speakers.
~ Allows you to enroll in Club Polk: for informative Polk Website Forums, special discounts
in the Polk Webstore, advance notice of Polk Promos, and discounts on Authorized
Polk Audio parts.
~ Keeps you up to date when there is news and announcements about your product.
~ Gives you the option to "opt-in" for Polk Audio's Audio Enjoyment Enhancers:
Our Monthly Emails, with news, reviews and tips on everything audio; and our
FREE Polk Audio Newspaper.
We take your privacy seriously. Polk Audio does not share or sell
infonnation to any other parties, unless directed by court order.
Registering your product has no effect on your warranty.
Warranties apply
as stated in your product manual.
Please be sure to keep your original purchase receipt.
No Internet access? Call Polk Audio Customer Service
800·377·7655 {US & Canada only). Qutside the US &
Canada, call 410·358·3600. We'ltw'alk you through the
simple registration processl . .
Ouestions? Concerns? Contact Polk Audio Customer Service, gam - 6pm. M-F, EST {USA}
800-377-7655 US & Canada only • 410-358-3600 outside US & Canada • [email protected]
RM0320-7

polkaudio®
Modele de produit et numero de serie. Inserivez
ce numero dans la case « serial number» lors de
I'enregistrement du produit en ligne. Conservez
cette carte en guise de reference au modele et
au numero de serie lorsque vous contaetez Ie
Service a la Clientele de Polk.
Modele et numero de
serie du produit dans
I'encadre au verso.
Enregistrez Votre Nouveau Produit Polk Audio
En Li9ne des maintenant et courez la chance de
gagner pour 500$ de produits Polk .
www.polkaudio.com/registration/
...
Votre confidentialite nous tient ill coeur. Polk Audio ne partage pas et
ne vend jamais votre information ill un tiers parti, sauf par injonction.
L'enregistrement de votre produit n'a aucun effet sur votre
garantie. les garanties sont valides telles que dec rites dans
votre manuel de I'utilisateur. Veuillez vous assurer de
conserver votre facture originale.
~ L'enregistrement cree une attestation permanente de votre achat au cas ou
vous egareriez votre facture originale.
~ Vous inscrit gratuitement a notre tirage mensuel de haut-parleurs Polk
d'une valeur de 500$.
~ Vous permet de vous enroler dans Ie Club Polk - vous pourrez ainsi participer a
des forums informatifs sur Ie site web de Polk, profiter de rabais speciaux au
magasin en ligne Polk Webstore, obtenir une prevision des promotions Polk et
beneticier de rabais sur les pieces autorisees Polk Audio.
~ Vous permet de recevoir les toutes dernieres informations concernant votre produit.
~ Vous permet de recevoir les « Audio Enjoyment Enhancers» de Polk Audio-
des courriels mensuels offrant nouvelles, critiques et conseils en matiere d'audio,
et notre journal Polk Audio GRATUIT.
Questions? Soucis? Contactez Ie Service a la Clientele de Polk Audio, de 9hOO il18hOO HNE (E.U.) au 800-377-7655
(E.U. et Canada seulement). AI'exterieur des E.U. et du Canada, signalez Ie 410-358-3600. [email protected] RM0320-7
polkaudio®
Modele de produit et numero de serie. Inserivez
ce numero dans la case « serial number» lors de
I'enregistrement du produit en ligne. Conservez
cette carte en guise de reference au modele et
au numero de serie lorsque vous contaetez Ie
Service a la Clientele de Polk.
Modele et numero de
serie du produit dans
I'encadre au verso.
Enregistrez Votre Nouveau Produit Polk Audio
En Li9ne des maintenant et courez la chance de
gagner pour 500$ de produits Polk .
www.polkaudio.com/registration/
...
Votre confidentialite nous tient ill coeur. Polk Audio ne partage pas et
ne vend jamais votre information ill un tiers parti, sauf par injonction.
L'enregistrement de votre produit n'a aucun effet sur votre
garantie. les garanties sont valides telles que dec rites dans
votre manuel de I'utilisateur. Veuillez vous assurer de
conserver votre facture originale.
~ L'enregistrement cree une attestation permanente de votre achat au cas ou
vous egareriez votre facture originale.
~ Vous inscrit gratuitement a notre tirage mensuel de haut-parleurs Polk
d'une valeur de 500$.
~ Vous permet de vous enroler dans Ie Club Polk - vous pourrez ainsi participer a
des forums informatifs sur Ie site web de Polk, profiter de rabais speciaux au
magasin en ligne Polk Webstore, obtenir une prevision des promotions Polk et
beneticier de rabais sur les pieces autorisees Polk Audio.
~ Vous permet de recevoir les toutes dernieres informations concernant votre produit.
~ Vous permet de recevoir les « Audio Enjoyment Enhancers» de Polk Audio-
des courriels mensuels offrant nouvelles, critiques et conseils en matiere d'audio,
et notre journal Polk Audio GRATUIT.
Questions? Soucis? Contactez Ie Service a la Clientele de Polk Audio, de 9hOO il18hOO HNE (E.U.) au 800-377-7655
(E.U. et Canada seulement). AI'exterieur des E.U. et du Canada, signalez Ie 410-358-3600. [email protected] RM0320-7

There's more fOf you at Polk Audio .
polkaudio·
db65Dl
......
woofers blend legendary Polk Audio perform-
arlce with exceptional fit to meet virtually
any application
Boaters rejoice! Polk's db and MM Series
speakers are marine certified. which mearlS
they're rugged enough to withstand marine
envirorlments, so you can expect the same
outstarlding performance on the water as
we're known for on land
."
Car&MarineAudio
Polk Audio's mobile products are truly loud-
speakers for serious listeners, Our db Series
offers Incredible Sound, Affordable Price in
a full range of loudspeakers. component sys-
tems and subwoofers. The Ultimate listening
Experience, SR Signature Series component
systems and ultra-performance subwoofers,
are for those who desire audiophile perform-
ance. And our Designed to Perform, MM Series
loudspeakers, compooent systems and sub-
poIkaudio'
The I-Sonic ES2 is the first audio compooenl
to combine HD Radio· and arl iPod· dock with
iTunes Tagging. iTunes Tagging lets you tag
soogs you hear on I-Sonic ES25 HD Radio and
therl preview, buy and doymioad them later
Irom your iTurles Tagged playlistthe next time
you SYrlcyour iPod!
I-Sonic'" Entertainment System 2
The new I-Soni~ Enrerrainment System 2
employs arl audiophile-grade speaker system
that makes il the best sounding and most
advanced tabletop erltertairlmerlt system
available. Featurirlg exclusive I-Sonic arld
PowerPo~ audio technologies. the I-Sonic ES2
produces big lifelike sound everywhere from
any countertop, end table, or night stand.
There's more fOf you at Polk Audio .
polkaudio·
db65Dl
......
woofers blend legendary Polk Audio perform-
arlce with exceptional fit to meet virtually
any application
Boaters rejoice! Polk's db and MM Series
speakers are marine certified. which mearlS
they're rugged enough to withstand marine
envirorlments, so you can expect the same
outstarlding performance on the water as
we're known for on land
."
Car&MarineAudio
Polk Audio's mobile products are truly loud-
speakers for serious listeners, Our db Series
offers Incredible Sound, Affordable Price in
a full range of loudspeakers. component sys-
tems and subwoofers. The Ultimate listening
Experience, SR Signature Series component
systems and ultra-performance subwoofers,
are for those who desire audiophile perform-
ance. And our Designed to Perform, MM Series
loudspeakers, compooent systems and sub-
poIkaudio'
The I-Sonic ES2 is the first audio compooenl
to combine HD Radio· and arl iPod· dock with
iTunes Tagging. iTunes Tagging lets you tag
soogs you hear on I-Sonic ES25 HD Radio and
therl preview, buy and doymioad them later
Irom your iTurles Tagged playlistthe next time
you SYrlcyour iPod!
I-Sonic'" Entertainment System 2
The new I-Soni~ Enrerrainment System 2
employs arl audiophile-grade speaker system
that makes il the best sounding and most
advanced tabletop erltertairlmerlt system
available. Featurirlg exclusive I-Sonic arld
PowerPo~ audio technologies. the I-Sonic ES2
produces big lifelike sound everywhere from
any countertop, end table, or night stand.

CSW155lf1>WIJfI
Su/Ywoofer Awards
speaker for every in-wall and in-ceiling
application. We make the world's first THX-
Ultra2 Cenified in-ceiling speaker and maxi-
mum performance in-floor and in-wall sub·
woofers. Our award-winning built-in products
feature the same technologies and quality
standards as our freestanding speakers and
subwoofers for performance that will amaze
you and your guests.
Custom Installed Multi-Room
Audio And Home Thealer
Now you can have big speaker sound from
speakers that you can barely see. Polk Audio
offers a huge selection of built·in speakers
and subwoofers for multi-room audio systems
and built-in home theater systems. Whether
you are looking for a simple do-it-yourself
system or a professionally installed whole-
house system, Polk Audio has a built-in
Built-lnSolutions
CSW100 Subwool8f
LS,15
AvaliBbifI In BlllCk 01 TiIBnwm
SurroundBar'tSO
The perfect complement to flat and shallow
screen TVs, the Polk AudiO SurroundBar"SO
delivers breathtaking all·erweloping sonic
performance without the need for rear speakers.
The SurroundBar SO's unobtrusive design and
color-coded hookup configuration makes it a
welcome addition for anyone who wants the
thrilling benefits of surround sound and none
of the hassles. And while the SurroundBar 50
delivers enough bass for your listening pleasure.
many listeners will add a subwoofer to create
a sound system that produces Iruly compelling
sonic performance.
V"lIit www.polhulllio.colll.or
inform .. ion on Polk Aulllio IHd·
lpellters IRIII electrollic prodUcII.
HomeAudio
SDA-
Surround Sound
T5i2oo
Freestl.dl"l Lolltlspel"ln
Polk- offers a complete line of loudspeakers
for vinually every application and price range
From tower and bookshelf models, to centers,
surrounds. subwoofers and on-wall designs,
we've gal them all. With Polk AudiO you can
create the audio system that meels your exacl
needs to deliver a steleo Of home thealer
eq>erience thai will thrill you 10 your core
miDrx;k PORrFOIJO'S unobtrusive size hides a
high-efficiency digital amplification technology
that makes the speakers sound much bigger
than they actually are. The miOock PORrFOtIO
can operate on 4 AA batteries for over B hours!
Of course. you can also plug it in with the
supplied AC plug for unlimited listening.
plug, as well as battery qleration, leiS you
listen to music where and when you want
to. (Available in US and Canada only)
Learn more about Polk Audio products and enter to
win a FREE subwoofer at www.polkaudio.com/insert!
miDock~ PORTfOUO
With Polk's miDock PORrFOilO, you can listen to
your iPod- anytime, anywhere. The Portfolio's
compact size and light weight enables you to
carry it in your briefcase or bag, wherever
you're going. The miDock PORfFOl.IO is compati-
ble with virtually all iPod models, and has an
auxiliary input for other audio sources. The
MusicSystems
.iDodl;"'1TUGlO
listen 10 your favorite music downloads and
renowned Polk Audio sound qualily in an easy-
to-use iPod
e
sound system. The ""Oock $nxJIO
is an elegantly simple audio player lhafs COOl-
patible with virtually all iPod models An AC
CSW155lf1>WIJfI
Su/Ywoofer Awards
speaker for every in-wall and in-ceiling
application. We make the world's first THX-
Ultra2 Cenified in-ceiling speaker and maxi-
mum performance in-floor and in-wall sub·
woofers. Our award-winning built-in products
feature the same technologies and quality
standards as our freestanding speakers and
subwoofers for performance that will amaze
you and your guests.
CSW100 SubwOOIlH'
Built-lnSolutions
Custom Installed Multi-Room
Audio And Home Thealer
Now you can have big speaker sound from
speakers that you can barely see. Polk Audio
offers a huge selection of built·in speakers
and subwoofers for multi-room audio systems
and built-in home theater systems. Whether
you are looking for a simple do-it-yourself
system or a professionally installed whole-
house system, Polk Audio has a built-in
LS,15
AvaliBbifI In BlllCk 01 TiIBnwm
SurroundBar'tSO
The perfect complement to flat and shallow
screen TVs, the Polk AudiO SurroundBar"SO
delivers breathtaking all·erweloping sonic
performance without the need for rear speakers.
The SurroundBar SO's unobtrusive design and
color-coded hookup configuration makes it a
welcome addition for anyone who wants the
thrilling benefits of surround sound and none
of the hassles. And while the SurroundBar 50
delivers enough bass for your listening pleasure.
many listeners will add a subwoofer to create
a sound system that produces Iruly compelling
sonic performance.
V"lIit www.polhulllio.colll.or
inform .. ion on Polk Aulllio IDlId-
lpellters IRIII electrollic prodUcII.
HomeAudio
SDA-
Surround Sound
T5i2oo
Freestl.dl"l Lolltlspel"ln
Polk- offers a complete line of loudspeakers
for vinually every application and price range
From tower and bookshelf models, to centers,
surrounds. subwoofers and on-wall designs,
we've gol them all. With Polk AudiO you can
create the audio system that meels your exacl
needs to deliver a steleo Of home thealer
eq>erietlCe thai will thrill you 10 your core
miDrx;k PORrFOIJO'S unobtrusive size hides a
high-efficiency digital amplification technology
that makes the speakers sound much bigger
than they actually are. The miOock PORrFOtIO
can operate on 4 AA batteries for over B hours!
Of course. you can also plug it in with the
supplied AC plug for unlimited listening.
plug, as well as battery qleration, leiS you
listen to music where and when you want
to. (Available in US and Canada only)
Learn more about Polk Audio products and enter to
win a FREE subwoofer at www.polkaudio.com/insert!
miDock~ PORTfOUO
With Polk's miDock PORrFOilO, you can listen to
your iPod- anytime, anywhere. The Portfolio's
compact size and light weight enables you to
carry it in your briefcase or bag, wherever
you're going. The miDock PORfFOl.IO is compati-
ble with virtually all iPod models, and has an
auxiliary input for other audio sources. The
MusicSystems
.iDodl;"'1TUGlO
listen 10 your favorite music downloads and
renowned Polk Audio sound qualily in an easy-
to-use iPod
e
sound system. The ""Oock $nxJIO
is an elegantly simple audio player lhafs COOl-
patible with virtually all iPod models An AC
