Pololu Orangutan User manual

Pololu Orangutan USB
Programmer User's Guide
1. Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
2. Contacting Pololu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
3. Module Pinout and Components . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4
4. USB-to-Serial Drivers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
5. Getting Started Using Windows . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.a. Using AVR Studio . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
5.b. AVR Studio in More Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . 12
5.c. Conguring Your Programmer for AVR Studio . . . . . . . . . . . . . . . . . . 14
5.d. Using AVRDUDE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
6. Getting Started Using Linux . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
7. Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
8. Updating Your Programmer’s Firmware . . . . . . . . . . . . . . . . . . . . . . . . 21
8.a. Upgrade Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
8.b. Uploading the New Firmware . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
Page 1 of 29

1. Overview

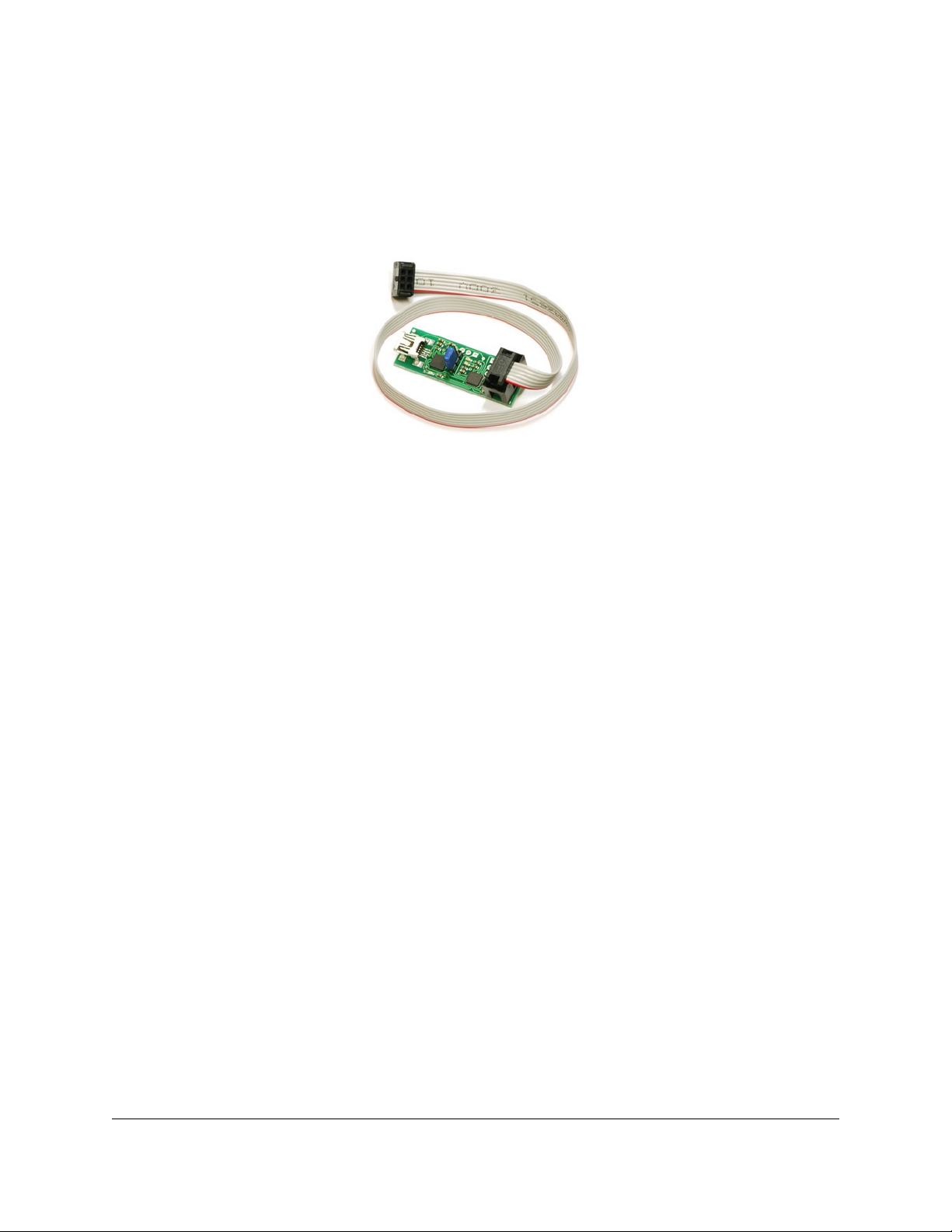

The Orangutan USB Programmer [http://www.pololu.com/catalog/product/740] is a compact
solution for programming our Orangutan robot controllers [http://www.pololu.com/catalog/
category/8] or 3pi robot [http://www.pololu.com/catalog/product/975] through a USB port. Our
programmer incorporates a USB-to-serial adapter and emulates an AVR ISP programmer
so that you can program your Orangutans or 3pi with any software that can talk through
a serial port to an AVR ISP. The unit also doubles as a USB-to-serial adapter (TX and RX
only), allowing you to communicate with your Orangutan, 3pi, or any other microcontroller,
through a terminal program.
Unlike some other AVR programmers, the Orangutan USB programmer does not recieve
its power from the circuit to be programmed. Instead, it receives its power via the USB
A to mini-B cable [http://www.pololu.com/catalog/product/130] that connects it to a personal
computer. This cable is not included with your programmer; if you do not already have one,
you can purchase it separately from our web site. The 6-pin ISP programming cable that
connects the programmer to your target device is included.
Note: The Orangutan USB programmer should be able to program all AVR
microcontrollers that support paged program and EEPROM memory, but we can
only support Orangutan and 3pi programming at this time. This product is not
needed for the Orangutan X2, which has its own built-in AVR ISP programmer.
For a Spanish version of this document, please see Pololu Orangutan USB
Programmer Guia Usuario [http://www.pololu.com/le/download/
PololuOrangutanUSBProgrammerGuiaUsuario.pdf?le_id=0J136] (1358k pdf) (provided by
customer Jaume B.).
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
1. Overview Page 2 of 29

2. Contacting Pololu
You can check the Orangutan USB Programmer page [http://www.pololu.com/catalog/product/
740] for additional information. We would be delighted to hear from you about any of your
projects and about your experience with the Orangutan USB programmer. You can contact
us [http://www.pololu.com/contact] directly or post on our forum [http://forum.pololu.com/]. Tell
us what we did well, what we could improve, what you would like to see in the future, or
anything else you would like to say!
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
2. Contacting Pololu Page 3 of 29

3. Module Pinout and Components
Pololu Orangutan USB Programmer labeled top
view
Pololu Orangutan USB Programmer labeled bottom
view
USB-to-Serial Adapter Mode:
The location of the blue mode jumper determines whether the device will function as a
programmer or a USB-to-serial adapter. When the mode jumper spans the two pins that are
marked on the bottom of the board with a “U”, the computer’s RX line is connected to the
pad labeled RX and the device will function as a basic USB-to-serial adapter. The RX and
TX pads are labeled from the computer’s perspective, so to make use of the USB-to-serial
adapter you need to connect the programmer’s RX pad to your target’s TX pin (PD1 on the
Orangutan/3pi) and the TX pad to your target’s RX pin (PD0 on the Orangutan/3pi) while in
USB-to-serial mode. These pads expect logic-level signals (i.e. 0 V lows, 5 V highs).
Programmer Mode:
When the blue mode jumper spans the two pins that are marked on the bottom of the board
with a “P”, the computer’s RX line is connected to the programming microcontroller and the
device will function as an in-circuit AVR ISP programmer. The computer’s TX line is always
connected to both the pad labeled TX and the programming microcontroller.
Revision Number:
There are currently two versions of the Orangutan USB Programmer: PGM02Aand
PGM02B. The programmer’s revision number is written along the right side of the bottom
of the PC board. The newer PGM02B revision has two key improvements over the original
PGM02A: 1) it has the ability to accept rmware updates from Pololu (see Section 8) and
2) it won’t let you program your target device if that device is not powered, which can
help prevent you from accidentally damaging your Orangutan/3pi. Please take note of your
programmer’s revision number so you know which statements in this user’s guide apply to
your specic programmer.
LEDs:
The green USB status LED near the mini-B connector will light when the Orangutan USB
programmer is connected to a personal computer and functioning properly as a serial port.
If you have not installed the programmer’s drivers before connecting it, this status LED will
be o.
The red and green programming status LEDs near the center of the board will give you
feedback when the Orangutan USB programmer is being used in programming mode. The
green LED will ash every time the programmer receives a valid AVR ISP command packet
from the personal computer to which it is connected. The red LED will ash every time the
programmer sends information over the 6-pin ISP cable to the device being programmed.
These LEDs do not do anything when the Orangutan USB programmer is in USB-to-serial
mode.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
3. Module Pinout and Components Page 4 of 29

If you have programmer version PGM02B, you will have additional LED feedback. Every
time your programmer powers up (i.e. when you connect it to your computer), the red
and green status LEDs will both light for ve seconds. During this period, the programmer
is receptive to rmware updates; you should avoid trying to program until the initial
ve seconds have elapsed and the two status LEDs have turned o. Additionally, if your
programmer is not connected to a target device or if your target device is not powered, the
programmer’s red LED will ash once per second to indicate that it will not let you program.
Connecting to Your 3pi Robot:
The Orangutan USB programmer connects to your 3pi robot via the included 6-pin ISP cable,
which plugs into the 3pi’s keyed ISP port located just behind the right wheel as shown above.
Connecting to Your Orangutan:
Baby Orangutan ISP pins.Orangutan SV-168, SV-328, and LV-168 ISP pins. Orangutan ISP pins
The Orangutan USB programmer connects to your Orangutan or Baby Orangutan via the
included 6-pin ISP cable. The cable must be oriented so that the programmer’s ISP header
pin 1 connects to your (Baby) Orangutan’s ISP header pin 1. Unlike the Orangutan, the Baby
Orangutan does not come with a shrouded header to enforce correct cable orientation; the
red wire and arrow mark on the cable’s ISP connector should be lined up with the arrow
to pin 1 on the Baby Orangutan PCB. You will only be able to achieve this alignment by
connecting to the top side of the Baby Orangutan PCB, so be very careful not to solder
your 6-pin ISP header onto the wrong side of your Baby Orangutan!
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
3. Module Pinout and Components Page 5 of 29

Note: The programmer does not deliver power to the device it is
programming, so your Orangutan must be turned on to be programmed.
If you are using programmer version PGM02A, attempting to program an
unpowered device will have unpredictable results; this might randomly
change the fuse settings, which can in turn permanently disable your
Orangutan (see Fuses in Section 5.b). If your programmer version is
PGM02B, the programmer will not let you program an unpowered device
(you will see the red status LED blink once per second if your target device
is not powered). You must still take great care to ensure that your target
device does not lose power during programming.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
3. Module Pinout and Components Page 6 of 29

4. USB-to-Serial Drivers
Before you connect your Orangutan USB programmer to your computer, you must install
the driver [http://www.pololu.com/docs/0J7/] for the programmer’s CP2102 USB-to-UART
bridge. Once you have successfully installed your this driver, you should see the green USB
status LED near the mini-B connector lit whenever it is connected to your computer.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
4. USB-to-Serial Drivers Page 7 of 29

5. Getting Started Using Windows
After you’ve installed the necessary drivers, the next step is to download and install a
compiler. WinAVR, located at http://winavr.sourceforge.net/ [http://winavr.sourceforge.net/],
is an open source suite of software development tools for the Atmel AVR series of
microcontrollers. It includes the GNU GCC compiler for C and C++. Follow the installation
instructions they provide.
WinAVR alone will give you all the tools you need to start programming your Orangutan
or 3pi robot, but Atmel oers AVR Studio, a free integrated development environment that
works with the GCC C/C++ compiler. AVR Studio includes a simulator and other useful
tools, and supports the AVR ISP protocol used by the Orangutan USB programmer. You
can download AVR Studio from http://www.atmel.com/avrstudio/ [http://www.atmel.com/
avrstudio/]. Follow Atmel’s installation instructions. Note that newer versions of AVR Studio
might not work with older versions of WinAVR, so we recommend you upgrade to the newest
version WinAVR every time you get a new version of AVR Studio.
5.a. Using AVR Studio
Here we will show you step by step how to use AVR Studio to make the red user LED blink on
your Orangutan, Orangutan SV-168, Orangutan SV-328, Orangutan LV-168, Baby Orangutan,
or 3pi robot. Please note that this program will not work on the Orangutan X2. If you want to
skip the steps that set up the LED-blinker code and jump straight into using your Orangutan
USB programmer, you can download the AVR Studio project these steps would help you
create and proceed straight to step 4.
• mega48: BlinkLED_m48.zip [http://www.pololu.com/le/download/
BlinkLED_m48.zip?le_id=0J188] (9k zip)
• mega168: BlinkLED_m168.zip [http://www.pololu.com/le/download/
BlinkLED_m168.zip?le_id=0J189] (9k zip)
• mega328: BlinkLED_m328.zip [http://www.pololu.com/le/download/
BlinkLED_m328.zip?le_id=0J190] (9k zip)
1. Open AVR Studio and click New Project. Select AVR GCC for the project type. We
called our project “BlinkLED” and elected to have a folder called “C:\BlinkLED” created
containing the blank le “BlinkLED.c”. Click Next >>. DO NOT click “Finish” yet. If you
do accidentally click “Finish”, you will not be able to perform step 2 and will instead have
to set the device by going to the “Project” menu and selecting “Conguration Options”.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 8 of 29

Creating a new AVR Studio project, step 1
2. Select AVR Simulator as the debug platform and then select the appropriate
device for your Orangutan or 3pi. This will either be ATmega48,ATmega168, or
ATmega328P depending on which chip your Orangutan or 3pi has. Click Finish.
Creating a new AVR Studio project, step 2
3. Write your program in BlinkLED.c as seen in the screen shot below and click the
Build button on the toolbar (or press F7), or just download the zipped BlinkLED project
archive for your device from the list above.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 9 of 29

Building a project with AVR Studio
Note: You will probably want to customize this program slightly if you are
working with an original Orangutan rather than a Baby Orangutan, Orangutan
SV-168, Orangutan SV-328, Orangutan LV-168, or 3pi robot. F_CPU should be
dened as the clock frequency of your target device in Hz. For the Orangutan
this should be 8000000UL (8 MHz), while for the Orangutan SV-xx8, Orangutan
LV-168, Baby Orangutan, and 3pi robot this should be 20000000UL (20 MHz).
You can achieve this by commenting out line 3 and uncommenting line 2. If you
don’t make this change, the timing of delayms() will be o.
4. Make sure your Orangutan USB programmer is connected to your computer via its
USB A to mini-B cable and then click the Display the ‘Connect’ Dialog button on
the toolbar . You can also accomplish this by going to the “Tools” menu and selecting
Program AVR → Connect….
Connecting to the programmer with AVR Studio
5. This will bring up a programmer selection dialog. The platform should be AVRISP.
The Orangutan USB programmer uses AVR ISP version 2 (written as AVRISPv2), but this
is not the same as AVR ISP mkII. Select the serial port of your programmer if you know
what it is, or select Auto and it will try all the ports until it detects the programmer. You
can determine your programmer’s serial port by looking in the “Ports (COM & LPT)” list
of your Device Manager for “Pololu USB-to-serial adapter”. Click “Connect…” to bring
up the AVRISP dialog. You should see the green programming status LED ash very
briey as the dialog appears. If an error dialog appears instead of the AVRISP dialog,
your computer cannot detect the programmer; please go to Troubleshooting (Section 7)
for help identifying and xing the problem.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 10 of 29

AVR Studio’s programmer-selection dialog
6. If you have not done so already, connect your programmer to your Orangutan or 3pi
using the 6-pin ISP cable. Make sure the cable is oriented so that pin 1 on the connector
lines up with pin 1 on your target device! You can test your connection by going to the
Main tab and clicking the Read Signature button. This sends a command to the target
microcontroller asking for its device signature. If everything works correctly, you should
see “Signature matches selected device”. If the signature does not match the selected
device, you probably have the wrong device selected (or possibly your target device is
turned o). If reading the signature fails entirely, please refer to our troubleshooting
advice (Section 7) for help getting your connection working.
Reading the device signature in AVR Studio’s Main ISP tab
7. Now it is time to program your target device. Select the Main tab. Your Device
should match the one you selected when you created the project: ATmega328P,
ATmega168, or ATmega48. Select the Program tab. Your Input HEX File in the Flash
section needs to be the hex le that was generated when you built your program. You
can browse for this using the "..." button to the right of the input le text box. If you
navigate to your project’s folder, you should nd it as “default\<project name>.hex”.
Click the Program button (make sure you click the one in the Flash section, not one in
the “EEPROM” or “ELF Production File Format” sections!).
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 11 of 29

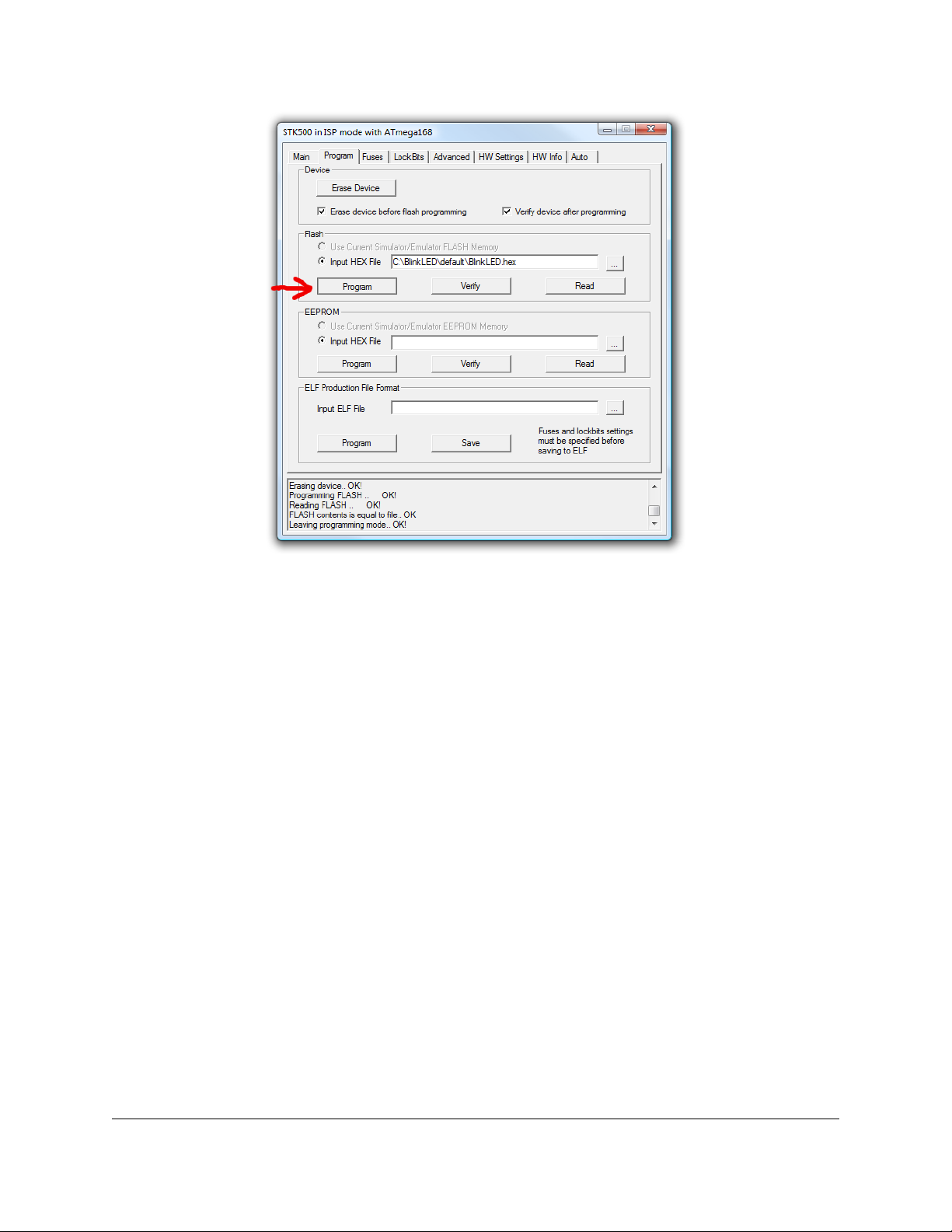

AVR Studio’s Program ISP tab
You should see both the red and the green programming status LEDs icker on your
Orangutan USB programmer as it programs and you should see the following text
appear in the text box at the bottom of the Program window:
Reading FLASH input file.. OK
Setting mode and device parameters.. OK!
Entering programming mode.. OK!
Erasing device.. OK!
Programming FLASH .. OK!
Reading FLASH .. OK!
FLASH contents is equal to file.. OK
Leaving programming mode.. OK!
If there were no problems, the red LED on your Orangutan, Baby Orangutan, or 3pi
should now be ashing! Note that if you are trying this on a 3pi robot and you haven’t
yet soldered in the optional through-hole LEDs, you will need to turn your 3pi robot over
to see the ashing LED as the surface-mounted LEDs are located on the underside of
the 3pi’s PCB. If there was a problem, please go to Troubleshooting (Section 7) for help
identifying and xing it.
5.b. AVR Studio in More Detail
This section provides a brief overview of the other tabs in the AVRISP dialog. It is rare that
you will want to use anything other than the Program tab, but it is useful to know what the
other tabs let you do for the rare occasions when you will need them.
•Main: setting your ISP frequency
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 12 of 29

AVR Studio’s interface for setting the ISP frequency.
The Programming Mode and Target Settings section lets you set the frequency of
the clock used when programming the target device. This frequency must be less than
a quarter of your target’s clock. It is important to note that the frequencies in the ISP
Freq list are not correct when you are using the Orangutan USB programmer. Here is
how the listed frequencies relate to the actual frequencies:
Listed Frequency Actual Frequency Allowed Target Frequency
1.845 MHz 2.5 MHz > 10 MHz
460.8 kHz 1.25 MHz > 5 MHz
115.2 kHz 625 kHz > 2.5 MHz
57.6 kHz 156 kHz > 625 kHz
4.00 kHz 3.91 kHz > 16 kHz
1.21 kHz* 610 Hz* > 2.5 kHz*
*This ISP frequency is so low that AVR Studio times out when it tries to program ash
or EEPROM, but it can be used to program fuses and lock bits.
You should be able to program any device running at 1 MHz or higher using the listed
57.6 kHz setting, which is the Orangutan USB programmer’s default ISP frequency.
An 8 MHz device (e.g. the Orangutan) can be safely programmed using the 460.8 kHz
setting and a 20 MHz device (e.g. the Orangutan SV-xx8, Orangutan LV-168, Baby
Orangutan, and 3pi robot) can be safely programmed using the fastest 1.845 MHz
setting. The two lowest frequencies exist as a safety net in case you accidentally set the
clock of your target device to something under 1 MHz. The 1.21 kHz setting is too slow
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 13 of 29

to actually program your target device (AVR Studio will time out waiting for a response
from your Orangutan), but it will still let you set the fuses. Be aware that if you attempt
to program ash or EEPROM using the 4.00 kHz setting, it might take somewhere on
the order of ve to ten minutes depending on the size of your program, so you should
only use this ISP frequency as a last resort.
•Fuses (proceed with caution!)
Clicking on the Fuses tab will cause the programmer to read the fuse settings of the
target device. If your programmer is not connected to your Orangutan when you select
this tab, you will get an error message. Fuses allow you to congure certain aspects of
your microcontroller such as boot ash size, brown-out detection level, and the clock o
of which it should run (e.g. external crystal, internal oscillator). To learn more about the
fuses and what they do, please see the ATmega48/88/168/328P datasheet.
Note: You can permanently disable your Orangutan by setting the fuses
incorrectly. Only advanced users who know precisely what they are doing
should change these fuse settings!
•Lock Bits
Clicking on the Lock Bits tab will cause the programmer to read the lock bits settings
of the target device. If your programmer is not connected to your Orangutan when you
select this tab, you will get an error message. The lock bits allow you to secure your
microcontroller by preventing further ash writing or reading. The lock bits can be reset
to a fully unlocked state by performing a chip erase (i.e. by clicking the Erase Device
button in the Program tab). Lock bits are usually only important if you wish to release
a product to other people without giving them access to the program it is running, or if
you wish to make it slightly more diicult to overwrite a programmed chip.
•Advanced
You should not need to worry about Oscillator Calibration.
•HW Info
This tab will tell you the hardware and software versions of your Orangutan USB
programmer. Section 5.c explains how you can congure your programmer to change
these version numbers so they will match what your AVR Studio is expecting.
•Auto
This tab lets you automatically perform a scripted set of programming actions. If you are
going to be conguring many devices the same way, it might be convenient for you to do
this using the Auto tab features.
5.c. Conguring Your Programmer for AVR Studio
Conguring your programmer’s version numbers is purely optional. Your
programmer will still function with incorrect or mismatched version numbers.
When AVR Studio connects to your programmer, it requests the programmer’s hardware
and software version numbers. If these versions don’t match what AVR Studio is expecting,
it will bring up a dialog box asking if you want to upgrade (or, if you have an old version
of AVR Studio, downgrade) your programmer’s rmware as shown below. In the example
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 14 of 29

screen shot below, our Orangutan USB programmer has a software version of 02.07 and
AVR Studio is expecting a software version of 02.0A:

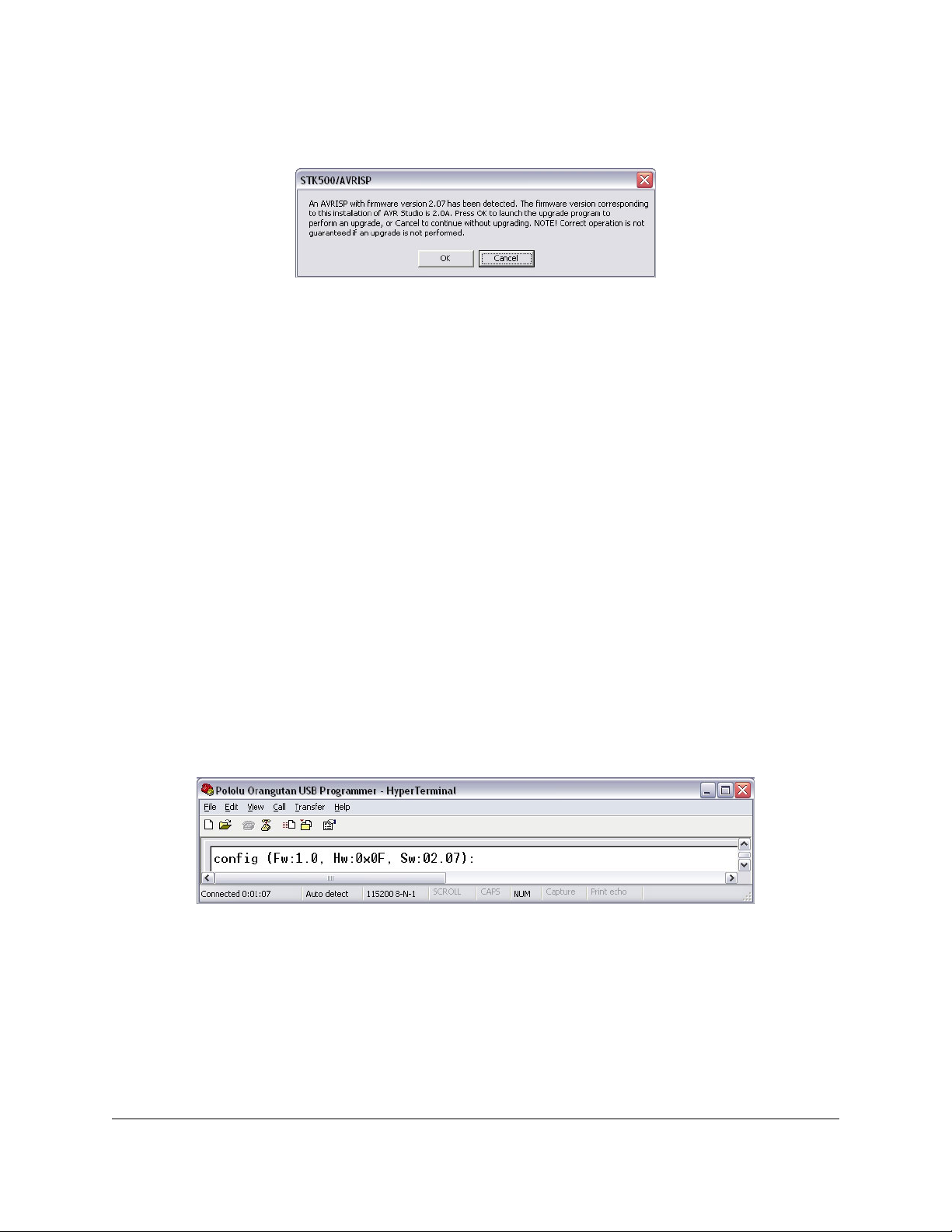

AVR Studio’s AVRISP rmware version warning
The Orangutan USB programmer does not support AVR Studio’s rmware upgrade/
downgrade system, so this dialog is nothing more than an annoyance that we will have to
dismiss every time we try to bring up the AVRISP dialog. Pressing OK will result in AVR
Studio’s attempting (and failing) to upgrade our programmer’s rmware, so the proper
response is to press Cancel to proceed to the AVRISP dialog. The warning can be safely
ignored, so to stop AVR Studio from issuing it we can congure the programmer’s software
and version hardware numbers to match what AVR Studio is expecting.
The rst step in the conguration process is to determine the COM port of your Orangutan
USB programmer. One way to do this is to bring up your computer’s Device Manager,
expand the “Ports (COM & LPT)” list, and note the COM port associated with “Pololu USB-
to-serial adapter”. Use your favorite terminal program to connect to this port at 115,200
baud with 8-bit characters, no parity and one stop bit. This is occasionally represented as
115200-8-N-1. In the screen shots below we use Hyper Terminal for this.
Once the connection is made, type “cong” in all lowercase to get into conguration mode.
As you type the letters you should see the programmer echo them back to your terminal.
If you make a mistake entering the string, you will see a “*” echoed and you will need to
start entering the string again from the beginning. Once the string is entered correctly,
the programmer will transmit its rmware, hardware, and software version numbers. The
rmware version number is the version of the Pololu rmware that your programmer is
running; this is not congurable. The software version is the version sent to AVR Studio
when it rst connects to your programmer.
here we have transmitted: cong
Once the versions are transmitted, the programmer waits for a conguration command.
The two valid commands are “s”, for software version conguration, and “h”, for hardware
version conguration. The screen shots below show us conguring our programmer’s
software version to be 2.0A, which will match what our AVR Studio expects.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 15 of 29

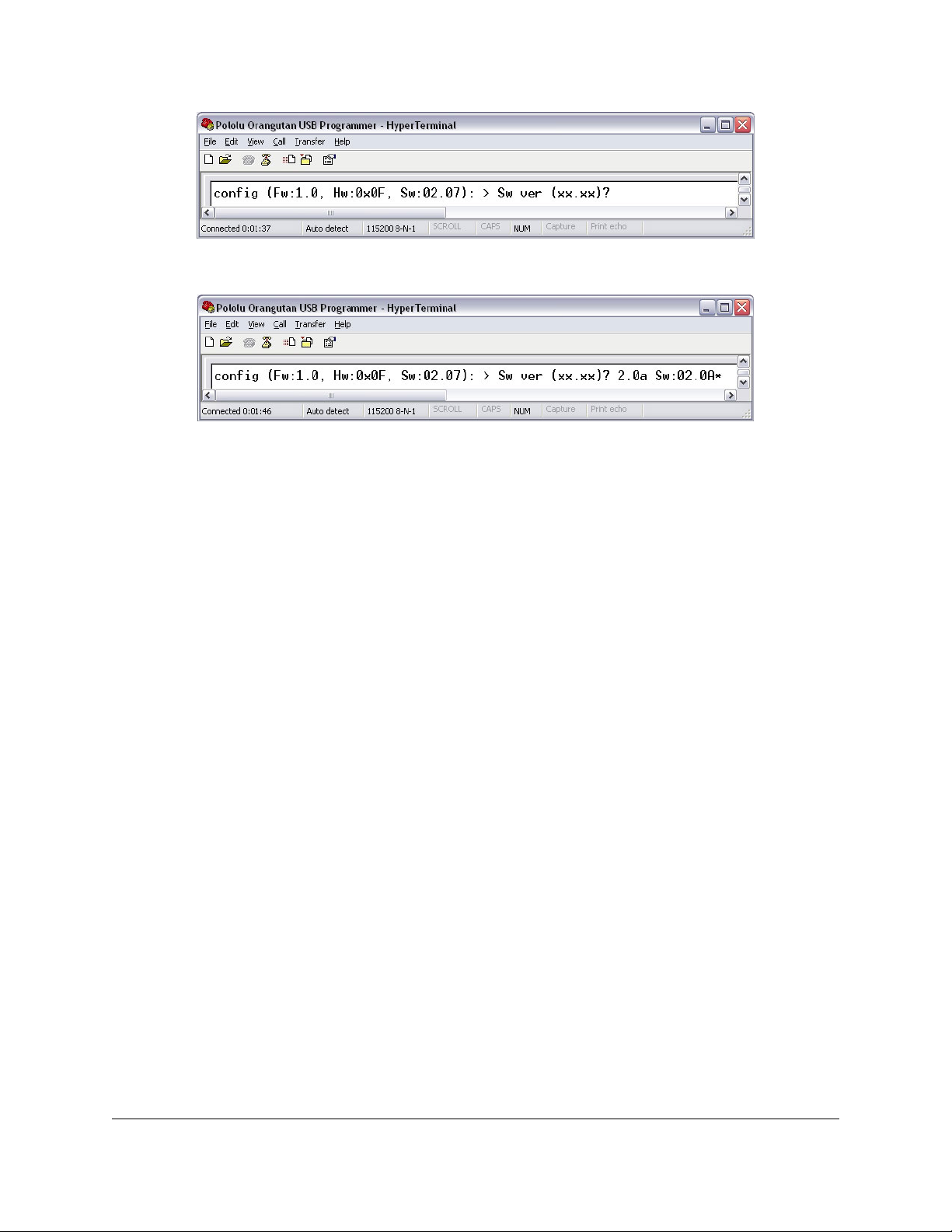

here we have transmitted: s
here we have transmitted: 2.0a
After the nal character of the software version is sent, the programmer will echo back its
new software version. If you have sent the version correctly, the version echoed should be
what you sent. If you have not sent it correctly, the version echoed should be the software
version it had before you started the conguration.
5.d. Using AVRDUDE
It is also possible to program your Orangutan using AVRDUDE, which is included in the
WinAVR package. To send the blinking LED program to your Orangutan, you would type
something similar to following into a command console:
cd C:\BlinkLED\default
avrdude -p m168 -P COM2 -c avrispv2 -e -U ash:w:BlinkLED.hex
The argument following the -p is the part number and should be m328p,m168, or m48.
The argument following the -P is the port; you can use your computer’s Device Manager
to gure out the COM port of your Orangutan USB programmer. The programmer ID
is specied using the -c option and should be avrispv2. The -e option results in a chip
erase and the -U option is used for writing, reading, or verifying ash, EEPROM, fuses, or
lock bits. In this example we are using -U to write BlinkLED.hex to ash. Please see the
AVRDUDE documentation in WinAVR\doc\avrdude\ for more detailed information.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
5. Getting Started Using Windows Page 16 of 29

6. Getting Started Using Linux
Recent versions of the linux kernel include support for the Pololu Orangutan USB
Programmer as part of the usb-serial driver. We have tested the following instructions under
Ubuntu Linux 7.04; if you experience any problems, we recommend you upgrade to the most
recent version of your distribution.
To begin working with AVRs under linux, you will need to install four software packages,
which can be downloaded from their respective websites. Under Ubuntu Linux, these
packages are provided in the “Universe” repository.
1. gcc-avr: the GNU C compiler, ported to the AVR architecture
2. avr-libc: a library giving access to special functions of the AVR
3. binutils-avr: tools for converting object code into hex les
4. avrdude: the software to drive the programmer
Once these packages are installed, you will be able to compile C programs for the AVR with
gcc to produce hex les. We will not go into the details of writing C programs for the AVR
here, but, as an example, we will show you how to use your linux computer and Orangutan
USB programmer to make the user LED on your Orangutan or Baby Orangutan blink.
Download the archive that is appropriate for your device’s microcontroller:
• mega48: BlinkLED.zip [http://www.pololu.com/le/download/
BlinkLED_m48.zip?le_id=0J188] (9k zip)
• mega168: BlinkLED.zip [http://www.pololu.com/le/download/
BlinkLED_m168.zip?le_id=0J189] (9k zip)
• mega328: BlinkLED.zip [http://www.pololu.com/le/download/
BlinkLED_m328.zip?le_id=0J190] (9k zip)
and unpack it on your linux computer. Copy the le BlinkLED/linux/Makefile into the BlinkLED/
directory. It may be necessary for you to edit this le, changing the settings at the beginning
to reect the locations where the AVR utilities were installed. Additionally, if you are
using an original Orangutan mega168 (instead of a Baby Orangutan, Orangutan SV-xx8,
Orangutan LV-168, or 3pi robot), you might want to edit BlinkLED.c by uncommenting line 2
and commenting out line 3 to account for the Orangutan’s lower 8 MHz clock frequency.
At this point, you should be ready to compile the example program and load it onto the
Orangutan. Plug in the programmer and type make.
You should see output like this:
/usr/bin/avr-gcc -g -Os -Wall -mcall-prologues -mmcu=atmega168 -c -o BlinkLED.o BlinkLED.c
/usr/bin/avr-gcc -g -Os -Wall -mcall-prologues -mmcu=atmega168 BlinkLED.o -o BlinkLED.obj
/usr/bin/avr-objcopy -R .eeprom -O ihex BlinkLED.obj BlinkLED.hex
/usr/bin/avrdude -c avrispv2 -p m168 -P /dev/ttyUSB0 -e
avrdude: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.02s
avrdude: Device signature = 0x1e9406
avrdude: erasing chip
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
6. Getting Started Using Linux Page 17 of 29

avrdude: safemode: Fuses OK
avrdude done. Thank you.
/usr/bin/avrdude -c avrispv2 -p m168 -P /dev/ttyUSB0 -U flash:w:BlinkLED.hex
avrdude: AVR device initialized and ready to accept instructions
Reading | ################################################## | 100% 0.02s
avrdude: Device signature = 0x1e9406
avrdude: NOTE: FLASH memory has been specified, an erase cycle will be performed
To disable this feature, specify the -D option.
avrdude: erasing chip
avrdude: reading input file "BlinkLED.hex"
avrdude: input file BlinkLED.hex auto detected as Intel Hex
avrdude: writing flash (160 bytes):
Writing | ################################################## | 100% 0.07s
avrdude: 148 bytes of flash written
avrdude: verifying flash memory against BlinkLED.hex:
avrdude: load data flash data from input file BlinkLED.hex:
avrdude: input file BlinkLED.hex auto detected as Intel Hex
avrdude: input file BlinkLED.hex contains 160 bytes
avrdude: reading on-chip flash data:
Reading | ################################################## | 100% 0.05s
avrdude: verifying ...
avrdude: 160 bytes of flash verified
avrdude: safemode: Fuses OK
avrdude done. Thank you.
rm BlinkLED.o BlinkLED.obj
This output indicates the Orangutan was successfully programmed, and the LED on the
board should begin to blink. If programming was not successful, please take a look at our
troubleshooting advice (Section 7).
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
6. Getting Started Using Linux Page 18 of 29

7. Troubleshooting
If Your Computer Fails to Connect to the Programmer
• Make sure your programmer is connected to your computer via a USB A to mini-
B cable. If it was previously working and has since stopped, try cycling the power by
unplugging it from your computer and then reconnecting it.
• Make sure you have installed the drivers the Orangutan USB programmer needs to
operate.
• Is the programmer’s green USB status LED on? This is the single LED on the same
side of the board as the mini-B connector. If this LED is not on, you do not have a valid
USB-to-serial connection between your programmer and your computer.
• If you are running Windows, can you see your programmer listed among your Device
Manager’s COM ports? If you expand your Device Manager’s “Ports (COM & LPT)” list,
you should see your programmer appear as “Pololu USB-to-serial adapter”.
• If you are running linux, examine the system messages generated when the
programmer is connected, using the command “dmesg”.
• Your computer will only let one program have a given COM port open at a time. If you
are connected to your Orangutan USB programmer’s COM port using another program,
such as Hyper Terminal or a second instance of AVR Studio, you will not be able to
connect to it with your programming software. Please make sure you don’t have any
terminal programs connected to your programmer, and if you have multiple versions of
AVR Studio running, make sure that you have closed the “AVRISP” programming dialogs
in all of them. When the AVRISP dialog is open, that instance of AVR Studio has an open
serial connection to your programmer.
• If you are using AVR Studio, try connecting to your programmer’s specic COM port
instead of selecting the “Auto” option, which attempts to locate the port automatically.
• Is your programmer’s blue mode jumper selecting for programming mode? If the
mode jumper is missing or is selecting USB-to-serial adapter mode, your computer will
not detect it as a programmer.
• If none of the above work, try connecting to your programmer using a terminal
program to verify that it’s alive. Please see the Conguring Your Programmer for AVR
Studio section for instructions on how you can interact with your Orangutan USB
programmer using a terminal program.
If Your Programmer Has Problems Connecting to Your Target Device
• The most common cause for this problem is an incorrect connection between your
programmer and your target device. If the ISP pins are misaligned between your
programmer and your target device, the two will not be able to communicate. Please
make sure that the ISP pins as numbered in the Module Pinout & Components section
are correctly connected between your Orangutan and your programmer (i.e. 1 goes to 1,
2 goes to 2, etc.).
• Your target must be powered for programming to work. Please make sure that your
Orangutan has power and is turned on.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
7. Troubleshooting Page 19 of 29

• Your programmer’s ISP frequency must not be more than a quarter of your target
device’s clock frequency. If you are having trouble communicating with your target
device, try lowering the ISP frequency using the Board tab of AVR Studio’s AVRISP
dialog. For more information about ISP frequency, see the Board section.
• There may be a problem with your target device. It’s possible to kill a device with a
static shock, by incorrectly connecting power, or by programming the fuses incorrectly.
There could also be a short or cut trace somewhere on your target device. The ideal way
to test for this would be to try programming a dierent device with your Orangutan USB
programmer (or, conversely, try using a dierent programmer to program your target
device). If this is not an option, try verifying that your target device is still functional
and perform some continuity tests to check for shorts or disconnections on the ISP
programming lines. Don’t forget to check the 6-pin ISP cable for shorts as well.
If none of the above troubleshooting suggestions help, please contact
us [http://www.pololu.com/contact] for support.
Pololu Orangutan USB Programmer User's Guide © 2001–2010 Pololu Corporation
7. Troubleshooting Page 20 of 29
Table of contents
Other Pololu Motherboard manuals
