POLYPOOL EASY TOUCH PP1467 User manual

User instructions

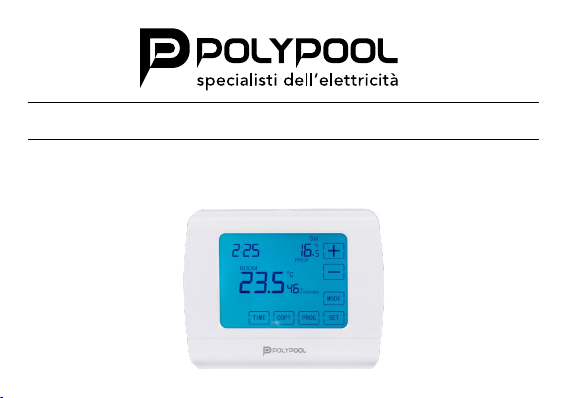

“EASY TOUCH” DIGITAL CHRONOTHERMOSTAT
PP1467

GENERAL WARNINGS DESCRIPTION
The installation must be performed by qua-
lied personnel, in compliance with the CEI
standards in force for electrical systems. The
product is intended for use in dry and non-
dusty places; for particular environments, use
specic products. Before operating on the sy-
stem, remove voltage via the main switch For
any further technical information, contact the
manufacturer’s assistance service.
This type of relay room chronothermostat can
be easily connected to any boiler or air condi-
tioner that has a two-wire connector, regardless
of the 24V or 230V power supply.
The device can be programmed according to
your requirements for the heating/cooling sy-
stem to heat/cool your residence or ofce to
the desired temperature, on the days and ti-
mes you specify, to reduce energy costs while
maintaining comfort.
The chronothermostat is equipped with 6 se-
parate and independent daily temperature
programs (intervals) which can be set for each
day of the week. The switch-on times can be
set in 10 minute intervals and the temperatures
can be adjusted in 0.5°C increments.

THERMOSTAT DISPLAY LEGEND
1 MANUAL CONTROL INDICATOR
2 SET TEMPERATURE
3 SET PROGRAM NUMBER
4 MANUAL TIME CONTROL INDICATOR
5 BATTERY LEVEL
6 HEATING MODE ACTIVE
7 COOLING MODE ACTIVE
8 AMBIENT TEMPERATURE
9 CLOCK
10 DAYS WEEK
11 ROOM HUMIDITY PERCENTAGE

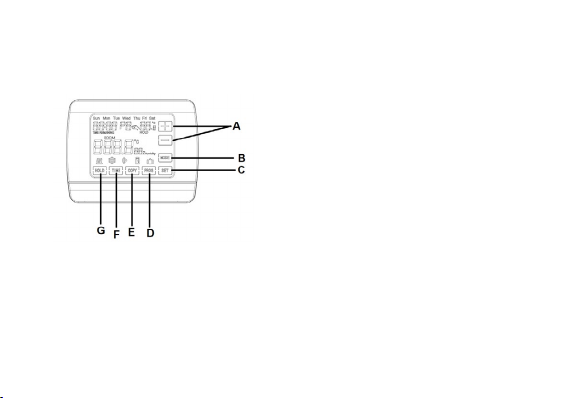

THE THERMOSTAT
BUTTONS
A + - TO INCREASE OR DECREASE
B MODE
C SET
D PROG
E COPY
F TIME
G HOLD
The switch-on sensitivity of the thermostat can
be set from the thermostat menu (please re-
fer to the PARAMETERS Section for changing
of the switch-on sensitivity from the factory
default of ±0.2°C). The following are recom-
mended:
±0.2°C (factory setting, recommended for ra-
diator heating systems)
+0°C (this setting is recommended for under-
oor heating).
For example, if the factory setting is 20°C on
the thermostat then the device switches the
boiler on at 19.8°C or below this level and
switches off at 20.2°C or above.
The thermostat is equipped with a pump pro-
tection function which, in order to prevent the
pump from locking, switches the boiler on for
one minute at midnight every day if the pump
has not switched on in a programmed way for
more than 24 hours (e.g. outside the heating
season). See the activation of the pump pro-
tection function in the PARAMETERS section.

01.
PARAMETERS
Press MODE to scroll through the various
parameters to be set and SET to conrm or
wait 15 seconds to automatically conrm.
Set the temperature calibration: Press MODE
until reaching the letters CAL on the scre-
en, press + or - to calibrate the temperature
(-3.0°C - 3°C) in 0.1°C increments (default:
0.0°C).
Sensitivity setting:
Press MODE until reaching the letters DIFF,
press + or - to select the temperature (0.1°C -
0.4°C), 0.1°C increments (default: 0.2°C).
Setting the heat pump protection:
Press MODE until reaching the letters
HP, press + or - to select ON / OFF, select ON:
if the relay never turns on in 24 hours, it will
turn on automatically at 24:00 for 1 minute.
Select OFF: to deactivate this function. (De-
fault: OFF)
Backlight setting: Press MODE until reaching
the letters bL, press + or - to select ON / OFF;
Select ON: pressing any button it is possible to
turn on the backlight, which will turn off auto-
matically after 15 seconds. (Default: OFF)
Factory data reset:
Press MODE, display RESET and press HOLD
for 3 seconds to restore the factory settings.

01. PARAMETERS
HEATING/COOLING setting:
Press MODE until reaching the word HEAT,
press + or - to select HEAT (HEATING) / COOL
(COOLING). (Default: HEAT)
In HEATING mode, the system is activated
when the set temperature is higher than the
room temperature. In COOLING mode, the
system is activated when the set temperature
is lower than the room temperature.
Lock button:
To lock the chronothermostat, keep MODE
pressed for 5 seconds, LOC is displayed for 2
seconds. To unlock press and hold MODE for
5 seconds (after the device has been locked),
ULOC is displayed for 2 seconds.
Place the thermostat in a position protected
from sudden changes in temperature or exter-
nal heat (e.g. direct sunlight, refrigerator, re-
place, etc.). The optimal installation position is
approximately 1.5 m above oor level.
N.B. = If the radiator valves in your at are
equipped with a thermostatic head, replace
the thermostatic head of the radiator valve
with a manual control handle or set it to the
maximum temperature in the room where the
thermostat is to be positioned, otherwise the
thermostatic head can interfere with the tem-
perature control of the apartment

02.
THERMOSTAT POSITION
Place the thermostat in a position protected
from sudden changes in temperature or exter-
nal heat (e.g. direct sunlight, refrigerator, re-
place, etc.). The optimal installation position is
approximately 1.5 m above oor level.
N.B. = If the radiator valves in your apartment
are equipped with a thermostatic head, repla-
ce the thermostatic head of the radiator valve
with a manual control handle or adjust it to the
maximum temperature in the room where the
thermostat is to be positioned, otherwise the
thermostatic head can interfere with the tem-
perature control of the apartment.

03.
INSTALLING
THE THERMOSTAT
ATTENTION!
Always follow the manufacturer’s instructions
when connecting the thermostat to any hea-
ting or cooling devices. The voltage appearing
at the NO, NC or COM terminal depends only
on the system being controlled, so the size of
the cable is determined by the type of devi-
ce being controlled. The length of the cable
is irrelevant.
• While pressing the closure on the upper
side of the thermostat housing, remove the
rear thermostat cover as shown in the gure
below.
• With the help of the supplied screws attach
the rear panel of the device to the wall.
• Using a small screwdriver, remove the cover
of the relay and connection terminals from
the inside of the rear panel.
• The relay output of the thermostat has th-
ree potential-free connection points, i.e.
NO; COM and NC. To control the heating,
connect the two cables of the device to be
connected to the NO and COM terminals,
i.e. to the normally open terminals of the
relay. To check the cooling system, instead
connect the 2 COM and NC terminals, i.e.
the normally closed terminals of the relay.
• To prevent electric shock, replace the remo-
ved inner cover for wire connection after the
assembly process has been completed

04.
PLACE THE THERMOSTAT INTO OPERATION
BASIC SETTINGS
BATTERY INSERTION
While pressing the closure on the upper side of
the thermostat housing, remove the rear ther-
mostat cover as shown in the gure above. The
battery compartment is located on the inside
of the front panel of the housing. Insert 2 AA
alkaline batteries in the battery compartment as
indicated.
After inserting the batteries, the thermostat goes
to the main screen and the setting process can
start.
Do not use any electrically conductive materials
or pencils to press the buttons.
After inserting the batteries, click the front panel
of the device into the wall-mounted rear panel.
SET THE CURRENT DATE AND TIME
Press the “TIME” button to enter the screen to
be congured. The day will start ashing on the
display. Using the buttons (+) and (-), set the cor-
rect day (Monday MON; Tuesday TUE; Wednesday
WED, etc.).
Press the “TIME” button again. At this point the
day stops ashing and becomes constantly visible
while the hour will start ashing on the display.
Using the (-) or (+) button on the front panel of the
device, set the current time. Press the “TIME” but-
ton again. At this point the numbers indicating the
hour will stop ashing and will become constantly
visible, while the minutes will start ashing. Using
the (-) or (+) button on the front panel of the device,
set the minutes of the current time.

To complete the settings, conrm them by pressing
the “SET” button. At this point the adjusted data
are stored and the device returns to the main scre-
en or after approximately 10 seconds, the settings
are automatically conrmed and the device returns
to the main screen.
PROGRAMMING THE THERMOSTAT
Programming of the thermostat allows setting of
the switch-on times and selection of the desired
temperatures for each programming slot.
The thermostat can be programmed in daily/
weekly mode and can manage no.6 daily time
programs.
The temperature set for a specic time interval is
valid until the next time interval is activated.
For example, the thermostat maintains the pro-
grammed temperature
for switch-on time P1 until switch-on time P2 inter-
venes.
Note! The thermostat software recognises only
consecutive increasing progressions to be set,
based on the serial number (P1; P2; etc.) of the
ignitions.
For example, P3 cannot have a lower time than the
one associated with P2
With the factory settings, the thermostat works with
the following programming for all days of the week:
P1 7:00 20°C
P2 9:00 17°C
P3 12:30 20°C
P4 15:00 19°C
P5 17:30 22°C
P6 23:00 17°C

PROGRAMMING STEPS
• Press the “SET” button
• Press the “PROG” button
• The device enters programming mode and
the numbers indicating the days of the
week (SUN MON TUE WED THU FRI) will
start ashing on the display.
• Press the (-) or (+) buttons to select the day
to be programmed or all days of the week.
To write the same program for all days of
the week, select the solution with all days
of the week.
To set a different program for each day, pro-
gramming should be performed separately for
each day of the week, selecting the days one
by one. (If there are days for which it is inten-
ded to create the same program, simply create
the program only once, because it can be ea-
sily applied to every other day with the use of
the “COPY” button).

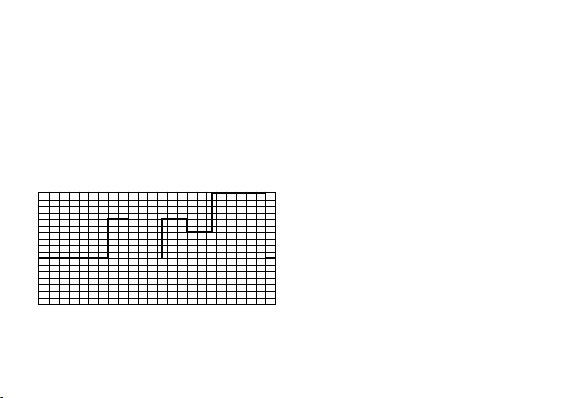

The following diagram shows the temperature pat-
tern according to the factory settings for 24 hours
a day.
The temperature scheme can, of course, be freely
changed so that the ideal temperature is available
for each day of the week.
Temperature
Time
22
21,5
21
20,5
20
19.5
19
18,5
18
17,5
17
16,5
16
15,5
15
14,5
14
1 2 3 4 5 6 7
P1
07.00
20°C
P3
12.30
20°C
P4
15.00
19°C
P5
17.30
22°C
P2
09.00
17°C
P6
23.00
17°C
8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

• Press the (-) or (+) buttons to set the starting
time for program P1 (the time can be set in
10 minute intervals).
• Press the “PROG” button to conrm the
time; the temperature ashes on the di-
splay.
• Press the (-) or (+) buttons to set the tem-
perature to be combined with program P1
(the temperature can be set in 0.5°C incre-
ments).
• Press the “PROG” button again to conrm
and move on to programming the next pro-
gram (P2) with the same methods indicated
previously
• Similarly to the previous steps, using the
“PROG” button and the buttons (-) and/or
(+) perform the settings until the time and
temperature of all 6 intervals are set
• After having programmed all the values,
press the “SET” button to conrm the pro-
grammed values and to return to the main-
screen. (After approximately 10 seconds the
programmed values will be automatically
conrmed and the display will return to the
main screen).
It is possible to press the “PROG” button repe-
atedly to display the programs set.
The set programs can be freely modied at any
time by repeating the programming steps.

COPYING A PROGRAM WITH THE
HELP OF THE “COPY” BUTTON
The “COPY” function is used to copy a pro-
gram of one day to another day or to different
days.
• Press the “SET” button.
• Press the “COPY” button for approximately
5 seconds to activate the “COPY” function
which appears on the display; the 1st day
of the week (Monday) ashes and it is now
possible to perform the copy operations.
• Press the (-) or (+) buttons to select the day
from which to copy the program from.
• Press the “COPY” button to copy the pro-
gram of the selected day. Copying stops
the ashing number, indicating that the
copy has been performed.
• Press the (-) or (+) buttons to select the day
on which to “paste” the program of the day
copied earlier.
• After selecting the day, press the “COPY”
button to copy the program of the selected
day.
• After nishing copying the program, press
the “SET” button to return to the main
screen. (After approximately 10 seconds
the copied program will be automatically
conrmed and the device will return to the
main screen).

TEMPERATURE CHANGE FOR 1-99
HOURS
Set the required temperature by pressing, or
repeatedly pressing, the (-) or (+) button on the
front panel of the device, and then press the
“TIME” button. The icon appears on the
display, together with the number 1h, which
indicates the duration of the change (in hours).
Adjust this time to the desired length (between
1 and 99) by repeatedly pressing the + key. Af-
ter that, the device will maintain the modied
temperature (for example 24°C) for a period
of time that has been set (for example for 3
hours).
On the product screen, the current time (clock)
and the time remaining at the end of the pro-
gramming will appear alternately.
Press the “SET” button before the set time for
temperature change has expired to stop the
temperature change and return to the device
operating according to the program.
FACTORY SETTINGS PROGRAM /
RESET CANCELLATION
Press MODE until reaching the letters Rese.
Once it appears keep the HOLD button pres-
sed for approximately 4 seconds to reset the
device to the factory settings. In this way the
device cancels all the stored programming and
returns to the factory settings.

TEMPERATURE CHANGE FOR 1-99
DAYS
Set the required temperature by pressing, or
repeatedly pressing, the (-) or (+) button on the
front panel of the device, and then press the
“TIME” button twice. The icon appears on the
display, together with the number 1d, which indi-
cates the duration of the change (in days).
Adjust this time to the desired length (between
1 and 99) by repeatedly pressing the + key. After
that, the device will maintain the modied tem-
perature (for example 24°C) for a period of time
that has been set (for example for 3 days).
On the product screen, the current time (clock)
and the number of days remaining at the end of
the programming will appear alternately.
Press the “SET” button before the set time for
temperature change has elapsed to interrupt the
temperature change and to return to the device,
operating according to the program.
MANUAL MODE
Press the “HOLD” button.
The word HOLD will appear below the set tem-
perature
By pressing the + and – buttons it is possible to
adjust the desired temperature
In this mode, the thermostat will remain in ma-
nual function until the SET button is pressed

CHANGING THE BATTERY
The average life of the batteries is 1 year, but
frequent use of the backlight can considerably
reduce this time. If the symbol indicating a
low battery level appears on the display, replace
the batteries.
After replacing the batteries proceed to set the
day, hour and minutes again, while the set pro-
grams remain stored and it is therefore not ne-
cessary to reprogram the thermostat.
To reprogram the device, follow the procedure
FACTORY SETTINGS PROGRAM / RESET CAN-
CELLATION

TECHNICAL SPECIFICATIONS
VOLTAGE 24V AC/DC …. 230V AC ; 50Hz
FLOW ON CONTACTS 8A (2A INDUCTIVE CHARGE)
TEMPERATURE MEASUREMENT RANGE 0°C – 45°C (WITH 0.1°C INCREASE)
TEMPERATURE REGULATION RANGE 5°C – 40°C (WITH 0.5°C INCREASE)
HUMIDITY FIELD 20% - 90%
TEMPERATURE PRECISION ±1°C
MINIMUM PROGRAMMING RANGE 10 MINUTES
POWER SUPPLY 2 x 1.5V AA ALKALINE BATTERIES (TYPE
LR6)
INSULATION CLASS INSULATED IN CLASS II

Appliance compliant with the Electromagnetic Compatibility and Low Voltage Directives
subject to technical modications.
DISPOSAL USER INFORMATION
“Implementation of Directive 2012/19/EU on Waste Electrical and Electronic Equipment (WEEE)”, pertaining to
reduced use of hazardous substances in electrical and electronic equipment, as well as to waste disposal”.
The symbol of the crossed-out wheelie bin on the equipment or on its packaging indicates that the product must
be disposed of separately from other waste at the end of its service life.
The user must therefore take the dismissed equipment to suitable separate collection centres for electrical and
electronic waste. For more details, please contact the appropriate local authority.
Suitable segregated collection of the equipment for subsequent recycling, treatment or environmentally-friendly disposal helps
prevent damage to the environment and to human health, and encourages the re-use and/or recycling of the materials that
make up the equipment.
Abusive disposal of the product by the user shall result in the application of administrative nes in accordance with the laws
in force.

Poly Pool S.p.A. via Sottocorna, 21/B
24020 Parre (BG) - Italy
Tel. [phone] - www.polypool.it
