PondMAX PA Series User manual

PA SERIES
AERATION KIT
INSTRUCTION MANUAL
PondMAX USA
888.868.1185
www.pondmax.com
DATE
NOVEMBER 2021 v1.0
MODEL
PA Series Aeration Kit Instruction Manual
TM
PA8
Nov 2021

PONDMAX.COM
WELCOME TO THE WORLD
OF PONDMAX. YOU MADE
THE RIGHT CHOICE INVESTING
IN THIS QUALITY PRODUCT.
THANK YOU AND ENJOY.
PA Series Aeration Kit Instruction Manual
Page 2
Nov 2021
• The malfunction is proved attributable to a defect in materials or workmanship, including repairs performed under this warranty. Malfunction
for any other reason-including but not limited to misuse, negligence, accident, or tampering with parts, incorrect wiring, or improper installation
will not be remedied under this warranty.
• PondMAX specifically does not guarantee chemical compatibility, and expressly does not warrant units from any problems caused by
chemical attack or failure due to incompatibility of fluid being circulated by pump.
• All warranty repairs must be performed by PondMAX or a PondMAX authorized company.
• Purchaser must retain the purchase receipt and present it with this certificate as proof of ownership and entitlement to warranty repairs.
Unauthorized repairs will not be compensated by PondMAX, and are not the responsibility of PondMAX, and if such repairs damage the
product, such damages are not remedied under this warranty.
• Purchaser shall bear all shipping, packing and insurance costs and all other costs, excluding labor and parts necessary to effectuate repairs
under this warranty.
• This warranty is in lieu of all other express warranties which now or hereafter might otherwise arise with respect to this product. Any and all
limited warranties, including the warranties of merchantability and fitness for particular purpose, shall have no greater duration than the
duration period of the express written warranty applicable to this product, and shall terminate automatically the expiration of such duration
period. Some states do not allow limitations on how long an implied warranty lasts, so the above limitation may not apply to you. No action shall
be brought for breach of any implied or express warranty after one year subsequent to the expiration of the duration period of the express
written warranty.
• Incidental and consequential damages caused by malfunction, defect, or otherwise, and with respect to breach of any express or implied
warranty, are not the responsibility of PondMAX, and, to the extent permitted by law, are hereby excluded for property damage, loss of
livestock and, to the extent not unconscionable, for personal injury damage. Some states do not allow the exclusion or limitation of incidental
or consequential damages, so the above limitation or exclusion may not apply to you.
• This warranty does not apply to any malfunction arising out of any application of this product other than normal use, unless such application is
upon request specifically approved in writing by PondMAX.
• The provisions of this warranty are severable and if any provision shall be deemed invalid, the remaining provisions shall remain in full force and
effect.
• Rights under this warranty are not assignable without the express prior consent in writing by PondMAX and, regardless of the terms of such
consent in writing, such assignee shall have no greater rights than his assignor had against PondMAX.
Please consult your dealer for quality original PondMAX® replacement parts and Warranty support.
Visit www.pondmax.com for a dealer near you, or call us at 888.868.1185.
This product is warranted to the initial purchaser to be
free of defects in materials and workmanship at the time
of initial purchase and for a period of 2 years for
PondMAX®PA Series Aeration Kit. Some parts are
consumable and may need to be replaced as part of
ongoing product maintenance and are not covered entirely
by this Warranty. In the event this product malfunctions
within 2 years from the date of purchase, the sole
obligation of PondMAX USA (hereinafter referred to
as PondMAX) will be to repair the unit or replace with
an equivalent new or factory refurbished unit at
PondMAX’s discretion, subject to the following condition:
LIMITED WARRANTY
TECHNICAL SPECIFICATIONS
DESCRIPTION
PRODUCT ORDER CODE
PA8
RECOMMENDED POND SIZE
MAX. OPERATING DEPTH
AIR FLOW RATE
POWER
VOLTS
FREQUENCY
AIR STONES
CHECK VALVES
CABLE LENGTH
AIR TUBING SIZE (ID. X LENGTH)
4 FT
0.30 CFM / 8.5 LPM
6 WATTS
115 V
60 HZ
x 2
x 2
5-1/2 FT
1/8” x 30FT (1 Roll)
Up to 1250 GAL.
23PA208

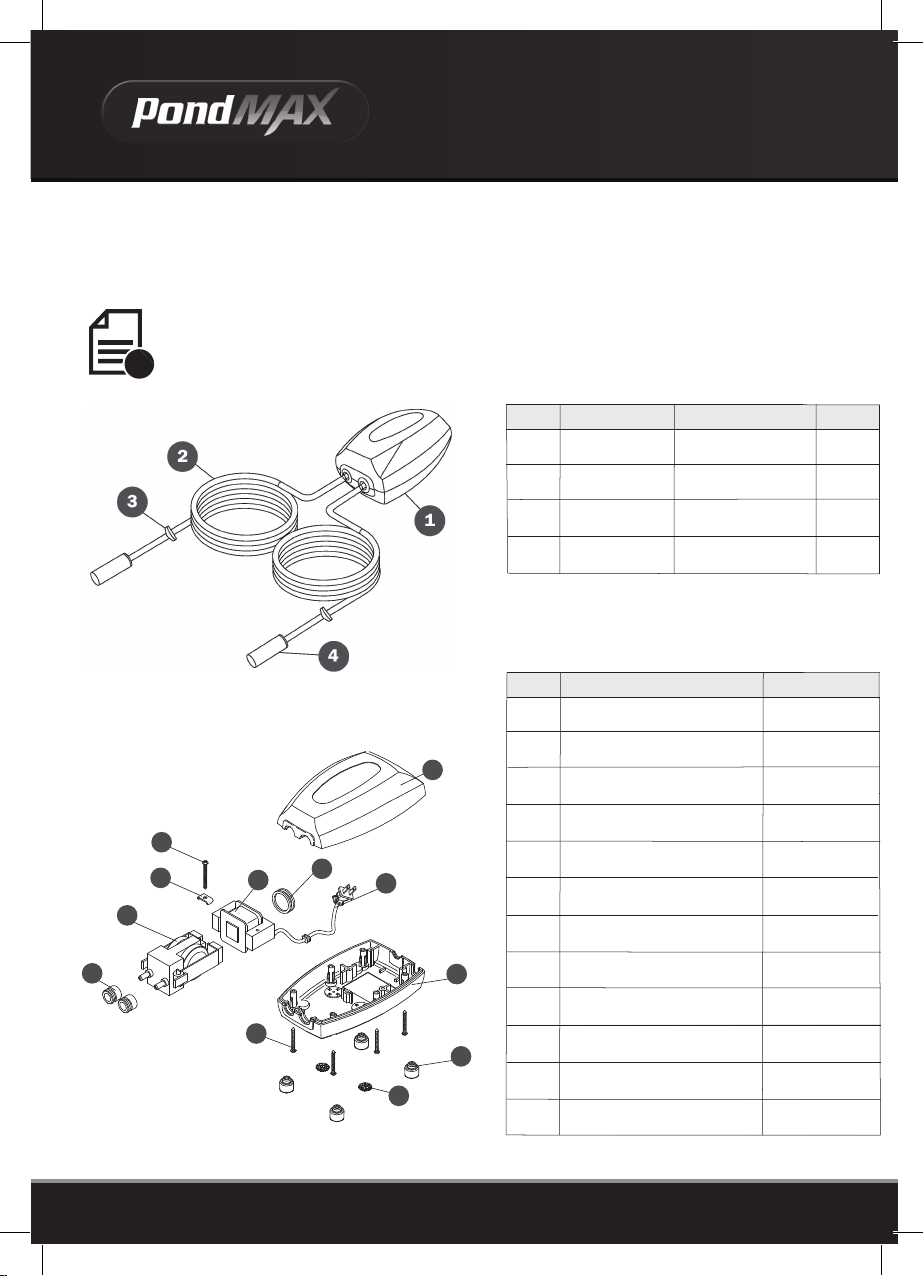

EXPLODED VIEW
IMPORTANT
These accessories and attachments are recommended for use with your PondMAX product specified in this manual. The use of any other
accessories or attachments might present a risk of injury to persons. Only use the accessory or attachment for its stated purpose.
PA Series Aeration Kit Instruction Manual
Page 3
Nov 2021
1
2
34
5
6
7
8
9
10
11
12
DESCRIPTION
Air pump
Air tubing
Check valve
Air stone
1
2
3
4
SPECS QTY
1
1 Roll
2
2
0.30CFM
Ø ID 1/8” x 30ft
-
OD 0.8” x L 2”
DESCRIPTION
Pump cover
Plug
Electromagnet
Power cord
Bushing
Diaphragm set
Base
Item #
1
2
3
4
5
6
7
8Rubber feet
Filter
Screw (diaphragm set)
Holding plate
Screw housing
9
10
11
12
QTY
1
1
1
1
2
1
1
4
2
1
1
6
Item #
WAT E RGARDENING TO THE M A X TM

WAT ERGARDENING TO THE MA X
Step 1: The pump should be placed indoors and in a dust free, dry and well ventilated location. Protect from sun, rain, snow, flooding, dirt, and excess heat.
The base of the air pump should be a minimum of 3 inches above the water level of the pond to avoid flooding the pump due to siphon effect.
Step 2: Connect the air tubing to the outlets of the PA Series Air Pump. Make sure the air tube is not twisted or kinked. Avoid long distances of air tube over
15 feet to keep the air pump cool. Cut the air tube to the shortest length possible.
Step 3: Install the check valves between the air pump and the air stones. Make sure the arrow on the check valve is pointing to the air stones, and
avoid flooding the pump due to siphon effect. Place the air stones in the bottom of the pond and the ideal depth is 3 feet or less.
Step 4: Plug into the power 110-120V GFCI protected outlet. Do not use extension cords.
Page 3
INSTALLATION
OPERATION & MAINTENANCE
When the air pressure drops (wear & tear), change the diaphragm set to bring the air pump back to work.
It is recommended to change the diaphragm set once a year to maintain optimal flow. Be sure to unplug the power before doing the replacement.
Step 1: Remove the six screws (item #12) located at the bottom and open the pump cover (item #1)
Step 2: Remove the screw (item #10) and holding plate (item #11) that secure the diaphgram set (item #6) to the base.
Step 3: Installing the new diaphragm set, and the reassemble all parts by reversed orders.
Note: Don’t place the air stones at the bottom of the pond in winter. The fish are overwintering in the deeper portions of the pond.
Instead, place the air stones about 1 to 1-1/2ft below the water surface.
12 3
PA SERIES
AERATION KIT
PA Series Aeration Kit Instruction Manual
1 2 3 4
Page 4
Nov 2021
PONDMAX. C O M
TROUBLESHOOTING
Problem Solution
Air tube
Diaphragm set
Air filter
Loss of airflow
Check valves
Not kinked, restricted, leaks or clogging
Replace
Replace or clean
Arrow pointing in the direction of the air flow
Possible Cause
