Porsche 928 S 1986 Release note

series2 Model-Year1986
Accordingtothe"PASSENGERCARFUELCONSUMPTIONORDER1977"theresultsrecordedinan
officialfueleconomycertificateoftheofficiallyapprovedtestsfordeterminingfuelconsumptioncarried
outona carofthismodel/rangeareasfollows:
SIMULATEDURBANDRIVING
CONSTANTSPEEDDRIVING
90kph(56 mph)
CONSTANTSPEEDDRIVING
120kph(75mph)
4- speedautomatic
16.7 litres/100km
16.9mpg
8.6litres/100km
32.8mpg
10.5litres/100km
27.0mpg
5- speedmanual
191 litres/100km
148 mpg
8.7litres/100km
325 mpg
10.2litres/100km
27.7mpg
IMPORTANT
Theresultsgivenabovedonotexpressorimplyanyguaranteeofthefuelconsumptionoftheparticular
cartowhichthislabelisattached.Thecaritselfhasnotbeentestedandthereareinevitabledifferences
betweenindividualcarsofthesamemodel.Inaddition,thiscarmayincorporateparticularmodifications.
Furthermore,thedriver'sstyleandroadandtrafficconditions,aswellastheextenttowhichthecarhas
beendrivenandthestandardofmaintenance,willallaffectitsfuelconsumption.

WKD92802086 1,3Μ 9/85
©Dr.Ing.h.c.F.PorscheAktiengesellschaft
PrintedinGermany
Reprint,evenpartial,isnotallowedwithoutourpriorper-
mission.
Modificationsinequipmentandengineeringwithrespectto
thepicturesanddescriptionsinthisManualhavetobere-
servedbyus,duetothecontinuousdevelopmentofour
vehicles.
SomeoftheequipmentdescribedintheDriver'sManual
isnotstandard.YourauthorizedPorschedealerwillbe
pleasedtoadviseyouonretrospectiveinstallationpossibili-
ties.
ShouldyourPorschebefittedwithequipmentnotdescribed
inthishandbook,yourPorschedealerwillbepleasedto
informyouabouttheoperationandcareoftheseitems.
Becauseof differentlegalrequirementsin individualcountries,
theequipmentofyourvehiclemayvaryslightlyfromthat
shownintheDriver'sManual.

DearCustomer,
YourPorschehasbeenmanufacturedtothevery
higheststandardsofdesignandproduction
technology.NotonlyisyourPorschea livelysportscar,
butalsoa reliablevehicleforday-to-daydriving
whichwillgiveyoumuchpleasure.
Inthis"Driver'sManual"youwillfindallyouneed
toknowaboutyourPorsche.
Thebookletentitled"GuaranteeandMainte-
nance"givesanindicationtoyou,yourgarageand
thenextbuyerofyourvehiclea usefulindicationasto
thecarrying-outofservicingwork.Inorderforany
claimsmadeunderwarrantytobeupheld,youmust
ensurethattheprescribedservicesarecarriedoutby
Porschespecialistsinanauthorizedgarage.
Wewouldalsoadviseyoutohaveyourvehicle
servicedattheintervalssuggestedevenafteryour
warrantyhaslapsed.YourPorschewillserveyouall
thebetterforthat.There-salevalueofyourvehicle
anditspart-exchangevalueatyourPorschedealers
willlikewisebeallthebetter.A worldwideafter-sales
serviceorganisationisattheready.

Index
A
ABSbrakesystem19,27
Accelerationdiagram95
Accessories54
Airconditioning3639
Airfilterchange66
Airinletgrills3435
Alarmsystem9
Antilock19,27
Ashtrays41
Automaticgearbox4751,58
Automaticseatbelts1617
Β
Battery7576
Beforebeginninga journey8
Belts1617
Blinkerwarninglight24
Brakebeddingin52
Brakediscpads52,53
Brakefluid61,91
Brakesystem18,52,90
Bulbreplacement7780
Bulbtable81
C
Catalytic converter63
Centraldoorlocking11,33
Centraldoorlockingbutton11,33
Centralwarninglight24
Centralwarningunit3233
Changedownrpm46
Chassisnumber7
Cigarettelighter41
Clock41
Clutch18
Cockpitlayout32
Collapsibletire70
Concentratedwashsystem31,62
Coolingfan59
Coolingfluid 53,6364,91
Coolingfluidtemperaturegauge25
Coolingsystem59
D/E
Databank6
Dimensions93
Dipparklightheadlightflasherswitch...29
Dipstick56
Dipswitch29
Directionindicatorswitch29
Doorguardlight11
Doors10
Doorlocking central11,33
Doorlocks53
Electricalsystem7483
Emergencystarting85
Emissioncontrolsystem6365
Enginenumber7
F
Fanbelt39,87
Fillingcapacities91
Firstaidbox41
Foglights,frontandrear22
Footbrake18,52
Footwelllight10,12
Frontseats1314
Fuelconsumption87
Fuelgauge25
Fueltank66,91
ventilationsystem64
Fullpowerperformance94
Fuses74
G
Gearbox4651
Gearboxoillevel58
Gearchangingdiagram9697
Glovebox44
Grills Freshair3435
Η
Handbrake18
Hazard warninglights28
Headlights22,82
Headlightadjustment40,82
Headlightbeamregulator40
Headlightflasher29
Headlightwasher31,53,61
Heating3437
Hoodlock45
Hydraulicfluid67
I
Identificationplate6
Ignitionswitch2021
Interiorlight10,12
Interiormirror15
Instrumentpanel20
Instrumentillumination22
4

J/K/L
Ρ
Τ
Jack55,70,7273
Jackingpoints7273
Keys8,9
Lambdasensor6364
Lights7780
Lightswitch22
Lockupwheelnuts71
Loudspeakerbalancecontrol40
Luggagecompartmentdoor45
light 12
Luggagecompartmentdoorrelease
button40
Luggagenet14
Μ
Mainbeamwarningunit24
Maintenance59
Makeupmirror44
Maximumrpm46,52
Ο
Oilchange57
Oilconsumption52,87
Oillevel Engine56
Oillevelgearbox58
Oilpressuregauge2627
Oils Recommended92
Paintcodenumber7
Parkinglight29
Performance90
Powersteering66
Puncture7172
R
Rearscreenheating28
Rearscreenwiper43
Rearseats15
Rearseatstoragecompartment41
Rearviewmirror15
Relays74
Revolutioncounter23
Roofrackloading52,89
Runningintips52
s
Safetybelts1617
Seats1314
Selectorleverpositionindicator23
Slidingsunroof4243
Snowchains54,89
Sparewheel70
Sparkingplugs87
Speedometer24
Startermotor20
Startingtheengine21,65
Steering66
Steeringlock2021
Steeringwheeladjustment13
Sunvisors44
Tankventilationsystem64
Technicaldata8797
Tempostat30
Tooltray55
Towing49,84
Trailerweights89
Transmissiondiagram9697
Transmissionratios88
Tyres,tyrepressures6769,89
u/v
Underseal65
Ventilation 3435
Voltmeter27
W
Warninglights2427
Warningunit Central3233
Watercontainers53,59,61
Weights89
Wheeladjustment89
Wheelchanging7073
Wheelnuts,lockable71
Windowregulators10
Windscreenwashers31
Windscreenwipers31
Wingmirrors15
Winteroperation5354
Wintertyres54,89
Wiperwasherswitch31
5

LocationofIdentificationPlate,
ChassisNumber,EngineNumber
andPaintNumber
Databank Identificationplate
Whenorderingsparepartsorsubmitting
inquiries,alwaysquotechassisandengine
numberstoensurecorrectandpromptser-
vice.
Thedatabankisfixedonthefloorintherear
oftheluggagecompartmentnexttothespare
wheelwell.
Theidentificationplateisrivetedonthefront
crossmember,behindthebonnetlock.
6

Chassisnumber Enginenumber Paintnumber
Thechassisnumberisstampedonthetop ofTheenginenumberisstampedonthefrontThepaintnumberplateisfixedontheleft-hand
therightwheelarchintheenginecompart-reinforcingribinthetophalfofthecrankcase.doorlockpillar,
mentandisvisiblethrougha cut-outinthe
wingflange.
7

Foryourownsafety,youshould,
beforea journey,
Keys
checkpressureandconditionofthe
tyres.
cleanthewindowsandlightlenses,
frontandrear
turntheignitionon,andcheckthat
headlampsandturnindicatorsare
functioning
withtheignitionswitchedonandthe
engineswitchedoffcheckthatall
warninglightsarefunctioningforthe
automaticwarningsystem
adjustrearviewmirrorstogiveunin-
terruptedrearvision
fastenseatbelts,soshouldthepas-
sengers.
Withthevehicleyoureceivetwomasterkeys
andoneauxiliarykey.Thetwomasterkeysfit
alllocks,theauxiliarykeydoesnotfittheglove
compartmentlock.
Vehicleswitha rearseatstoragecompart-
mentreceivetwoadditionalkeysforthecom-
partmentlock.
Themasterkeyshavea built-inflashlight.The
lightisonaslongasthecontactbuttonisde-
pressed.
Whenthelightbeginstofade,thebatterymust
bereplacedwithoneofthesametype.A dis-
chargedbatterycouldleakanddamageyour
clothing.
Byvirtueofthenewformatforthemaster
andauxiliarykeys,theunauthorizedmanu-
factureofkeysisalmostcompletelyelimi-
nated.Thismeanshowever,thatyouyour-
selfwillnotbeabletogetreplacementkeys
cut,youmustorderthemfromthemanufac-
turer.
Shouldyouneednewkeys,youmustgivethe
keynumber.Thisnumberisnotedonthekey
cardthatyoureceivewiththekeys.Keepthis
cardsomewheresafe,notinthevehicle.

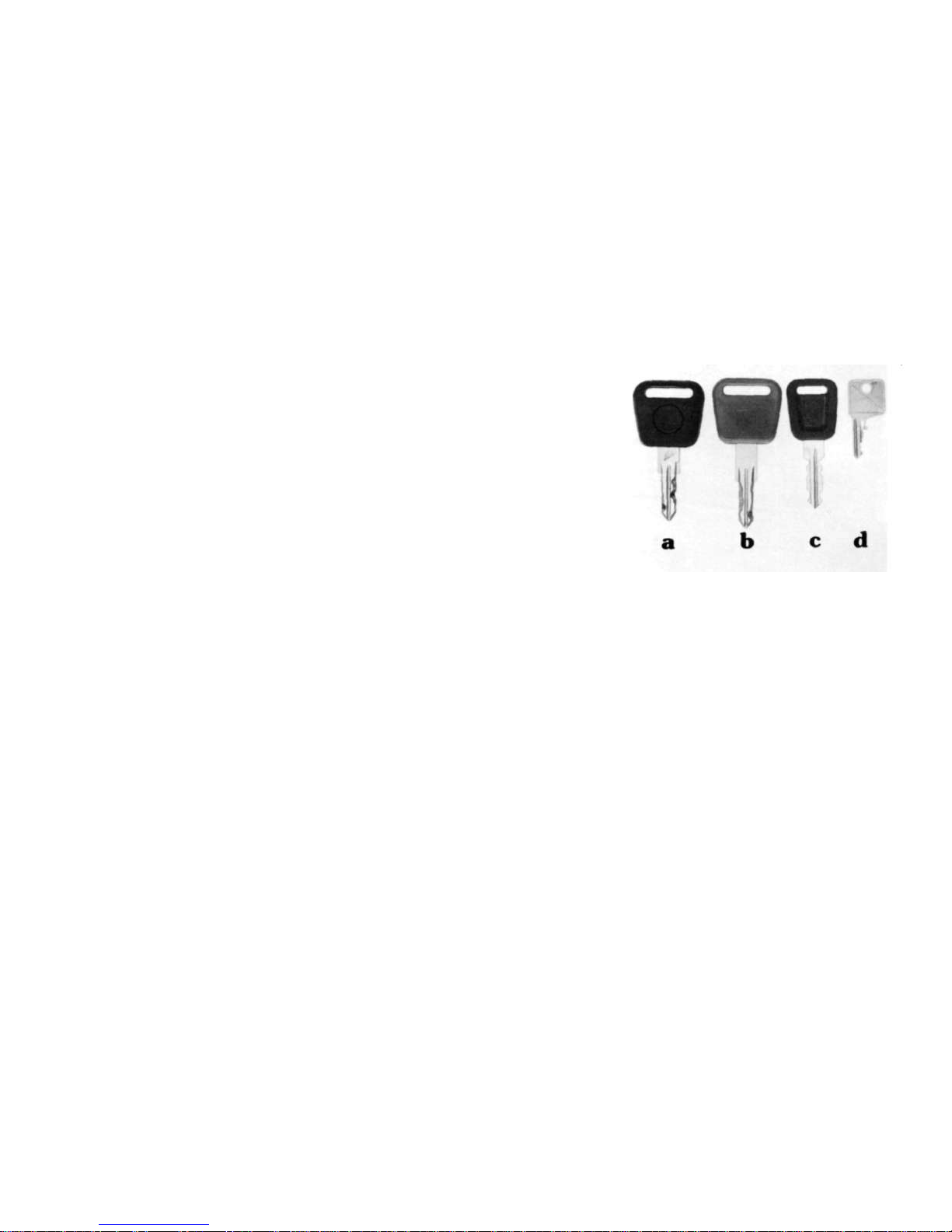

aMasterkey
bAuxiliarykey
cRearseatstoragecompartmentkey
dKeyforlock-upwheelnuts
Threeidenticalkeysaresuppliedwithvehicles
whichhavelock-upwheelnuts(awheelnut
formountingsparewheelisalsosupplied).
Copiesoflostkeyscannotbesupplied.
Pleasestoreseparately.
Ifwheelsaretoberemovedwhilstyourcaris
inthegarage,pleasedonotforgettohand
overa keyforthelock-upwheelnutsalong
withthesecondkey.
8

ReplacingtheButtonBattery
forKeyLight
1.Carefullyliftthecoverinthekeyheadwith
afingernailora smallscrewdriver,andre-
movetheoldbattery.
2.Insertthenew1.5or1.4Voltbatterywith
theplus(+)sideup.
3.Pressthecoverbackintothekeyhead.
Alarmsystem
Ifyourcarisequippedwithanalarmsystem
youwillhavereceivedtwoS-keysinsteadof
thenormalmasterkeys.Thealarmsystem
canbeactivatedonlywiththeS-keybylock-
ingthedoorsorclosingtheluggagecompart-
mentdoorandturningthekeytotheleft.Ifthe
doorsarelockedwiththeauxiliarykeythen
thedoorwillbemechanicallylockedbutthere
isnocontacttoactivatethealarm.Thealarm
systemisswitchedoffautomaticallywhena
doorortheluggagecompartmentisopened
withtheS-key.Iftheluggagecompartment
doorisopenedwhilethealarmsystemis
switchedon,thekeymustbeturnedtotheleft
toreactivatethealarmsystem.Ifthedriver's
orpassengersidedoor,enginecompartment
9
S-Key ApplicationPositions
DoorLocksSwitchingalarmsystemonandoff.
Lockingandunlockingthedoors.
Steering/Starter
IgnitionSwitchLockable.
Luggage
CompartmentSwitchingalarmsystemonandoff.
DoorLockOpeningluggagecompartmentdoor.
TankFillerCapLockable.
Glove
CompartmentLockable.

Whilstthedoorsareclosedthewindowregu-
latorscanonly beoperatedwhilsttheignition
keyisinposition"1"or"2".
Iftheignitionkeyisinposition"0"orifithas
beenwithdrawnaltogether,thewindowscan
beopenedandclosedonlywhilstthedriver's
doorisopen.
hoodortheluggagecompartmentdooris
opened,oriftheignitionisswitchedonwhile
thealarmisactivateda speciallyprotected
sirenwillsoundforabout30seconds.The
enginecannotbestarted.
In theinterestof securitytheS-Keyshould
neverbelentouttootherpersons.Theauxi-
liarykeycanbeusedasa "workshop"keyand
canalsobehandedoveratfillingandservice
stations.
Doors
Thedoorsareopenedfromtheoutsideby
pullingtheinsetdoorhandle,andfrominside,
bypullinglever(C).
Accesstothestoragecompartmentsinthe
doorisobtainedbypressingthesafetyknob,
andtippingthearmrestoutwards.
Thewindowregulatorsareoperatedbythe
rockerswitchesinthecentreconsole.
Warning:Toavoidinjurytounknowingoccu-
pantsofthevehicle,(e.g.children)bythe
closingofthewindows,theignitionkeyshould
alwaysbewithdrawnwhenleavingthevehicle,
ifonly fora shortperiod.

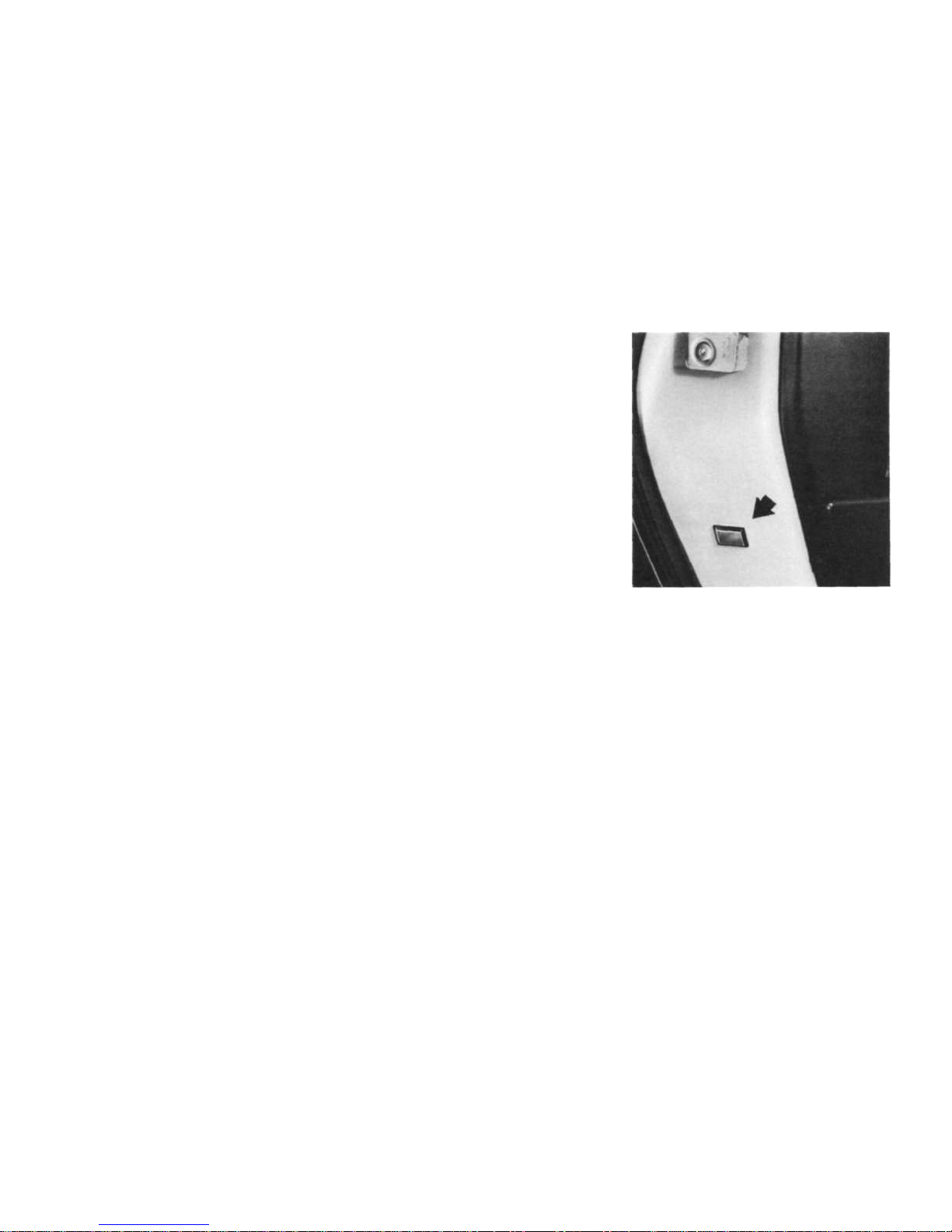

Thefootwelllights(D)mountedforwardin
thelowerpartofthedoortrimcomeon,with
theswitchintheappropriateposition,when
thedoorortheluggagecompartmentdooris
opened.Eachlightcanalsobeswitchedonor
offindividuallybymeansoftheintegrated
switch.
10

Centraldoorlocking
Bymeansofthecentraldoorlockingsystem
bothdoorsareelectricallylockedorunlocked
byoperatingonelock.
Whenthedoorsarelockedthelockingbut-
tons(A)mustbefullyretracted.Ifthisisnot
thecasethelockonthatdoorisnotproperly
engaged.Re-openthedoor,closeitproperly
andre-lockit.
Onvehicleswithcentrallockingthepassenger
doorcanbelockedandunlockedbyturning
theknob(B)aswellaswiththekey.
Topreventbeingaccidentallylockedoutof
thevehicleitisimpossibletolockthedoor,
whileopen,eitherusingtheknob(B)or with
thekey.
Centrallockingisonlypossiblewhenboth
driverandpassengerdoorsareclosed.If
onedoorislockedbeforetheotherisclosed
itwillautomaticallyunlockwhentheotherdoor
isclosed.
Whentheignitionhasbeenswitchedonor
whentheignitionkeyisturnedtoposition1,
bothdoorscanbeelectricallylockedorun-
lockedbypressingthecentrallockingbutton
inthecenterconsole.Thelampinthecentral
doorlockingbuttonremainslitwhilstthesys-
temisactivated.
Whentheignitionisswitchedoffbutwiththe
keystillintheignitionlockthedoorscanbe
centrallylockedusingeitherthekeyorthe
knob(B).
Doorguardlights
Thedoorguardlightscomeonwhena door
ortheluggagecompartmentdoorisopened.
11

Interiorlights
Theinteriorlights,whichareindependentfrom
oneanother,comeon,withtheswitchinthe
appropriateposition,assoonasa doororthe
luggagecompartmentdoorisopened.
Theinteriorlightsgooutwhentheignitionis
switchedonorautomaticallyafterapprox.30
seconds.
Afterleavingthevehicle,theinteriorlightsgo
outautomaticallyapprox.30secondsafter
lockingthedoororoperatingthedoorlock.
Footwelllightinlowerpartofdoortrim
Theinteriorlightshavethefollowingswitch
positions:
a-lightcomesononlywhena doororluggage
compartmentdoorisopened
b-lightswitchedoffpermanently
c-lightswitchedonpermanently.
Luggagecompartmentlightintailgate
Theinteriorlightintheheadliningandthe
luggagecompartmentlightareswitchedon
andoffbytiltingthelampglass.Thefootwell
lightsareoperatedbytheswitchintegrated
inthelight.
12

Frontseats
Correctseatpositioningisimperativeforsafe
andalertdriving.Toenableindividualseat-
ingcomfort,twoswitcheseachwithfourfunc-
tionspermitinfinitelyvariableelectricalfore
andaftadjustmentandheightadjustmentas
wellasseatbackadjustment.
Tofindthemostsuitableseatposition,we
suggestthefollowingprocedure:
1.Operateswitchforforeandaftadjustment
untilyourlegisstraightwhenfullydepress-
ingtheclutchpedal.Youshouldnothowever
havetooutstretchyourfoottoreachthis
position.
2.Setthedesiredseatheightatfrontandrear.
3.Gripthetophalfofthesteeringwheel.Then
set thebackrestanglesothatwithalmost
fullyoutstretchedarmsyourshouldersstill
contactthebackrest.
4.Ifnecessary,correcttheforeandaftadjust-
mentonceagain.

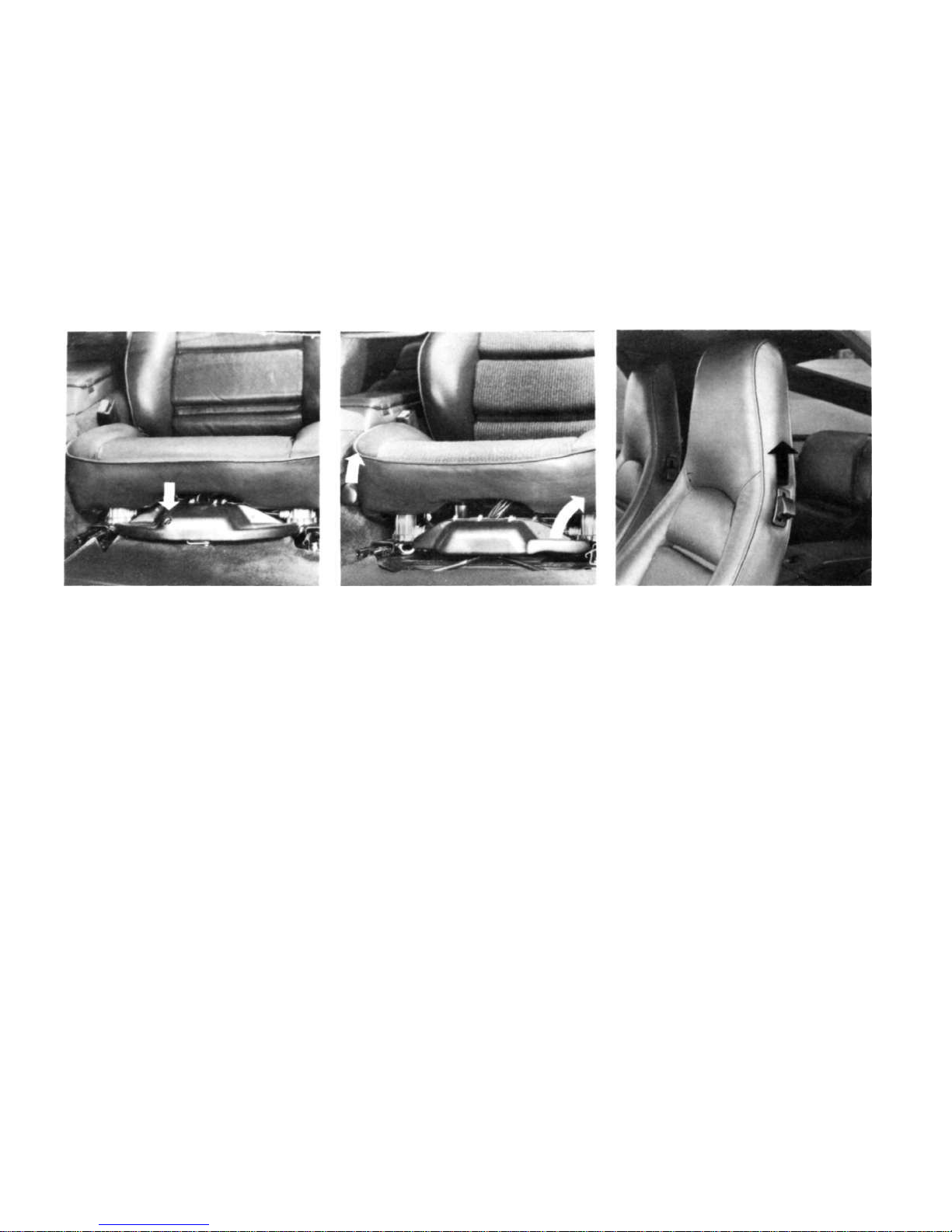

Foreandaftadjustment
Heightadjustmentfront
Backrestadjustment
Heightadjustmentrear
Seatheating
Theseatheatingisswitchedonbymeansof
switch(A)andheatstheseatandback.After
approx.15minutestheheatingisswitchedoff
automaticallybya time-lagrelay.
Theheatingcanalsobeswitchedoffbefore
thenbypressingtheswitchdownwards.
Steeringwheeladjustment
Afteradjustingyourseat,checktheposition
ofthesteeringwheelandyourviewofthein-
struments.
Foroptimumlegroomandviewoftheinstru-
ments,thesteeringwheelwiththeinstrument
consoleisheight-adjustable.Todothis,re-
leasetheleverundertheconsoleandclamp
againwheninthedesiredposition.
13

EmergencyoperationofseatSportsSeatBackrestlock
Foreandaftadjustmentandbackrestadjust-
mentarecarriedoutmanuallyonsportsseats.
Tomovetheseatbackwardsandforwards,
pulltheoutsidelockingleveratthefrontof
theseatupwards,moveseatintodesiredpo-
sition,releaseleverandensurethattheseat
engagessecurely.

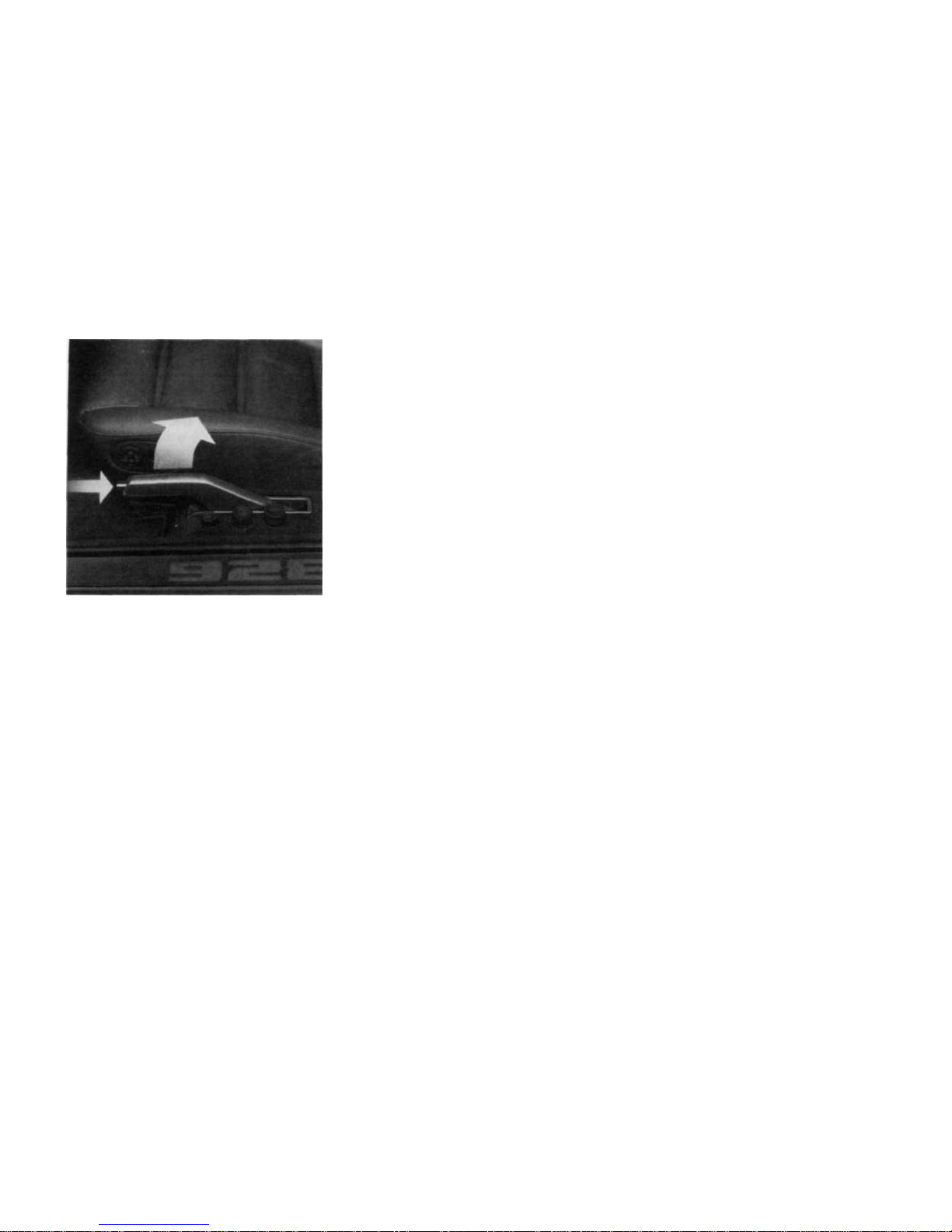

Inordertoadjustthebackrest,pulltheinside
lockingleveratthefrontoftheseatupwards,
ShouldtheelectricalseatadjustmentsystemsetseattodesiredpositionandreleasetheThebackrestsaresecuredinpositiontostop
fail,foreandaftadjustmentoftheseatispos-lever.themtippingforwardduringbraking.Tore-
sibleusingtheAllenkeyinthetoolkit.UsetheWhenthereisnoloadonthebackrest,itwilllease,raisetheknobinthesidepartofthe
keytoturntheservomotoratthefrontonthealwaysbepushedforwardsbyspringforcebackrest.Thebackrestsarelockedinposition
seat.whentheleverispulled.whentheyaretiltedback.
14

Similarly,therearseatbackrestscanbere-
leasedandtippedforward,therebygiving
moreluggageroomintherear.
Rearwindowmirrors
Beforebeginninga journeyyoushoulden-
surethattherearviewmirrorsareproperly
adjusted.
Theinteriorrearviewmirrorisstuckdirectly
onthewindscreen.Thisenablesa veryshort
mirrorstemtobeusedtherebyobviatingvib-
ration,anda blurredimage.

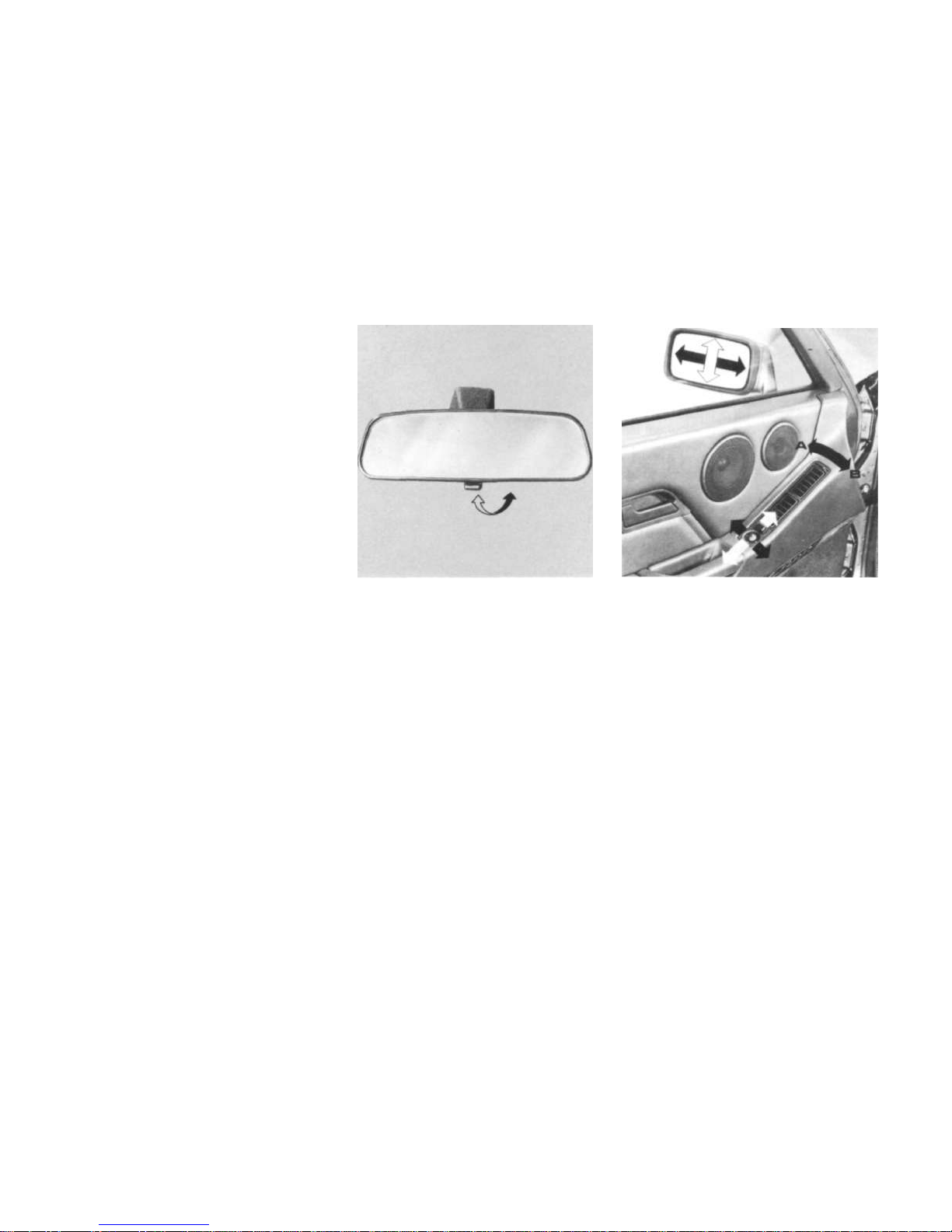

Theelectricallyadjustablewingmirrorscan
besetwiththeswitchinthedriver'sdoor.The
passengerdoorwingmirrorisadjustableby
thesameswitch,bypressingtherockerswitch
infrontoftheadjusterswitchintotheappro-
priateposition.Whennecessary,thewing
mirrorscanalsobeadjustedbyhand.
Usetheluggagenettosecureyourluggage
tostop itslidingduringbrakingorinbends.
Thebracketsforattachingtheluggagenetare
ontheflooroftheluggagecompartment. Themirrorisadjustedtotheanti-dazzleposi-
tionbypressingtheleverunderneathit. Thewingmirrorsarealsoelectricallyheated whentherearwindowheatingisturnedon.
15

Safetybelts
YourPorscheisequippedwithsafetybelts
asstandardfittings.Alloccupantsofthecar
shouldwearsafetybeltsfortheirownsafety,
oneveryjourney.Toremindyouofthis,the
safetybeltwarninglightinthecentrecon-
solecomesoneverytimetheignitionisturned
onanddoesnotgooutuntilthebuckleonthe
driver'sseatbeltisinsertedintheanchorpoint.
Thelapandshoulderbeltsasfittedarenot
suitableforchildrenunder140cm(4ft.6 ins.)
tall.Tostopthemdistractingthedriver'satten-
tion,andfortheirownsafety,childrenunder
12yearsoldshouldalwaystravelintherear
seats.
Neveruseoneseatbeltfortwopeople.
Looseclothingaffectsthefitoftheseatbelt.
Youshouldthereforetakeyourcoatoff,be-
causea correctseatingpositionandfreedom
ofmovementareimportantforcomfortand
safety.
Donotrunthebeltoverfragileobjectsinyour
pockets,e. g. spectacles,pensor a pipeetc.,
asthesecouldrepresentadditionalhazards.
Pleaserememberwhendrivingabroadthat
insomecountriesthewearingofseatbelts
iscompulsory.
Puttingonthebelts
Decidethebestseatingpositionforyour-
self.Takeholdoftheslidingbuckleandpull
thebeltfirmlyoverchestandhips.Pressthe
buckleintotherespectiveanchorpointonthe
insideoftheseatuntilyouhearthatthelatch
islocked.Slidetheplasticloopuptothebuckle.
Avoidtwistsinthewebbingwhenputting
onthebelt.
16

Thelappartofthebeltmustalwaysstaytaut
overthepelvis.Afterputtingthebelton,you
shouldthereforepulltheshoulderpartofthe
beltupwardsasshowninthepicture.Now
andagainduringthejourney,youshouldre-
peatthisproceduretoensurethatthelapbelt
isalwaystaut.
Thelockingmechanismintheroll-upunitis
sodesignedthatbyrapidaccelerationor
braking,corneringordrivingonsteepinclines,
thebeltislocked.Thislockingsystemreacts
morequicklytotheretardationofthecarthan
toanypullonthebelt.
Releasingthebelts
Toreleasethebelt,presstheredbutton
marked"press".Thebucklethenspringsout
oftheanchorage,whetherthereisanyload-
ingonthebeltornot.
Makesurethatthebeltsarealwaysfullyre-
tractedwhennotinuse.Thiswillpreventthem
becomingdirtyandavoidunnecessarydam-
agetothebeltsthemselves.
Youshouldcheckyourseatbeltsregularly for
signsofdamagetothewebbing.Makesure
thatthelocksandanchoragepointsarein
goodcondition.Ifthebeltshavebeensub-
jectedtohighloadsorstretchedinanaccident,
havethemreplacedintheinterestsofyour
ownsafety.
Backseatsafetybelts
Thebackseatsareequippedwithautomatic
lapbelts.Donottwistthebeltwhenputtingit
on.Thebeltisreleasedbypressingthered
button.
Warning.Pleasedonotmakeanyalterations
oradditions.
Incaseofdoubtpleaseconsultyourauthor-
izedPorschedealer.
Addressesarelistedinyour"Service"-book-
let.
17

Footbrake Clutch
Handbrake
Thehandbrakeiscableoperatedtotherear
wheelsonly.Itisappliedbypullingthelever
upwards.
Toreleasethebrake,thelevermustbepulled
upwardsslightlywhilstpressingthebuttonin
theendoftheleveruntiltheratchetiscleared,
andthenlettingtheleverdownwards.
Thecentralwarninglightandthehandbrake
warninglightwillgooutwhenthebrakelever
isfullyreleased.(SeeAutomaticwarningunit.)
Toreducethepedaleffortnecessarywhen
braking,yourPorschehasa brakeservounit.
Thevacuumnecessarytooperatethisunitis
takenfromtheengineinletmanifold,when
theengineisrunning.
Pleasenotethatwitha defectiveservounit,
orwhenthevehicleisbeingtowedwiththe
engineturnedoff,thebrakingeffortrequired
isconsiderablyincreasedassoonasthe
vacuumreservoirisusedup.
Withproperlybledandfunctioningbrakes,the
freemovementofthebrakepedalwillremain
constant.Thisfreetravelbeforethebrakes
starttooperatecanbe20mm(0.8ins.).
Shouldthisfreetravelsuddenlybecomebigger,
it couldbe thatairhasenteredthebrakesys-
tem.Lowbrakefluidlevelisindicatedbythe
flashingofthecentralwarninglight(seeCent-
ralwarningunit).Inaddition,the"brakefluid"
labelintheright-handinstrumentclusterlights
up.
Duetothehydraulicoperationoftheclutch,
afreetravel oftheclutchpedalof2.5mmis
necessary.
Shouldthisfreetravelsuddenlybecome
bigger,itcouldmeana malfunctionofthe
clutch.Pleaseconsultyourworkshopfor
rectification.
18
