POS-X ION TP5 Pro User manual

ii
Copyright 2017
All Rights Reserved
Manual Version 1.0
The information contained in this document is subject to change without notice.
We make no warranty of any kind with regard to this material, including, but not limited
to, the implied warranties of merchantability and fitness for a particular purpose.
We shall not be liable for errors contained herein or for incidental or consequential
damages in connection with the furnishing, performance, or use of this material.
This document contains proprietary information that is protected by copyright. All rights
are reserved. No part of this document may be photocopied, reproduced or translated
to another language without the prior written consent of the manufacturer.
TRADEMARK
Intel®, Pentium® and MMX are registered trademarks of Intel® Corporation.
Microsoft® and Windows® are registered trademarks of Microsoft Corporation.
Other trademarks mentioned herein are the property of their respective owners.
Safety
IMPORTANT SAFETY INSTRUCTIONS
1. To disconnect the machine from the electrical power supply, turn off the power switch
and remove the power cord plug from the wall socket. The wall socket must be easily
accessible and in close proximity to the machine.
2. Read these instructions carefully. Save these instructions for future reference.
3. Follow all warnings and instructions marked on the product.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The product may fall,
causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for ventilation
to ensure reliable operation of the product and to protect it from overheating. These
openings must not be blocked or covered. The openings should never be blocked by
placing the product on a bed, sofa, rug, or other similar surface. This product should
never be placed near or over a radiator or heat register or in a built-in installation
unless proper ventilation is provided.
7. This product should be operated from the type of power indicated on the marking label.
If you are not sure of the type of power available, consult your dealer or local power
company.
8. Do not allow anything to rest on the power cord. Do not locate this product where
persons will walk on the cord.
9. Never push objects of any kind into this product through cabinet slots as they may
touch dangerous voltage points or short out parts that could result in a re or electric
shock. Never spill liquid of any kind on the product.

iii
CE MARK
This device complies with the requirements of the EEC directive 2014/30/EU with
regard to “Electromagnetic compatibility” and 2014/35/EU “Low Voltage Directive”.
FCC
This device complies with part 15 of the FCC rules. Operation is subject to the following
two conditions:
(1) This device may not cause harmful interference.
(2) This device must accept any interference received, including interference that may
cause undesired operation.
CAUTION ON LITHIUM BATTERIES
There is a danger of explosion if the battery is replaced incorrectly. Replace only
with the same or equivalent type recommended by the manufacturer. Discard used
batteries according to the manufacturer’s instructions.
Battery Caution
Risk of explosion if battery is replaced by an incorrectly type. Dispose of used battery
according to the local disposal instructions.
Safety Caution
Note: To comply with IEC60950-1 Clause 2.5 (limited power sources, L.P.S) related
legislation, peripherals shall be 4.7.3.2 “Materials for re enclosure” compliant.
4.7.3.2 Materials for re enclosures
For MOVABLE EQUIPMENT having a total mass not exceeding 18kg.the material of a
FIRE ENCLOSURE, in the thinnest signicant wall thickness used, shall be of V-1 CLASS
MATERIAL or shall pass the test of Clause A.2.
For MOVABLE EQUIPMENT having a total mass exceeding 18kg and for all STATIONARY
EQUIPMENT, the material of a FIRE ENCLOSURE, in the thinnest significant wall
thickness used, shall be of 5VB CLASS MATERIAL or shall pass the test of Clause A.1

iv
LEGISLATION AND WEEE SYMBOL
2012/19/EU Waste Electrical and Electronic Equipment Directive on the treatment,
collection, recycling and disposal of electric and electronic devices and their
components.
The crossed dust bin symbol on the device means that it should not be disposed of
with other household wastes at the end of its working life. Instead, the device should
be taken to the waste collection centers for activation of the treatment, collection,
recycling and disposal procedure.
To prevent possible harm to the environment or human health from uncontrolled waste
disposal, please separate this from other types of wastes and recycle it responsibly to
promote the sustainable reuse of material resources.
Household users should contact either the retailer where they purchased this product,
or their local government ofce, for details of where and how they can take this item for
environmentally safe recycling.
Business users should contact their supplier and check the terms and conditions of
the purchase contract.
This product should not be mixed with other commercial wastes for disposal.

v
Revision History
Changes to the original user manual are listed below:
Revision Description Date
1.0 • Initial release July, 2017

vi
Table of Contents
1.Packing List .................................. 1
1-1. Standard Contents..........................................................
1-2. Optional Accessories.......................................................2
2. System View .................................. 3
2-2. Front View ........................................................................3
2-1. Side & Rear View.............................................................3
2-3. IO Port View .....................................................................4
2-4. Dimensions......................................................................4
3. System Assembly & Disassembly 5
3-1. Open the Rear Cover........................................................5
3-2. Install the Power Adapter................................................6
4. Peripherals Installation ............... 7
4-1. Install the MSR Module ..................................................7
4-2. Install the LCM Module..................................................8
4-3. Install the 2nd Display Module ........................................9
4-4. Load the Thermal Printer Paper....................................10
1

vii
5. Specifications ............................. 11
6. Configuration .............................. 12
6-1. D33 Motherboard Layout ..............................................12
6-2. Connectors & Functions ................................................13
6-3. Jumper Settings .............................................................14

vii
The page is intentionally left blank.

1. Packing List
1-1. Standard Contents
a. ION TP5 Terminal
b. Power adapter
c. Power cord
d. RJ45-DB9 cable (x1)
ab
cd
1

1-2. Optional Accessories
a. MSR module
b. 2nd display module
c. LCM module
ab
c
2

2. System View
2-1. Side & Rear View
2-2. Front View
ION-TP5E-F
Item No. Description
1 Touch screen
2Paper Door Button
3 Thermal printer
4 Printer indicator(power, error, and paper) & Paper feed button
5Front Facing USB 2.0
3
2
1
4
55
ION-TP5F-F
1
Item No. Description
1Back cover
(IO board and thermal printer inside)
66
6Power Button
3

Item No. Description
a Power button
b DC 19V in
c COM 1~3 (from left to right)
d USB 2.0 x 4
e LAN
f Cash drawer
2-3. IO Port View
2-4. Dimensions
13.74"
14.31"
8.97"
1.3"
7.36"
13.38"
8.74"
7.44"
bcde
a
f
4

3. System Assembly & Disassembly
3-1. Open the Rear Cover
1. The back cover of the system is secured by two bolt screws which are located on
the bottom of the base plate.
2. To open the back cover, firstly place the system face down. From there, you will
be able to see the bottom of the system.
3. Insert a small coin into the large groove of the screw and turn counterclockwise
to unscrew.
4. Use both hands to pull the cover upward to release the rear cover from the
system.
5

3-2. Install the Power Adapter
The system is equipped with a 90W power adapter. Please plug it into the system as
shown below.
Turn off the system:
1. Hold down the power button for 5 seconds to bring up the "Slide to shutdown"
screen.
2. To force a hard shut down, hold down the power button for 10 seconds. WARNING:
This can cause data loss and render the system inoperable.
* When the power adapter is connected, the power LED on the printer indicator will
blink slowly.

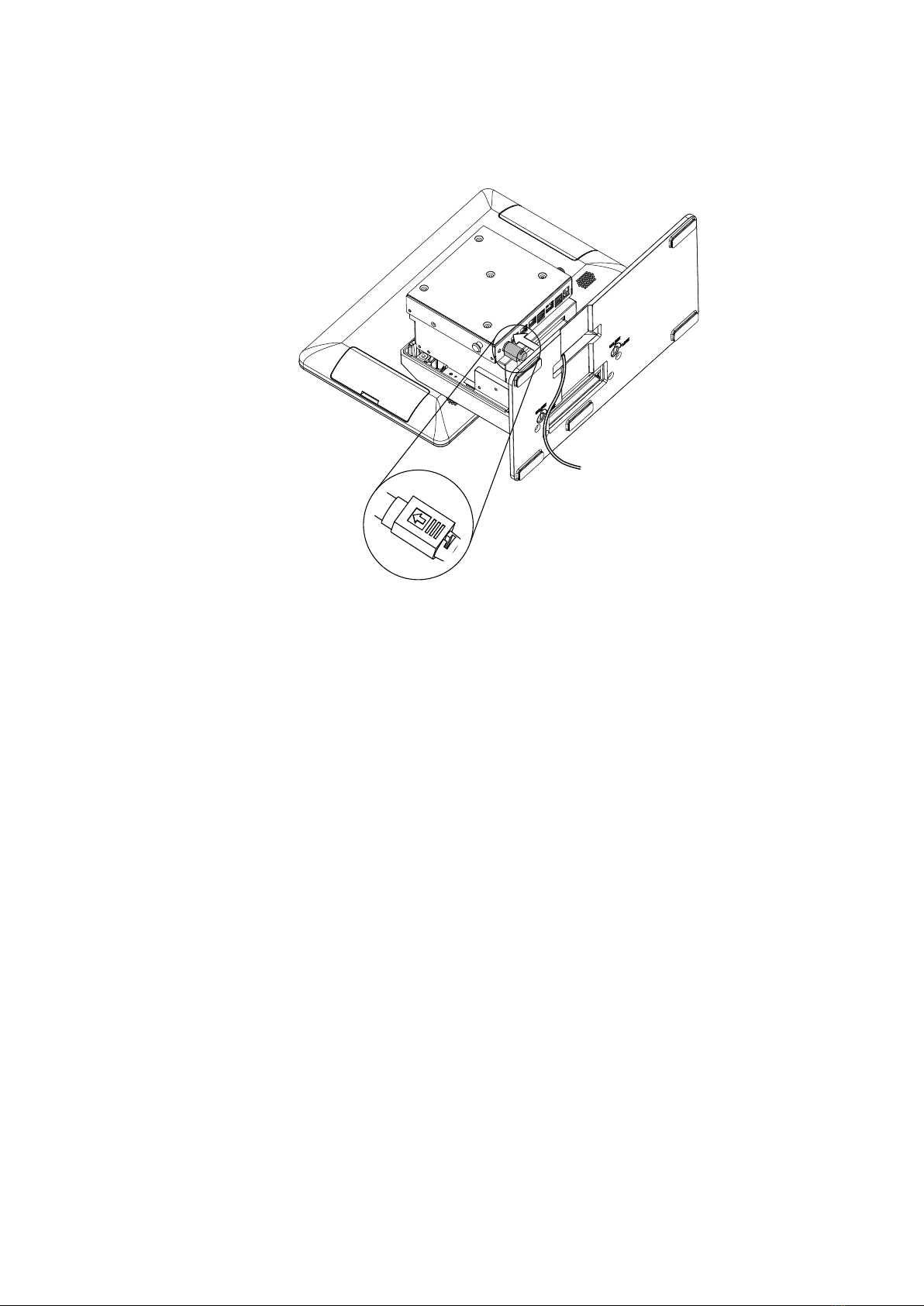

1. Follow the steps described in Chapter 3-1 to open the rear cover first.
2. Place the system face down to access the bottom of the base.
3. Thread the power adapter cable through the hole of the stand as shown in the
picture.
4. Find the power connector on the right of the I/O panel (refer to chapter 2-3 b.) and
plug the power adapter into the DC-IN connector with the flat side facing the terminal.
5. Finally arrange and secure the cable by as shown in the picture.
Warning:
• Please follow the directionswhen connecting the adapter and make sure it is fully
connected into the I/O port.
• When attaching or detaching the cable, do so by holding the connector, not the
cable itself.
•DO NOT pull or rotate the cable which may cause damage to the port.
Turn the system on:
1. Located the power button on the bottom left corner of the screen. Hold down the
power button for 3seconds to power on the system.
6

4-1. Install the MSR Module
1. Remove the dummy cover first.
2. Connect the MSR cable to the connector on the inside of the system.
3. Insert the MSR module in place and fasten the screws (x2) on the back to
secure the module. Do not over tighten the screws to avoid damage to the
plastic parts.
4. Finally cover the screws with the rubber covers.
4. Peripherals Installation
7

4-2. Install the LCM Module
1. Follow the steps decribed in Chapter 3-1 to open the back cover of the system
first.
2. After opening the back cover, you will find the LCM connector located inside.
Connect this connector to the other end of the connector of the LCM module.
3. Finally, fasten the screws(x4) to secure the LCM module to the system.
8

4-3. Install the 2nd Display Module
1. Follow the steps decribed in Chapter 3-1 to open the back cover of the system
first.
2. After opening the back cover, you will find the 2nd display connector located
inside. Connect this connector to the other end of the connector of the 2nd display
module.
3. Finally, fasten the screws(x4) to secure the 2nd display module to the system.
9

4-4. Load the Thermal Printer Paper
Note: Do not switch off the system. The printer must be powered on when
replacing the printer paper.
Integrated printer only available in select models
1. Press the button at the right side to
open the thermal printer module.
*Cut away the first two (2) inches of
the paper, to obtain a straight
edge and remove the label at the
end of the roll.
2. Place the paper roll inside the
printer slot, pull out 2 or 3
inches of paper and then close
the cover.
3. The paper will feed automatically
through the printer (the system
must be powered on).
10

5. Specications
Model ION-TP5E-F ION-TP5F-F
CPU support Intel Bay Trail CPU Celeron J1900
System memory 4GB / 8GB DDR3 SO-DIMM
Storage 32GB / 64GB pSSD
LCD touch panel
LCD size 14” TFT LCD (eDP)
Maximal resolution 1366 x 768
Brightness 200 nits
Touch screen type True Flat P.Cap Touch
Tilt angle 0°~90° ( w/o LCM and 2nd display)
Expansion I/O ports
USB port 4 x USB 3.0 Type-A / 1x USB2.0 USB, front side
COM port
3 x RJ-48
(COM1 0V/5/12V; COM2 0V/5V/12V; COM3 0V/5V/12V; default BIOS
setting 0V)
Cash drawer 1 x RJ-11 (12V/19V selection by jumper setting, default 19V)
LAN port 1 x RJ-45 ( 10/100/1000 Base T)
DC jack 4 pin w/ lock
Power
Power adapter 120W/19V
Control / Indicator
Power button 1
Printer feed button 1 NA
Printer LED Indicator 3 ( Paper, Error, Power ) NA
Peripherals
Built in printer
3” 6.7 inches/sec , Auto cutter,
Easy paper change, Out of paper
sensor, Paper roll dia. 3.15"
NA
MSR 3 Track MSR (USB)
Audio
Built in speaker 2W x 2 (Option)
Environment
Sealing IP54 (Display side)
EMC & Safety FCC, Class A, CE, LVD
ESD 4kV contact discharge, 8kV air discharge
Operating temperature 32°F ~ 95°F (0°C ~ 35°C)
Storage temperature -4°F ~ 140°F (-20°C ~ 60°C )
Humidity 20% ~ 85% RH non condensing
Dimension (W x D x H) LCD 90° tilt angle: 14.3” x 7.5” x 13.4” (363 x 189 x 340 mm )
Weight (N.W./G.W.) 11.0 lbs (5kg) / 13.2 lbs (6kg)9.0 lbs (4.1kg) / 11.2 lbs (5.1kg)
OS support*Windows 7; Windows 8.1; Windows 10; Linux
* This specication is subject to change without prior notice.
11

6. Conguration
6-1. D33 Motherboard Layout
RJ11_1 USB1 RJ45_1 USB2 COM_RJ45_5 COM_RJ45_3 COM_RJ45_4
PWR1/PWR2
SW1
CN14
CN13
CN12
CN11
CN10
JP4
JP6
JP5
JP3
CN9
SATA0
SKT2
SKT1
DDR3_A1
SATA1
CN8
CN3
CN4 JP1
CN5
CN6
CN1
CN2
CN7
12
