POSIFLEX LM-3010F/HS User manual

Part 1
FCC NOTICE
This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the
instructions manual, may cause interference to radio communications. It has been tested and found to comply with limits for a Class
A digital device pursuant to subpart J of Part 15 of FCC Rules, which are designed to provide reasonable protection against
interference when operated in a commercial environment. Operation of this equipment in a residential area is likely to cause
interference in which case the user at his own expense will be required to take whatever measures to correct the interference.
WARRANTY LIMITS
Warranty will terminate automatically when the machine is opened by any person other than the authorized technicians. The user
should consult his/her dealer for the problem happened. Warranty voids if the user does not follow the instructions in application of
this merchandise. The manufacturer is by no means responsible for any damage or hazard caused by improper application.
ABOUT THIS MANUAL
This manual assists the user to utilize the (Touch) Monitor TM(LM)30xx/31xx series. This product provides exquisite touch control
capability over a stable and adjustable LCD monitor with minimal footprint.
The manufacturer of the LM/TM30xx /31xx series monitor heartily apologizes to the user for reserving the right to change or to
modify this manual without notice due to the rapid and constant progress and improvement on science and technology. The user
may always obtain the most up to date information through any of our web sites: http://www.posiflex.com,
http://www.posiflex.com.tw, http://www.posiflexusa.com.
©Copyright Posiflex Technology, Inc. 2014
TRADE MARKS AND SERVICE MARKS
POSIFLEX is a registered trademark of Posiflex Technology, Inc.
Other brand and product names are trademarks and registered trademarks and service marks of their respective owners.
I. PRODUCT MODEL NUMBER
Model Name Screen
Size
Touch
Function
Stand
Alone
Rear
Cover
Mount
Max Resolution
Supported
MEMO
LM-3010F/HS 9.7”
ˡ˂˔ Ѕʳ
1024x768
pixels
For HS
series
LM-3010F-B/HS 9.7”
ˡ˂˔ʳ Ѕʳ
1024x768
pixels
For HS
series
LM-3010F/KS 9.7”
ˡ˂˔ʳ Ѕʳ
1024x768
pixels
For KS
series
LM-3010F-B /KS 9.7”
ˡ˂˔ Ѕʳ
1024x768
pixels
For KS
series
LM-3010F
LM-3010F-B
9.7”
ˡ˂˔ Ѕ 1024x768
pixels
For XT
series
TM-3010F
TM-3010F-B
9.7” Yes
Ѕ 1024x768
pixels
For XT
series
LM/TM-30xx, 31xx Series
LCD Monitor
User’s Manual
Rev. Ori
P/N: 19600904010

Part 2
TM-3010F/HS 9.7” Yes
Ѕʳ
1024x768
pixels
For HS
series
TM-3010F-B/HS 9.7” Yes
Ѕ 1024x768
pixels
For HS
series
TM-3010F/KS 9.7” Yes
Ѕʳ
1024x768
pixels
For KS
series
TM-3010F-B/KS 9.7” Yes
Ѕʳ
1024x768
pixels
For KS
series
LM-3014F
LM-3014F-B
14”
ˡ˂˔ Ѕ 1366x768
pixels
For XT
series
LM-3014F-B/KS 14”
ˡ˂˔ Ѕ 1024x768
pixels
For KS
series
TM-3014F
TM-3014F-B
14”
ˬ˸ʳ ʳ Ѕ 1024x768
pixels
For XT
series
TM-3014F/KS 14” Yes
Ѕ 1024x768
pixels
For KS
series
TM-3014F-B/KS 14” Yes
Ѕ 1024x768
pixels
For KS
series
LM-3015F/KS 9.7”
ˡ˂˔ Ѕ 1024x768
pixels
For KS
series
LM-3015F-B/KS 9.7”
ˡ˂˔ Ѕ 1024x768
pixels
For KS
series
LM-3015F
LM-3015F-B
15”
ˡ˂˔ Ѕ 1024x768
pixels
For XT
series
LM-3110
LM-3110-B
9.7”
ʳʳʳʳˡ˂˔ʳ Ѕ 1024x768
pixels
TM-3110
TM-3110-B
9.7”
ˬ˸ Ѕ ʳ
1024x768
pixels
LM-3114
LM-3114-B
14”
ˡ˂˔ʳ Ѕʳ
1366x768
pixels
TM-3114
TM-3114-B
14”
ʳʳʳʳˬ˸ʳ Ѕ 1366x768
pixels
LM-3115
LM-3115-B
15”
ˡ˂˔ Ѕ ʳ
1024x768
pixels
TM-3115
TM-3115-B
15”
ʳʳʳʳˬ˸ʳ Ѕ 1024x768
pixels
II. FEATURES
•Bezel free monitor.
•High quality TFT LCD panel.
•Easy maintenance structure allowing easy cleaning and tilt adjustment.
•VESA mounting supported for all series.

Part 3
•Support power supply through VGA cable from Posiflex POS Terminal.
Power Setup Notice
¥For rear mount device, it is designed for use with a Posiflex system. In such application, it can
utilize power support from the Posiflex system. Standalone device is equipped with its power
adaptor.
III. CARTON CONTENTS
1. Monitor/Touch Monitor
2. User’s Manual
3. VGA cable
4. USB signal cable (for TM series only)
5. A Posiflex information CD (for all TM series)
6. Optional +DC 12V power adaptor & power cord
IV. PARTS IDENTIFICATION
* LED INDICATOR STATUS
Color
Status
Model
Working Stand-by Off
LM/TM-3010 Series Green Orange None
LM/TM-3014 Series Green Orange None
LM/TM-3015 Series Blue Green None
LM/TM-3110 Series Green Orange None
LM/TM-3114 Series Green Orange None
LM/TM-3115 Series Blue Green None
A. FRONT VIEW
LM/TM-3010 Series
Main Unit
Display Screen

Part 4
Main Unit
Display Screen
LED Indicator
LM/TM-3014/3114/3114 Series
LM/TM-3015/3115 Series
B. REAR VIEW
LM/TM-3010/3014/3015 Series
Display Screen
Main Unit
VESA Mount
Holes
Main Uni
t
OSD Control
Button Area
Hinge
LM/TM-
3010/3014/3015
Series
Joint Bracket
for XT series
POS system

Part 5
Stand alone LM/TM-3110/3110-B
LM/TM-
3010/KS Joint
Bracket for KS
LM/TM-
3010/HS
Joint Bracket
for HS series
POS system
VESA Mount
Holes
Base Stand
Main Uni
t
Hinge
Plastic Neck
Cover
Cable Exit Hole
OSD Control
Button Area

Part 6
Stand alone LM/TM-3114 Series
Cable Exit Hole
OSD Control
Button Area Plastic Neck
Cover
Cab
l
e
Exi
t
B
ase
Sta
n
d
Side Mount Cover
VESA Mount
Holes
Hinge
Cable Exit
Hole

Part 7
Stand alone LM/TM-3115 Series
C. SIDE VIEW
Rear Cover Mount LM/TM 3010/3014/3015
Joint Bracket
For XT
series POS
system
OSD Control
Button Area Plastic Neck
Cover
Cab
l
e
Exi
t
Base Stand
Hinge
Side Mount Cover
VESA Mount
Holes
Cable Exit
Hole

Part 8
Plastic Neck
Cover
Plastic Neck
Cover
Rear Cover Mount LM/TM-3010/HS
Rear Cover Mount LM/TM-3010/KS
Stand alone LM/TM-3110/3110-B
Stand alone LM/TM-3115/3115-B/3114/3114-B
Joint Bracket
For HS series
POS system
Joint Bracket
For KS series
POS system

Part 9
Rubber Feet
Bottom Plate
Rubber Feet
Bottom Plate
D. BOTTOM VIEW
Stand alone LM/TM-3110/3110-B
Stand alone LM/TM-3114/3114-B/3115/3115-B
E. I/O PORT VIEW
(
LM/TM-3010/3110 Series
)
(
LM/TM-3114/3014 Series
)
DB-15 VGA Port USB-A
Type Port
USB-B
Type Port
Audio
Line In
(O
p
tion)
DC IN
Jack
Power
LED
Indicator
DB-15 VGA Port DC IN Jack Power LED Indicator

Part 10
V. Hardware Installation
LM/TM-3010/3014/3015 Series for XT Series
Please do the following steps to install LM/TM-3010/3014/3015 series:
Step A): Place the XT system on a soft pad and align the
main unit along table to easily adjust the bracket
of 2
nd
LM LCD panel
unit to the suitable
angle for installation.
Step B): Please locate the 4 holes on the rear side of the
host system.
Step C):Adjusting the bracket to the suitable angle,
please take the 2
nd
LM LCD display bracket,
aim its 4 holes and tighten the indicated screws
to the system.
USB-B
Type Port
DB-15 VGA Port USB-A
Type Port
Audio
Line In
(O
p
tion)
DC IN
Jack
(
LM/TM-3015/3115 Series
)

Part 11
Step D):The assembly is completed below.
LM/TM-3110/3110-B Series
A. TILTING LCD PANEL
Please do the following steps to tilt LCD panel:
Step A): Hold and push downward the main unit.
Step B): Tilt the neck at its right position for most
suitable angle for best view effect and convenience in cable
connection/disconnection.
B. CONNECTING ALL CABLES
With the LCD monitor/touch monitor panel turned to most backward
position, the main I/O connector area will be easily accessible at bottom
side of the main unit. Please first note orientations of every existing
cable connection and then connect every cable properly before any
further reconfiguration of cable connections.

Part 12
C. OPENING PLASTIC NECK COVER
To route through base, please observe the below side view pictures of
the base trunk and release the triangle marked hooks to remove the
plastic neck cover.
D. CABLE ROUTING IN BASE
For cable routing in the mini slim base, please refer to the picture
below. Have all cables pass through the oval hole on the trunk as
triangle marked to come out of the arrowed cable exit hole on the
base rear side of trunk. Then connect all the cables ends to main unit.
LM/TM-3010/KS for KS Series
Please do the following steps to install LM/TM-3010/KS:
Step A): Fasten the 4 screws onto the upper rear
bracket of KS series machine.
Then Hold the LM-3210/KS monitor
with bracket, aim to join the upper rear
bracket then fasten the 3 screws onto the
indicated holes.
Step B): Connect the VGA Cable to the LM VGA port and route the VGA
cable through the cable exit hole of KS base stand to the system
VGA port on the I/O plate.

Part 13
LM/TM-3010/HS for HS Series
To mount LM-3010/HS on the back of the terminal, please do the following
steps to tilt LCD panel:
Step A): Release the top cover on the HS system top I/O plate.
Step B): Adjust the rear bracket of 2
nd
display to its adequate angle, connect
one VGA cable end at the 2
nd
display VGA port, the other at the VGA
port on the top I/O plate by routing thru the cable exit hole.
Apply carefully the 4 small screws that come along with the 2nd
display series to the back of this terminal at the screw hole circled in
the below picture.
Step C): Close the rear bracket cable cover as illustrated.
A) B)
C)
Note: Do not overdo the tightening or unrecoverable thread damage will
occur.

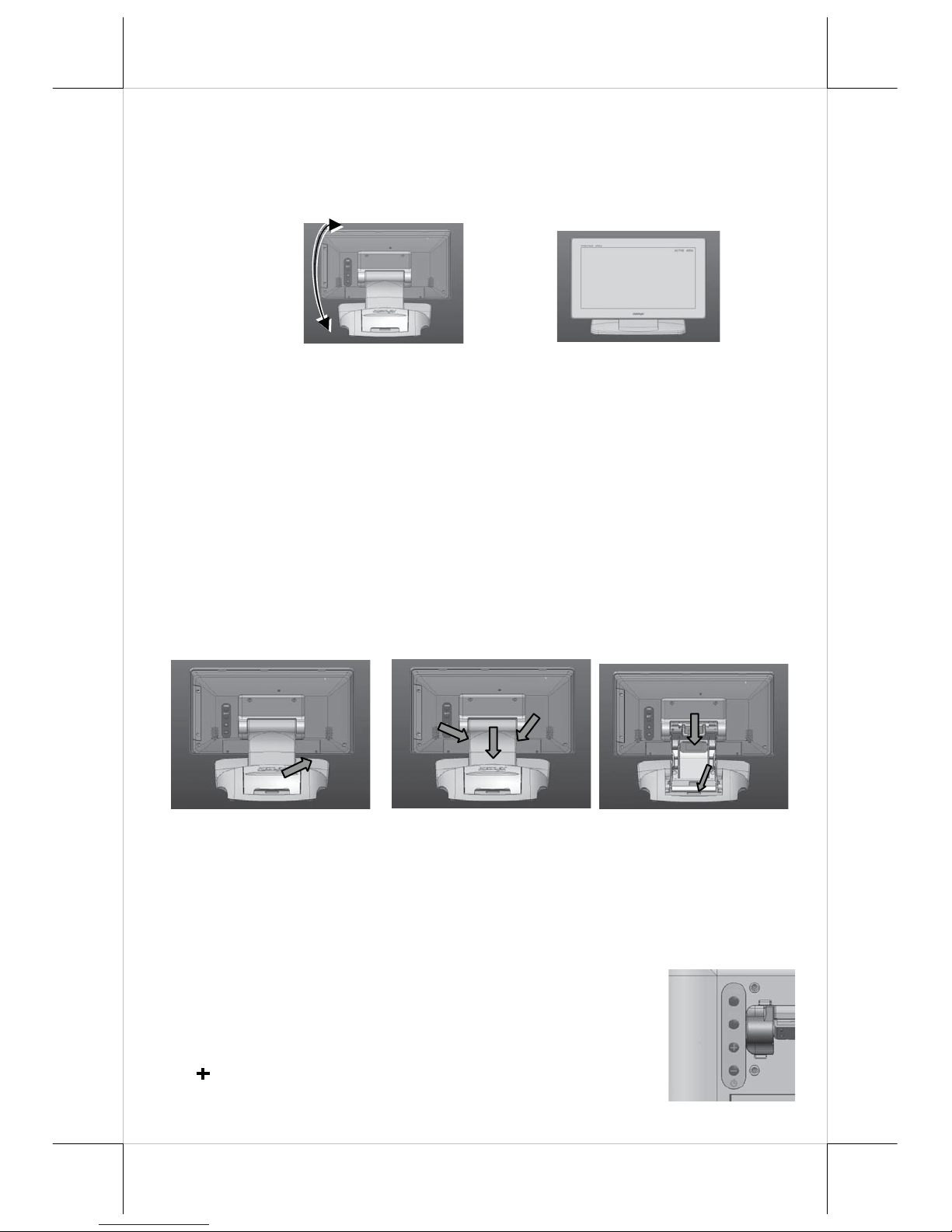

LM/TM-3114/3114-B/3115/3115-B Series
A. TILTING LCD PANEL
Please do the following steps to tilt LCD panel:
Step A): Hold and push downward the main unit indicated

Part 14
Step B): Tilt the neck at its right position for most suitable angle for
best view effect and convenience in cable
connection/disconnection.
B. CABLE ROUTING
Please do the following steps to remove the cable cover for Gen 7 slim base
model.
Step A): Release the base cover.
Step B): Release the base stand neck cover.
Step C): Route the cable to the circled holes.
VI. OSD Menu Introduction
Power & OSD buttons
The buttons at the right side of LCD monitor are for the OSD (On Screen
Display) control operations and LCD screen power control
as in the below picture and are explained below.
“OSD” button: To enter OSD menu
“EXT” button: To Exit the option functions
“” “” button: To increase setting; auto tune
feature.
B
A
BC
A

Part 15
button: To decrease setting; To turn the monitor power ON/OFF.
Note: “+” button indicates an Auto Tune feature to automatically optimize
image below:
OSD functions
“MAIN MENU”: There are a total of 6 icons in this menu:
Once one icon is selected, it will be displayed in inverted color to indicate its
relationship with the submenu below. On the physical panel side bar of LCD
monitor display, pressing “EXT” button will shift the
selected icon one by one from left to right and then
wrap around to the leftmost part. Press “OSD” button
to enter the selected sub menu. Items in sub menu are
illustrated below. Press “+”/”-“ to adjust.
“BRIGHTNESS / CONTRAST ADJUST SUBMENU”: There are 2
icons in this submenu:
“BRIGHTNESS ADJUST”: When this item is selected, there will
be only the brightness icon with an adjustment indication bar
under it between the main menu area and the video signal mode.
Press “+” button to increase brightness intensity. Press “-“ button
to decrease brightness intensity. Press OSD/EXT to save/exit.
“CONTRAST ADJUST”: When this item is selected, there will be
only the contrast icon with an adjustment indication bar under it
between the main menu area and the video signal mode.
Press “+” button to increase contrast intensity. Press “-“ button
to decrease contrast intensity. Press OSD/EXT to save/exit.
“IMAGE POSITION”: There are 2 icons in this submenu:
“Horizontal Position”: When this item is selected, there will be
only the position icon with an adjustment indication bar for
user to adjust. Press “+” button to move image rightward for
horizontally rightward positioning. Press “-“ button to move

Part 16
image leftward for horizontally leftward positioning. Press
OSD/EXT to save/exit.
“Vertical Position”: When this item is selected, there will be
only the position icon with an adjustment indication bar for
user to adjust. Press “+” button to move image upward for
vertically upward positioning. Press “-“ button to move
image downward for vertically downward positioning.
Press OSD/EXT to save/exit.
”IMAGE SETUP”: There are 2 icons in this submenu:
“Image Setup”: When this item is selected, there will show an
automatic image setup screen to automatically optimize this
image.
“Manual Image Setting”: When this item is selected, there will
show a manual image settings display for user to manually
configure “Clock” and “Phase”. Phase and clock settings
tweak how the VGA (analog) input of your LCD monitor
receives the information coming from your terminal graphics
card and optimize screen resolution.
”IMAGE PROPERTY”: There are 2 icons in this submenu:
“Image RGB intensity”: When this item is selected, there
will show a customized window display for user to adjust
RGB intensity. Press “+” button to increase color intensity.
Press “-“ button to decrease color intensity. Press OSD/EXT
to save/exit.
”OPTIONS”: There are 5 icons in this submenu:
“Information: Show Resolution, Refresh Rate & Product
Details”: When this item is selected, there will show a

Part 17
compact product detail about resolution and refresh rate
for demonstration.
”Menu Language : Change Language of Menu”: When
this item is selected, there will show a multilingual menu
for user to opt for desired language option.
”Menu Position” (reserved)
Note: This “Menu Position” is reserved.
“Factory Default”: When this item is selected, there will
show a Factory Default menu for user to restore to original
monitor settings below.
“Accessibility”: When this item is selected, there will show
an Accessibility menu for user to change menu time-out
setting.
“EXIT”: Exit OSD setup with all adjustment saved.
SUPPORTED DISPLAY MODES
For VGA signals beyond the supported display modes, there will be a message
“Out Of Range” on the middle of screen. Maximum supported color depth for
10” and 14” monitor model is 18 bits or 262,144 colors. Color depth 15” is 24
bits or Supported display modes are illustrated in the table:

Part 18
Display Resolution Refresh Rate (Hz) Horizontal
Frequency (KHz)
640*400 70 37.9
60 31.5
72 37.9
640*480
75 37.5
720*400 70 37.9
56 35.1
60 37.9
72 48.1
800*600
75 46.9
60 48.4
70 56.5
1024*768
75 60
1366*768 60 47.7
Note: Only the LM/TM-3014/3114 series is supported for the optimal
1366*768 resolution.
SPECIFICATION
Display LM/TM 3014 series
LCD Panel 14" TFT LCD
Resolution 1366 (H) x 768 (V)
Active Area (mm) 309.399 (H) x 173.952 (V)
Pixel Pitch (mm) 0.2265 (H) x 0.2265 (V)
Pixel Arrangement RGB Vertical Stripe
Viewing Angle (Typical) 20/45/45/45 degree (U/D/L/R)
Contrast Ratio (Typical) 650 : 1
Response Time (Typical) 4 ms (Rising) / 6 ms (Falling)
Brightness (Typical) 200 cd/m
2
Touch
Touch Type Bezel free resistive (for TM3014)
Interface USB (for TM3014)
General Specification

Part 19
Display Interface VGA
Power Supply 12V from Posiflex terminal VGA port
Display LM/TM 3015 series
LCD Panel 15.0" TFT LCD
Resolution 1024 (H) x 768 (V)
Active Area (mm) 304.128 (H) x 228.096 (V)
Pixel Pitch (mm) 0.297 (H) x 0.297 (V)
Pixel Arrangement RGB Vertical Stripe
Viewing Angle (Typical) 80/80/80/80 degree (U/D/L/R)
Contrast Ratio (Typical) 600 : 1
Response Time (Typical) 3 ms (Rising) / 5 ms (Falling)
Brightness (Typical) 250cd/m2
Touch
Touch Type Bezel free resistive (for TM3015)
Interface USB (for TM3015)
General Specification
Display Interface VGA
Power Supply 12V/50W from Posiflex terminal VGA
port
Display LM/TM 3010/3110 series
LCD Panel 9.7" TFT LCD
Resolution 1024 (H) x 768 (V)
Active Area (mm) 196.61 (H) x 147.46 (V)
Pixel Pitch (mm) 0.192 (H) x 0.192 (V)
Pixel Arrangement RGB Vertical Stripe
Viewing Angle (Typical) 70/70/70/60 (U/D/L/R)

Part 20
Contrast Ratio (Typical) 500 : 1
Response Time (Typical) 20 ms (Rising plus Falling)
Brightness (Typical) 270 cd/m
2
Touch
Touch Type Bezel free resistive (for TM3010/3110)
Interface USB (for TM3010/3110)
General Specification
Display Interface VGA
Power Supply 12V/18W from Posiflex terminal VGA
port
USB Touch Manager
USB Touch Manager for each type of touchscreen is available for user to set
up touchscreen functions. If your system is preloaded with the OS of your
choice, the Manager will be installed on your system. Nevertheless, you can
also download the Manager from our website:
1. Visit us at http://www.posiflex.com, and click Support on the main
menu bar.
