Power bass XL PowerSports Series User guide

XL PowerSports Subwoofers
Application Guide
Please read through this manual to familiarize yourself with your new speakers. Should your
PowerBass Xtreme speakers ever require service, you will need to have the original dated receipt.
XL-1040DSS
XL-1040SS
XL-1240DSS
XL-1240SS

2
Thank you and Congratulations
Congratulations on your purchase of PowerBass Xtreme PowerSports speaker. You now own a speaker of
uncompromising design and engineering from a factory that truly believes in the relentless pursuit of perfection.
Incorporating the highest quality parts and state-of-the-art materials, these speakers display the ultimate balance
between high fidelity, performance and long-lasting reliability.
At PowerBass USA, Inc. we are confident you will have many years of outstanding enjoyment from this great
SPEAKER investment. For maximum performance we recommend that you have your new PowerBass Xtreme
product installed by an Authorized PowerBass Xtreme Dealer.
To learn more about PowerBass, please visit us on the World Wide Web at
http://www.powerbassusa.com
∆Warning ∆
Continuous exposure to sound pressure levels in excess of 100 dB can cause permanent hearing loss. PowerBass Autosound Speakers are
capable of producing sound pressure levels well over 170 dB. Please observe all local sound ordinances while listening to your PowerBass
Autosound system. PowerBass USA, Inc. accepts no liability for hearing loss, bodily injury, or property damage due to the result of use or
misuse of this product.

XL POWERSPORTS CERTIFIED WOOFER FEATURES
FreeAir Design: Optimized for use in infinite baffle or sealed enclosure applications.
Polypropylene Injected Cone: Chosen for its strong yet lightweight body this waterproof woofer cone
has UV inhibitors to minimize cracking and fading.
Proprietary Composite Polycarbonate / Glass Fiber Basket: Turbine design provides a rigid and
stable woofer platform.
TPO Thermoplastic Polyurethane Surround: A synthetic material known for its toughness and flex-
ibility, the black TPO surround rejects water, sun and salt-spray while at the same time offering superior
cone-edge suspension.
Kapton Voice Coil and Treated Damper: A Kapton voice coil former gives the speaker increased power
handling while the textile damper has been specially treated to repel moisture and maintain uniform shape.
Voice Coil Protection: Red and black tinsel lead insulation not only easily identifies positive and negative
inputs, but also prevents against corrosion thus increasing the life of the speaker.
Additional Features: Moisture sealed basket rings for snug water tight fit, marine grade stainless steel
hardware, and nickel plated connection terminals for protection against corrosion. Black powder coated
aluminum grill included.
3

WIRING GUIDELINES XL-1040SS, XL-1240SS
It is highly recommended that you seek an authorized PowerBass dealer to properly setup, wire and install
your woofer(s) for optimum performance.
Your XL PowerSports Woofer is a Single 4-ohm or Dual 4-ohm Voice Coil subwoofer. There are multiple
ways to wire your woofer(s) depending on your amplifier and system configuration. It is important to know
the limits of your amplifier to optimize its performance. It is always better to use your subwoofer in a mono/
bridged mode if your amplifier offers this capability. Always observe the amplifiers minimum stable imped-
ance and do not go below what is recommended by the manufacturer!
Below are several types of wiring configurations for a 4-ohm single voice coil speaker: Series, Parallel and
Series Parallel. Note that it is possible to change the impedance or load by how the speakers are to be
wired and the quantity of the woofers used.
4
AMP
AMP
One Subwoofer System:
4 ohm Single Voice Coil = 4 ohm Load
One Amplifier & Two Subwoofer System:
4 ohm Single Voice Coil = 8 ohm Load
One Amplifier & Four Subwoofer System:
4 ohm Single Voice Coil = 1 ohm Load
One Amplifier & Four Subwoofer System:
4 ohm Single Voice Coil = 4 ohm Load
AMP
AMP
(USE CAUTION when installing low impendance systems)

5
WIRING GUIDELINES XL-1040DSS, XL-1240DSS

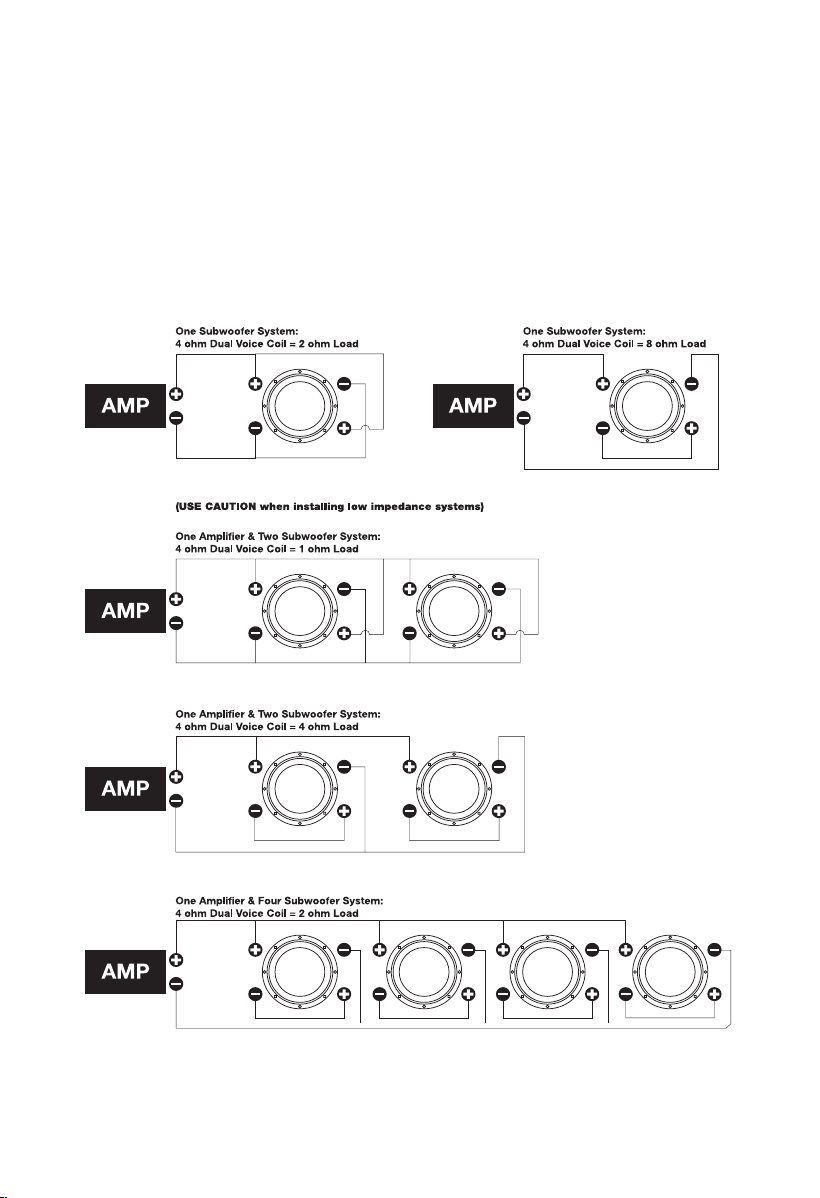

Below are several types of wiring configurations for a 4-ohm dual voice coil speaker: Series, Parallel and
Series Parallel. Note that it is possible to change the impedance or load by how the speakers are to be
wired and the quantity of the woofers used.

6
INSTALLATION EXPERIENCE
Installation of powersports audio speakers can require extensive experience with a variety of mechani-
cal and electrical procedures. Although this application guide explains how to install a PowerBass Xtreme
woofer in a general sense, it may not show the exact installation method for your particular situation. If you
feel unsure about personally installing the speaker system, don’t attempt the installation yourself. Ask your
Authorized PowerBass audio dealer about professional installation options.
GENERAL INSTALLATION TIPS
Your PowerBass XL PowerSports woofer was specially designed for providing high-fidelity sound out in
the harsh environment. Despite the rugged construction, it is possible to damage your speaker if it is
improperly used. Overdriving the system and causing the sound to distort will cause permanent damage to
the speaker.
1. Be sure to carefully read and understand the instructions before attempting to install this product.
2. Turn off the audio system. For safety, disconnect the negative lead from the battery prior to beginning
installation.
3. For easier installation, we recommend that if additional wiring is required, you run all wires prior to
mounting your speaker in place.
4. The harsh environment can quickly accelerate corrosion so always use the highest quality connectors for
a reliable installation and minimal signal or power loss.
5. Always use caution before you drill or cut! Be careful not to puncture gas tanks, fuel lines, hydraulic lines
or electrical wiring when working on any vehicle.
6. Never run speaker wires underneath or exposed on the vessel, keeping the wiring behind cover provides
the best protection from environmental elements.
7. Avoid running any speaker wire or signal cables near the vessel’s electrical system to prevent noise from
“bleeding” into the audio system.
8. Correct speaker polarity must be observed. Speakers wired out of phase will have little bass output.
Follow the wiring directions carefully.
9. Leave a little slack in the speaker wire for easier installation, this will prevent pulling or stretching the
wire and possibly causing a connection to come loose.
10. Always protect your speakers during installation; it is a good idea to keep the speakers in their original
package until they are ready to be mounted.

PREPARING for INSTALLATION
NOTE: The tools listed below may be required for proper installation.
• An electric drill with drill bits
• Phillips-head and standard screwdrivers
• Wire strippers
• Crimping tool and needle-nose pliers
• Silicone sealant or closed cell weather-stripping
• Metal le
• Dust mask (when cutting into berglass)
• Hole saw or jig saw
• Punch or countersink tool
NOTE: The stainless steel hardware supplied with your PowerBass Xtreme speaker has been chosen to
resist rust and corrosion. If the particular hardware supplied will not work for your installation purposes,
please be sure to use only appropriate marine grade (stainless steel) mounting hardware.
INSTALLATION APPLICATION
Your PowerBass XL PowerSports woofer is specifically designed for PowerSports applications. The XL Pow-
erSports Woofer is capable of reproducing impressive levels of bass. Whether you choose a FreeAir, sealed
or a ported enclosure, the XL PowerSports Woofer opens up a whole new range of installation options for
marine audio enthusiasts.
CAUTION: These speakers are designed to be water and spray resistant, they are not designed to be
submerged or to withstand high pressure water spray. Care must be exercised when washing your vehicle
to avoid damaging your speakers.
7

8
FREEAIR MOUNTING
These specially designed PowerBass FreeAir woofers allow them to work effectively in infinite baffle ap-
plications. This does not mean, however, that the driver doesn’t require an enclosure. What it means is
that the enclosure can be of very large volume, such as a boat hull or car trunk. In these applications the
woofer needs a relatively rigid panel to mount to so it will not vibrate or reduce efficiency during operation.
Also, the panel should effectively “seal” the air behind the panel from the air in front of it. If your mount-
ing panel doesn’t meet these requirements you may need to modify it with bracing or consider building a
sealed enclosure using the parameters set forth in this owner’s manual.

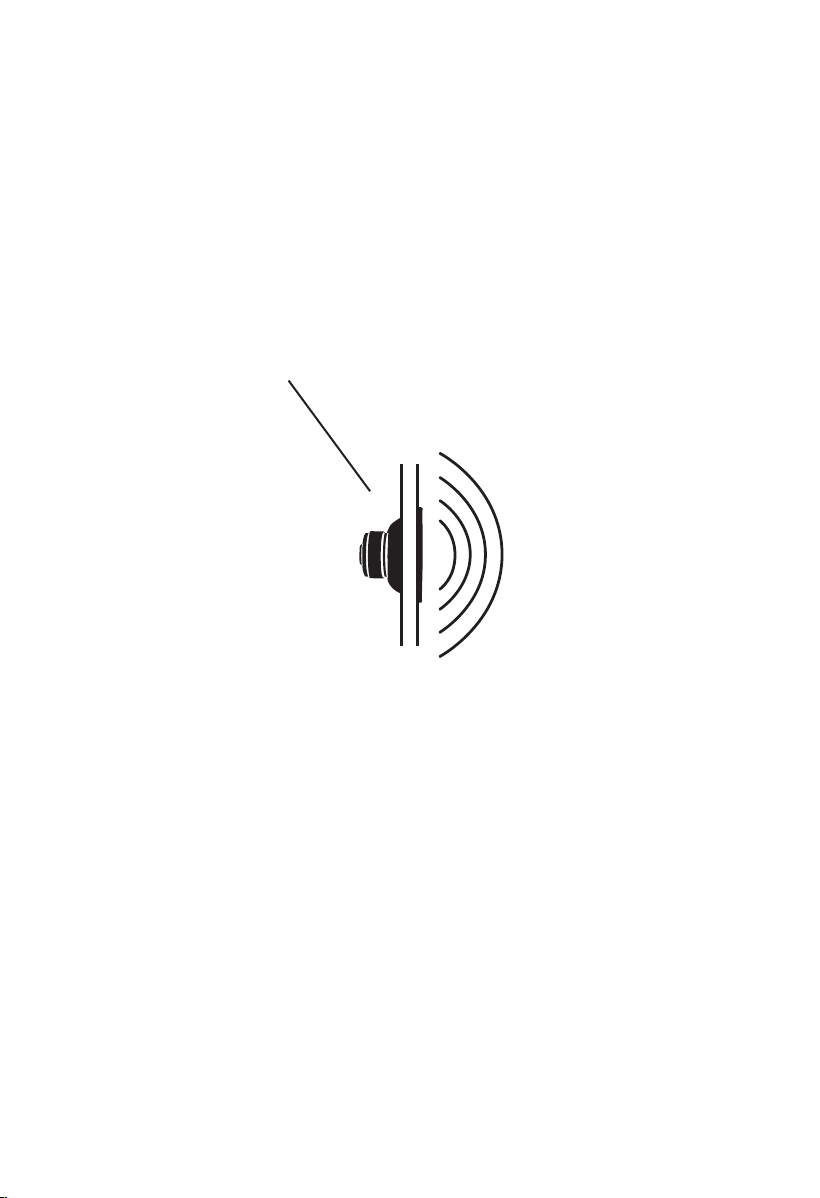

Panel or baffle where the
woofer is mounted
The mounting panel should separate air behind the
panel from the air in front.

9
CHOOSING A SPEAKER ENCLOSURE
This speaker is designed optimally for FreeAir applications, but will work well in a sealed or a ported
enclosure (see below)
SEALED BOX: A sealed or acoustic suspension enclosure is easy to build and typically offers a smaller
size enclosure and greater power handling. It has the most predictable frequency and phase response;
the bass response will roll off slower than that of a ported design. Sealed boxes typically provide the best
musical detail and definition. A well-designed sealed enclosure will exhibit smooth frequency response with
excellent sound quality and great low bass extension. They also exhibit relatively accurate, punchy bass
reproduction for most types of music.
If a sealed enclosure is too large to fit into a specific area of a vehicle, it is possible to decrease the recom-
mended box volume by using 1.5 pounds per cubic feet of low density, high heat specific box stuffing
material. PowerBass recommends Fiberglass, Dacron, Poly-Fill or long fiber wool for stuffing the enclosure.
(Decreasing the box enclosure however should not exceed 20% of the recommended size.)
The most important aspect of a sealed enclosure is to make sure that it is airtight and solid. If your enclo-
sure has any air leaks or if the panels vibrate or flex, you will experience a loss of bass output. Using glue
and some type of sealant (caulk) on all seams will ensure a solid constructed box without any air leaks.
VENTED BOX (NOT OPTIMUM): Also known as a ported or bass reflex enclosure, this type of box is
almost as easy to construct as a sealed enclosure. This design however is more efficient and results in
an increase of bass output at certain frequencies. Although vented enclosure has an output advantage at
some frequencies, it also has a steeper rolloff, which will only affect bass frequencies below port tuning.
Air inside the port will move in phase with the subwoofer reinforcing frequencies above the F3 (-3dB point).
The SPL advantage of the vented enclosure comes from the fact that the effect of the vent tuning reduces
the excursion of the subwoofer near the tuning frequency allowing more SPL to be produced before the
subwoofer bottoms.

10
SEALED BOX CONSTRUCTION
Building an enclosure for powersports applications requires special care. The material used for enclosure
walls should be solid, dense and free of voids or warps. Your enclosure should be made ¾” or 19mm mate-
rial, Marine Grade Plywood resists warping and rot in harsh water environments. Under no circumstances
it is recommended that particle board be used, it does not hold a screw well and tends to fall apart when
wet.
Corners must be strong and air tight and should not have any air leaks or openings. Joints should be
properly filled with glue that will not crack under high stress or impact. If the integrity of the glue seal
can’t be determined, hot glue or RTV caulking should be used to seal all seams. Fiber reinforced resin may
also be used to form any difcult shapes. However avoid making large panels with resin to eliminate any
chances of box flexing, cracking or ratting under high pressure. Bracing made of 2 x 2” or 2 x 4” should be
liberally applied either inside or outside the cabinet, depending on whether the cabinet is to be permanently
installed or portable.
This principle applies to any walls of the enclosure spanning more than 18” long. Any braces should also
be liberally glued or screwed down on edge. Edge-wise drilled, and countersunk holes through the braces
can be used for #10-2 Flathead wood screws to avoid the use of more expensive lag bolts. The majority
of strength from an enclosure comes from the glue. When using screws be sure to pre-drill holes to avoid
splitting the wood.
WARNING! The use of silicone rubber to seal in a speaker will void the Warranty! If any sealing
is needed in addition to the speaker’s gasket, use caulking cord or vinyl weather strip.

11
SPEAKER LOCATION
The sound produced by woofers is non-directional. Find the best location in your vehicle. If using an
enclosure, it is important that the enclosure is properly mounted. After determining the best mounting
location(s), carefully check the areas where the mounting hardware will be placed. The installation surface
must be level and the installation must be “watertight”. No moisture or dampness should be allowed to get
behind the speaker. Use caution to make sure there are no objects behind the installation surface that may
become damaged during drilling.
WARNING: These speakers must be installed at least 3 feet (1-meter) away from any nautical equipment
(ie., compass, sonar, etc).
WIRING PROCEDURES
Once the mounting holes have been cut, run the speaker wire from the speaker mounting locations back
to the amp. If you are running wires through, drill holes for the cable and use a marine grade grommet to
properly insulate any rough edges from the wire insulation. Make sure the wires will clear any mechanical
devices and secure them with wire ties.
Carefully place the speaker wire (not included) in a location that is free of standing water and moving com-
ponents. Be sure to observe proper polarity—most speaker wire is marked (ie, colored wires, ribbed wire,
etc). Connect the other end of the speaker wire to the amplifier in accordance with its owner’s manual.
After connecting your new PowerBass XL PowerSports speakers to the sound system you are ready to carry
out a listening test. Please listen the first time at a low volume setting and check to make sure everything
is operating properly.
GENERAL CARE
The woofers may be cleaned with a damp cloth. Do not use any cleaners or solvents on the grills or
speaker cones, otherwise the UV inhibitors maybe affected and/or the plastics may discolor.

12
PARAMETERS FOR POWERSPORTS SUBWOOFERS
(Due to Constant Improvements, Specifications and Parameters are subject to change without notice.)
RECOMMENDED ENCLOSURES
Please note that these enclosure volume recommendations are for the internal airspace inside the enclo-
sure and include the displacement of the subwoofer and ports. When choosing your enclosure type, please
pay close attention to your specific woofer, failing to use the correct enclosure may result in lower power
handling and poor sound quality. To calculate the internal airspace required, take the internal dimensions of
the box. First multiple these number by themselves and then divide this sum by 1728. [W x H x D) / 1728].
Please contact your authorized PowerBass dealer for other designs and specifications. (Even though these
subwoofers can be used in a vented enclosure.
XL-1040DSS XL-1040SS XL-1240DSS XL-1240SS
VC Impedance (ohms) 4Ω+ 4Ω4Ω4Ω+ 4Ω4Ω
Test Impedance (ohms) 1.65 3.38 1.61 3.39
Fs (Hz) 31.5 28.7 34.3 34.4
SD (sqCM) 363.05 363.05 510.71 510.7
Vas (Ltr) 34.89 40.766 46.09 43.77
Cms (µM/N) 187 219 125 119
Mms (g) 136.6 140.4 172.7 180.3
BL™ 8.546 13.98 8.859 14.91
Qms 7.208 6.603 6.429 6.341
Qes 0.612 0.438 0.763 0.595
Qts 0.564 0.44 0.682 0.544
No (%) 0.171 0.212 0.234 0.288
Spl (dB) 84.5 85.41 85.86 86.75
Xmax (mm) One Way 7.9 7.9 7.9 7.9
Voice Coil Size (inches) 2.0 2.0 2.0 2.0
Frequency Response (Hz) 45 - 500 45 - 500 36 - 500 36 - 500
Magnet Weight 49.09 oz 49.09 oz 57.75 oz 57.75 oz
Mounting Depth (inches) 5.375” (136mm) 5.375” (136mm) 5.875” (148mm) 5.875” (148mm)
Cutoff Diameter (inches) 9.3125” (236.5mm) 9.3125” (236.5mm) 10.9375 (277.5mm) 10.9375 (277.5mm)
Power (RMS/Peak) 200 / 400 watts 200 / 400 watts 250 / 500 watts 250 / 500 watts

13
RECOMMENDED ENCLOSURES
Please note that these enclosure volume recommendations are for the internal airspace inside the enclosure
and include the displacement of the subwoofer and ports. When choosing your enclosure type, please pay
close attention to your specific woofer, failing to use the correct enclosure may result in lower power handling
and poor sound quality. To calculate the internal airspace required, take the internal dimensions
of the box. First multiple these number by themselves and then divide this sum by 1728. (W x H
x D) / 1728.
Please contact your authorized PowerBass dealer for other designs and specifications. (Even though these
subwoofers can be used in a ported enclosure, PowerBass recommends a sealed enclosure for
optimum performance and sound quality.)
XL-1040SS / XL-1040DSS
Optimum Sealed Vol. English Metric
Gross Vb Internal 0.85 cu.ft 24.07 Liters
Driver Displacement 0.055 cu. ft 1.56 Liters
F3 (-3dB Rolloff) 49Hz 49Hz
External Dimensions of the enclosure WxHxD,
3/4" (19mm) MDF
16 x 15 x 9" 40.6 x 38.1 x 22.9 cm
Qtc 0.721 0.721
Pe (Watts-Rms) 150-250 Watts 150-250 Watts
Acceptable Volumes (Gross) (0.6 - 5.0 cu. ft) (16.99 - 141.6 Liters)
Optimum Ported Vol. English Metric
Gross Vb Internal 2.0 cu.ft 56.63 Liters
Driver Displacement 0.055 cu. ft 1.56 Liters
Port Displacement 0.275 cu. ft 7.78 Liters
External Dimensions of the enclosure WxHxD,
3/4" (19mm) MDF
16.5 x 15.5 x 18" 41.9 x 39.4 x 45.7 cm
Internal port opening size, W x H 1 x 14" 2.5 x 35.6 cm
Internal port Length 13" 33.0 cm
Fb (Box Tuning) 40Hz 40Hz
F3 (-3dB Cutoff) 33Hz 33Hz
Pe (Watts-Rms) 150-250 Watts 150-250 Watts
Subsonic Filter Setting if Applicable 32Hz 32Hz

This manual is the exclusive property of PowerBass USA, Inc. Any reproduction of this manual, or use other than its intentions is strictly prohib-
ited without the express consent of PowerBass USA, Inc. Copyright 2018 PowerBass USA, Inc.
Product Disposal – Certain international, national and/or local
laws and/or regulations may apply regarding the disposal of this
product. For further detailed information, please contact the retailer
where you purchased this product or the PowerBass Importer/Distributor
in your country.
XL-1240SS / XL-1240DSS
Optimum Sealed Vol. English Metric
Gross Vb Internal 1.25 cu.ft 35.4 Liters
Driver Displacement 0.0874 cu. ft 2.47 Liters
F3 (-3dB Rolloff) 48Hz 48Hz
External Dimensions of the enclosure WxHxD,
3/4" (19mm) MDF
15 x 16 x 12.5" 38.1 x 40.6 x 31.8 cm
Qtc 0.86 0.86
Pe (Watts-Rms) 200-300 Watts 200-300 Watts
Acceptable Volumes (Gross) (0.75 - 5.0 cu. ft) (21.2 - 141.6 Liters)
Optimum Ported Vol. English Metric
Gross Vb Internal 2.5 cu.ft 70.8 Liters
Driver Displacement 0.0874 cu. ft 2.47 Liters
Port Displacement 0.38 cu. ft 10.8 Liters
External Dimensions of the enclosure WxHxD,
3/4" (19mm) MDF
17 x 15.5 x 22" 43.2 x 39.4 x 55.9 cm
Internal port opening size, W x H 1.5 x 14" 3.8 x 35.6 cm
Internal port Length 15" 35.6 cm
Fb (Box Tuning) 40Hz 40Hz
F3 (-3dB Cutoff) 33Hz 33Hz
Pe (Watts-Rms) 200-300 Watts 200-300 Watts
Subsonic Filter Setting if Applicable 30Hz 30Hz

POWERBASS XTREME SPEAKER
LIMITED WARRANTY POLICY
PowerBass USA, Inc. offers limited warranty on PowerBass products under normal use on the following terms:
PowerBass Xtreme Speakers are to be free of defects in material and workmanship for a period of one
(1) year. The warranty is extended to three (3) years for parts and labor, if an Authorized PowerBass
Xtreme Dealer completes the installation.
This warranty applies only to PowerBass products sold to consumers by Authorized PowerBass Dealers in the United States of
America. Products purchased by consumers from a PowerBass dealer in another country are covered only by that country’s
Distributor and not by PowerBass USA.
This warranty covers only the original purchaser of PowerBass product. In order to receive service, the purchaser must provide
PowerBass with a valid purchase receipt from an authorized reseller stating the consumer name, dealer, product and date of
purchase.
Products found to be defective during the warranty period will be repaired or replaced (with a product deemed to be equivalent)
at PowerBass’s discretion and will not be liable for incidental or consequential damages. PowerBass will not warranty this
product under the following situations:
• Speakers received with bent frames or water damage
• Abuse such as holes in the cone, surround or ripped spider
• Voice coil damage due to amplier clipping or distortion
• Product that has not been installed according to this owners manual
Any implied warranties including warranties of fitness for use and merchantability are limited in duration to the period of the
express warranty set forth above. Some states do not allow limitations on the length of an implied warranty, so this limitation
may not apply. No person is authorized to assume for PowerBass any other liability in connection with the sale of this product.
Please call [phone] for PowerBass Customer Service. You must obtain an RA# (Return Authorization Number) to
return any product to PowerBass. The RA number must be prominently marked on the outside of the shipping carton
or the delivery will be refused. Please pack your return carefully; we are not responsible for items damaged in shipping.
Return the defective product along with a copy of the original dated retail sales receipt, plus $12.00 for handling and diagnostic
evaluation to:
PowerBass USA, Inc.,
Attn: Returns (RA#__________)
2133 S. Green Privado, Ontario, CA 91761
Residents of HI, AK and US territories will be charged for return shipping. All inquires regarding service and warranty should
be sent to the above address.
Removed or altered serial numbers will void this warranty

PowerBass Xtreme (PBX) – A division of PowerBass USA, Inc.
2133 S. Green Privado – Ontario, CA 91761
Tel. [phone] – Fax [phone]
www.powerbassusa.com
