Power king Pk0101 User manual

PK0101

PK0101-O

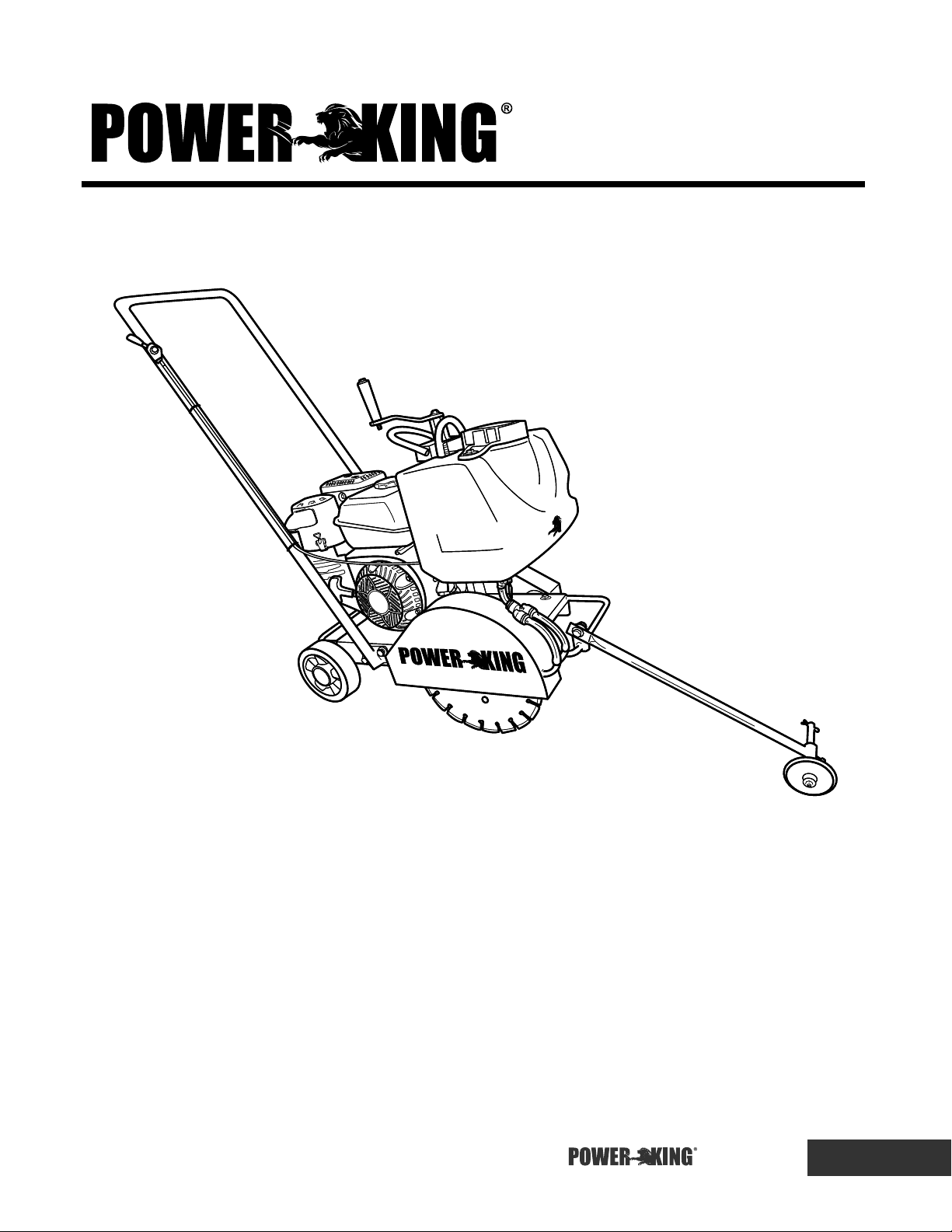

KOHLER 6HP 12” BLADE CONCRETE SAW

OPERATION MANUAL

CAUTION: To reduce the risk of injury, all operations and maintenance personnel must read and understand

these instructions before operating, changing accessories, or performing maintenance on our company

powering equipment. All possible situations cannot be covered in these instructions. Care must be exercised

by everyone using, maintaining or working near this equipment.

PK0101 COVER

GREGG NEUER

PK0101 PG 1

INTRODUCTION

Congratulations on your purchase of the Power King PK0101 Concrete Saw. Our wet cutter has

been specifically designed as the ideal machine for the professional contractor who is engaged

in concrete and asphalt flat sawing.

This wet cutting machine is used for the primary purpose of “Flat” sawing. This type of sawing is

described as “flat” because the pavement is cut close to a horizontal plane. It is the most common

type of blade cutting. Applications for Power King PK0101 Concrete Saw include: asphalt roads,

brick paving, expansion joints, curbs and gutters, concrete floors and driveways, and vehicle

crossings.

Please take the time to familiarize yourself with the Power King PK0101 Concrete Saw by reading

and reviewing all parts of this manual.

If you should have questions concerning your Power King PK0101 Concrete Saw, please feel

free to call our customer service department at: 1-800-344-3371

NOTE THIS INFORMATION FOR FUTURE USE

MODEL NUMBER:

SERIAL NUMBER:

PURCHASE PLACE:

PURCHASE DATE:

Note: For your (1) one year limited warranty to be activated, complete the registration on the warranty page at the end of the

manual and mail it in as soon as possible or register the product online at www.qvtools.com.

DO NOT RETURN TO STORE FOR WARRANTY

CALL 1-800-344-3371 BETWEEN 8-5 PST

OR VISIT WWW.QVTOOLS.COM

PK0101 PG 2

CONTENTS

I. RULES FOR SAFE OPERATION / p 3-7

General Safety and Warnings / p 3-6

Cutting Blade Safety / p 6

Cutter Transportation Safety / p 7

Emergencies / p 7

Maintenance Safety / p 7

II. OPERATION / p 8-12

Trouble Shooting & Maintenance / p 8-10

Operating Principle / p 11

Installing Blade / p 11

Type of Cutting / p 11

Before Cutting / p 11

To Start Cutting / p 12

Cutting / p 12

Belts & Pulleys / p 12

Dry Cutting / p 12

III. LUBRICATION AND SERVICE / p 13

IV. SPECIFICATION / p 14

V. REPLACEMENT PARTS LIST / p 14

VI. WARRANTY / p 15

PK0101 PG 3

I. RULES FOR SAFE OPERATION

GENERAL SAFETY

DO NOT OPERATE OR SERVICE THIS EQUIPMENT BEFORE READING THE ENTIRE MANUAL

t5IJTFRVJQNFOUTIPVMEOPUCFPQFSBUFECZQFSTPOTVOEFSZFBSTPGBHFtNEVER operate this equipment when not feeling well due to fatigue, illness, or taking medicine.

tNEVER operate this equipment under the influence of drugs or alcohol.

t8IFOFWFSOFDFTTBSZSFQMBDFOBNFQMBUFPQFSBUJPOBOETBGFUZEFDBMTXIFOUIFZCFDPNFEJGGJDVMUUPSFBEtNEVER alter this equipment in anyway. Use only as designed and only for intended use.

QV Tools assumes no responsibilities for injury resulting from equipment modifications.

tALWAYS inspect the machine for loose bolts before each operation.

tALWAYS read, understand, and follow procedures in operator’s Manual before attempting to operate equipment.

tALWAYS be familiar with proper safety precautions and operating techniques before using the cutter.

t#MPDLUIFVOJUXIFOMFBWJOHPSXIFOVTJOHPOBTMPQFt.BJOUBJOUIJTFRVJQNFOUJOBTBGFPQFSBUJOHDPOEJUJPOBUBMMUJNFTtALWAYS stop the engine before servicing, adding fuel and oil.

tNEVER run engine without air filter. Severe engine damage may occur.

tALWAYS service air cleaner frequently to prevent carburetor malfunction.

t5IJTFRVJQNFOUEPFTOPUDPNFXJUIPJMJOUIFFOHJOFtALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean dry location out of

reach of children. Run engine out of gas prior to storage.

PK0101 PG 4

I. RULES FOR SAFE OPERATION

WARNING:

START WITH BLADE OFF THE GROUND

This blade is a free spinning blade that will be lowered on to the cut. NEVER start the saw with the blade touching the ground

or any surface.

KEEP GUARDS IN PLACE

ALWAYS keep guards in place. In order to prevent injury, keep guards in place and in working order at all times.

EXPLOSIVE FUEL!

Gasoline is extremely flammable, its vapors can explode if ignited; store only in approved containers, in well-ventilated,

unoccupied buildings and away from sparks or flames. Do not fill the fuel tank while the engine is running or hot. Spilled fuel

could ignite if it contacts hot parts or sparks from ignition. Do not start the engine near spilled fuel. Never use gasoline as a

cleaning agent. Never operate the machine in an explosive atmosphere.

LETHAL EXHAUST GASES

Engine exhaust gasses contain poisonous carbon monoxide, an odorless colorless gas that can cause death if inhaled. Avoid

inhaling exhaust fumes, and never run the engine in a closed building or confined area.

ENGINE OVER-SPEED

Never tamper with the governor components or settings to increase the maximum speed of the machine. Severe personal injury

and/or equipment damage could result if the equipment is operated speeds above design maximum.

ROTATING OR MOVING PARTS

Keep hands, feet, hair, and clothing away from all moving parts to prevent injury. Never operate a power tool with shrouds or

guards removed.

HOT PARTS

Engine components can become extremely hot from operation. To prevent severe burns, do not touch these areas while the

engine is running, or immediately after it is turned off. Never operate the engine with heat shields removed.

ALWAYS USE SAFETY GLASSES

Safety glasses should always be worn when working around power tools. Everyday eyeglasses only have impact resistant

lenses and may not prevent eye injury; they are NOT safety glasses.

PK0101 PG 5

I. RULES FOR SAFE OPERATION

WARNING CONTINUED:

ALWAYS USE HEARING PROTECTION

To reduce possibility of hearing loss, always use hearing protection when operating equipment.

KEEP MACHINE GROUNDED

Always operate the machine on the surface to be cut with all wheels in contact with the ground. Never attempt to cut material by

elevating the front of the machine. Never cut a section of material that is held in hand.

KEEP WORK AREA CLEAN

Cluttered work areas and benches invite accidents.

DO NOT USE IN DANGEROUS ENVIRONMENTS

Do not operate equipment in dark environments. Always keep the work area well lighted.

KEEP CHILDREN AWAY

All visitors and children should be keep a safe distance from work area.

DO NOT OVERREACH

Keep proper footing and balance at all times by not overreaching.

SHUTDOWN TOOL

The saw should always be shut down before servicing or when changing parts such as blades, bits, cutters, etc.

ONLY USE OEM POWER KING PARTS

Using improper parts may increase the risk of personal or by-stander injury.

NEVER STAND ON THE TOOL

Serious injury could occur if a power tool is tipped, or if a cutting tool is unintentionally contacted. Ensure the machine is stable

by setting up on level terrains.

NEVER LEAVE TOOL RUNNING UNATTENDED – TURN POWER OFF

Do not leave until it comes to a complete stop. Always turn a power tool OFF when leaving the work area, or, when a cut

is finished.

PK0101 PG 6

I. RULES FOR SAFE OPERATION

WARNING CONTINUED:

CHECK FOR DAMANGED PARTS

Before using a power tool, check for damaged parts. A guard or any other part that is damaged should be carefully checked to

determine if it would operate properly and perform its intended function. Always check moving parts for proper alignment or

binding. Check for broken parts, mountings and all other conditions that may affect the operation of the power tool. A guard or

any damaged part should be properly repaired or replaced.

DIRECTION OF FEED

Always feed work into a blade or cutter against the direction ofrotation.

CUTTING BLADE SAFETY:

t6TFBQQSPQSJBUFTUFFMDFOUFSFEDVUUJOHCMBEFTNBOVGBDUVSFEGPSVTFPODPODSFUFDVUUFSTtALWAYS inspect cutters blades before each use. The blade should exhibit no cracks, dings or flaws in the steel centered

core and/or rim. Center (arbor) hole must be undamaged and true.

t&YBNJOFCMBEFGMBOHFTGPSEBNBHFFYDFTTJWFXFBSBOEDMFBOMJOFTTCFGPSFNPVOUJOHCMBEF#MBEFTIPVMEGJUTOVHMZPOUIFshaft and against the inside/outside blade flanges.

tALWAYS keep blade guards in place.

t&OTVSFUIBUUIFDVUUFSCMBEFEPFTOPUDPNFJOUPDPOUBDUXJUIHSPVOEPSTVSGBDFEVSJOHUSBOTQPSUBUJPODO NOT drop the

cutting blade on ground or surface.

t5IFFOHJOFHPWFSOPSJTEFTJHOFEUPQFSNJUNBYJNVNTQFFEJOBOPMPBEDPOEJUJPO4QFFETUIBUFYDFFEUIJTMJNJUNBZDBVTFthe cutting blade to exceed the maximum safe allowable speed. DO NOT MODIFY THE ENGINE.

t&OTVSFUIBUUIFCMBEFJTNPVOUFEGPSQSPQFSPQFSBUJOHEJSFDUJPO

PK0101 PG 7

I. RULES FOR SAFE OPERATION

CUTTER TRANSPORTATION SAFETY

t6TFUIFMJGUJOHCBJMBOEBQQSPQSJBUFMJGUJOHFRVJQNFOUUPFOTVSFUIFTBGFNPWFNFOUPGUIFDVUUFStDO NOT use the handle bars and/or front pointer as lifting points.

tNEVER tow the saw behind a vehicle.

t&OTVSFUIBUUIFQPJOUFSCBSJTQPTJUJPOFEBQQSPQSJBUFMZUPNJOJNJ[FUIFJSFYQPTVSFEVSJOHUSBOTQPSUBUJPOt4BGFHVBSEBHBJOTUFYUSFNFDVUUFSBMUJUVEFTSFMBUJWFUPMFWFM&OHJOFTUJQQFEUPFYUSFNFBOHMFTNBZDBVTFPJMUPHSBWJUBUFJOUPthe cylinder head making the engine difficult to start.

tNEVER transport the cutter with the blade mounted.

EMERGENCIES

"-8":4LOPXUIFMPDBUJPOPGUIFOFBSFTUFYUJOHVJTIFSBOEGJSTUBJELJU,OPXUIFMPDBUJPOPGUIFOFBSFTUUFMFQIPOF"MTPLOPXthe phone numbers of the nearest ambulance, doctor and fire department. This information will be invaluable in case of an

emergency.

MAINTENANCE SAFETY

tNEVER lubricate components or attempt service on a running machine.

tALWAYS allow the machine a proper amount of time to cool before servicing.

t,FFQUIFNBDIJOFSZJOSVOOJOHDPOEJUJPOt'JYEBNBHFUPUIFNBDIJOFJNNFEJBUFMZBOEBMXBZTSFQMBDFCSPLFOQBSUTt%JTQPTFPGIB[BSEPVTXBTUFQSPQFSMZ&YBNQMFTPGQPUFOUJBMMZIB[BSEPVTXBTUFBSFVTFENPUPSPJMGVFMBOEGVFMGJMUFST

PK0101 PG 8

II. OPERATION - TROUBLESHOOTING/MAINTENANCE

SEGMENT CRACKS

UNEVEN SEGMENT WEAR

(In wet cutting) Insufficient water

(usually on one side of blade).

Equipment defects also can cause

the segments to wear unevenly.

Saw head is misaligned

REMEDY

tFlush water system.

tCheck flow to both sides of blade.

tReplace bad bearings, worn arbor

shaft or misalignment to spindle.

tCheck alignment for squareness both

vertically and horizontally, of the saw

blade.

CAUSEPROBLEM tBlade is too hard for material being cut. tUse a blade with a softer bond/matrix.

SEGMENT LOSS

tBlade overheats because of lack of

coolant (water or air).

tCore is worn from undercutting.

tDefective collars/flanges set blade out

of alignment.

tBlade is too hard for material being cut.

tBlade is cutting out of round causing a

pounding motion.

tImproper blade tension. t(Wet Cutting) Check water lines.

tMake sure flow is adequate on both

sides of blade and there are

blockages.

tUse sufficient water to flush out the

cut.

tClean collars/flanges or replace if they

are under recommended diameter.

tUse proper blade specification for

material being cut.

tReplace worn bearings; realign blade

shaft or replace worn blade mounting

arbor. When ordering blades match

shaft speed of saw.

tCheck spindle speed to ensure blade

is running at correct RPM

tAvoid twisting or turning blade in the

cut.

CRACKS IN CORE

tBlade flutters in cut as a result of losing

blade tension.

tBlade specification is too hard for the

material being cut. tTighten the blade shaft nut.

tMake sure blade is running at proper

speed and that drive pin is functioning

properly.

tUse a softer bond/matrix to eliminate

stress

PK0101 PG 9

II. OPERATION - TROUBLESHOOTING/MAINTENANCE

PG 8

BLADE WOBBLED t#MBEFJTPOBEBNBHFEPSXPSOTBXt8PSODPMMBSt#MBEFSVOTBUBOJODPSSFDUTQFFEt$PMVNO'MBOHFEJBNFUFSTBSFOPUidentical.

t#MBEFJTCFOUBTBSFTVMUPGESPQQJOHPStwisting.

-0440'5&/4*0/t$IFDLGPSCBECFBSJOHTCFOUTIBGUPSworn mounting arbor.

t$IFDLDPMMBSTGMBOHFTUPNBLFTVSFthey are clean, flat and correct

diameter.

t4FUFOHJOFBUQSPQFS31.t6TFQSPQFSTJ[FCMBEFDPMMBSTGMBOHFTt%0/0564&#&/5#-"%&3&1-"$&#-"%&#&'03&64&t$PSFPWFSIFBUJOHBTBSFTVMUPGCMBEFspinning on arbor.

t$PSFPWFSIFBUJOHGSPNSVCCJOHUIFmaterial being cut.

t6OFRVBMQSFTTVSFBUCMBEFDMBNQJOHDPMMBSTGMBOHFTt#MBEFJTUPPIBSEGPSUIFNBUFSJBMCFJOHcut. t.BLFDFSUBJOCMBEF31.JTDPSSFDUt$IFDLXBUFSGMPXEJTUSJCVUJPOBOElines.

t5JHIUFOUIFCMBEFTIBGUOVU.BLFcertain the drive pin is functioning.

t1SPQFSMZBMJHOUIFTBXUPTRVBSFDVUt$PMMBSTGMBOHFTNVTUCFJEFOUJDBMJOEJBNFUFSBOEUIFSFDPNNFOEFETJ[Ft6TFBTPGUFSCPOENBUSJYUPSFEVDFstress.

#-"%&8*--/05$65t#MBEFJTUPPIBSEGPSNBUFSJBMCFJOHDVUt#MBEFIBTCFDPNFEVMMt#MBEFEPFTOPUDVUNBUFSJBMJUXBTspecified for. t4FMFDUQSPQFSCMBEFGPSNBUFSJBMCFJOHcut.
