Powerfix Z30590-BS User manual

3
1
4
5
3
2
56301_pow_LED_Stableuchte_Content_LB6.indd 3 06.10.10 14:23

4 GB/IE
Table of Contents
Introduction
Proper use................................................................................ Page 5
Description of parts and features........................................... Page 5
Technical data......................................................................... Page 6
Scope of delivery.................................................................... Page 7
Safety instructions....................................................... Page 7
Preparing for use
Recharging the rechargeable
batteries for the LED work lamp ............................................. Page 9
Use
Using the LED work lamp connected to a power supply ..... Page 11
Maintenance and cleaning................................... Page 12
Troubleshooting ............................................................ Page 12
Disposal................................................................................ Page 13
56301_pow_LED_Stableuchte_Content_LB6.indd 4 06.10.10 14:23

5GB/IE
Introduction
LED Work Lamp

Introduction
Familiarise yourself with the product before using it for the
first time. In addition please refer carefully to the operating
instructions
below and the safety advice. Use the product
only as described and for the indicated purpose. Keep these instructions
in a safe place. If you pass the product on to anyone else, please ensure
that you also pass on all the documentation.

Proper use
The product is intended for providing illumination in dry indoor rooms
and in outdoor environments. If used outdoors the mains adapter must
be protected from moisture and the weather. Any other use or modifi-
cation of the product constitute improper use and pose a risk of short
circuits, fire, electric shocks and damage to the product. The manufac-
turer is not liable for damage caused by improper use. The product is
not intended for commercial use.


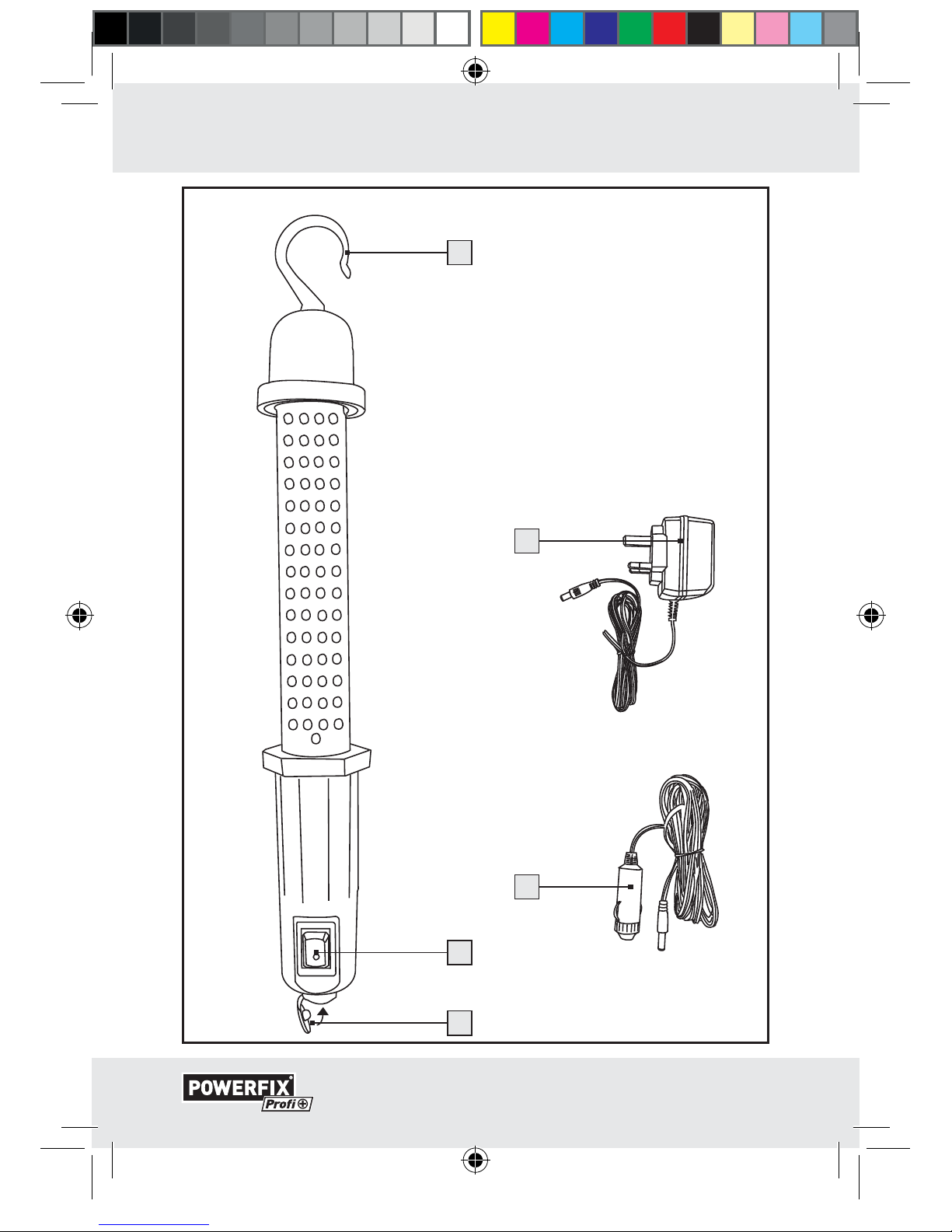

Description of parts and features
1Hook
2Adapter
3Adapter for cigarette lighter
4On / off switch
5Protective rubber pad
56301_pow_LED_Stableuchte_Content_LB6.indd 5 06.10.10 14:23

6 GB/IE
Introduction

Technical data
Light bulb: 60 LEDs (white, non-replaceable)
Light intensity : approx. 13,000 - 15,000 mcd
(millicandela)
Lamp rechargeable batteries: 3 x AA NiMH, 1800 mAh
(not replaceable)
Charging time: approx. 5 to 7 hours
(Empty battery charging time
approx. 8 to 11 hours)
Burn time: approx. 4 hours (with fully charged
battery)
Lifespan of LEDs: approx. 100,000 hours
Protection class: III
System of protection: IP44
Adapter:
Input: 230 V
~50 Hz
Output: DC 6 V , 300 mA
Model: 99999999999999999999999999999999999E^Vk
Protection class: II
System of protection: IP20
Cigarette lighter:
Input: 12 V
Output: 12 V , 240 mA
56301_pow_LED_Stableuchte_Content_LB6.indd 6 06.10.10 14:23

7GB/IE
Introduction / Safety instructions

Scope of delivery
1 LED work lamp including rechargeable batteries
1 Adapter
1 Adapter for cigarette lighter
1 Set of directions for use
Safety instructions
 WARNING! DANGER TO LIFE AND RISK
OF ACCIDENTS FOR INFANTS AND CHILDREN!
Never leave children alone and unsupervised with the
packaging material. There is always a risk of suffocation if children
play with the packaging material. Children often underestimate
risks. Always keep children away from the packaging material.
This product is not a toy.
 Keep batteries out of the reach of children. Do not leave the batteries
lying around. There is a risk of children or animals swallowing
them. Consult a doctor immediately if a battery is swallowed.
 Children or persons who lack the knowledge or experience to use
the device or whose physical, sensory or intellectual capacities are
limited must never be allowed to use the device without supervision
or instruction by a person responsible for their safety. Children
must never be allowed to play with the device.
 This product is not a toy and should be kept out of the reach of
children. Children are not aware of the dangers associated with
handling electrical products.
 Do not use the article if you detect any kind of damage.
56301_pow_LED_Stableuchte_Content_LB6.indd 7 06.10.10 14:23

8 GB/IE
Safety instructions
 CAUTION! DANGER OF EXPLOSION! Do not
operate the LED work lamp in potentially explosive
environments in which there are inflammable vapours,
gases or dusts.
 The LED work lamp is splash-proof. The product and the adapter
must never be immersed into water or other liquids. Otherwise
there is a risk of electric shock! Never hang the product near a
washbasin, a pond or the like.
 Connect the LED work lamp to a properly installed mains socket or
a suitable cigarette lighter socket only. The voltages in each case
must comply with information given in the section “Technical data”.
 Ensure that the electrical socket is easily accessible so that you
can pull the plug quickly out of the socket if necessary.
 Do not carry out any modifications or repairs to the product yourself.
The LEDs cannot and must not be replaced.
ATTENTION! The protective cover in front of the LEDs is non-replace-
able. Dispose of the LED work lamp when you detect cracks or
signs of breakages in the protective cover. Dispose of the product
when the LED work lamp, the cables or adapters are damaged.
 Never connect the LED work lamp to a power supply socket if the
LED work lamp, power lead or socket is damaged or the LED work
lamp has been dropped.
 Ensure that the power lead cannot become damaged by sharp
edges or hot objects. Unwind all the lead completely before use.
 Keep easily flammable materials away the product. Never hang
objects above the LED work lamp or the mains adapter and never
cover them.
 Pull the mains adapter / plug out of the mains socket/cigarette
lighter socket when you are not using the LED work lamp or before
you clean it. Do this as well if signs of a fault develop during use
or charging, e.g. smoke, burning smell etc., or during a storm.
56301_pow_LED_Stableuchte_Content_LB6.indd 8 06.10.10 14:23

9GB/IE
Safety instructions /Preparing for use
When doing this, pull directly on the mains adapter/plug and not
on the lead.
 Protect the product against heat, cold, strong vibrations and impacts.
 CAUTION! LED RADIATION. Avoid damage to
eyes! ! Never look directly at the LED. Never use optical
appliances such as magnifying glasses or the like to
look at the LED. Protect yourself and your environment by taking
proper precautions.
 Never point the LED beam at reflective surfaces, people or animals.
This could result in blindness or irritation of the eyes. Even weak
LEDs could result in eye damage.
 Do not attach the hook
to hot objects. The dead weight of the
LED work lamp might cause the hook to deform or bend out of shape.

Preparing for use

Recharging the rechargeable batteries for
the LED work lamp
Do not connect the LED work lamp to the cigarette lighter socket in
your vehicle if the vehicle battery is very old or exhausted. This
could cause the engine to fail to start.
 In order to use the LED work lamp without a cable, you need to
recharge the batteries before use. The charging process takes
about 5 to 7hours. The rechargeable batteries are firmly integrated
into the handle of the LED work lamp.
 You can recharge the rechargeable batteries using a normal
household socket or the cigarette lighter of your vehicle.
Tip: We recommend you recharge the LED work lamp with a normal
domestic socket so that the battery of your vehicle does not become
flat.
56301_pow_LED_Stableuchte_Content_LB6.indd 9 06.10.10 14:23

10 GB/IE
Preparing for use
 Switch the LED work lamp off during the charging process (put the
on / off switch 4to position 0).
 Remove the protective rubber pad 5on the lower side of the LED
work lamp.
 Insert the connection plug of the mains adapter 2or the connection
plug of the cigarette lighter socket adapter 3into the connection
socket in the LED work lamp handle.
ATTENTION! When charging from a cigarette lighter socket, the
adapter must always be fully inserted into the cigarette lighter
socket of the vehicle. Otherwise there is the danger of fire through
overheating.
 Insert the mains adapter
into a mains socket or insert the ciga-
rette lighter socket adapter into the cigarette lighter socket in
your vehicle.
Note: The product is fitted with an overcharge protection circuit.
In spite of this, you should disconnect the LED work lamp from the
power supply after the charging process is complete.
 The charging indicator lights up red during the charging process.
When the charging process is complete, the charging indicator
lights up green. When the indicator LED work lamp is green, pull
the adapter out of the socket. Also disconnect it from the LED work
lamp so that the batteries do not go flat.
ATTENTION! Attach the protective rubber pad
back onto the
lower side of the LED work lamp before operating it again. Otherwise
water might get onto the connector pin if you use the LED work
lamp outside.
56301_pow_LED_Stableuchte_Content_LB6.indd 10 06.10.10 14:23

11GB/IE
Use

Use
When using the LED work lamp in a vehicle make sure that you do
not endanger the driver or the passengers. Store and secure the
LED work lamp in such a way that, even under conditions of full
braking, there is no danger of damage to the product or personal
injury.
 Fully charge the rechargeable batteries for the LED work lamp as
described in the section called “Recharging the rechargeable
batteries for the LED work lamp”.
 Press the on/off switch 4(position I) to switch the LED work lamp on.

Using the LED work lamp connected to a
power supply
Arrange the power lead so that it does not create a trip hazard.
CAUTION DANGER OF ACCIDENT! Do not connect or use
the LED work lamp if you are in moving traffic, for example driving
a vehicle. The LED work lamp is not a passenger compartment
light or a reading light!
 Pull the protective rubber pad 5out of the bottom of the
LED work lamp handle.
 Insert the connection plug of the mains adapter 2or the connection
plug of the cigarette lighter socket adapter 3into the connection
socket in the LED work lamp handle.
 Insert the mains adapter into a 230V
~mains socket or insert
the cigarette lighter socket adapter
into the cigarette lighter
socket in your vehicle.
 Press the On/Off switch to switch on the LED work lamp.
56301_pow_LED_Stableuchte_Content_LB6.indd 11 06.10.10 14:23

12 GB/IE
Use / Maintenance and cleaning / Troubleshooting
ATTENTION! If the LED work lamp is connected to the mains supply
via an adapter, it is only suitable for indoor use.

Maintenance and cleaning
The product requires no maintenance. The LEDs cannot be replaced.
 Disconnect the product from the power supply before you clean it.
 Clean the product regularly with a dry, fluff-free cloth. Use a slightly
moist cloth to remove any stubborn dirt.
 Do not use corrosive cleaning agents.
 Never immerse the product in water or other liquids.

Troubleshooting
Fault Possible causes and cures
No
functions
- Is the mains adapter or cigarette lighter socket adapter
fully inserted?
Charging
indicator
does not
light up
When connected to a cigarette lighter socket:
- Is the cigarette lighter socket supplied
with power?
Some
cigarette lighter sockets only supply power with
the ignition switched on.
- Check the fuse in the vehicle.
56301_pow_LED_Stableuchte_Content_LB6.indd 12 06.10.10 14:23

13GB/IE
Troubleshooting / Disposal
Fault Possible causes and cures
Charging
takes a
very long
time
When connected to a cigarette lighter socket:
- Vehicle battery too weak?

Disposal
The packaging is made entirely of recyclable materials,
which you may dispose of at local recycling facilities.
Contact your local refuse disposal authority for more details of how to
dispose of your worn-out product.
To help protect the environment, please dispose of the product
properly when it has reached the end of its useful life and
not in the household waste. Information on collection points
and their opening hours can be obtained from your local
authority.
Faulty or used batteries must be recycled in accordance with Directive
2006 / 66 / EC. Please return the batteries and / or the device to the
available collection points.
Pb
Environmental damage through incorrect
disposal of the rechargeable batteries!
Rechargeable batteries may not be disposed of with the usual domestic
waste. They may contain toxic heavy metals and are subject to hazardous
56301_pow_LED_Stableuchte_Content_LB6.indd 13 06.10.10 14:23

14 GB/IE
Disposal
waste treatment rules and regulations. The chemical symbols for heavy
metals are as follows: Cd = cadmium, Hg = mercury, Pb = lead. That
is why you should dispose of used rechargeable batteries at a local
collection point.
Product Description:
LED Work Lamp
Model No.: Z30590-BS
Version: 1V/ 201Y
EMC
56301_pow_LED_Stableuchte_Content_LB6.indd 14 06.10.10 14:23
