Electric Aerator / Scarifier 2in1
PM-AEW-2600T

2
Table of Contents
SYMBOLS WARNING / INFORMATION .............................................. ........................................... 3
PURPOSE OF THE DEVICE ................................................ .................................................. ............... 4
SAFETY RULES ................................................ .................................................. .................... 4
Before working .............................................. .................................................. ........... 4
Proper use ................................................ .................................................. ...................... 4
Electrical safety ................................................ .................................................. ............. 5
DESCRIPTION OF THE DEVICE ............................................... .................................................. .................. 6
ASSEMBLY ................................................. .................................................. ............................................... 7
REPLACEMENT BLADES ................................................ .................................................. .................................... 9
TECHNICAL DATA ................................................ .................................................. .............................. 10
SETTING THE DEPTH OF WORK ............................................... .................................................. ........ 10
GETTING STARTED ................................................ .................................................. ...................... 11
Starting ................................................. .................................................. ................................. 11
Thermal protection ................................................ .................................................. ............... 11
Scarification / loosening ............................................... .................................................. ............. 11
Aeration ................................................. .................................................. ............................................ 11
MAINTENANCE AND STORAGE ............................................... .................................................. .. 12
CHART OF ................................................ .................................................. ................................. 13
An exploded view of the ............................................... .................................................. ............... 13
REMOVAL OF USED ............................................... .................................................. ....... 14
WARRANTY ................................................. .................................................. ....................................... 14
Exclusions warranty ............................................... .................................................. ... 14
Service ................................................. .................................................. ............................................. 15
COMPANY INFORMATION ................................................ .................................................. ............................ 15
DECLARATION OF CONFORMITY ................................................ .................................................. .................... 15

3
SYMBOLS WARNING / INFORMATION
ATTENTION: Before using the device please read the instruction manual and safety ATTENTION: Before using the device please read the instruction manual and safety
instructions. Keep these instructions.
ATTENTION: Do not expose to rain or other precipitation. ATTENTION: Do not expose to rain or other precipitation.
ATTENTION: Disconnect the device from the mains before carrying out maintenance and ATTENTION: Disconnect the device from the mains before carrying out maintenance and
cleaning.
ATTENTION: In the case of entanglement or damage to the cable to pull the plug from the wall ATTENTION: In the case of entanglement or damage to the cable to pull the plug from the wall
outlet.
ATTENTION: Keep a safe distance from bystanders during operation.ATTENTION: Keep a safe distance from bystanders during operation.
ATTENTION: On the discarded items during operation. ATTENTION: On the discarded items during operation.
ATTENTION: Keep hands and feet away from rotating parts. ATTENTION: Keep hands and feet away from rotating parts.
ATTENTION: Due to the possibility of injury during use and keep careful use gloves. ATTENTION: Due to the possibility of injury during use and keep careful use gloves.
ATTENTION: Should be used with earphones and goggles. ATTENTION: Should be used with earphones and goggles.
Protection class II

4
PURPOSE OF THE DEVICE
Depending on the intended use of the device can be used as an aerator or scarifier. Scarifier using a roller pulled by a
substrate moss and weeds together with roots and the substrate is loosened. As a result, the lawn can better take
nutrients and be cleaned. We recommend wertykulować lawn in spring (April) and autumn (October). By roller to the
top surface of the lawn aerator is collected, whereby the water can better flow and oxygen consumption is facilitated.
The work carried out by the aerator needs during the whole period of grass growth.
The device can be repaired and maintained only by an authorized service.
Because of safety reasons the device can not be used by children and young people under the age of 18
and by persons under the influence of alcohol, drugs or other intoxicants.
Persons who are not familiar with this manual, please read carefully before its first use.
SAFETY RULES
1. Carefully read the instructions and follow the instructions indicated. 1. Carefully read the instructions and follow the instructions indicated.
2. Never use the device in the rain. 2. Never use the device in the rain.
3. When in use, keep special care. 3. When in use, keep special care.
4. Bystanders should not approach the machine during operation. 4. Bystanders should not approach the machine during operation.
5. Do not go near the feet and hands to the blades and moving parts. 5. Do not go near the feet and hands to the blades and moving parts.
6. Do not use the machine if the power cord is damaged. 6. Do not use the machine if the power cord is damaged.
7. During operation, always wear safety glasses and protective clothing. 7. During operation, always wear safety glasses and protective clothing.
8. Disconnect the device from the mains before carrying out maintenance and cleaning. 8. Disconnect the device from the mains before carrying out maintenance and cleaning.
9. During maintenance, wear protective gloves. 9. During maintenance, wear protective gloves.
P Row ATTEMPTING TO WORKP Row ATTEMPTING TO WORK
1. Make sure the device is properly assembled.1. Make sure the device is properly assembled.
2. Check that the device is not damaged. If you notice any damage, contact2. Check that the device is not damaged. If you notice any damage, contact
service.
3. Make sure that the workplace is not the stones and other elements.3. Make sure that the workplace is not the stones and other elements.
4. Work only in well-lit areas.4. Work only in well-lit areas.
5. Wear suitable protective clothing and protective boots.5. Wear suitable protective clothing and protective boots.
6. Make sure that the cutting blades can rotate freely.6. Make sure that the cutting blades can rotate freely.
IN OMPETENT USEIN OMPETENT USE
1. Those unfamiliar with the instructions, a person under the influence of alcohol, children can not 1. Those unfamiliar with the instructions, a person under the influence of alcohol, children can not
use the device.
2. Use the machine only for work in accordance with its intended purpose.2. Use the machine only for work in accordance with its intended purpose.
3. Children and bystanders should keep a safe distance from the workplace.3. Children and bystanders should keep a safe distance from the workplace.
4. Use the device only with mounted basket.4. Use the device only with mounted basket.

5
5. Before connecting the device to the mains make sure that the network parameters correspond 5. Before connecting the device to the mains make sure that the network parameters correspond
of the nameplate.
6. Working keep a stable position.6. Working keep a stable position.
7. Be careful during operation does not damage the power cord.7. Be careful during operation does not damage the power cord.
8. Before emptying the trash off the device.8. Before emptying the trash off the device.
9. If you notice that the unit raided a stone or some other object, unplug the machine and check that has not
been damaged.
10. If you turn the device to vibrate abnormally, switch it off and check it 10. If you turn the device to vibrate abnormally, switch it off and check it
Broken.
Warning! After switching off the cutting blades can move even for a moment. Warning! After switching off the cutting blades can move even for a moment.
B ELECTRICAL SECURITYB ELECTRICAL SECURITY
1. Never operate the device Pass the power cord.1. Never operate the device Pass the power cord.
2. Never use the device during rain and high humidity.2. Never use the device during rain and high humidity.
3. Do not leave your device on overnight open spaces.3. Do not leave your device on overnight open spaces.
4. Do not operate the device if the grass is wet.4. Do not operate the device if the grass is wet.
5. Before starting the machine check the condition of the power cable if the cable is damaged 5. Before starting the machine check the condition of the power cable if the cable is damaged
repair it before you start.
6. Use only extension cords rated to operate in open spaces. 6. Use only extension cords rated to operate in open spaces.

6
DESCRIPTION OF THE DEVICE
MODEL: PM-AEW-2600T
1. main switch 10. cover trash
2. Fuse main switch 11. frame trash
3. Network cable 12. cable clamp
4. Cable safety hook 13. handle terminal
5. The upper handle portion 14. handle terminal
6. The middle part of the handle 15. wheels
7. The lower handle portion 16. screw the handle
8. The controller working depth settings 17. Handle height adjustment
9. Basket 18. Washer screw holder

7
ASSEMBLY
•Slide retaining hook cable (1) on the underside of the holder (2) ( Error! Can not find the source references.).Slide retaining hook cable (1) on the underside of the holder (2) ( Error! Can not find the source references.).
• Insert the underside of the holder (2) to the rotating unit (3). Then, the quick attach lever (4) to the body scarifier
(Fig. 2).
•Insert two screw
security (8) down
inside by hole
holder in the backsheet (2)
and secure it to the intermediate
holder (6) by
two nuts
wing (5) (Fig. 3).
•Insert two screw
security (8) down
inside by hole
in the upper bracket (7)
and secure it to the intermediate
holder (6) by means of two wing
nuts (5) (Fig. 4).

8

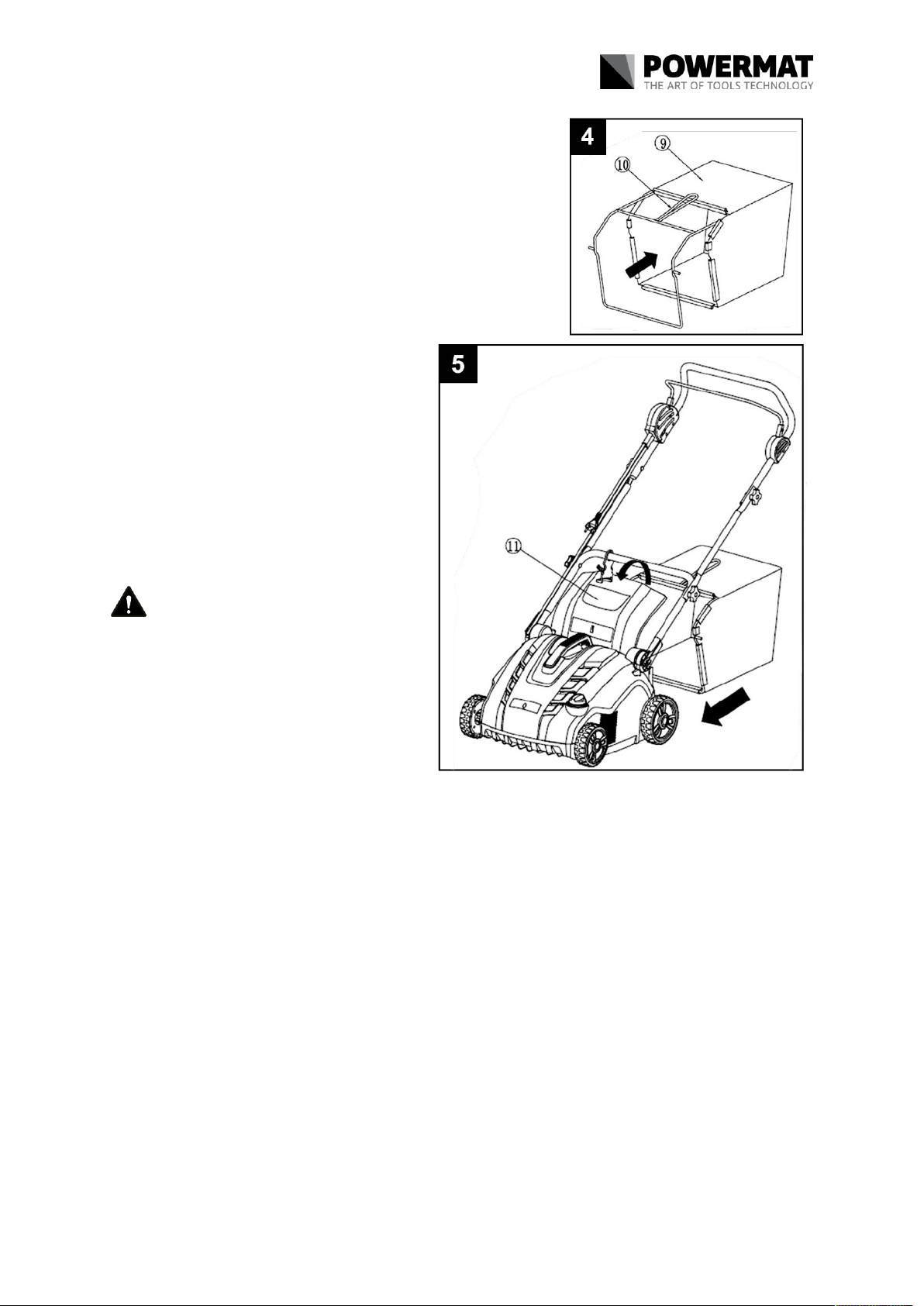

• Insert the metal frame (10) for the textile collection bin (9) and
fasten all the snaps to the left, right and rear rod frame.
• Make sure that all latches are properly fastened (Fig. 4).
• Installation of the fully folded hopper to Scarifier (Fig. 7).
and) Raise the protective cover (11). and) Raise the protective cover (11).
b) Make sure that the discharge is clean and free b) Make sure that the discharge is clean and free
pollution.
c) Place c) Place totally
collecting basket mounted at
mounting points at the rear of the
housing such as shown in the figure.
d) Put on top of the trash d) Put on top of the trash
collecting the protective cover (11).
Make sure the collection basket is
properly seated.
To use the machine without collecting
clippings grass, use
Aerator without hopper but with a protective
cover (11) in the lower position.

9
REPLACEMENT BLADES
WARNING! Cylinders can cause damage! Before replacing disconnect the unit from the outlet and
wait for the cylinder stops rotating. When replacing, use gloves.

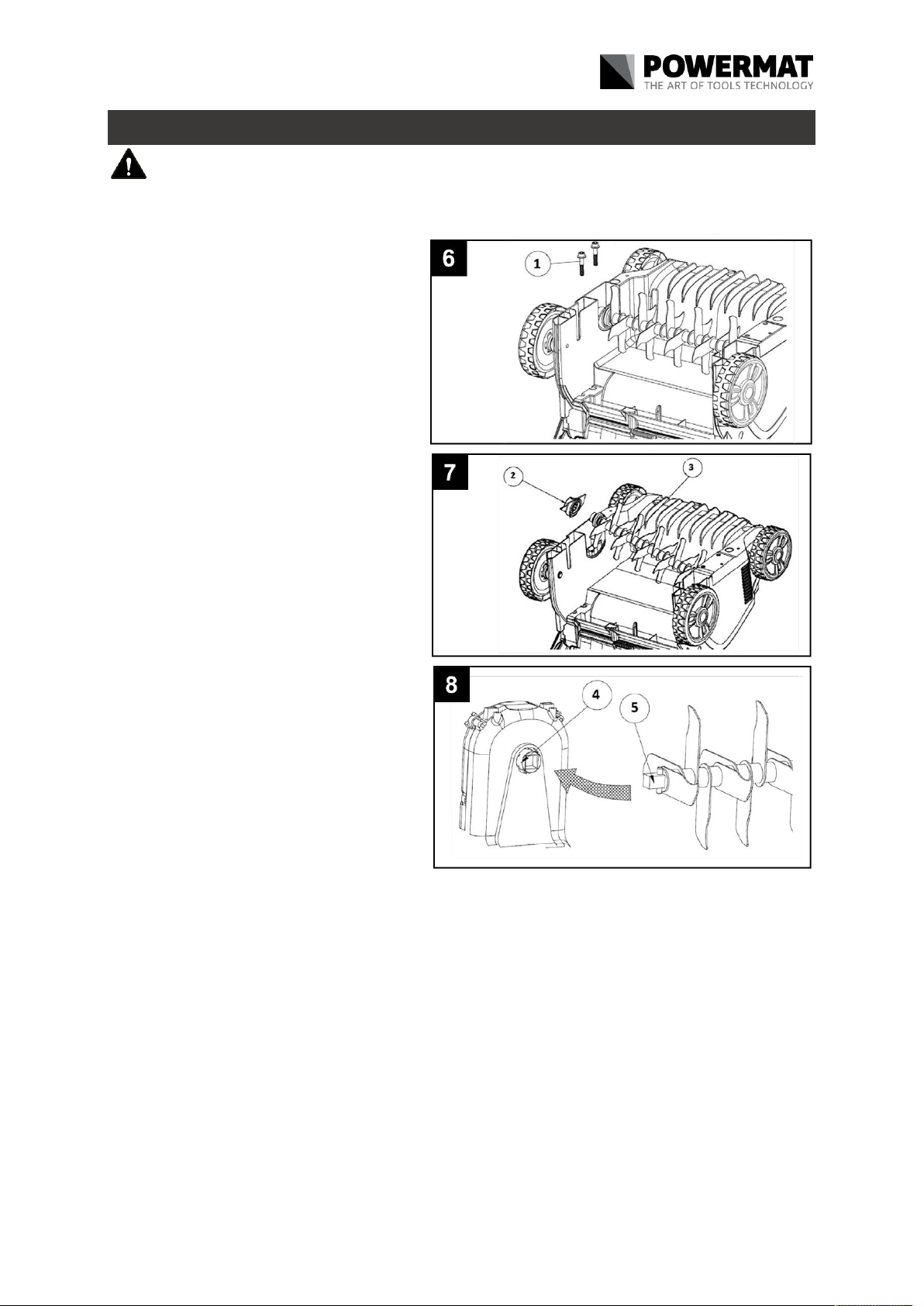

•Remove the screws (1) on the underside of the
housing (Fig. 6).
• Increase bending cylinder (3) and remove
it (Fig. 7).
•Remove the lid bearing (2) from the shaft of the cylinder
(Fig. 7).
•Slide bearing cover (2) to the second cylinder.
•Slide the second cylinder shaft
driving so that the pin (5) has been adapted
to the corresponding portion of the drive
shaft (4) (Fig. 8).
• Screw nut bearing (2) to the bottom
parts housing not
tightening too much.

10
TECHNICAL DATA
Power 230 V / 50 Hz
Power 2600
sales 3500 / min- 13500 / min- 1
Working width 400 mm
The scope of work of the aerator depth - 9 9 [mm]
The scope of work scarifier depth - 12 6 [mm]
Rear Bag Capacity 55 l
Net weight 12.8 kg
The sound pressure level L pAThe sound pressure level L pA 85.56 dB (A)
Sound power level L wASound power level L wA 104 dB (A)
Vibration level ( K = 1.5 m / s 2)Vibration level ( K = 1.5 m / s 2)Vibration level ( K = 1.5 m / s 2) 5.508 m / s 25.508 m / s 2
SETTING THE DEPTH OF WORK
Warning! Never change the amount of work, if the device is turned on and the drum rotates. Warning! Never change the amount of work, if the device is turned on and the drum rotates.
• The working depth can be changed by levers located on the front wheels.
• Each wheel can be set in one of five positions.
• To change the height of the pull lever to one side and then move it forward or backwards, and lock
it. Both wheels should be set to the same height.
• Scarifier working depth of the cylinder should be a maximum of 3 mm. Aerator cylinder with springs
during operation should copy the surface of the earth. Too high working depth when blades / the
springs are not visibly worn, it can cause damage to the cylinder or scarifier undue burden and
damage to the engine. It can also cause damage to the lawn.
Adjustment after use
In order to maintain the recommended working depth control settings use the working depth (Description of
construction equipment - 8).
ATTENTION. Scarifier blades and springs are subject to wear during operation, depending on how the
work. Scarifier The more you use, the greater the consumption of blades or springs. Hard or very dry soil
accelerates the wear process, as well as excessive operation. If as a result of wear of the knives results of
your work with the aerator deteriorate, then you can set Scarifier cylinders so that you can observe the depth
of the work specified above.

11
GETTING STARTED
AT same mobileAT same mobile
Before restarting see if the knife has stopped rotating. Do not switch immediately after turning it off.
Switching
1. Press 1. Press and hold button
safety (1). Pull the actuating lever (2) to the holder.
2. Release the safety button. 2. Release the safety button.
Disabling
1. Release actuating lever (2). 1. Release actuating lever (2).
FROM THERMAL ABEZPIECZENIEFROM THERMAL ABEZPIECZENIE
If the machine locks up or if the motor is overloaded the thermal protection system automatically turns off the engine.
Before restarting the machine, wait until the engine has cooled down (about 15min).
IN ERTYKULACJA / S plumpIN ERTYKULACJA / S plumpIN ERTYKULACJA / S plumpIN ERTYKULACJA / S plump
1. Adjust the working height depending on the state of the grass and the lawn. 1. Adjust the working height depending on the state of the grass and the lawn.
2. Tilt the aerator so that the front wheels are in the air. 2. Tilt the aerator so that the front wheels are in the air.
3. Turn on the device. 3. Turn on the device.
4. Move the device slowly across the lawn in simple stripes. 4. Move the device slowly across the lawn in simple stripes.
5. Be careful not to pass on the power cord. 5. Be careful not to pass on the power cord.
6. When the grass catcher is full turn it off and empty the Trash. 6. When the grass catcher is full turn it off and empty the Trash.
AND ERACJAAND ERACJA
Before aeration Mow the lawn at a height of about 4cm.
To keep your lawn in top condition aeration carrying every 4-6 weeks.
WARNING! Do not let the engine was over-charged during operation, especially in difficult conditions.
If the motor is over-loaded, will to reduce its rotation, which know

12
after changing the engine sound accompanying the work. If this happens, stop working, release the
operating lever and reduce the depth of scarifying / loosening. If you do not, you may damage the device.
WARNING! The motor is protected by collateral, which starts at the moment when it comes to seizing
the blades or excessive load on the engine. If this happens, turn it off and unplug it from the power
source. To reset security occurs only in the case of dismissal of the operation lever. Remove any
obstacles and wait a few minutes until the reset protection. You can then continue to work. At this point,
do not manipulate a lever gearing, which extends the protection reset time. If there is a re turn off the
device, increase the depth of scarifying / ripper, which will reduce the load on the engine.
MAINTENANCE AND STORAGE
Warning! Before replacing the blades and maintenance disconnect the device and replace gloves. Warning! Before replacing the blades and maintenance disconnect the device and replace gloves.
Worn blades may adversely affect the performance of the machine and cause the engine to overheat. Before each
use, check that the blades are sharpened properly, if necessary, sharpen them. The blades are designed to be able
to work with the two sides.
•Lubricant: cutting blades, a seat of the shaft in the housing, a spring cover for the outlet.
•Always clean the device after work from the remnants of grass and earth.
•After work, empty the grass catcher.
• The device should be stored in a clean, dry place, out of reach of children.
• Prior to long term storage coat the metal portion of the device layer of oil to prevent corrosion.

13
CHART PARTS
IN IDOK SYSTEM EXPLODEDIN IDOK SYSTEM EXPLODED

14
REMOVAL OF USED
End of life do not dispose of this product by normal household waste, but take it to a
collection point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product,
user manual or packaging. Thanks
re-use, or use of materials other forms
of old appliances, you make an important contribution to protecting our environment.
Only for EC countries:
According to the European Directive 2012/19 / EU, unusable power, and in accordance with the European Directive
2006/66 / EC, worn or damaged batteries / batteries, must be collected separately and recycled lead in accordance with the
principles of environmental protection. The manufacturer is under active BDO registration number: 000063719
Each store has an obligation to take back your old equipment free of charge if you buy him new equipment of the same type and
performing the same function. You can drop off your waste equipment at the store where you purchased the new device.
Stores with a sales area of equipment designed for households of minutes. 400 m 2 are required to free the adoption of Stores with a sales area of equipment designed for households of minutes. 400 m 2 are required to free the adoption of Stores with a sales area of equipment designed for households of minutes. 400 m 2 are required to free the adoption of
this unit or in its immediate vicinity of the waste equipment from households where no external dimension more than
25 cm, without the need to purchase new equipment of the household. The small and you can leave your waste
equipment to a large supermarket without having to buy a new one.
Distributor, providing the purchaser of equipment designed for households, is obliged to take back WEEE from
households in the place of delivery of the equipment, unless the equipment used is the same type and served the households in the place of delivery of the equipment, unless the equipment used is the same type and served the households in the place of delivery of the equipment, unless the equipment used is the same type and served the
same functions as the supplied equipment. In the case of ordering the official website of the manufacturer simply
inform us by entering your comment in the box Comments to order. In this way you can recycle the used inform us by entering your comment in the box Comments to order. In this way you can recycle the used
electrical and electronic equipment in the place of delivery. You can also refer to the old appliance collection
point.
For more information on the collection system equipment is at hand:
https://sklep.powermat.pl/webpage/pl/recycling.html
WARRANTY
During the warranty period the buyer is entitled to free repairs due to manufacturing defects.
The warranty is recognized only when the product is delivered to the point of sale in a complete state, nierozmontowany,
along with proof of purchase and properly completed warranty card.
IN YŁĄCZENIA MANUFACTURER'S WARRANTY IN YŁĄCZENIA MANUFACTURER'S WARRANTY
Occurs when the device has the damage as a consequence of natural wear or due to improper handling of the
equipment (e.g.,. Overload, exerting too high pressures - in particular, crack or fracture of plastic parts and other
mechanical damage

15
and defects resulting from this damage, neglect of maintenance and restoration of patent ducts of the engine, the dust
discharge channels, switches, etc.).
And in cases like this:
•Finds attempts to unauthorized repairs.
•This equipment has been tampered with during the warranty period or repaired by unauthorized persons.
• The tool has been used in industry or craft (DIY tool manufactured and is not intended for paid work).
Guarantee are not covered by such tool elements which may be damaged due to overload or wear and tear (e.g.,.
Grips and, housing elements and all the covers, rollers aeration and scarifying - spring / knives, wheels).
S erviceS ervice
Repair of power tools should only be done by qualified personnel using original spare parts. This ensures the
safety of the device.
Address:
Powermat service
ul. Defenders of the Gdansk Post 97 42-400
Zawiercie
Tel. 32 670 39 68 4 internal e-mail
COMPANY DETAILS
PH Powermat TMK Bijak Sp. General Partnership Ul.
Defenders of the Gdansk Post 97 42-400 Zawiercie
https://www.powermat.pl
DECLARATION OF CONFORMITY
Table of contents
Other Powermat Lawn And Garden Equipment manuals
Popular Lawn And Garden Equipment manuals by other brands

Easylife
Easylife EL6145 instruction manual

Electrovision
Electrovision St Helens GH616 user manual

Craftsman
Craftsman Incredi-Pull 316.725860 Operator's manual

Mosquito Magnet
Mosquito Magnet Commander Operation manual

Kinze
Kinze 4900 Operator's manual

Agria
Agria 1600 farmstar compact operating instructions
