Powermat PM-KE-2500S User manual

ORIGINAL INSTRUCTIONS
USER MANUAL
ELECTRICAL KOSA
PM-KE-2500S

2
Table of Contents
SYMBOLS WARNING / INFORMATION .............................................. ........................................... 3
PURPOSE OF THE DEVICE ................................................ .................................................. ............... 3
SAFETY RULES ................................................ .................................................. .................... 4
General safety ............................................... .................................................. ... 4
Protection against electric shock .............................................. ............................................ 4
Safety instructions for working with electric trimmer .......................................... 5
MAINTENANCE AND STORAGE ............................................... .................................................. .... 6
Maintenance ................................................. .................................................. ..................................... 6
Storage ................................................. .................................................. ............................... 6
SERVICE ................................................. .................................................. .................................................. 7
WARRANTY ................................................. .................................................. ......................................... 7
Exclusions warranty ............................................... .................................................. ..... 7
TECHNICAL DATA ................................................ .................................................. ................................ 7
DESCRIPTION OF THE DEVICE ............................................... .................................................. .................. 8
ASSEMBLY ................................................ .................................................. .......................... 9
Mounting rails (Fig. 2) ........................................... .................................................. ............................ 9
Mounting brackets (Fig. 3) ........................................... .................................................. ..................... 9
Assembling the cutting head (Fig. 4) .......................................... .................................................. ................ 9
ELECTRICAL MAINTENANCE KOSY ............................................... .................................................. ............ 11
Commissioning (Fig. 5) ............................................ .................................................. ......................... 11
Stopping (Fig. 5) ............................................ .................................................. ....................... 11
Replacing the line (Fig. 6) ........................................... .................................................. .......................... 11
The job description of the device .............................................. .................................................. .................. 11
REMOVAL OF USED ............................................... .................................................. ....... 12
COMPANY INFORMATION ................................................ .................................................. ............................ 12
CHART OF ................................................ .................................................. ................................. 13
DECLARATION OF CONFORMITY ................................................ .................................................. .................... 14

3
SYMBOLS FOCUS ZEGAWCZE / INFORMATION SYMBOLS FOCUS ZEGAWCZE / INFORMATION
ATTENTION: Before using the device please read the instruction manual and safety ATTENTION: Before using the device please read the instruction manual and safety
instructions. Keep these instructions.
ATTENTION: Do not expose to rain or other precipitation. ATTENTION: Do not expose to rain or other precipitation.
ATTENTION: Disconnect the device from the mains before carrying out maintenance and ATTENTION: Disconnect the device from the mains before carrying out maintenance and
cleaning.
ATTENTION: Should be used with hearing protection. ATTENTION: Should be used with hearing protection.
ATTENTION: Wear safety glasses. ATTENTION: Wear safety glasses.
ATTENTION: Use protective gloves. ATTENTION: Use protective gloves.
Protection class II
PURPOSE OF THE DEVICE
Electric knife, POWERMAT company is designed for mowing grass on lawns in home gardens and allotments. The
device is not intended for professional work.
For safety reasons, electric knife POWERMAT can not be used for hedge trimming or grinding composting mass.
It is forbidden to use the machine in the rain or in a humid environment. The manufacturer is not liable for damages
that have arisen as a result of misuse or improper handling.

4
For safety reasons, the device can not be used by children and young people under the age of 18
and by persons under the influence of alcohol, drugs or other intoxicants.
Persons who are not familiar with this manual, please read carefully before its first use.
SAFETY RULES
This section covers basic safety rules when working with the use of electric hedge trimmers.
General safety
Before you begin using this unit, please read well with all operating elements. Practice handling of
the device and ask the professional about the features, mode of action and work techniques. Make
sure that in case of failure will be able to switch off immediately. Improper use of the device can lead
to serious injury.
The protective device and personal protective equipment to protect your own health and the health
of third parties and guarantee flawless operation.
• Use only parts and accessories supplied and recommended by the manufacturer.
• Never grasp the device by knives or hold it for the device protective cover. Do not move the device
connected to the network, keeping your finger on / off switch.
• Disconnect from the network when not in use, you want to transport them or you leave them unattended,
and when you move the control, you clean them or delete branches blocking heads.
• Do not attempt to repair the machine unless you have to adequate education. Any work that is not described
in this manual, can be performed only by authorized service.
• Do not carry the appliance by the cord. Do not use the cable to pull the plug from the mains. Protect the
cable from heat, oil and sharp edges.
•Do not use the machine near flammable liquids or gases. In the event of non-compliance with this recommendation
there is a danger of fire or explosion.
• The user is responsible for accidents or injuries caused by other people and for the resulting damage to their
property.
• Store in a dry place out of reach of children.
• Handle your device carefully. Keep the device in such a state that the head was clean to be able to work
better and safer. Follow the maintenance regulations.
Protection against electric shock
• Note the mains voltage is in accordance with the data on the nameplate.

5
• Wherever possible, connect the device only to sockets with RCD with a measuring current of no more than
30mA.
• Before each use, check the unit and power cord with plug for damage. Avoid body contact with grounded
parts (eg. The metal fence, metal bar).
• Cable socket must be protected against splashing water, made of rubber or covered it. Use only an
extension which is intended for use in the open air and are marked accordingly.
•Conductor cross-section of the extension should be at least 1.5 mm 2 for extension below 25m over 25m for the Conductor cross-section of the extension should be at least 1.5 mm 2 for extension below 25m over 25m for the Conductor cross-section of the extension should be at least 1.5 mm 2 for extension below 25m over 25m for the
extension length of the wire cross section should be at least pave
2,5mm 2. Before using an extension cord fold it back completely from the drum. Check the cable for damage.2,5mm 2. Before using an extension cord fold it back completely from the drum. Check the cable for damage.2,5mm 2. Before using an extension cord fold it back completely from the drum. Check the cable for damage.
•Place the wire away from the work area and keep that in mind so that it is for the person that supports the device.
• For mounting, use an extension cord designed for this purpose Traction relief.
• Do not use damaged cables, connectors, plugs, or inconsistent with the provisions of the connecting cables.
In case of damage or cut power cord immediately pull the plug from the socket.
• Do not use the device if you can not turn on or off switch. Replacement of defective switches should be
ordered at the point of customer service.
• Do not overload the machine. Work in a given power range. Do not use machines with low power to perform
heavy work. Use your device only for the purposes for which it was designed.
Safety instructions for working with electric trimmer
• The machine can not be used by children. It is forbidden to work with this machine also people who are not
fully familiar with the instructions on using the machine. Law and local regulations may provide for the
minimum age for people who are allowed to operate such equipment.
• Do not allow other persons to touch the appliance or extension cord. Stay away from this device to people,
especially to children and pets. Keep a safe distance around each of 15 m. Stop work if someone is close to
you.
•Get to know your surroundings and watch out for possible dangers, which when working in certain
circumstances you can not hear.
•Examine carefully episode that you have to trim and remove all wires and other foreign bodies.
• Wear appropriate clothing, or sturdy shoes with non-slip soles, strong long pants, gloves and protective
goggles. Do not wear loose clothing or jewelry as they can hook up with moving parts. Do not use the
appliance if you are barefoot or wearing open sandals.
• During operation, keep stable posture. Avoid abnormal posture. The device always keep both hands. Be
especially careful when working on sloping ground. Before turning note that the device does not have
contact with other objects. Switch off the device before you put them.

6
• Do not carry out work with this device, if you're tired or distracted or after consuming alcohol or taking
tablets. In due time, take breaks at work. To proceed with the work carefully.
• Do not use the device in the rain, adverse weather conditions, in a moist environment or wet trim the
hedges. Work only in good light.
• Do not perform work device damaged, incomplete or modified without the permission of the manufacturer.
Never use the machine if the protective equipment is damaged. Before using check the condition of the
safety devices, especially power cord and switch and protective cover.
• Use the device only when all the handles and protective devices are properly installed.
• Before using, make sure the cutting tool, trimmer head works properly, do not jam and is not damaged or
heavily worn. Perform work only when the accessories are efficient cutting.
MAINTENANCE AND STORAGE
Before performing any work on the device, pull the plug from the socket.
The works, which were not described in this manual, the order authorized customer service point.
Use only original parts.
Maintenance
Perform the following regular maintenance and repair work. This will have a guarantee of long-term and reliable
operation of the appliance.
• Refer covers and protective devices for damage, correct mounting. If necessary, replace them.
• After use, thoroughly clean the cutting head.
•Regularly check the condition of the cutting accessories.
• Keep the ventilation slots clean. To do this, use a damp cloth or brush. Do not spray device with water or
immersed in water.
• The tool should be cleaned with a damp, soft cloth. Do not use detergents or solvents. You could thus
irreparably damage the device. Chemicals may attack the elements of the device are made of plastic.
• Tool should be checked regularly for worn or damaged parts and replace or repair as needed.
Storage
• store the unit indoors in a dry, locked room away from children
• be firmly secure the rail to the suspension of L wall using 4 screws (not with the tool) and align the

7
• Keep the tool with the attached cover head
SERVICE
Repair of power tools should only be done by qualified personnel using original spare parts. This ensures the safety
of the device.
WARRANTY
During the warranty period the buyer is entitled to free repairs due to manufacturing defects.
The warranty is recognized only when the product is delivered to the point of sale in a complete state, nierozmontowany,
along with proof of purchase and properly completed warranty card.
Exclusions warranty
Occurs when the device has the damage as a consequence of natural wear or due to improper handling of the
equipment (e.g.,. Overload, exerting too high pressures - in particular, crack or fracture of plastic parts and other
mechanical damage and defects resulting from this damage).
And in cases like this:
•Finds attempts to unauthorized repairs.
•This equipment has been tampered with during the warranty period or repaired by unauthorized persons.
• The tool has been used in industry or craft (DIY tool manufactured and is not intended for paid work).
Guarantee are not covered by such tool elements which may be damaged due to overload or wear and tear (e.g.,.
Cutting heads, shields, brackets and clamps, covers, housing elements and all the covers.)
TECHNICAL DATA
Model PM-KE-2500S
Power 230V / 50Hz
maximum power 2500W
maximum speed 7500 rpm. / min
cutting width 380mm
The sound pressure level L pAThe sound pressure level L pA K = 3 dB (A)
Sound power level L wA Sound power level L wA K = 3 dB (A)
Guaranteed sound power level L wAGuaranteed sound power level L wA K = 3 dB (A)
The vibration level K = 1.5 m / s 2The vibration level K = 1.5 m / s 2 m / s 2m / s 2
protection class II
Net weight 6,7kg

8

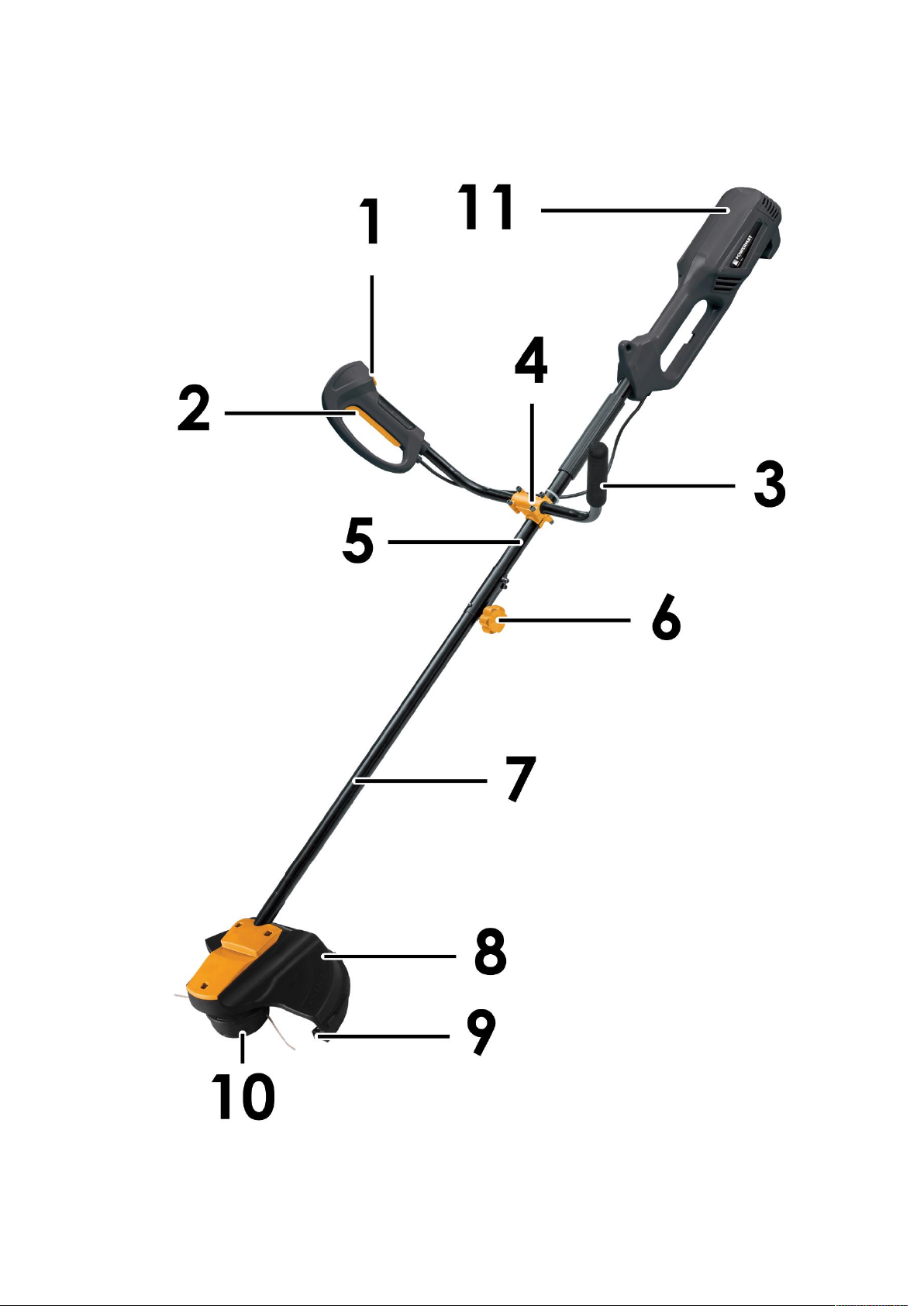

DESCRIPTION OF THE DEVICE

9
no | Mark no | Mark
1the self-locking 2button switch
3 handle left 3 handle left 4 Mounting brackets 4 Mounting brackets
5 The upper part of the seat post 5 The upper part of the seat post 6Clamping knob switch rails
7 The lower part of the seat post 7 The lower part of the seat post 8 protective cover 8 protective cover
9 Blade-off streak 9 Blade-off streak 10 Trimmer head 10 Trimmer head
11 Engine 11 Engine
ASSEMBLY
Before any work on the unit, unplug the power cord.
Before starting work, install the protective cover on the cutting device and the handle grips.
Mounting rails (Fig. 2)
1. Loosen the knob (A) and insert the lower tube. 1. Loosen the knob (A) and insert the lower tube.
2. Key lock (B) is automatically fixed in the opening of the upper tube. 2. Key lock (B) is automatically fixed in the opening of the upper tube.
3. Firmly tighten the knob in order to connect the upper and lower tube as shown in 3. Firmly tighten the knob in order to connect the upper and lower tube as shown in
drawing.
Mounting brackets (Fig. 3)
1. Loosen the Allen screws on the handle 1. Loosen the Allen screws on the handle
2. The handle on the top of the pipe add the two parts of the handle and push the upper clamping plate. 2. The handle on the top of the pipe add the two parts of the handle and push the upper clamping plate.
3. The plate is tightened by means of four Allen screws as shown. 3. The plate is tightened by means of four Allen screws as shown.
Assembling the cutting head (Fig. 4)
1. Trimmer heads (A) screw by hand in the opposite direction to clockwise on 1. Trimmer heads (A) screw by hand in the opposite direction to clockwise on
the threads of the drive shaft, as shown. (Block rotation of the drive shaft attached pin (B)).
2. Remove the protective cover from the cutter. 2. Remove the protective cover from the cutter.
3. Never use a cutting head without the plastic cover from the knife off. 3. Never use a cutting head without the plastic cover from the knife off.
Dismantling of the cutting head:
1. To remove the head, lock the drive shaft using the supplied 1. To remove the head, lock the drive shaft using the supplied
a metallic pin (B),.
2. Then turn the head clockwise or counterclockwise. 2. Then turn the head clockwise or counterclockwise.
3. On the scraper blade should attach the cover 3. On the scraper blade should attach the cover

10

11
ELECTRICAL MAINTENANCE KOSY
Do not use the device without the protective cover. During the work performed this device always
wear safe clothing and gloves. Always before use, make sure that the machine running smoothly.
On / Off switch can not block. After the switch is turned off the engine should stop. If any of the
switches was broken, then people should not do any work with the help of this device. Note the
mains voltage is in accordance with the data on the nameplate.
Commissioning (Fig. 5)
1. Press the button - on / off switch (A). 1. Press the button - on / off switch (A). 1. Press the button - on / off switch (A).
2. To lock the switch in a depressed, self-locking push button (B) 2. To lock the switch in a depressed, self-locking push button (B)
goal sustain a switch. This solution makes it easier to work with the device.
Stopping (Fig. 5)
1. Release the button - on / off switch (A). 1. Release the button - on / off switch (A).
2. If the switch was tripped by a self-locking button (B), press the switch again (A) to release, then the unit
turns off.
Replacing the line (Fig. 6)
1. Disconnect the plug from the power source. 1. Disconnect the plug from the power source.
2. Turn machine so that the cutting head was located at the top. 2. Turn machine so that the cutting head was located at the top.
3. Remove the cover (A) of the housing (C) remove the bobbin (B). 3. Remove the cover (A) of the housing (C) remove the bobbin (B).
4. The spool is supported by a spring on each side of the spring washer is arranged (top 4. The spool is supported by a spring on each side of the spring washer is arranged (top
and from the bottom).
5. Wind the cutting line onto the spool in order to hold the two ends of the line you want to wind up and fold in half. 5. Wind the cutting line onto the spool in order to hold the two ends of the line you want to wind up and fold in half.
6. Pass made at the vein through the incision in the middle of the spool and wind the fishing line in the same direction 6. Pass made at the vein through the incision in the middle of the spool and wind the fishing line in the same direction
7. The ends of the line spread sideways and slip through the outlet openings. 7. The ends of the line spread sideways and slip through the outlet openings.
8. Hold the lock button (D) and pull out the small amount of line from the reel. 8. Hold the lock button (D) and pull out the small amount of line from the reel.
9. Assemble the casing string head. 9. Assemble the casing string head.
The job description of the device Trimming
and cutting edge
WARNING! Before working the lawn free from stones, pieces of wood and other items.
After switching off the trimmer cutting line rotates for some time. Allow the motor to a complete stop
and the cutting line before restarting the machine. Do not turn on and turn off the trimmer at short
intervals.
mowing
and) Move scythe swinging motion, the left and right, taking care to keep and) Move scythe swinging motion, the left and right, taking care to keep
the machine away from each other.

12
b) Mowing height should be adjusted to the needs. It is the most efficient mowingb) Mowing height should be adjusted to the needs. It is the most efficient mowing
gentle angle from the ground and at an altitude of approx. 8cm
c) Higher grass should be cut gradually.c) Higher grass should be cut gradually.
Cutting very long grass and weeds
and) The device is equipped with a very strong streak. Assembly line is described in Sectionand) The device is equipped with a very strong streak. Assembly line is described in Section
b) In the case of plants with long stems zgrubionych must follow a special very strong b) In the case of plants with long stems zgrubionych must follow a special very strong
vein, which increases productivity and gives better results.
Mowing around trees and shrubs
and) Wykaszając grass around trees and shrubs, you should be extremely careful not and) Wykaszając grass around trees and shrubs, you should be extremely careful not
allow their contact with the rotating cutting line.
b) Damage to the bark can cause death of the tree or shrub. b) Damage to the bark can cause death of the tree or shrub.
REMOVAL OF USED
End of life do not dispose of this product by normal household waste, but take it to a
collection point and recycling of electrical and electronic equipment. This is indicated by the
symbol on the product,
user manual or packaging. Thanks
re-use, material utilization or other forms of old appliances, you make an important
contribution to protecting our environment.
COMPANY DETAILS
PH Powermat TMK Bijak Sp. General Partnership Ul.
Defenders of the Gdansk Post 97 42-400 Zawiercie

13
CHART PARTS

14
DECLARATION OF CONFORMITY
