Powermatic PM1250 Service manual

Operating Instructions and Parts Manual
Electrostatic Air Filtration System
Model PM1250
Powermatic
427 New Sanford Road
LaVergne, Tennessee 37086 Part No. M-1791331
Ph.: 800-274-6848 Edition 3 09/2018
www.powermatic.com Copyright © 2018 Powermatic
This product earned the ENERGY STAR®by meeting
strict energy efficiency guidelines set by the US EPA. US
EPA does not endorse any manufacturer claims of
healthier indoor air from the use of this product.
The energy efficiency of this ENERGY STAR®qualified
model is measured based on a ratio between the model’s
CADR for dust and the electrical energy it consumes, or
CADR/Watt.

2
1.0 IMPORTANT SAFETY
INSTRUCTIONS
When using an electrical appliance, basic
precautions should always be followed, including
the following:
READ ALL INSTRUCTIONS BEFORE USINGTHIS
AIR FILTRATION UNIT.
WARNING – To reduce the risk of fire,
electric shock, or injury:
1. Read and understand the entire owner’s
manual before attempting assembly or
operation.
2. Read and understand the warnings posted on
the machine and in this manual. Failure to
comply with all of these warnings may cause
serious injury.
3. Replace warning labels if they become
obscured or removed.
4. Do not operate this machinewhile tired or under
the influence of drugs, alcohol or any
medication.
5. Make certain the machine is properly grounded.
6. Disconnect the filtration unit from the power
source (unplug) before servicing or changing
filters.
7. Keep guards and covers in place at all times
when the machine is in use. If removed for
maintenance purposes, use extreme caution
and replace the guards immediately after
service is complete.
8. Check damaged parts. Before further use of the
machine, a guard or other part that is damaged
should be carefully checked to determine that it
will operate properly and perform its intended
function. Check for alignment of moving parts,
binding of moving parts, breakage of parts,
mounting and any other conditions that may
affect its operation. A guard or other part that is
damaged should be properly repaired or
replaced.
9. Make your workshop child proof with padlocks,
master switches or by removing safety keys.
10. Use recommended accessories; improper
accessories may be hazardous.
11. Do not place this unit on an unstable surface, or
where there is a risk of tipping over. Serious
injury could occur if the unit tips over.
12. Do not use this air filtration unit with a damaged
cord or plug. If the unit is not working as it
should, has been dropped, damaged, left
outdoors, or dropped into water, return it to a
service center.
13. If ceiling mounted, bottom of filtration unit must
be at least 7 feet from the floor.
14. If ceiling mounted, mounts must be anchored to
building structure which will support the weight
of the air filtration unit. Never mount to surfaces
such as dry wall or false ceiling grids.
15. To reduce risk of electric shock, do not expose
filtration unit to water or rain.
16. Never duct a machine directly into the air
filtration unit.
17. To avoid a potentially dangerous situation, do
not use this equipment to filter volatile fumes or
smoke.
18. Do not use this unit in high humidity
environments. Doing so may cause electric
shock and/or decreased performance of the
unit.
19. Do not use this equipment to filter flammable
vapors. This air filtration unit is designed and
intended for the filtration of air borne dust only.
It is neither designed nor intended for any other
purpose whatsoever. If used for other purposes,
Powermatic disclaims any real or implied
warranty and holds itself harmless from any
injury that may result from that use.
20. This product complies with the maximum
allowable concentration of ozone of 0.050 parts
per million by volume (ppmv) in a 24-hour
period. The Health Canada Guideline 2010
recommends that the maximum exposure limit,
based on an averaging time of 8 hours, is 0.020
ppmv or less when tested in a sealed, controlled
room approximately 30 m3.
WARNING: This product can expose you to
chemicals including nickel which is known to the
State of California to cause cancer, and lead
which is known to the State of California to cause
cancer and birth defects or other reproductive
harm. For more information go to http://www.
p65warnings.ca.gov.

3
Familiarize yourself with the following safety notices used in this manual:
This means that if precautions are not heeded, it may result in minor injury and/or possible
machine damage.
This means that if precautions are not heeded, it may result in serious or possibly fatal injury.
WARNING: Some dust, fumes and gases created by power sanding, sawing, grinding, drilling, welding and
other construction activities contain chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm. Some examples of these chemicals are:
•lead from lead based paint
•crystalline silica from bricks, cement and other masonry products
•arsenic and chromium from chemically treated lumber
Your risk of exposure varies, depending on how often you do this type of work. To reduce your exposure to
these chemicals, work in a well-ventilated area and work with approved safety equipment, such as dust masks
that are specifically designed to filter out microscopic particles. For more information go to
http://www.p65warnings.ca.gov/ and http://www. p65warnings.ca.gov/wood.

4
2.0 Table of contents
Section Page
1.0 IMPORTANT SAFETY INSTRUCTIONS.......................................................................................................2
2.0 Table of contents............................................................................................................................................4
3.0 About this manual ..........................................................................................................................................4
4.0 PM1250 Electrostatic AFS specifications.......................................................................................................5

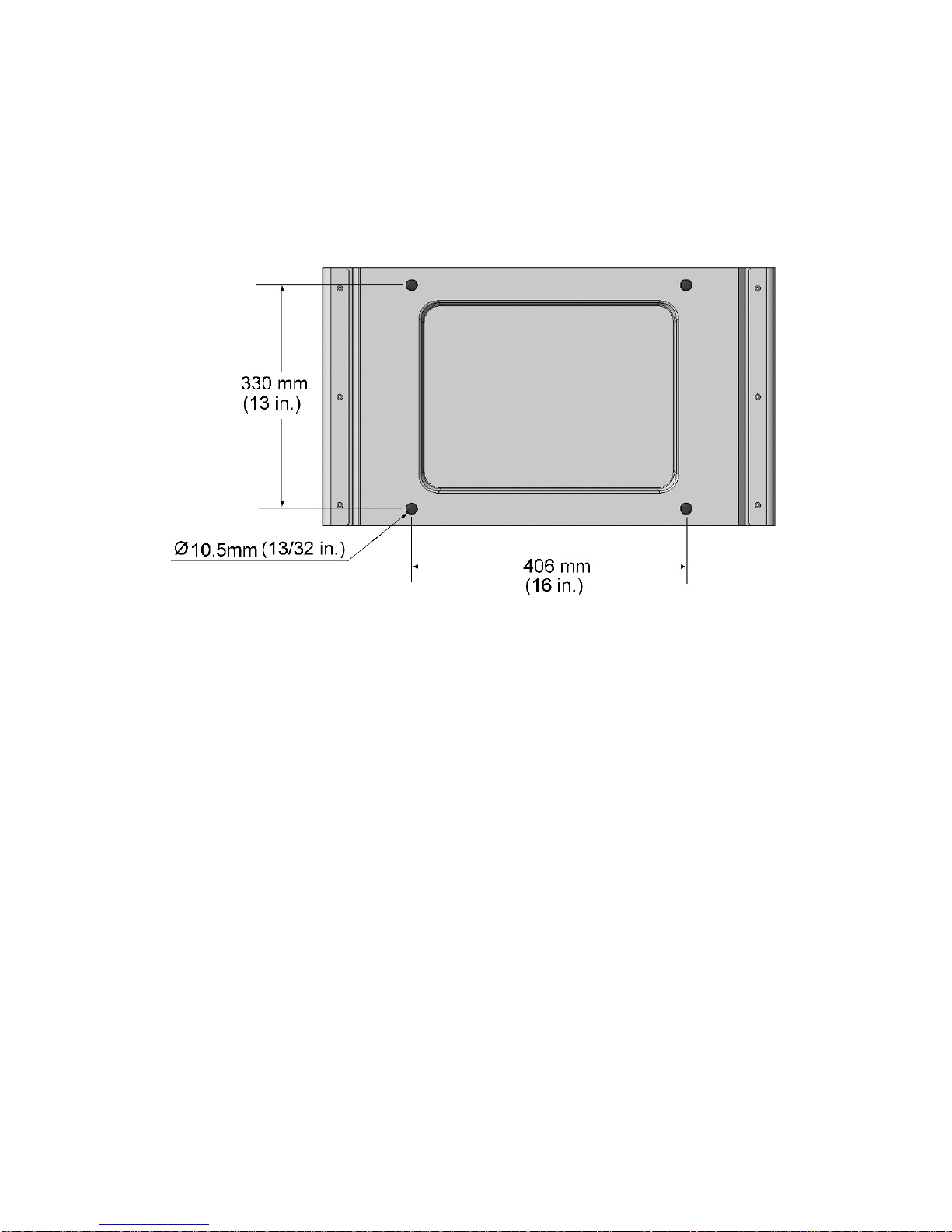

4.1 PM1250 mounting hole pattern..................................................................................................................6
5.0 Electrical connections ....................................................................................................................................7
5.1 GROUNDING INSTRUCTIONS.................................................................................................................7
5.2 Extension cords..........................................................................................................................................7
6.0 Unpacking......................................................................................................................................................8
6.1 Shipping contents.......................................................................................................................................8
7.0 Assembly........................................................................................................................................................8
8.0 Operation .......................................................................................................................................................8

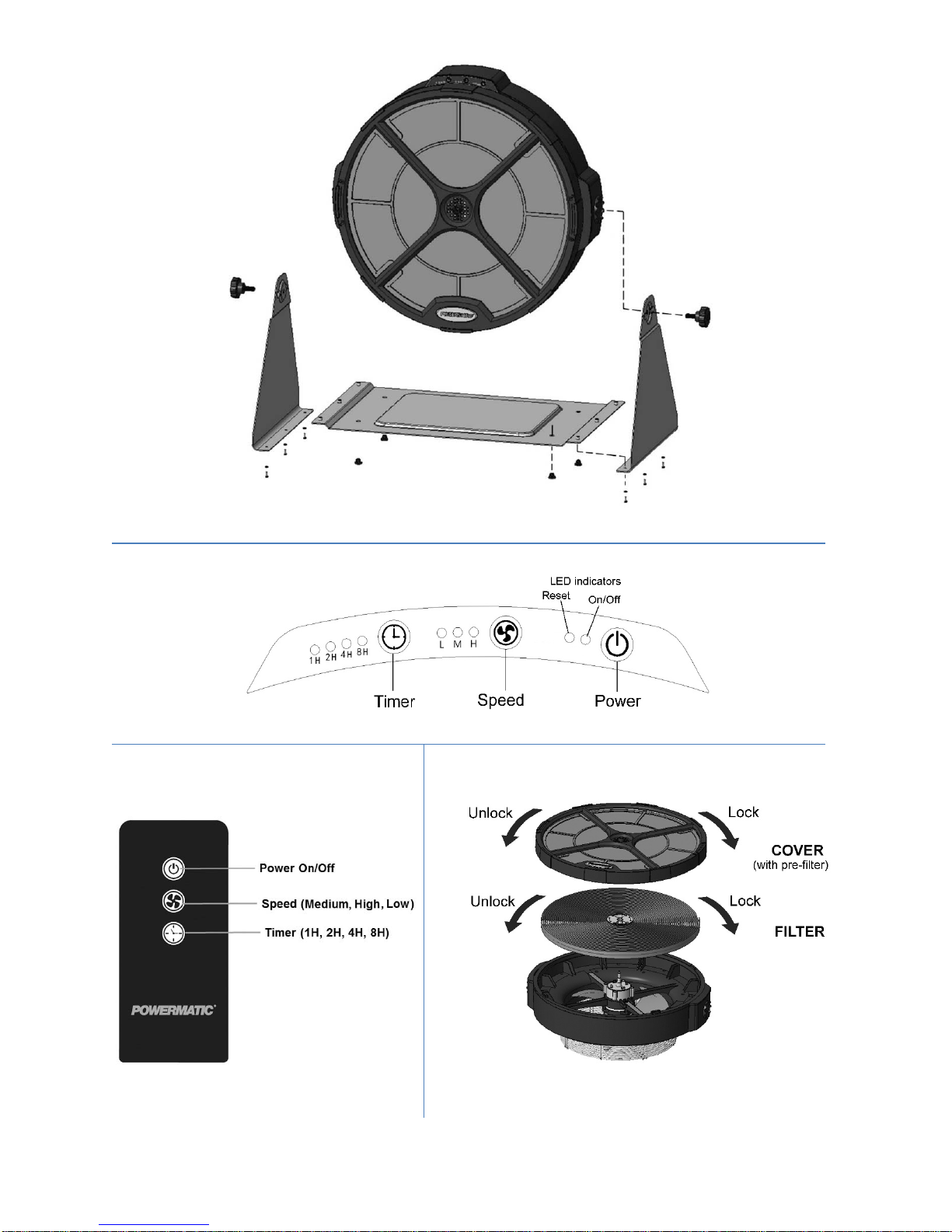

8.1 Tilt Adjustment............................................................................................................................................8
8.2 Basic procedure .........................................................................................................................................8
9.0 User-maintenance..........................................................................................................................................8
9.1 Filter cleaning and replacement.................................................................................................................8

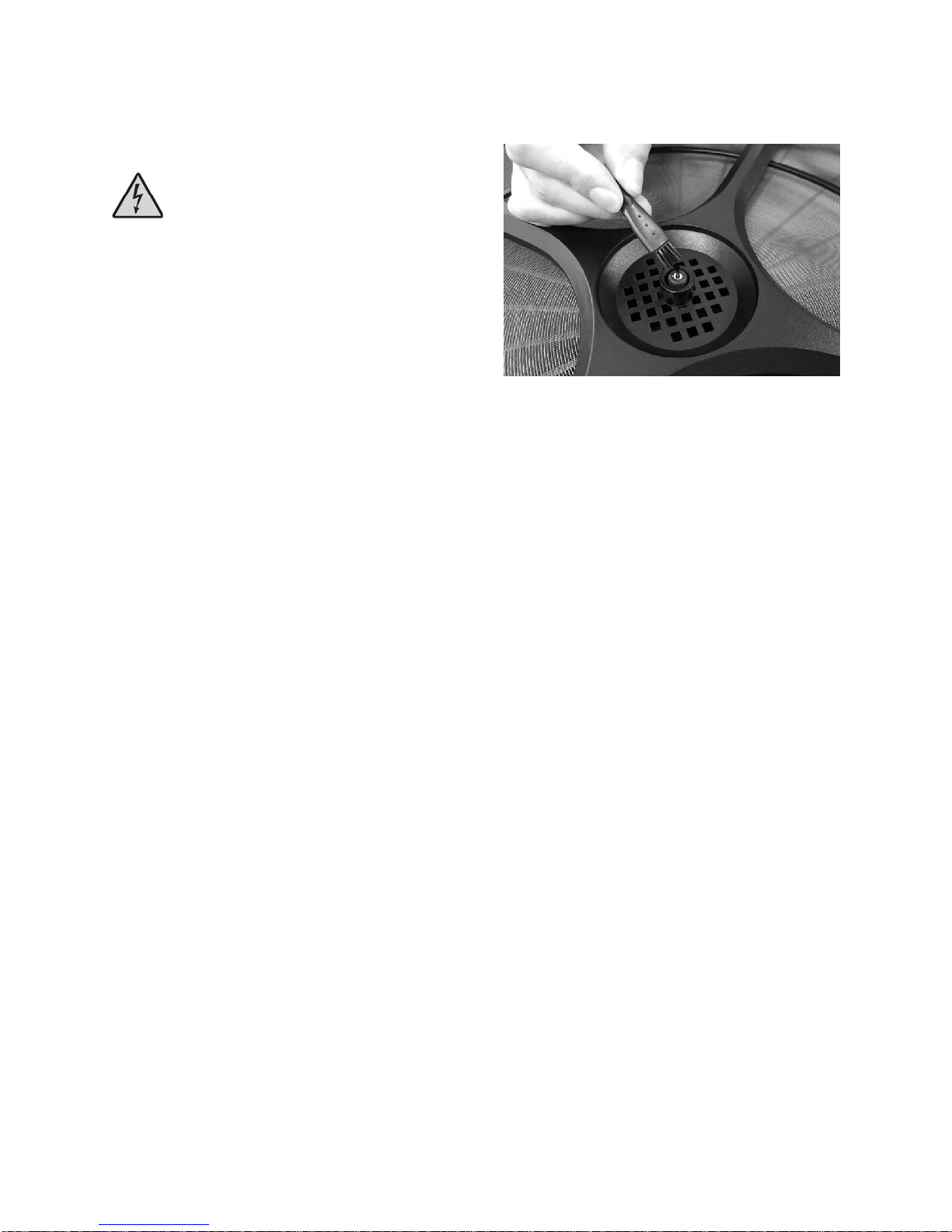

9.2 Anion generator maintenance....................................................................................................................9
9.3 Additional servicing ....................................................................................................................................9
10.0 Troubleshooting PM1250 Electrostatic AFS ..............................................................................................11
11.0 Replacement parts.....................................................................................................................................12
11.1.1 PM1250 Electrostatic AFS – Parts List ...............................................................................................12

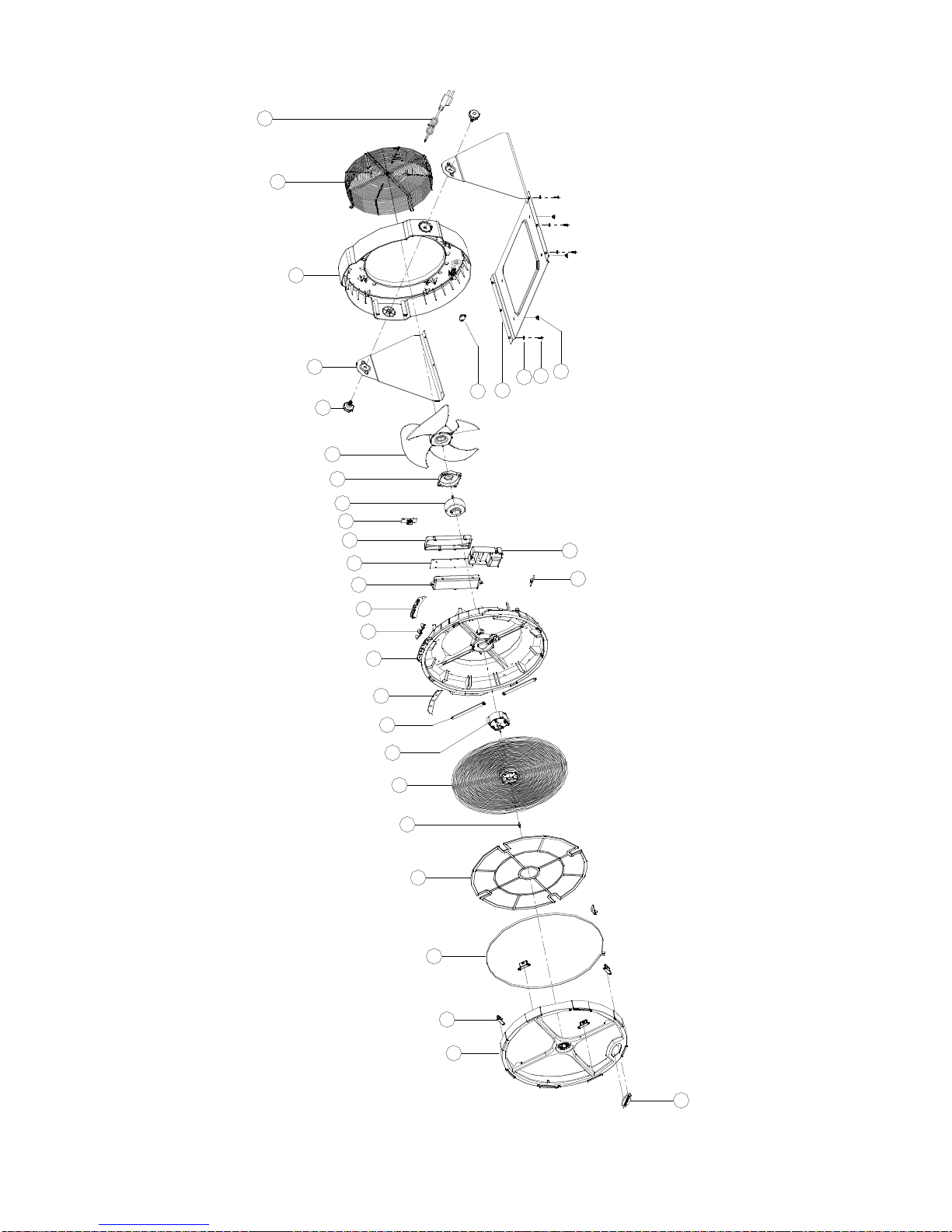

11.1.2 PM1250 Electrostatic AFS – Exploded View.......................................................................................13
12.0 Electrical connections for PM1250.............................................................................................................14
13.0 Warranty and Service.................................................................................................................................15
3.0 About this manual
This manual is provided byPowermatic covering the safeoperation and maintenance procedures for the PM1250
Electrostatic Air Filtration System. This manual contains instructions on installation, safety precautions, general
operating procedures, maintenance instructions and parts breakdown. Your machine has been designed and
constructed to provide consistent, long-term operation if used in accordance with the instructions set forth in this
document.
If there are questions or comments, please contact your local supplier or Powermatic. Powermatic can also be
reached at our web site: www.powermatic.com.
Retain this manual for future reference. If the machine transfers ownership, the manual should accompany it.
Read and understand the entire contents of this manual before attempting assembly or
operation! Failure to comply may cause serious injury!
Register your product using the mail-in card provided, or register online:
http://www.powermatic.com/us/en/service-and-support/product-registration/
The PM1250 Electrostatic Air Filtration System is CARB certified to comply with the federal ozone
emissions limit.

5
4.0 PM1250 Electrostatic AFS specifications
Table 1
Stock number 1791331
Model number PM1250
Blower speeds 3
Timer settings (hours) 1, 2, 4, 8
Sound rating @ 1M 1High speed 50.8 dBA ±10% Medium speed 45.0 dBA ±10%
Low speed 41.3 dBA ±10%
Air flow with filter 1High speed 1282 m3/h (754 cfm) ±10% Medium speed 965 m3/h (567 cfm) ±10%
Low speed 751 m3/h (441 cfm) ±10%
CADR (Clean Air Delivery
Rate) 1,2,3
High speed Smoke >450 cfm Dust >400 cfm
Pollen >450 cfm
Medium speed Smoke 354.5 cfm Dust 363.8 cfm
Pollen 389.3 cfm
Low speed Smoke 247.1 cfm Dust 250.6 cfm
Pollen 261.9 cfm
Energy Efficiency Grade
(E=CADR/Power)
High speed >13.2
Medium speed 20.8
Low speed 23.2
Motor (input) 35W, DC 140V/165V
Electrical input required 120VAC, 60Hz, 15A
Current draw 1High speed 29.7W ±10% Medium speed 17.5W ±10%
Low speed 10.6W ±10%
Cord and plug SJT 18AWGx3C, 6 ft., 15A plug
Amperage draw High speed 0.31 A Medium speed 0.19 A
Low speed 0.13 A
Filter diameter 543 mm (21.3 in.)
Approximate filter life 3000 operating hours
Programmed cleaning alert (flashing red indicator) 1000 operating hours
Remote control batteries (2) AAA
Overall dimensions, WxHxD 27 x 25-5/8 x 15 in. (688 x 650 x 380 mm)
Shipping dimensions, LxWxH 29 x 28-1/2 x 14 in. (738 x 725 x 355 mm)
Net weight, approx. 38 lb. (17.3 kg)
Shipping weight, approx. 52 lb. (23.6 kg)
L = length, W = width, H = height, D = depth
1Variable of ±10%, for general information only, not to be viewed as fixed parameters for inspection purposes.
2Tests performed by independent third party in accordance with ANSI/AHAM AC-1-2015 entitled Association of Home
Appliance Manufacturers Method for Measuring Performance of Portable Household Electric Room Air Cleaners.
3In accordance with AHAM’s 2/3 rule, these numbers are applicable to a room of up to 680 sq. ft. for airborne particles.
Powermatic always recommends using an appropriately sized dust collector in conjunction with our air filtration
systems.
