PowerPac ifan EVAPORATIVE IF7310 User manual

Model: IF7310
170210-12

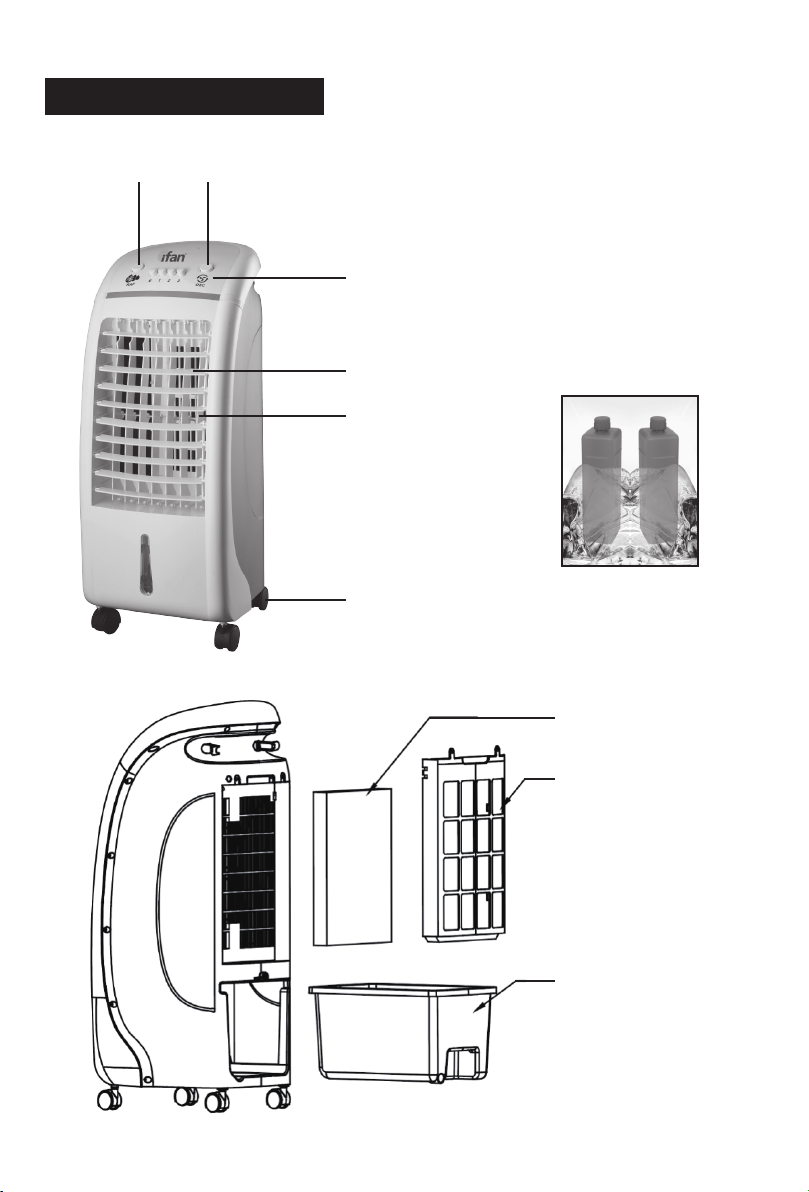

PARTS & DESCRIPTION
COOL
Control Panel
SWING
Short Louvers
Long Louvers
Wheel
Cooling Pad
Dust Filter
Water Tank
Ice Pack (two)
(for Water Tank)
1

ATTENTION :
Read this booklet carefully as it contains important instructions for a safe installation,
use and maintenance.
Important instructions to be kept for future reference.
The following basic precautions should always be followed when using electrical
appliances:
1.
2.
3.
4.
5.
6.
7.
8.
9.
10.
11.
Read all instructions before using the appliance.
This appliance must be used only for the purpose it was expressly designed; any
use NOT complying with the instructions contained in the manual is considered
inappropriate and dangerous. The manufacturer is NOT responsible for possible
damages caused by the inappropriate and/or unreasonable use.
This appliance is NOT suitable to be used in an explosive environment (in the
presence of flammable substances such as gas, vapour, mist or dust, in atmospheric
conditions when, after ignition, the combustion is spread in the air). Items
containing these substances should never be placed in the appliance, and never be
used to clean the appliance in order to avert the risk of fire or explosion.
The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out
of the reach of children or disabled persons since they represent potential sources
of danger.
The installation/assembly of the appliance will be made in accordance with the
indications of the manufacturer. A wrong procedure may cause damages to persons,
animals or objects, for which the manufacturer cannot be considered responsible.
Before use, check the integrity of the appliance and power cable. In case you are not
sure, contact a qualified person. If the power cable is damaged, it must be replaced
by the manufacturer or its service agent or a qualified technician in order to avoid a
shock hazard.
Before powering the appliance make sure the rating (voltage and frequency)
corresponding to the grid and the socket is suitable for the plug of the appliance,
and that the wall socket is properly grounded.
DO NOT power the appliance using multiple sockets. If possible, avoid the use of
adapters and/or extension cables; if their use is absolutely necessary, use only
materials in compliance with the current safety regulations and according to the
electrical parameters of the adapters.
The appliance must NOT be switched on using external timers and/or other remote
control appliances which are not specified in this manual.
Only use original components & accessories provided by the manufacturer. Any
non-original components & accessories NOT recommended by the manufacturer
may cause injuries to persons or damage to the appliance.
During use and storage, the appliance must be kept at a safe distance from heat
sources (open flame, ovens, heaters, stoves, etc.) or any flammable and/or
potentially explosive substances.
WARNINGS
2

Clean the exterior parts of the appliance with damp cloth moistened with warm
water with a non-abrasive sponge. Take special care that the Control Panel found
at the top of the appliance is kept dry.
Check that the Fan Grills and Fan Blade are NOT damaged.
Place and use the appliance on a horizontal, stable and dry surface. Damage may
occur if the product is placed on an incline or decline.
After opening the hatch and pulling out the Water Tank (bottom and back of
appliance), put the frozen Ice Packs into the Water Tank and then add sufficient
water into the Water Tank but DO NOT add beyond the maximum volume. Push
the Water Tank back into the appliance and close the hatch.
Press the 0 (OFF) Button on the Control Panel. Insert the plug of the power cable
directly into a standard AC socket and switch on the electric mains. Be sure that
the plug fits tightly into the socket.
Press any of the SPEED Buttons on the Control Panel to turn the appliance ON.
The SPEED Buttons correspond to the following wind speeds:
1 (Low) >>> 2 (Medium) >>> 3 (High)
To turn the appliance off, press the 0 (OFF) Button on the Control Panel.
Press the COOL Button on the Control Panel to enter or exit the COOL mode.
Press the SWING Button on the Control Panel to keep the vertical front grill
swinging from side to side continuously or to freeze the movement.
overload the Water Tank by filling it past the MAX volume indicated;
cover the appliance during functioning;
obstruct totally nor partially the air inlet & outlet;
insert objects or body parts through the air vents at the front of the appliance or
inside the protection cover of the appliance during functioning;
place objects on top of the appliance;
attempt to force the fan blades to turn;
use the appliance near curtains or textiles;
use any of the following agents as a cleaner: gasoline, thinners, or benzene;
operate the appliance for more than 6 hours without turning it off for at least 30
minutes to let the appliance cool down for a total usage of 12 hours a day –
failure to heed this warning may result in motor failure;
press the buttons on the Control Panel too hard so as to avoid any damage;
leave the appliance unsupervised during operation.
12.
13.
14.
If you are using the appliance for the first time, you should:
a.
b.
c.
d.
e.
f.
g.
h.
Make sure to remove any label or protective sheet which may prevent its proper
functioning.
DO NOT:
•
•
•
•
•
•
•
•
•
•
•
Plug and unplug the power cable firmly holding it with dry hands. Always unplug
the power cable to avoid overheating and avoid stretching it (DO NOT pull it, tug it
or use it to drag the appliance to which is connected). Before unplugging the
appliance, switch it off, using the proper command on the control panel.
During operation, DO NOT touch the appliance with wet body parts, and it is
recommended to have between you and the standing surface, an isolating element
(for example, wearing shoes with rubber soles).
3

15.
16.
17.
18.
19.
20.
21.
22.
23.
24.
25.
26.
27.
28.
DO NOT soak the appliance in water or other liquids, wash it under the tap, or let
any liquid flow into the internal casing of the appliance to prevent electric shock. In
case of accidental fall in water, DO NOT try to take it out, but first of all unplug
immediately the power cable from the socket.
DO NOT operate the fan next to an open window while it is raining. Rainwater
splashing onto the fan may cause an electric shock.
Place the appliance at a proper distance from objects or surrounding walls making
sure that its functioning will not cause accidental damages. There should be at least
10 cm of free space from the back, left & right sides, and the top of the fan.
The appliance should NOT be placed on any surface or in the vicinity of objects
which can be damaged by heat, such as carpets or plastics, while in operation or
immediately after.
Avoid placing the power cable on abrasive or sharp surfaces or in positions where it
can be damaged easily.
Always remember to unplug the power cable of the appliance if it is NOT used for a
long period, before changing accessories, storing, cleaning or performing any
maintenance operation.
Avoid carrying out operations which are NOT specified in this manual (such as
disassembling and/or altering).
In case of malfunction or anomaly during the functioning, switch off the appliance
immediately, turn off the power and check the cause of the anomaly, if possible,
with the support of a qualified person.
DO NOT touch the inside of the fan while it is operating. The blades are rotating at
very high speeds, which may lead to injury to your fingers and hands.
If smoke is observed coming out of the appliance, unplug the power cable
immediately.
This appliance is a personal care device and is NOT intended for commercial use.
This appliance is intended to be used in households and similar applications,
such as:
• Staff kitchen areas in shops, offices and other working environments;
• Dormitories;
• By clients in hotels, motels and other residential environments;
• Bed and breakfast type environment.
DO NOT use or store the appliance outdoors. Store and use the appliance only
indoors, or in any case, protected from weathering such as rain, direct radiation of
the sun and dust.
This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of the
appliance in a safe way and understand the hazards involved. Children shall NOT
play with the appliance. Cleaning and user maintenance shall NOT be made by
children unless they are older than 8 and supervised. Keep the appliance and its
power cable out of reach of children less than 8 years old.
Save these instructions. 4

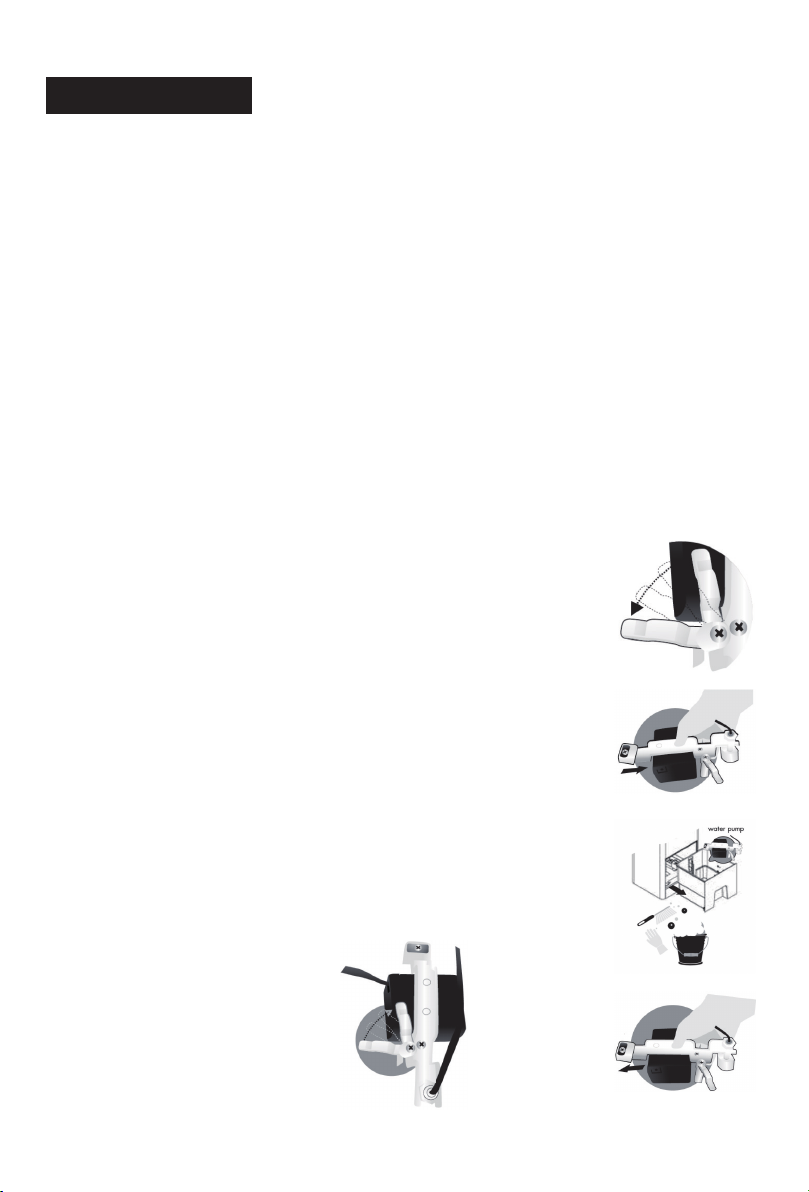

HOW TO USE
Warning: The fan is fully assembled. DO NOT operate the fan with any of its parts
disassembled. The entire assembled unit works as a single appliance. The fan must
only operate in the upright position. Any other position will be hazardous.
1.
2.
3.
4.
5.
Avoid using the appliance in a closed environment. The appliance should be used
in an open and well-ventilated environment.
When the appliance operates under the COOL function, the Water Tank must be
filled with water. Although the appliance can be used as an ordinary fan without
using the COOL function, accidentally operating the appliance under the COOL
function with an empty Water Tank may result in possible damage to the appliance.
Thus, to be on the safe side, the Water Tank of the appliance should be filled with
water prior to operation.
When moving the appliance, be aware that water can spill out of the Water Tank.
Thus when moving an appreciable distance, it is recommended that all water be
drained from the Water Tank prior to the move.
Emptying the Water Tank
The Water Tank should be emptied and re-filled with fresh, clean water frequently.
DO NOT fill the Water Tank with other liquids.
Open the hatch found at the bottom and back of the appliance and pull out the
Water Tank.
Empty the Water Tank.
Put the empty Water Tank halfway back in, put the frozen Ice Packs into the Water
Tank and then re-fill it with fresh, clean water using a hose or any clean container
until the water level indicator reaches the top of the Water Level scale (above the
minimum and below the maximum levels of the tank). Push the Water Tank
completely into the appliance and close the hatch.
What the Functions Buttons do:
5

5. What the Functions Buttons do:
Function
Press the COOL Button on the Control Panel once to enter the COOL
mode.
Press again to exit the COOL mode.
Press the 0 (OFF) Button on the Control Panel once to turn the appliance
OFF.
Press any of the SPEED Buttons on the Control Panel to turn the
appliance ON.
1 (Low) >>> 2 (Medium) >>> 3 (High)
Press the SWING Button on the Control Panel once to keep the vertical
front grill swinging from side to side continuously.
Press again to stop the vertical front grill from swinging from side to side.
COOL
ON/OFF
SPEED
SWING
6. When the COOL mode is activated, the Water Pump in the Water Tank pumps water
to saturate the Cooling Pad at the back of the appliance. Air which flows through
the Cooling Pads lose heat to the water and exit at a slightly lower temperature.
Thus a decrease in temperature occurs; the exact decrease depends on the relative
humidity and air temperature. If the button is pressed when the Speed is high, the
fan speed will drop to its lowest speed for 30 seconds before resuming normal
operations.
6

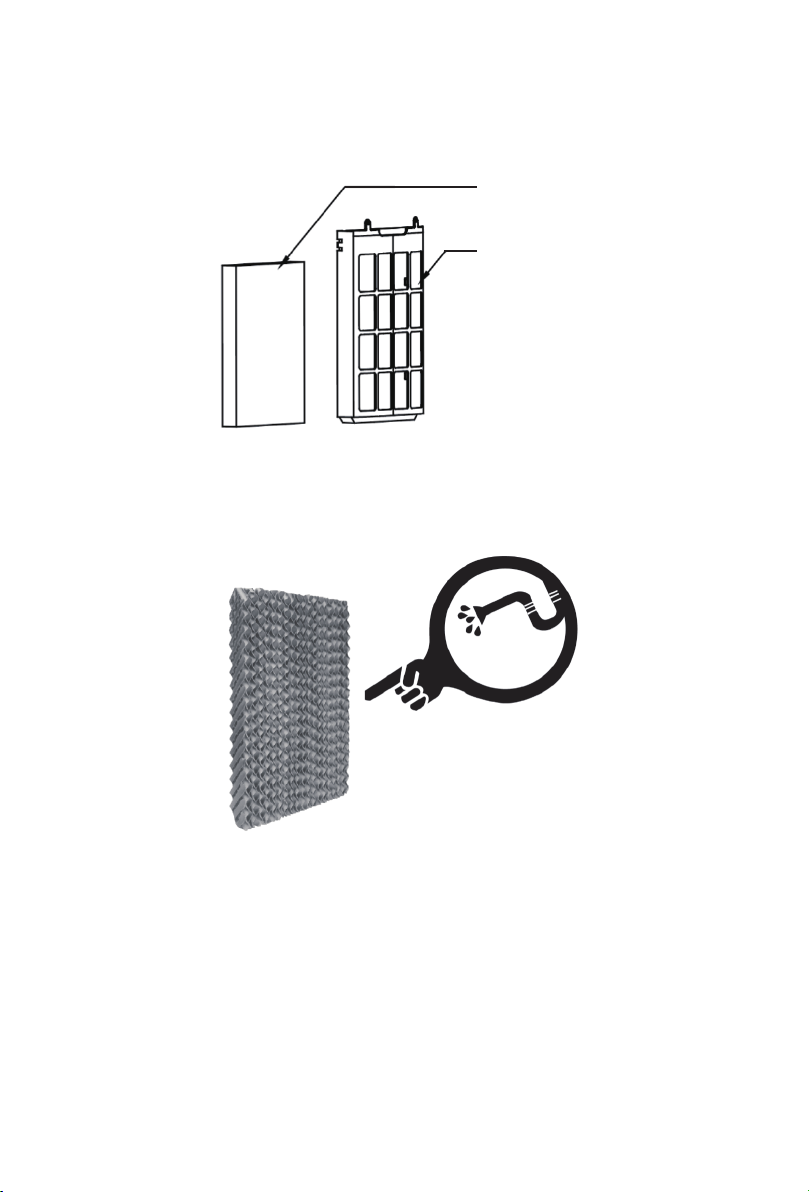

HOW TO CLEAN
1.
2.
3.
4.
5.
6.
7.
8.
Press the 0 (OFF) Button on the Control Panel to switch off the fan.
Unplug the power cable holding it firmly with dry hands.
Wait for the appliance to cool down completely.
Clean the exterior parts of the fan thoroughly with damp cloth moistened with
warm water & detergent with a non-abrasive sponge.
DO NOT use metal scouring pads.
DO NOT use any of the following agents as a cleaner: gasoline, thinners, or benzene.
Never run water over the appliance as malfunctions may occur if water seeps inside
the appliance. Take special care that the Control Panel found at the top of the fan is
kept dry and prevent water from leaking into it.
You may also use a vacuum cleaner to suck up dirt from the Air Inlet.
Remove the Dust Filter found at the back of the appliance and clean it. After
cleaning it, remember to replace it in its original position.
Open the hatch found at the bottom and back of the appliance and pull out the
Water Tank. The Water Tank should be emptied and re-filled with fresh, clean water
frequently. DO NOT fill the Water Tank with other liquids.
a.
b.
c.
d.
e.
f.
g.
h.
i.
j.
Unlock the Water Pump.
Pull out the Water Pump.
Remove the Water Tank from the appliance completely.
Empty the Water Tank.
Clean the Water Tank with damp cloth moistened with
warm water & detergent with a non-abrasive sponge.
DO NOT use metal scouring pads.
Push the empty Water tank back into the appliance.
Put the Water Pump back into the Water Tank.
Lock the Water Pump.
Put the empty Water Tank halfway back in, put the frozen
Ice Packs into the Water Tank and then re-fill it with fresh,
clean water using a hose or any clean container until the
water level indicator reaches the top of the Water Level scale
(above the minimum and below the maximum levels of the
tank).
Push the Water Tank completely into the appliance and
close the hatch.
7

Cooling Pad
Dust Filter
9.
10.
Remove the Back Shutter on the back of the appliance.
The Back Dust Filter attached to the Back Shutter can be detached.
Then remove the Back Cooling Pad.
Clean the Dust Filter, Cooling Pad and Shutter under running water.
Let the components air-dry before replacing them in their respective positions on
the appliance.
8

PROBLEM SOLVING
Fault symptom Cause analysis Troubleshooting
The appliance
does not respond
when any of the
buttons are
pressed.
The power cable could be
damaged.
Please stop use and contact
customer service.
No air flows out of
the appliance
while the
appliance is
operating.
The motor could be damaged. Please stop use and contact
customer service.
The wiring within the motor or
appliance could have loosened.
Please stop use and contact
customer service.
AC fuse could be damaged or
the circuit stops functioning to
prevent overload.
Replace the fuse or restart the
unit. If problems persist, please
stop use and contact customer
service.
Control Panel could be
damaged.
Contact customer service to
repair or replace the Control
Panel.
Thermal protection inside the
motor has been activated as
appliance was used for longer
than 6 hours.
Please switch the appliance off,
unplug from the electric mains
and wait for the appliance to
cool down completely before
attempting to operate the
appliance again. If the
appliance still does not operate
normally, please stop use and
contact customer service.
9

The appliance
functions, but the
air coming out is
not cool enough.
The Cooling Pad is dry or
contain an insufficient amount
of water due to either
insufficient amount of water in
the Water Tank or that the
Water Pump is not functioning.
Clean the Water Tank and
replace the water in the Water
Tank. Clean the Water Hose.
Remove dirt from the Water
Pump’s strainer. Check that the
Water Pump is functioning
normally. If the Water Pump is
not, please stop use and
contact customer service.
The Dust Filter or Cooling Pad is
clogged with dust or dirt.
Clean or replace the Dust
Filters or Cooling Pads.
Excessive high relative
humidity in the room due to
environmental factors (of which
nothing can be done) or that
the appliance has been turned
on in its current cycle that the
room has been saturated with
moisture (saturated vapour
pressure of water vapour is at
maximum) so much so that the
appliance is unable to lower
the temperature of the room.
Turn the COOL mode off to
avoid releasing more moisture
into the room.
Water is spurting
out from the air
inlet together with
air.
Cooling Pad has strayed out of
position or that the Water Tank
is clogged with debris.
Place the Cooling Pad in the
correct position.
Clean the Water Tank and
replace the water in the Water
Tank. Just in case that debris
has entered the system, clean
the Water Hose and the Water
Pump’s strainer.
10

Undesirable odour
emitted.
The unit is placed in an
environment where
undesirable odours are
prevalent or that algae or
mould is growing on the
Cooling Pads or in the Water
Tank.
Clean the Cooling Pad or Water
Tank and replace the water in
the Water Tank.
The appliance is
overheating. There
are sparks coming
from the outlet
when the
appliance is
plugged in.
This could be caused by a
blockage of hair, dust or some
other obstruction in the Air
Inlet.
Power off the dryer and unplug
it from the power source.
Use a soft bristle brush to
gently remove any lint or hair
present from both the Air Inlet
and its cover.
If this does not fix the problem,
please contact customer
service.
White sediments
in the Water Tank.
The water in the Water Tank is
saturated with salt.
As water is continually removed
from the Water Tank, various
salts are left behind, which in
time become saturated and
exceed their Solubility Product
values (Ksp). This is normal.
Clean the Water Tank and
replace the water in the Water
Tank. Clean the Water Hose.
11

This device, along with all other electronic devices, should, when it is no longer
capable of functioning, be disposed with the least possible environmental damage
according to the local regulations in your area. In most cases you can discard the
device at your local recycling center.
DISPOSAL: Do not dispose this device as unsorted municipal waste.
Collection of such waste separately for special treatment is necessary.
ENVIRONMENTAL TIP
12

The manufacturer provides warranty in accordance with the legislation of the
customer’s own country of residence, with a minimum of 1 year, starting from the date
on which the appliance is sold to the end user.
The warranty covers defects in material and workmanship.
The repairs under warranty may only be carried out by an authorised service centre.
When making a claim under the warranty, the original bill of purchase (with purchase
date clearly indicated) must be submitted.
The warranty will not apply in cases of:
•
•
•
•
•
•
normal wear and tear
if the steps (as laid out in the section regarding Warnings) have not been observed
e.g. overloading of the appliance, use of non-approved accessories
if the appliance has not been properly maintained, if force has been used against it
or if it has been damaged in any other way
damage caused by non-observance of the user manual or non-compliance with the
installation instructions
errors or faults owing to defects in the distribution system
if the appliance has been repaired or modified or changed in any way or by any
person not properly authorised
WARRANTY
13

IF7310
MODEL
220-240V ~ 50/60Hz
VOLTAGE
65W
WATTS(W)
SPECIFICATION
14
