PowerPac PP2218 User manual

MOSQUITO KILLER TRAP, INSECT REPELLENT
PP2218
80m2
ULTRAVIOLET TUBE
2 x 15 WATTS
Model No.: PP2218

The Mosquito Killer Trap, Insect Repellent PP2218, is the largest of its range and
covers the biggest area of 80 square metres, which is ideal for being placed
unobstrusively in a balcony, veranda or patio. The other two appliances in this range,
which appear similar in design and function include PP2214, covering 40 square
metres, and PP2213, covering 60 square metres.
This appliance is used to attract flying insects such as flies, moths & mosquitoes.
When these pests encounter the high voltage electric grids, they will be
electrocuted instantly. The UV-light tubes are completely harmless to humans and
pets. It does not emit fumes, odour or harmful chemicals, unlike insecticide sprays,
which can be deadly to pets and young children, or anyone allergic to the chemicals
contained in it.
The Mosquito Killer Trap, Insect Repellent PP2218 is efficient as well as
aesthetically pleasing. The router mesh protects humans and pets from touching the
high tension grids.

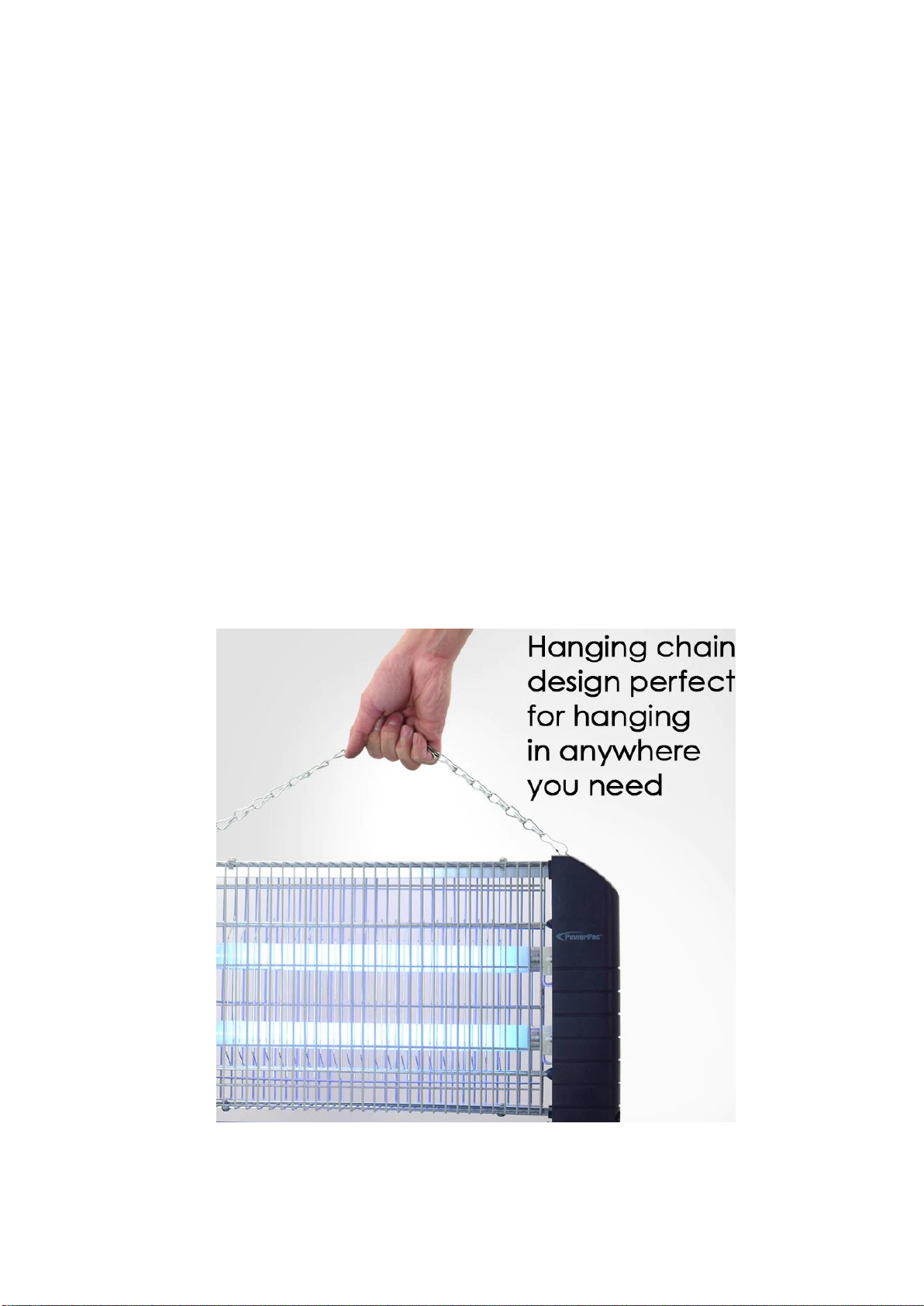

The appliance is suitable for indoor use and should either be placed on a dry,
horizontal surface or suspended from the Hooks attached to the top of the
appliance on the chain provided, suspended from ceilings, away from small children
and pets for their safety.

Parts & Description s PP2218
LIST OF COMPONENTS
1.
ON/OFF Switch
2.
Hook(s)
3.
Electric Metal Grids
4.
UV Light Tubes (15W 2322L) –two
5.
Removable Tray
○
1 ON/OFF Switch ○ 2 Hook ○ 3 Electric Metal Grids ○ 2 Hook
Danger! High Voltage!!
○
4 UV Light Tubes
○
5Removable Tray

○
1 ON/OFF Switch
○
2 Hook Chain ○ 2 Hook

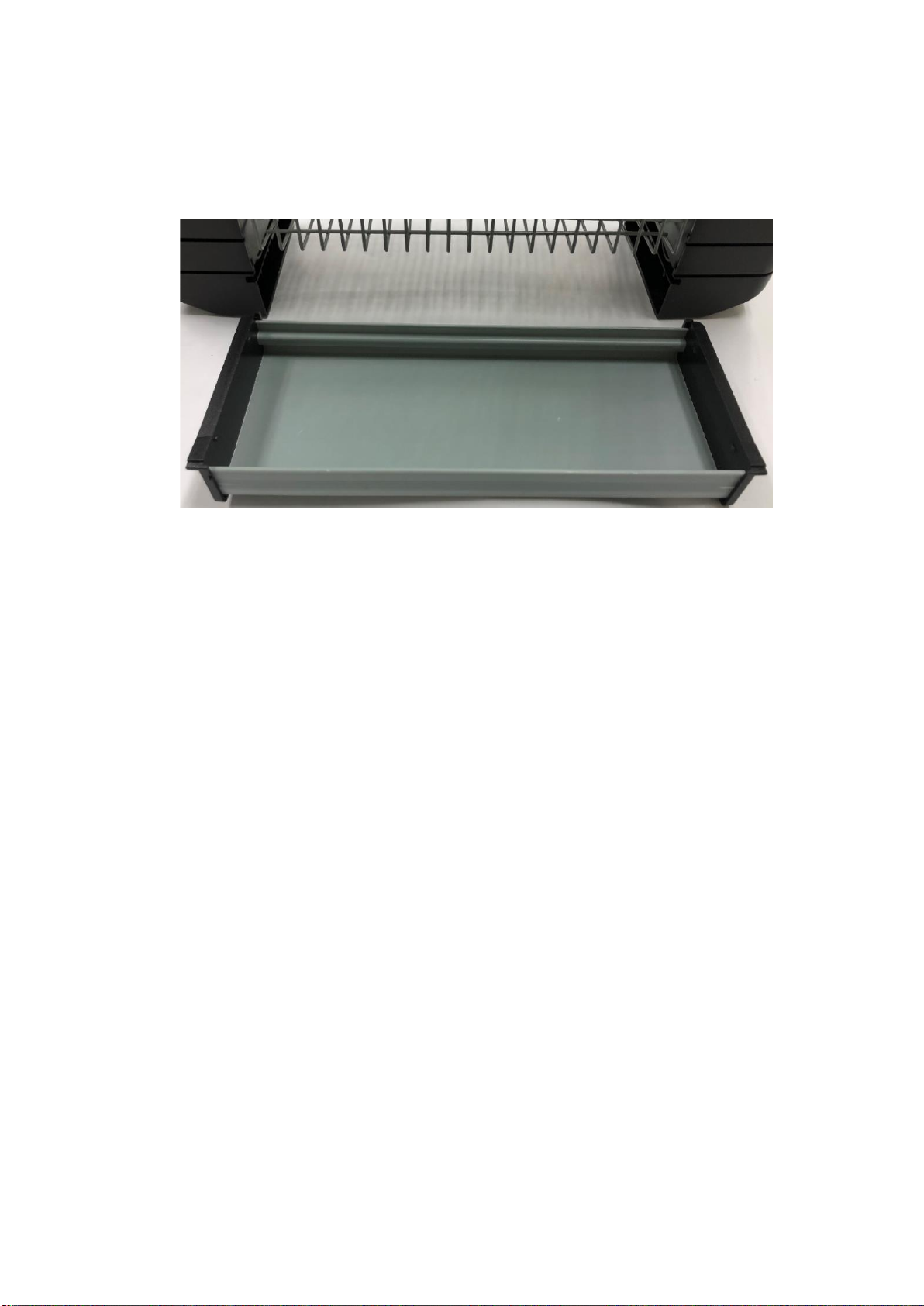

To remove the ○ 5Removable Tray, slide the tray into and out of the groove as
shown:

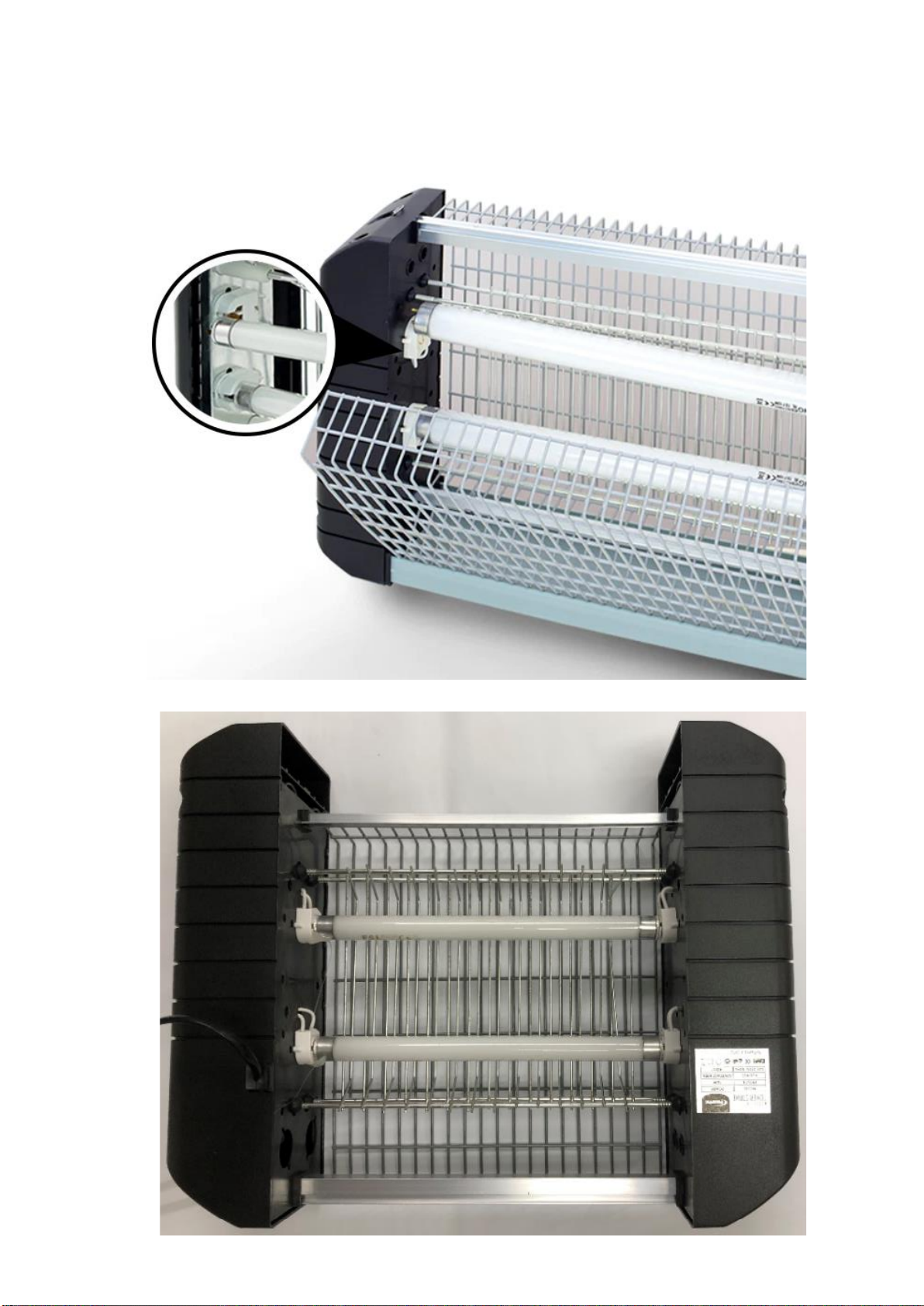

To replace the ○ 4 UV Light Tubes:
1. Turn off the ○ 1 ON/OFF Switch on the appliance, thereafter switch off and unplug
the socket from the wall socket.
2. Unscrew the screws at the top and bottom of the Metal Cage surrounding the ○ 3
Electric Metal Grids
(Note: the Metal Cage does not carry any electric current, and is not connected to
the electric mains)
Screw Metal Cage ○ 3 Electric Metal Grids Screw

3. Remove the part of the Metal Cage directly in front of the ○ 4 UV Light Tubes.

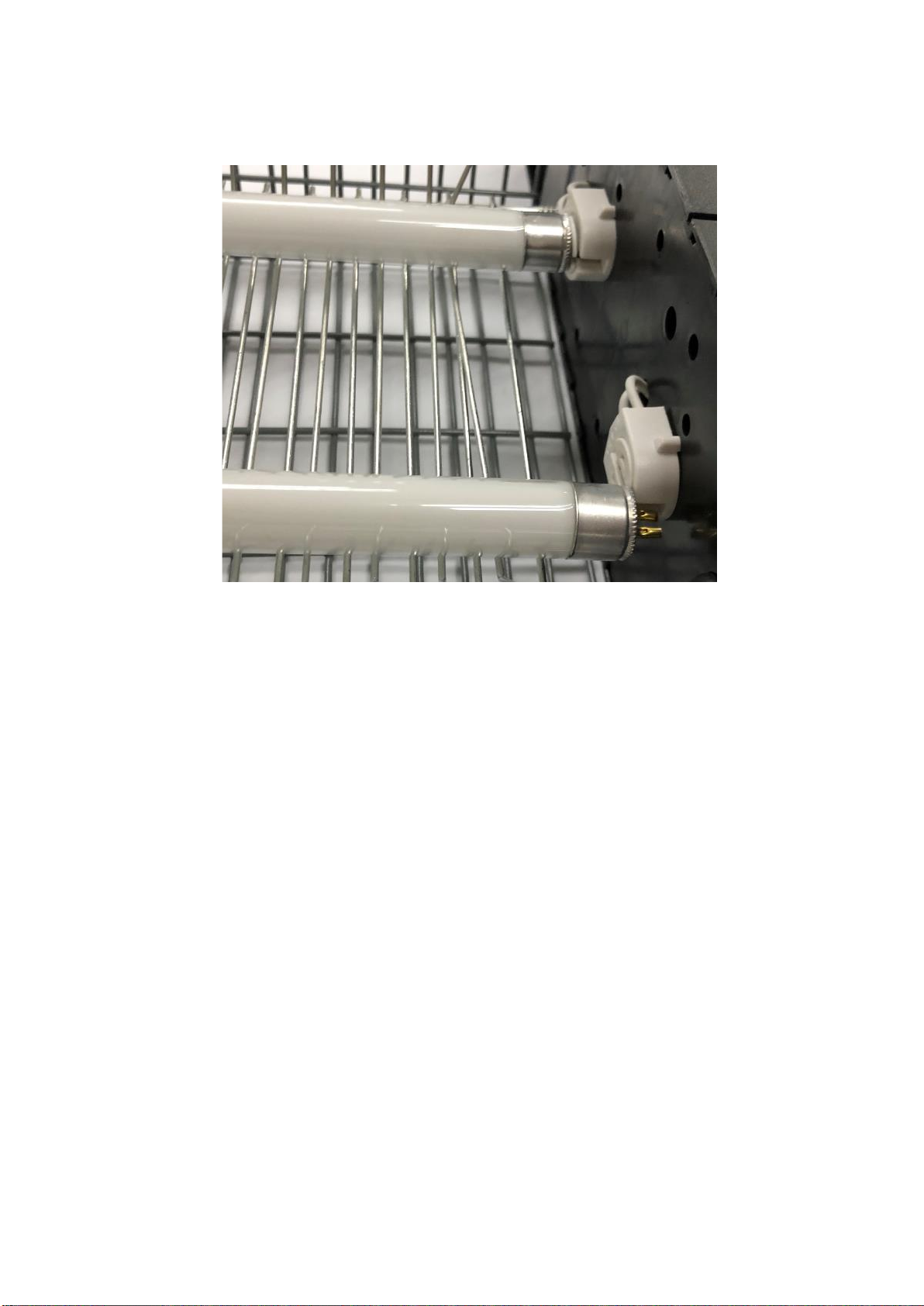

4. Remove and replace the blown ○ 4 UV Light Tubes.
5. Re-attach the part of the Metal Cage directly in front of the ○ 4 UV Light Tubes.
6. Attach the screws at the top and bottom of the Metal Cage surrounding the
Electric Metal Grids.
7. (optional : Attach the chain to the ○ 2 Hooks at the top of the appliance. Once
attached, suspend the chain from the ceiling.)
8. Plug the power cable into the wall socket and switch it ON.
9. Press the ○ 1 ON/OFF Switch of the appliance ON.

Warnings s
ATTENTION :
Read this booklet carefully as it contains important instructions for a safe installation,
use and maintenance.
Important instructions to be kept for future reference.
The following basic precautions should always be followed when using electrical
appliances:
1. Read all instructions before using the appliance.
The Appliance
2. This appliance must be used only for the purpose it was expressly designed; any
use NOT complying with the instructions contained in the manual is considered
inappropriate and dangerous. The manufacturer is NOT responsible for possible
damages caused by the inappropriate and/or unreasonable use.
3. The installation/assembly of the appliance will be made in accordance with the
indications of the manufacturer. A wrong procedure may cause damages to
persons, animals or objects, for which the manufacturer cannot be considered
responsible.
4. Before use, check the integrity of the appliance and power cable. DO NOT operate
the appliance at all when the Electric Metal Grids or UV light tube is damaged. In
case you are not sure, contact a qualified person. If the UV light tube is damaged,
replace it with a new (identical) one. If the Electric Metal Grids or power cable is
damaged, it must be replaced by the manufacturer / service agent or a qualified
technician in order to avoid a shock hazard.
5. Before powering the appliance make sure the rating (voltage and frequency)
corresponding to the grid and the socket is suitable for the plug of the appliance,
and that the wall socket is properly grounded.
6. Avoid the use of adapters and/or extension cables; if their use is absolutely
necessary, use only materials in compliance with the current safety regulations
and according to the electrical parameters of the adapters.
7. The appliance must NOT be switched on using external timers and/or other remote
control appliances which are not specified in this manual.
8. Only use original components & accessories (e.g. UV Light Tubes) provided by
the manufacturer. Any non-original components & accessories made by other
manufacturers or by the same manufacturer but for other models of the same
capacity or otherwise, may cause injuries to persons or damage to the appliance.
Doing so will void the warranty and may cause serious injury.
9. The packing materials (plastic bags, expanded polystyrene, etc.) must be kept out
of the reach of children or disabled persons since they represent potential sources
of danger.

Location
10. This appliance is NOT suitable to be used or stored near heat sources (open flame,
ovens, heaters, stoves, etc.) and/or in an explosive environment (in the presence
of flammable substances such as gas, vapour, mist or dust, in atmospheric
conditions when, after ignition, the combustion is spread in the air). Items
containing these substances should never be placed in the appliance, and never
be used to clean the appliance to avert the risk of fire or explosion.
11. Place the appliance at a proper distance from the objects or surrounding walls
making sure that its functioning will NOT cause accidental damages. There should
be at least 30 cm of free space from the back, left & right sides, and the top of the
appliance. Never put things on top of the appliance. The appliance should NOT be
placed on a surface, or in the vicinity of objects, which can be damaged by heat
such as carpets or plastics. Never use the appliance near curtains or textiles. If
the appliance is operated on wooden furniture, use a protective pad to prevent
damage to delicate finishes.
12. Avoid placing the power cable on abrasive or sharp surfaces or in positions where
it can be damaged easily. Avoid placing heavy objects on the cable. The cable
must NOT be placed under carpets, or covered with throw rugs, runners or similar.
Arrange the cable away from the high traffic area, and where it will NOT be tripped
over. DO NOT pull or carry the appliance by the cable.
13. DO NOT use or store the appliance outdoors. Store and use the appliance only
indoors, or in any case, protected from weathering such as rain, direct radiation of
the sun and dust.
Operation
14. If you are using the appliance for the first time, you should:
a. Place and use the appliance on a horizontal, stable and heat-resistant surface,
or hang the appliance in the air using a chain. Ensure that the appliance is
completely dry before use and standing at an upright position before switching
on the appliance.
b. Make sure to remove any label or protective sheet which may prevent its
proper functioning.
DO NOT:
•cover the appliance during functioning;
•touch the internal high voltage grid of the appliance while it is operating with
your fingers, any other part of your body, or any external object, to prevent
electric shock or voltage discharge, which may also lead to a fire, as the
appliance operates;
•remove any fixed part of the appliance, nor adjust any internal or external
component of the appliance, to prevent electric shock or voltage discharge,
which may also lead to a fire, as the appliance operates;

•place or use any electrical appliances inside the appliance;
•move the appliance while the appliance is switched on and connected to the
wall socket;
•press the ON/OFF Switch too forcefully so as to avoid any damage;
•leave the appliance unsupervised during operation.
15. During operation, DO NOT touch the appliance with wet body parts, and it is
recommended to have between you and the standing surface, an isolating element
(for example, wearing shoes with rubber soles).
16. DO NOT soak the appliance in water or other liquids, wash it under the tap, or let
any liquid flow into the internal casing of the appliance to prevent electric shock.
In case of accidental fall in water or flooding etc. where water has entered the
appliance, DO NOT try to take it out, but first of all switch the ON/OFF Switch OFF
and unplug the power cable from the wall socket immediately.
17. Switch the appliance OFF before unplugging the appliance. Plug and unplug the
power cable firmly holding it with dry hands. Always unplug the power cable before
changing UV light tubes, if it is NOT used for a long period and before storing,
cleaning or performing any maintenance operation.
18. In case of malfunction or anomaly during the functioning such as smoke coming
out of the appliance, switch the appliance off immediately, switch the appliance
OFF and check the cause of the anomaly, if possible, with the support of a qualified
person.
19. This appliance is NOT intended for commercial use but to be used in households
and similar applications, such as
•Staff kitchen areas in shops, offices and other working environments;
•By clients in dormitories, hotels, motels and other residential environments;
•Bed and breakfast type environments.
20. This appliance can be used by children aged from 8 years and above and persons
with reduced physical, sensory or mental capabilities or lack of experience and
knowledge if they have been given supervision or instruction concerning use of
the appliance in a safe way and understand the hazards involved. Children shall
NOT play with the appliance. Cleaning and user maintenance shall NOT be made
by children unless they are older than 8 and supervised. Keep the appliance and
its cable out of reach of children less than 8 years old.
21. Save these instructions.

How to clean s
1. Switch off the appliance and unplug the socket from the wall socket before
cleaning or conducting maintenance.
2. Wipe the exterior of the appliance using a soft, cloth or sponge. DO NOT use
abrasive scouring pads or powders.
3. Use a suitable brush to clear the bodies of insects sticking to the metal grids.
4. After cleaning, attach the Base back into the appliance by rotating it clockwise.

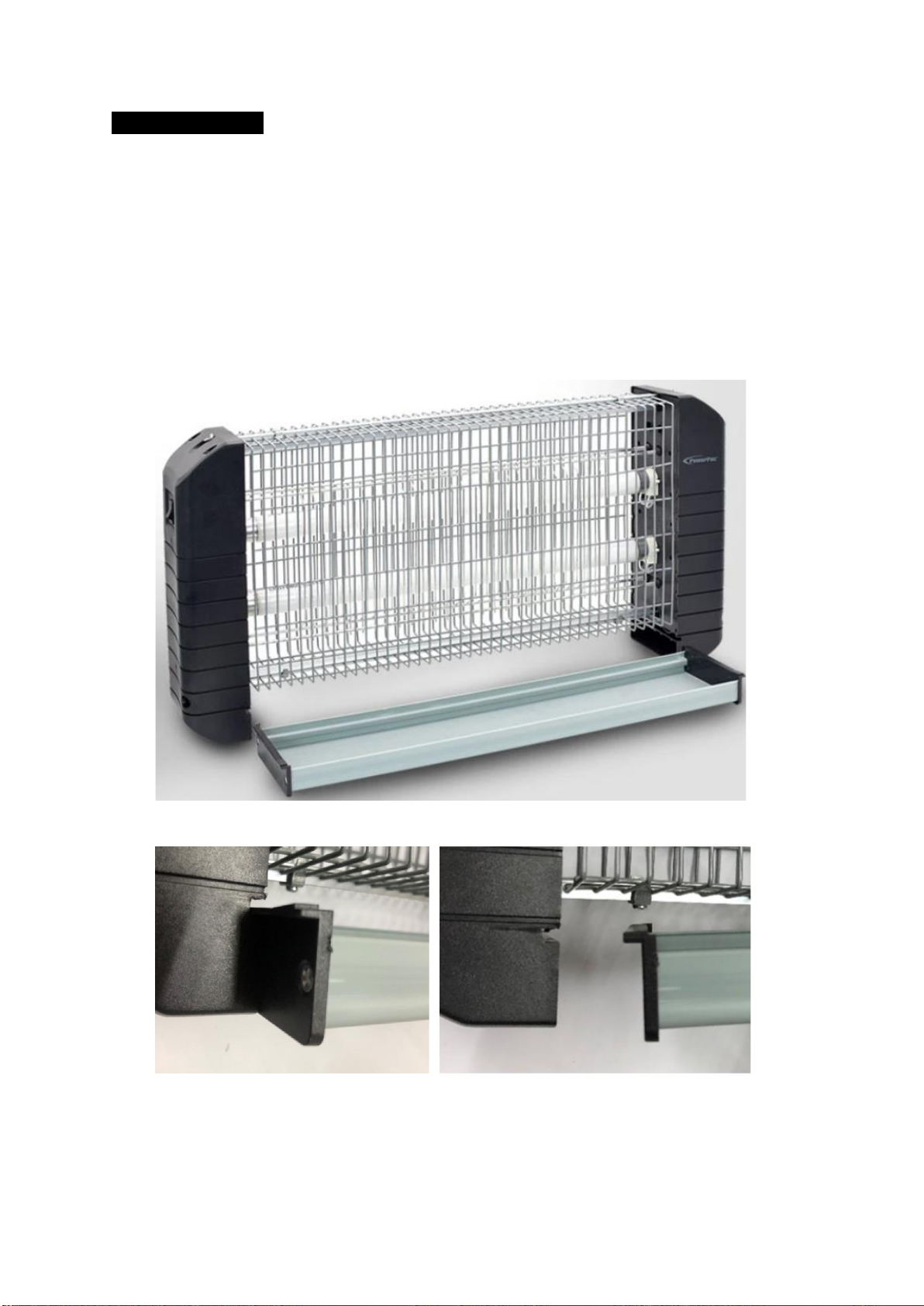

5. To remove the ○ 5Removable Tray, slide the tray out of the groove as shown.

6. After cleaning, attach the ○ 5Removable Tray back into the appliance by sliding
the tray into the groove.
7. DO NOT soak the appliance in water or other liquids, wash it under the tap, or let
any liquid flow into the internal casing of the appliance to prevent electric shock.
8. After cleaning, make sure that all surfaces are dry before restarting the appliance.

ENVIRONMENTAL TIP s
This appliance, along with all other electronic appliances, should, when it is no longer
capable of functioning, be disposed with the least possible environmental damage
according to the local regulations in your area. In most cases you can discard the
appliance at your local recycling centre.
DISPOSAL: Do not dispose this appliance as unsorted municipal waste. Collection of
such waste separately for special treatment is necessary.
SPECIFICATION s
MODEL
PP2218
VOLTAGE
220 –240V ~50 –60Hz
POWER
38W
COVERAGE AREA
80m2
DIMENSIONS (L x W x H)
58cm x 10cm x 28cm
23” x 4 ” x 11”
UV TUBE
2 x 15W (2322L)

WARRANTY s
Warranty Conditions
1. This warranty provides against defective materials and manufacturing faults
throughout for one year from the date of purchase of the appliance.
2. This warranty also does not cover normal wear and tear, replacement of
consumable materials and accessories, and the cost of maintenance of the
appliance.
3. This warranty does not cover the repair or replacement of part/s damaged by
misuse, accidents, negligence, alterations, or modifications in any way, or repairs
done by any repair organisation without the prior consent of PowerPac Electrical
Pte Ltd.
4. Repair and service are to be performed at: 5 Changi South Lane #03-01 Singapore
486045. A transport fee will be charged for personal doorstep service.
5. The original purchaser of the appliance must furnish proof of purchase to our
Service Centre with the email or number as registered during submission of
warranty when this appliance is sent for repair/service. Failure to do so may delay
the receipt of said repair/service by the customer.
6. Under no circumstances whatsoever shall the serial number be erased, defaced
or altered by the customer and/or his representatives, or the dealer and/or his
agents. Failure to ensure this shall invalidate the warranty.
7. This warranty is deemed to be void if the defect is cause by the attack of household
pests, fire, lightning, natural disasters, pollution, abnormal voltage or the usage of
generators.
8. This warranty is valid in Singapore only.
9. This warranty will be honoured subject to the customer’s registration of the
warranty inclusive of original invoice or valid purchase receipt. Failure to present
these documents will result in denial of service. However, if the customer still
requests that the defective appliance be repaired, PowerPac Electrical Pte Ltd
may, at its discretion, repair the appliance but impose a labour charge, as well as
the costs of the replacement parts, to be borne solely by the customer.
10. Please refer to the attached picture for the location of
one of our appliance’s serial number, as an example.

Please complete the on-line registration warranty form available on our website. There
is no further requirement to send us any hard copy as part of our efforts to save the
environment.
In accordance with the terms and conditions of this limited warranty as stated above,
PowerPac Electrical Pte Ltd, at its expense shall provide free services for the
appliance within the warranty period from its date of purchase from our Authorised
dealers.
