PowerPoint P11300MEC User manual

Chest Freezer
P11300MEC / P11400MEC
INSTRUCTIONS:
Please read and keep safe for future use.

Features/ Transportation instructions …….…………….………………………………..
Introduction & safety warnings..................................................................
Electrical Requirements …………………...........................................................
Installation ………………………………..................................................................
Food Storage…………………………………………………………………….……………………..
Defrosting…………………………………………………………………………….……………………
Arrangement of Food ………………………………………………………………………………….
Freezer Control Panel………………………………………………………………………………..
Cleaning and Care………………........................................................................
Top Tips …………………………...........................................................................
Problem solving...........................................................................................
Health and Safety........................................................................................
Warranty Information..................................................................................
Customer Care ………………………………………………………………………………………..
Installation and User Instructions

Chest freezer
P11300MEC
external handle , electronic control 2 x baskets
Chest freezer
P11400MEC
external handle , electronic control 4 x baskets
•When transporting, never tilt the appliance to more than 45 degrees
•The appliance should be transported only in a vertical upright position
•The packaging as supplied must be intact during transportation
•In case of damage do not expose the appliance to fire or a potential
ignition source and immediately ventilate the room where the appliance
Is situated
•On delivery, check to make sure that the product is not damaged and
That all the parts and accessories are in perfect condition.
•Do not move the appliance by pulling by the lid or handle
Features
Transportation of your Appliance

•If during the course of transport the appliance has to be transported
horizontally, it must only be laid on its left hand side when standing in
front of the appliance. After bringing it to the upright position, it must
Not be operated for at least 4 hours to allow the system to settle
•The appliance must be protected against rain and moisture
•Do not move the appliance by pulling the door
•Hold the base and lift carefully
•Never turn the appliance upside down
•Move the freezer by using its roller feet as an axis and then tilting it
slightly
•Make sure that mains cable is not caught under the appliance during and
after carrying/moving the appliance, to avoid the mains cable becoming
cut or damaged
•The manufacturer will not be held responsible if these instructions are
disregarded
IMPORTANT: Do NOT connect your appliance to the electricity supply until
All packing and transit protectors have been removed.
•Leave to stand for at least 4 hours before switching on to allow
compressor oil to settle if transported horizontally
•Wipe the inside of the Freezer with a weak solution of
Bicarbonate of soda. Then rinse with warm water using a damp
Cloth and dry
•This freezer must only be used for its intended purpose i.e the storing
And freezing of edible foodstuff
•Take care not to damage the cooling circuit, if damaged immediately
ventilate the room where the appliance is situated
Before First Use

•This appliance should not be used outdoors
•Ensure that the plug remains readily accessible
•We recommend a separate switch be used to ensure easy switch on/off
•Children should be supervised to ensure that they do not play with the
appliance
•This appliance is intended to be used in a household environment
WARNING: Keep ventilation openings in the appliance enclosure or
In the built-in structure clear of obstruction.
IMPORTANT: Care must be taken while cleaning/carrying the appliance to
Avoid touching the bottom of the condenser metal wires at
The back of the appliance as you may injure your fingers and
hands. Make sure that the mains cable is not caught under
The appliance during and after carrying/moving the appliance,
To avoid the mains cable becoming cut or damaged.
Before you insert the plug into the wall socket make sure that the voltage and
Frequency shown in the rating plate inside the appliance corresponds to
Your electricity supply. We recommend that this appliance is connected to the
mains supply via a suitable switched and fused socket in a readily accessible
position. We do not recommend the use of extension leads and multi-way
adapters.
WARNING! THIS APPLIANCE MUST BE EARTHED
If the fitted plug is not suitable for your socket, then the plug should be removed
and an appropriate plug fitted. Destroy the old plug as a plug with bared cord
could cause a shock hazard if inserted into a socket. The plug on this appliance
Electrical Requirements

Incorporates a 13 A fuse. Should the fuse need to be changed a fuse of the same
rating must be used. Ensure that the fuse cover is refitted.
1. Install the Freezer on a flat surface in order to prevent vibration and noise.
2. If required adjust the levelling feet at the front by turning them.
3. Choose a dry well-ventilated place.
4. Take care not to damage your flooring, pipes, wall coverings etc.
5. This appliance is not designed for stacking with any other appliance
6. Minimum space where this freezer is being installed is 10 cubic metres.
7. Choose a location where there is no heat source. Keep the appliance
Away from direct sunlight, oven etc.
8. Insert the plug into the wall socket and switch on the electricity supply.
You will hear a noise as the compressor starts up. The liquid and gases
Sealed within the system may also give rise to noise, whether the
Compressor is running or not which is quite normal.
9. The red light should come on indicating connection to power, the green
light will glow indicating that the compressor is running
10. Set the thermostat to 2 and close door. After 30 minutes you should
observe a drop in temperature.
11. Front edges of the cabinet may feel warm. This is normal.
12. Do not load the appliance immediately it is switched on. Wait until the
Correct storage temperature has been reached. We recommend that
The temperature be checked with an accurate thermometer or wait for
24 hours.
If installed close to a source of heat or a refrigerator allow the following
minimum side clearance:
From Cookers 4” 100mm
From Radiators 12” 300mm
From Fridges 4” 100mm
Installation Instructions

Before using the Freezer check that:
1. The interior is dry and air can circulate freely at the rear of the cabinet.
2. The interior is cleaned as recommended under "Cleaning and Care”.
Freezing Frozen Food:
•Pre-packed commercially frozen food should be stored in accordance
With the frozen food manufacturer's instructions for a frozen food
Storage compartment. To ensure that the high quality achieved by the
frozen food manufacturer and the food retailer is maintained, the
following should be observed:
- Put packets in the freezer as quickly as possible after purchase.
- Ensure that contents are labelled and dated.
-Do not exceed "Use By" or "Best Before" dates on the packaging
•If there is a power failure do not open the door to maintain temperature
Freezing Fresh Food:
•Do not freeze too large a quantity at any one time. The quality of the
Food is best preserved when it is frozen right through as quickly as
possible
Defrost twice a year or when a frost layer of around 7 mm has formed.
Switch off the freezer at the socket and pull out the plug. Extract the water
Food Storage
Defrosting

conduit and place in a water container.
6 hours before defrosting set the thermostat knob to “Super FRZ” to ensure the
food is at the lowest temperature when you take it out. Remove the freezer
basket. Leave the lid open. Containers of warm water may be placed carefully in
the freezer to speed up the defrosting.
Never use hairdryers, electrical heaters or other such electrical appliances for
defrosting. When defrosting has finished release the water which has collected at
the bottom of the freezer as per the diagram below and dry the interior
thoroughly. Switch on Fast Freeze and leave it on for about three hours.

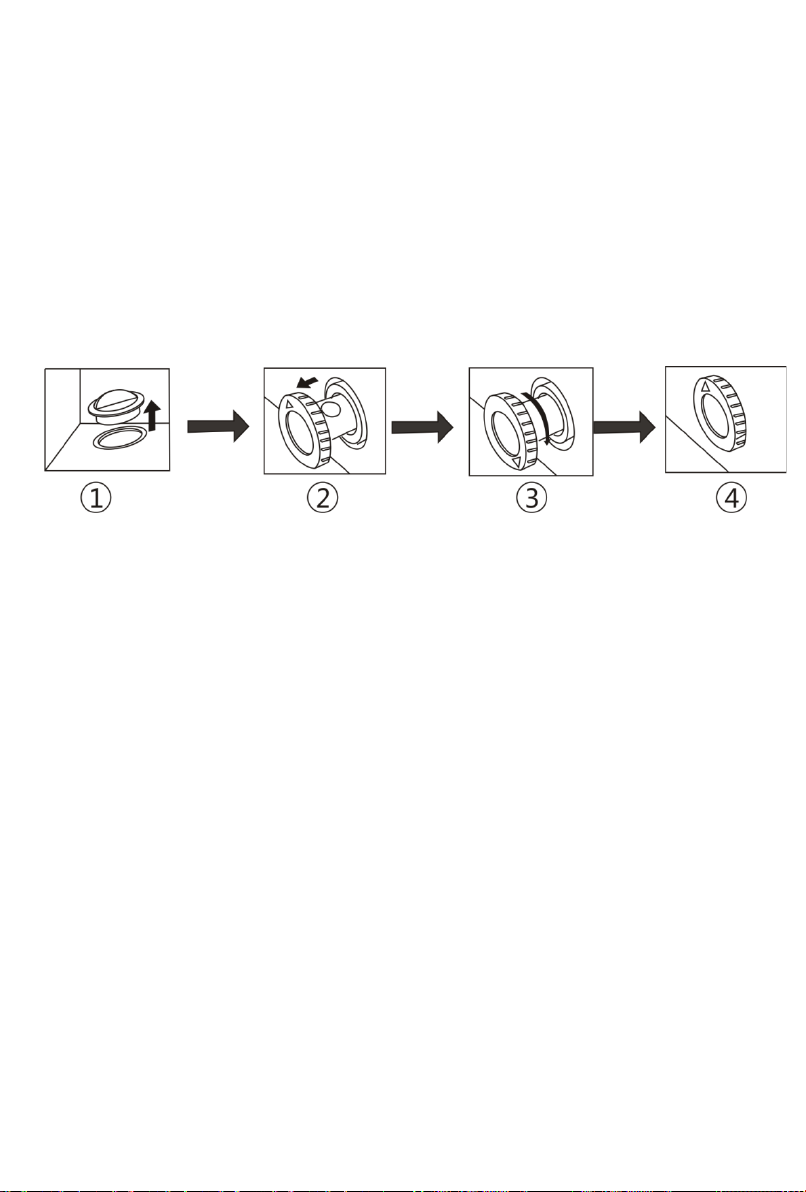

1. There is a water conduit at the bottom of the freezer, when defrosting,
remove the rubber cover, defrosted water will drip into the hole and flow out.
(NOTE: Please keep the rubber cover safe during the defrosting and put it
back after defrosting is done)
2. Pull out the water conduit by 20-25mm until the water hole can be seen.
3. Twist the water conduit until the arrow points downward.
4. After defrosting is complete, make sure there is no more water coming out
the water conduit, replace and make the arrow point upward.
5. Wipe away any remaining ice and water.
Important: Do not use mechanical devices or other means to accelerate
the defrosting process
WARNINGS!
The fan inside the freezer compartment circulates cold air.
Never insert any object through the guard.
Do not allow children to play with the freezer fan.
Never store products that contain inflammable propellant gas (eg dispensers,
spray cans etc.) or explosive substances.
Don’t cover the baskets with any protective materials, which may obstruct air
circulation.

Do not allow children to play with the appliance or tamper with the controls.
Do not obstruct the freezer fan guard
The following guidelines and recommendations are suggested to obtain the
best results:
Prepackaged commercially frozen food should be stored in accordance with
the frozen food manufacturer’s instructions for a freezer
compartment.
1. The freezer is rated and suitable for the freezing and storage of pre
frozen food. The recommendation for storage as stated on the food
packaging should be observed at all times.
2. Keep the food packed, wrapped or covered.
3. Fizzy drinks should not be frozen and products such as flavoured water
ices should not be consumed too cold.
4. Do not leave frozen food at room temperature to thaw; the best way
to defrost food is to put it in the fridge to thaw slowly.
5. For hygiene reasons, always wrap food using a suitable packaging
material before storing in your appliance to avoid contact with the
appliance surface.
Place fresh foods to be frozen near the sidewalls to ensure fast freezing and
away from already frozen food, if possible. Freezing capacity of your
appliance in a 24 hours period is 5 kg (10lb). Never exceed this maximum
capacity. Do not freeze too large a quantity at any one time. The quality of
the food is best preserved when it is frozen right through to the center as
quickly as possible. Take special care not to mix already frozen food and
fresh food.
Arrangement of Food in the Freezer

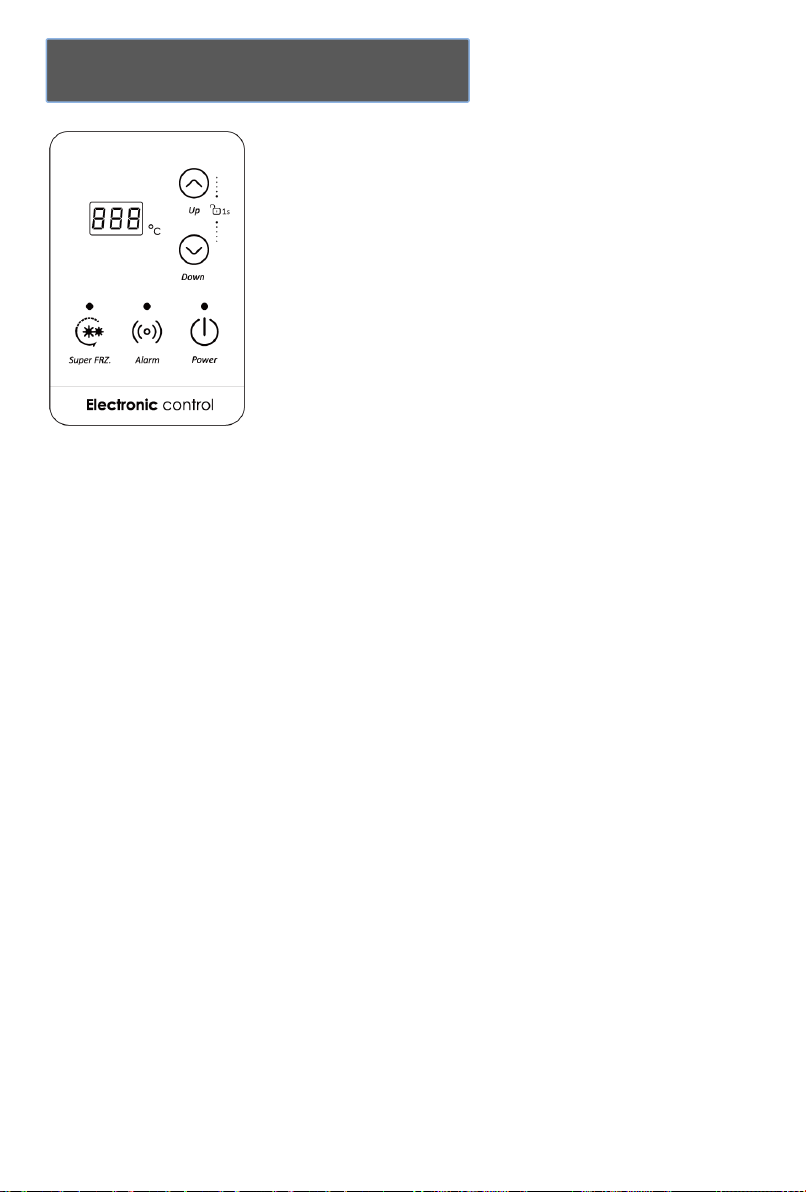

FREEZER OPERATION
Unlock Settings
Under the lock mode, press both the “Up” and “Down” buttons at the same time
for 1s, then operation buttons become unlocked. And setting are enabled, with
the current temperature setting flickering.
•Press "Up" key once, the temperature increases by 1 ℃; Press "Down" key
once, the temperature decreases by 1 ℃; if no button operation within 5 seconds
after each setting, the current set temperature shows on display will be fixed by
the system automatically. Then the display will stop flickering.
Super-Freezing function
•Press the "Super FRZ.” button, the temperature is set to - 30℃automatically,
digital flickers” - 30 ℃”. And meantime the indicator light of "Super FRZ.”is on,
The flickering will stop in 5 seconds, then Super-Freezing function starts.
•After running 26 h, Super-Freezing function will stop automatically. The
indicator goes out. It reverts to previous state.
•Under button unlock state during Super-Freezing mode, press the"Super FRZ.
“button, Super-Freezing function will stop. The indicator goes out. It reverts to
previous state.
Freezer Control Panel

Temperature alarm function
The sensor temperature will be detected after the freezer is energized for 3
hours. If the sensor temperature is higher than -12℃, the alarm indicator lights on,
and the buzzer sounds at the frequency of 2Hz, which can be stopped by pressing
any key under the key unlock state. And if the sensor temperature is still higher
than -12℃three minutes later, the buzzer resumes sounding. To press any button
under the button unlock state can stop the buzzer sounding.
When the freezer sensor temperature falls below -12℃, the alarm indicator
lights off, and the buzzer stops sounding automatically.
Indicator lights
•Freezer current state, the power indicator light lit. When state changes (i.e.,
digital flash), show all the bright display; A modified state (that is, the digital stop
flashing), half light show.
•The “Power” indicator lights up if any key operation. When the state is
changed (i.e. digital flashing), the light will be bright and it turns semi-bright if no
key operation within 1minute.
•Freezer power off, the power indicator light goes out.
Suggestion: The default factory temperature setting is -18℃.
If there is a power failure do not open the lid. Frozen food should not be
affected if the failure lasts for less than 20 hours. If the failure is longer,
Then the food should be checked and eaten immediately or cooked and then
refrozen.
•We recommend that you switch off the appliance at the socket outlet
and pull out the mains plug before cleaning
•Never use any sharp abrasive instrument, soap, household cleaner,
detergent and wax polish for cleaning
•Wash with a weak solution of bicarbonate of soda. Then rinse with warm
water using a damp sponge or cloth and wipe dry
Cleaning and Care

•Wipe the inside and outside of the freezer with a damp soft cloth, a soft
cloth with a mild detergent may also be used if required
•Excess deposits of ice should be removed on a regular basis with the
handle of a spoon. Large accumulation of ice will impair the
Performance of the appliance
Check door seals regularly to ensure they are clean and free from food
particles
If you are going away on holiday or for any other reason, wish to leave the
freezer idle for any period of time, proceed as follows:
•Disconnect the appliance from the electric power supply by removing
the plug from the wall socket
•Remove all food
•Clean and dry the inside as instructed in the directions above for
cleaning
•Leave the doors open to prevent any unpleasant smells from building
up while the freezer is not used
•Clean and defrost your appliance regularly
•Keep food for as short a time as possible and adhere to "Best
Before"/"Use by" dates
•Store commercially frozen food in accordance with the instructions
on packaging
•Wrap frozen food when you buy it and put it in to the freezer as soon
as possible
•Prepare fresh food for freezing in small portions to ensure rapid freezing
•Don't store poisonous or any dangerous substances in your appliance
•Don't leave the door open for long periods as this will make the
appliance more costly to run and cause excessive ice formation
•Don't put hot food into the appliance
Top Tips

•Don't put liquid-filled bottles or sealed cans containing carbonated
Liquids into the freezer as they may burst
•Don't give children ice-cream and water ices direct from the freezer.
The low temperature may cause 'freezer burns' on lips
•Don't freeze fizzy drinks
•Don't try to keep frozen food which has thawed, it should be eaten
within 24 hours or cooked and refrozen
•Keep the electrical cable away from all sources of heat
•To maintain efficiency keep door opening to a minimum
•Keep ventilation openings clear of obstructions
•The appliance should only be used indoors and should not be exposed
to rain or moisture
•Don't place heavy objects onto the Freezer
•Close the lid gently
•Store small items in the basket provided
•Remove ice cream from the freezer 10-20 minutes before serving
•Don’t remove items from the freezer with wet hands.
ENERGY SAVING TIPS
•Ensure your appliance is installed in a well ventilated area. If the ambient
temperature is low (but in no case lower than 5 degrees C), then the
energy saving will be more
•Ensure the time between buying chilled/frozen food and placing them in
your appliance is kept to a minimum, particularly in summer
•Do not leave the door of your appliance open longer than necessary and
ensure it is closed properly after each opening

Check the following:
•That the plug is inserted properly in the socket and that the power
supply is on
•That the fuse has blown/circuit breaker has tripped/main distribution
switch has been turned off
•That the temperature control has been set correctly
•That the plug is wired correctly if you have changed the fitted plug
Working Defects and Failures
Symptom: Appliance will not work at all.
Cause: The power supply plug is not inserted in the wall socket or the
plug and the outlet is loose.
To test the supply socket a lamp or small electrical appliance may be used to
check that the socket is working.
Symptom: Noisy running.
Cause: The appliance has not been properly levelled.
The refrigerator may be in contact with the wall or the accessories in the
refrigerator may be placed in the wrong position.
Symptom: Appliance does not cool sufficiently.
Cause: Door has been opened too often, or for too long a time.
There may be too much food in the refrigerator, possible incorrect temperature
selection
Problem Solving

Symptom: Smell inside the appliance.
Cause: Some of the food is not properly wrapped or covered.
The inside of the refrigerator needs cleaning
The following are normal:
•Refrigerant running in pipes gives a gentle sound of water running in
pipes
•In high humidity the outer surface of the refrigerator may be covered
with condensation that should simply be wiped away
•The compressor and the rear condenser will become hot and should
not be touched
•Sometimes it can be difficult to open the lid of the freezer, this is due to
pressure difference which will equalise and allow lid to be opened
normally after a few minutes
The use of any electrical appliance requires the following common sense
safety rules. There is danger of injury or death to the person and damage to
the appliance.
Location
•Do not use outdoors or in a bathroom
•This appliance is intended to be used in household and residential type
environments. It is not suitable for use in shops, offices and other
working environments
•Do not place appliance on a highly polished wooden floor surface as
damage may occur to the surface
•Do not place the appliance on or near a hot surface
Health & Safety

•This appliance should not be used in an unheated, cold room i.e. Garage,
conservatory, annex, shed, out-house etc.
Mains Cable
•Do not let the lead run across an open space
•Do not let the cable run across a cooker or hot area which may damage
the cable
•The mains cable should reach from the socket to the base unit without
straining the connections
•The power cord cannot be replaced
Personal Safety
•Avoid touching moving parts. Keep hands, hair and clothing and utensils
away from the appliance and fan to prevent personal injury and/or
damage to the appliance.
•To protect against the risk of electric shock ensure the electrical
connections are kept dry
•This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities
Children
•Children should be supervised to ensure that they do not play with this
appliance
•Teach children to be aware of dangers in the kitchen
•Do not allow children to play with the appliance or tamper with the
controls
•Children under the age of 8 should not use this appliance
Other Safety Considerations
•Do not operate any appliance with a damaged cord or plug or after
the appliance malfunctions or has been damaged in any manner
•The use of attachments or tools not pertaining to this appliance may
cause fire, electric shock or injury

•Do not use the appliance for anything other than its intended purpose
•Unplug from the outlet when not in use or unattended and before
assembling, disassembling and cleaning
•Make sure the appliance is switched off before connecting to or
disconnecting from the mains supply
•If the appliance is dropped or damaged in any manner, return the
appliance to the nearest authorized dealer or after-sales service centre
for examination, repair, electrical or mechanical adjustment
•Do not dispose of the appliance on a fire
Registering Your 2 Year Guarantee
Your standard one year guarantee is extended for an additional 1 year when you
register the product within 28 days of purchase with the supplier Shomar Ltd. If
you do not register the product with Shomar Ltd within 28 days, your product is
guaranteed for 1 year. To validate your 2 year guarantee register with us by
visiting www.powerpointappliances.ie.
Please note that the 2 year guarantee is only available in Ireland.
Please refer to the one year guarantee for more information.
One Year Guarantee
It is important to retain the retailer’s receipt as proof of purchase. Staple your
receipt to this back cover for future reference.
Please quote the model and serial number of the product
Subject to the exclusions set out below (see Exclusions), the faulty appliance will
then be repaired or replaced. If for any reason, this item is replaced during the
guarantee period, the guarantee on the new item will be calculated from original
Purchase date. Therefore it is vital to retain your original till receipt or invoice to
indicate the date of initial purchase.
Warranty

To qualify for the 1 year guarantee, the appliance must have been used according
to the instructions supplied.
Exclusions
Shomar Ltd shall not be liable to replace or repair the goods under the terms of
the guarantee where:
1. The fault has been caused or is attributable to accidental use, misuse,
negligent use or used contrary to the manufacturer’s recommendations or
where the fault has been caused by power surges or damage caused in
transit.
2. The appliance has been used on a voltage supply other than that stamped
on the products.
3. Repairs have been attempted by persons other than our service staff.
4. The appliance has been used for hire purposes or non-domestic use.
5. The appliance is second hand.
This guarantee does not confer any rights other than those expressly set out
above and does not cover any claims for consequential loss or damage. This
guarantee is offered as an additional benefit and does not affect your statutory
rights as a consumer. This guarantee is valid in Ireland and the UK only.
Thor products are intended for household use only. See usage limitations in
“safety instructions”. Shomar Ltd has a policy of continuous improvement in
product quality and design. The company, therefore reserves the right to change
the specification of its models at any time.

The After Sales Division for PowerPoint Appliances is located at the offices of the
Brand owner and Distributor –
Shomar Ltd, Unit 9 Western Industrial Estate, Dublin 12, Republic Of Ireland.
Helplines (office hours) & Spare Parts contact number is 01-450 5327 or email
[email protected]
Contact Details
