Powerware 9155 User manual

9155
USER’S GUIDE
UPS
8–15 kVA
www.powerware.com

Class A EMC Statements
FCC Part 15
NOTE This equipment has been tested and found to comply with the limits for a Class A digital device,
pursuant to part 15 of the FCC Rules. These limits are designed to provide reasonable protection against
harmful interference when the equipment is operated in a commercial environment. This equipment
generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with
the instruction manual, may cause harmful interference to radio communications. Operation of this
equipment in a residential area is likely to cause harmful interference in which case the user will be
required to correct the interference at his own expense.
ICES-003
This Class A Interference Causing Equipment meets all requirements of the Canadian Interference
Causing Equipment Regulations ICES-003.
Cet appareil numérique de la classe A respecte toutes les exigences du Reglement sur le matériel
brouilleur du Canada.
IEC 62040-2
Some configurations are classified under IEC 62040-2 as “Class-A UPS for Unrestricted Sales
Distribution.” For these configurations, the following applies:
WARNING This is a Class A-UPS Product. In a domestic environment, this product may cause radio
interference, in which case, the user may be required to take additional measures.

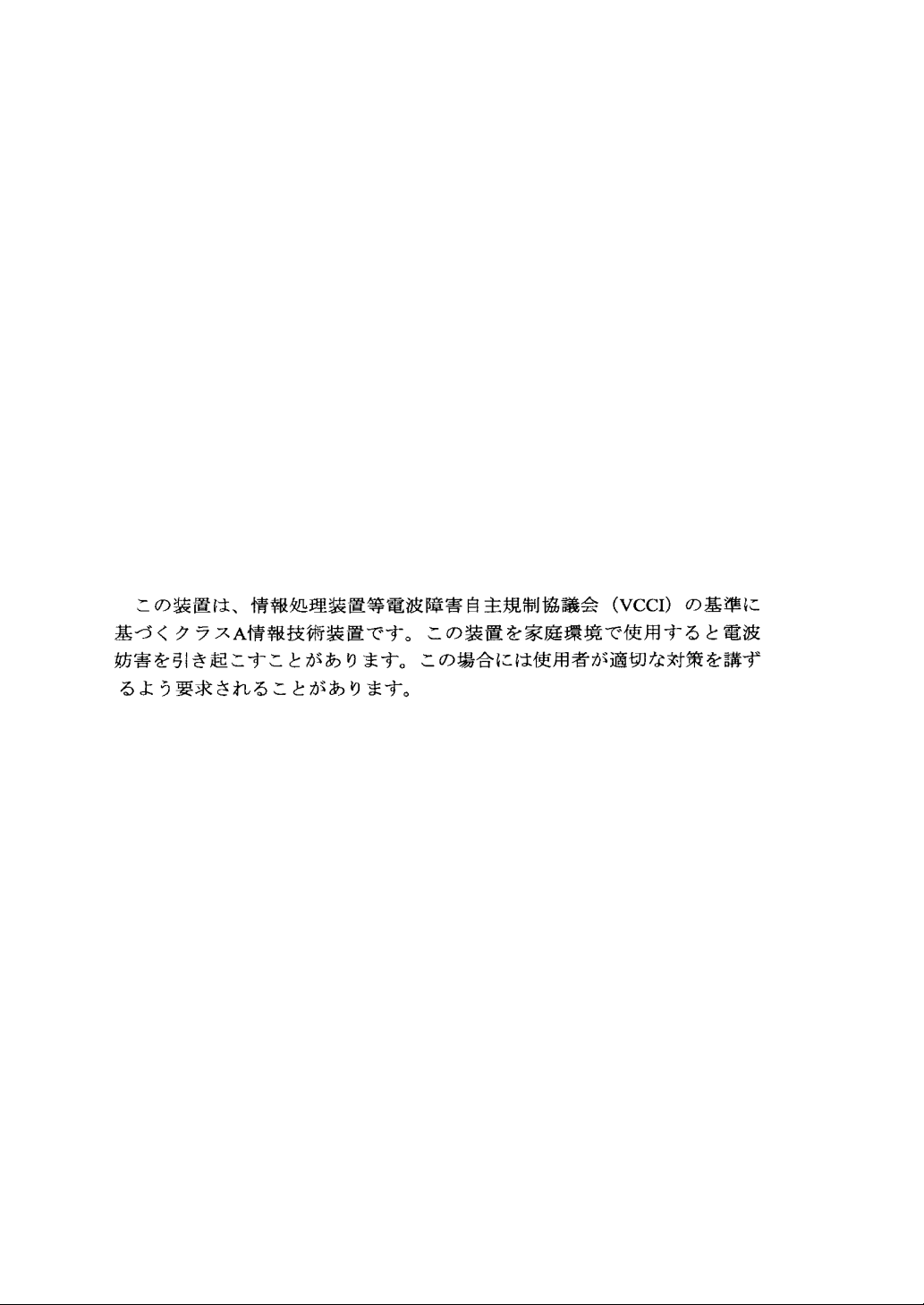

VCCI Notice
Powerware, ABM, and FERRUPS are registered trademarks and X-Slot, ConnectUPS, and Powerware Hot
Sync are trademarks of Eaton Power Quality Corporation.
Greenlee is a registered trademark of Greenlee Textron. Modbus is a registered trademark of Modicon.
ECopyright 2004–2005 Eaton Corporation, Raleigh, NC, USA. All rights reserved. No part of this
document may be reproduced in any way without the express written approval of Eaton Corporation.

Requesting a Declaration of Conformity
Units that are labeled with a CE mark comply with the following harmonized standards and EU
directives:
쑺Harmonized Standards: IEC 62040-1-1 and IEC 62040-2; IEC 60950 Third Edition
쑺EU Directives:
73/23/EEC, Council Directive on equipment designed for use within certain
voltage limits
93/68/EEC, Amending Directive 73/23/EEC
89/336/EEC, Council Directive relating to electromagnetic compatibility
92/31/EEC, Amending Directive 89/336/EEC relating to EMC
The EC Declaration of Conformity is available upon request for products with a CE mark. For copies of
the EC Declaration of Conformity, contact:
Eaton Power Quality Oy
Koskelontie 13
FIN-02920 Espoo
Finland
Phone: [phone]
Fax: [phone]

Special Symbols
The following are examples of symbols used on the UPS to alert you to important
information:
RISK OF ELECTRIC SHOCK - Indicates that a risk of electric shock is present and the
associated warning should be observed.
CAUTION: REFER TO OPERATOR’S MANUAL - Refer to your operator’s manual
for additional information, such as important operating and maintenance instructions.
This symbol indicates that you should not discard the UPS or the UPS batteries in the
trash. This product contains sealed, lead-acid batteries and must be disposed of
properly. For more information, contact your local recycling/reuse or hazardous waste
center.
This symbol indicates that you should not discard waste electrical or electronic
equipment (WEEE) in the trash. For proper disposal, contact your local recycling/reuse
or hazardous waste center.

i
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Table of Contents
1Introduction 1...............................................
2 Safety Warnings 5............................................
3 UPS Setup 9.................................................
Inspecting the Equipment 9.................................................
Floor Loading 10...........................................................
Clearances 10.............................................................
Unloading the Cabinet(s) 11.................................................
Selecting an Installation Option 14............................................
4 UPS Only Installation 15.......................................
5 Input Isolation Transformer Installation 21......................
6 UPS-Mounted Bypass Switch Installation 29......................
Maintenance Bypass/Power Distribution Module Setup 29........................
Wiring the MBM/PDM 32....................................................
7 Wall-Mounted Bypass Switch Installation 39.....................
Wall-Mounted Bypass Switch Setup 40........................................
Wiring the Wall-Mounted Bypass Switch 41....................................
8 Stabilizing the Cabinet 49......................................
9 Extended Battery Module Installation 51........................
10 Communication 53............................................
Installing Communication Options and Control Terminals 54......................
Communication Options 57..................................................
DB-9 Communication Port 57..............................................
X-Slot Cards 58..........................................................
LanSafe Power Management Software 60....................................

Table of Contents
ii Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Control Terminals 61.......................................................
Remote Emergency Power-off 62...........................................
Relay Contacts 63........................................................
Programmable Signal Inputs 63............................................
11 Operation 65..................................................
Control Panel Functions 65..................................................
Changing the Language 66................................................
Display Functions 66.....................................................
User Settings 68.........................................................
UPS Startup 70............................................................
Maintenance Bypass Startup 70............................................
Internal Bypass Startup 71................................................
Normal Mode Startup 72.................................................
Starting the UPS on Battery 74.............................................
Configuring the UPS for EBMs 75.............................................
UPS Shutdown 76..........................................................
12 UPS Maintenance 77...........................................
UPS and Battery Care 77....................................................
Storing the UPS and Batteries 77...........................................
When to Replace Batteries 78................................................
Recycling the Used Battery 78................................................
Using the UPS-Mounted Maintenance Bypass Switch 79..........................
Using the Wall-Mounted Bypass Switch 82.....................................
13 Specifications 85..............................................
14 Troubleshooting 91............................................
Typical Alarms and Conditions 91.............................................
Silencing the Alarm 93......................................................
Service and Support 93.....................................................
Two-Year Limited Warranty 94...............................................
Extended Ten-Year Pro-Rated Limited Warranty 96..............................
Load Protection Guarantee 99...............................................

1
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Chapter 1 Introduction
The Powerware®9155 is a double-conversion, split-phase, online
uninterruptible power system (UPS) for protecting computer systems and
other intelligent devices. It is ideal for protecting essential information
technology and electrical engineering infrastructure in corporate,
telecom, health care, banking, and industrial applications.
The UPS provides a steady, well-regulated power supply for your
computing and communications equipment, while protecting it from the
frequent irregularities that are inherent in commercially available power.
Voltage spikes, power surges, brownouts, and power failures have the
potential to corrupt critical data, destroy unsaved work sessions, and in
some instances, damage expensive hardware.
With the Powerware 9155, you can safely eliminate the effects of
electrical line disturbances and guard the integrity of your systems and
equipment. Figure 1 shows the Powerware 9155 UPS and an optional
Extended Battery Module (EBM).
Figure 1. The Powerware 9155 UPS and EBM (2-High Cabinets Shown)

Introduction
2Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Providing outstanding performance and reliability, the Powerware 9155’s
unique benefits including the following:
쑺OnlineUPSdesignwithpuresinewaveoutput.TheUPSfiltersand
regulates incoming AC power and provides consistent power to your
equipment without draining the battery.
쑺More wattage in less space with a 0.9 power factor – protecting more
equipment and leaving more room for expansion.
쑺Support for Powerware Hot Synctparalleling of multiple modules for
redundancy or extra capacity.
쑺Input current total harmonic distortion (THD) of less than five
percent, using active input power factor correction.
쑺ABM®technology that uses advanced battery management to increase
battery service life, optimize recharge time, and provide a warning
before the end of useful battery life.
쑺Up to four hours of extended runtime with added EBMs.
쑺Advanced power management with the Powerware Software Suite CD
for graceful shutdowns and power monitoring.
쑺Emergency shutdown control through the Remote Emergency
Power-off (REPO) port.
쑺Start-on-battery capability for powering up the UPS even if utility
power is not available.
쑺Standard communication options with a DB-9 serial port, relay output
contacts, and programmable signal inputs.
쑺Optional X-Slottcards enhance communication capabilities for
increased power protection and control.
쑺Backed by worldwide agency approvals.

Introduction
3
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
The following options for the Powerware 9155 are available:
쑺Maintenance Bypass Module (MBM)
The optional MBM is installed on the UPS rear panel and is used to
bypass the UPS during maintenance or servicing. The Maintenance
Bypass switch on the MBM provides a Make-Before-Break (MBB)
wrap-around bypass for UPS service without shutting down the load.
쑺Power Distribution Module (PDM)
The optional PDM provides the same functionality as the MBM and
also comes equipped with several different types of output
receptacles.
쑺Wall-Mounted Bypass Switch
The optional wall-mounted bypass switch is used to bypass the UPS
during maintenance or servicing, providing wrap-around bypass for
UPS service without shutting down the load.
쑺Parallel Tie Cabinet
A parallel system with up to three UPSs can be installed to provide a
parallel capacity and/or redundant system. This load sharing system
provides more capacity than a single UPS and can provide backup,
depending on the load and configuration. In addition, when one UPS
is taken out of service for maintenance or is not operating properly, a
redundant UPS continues to supply uninterrupted power to the critical
load. A parallel Powerware Hot Sync Computer Area Network (CAN)
Bridge Card provides connectivity for system metering and operational
mode control. The parallel system consists of two to three UPSs, each
with a parallel CAN Bridge Card, and a parallel tie cabinet. Refer to
the Powerware 9155 Parallel UPS (8–15 kVA) User’s Guide for more
information.
쑺Input Isolation Transformer
The optional input isolation transformer is located at the bottom of a
3-high UPS model. The input isolation transformer provides a neutral
from a 208V or 240V input source with 240V output and can be wired
to the UPS or to an MBM/PDM.
쑺Seismic Kit
The seismic kit secures the UPS and optional EBMs for Zone 4 seismic
installations.

Introduction
4Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com

5
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Chapter 2 Safety Warnings
The only user operations permitted are:
쑺Starting up and shutting down the UPS
쑺Operating the user interface
쑺Connecting data interface cables
쑺Monitoring the UPS with power management software
IMPORTANT SAFETY INSTRUCTIONS
SAVE THESE INSTRUCTIONS
This manual contains important instructions that you should follow during
installation and maintenance of the UPS and batteries. Please read all
instructions before operating the equipment and save this manual for future
reference.
DANGER
This UPS contains LETHAL VOLTAGES. All repairs and service should be
performed by AUTHORIZED SERVICE PERSONNEL ONLY.ThereareNO USER
SERVICEABLE PARTS inside the UPS.
WARNING
쑺This UPS contains its own energy source (batteries). The UPS output may
carry live voltage even when the UPS is not connected to an AC supply.
쑺To reduce the risk of fire or electric shock, install this UPS in a temperature
and humidity controlled, indoor environment, free of conductive
contaminants. Ambient temperature must not exceed 40°C (104°F). Do not
operate near water or excessive humidity (95% max).
쑺To reduce the risk of fire, connect only to a circuit provided with
100 amperes maximum branch circuit overcurrent protection in accordance
with the National Electrical Code, ANSI/NFPA 70.
쑺Output overcurrent protection and disconnect switch must be provided by
others.

Safety Warnings
6Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
CAUTION
쑺Batteries can present a risk of electrical shock or burn from high short
circuit current. Observe proper precautions. Servicing should be performed
by qualified service personnel knowledgeable of batteries and required
precautions. Keep unauthorized personnel away from batteries.
쑺Proper disposal of batteries is required. Refer to your local codes for
disposal requirements.
쑺Never dispose of batteries in a fire. Batteries may explode when exposed to
flame.
Consignes de Sécurité
CONSIGNES DE SÉCURITÉ IMPORTANTES
CONSERVER CES INSTRUCTIONS
CE MANUEL CONTIENT DES CONSIGNES DE SÉCURITÉ
IMPORTANTES
DANGER!
Cet onduleur contient des TENSIONS MORTELLES. Toute opération d’entretien
et de réparation doit être EXCLUSIVEMENT CONFIÉE A UN PERSONNEL
QUALIFIÉ AGRÉÉ. AUCUNE PIÈCE RÉPARABLE PAR L’UTILISATEUR ne se trouve
dans l’onduleur.
WARNING
쑺Cet onduleur renferme sa propre source d’énergie (batteries). Les prises de
sortie peuvent être sous tension même lorsque l’onduleur n’est pas branché
sur le secteur.
쑺Pour réduire les risques d’incendie et de décharge électrique, installer
l’onduleur uniquement à l’intérieur, dans un lieu dépourvu de matériaux
conducteurs, où la température et l’humidité ambiantes sont contrôlées. La
température ambiante ne doit pas dépasser 40 °C. Ne pas utiliser à
proximité d’eau ou dans une atmosphère excessivement humide (95 %
maximum).
쑺La protection contre une surintensité pour le(s) circuit(s) de sortie de
courant alternatif doit être fournie par un autre fournisseur.
쑺Les interrupteurs de déconnexion convenables pour le(s) circuit(s) de sortie
de courant alternatif doivent être fournie par un autre fournisseur.

Safety Warnings
7
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
ATTENTION!
쑺Les batteries peuvent présenter un risque de décharge électrique ou de
brûlure par des courts-circuits de haute intensité. Prendre les précautions
nécessaires.
쑺Une mise au rebut réglementaire des batteries est obligatoire. Consulter les
règlements en vigueur dans votre localité.
쑺Ne jamais jeter les batteries au feu. L’exposition aux flammes risque de les
faire exploser.
Advertencias de Seguridad
INSTRUCCIONES DE SEGURIDAD IMPORTANTES
GUARDE ESTAS INSTRUCCIONES
ESTE MANUAL CONTIENE INSTRUCCIONES DE
SEGURIDAD IMPORTANTES
PELIGRO
Este SIE contiene VOLTAJES MORTALES. Todas las reparaciones y el servicio
técnico deben ser efectuados SOLAMENTE POR PERSONAL DE SERVICIO
TÉCNICO AUTORIZADO. No hay NINGUNA PARTE QUE EL USUARIO PUEDA
REPARAR dentro del SIE.
WARNING
쑺Este SIE contiene su propia fuente de energía (las baterías). Los receptáculos
de salida pueden transmitir corriente eléctrica aun cuando el SIE no esté
conectado a un suministro de corriente alterna (c.a.).
쑺Parareducirelriesgodeincendioodechoqueeléctrico,instaleesteSIEen
un lugar cubierto, con temperatura y humedad controladas, libre de
contaminantes conductores. La temperatura ambiente no debe exceder los
40°C. No trabaje cerca del agua o con humedad excesiva (95% máximo).
쑺La protección contra exceso de corriente para el/los circuito(s) de CA de
salida será suministrada por terceros.
쑺Los interruptores de desconexión debidamente clasificados para el/los
circuito(s) de CA de salida serán suministrados por terceros.

Safety Warnings
8Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
PRECAUCIÓN
쑺Lasbateríaspuedenpresentarunriesgodedescargaseléctricasode
quemaduras debido a la alta corriente de cortocircuito. Preste atención a las
instrucciones correspondientes.
쑺Es necesario desechar las baterías de un modo adecuado. Consulte las
normas locales para conocer los requisitos pertinentes.
쑺Nunca deseche las baterías en el fuego. Las baterías pueden explotar si se
las expone a la llama.

9
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Chapter 3 UPS Setup
This chapter describes:
쑺Equipment inspection
쑺Floor loading
쑺Unloading the cabinet(s)
쑺Selecting an installation option
The instructions are intended for the chief operator/system supervisor,
electrical consultants, and installation electricians. Local regulations and
electrical code must be followed during the UPS installation.
Inspecting the Equipment
If any equipment has been damaged during shipment, keep the shipping
and packing materials for the carrier or place of purchase and file a
claim for shipping damage. If you discover damage after acceptance, file
aclaimforconcealeddamage.
To file a claim for shipping damage or concealed damage: 1) File with
the carrier within 15 days of receipt of the equipment; 2) Send a copy of
the damage claim within 15 days to your service representative.
NOTE Check the battery recharge date on the packaging label. If the
date has expired and the batteries were never recharged, do not use the
UPS. Contact your service representative.

UPS Setup
10 Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Floor Loading
When planning the installation, consider the UPS weight for floor
loading. The strength of the installation surface must be adequate for
point and distributed loadings. The approximate weights are shown in
the following table.
Standard Model Floor Loadings (2-High/3-High Cabinets)
Powerware 9155 Maximum
Weight (lb)
Point Loading
(lb/in2)
Distributed
Loading (lb/ft2)
2-High UPS 352 88 166
3-High UPS 590 148 278
3-High UPS with
Isolation
Transformer
558 140 263
2-High EBM 480 120 226
3-High EBM 710 178 335
Clearances
The following clearances are recommended for the Powerware 9155 UPS:
From Front of Cabinet 36”(91.4 cm) working space
From Back of Cabinet 6”(15.2 cm) without MBM/PDM installed; with
MBM/PDM installed, clearance determined by
customer-supplied mating plug

UPS Setup
11
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Unloading the Cabinet(s)
The following tools are required for unloading the cabinet(s):
쑺15 mm wrench or socket
쑺7 mm nutdriver or socket
CAUTION
The UPS and EBM are heavy (see page 10). Unloading the cabinets requires at
least two people to safely remove the cabinets from the pallet.
To remove the UPS or EBM from the shipping pallet:
1. Remove the two M10 bolts securing the stabilizing bracket to
thepallet(seeFigure2).
M10 bolts
Figure 2. Removing the Stabilizing Bracket Bolts

UPS Setup
12 Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
2. Remove the four M4 screws securing the stabilizing bracket to
the cabinet rear panel and remove the bracket (see Figure 3).
Retain the hardware for later use.
NOTE Be sure to retain the stabilizing bracket and hardware for later
re-assembly onto the cabinet.
3. Remove the three M10 bolts securing the rear shipping pad to
the pallet and remove the shipping pad (see Figure 3).
NOTE Hold the back of the cabinet so that the bolts can be removed
easily without the cabinet rolling backward.
4. Remove the two M10 bolts securing the front shipping bracket
andremovethebracket(seeFigure3).

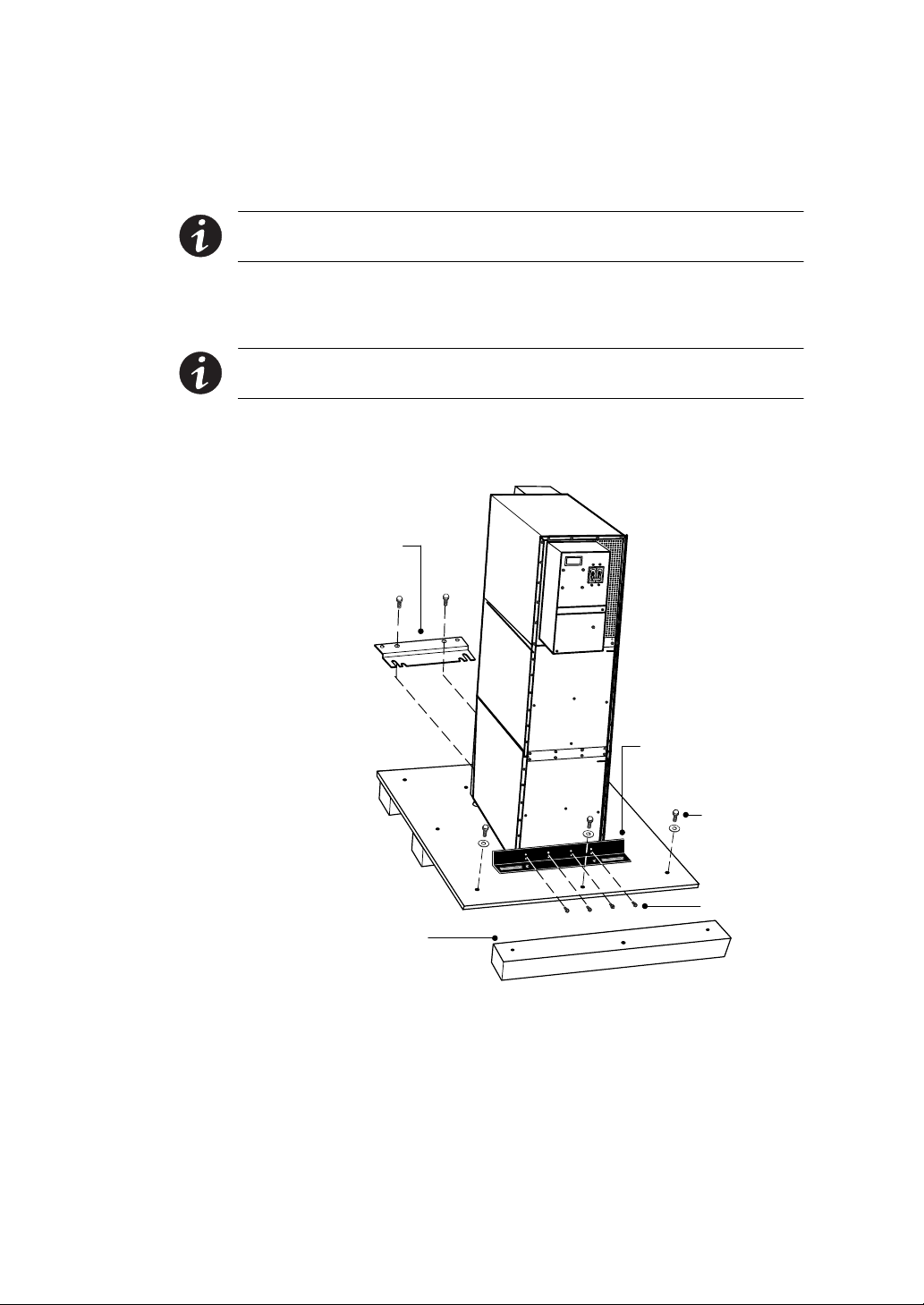

Stabilizing
Bracket
Front Shipping
Bracket
Shipping Pad
M4 Screws
M10 Bolts
M10 Bolts
Figure 3. Removing the Brackets and Shipping Pad

UPS Setup
13
Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
NOTE Be sure to support the front and back of the cabinet when rolling
it off the pallet to prevent tipping.
5. Slowly roll the cabinet toward the rear of the pallet. Once the
pallet tilts, continue rolling the cabinet down the pallet until the
cabinet is clear of the pallet (see Figure 4).
If needed, adjust the leveling feet so that the cabinet will roll.
6. Roll the cabinet to the desired location.
Figure 4. Unloading the Cabinet

UPS Setup
14 Powerware®9155 UPS (8–15 kVA) User’s Guide S164201553 Rev D www.powerware.com
Selecting an Installation Option
You are now ready to install the Powerware 9155 UPS. Select one of the
following installation options according to your UPS configuration:
UPS Configuration Installation Chapter
UPS only Chapter 4, “UPS Only Installation” on page 15
UPS with an optional input isolation
transformer
Chapter 5, “Input Isolation Transformer Installation” on page 21
UPS with an optional UPS-mounted
bypass switch
Chapter 6, “UPS-Mounted Bypass Switch Installation” on page 29
UPS with an optional wall-mounted
bypass switch
Chapter 7, “Wall-Mounted Bypass Switch Installation” on page 39
Parallel UPS configuration Refer to the Powerware 9155 Parallel UPS (8–15 kVA) User’s Guide.
