Powr-Flite CAS16 User manual

OPERATOR’S MANUAL & PARTS LIST
WARNING: OPERATOR MUST READ AND UNDERSTAND THIS MANUAL
COMPLETELY BEFORE OPERATING THIS EQUIPMENT.
©Tacony, Inc., All rights reserved
Save These Instructions
COMPACT AUTOMATIC SCRUBBER
Model CAS16
CAS16-Man 7/2016
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

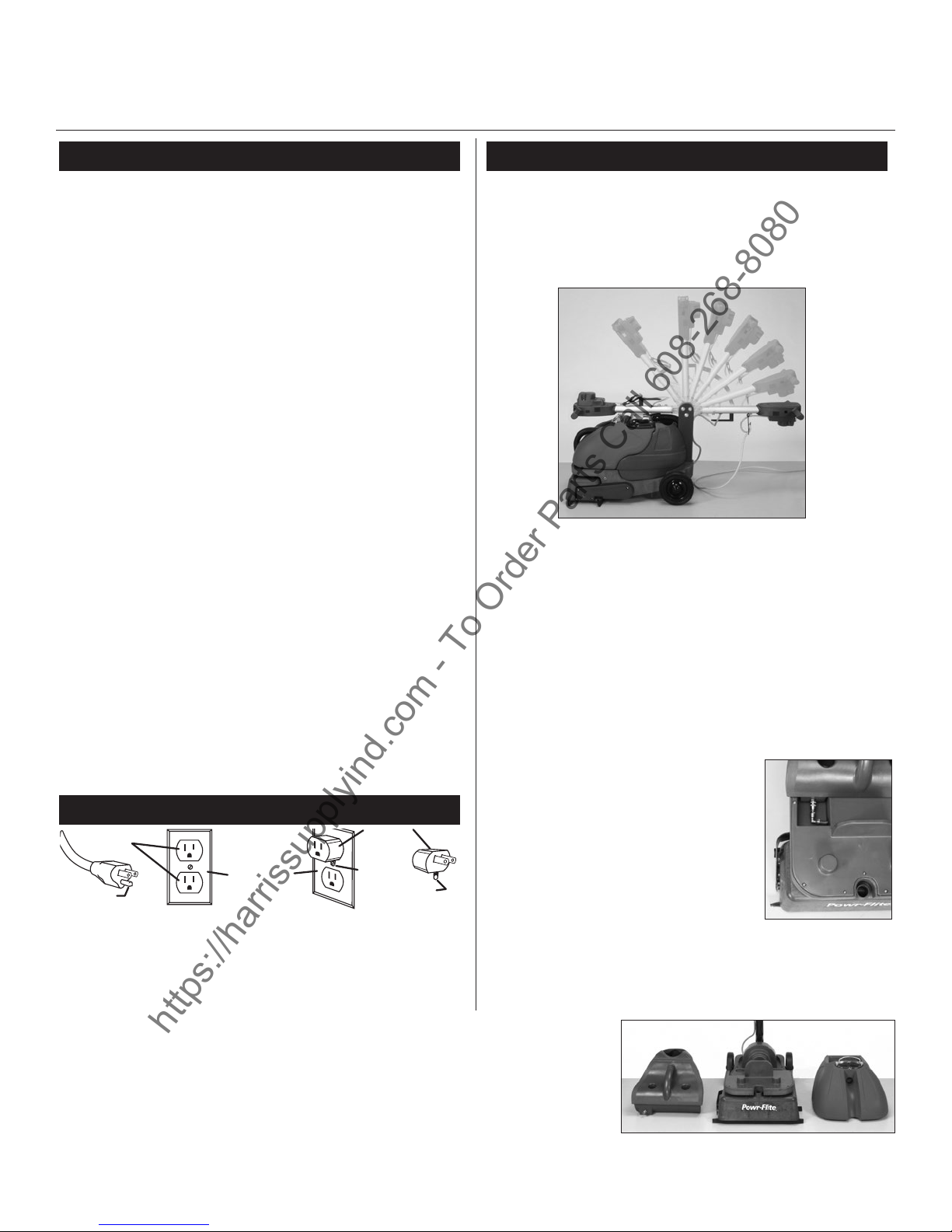

2
IMPORTANT SAFETY ADVICE
When using electrical equipment basic safety precautions should be fol-
lowed including the following:
You must have training in the operation of this machine before using it.
Read all instructions carefully before use.
lKeep children and unauthorized persons away from the machine
when in use.
lDo not leave the machine plugged in when not in use.
lSwitch the machine off before removing the plug from the outlet.
lWhen unplugging, pull the plug, not the cord.
lThe machine must be unplugged prior to cleaning or servicing
the machine.
lKeep the power cord clear of moving parts.
lDo not run the machine over the power cord.
lDo not operate the machine with a damaged power cord or plug,
or if the machine malfunctions or is damaged in any way.
lDo not use where hazardous dust is present.
lDo not use in an explosive atmosphere.
lDo not use where flammable liquids or gasses are present.
lDo not use or pick up flammable chemicals or liquids with
this machine.
lTake care when using the machine near the top of stairs to avoid
overbalancing.
lMaintenance and repair must be done by authorized personnel only.
lLoose objects on the floor can become dangerous projectiles if struck
by the high-speed brush. Remove them before operating this machine.
lWear suitable footwear to avoid slipping.
lDo not operate this machine in bare feet or with open-toed shoes
or sandals.
lKeep hands and feet well clear of the rotating brush.
lDo not smoke when using the machine.
lCAUTION:-This machine is for indoor use only and should not be
used or stored outdoors or in wet conditions.
TRANSPORTING THE MACHINE
CAUTION – This machine is heavy.
Do not attempt to lift the machine without assistance. Incorrect lifting
techniques may result in personal injury. It is recommended two people
lift the machine using a lifting point at the front and rear. DO NOT lift the
machine by the handle. Empty both the recovery and the solution tank
before lifting.
To move the machine to the work area, lock the handle and tilt it back-
wards to raise the front off the floor and wheel into position.
PREPARING FOR USE
Before connecting the machine to the power supply, check that the sup-
ply voltage corresponds with that marked on the rating label on the rear
of the machine.
IMPORTANT – If the power cord is damaged, it must only be replaced with
the appropriate type cord, available from the manufacturer.
Should an extension cord by used, ensure the cord rating is adequate
for the equipment. Do not use extension cord in coiled condition as this
could result in overheating of the cord.
WARNING: This machine must be grounded.
ADJUSTING THE HANDLE HEIGHT
1. Select the most comfortable handle height using the adjustment lever
on the handle and lock in position.
FILLING THE SOLUTION TANK
1. The solution tank can be filled on or off the machine. To fill the tank
off the machine the recovery tank must first be removed.
2. Remove vacuum hose and clear dome from recovery tank and lift
off tank.
3. Disconnect solution feed hose from solution
tank and lift tank off base. To release hose pull
connector collar forward.
4. Fill the solution tank with clean water using a
bucket, tap or hose, and an appropriate
measure of detergent.
5. Replace tanks on base and reconnect hoses.
Ensure solution hose is fully engaged and
captive in the connector allowing solution to
flow, thus preventing the pump from
overheating.
IMPORTANT – Only chemicals recommended by the manufacturer should
be used, i.e. low foaming, and follow the chemical manufacturer’s direc-
tions regarding use, handling, disposal and health and safety provisions.
The tank capacity is 4 gallons. Do not overfill the tank as spillage may
occur when in use.
IMPORTANT – When the
solution tank has emp-
tied, switch off the
machine and empty the
recovery tank before
refilling the solution
tank.
SAVE THESE INSTRUCTIONS FOR FUTURE REFERENCE
*When using an electrical scrubber, basic precautions should be followed.
*Read all instructions before using your scrubber.
METAL
SCREW
TAB FOR
GROUNDING SCREW
GROUNDING
PIN
GROUNDING
OUTLET
GROUNDED
OUTLET BOX
ADAPTER
( C )
( B )
2
( A )
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

3
CONTROLS
The operating controls are located on the handle.
Brush motor switch
Used to switch motor ON and OFF. Lights when in the ON position.
Neon indicator
Lights when the machine is connected to the power supply
Vacuum motor switch
Used to switch motor ON and OFF. Provides suction at the squeegee.
Lights when in the ON position.
Solution feed triggers
Supplies cleaning solution to the brush head when squeezed.
Handle adjustment lever
Used to adjust handle to comfortable working height.
Thermal reset button
Thermal protects brush motor from overheating. Press button once to
reset cut-out and restart motor.
OPERATION
STARTING THE MACHINE
1. Fully unwind the supply cord and plug in to a convenient socket outlet.
2. With the solution tank filled and the handle set at a comfortable height,
the machine is ready for use.
3. Switch ON the brush motor, followed by the vacuum motor.
4. Release cleaning solution at regular intervals by squeezing the
handle triggers.
WARNING – Always ensure adequate solution is on the floor. Scrubbing
without solution could damage the floor surface and/or the machine
brush. Keep the machine moving while the brush is rotating.
IMPORTANT – Should the brush stop rotating due to operation of the ther-
mal reset button on the brush motor, switch the machine OFF and allow
to cool for a few minutes. Press the thermal reset button on left hand side
and restart the machine.
WARNING – If foam or liquid is emitted, switch off immediately and empty
recovery tank. Liquid emitted could be hazardous as a result of its tem-
perature, or chemical content.
5. To stop the machine, release solution feed triggers, switch OFF brush
motor and then vacuum motor.
6. Normal movement of the machine is in a forward and backward
direction.
7. Proceed to operate the machine in the normal manner, releasing
cleaning solution as required.
8. For heavy soil, scrub floor with cleaning solution but with vacuum
motor OFF. Scrub floor again the pick up the solution.
9. When scrubbing is complete, unplug the machine from the power
supply, empty the solution tank and recovery tanks and clean and
dry the machine.
IMPORTANT – Dispose of unused cleaning solution in accordance with the
manufacturer’s directions.
MAINTENANCE
WARNING – Before undertaking maintenance operations or adjustments,
switch machine OFF and unplug from the electricity supply.
The machine requires minimum maintenance apart from the following
checks by a trained operator.
Power cord – regularly inspect sheath, plug and cord anchorage for
damage or loose connection. Only replace the power cord with the type
specified in these instructions.
Solution tank – check water flow, if restricted inspect tubing for block-
age. Check that filter is clean and undamaged. A damaged filter must be
replaced.
Recovery tank – check condition and clean tank.
Squeegee blades – check condition and replace worn or damaged
blades.
Solution spray bar – remove the brush to access the spray bar. Check
that the solution feed holes are not blocked or restricted and clean as
necessary.
Brush motor switch
Neon indicatorVacuum motor switch
Solution feed triggers
Handle adjustment lever
Thermal reset button
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

4
CHANGING THE BRUSH
WARNING – This has been designed for use with the brushes specified by the
manufacturer. The fitting of other brushes may affect its safety.
Always ensure machine is unplugged before fitting or removing parts.
1. To change the brush, first remove both the recovery and solution tanks.
2. Move handle to upright position, pull backwards and downwards to rest on
the floor with the base raised.
3. Push end of brush shaft with a finger and withdraw shaft completely.
4. Place new brush in position and insert shaft through brush until is clicks
into place.
5. Return machine to the floor, replace tanks and reconnect hoses, etc.
Changing squeegee blades
The squeegee blades are self adjusting for wear. However, when wet pick-up
becomes ineffective, or blades are damaged they should be replaced.
1. Raise machine base as for a brush change.
2. Slide squeegee blades out sideways from the holder.
3. Slide new blades into place with the ribbed side facing outwards.
4. Return machine to the floor, replace tanks and reconnect hoses.
STORAGE
1. When cleaning is finished, unplug the machine from the power supply and lift
off and empty the recovery and solution tanks over a suitable sink or drain.
2. Flush out the recovery tank with clean water.
3. Replace tanks and wipe the machine with a damp cloth. Wipe squeegee
blades clean.
IMPORTANT – Dispose of unused cleaning solution in accordance with the manu-
facturer’s directions.
4. Remove brush and wash in warm soapy water, rinse and allow to
dry naturally.
After use always wipe down and dry the machine and remove and clean the
brush. The solution tank and recovery tank should be emptied and flushed out
with clean water. When storing the machine for long periods, raise the base
to protect the brush and squeegee from possible distortion. Wrap power cord
around the handlebar and cable winder, ensuring that the plug is not trailing on
the floor. Fold handle down as necessary. Store the machine in a dry indoor
area only.
Withdraw shaft completely.
Slide squeegee blades out sideways from the holder.
Clean and inspect spray bar.
MAINTENANCE
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

5
TROUBLESHOOTING
The following simple checks may be performed by the operator
Problem Reason Remedy
Machine not working, motors not running. Lack of voltage/electrical supply. Check supply cord, plug and socket outlet.
Vacuum motor not running, switch illuminated. Faulty motor. Contact service.
Brush motor running, but brush not rotating. Brush shaft incorrectly positioned. Loose or
broken drive belt. Refit shaft. Contact service.
Cleaning solution not flowing.
Solution hose not correctly fitted to tank con-
nector. Hose blocked. Waterways in spray bar
blocked. Solution tank empty. Blocked filter in
solution tank. Damaged pump.
Check connection is secure. Check and clear
hose, Check and clean spray bar. Refill tank.
Contact service.
Vacuum motor running but squeegee not
picking up.
Hose from squeegee blocked or split.
Squeegee slot blocked or blades damaged.
Vacuum dome out of position.
Check and clear hose. Check and clean
squeegee. Reposition dome.
Contact service.
Brush motor not running. Thermal reset button tripped. Check thermal reset button
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

6
Model CAS16 Parts
14
13
15
16
17
18
19
20
22
21
24
26
28
30
31
32
33
34
35
36
38
38
37
37
37
39
40
41
42
43
44
46
45
48
2
1
3
4
5
6
7
8
10
9
11
12
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

7
Drawing
Ref.
Assembly / Part
Number Description / Part Number Qty
SSD400/110/60/PO SCRUBBER DRYER POWER-FLITE(110V US) HANDLE
05-4351-0000 SSD400 110V US HANDLE ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
102-3151-0000 P CLIP 1
2 02-3152-0000 CABLE STRAIN RELIEF BRACKET 1
3 02-3511-0000 GEAR DOG SPRING 1
4 02-3520-0000 DIAPHRAGM GROMMET 1
5 02-3736-0000 DBLE SIDED TAPE 0.05
6 02-4492-0000 SPLASH PROOF COVER 2
7 03-5403-0000 CABLE WINDER 1
8 03-5410-0000 CABLE WINDER SPRING 1
9 03-6086-0067 HANDLE CASE FRONT JET BLACK RAL9005 1
10 03-6087-0067 HANDLE CASE BACK JET BLACK RAL9005 1
11 03-6089-0067 GEAR LEVER JET BLACK RAL9005 1
12 03-6090-0067 TRIGGER LEFT & RIGHT JET BLACK RAL9005 2
13 03-6091-0000 HANDLE RUBBER BOOT MOULDING 2
14 03-6092-0067 INTERLOCK BLACK JET BLACK RAL9005 2
15 03-6094-0067 CORD RETAINER JET BLACK RAL9005 1
16 03-6096-0000 HANDLE ADJ GEAR 1
17 03-6097-0000 HANDLE ADJUSTING GEAR DOG 1
18 03-6693-0067 HANDLE SOCKET BLANKING PLATE JET BLACK RAL9005 1
19 03-7831-0000 ALUMINIUM KNUCKLE PRESSURE DIE CAST 1
20 03-7917-0067 SOLUTION TRIGGER BLANKING PLATE JET BLACK RAL9005 1
21 03-7919-0000 SOLARIS GEAR ADJUSTING ROD 1
22 03-7927-0000 SOLARIS OVAL HANDLE TUBE 1
23 N/A N/A
24 03-7936-0000 SOLARIS OPERATING LABEL 1
25 04-0221-0000 CABLE TIE BLACK - NOT SHOWN ON DRAWING 1
26 04-0237-0000 CABLE CLAMP BAR 1
27 04-3246-0000 115V ORBIS SUPPLY CORDSET - NOT SHOWN ON DRAWING 1
28 04-3238-0000 SWITCH 1
29 04-3239-0000 HANDLE WIRING KIT - NOT SHOWN ON DRAWING 1
30 04-3242-0000 16amp INPUT SOCKET 1
31 04-3255-0000 GREEN INDICATOR LIGHT 110V 1
32 04-3741-0000 MINATURE ROCKER SWITCH 2
33 04-3824-0000 SOLARIS FILTER 10AMP 1
34 00-0500-0511 M5 SINGLE COIL SPRING WASHER 1
35 00-0500-0531 M5 EXTERNAL SHAKEPROOF WASHER 1
36 00-0500-0551 M5 WASHER 1
37 00-0500-0701 M5 FULL NUT 5
38 00-0520-0111 M5 x 20LG HEX HEAD SCREW 2
39 00-0600-0701 M6 FULL NUT 2
40 00-0655-0011 M6 x 55LG POZI PAN HEAD SCREW 2
41 00-0800-0501 M8 WASHER 2
42 00-0816-0111 M8 x 16LG HEX HEAD SET SCREW 2
43 02-3516-0000 SELF TAPPER 11
44 02-3517-0000 SELF TAPPER 2
45 02-3518-0000 SELF TAPPER 2
46 02-3523-0000 M6 X 8 X 40LG SHOULDER BOLT 1
47 04-3733-0000 SCRUBBER DRYER 7 CORE DROP LEAD - NOT SHOWN ON DRAWING 1
48 03-7949-0067 CORD INLET BOX JET BLACK RAL9005 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

8
Model CAS16 Parts
14
13
15
16
17
18
19
20
22
21
24 26
27 28
3
5
6
7
8
10
9
11
12
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

9
Drawing
Ref.
Assembly / Part
Number Description / Part Number Qty
1 1
2 1
305-4342-0000 RECOVERY TANK ASSEMBLY INCLUDES THE FOLLOWING PARTS : 1
4 02-4536-0000 KNOCK OUT PLUG - NOT SHOWN ON DRAWING 2
5 03-7857-0039 RECOVERY TANK 1
6 03-7874-0020 RECOVERY TANK INLET COVER 1
7 03-7883-0000 RECOVERY TANK HANDLE PIN 2
8 03-7884-0000 RECOVERY TANK HANDLE 1
9 03-7893-0000 RECOVERY TANK INLET COVER SEAL 1
10 00-0516-0013 M5 x 16LG POZI PAN SCREW 2
11 00-0530-0013 M5 x 30LG POZI PAN SCREW 2
12 2
13 2
14 BASE ASSEMBLY (REFER TO DRAWING 09-1051-0000) 1
15 05-4341-0000 HANDLE ASSEMBLY (REFER TO DRAWING 09-1052-0000) 1
ACCESSORIES
16 10-0040-0000 SQUEEGEE KIT INCLUDES THE FOLLOWING PARTS : 1
17 03-7876-0067 SQUEEGEE HOUSING 1
18 03-7891-0000 SQUEEGEE BLADE 2
19 02-3233-0000 No.8 x 12LG SELF TAPPING SCREW PAN HEAD 4
20 10-0048-0000 SIDE BRUSH KIT INCLUDES THE FOLLOWING PARTS : 1
21 03-7999-0000 SOLARIS SIDE BRUSH SHAFT 1
22 93-0380-0000 SIDE BRUSH 1
23 93-0382-0000 BUSH - NOT SHOWN ON DRAWING 1
24 05-4310-0000 SIDE BRUSH COVER ASSEMBLY INCLUDES THE FOLLOWING PARTS : 1
25 02-4522-0000 NEODYMIUM BLOCK MAGNETS - NOT SHOWN ON DRAWING 1
26 03-7946-0000 SIDE BRUSH COVER 1
27 03-7869-0000 STANDARD BRUSH BLACK (0.35mm LOW DUTY) 1
28 03-7916-0000 HARD BRUSH BLUE (O.5mm HEAVY DUTY) 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

10
14
13
15
16
17
18
19
20
22
23
24
26
27
28
30
29
31
32
32
33
33
33
34
35
36
38
37
39
40
41
43 44
46
45
47
48
49
50
51
52
54
53
55
56
2
1
3
4
56
7
9
11
12
81
81
82
83
84
123 124
125
126
127
132
129
130
131
128
133
134
135
136
137
138
139
Model CAS16 Parts
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

11
Drawing
Ref.
Assembly / Part
Number Description / Part Number Qty
BASE ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
105-4199-0000 SOLUTION TANK ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
2 03-7858-0067 SOLUTION TANK 1
3 02-3445-0000 BULKHEAD COUPLING (METAL) 1
410-0062-0000 SOLUTION TANK FILTER KIT INCLUDES THE FOLLOWING PARTS: 1
5 03-6213-0000 FILTER ELEMENT WITH MOULDED END 1
6 03-6344-1000 TUBE NYLON 0.035
705-4202-0000 CLEAR DOME ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
8 02-3630-0000 GROMMET CHASSIS TO VAC HOSE 1
9N/A
10 03-7856-0000 VACUUM LID SEAL 0.63
11 03-7873-0000 RECOVERY TANK COVER 1
12 10-0061-0000 CHASSIS COVER KIT INCLUDES THE FOLLOWING PARTS: 1
13 02-3520-0000 DIAPHRAGM GROMMET 1
14 03-7864-0067 CHASSIS COVER 1
15 02-3465-0000 WN1412 KB50 x 12 POZI PAN SCREW S/TAP 11
16 10-0088-0000 VACUUM MOTOR KIT INCLUDES THE FOLLOWING PARTS: 1
17 03-7872-0000 VACUUM MOTOR STRAP 1
18 03-7978-1000 SOFT NEOPRENE SPONGE STRIP 0.45
19 03-7979-0000 MOTOR SEALING PAD 1
20 04-3334-0000 TERMINAL MALE BULLET RED 2
21 04-3748-0000 1000W TANGENTIAL DISCHARGE VACUUM MOTOR 110V 1
22 02-3467-0000 WN1412 KB50 x 18 POZI PAN SCREW S/TAP 2
23 05-4337-0000 VAC HOSE ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
24 02-0120-0000 CUFF END 1
25 02-3328-0000 SCREW CUFF 1
26 02-4369-0000 JUBILEE CLIP 1
27 03-7860-0000 REAR VACUUM HOSE 1
28 10-0059-0000 HANDLE SUPPORT KIT INCLUDES THE FOLLOWING PARTS: 1
29 02-4279-0000 PLASKLIP 1
30 03-7865-0067 HANDLE SUPPORT 1
31 02-3416-0000 M5 X 12 PAN POZI TAPTITE BZP 1
32 00-0800-0721 M8 FULL NYLOCK ZINC PLATED 7
33 00-0800-0551 M8 SINGLE COIL SPRING WASHER 10
34 00-0860-0121 M8 x 60 HEX HEAD SET BOLT ZINC PLATED 3
35 10-0087-0000 PUMP KIT INCLUDES THE FOLLOWING PARTS: 1
36 02-3447-0000 MALE COUPLING CONNECTOR (METAL VERSION) 1
37 02-3480-0000 1/4" METAL BSPT MALE ELBOW & HOSETAIL 1
38 02-3544-1000 BLUE COPLEXEL HOSE 0.62
39 02-3734-0000 CLIP HOSE 9.5-12MM 2
40 02-3771-0000 O-CLIP STEEL 13MM X 18MM LONG 7MM WIDE 1
41 02-4535-0000 ELBOW CONNECTOR 1/8"" BSP THREAD 6MM HOSE I/D 1
42 04-3050-0000 CLOSED END CONNECTOR (NOT ON DRWG) 1
43 04-3755-0000 SOLENOID PUMP MODEL ER TYPE EP8R 110VOLT 1
44 04-3789-0000 THERMAL OVERLOAD 1
45 02-3466-0000 WN1412 KN50 x 16 POZI PAN PT SCREW S/TAP 4
46 00-0500-0551 M5 WASHER FORM "C" LARGE DIA ZINC & CLEAR 4
47 10-0054-0000 BEARING PLATE KIT INCLUDES THE FOLLOWING PARTS: 1
48 05-4206-0000 SCRUBBER DRYER BEARING PLATE ASSEMBLY CONSISTING OF: 1
49 02-3847-0000 BEARING 1
50 03-7867-0067 BEARING PLATE 1
51 03-8007-0000 BRUSH DRIVE BUSH 1
52 90-0268-0000 HOUSING SPROKET 1
53 00-0625-0031 M6 x 25 POSI CSN'K HEAD SCREW ZINC PLATED 2
54 00-0600-0721 M6 NYLOC NUT ZINC PLATED 2
55 00-0800-0551 M8 SINGLE COIL SPRING WASHER 3
56 00-0800-0721 M8 FULL NYLOCK ZINC PLATED 3
57 10-0089-0000 DRIVE MOTOR KIT INCLUDES THE FOLLOWING PARTS: 1
58 03-7900-0000 15T ALUMINIUM DRIVE MOTOR PULLEY 1
59 04-3745-0000 MOTOR 110V DOUBLE SPINDLE 1
60 04-3291-0000 BREAKER 240V 1.5AMPS 1
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

12
57
58
59
60
62
61
63
64
65
66
67
68
70
69
71
72
73
74
75
76
78
77
79
80
86
85
87
88
89
90
92
94
93
95 96
97
98
99
104
101
102 103
100
105
111
112
113
114 115
117
116
118
119
120
121
122
141
140
142
143
144
145
146
147 148
149
150
151
152
106
107
108
109
110
Model CAS16 Parts
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

13
Drawing
Ref.
Assembly / Part
Number Description / Part Number Qty
61 00-0410-0011 SCREW M4 x 10 POZI PAN HD BZP 2
62 00-0606-0171 SCREW M6 x 6 SOCKET SET GRUB 1
63 N/A
64 00-0520-0011 M5 x 20 POZI PAN HEAD SCREW ZINC PLATED 3
65 10-0053-0000 DRIVE MOTOR PLATE KIT INCLUDES THE FOLLOWING PARTS: 1
66 02-3245-0000 CIRCLIP - 'E' TYPE D1500/5 STAINLESS STEEL 1
67 05-4205-0000 SCRUBBER DRYER MOTOR PLATE ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
68 02-3847-0000 BEARING 1
69 03-7866-0000 DRIVE MOTOR PLATE 1
70 90-0061-0000 BRUSH SPROCKET 1
71 90-0268-0000 HOUSING SPROCKET 1
72 05-4209-0000 SCRUBBER DRYER IDLER ASSEMBLY CONSISTING OF: 1
73 02-3848-0000 BEARING 2
74 03-7894-0000 IDLER PULLEY 1
75 00-0600-0721 M6 NYLOC NUT ZINC PLATED 2
76 00-0600-0507 M6 WASHER 14mm OD 1.6mm THK 1
77 00-0600-0501 M6 WASHER FORM "B" PLAIN ZINC PLATED 1
78 00-0625-0031 M6 x 25 POSI CSN'K HEAD SCREW ZINC PLATED 2
79 00-0800-0551 M8 SINGLE COIL SPRING WASHER 2
80 00-0800-0721 M8 FULL NYLOCK ZINC PLATED 2
81 10-0051-0000 WHEEL KIT INCLUDES THE FOLLOWING PARTS: 2
82 02-0254-0000 STARLOCK WASHER 12.7 I.D. 2
83 02-3121-0000 WHEEL 8" 2
84 02-3185-0000 CRINKLE WASHER 1/2" ID 2
85 10-0063-0000 BELT KIT INCLUDES THE FOLLOWING PARTS: 1
86 03-7870-0000 DRIVE BELT 1
87 10-0058-00000 VAC SHOE RUNNER KIT INCLUDES THE FOLLOWING PARTS: 1
88 03-7302-0000 SPRING 2
89 03-7948-0000 VAC SHOE SPACER 2
90 05-2408-0000 VAC SHOE RUNNER ASSEMBLY CONSISTING OF: 1
91 03-7888-0000 VACUUM SHOE MOUNT TOP 1
92 03-7889-0000 VACUUM SHOE MOUNT PIN 2
93 00-0616-0091 M6 x 16 CAP HEAD SCREW BZP 2
94 02-3467-0000 WN1412 KB60 x 18 POZI PAN PT SCREW S/TAP 4
95 10-0055-0000 VACUUM SHOE WHEEL INCLUDES THE FOLLOWING PARTS: 1
96 05-4216-0000 URETHANE WHEEL ASSEMBLY INCLUDES THE FOLLOWING PARTS : 1
97 02-3848-0000 BEARING 2
98 03-6720-0000 UHS ORBIS URETHANE WHEEL 1
99 00-0600-0501 M6 FORM "A" PLAIN WASHER ZINC PLATED 4
100 00-0600-0723 M6 NYLOC NUT ST/STL 1
101 00-0640-0121 M6 x 40 HEX HEAD BOLT ZINC PLATED 1
102 10-0056-0000 FRONT SQUEEGEE ROLLER KIT INCLUDES THE FOLLOWING PARTS: 1
103 05-4336-0000 FRONT SQUEEGEE ROLLER ASSEMBLY INCLUDES THE FOLLOWING PARTS 1
104 02-4543-0000 SPIRAL PIN STAINLESS STEEL 6 x 35 2
105 03-7891-0000 SQUEEGEE BLADE 2
106 03-7947-0000 SQUEEGEE ROLLER 2
107 03-7989-0000 FRONT SQUEEGEE HOLDER 1
108 02-4523-0000 No.8 x 3/4"LG SELF TAPPING SCREW PAN HEAD ST/STL 4
109 10-0057-0000 VACUUM SHOE KIT INCLUDES THE FOLLOWING PARTS: 1
110 03-7859-0000 SPRAY BAR 1
111 04-0286-0000 P CLIP 2
112 02-3233-0000 No.8 x 12LG SELF TAPPING SCREW PAN HEAD 2
113 05-4198-0000 VAC SHOE ASSEMBLY INCLUDES THE FOLLOWING PARTS : 1
114 03-6216-1000 GASKET SEAL TANK UPPER TO LOWER 0.5
115 03-7877-0067 VACUUM SHOE TOP 1
116 03-7878-0067 VACUUM SHOE BASE 1
117 02-3516-0000 KB50 x 14LG SELF TAP SCREW POZI HEAD 4
118 00-1000-0501 M10 x 20 PLAIN WASHER 2
119 05-4204-0000 SQUEEGEE ASSEMBLY INCLUDES THE FOLLOWING PARTS: 1
120 03-7876-0067 SQUEEGEE HOUSING 1
121 03-7891-0000 SQUEEGEE BLADE 2
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

14
Drawing
Ref.
Assembly / Part
Number Description / Part Number Qty
122 02-4523-0000 No.8 x 3/4"LG SELF TAPPING SCREW PAN HEAD ST/STL 4
123 10-0084-0000 CHASSIS KIT INCLUDES THE FOLLOWING PARTS: 1
124 05-4201-0000 CHASSIS ASSEMBLY CONSISTING OF: 1
125 02-4524-0000 GROMMET ID11.1 OD15.9 X 6.4THK 1
126 03-7862-0000 WHEEL AXLE 1
127 03-7863-0067 CHASSIS 1
128 02-3468-0000 PICK UP HOSE 420MM 1
129 03-6185-0000 EARTH POINT LABEL 1
130 00-0630-0111 M6 x 30 HEX HEAD BOLT ZINC PLATED 1
131 00-0600-0511 M6 SINGLE COIL SPRING WASHER 2
132 00-0600-0701 M6 FULL NUT ZINC PLATED 2
133 00-0600-0501 M6 FORM "B" PLAIN WASHER ZINC PLATED 3
134 04-3409-0000 25 AMP BRIDGE RECTIFIER 1
135 02-3517-0000 SELF TAPPER 1
136 02-3736-0000 DBLE SIDED TAPE 5454R2X35 0.05
137 04-3806-0000 FILTER 6AMP 1
138 02-3703-0000 GLAND CABLE M20 1
139 02-3704-0000 M20 CABLE GLAND BACK NUT 1
140 03-7896-0000 STRENGTHENING BAR 1
141 00-0410-0031 SCREW M4 x 10 CSK POZI HD BZP 2
142 03-7943-0000 OUTLET FILTER PART 1 - SOLARIS 1
143 03-7871-0000 EXHAUST OUTLET COVER 1
144 02-3466-0000 WN1412 KN50 x 16 POZI PAN PT SCREW S/TAP 4
145 03-7875-0067 BELT COVER 1
146 00-0525-0011 M5 x 25 POZI PAN HEAD SCREW ZINC PLATED 3
147 03-7869-0000 SCRUBBER DRYER CYLINDRICAL BRUSH (0.35mm)LIGHT DUTY 1
147 03-7916-0000 SCRUBBER DRYER CYLINDRICAL BRUSH (0.5mm) HEAVY DUTY (NOT ON DRWG) 1
149 05-4207-0000 BRUSH AXLE ASSEMBLY CONSISTING OF: 1
150 03-7868-0000 HEXAGON BRUSH SHAFT 1
151 03-7879-0000 VACUUM SHOE MOUNT BASE 1
152 02-3467-0000 WN1412 KB60 x 18 POZI PAN SCREW S/TAP 4
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

15
Model CAS16 Electrical Diagram
https://harrissupplyind.com-ToOrderPartsCall608-268-8080

A Tacony Company
3101 Wichita Court • Ft. Worth, TX 76140-1755
1-800-880-2913 • Fax: [phone] • www.Powr-Flite.com
The Powr-Flite Limited Warranty
The manufacturer warrants to the original purchaser that products manufactured are free from defects, provided such goods
are installed, operated and maintained in accordance with written manuals or other instructions for a period of 1 year from
date of purchase on workmanship, motor, and parts. In case you, as our customer, meet any trouble with your machine,
contact a Powr-Flite representative, who will be happy to be of service to you and will take care of any warranty issues.
CAS16-Man 7/2016
https://harrissupplyind.com-ToOrderPartsCall608-268-8080
