Pioneer Eclipse StripVac User manual

Operators Manual
Stripping Solution Recovery Vacuum
READ OPERATORS MANUAL BEFORE OPERATING

Record this Important Information
Date of Purchase
Purchased From
Address
City State Zip
Phone Contact
Serial Number
Emergency Contacts
Medical Emergency
Police
Fire

Safe Operating Procedures . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Machine Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Operating Instructions
Vacuuming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Stopping . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Draining . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Adjusting Squeegee Angle . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Using Optional Squeegee Attachment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Maintenance Instructions
Removing / Attaching Squeegee Blades . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Removing / Attaching Squeegee . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Cleaning . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Battery Maintenance
Connecting the Batteries and Vacuum Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Refilling the Battery with Distilled Water . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Measuring the Specific Gravity of Battery Electrolyte . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Balanced Battery Charging . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Battery Replacement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Machine Exploded View Drawings and Parts Lists

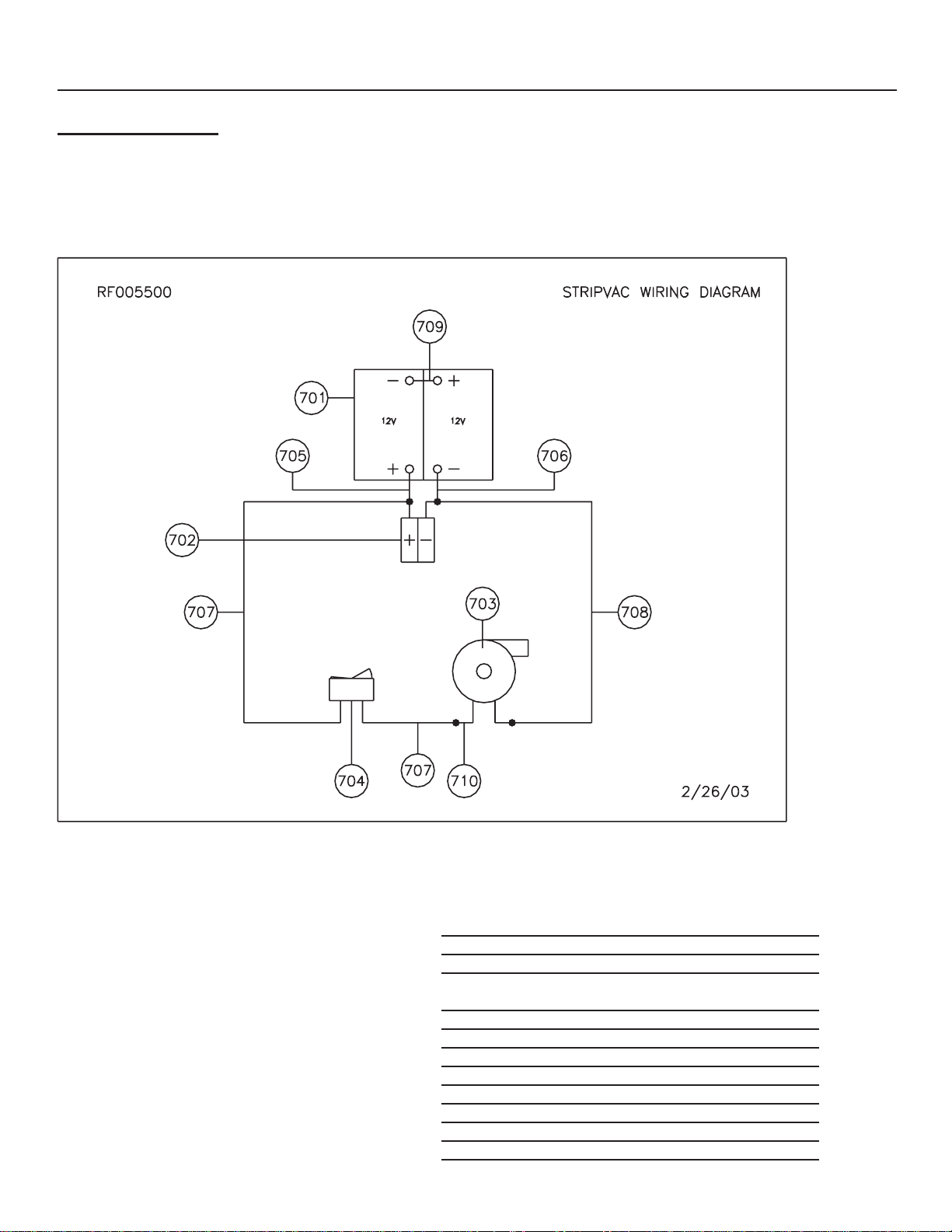

Wiring Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

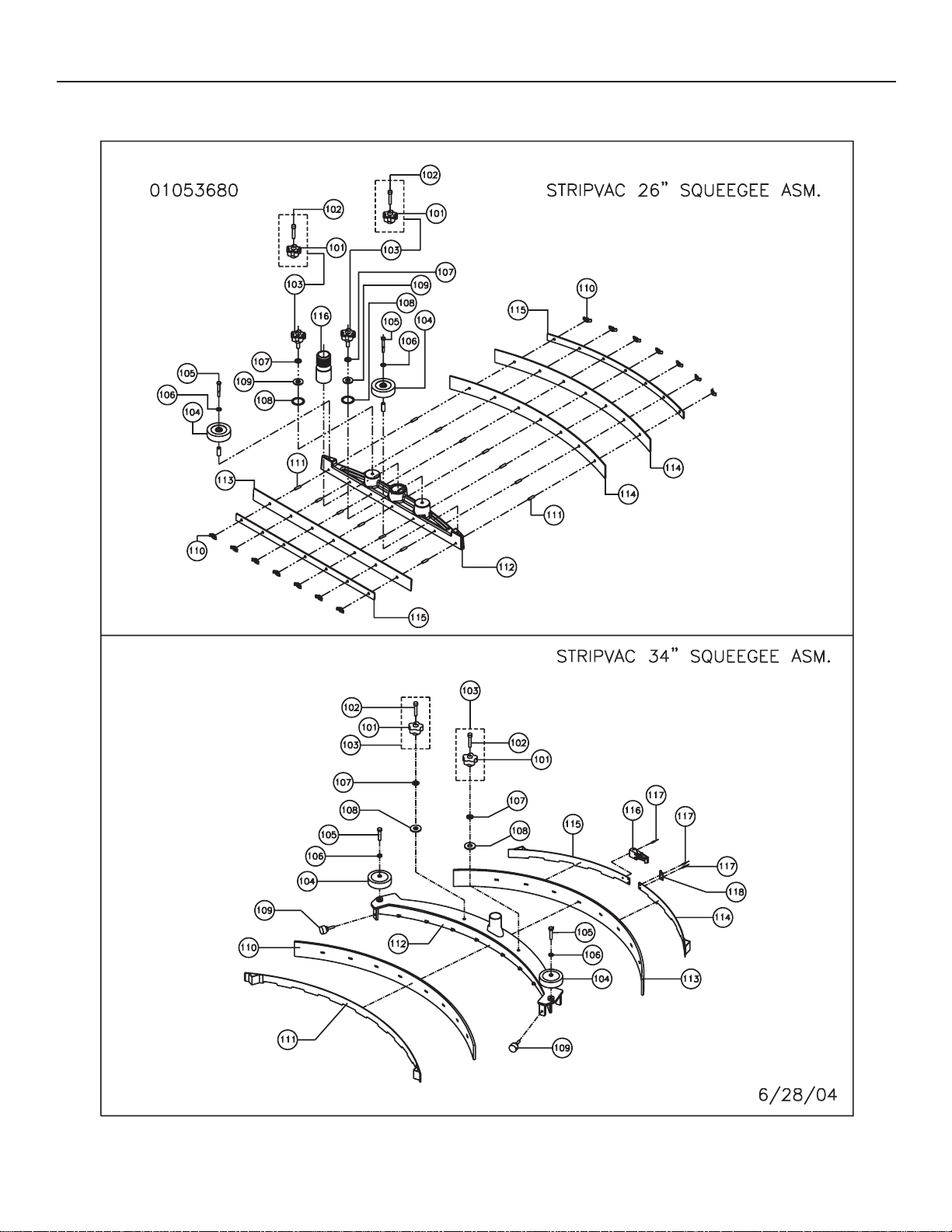

Squeegee Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Lift Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Frame Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Tank Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Float Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20
Final Assembly . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Table of Contents
1

Machine Specifications
Safe Operating Procedures
Safe Operating Procedures:
•Use care when transporting machine with a full tank.
•Do not raise filled tank to check batteries.
•Thoroughly clean exterior, tank, hoses, and squeegee after each use.
•Do not use the machine as a dry vac, it is only intended for stripper, cleaning solutions, and water.
•Always use appropriate safety gear when dumping stripper.
•Obey all applicable laws for the disposal of stripper.
•When the recovery tank reaches capacity, an overfill valve will seal the vacuum motor port. Do not
attempt to operate the machine after the vacuum motor port has been sealed.
•Do not overtighten retaining knobs on squeegee. Knobs should be tightened enough to hold the
squeegee in place while allowing it to break away if struck.
•To reduce foaming, add defoamer in tank before vacuuming stripper.
•Turn off the vacuum motor when tank reaches capacity and closes the vacuum motor port.
Height: 44” (111,8 cm)
Width: 26” (66 cm)
Length: 39” (99,1 cm)
Squeegee length: 26” (66 cm) or 34” (86 cm)
Weight: 225 lb (102 kg) w/batteries, 130 lb (59 kg) w/out batteries
24V system
25A switch / breaker
120A charger plug
Tank Capacity Standard Model: 30 gal. (113,6 l)
Tank Capacity Low-Profile Model: 16.5 gal. (62,5 l)
Battery Compartment dimensions: 16.33” x 12.77” x 10” (41.48 cm x 32.44 cm x 25.4 cm)
Battery dimensions: 8.13” x 6.63” x 12” (20.65 cm x 16.84 cm x 30.48 cm)
Hand-arm vibration: 0.5 mm/sec2
Overall sound level: 74 dB(A)
2

3
Vacuuming
1. Make sure tank lid is closed, all hoses are properly connected, and hose plug is inserted in the dump
hose.
2. Lower the squeegee by pushing slightly down and forward on the foot pedal and allowing it to rise slowly.
3. Turn on the vacuum motor switch.
4. Walk forward slowly, allowing the machine to vacuum up the solution on the floor.
NOTE: The machine is intended to operate only with the squeegee moving forward.
5. To prolong squeegee life, raise the squeegee by pushing the foot pedal down and slightly back to lock in
place when pulling the machine backwards.
CAUTION: Floors will be very slippery when wet, especially when wet with stripping solution!
Stopping
1. Stop the machine’s movement for approximately two seconds.
2. Raise the squeegee by pushing the foot pedal down and slightly back to lock in place.
3. Turn off the vacuum motor.
Draining
1. Place the StripVac in an appropriate area for draining.
2. Remove the dump hose from the spring hose clip at the rear of the machine.
3. Unplug hose plug from dump hose and lower to drain.
Adjusting Squeegee Angle
1. The squeegee angle may be adjusted by turning the adjustment knob until the desired angle is obtained.
Using Optional Squeegee Attachment
1. Disconnect the suction hose from the elbow on the front of the tank.
2. Connect the optional vacuum wand to the elbow on the front of the tank.
3. Turn on the vacuum motor.
4. Push or pull the optional vacuum wand to vacuum fluids in hard to reach areas.
5. When finished, turn off the vacuum motor and reconnect the suction hose.
Operating Instructions

4
Maintenance Instructions
Removing / Attaching Squeegee Blades
Front Squeegee Blade:
1. With the vacuum motor off, remove the front blade by loosening the front seven wing nuts and removing
the front squeegee retainer strap.
2. As the squeegee wears, it may be flipped 180° to have a new wear edge come in contact with the floor.
NOTE: The ribs on the front squeegee must be facing forward.
3. To reattach, place the front blade on the squeegee, followed by the front squeegee retainer strap, and the
front seven wing nuts.
Rear Squeegee and Backer Blades:
1. With the vacuum motor off, remove the rear squeegee and backer blades by loosening the rear seven
wing nuts and removing the rear squeegee retainer strap.
NOTE: The rear squeegee and backer blades are identical. The rear blade is to be positioned so that
the squeegee blade attachment set screws are at the top of the slot in the blade. The backer
blade is to be positioned so that the screws are at the bottom of the slot in the blade. This
enables the rear blade to come in contact with the floor and backer blade to provide support.
2. As the rear squeegee blade wears, it may be reoriented so that all four edges of the blade come in
contact with the floor. After all four edges are worn out, switch the rear squeegee blade with the
backer blade and repeat the process. This enables a total of eight working edges to be used before
replacing blades.
3. To reattach, place the rear squeegee and backer blades on the squeegee. Then secure the rear
squeegee retainer strap with the rear seven wing nuts.
Removing / Attaching Squeegee
1. With the vacuum motor off, disconnect the suction hose from the squeegee.
2. Firmly pull the squeegee from the bracket. If needed, slightly loosen the retaining knobs until the
squeegee is released.

5
Cleaning
IMPORTANT! Clean the StripVac after each use.
1. Place the StripVac in an appropriate area for draining.
2. Remove the dump hose from the spring hose clip at the rear of the machine.
3. Unplug hose plug from dump hose and lower to drain.
4. Open the lid on the top of the tank and rinse the inside of the tank with hot water.
5. Rinse out the suction hose (the one at the front of the machine).
6. Rinse the squeegee.
7. Once unit is thoroughly cleaned and drained, plug in the dump hose and attach hose to hose clip.
8. Clean the optional vacuum wand.
IMPORTANT! Do not get water in the vacuum hose (the one that is connected to the vacuum motor),
or on any electrical components.
CAUTION: Do not lift the tank when it contains liquid.
NOTE: When lowering the tank to its seated position, use care not to kink or crush hoses. Do not
drop the tank into place. Lower the tank gently into position.

6
Battery Maintenance
Connecting the Batteries and
Vacuum Motor

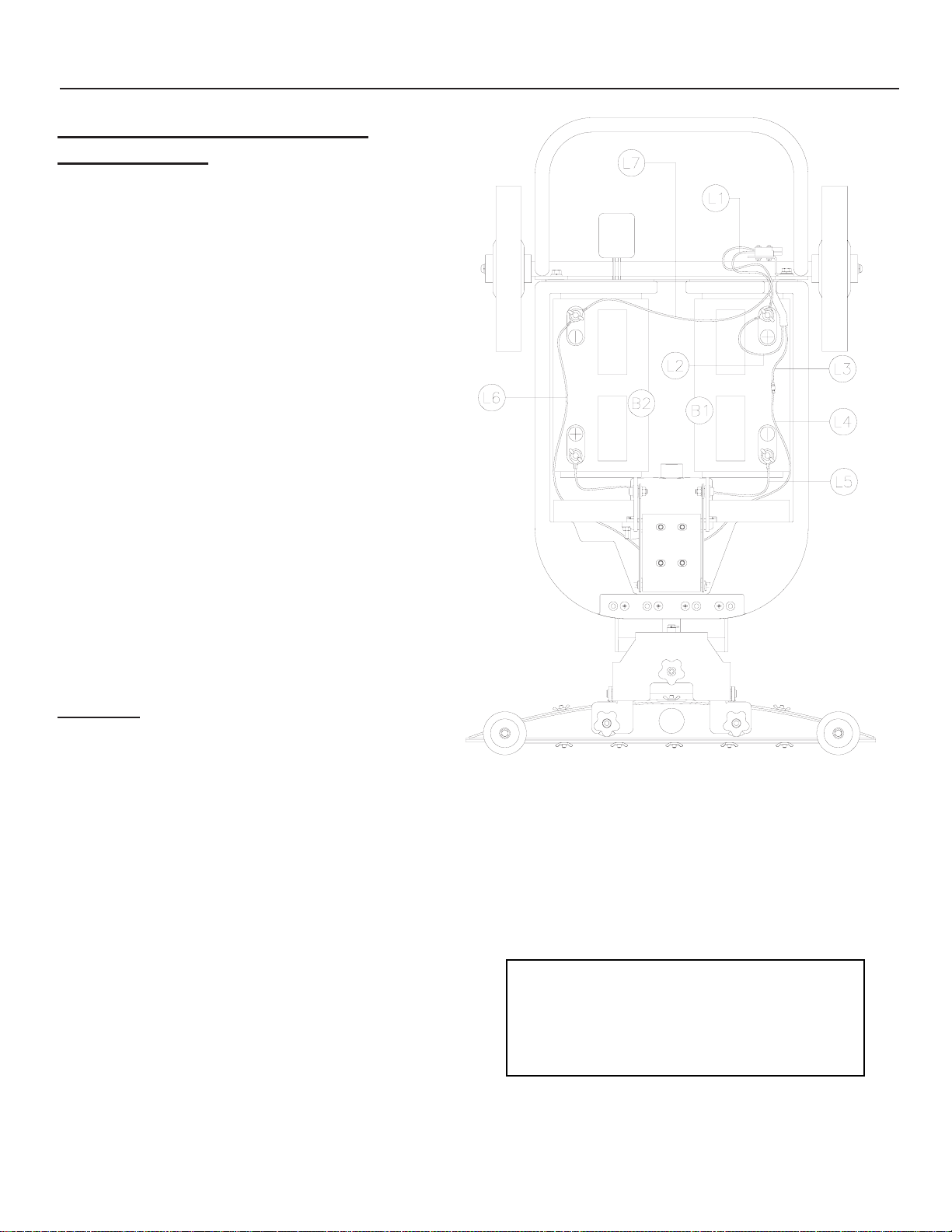

1. Place batteries, B1 and B2, into the chassis as
shown.
2. Connect the charger plug positive lead, L1, on
the positive post of B1.
3. Connect the positive switch lead, L2, on the
positive post of B1. Tighten the wing nut on
the positive post of B1.
4. Connect the positive vac motor leads, L3 and
L4.
5. Connect the jumper lead, L5, from the
negative post of B1 to the positive post of B2
and tighten their respective wing nuts. (Note:
The black end of the L5 connects to the
negative post of B1 and the red end of L5
connects to the positive post of B2.)
6. Connect the negative vac motor lead, L6 to the
negative post of B2.
7. Connect the charger plug negative lead, L7, to
the negative post of B2. Tighten the wing nut
on the negative post of B2.
WARNING: Battery electrolyte is a dangerous
fluid. The fluid contains sulfuric acid, which is
extremely corrosive. Observe the following
precautions to prevent accidents.
Make sure that the liquid does not contact your skin or clothing.
When carrying the battery, or working in the vicinity of the battery, be sure to wear protective glasses and
gloves.
If electrolyte comes into contact with your eyes, skin or clothing, take the following actions:
Contact with skin or clothing: Wash immediately with large amounts of clean water.
Contact with eyes: Wash immediately with large amounts of water for 15 minutes or more.
Consult a physician immediately.
If electrolyte is swallowed, take the following actions:
Drink a large amount of water, a milk and egg white
mix, or vegetable oil.
Consult a physician immediately.
PROPOSITION 65 WARNING
Battery posts, terminals, and related accessories
contain lead and lead compounds, chemicals
known to the State of California to cause cancer
and reproductive harm. Wash hands after handling.

7
Battery Charging
Observe the following for your safety when working with the battery charger:
•Make sure the power is OFF.
•Be sure to use the specified battery charger.
•Connect the battery charger’s power plug only to a 115V/60 Hz 3-wire grounded power supply
(220V/50 Hz European).
•Recharge in a well-ventilated area.
•Recharge only away from flames.
•Do not attempt recharging with wet hands.
•During recharging, place the battery charger in a flat, dry area, or on a safety stand.
•When removing the battery charger power cord or the charger cord from the outlet on the machine, do
so by pulling the plug, not the cord.
•Check the battery charger power cord and charge cord in advance. Do not use a damaged cord.
•Stop recharging if the battery electrolyte temperature is 120°F (50°C) or more.
•Store the batteries and electrolyte in a place that is out of reach of children.
WARNING: Be sure to connect the battery charger power plug to a 3-wire, grounded, 115V/60Hz outlet only
(220V/50 Hz European).
Charging Procedure
1. Switch OFF the machine power switch.
2. Park the floor machine in a safe, flat area.
3. Switch the battery charger power switch OFF.
4. Insert the battery charger charge plug into the machine’s charge socket.
5. Insert the battery charger power plug into the specified outlet.
6. Switch the battery charger ON.
CAUTION:
The battery charger is designed so that charging of batteries is not possible if the voltage level has dropped
below a certain value. Under these circumstances, the battery charger charge lamp will not light.
During charging, do not turn the machine power switch ON.
7. When a certain battery charge level is reached, the battery charger timer lamp lights. After about 3 hours,
the time lamp starts blinking to indicate that charger output has stopped.
8. Check that the timer lamp is blinking, and switch OFF the battery charger power.
9. Remove the charger power plug from the main outlet by the plug. Do not pull on the cord.
10. Remove the charger cord from the charge socket by the plug. Do not pull on the cord.
11. Charging is now complete, and you can operate the machine.
Keep the battery charger in a dry place. Do not store in an area where the floor is wet.

8
Refilling the Battery with Distilled Water
NOTE: If the battery terminals are dirty, wipe clean with a dry cloth, and apply some mineral grease.
1. Switch the power OFF.
2. Drain the recovery tank completely.
3. Lift the tank unit.
4. Check the liquid level. If the electrolyte is between the UPPER LEVEL and LOWER LEVEL, refilling is
not necessary. Refill if below the LOWER LEVEL.
•Remove the cell plugs from the batteries and fill each with distilled water to the UPPER LEVEL. Do
not exceed this level.
•Replace all plugs and tighten.
5. Gently lower the tank unit.
Measuring the Specific Gravity of Battery Electrolyte
1. Switch OFF the power.
2. Drain the tank completely.
3. Lift the tank unit.
4. Remove the cell plugs from the battery. Measure the specific gravity of two (2) of the battery cells on
each battery with a hygrometer. Check the specific gravity and state of battery charge using the table
below.
Fully charged Charging required
68°F (20°C) 68°F (20°C)
1.280 >1.220
5. Replace the cell plugs and tighten firmly.
6. Gently lower the tank unit.
Balanced Battery Charging
Balanced charging is carried out to correct the imbalance between two batteries which may be over- or
undercharged, and improve battery life. This procedure should be carried out once a month.
1. Charge batteries.
2. Switch the battery charger ON. The charge lamp lights up. Continue charging until the timer light starts
blinking again.
3. Check that the battery charger timer lamp is blinking, and carry out the procedure outlined in “Battery
Charging”.

9
Battery Replacement
CAUTION: Use only batteries supplied by Pioneer Eclipse.
1. Switch OFF the power switch.
2. Drain recovery tank.
3. Park the machine in a safe, flat area.
4. Raise the tank unit.
5. Unplug the batteries from the machine. Take hold of both connectors to remove. Do not pull on the
cable.
6. Remove the connection cable from the battery terminals (first the negative terminal, then the positive.) Be
careful not to ground the wrench on the metal frame.
7. Remove the batteries, firmly gripping with both hands. Place the batteries carefully on the floor.
8. Place new batteries in the correct positions in the battery tray. Hold each battery firmly with both hands
and install it gently in the tray.
9. Connect the two cables to the new batteries’ terminals as shown in “Connecting the Batteries and
Vacuum Motor”. Make sure that you are connecting it in the correct way. First, connect a cable to the
positive terminal, and then to the negative terminal.
10. Plug into connection firmly.
11. Lower the recovery tank carefully.

10
This page intentionally blank.

11
Machine Drawings & Parts Lists
Wiring Diagram
REF. PART # DESCRIPTION QTY.
STRIPVAC WIRING DIAGRAM - MP118500
701 SS1012 BATTERY, 12V 2
702 MP120000 CONNECTOR, S4120 W/6
GACONTACTS 1
703 MP115200 MOTOR, VACUUM, 24V, 3 STAGE 1
704 MP119600 SWITCH, 25A 1
705 MP117800 WIRE, PLUG, CHARGER, POS. 1
706 MP117900 WIRE, PLUG, CHARGER, NEG. 1
707 MP118000 WIRE, CORD 1
708 MP118200 WIRE, VACUUM, NEG. 1
709 MP118300 WIRE, 10 GA, BLACK, JUMPER 1
710 MP118400 WIRE, VACUUM 1

12
StripVac Squeegee Assembly

13
StripVac Squeegee Assembly Parts List
REF. PART # DESCRIPTION QTY.
STRIPVAC 26” SQUEEGEE ASM. - MP121200
MODELS SV2026, SV2026E, SV3026E
101 RV005100 KNOB, HANDLE 2
102 NB030900 BOLT, SOCKET, 3/8-16 X 1-1/2”,
SS 2
103 MP107200 KNOB, HANDLE,ASSEMBLY. 2
104 MP038700 WHEEL, 3”, PERFORMA, FLAT
TREAD 2
105 NB025000 BOLT, HEX, 5/16-18 X 1-1/2”, SS 2
106 NB025100 WASHER, FLAT, 5/16”, SS 2
107 NB034800 WASHER, FLAT, FENDER, 3/8”,
SS 2
108 NB033500 WASHER, WAVE,
ID 1-1/4” X OD 1-5/8”, SS 2
109 NB034600 WASHER, FLAT, 1/2”, SS 2
110 NB033600 NUT, WING, 1/4-20, SS 14
111 NB033700 SCREW, SET, 1/4-20 X 1” SS 14
112 MP115400 SQUEEGEE,ALUMINUM 1
113 MP115500 SQUEEGEE, BLADE, FRONT 1
114 MP115600 SQUEEGEE, BLADE, REAR 2
115 MP115700 STRAP, RETAINER, SQUEEGEE 2
116 MP120200 NIPPLE, 1-1/4” O.D. 1
STRIPVAC 34” SQUEEGEE ASM. - MP142200
MODELS SV3034, SV3034E, SV2034E
101 RV005100 KNOB, HANDLE 2
102 NB030900 BOLT, SOCKET, 3/8-16 X 1-1/2”,
SS 2
103 MP107200 KNOB, HANDLE,ASSEMBLY. 2
104 MP038700 WHEEL, 3”, PERFORMA, FLAT
TREAD 2
105 NB025000 BOLT, HEX, 5/16-18 X 1-1/2”, SS 2
106 NB025100 WASHER, FLAT, 5/16”, SS 2
107 NB034800 WASHER, FLAT, FENDER, 3/8”,
SS 2
108 NB034600 WASHER, FLAT, 1/2”, SS 2
109 MP155600 KNOB, FLUTED, 1/4 - 20 X
1” STUD 2
110 MP177400 SQUEEGEE, RUBBER, GUM,
TAN, FRONT 1
111 MP167800 BAND, FRONT, SQUEEGEE,
34” WELD 1
112 MP147400 SQUEEGEE, 34”, WELDMENT 1
113 MP177500 SQUEEGEE, RUBBER, GUM,
TAN, REAR 1
114 MP167600 BAND, REAR, SQUEEGEE,
34”, LEFT, WELD 1
115 MP167700 BAND, REAR, SQUEEGEE,
34”, RIGHT, WELD 1
116 MP084100 LATCH, DRAW HANDLE 1
117 NB023600 RIVET, POP, 1/8 X 5/16 5
118 MP168700 KEEPER, HOOK, EXPOSED 1

14
StripVac Lift Assembly
63559

15
StripVac Lift Assembly Parts List
STRIPVAC LIFTASSEMBLY W/34” SQUEEGEE
REF. PART # DESCRIPTION QTY.
201 MP167200 BRACKET,ADJUSTMENT,
ROLLER, WELD 1
202 NB017100 WASHER, FLAT, NARROW, 1/2” 2
203 NB014600 NUT, LOCK, 1/2 - 13 2
204 MP176500 BRACKET, CASTER, SQUEEGEE
34”, WELD 2
205 NB025500 PIN, CLEVIS, 3/8” X 3/4”, SS 2
206 NB030800 BOLT, CARRIAGE,
5/16 - 18 X 1, SS 2
207 MP012801 CASTER, 2 1/2”, REAR,
3/4”, STEM 2
208 NB033100 BERAING, IGLIDE
3/8” ID X 3/16 PANEL 2
209 NB025100 WASHER, FLAT, 5/16”, SS 2
210 NB026300 NUT, LOCK, 5/16”, SS 2
211 MP167500 BRACKET, BREAKAWAY,
SQUEEGEE, 34” 1
212 NB025600 PIN, PRESTO, 3/32 x 1 5/8, SS 1
213 NB033900 BOLT, CARRIAGE,
3/8 - 16 X 3 1/2”, SS 1
214 NB034000 NUT, HEX, 3/8 - 16, SS 1
215 RV005100 KNOB, HANDLE 1
STRIPVAC LIFTASSEMBLY W/26” SQUEEGEE - MP121300
REF. PART # DESCRIPTION QTY.
201 MP115800 BRACKET, BREAK-AWAY 1
202 MP100400 PEDAL, FOOT, WELDMENT 1
203 MP100700 ARM, LIFT, WELDMENT 1
204 MP115900 BRACKET,ADJUSTMENT,
SQUEEGEE 1
205 NB025500 PIN, CLEVIS, 3/8” X 3/4”, SS 2
206 NB025600 PIN, PRESTO, 3/32 X 1-5/8, SS
(24”, 48” models) 7
(low profile models) 3
207 MP104300 PIN, LIFT, 1/2” X 8 7/8” 1
208 NB033100 BEARING, I-GLIDE, 3/8 ID X 3/16 2
209 NB026000 BOLT, HEX, 1/4-20 X 1”, SS 2
210 NB025900 NUT, LOCK, 1/4” SS 2
211 NB025400 WASHER, FLAT, 1/4”, SS 8
212 NB033800 PIN, CLEVIS, 1/2” X 2”, SS 1
213 MP116200 BUSHING, PIVOT 1
214 NB018000 WASHER, FLAT, 1/2”, NYLON 3
215 RV005100 KNOB, 3/8” 1
216 NB033900 BOLT, 3/18-16 X 3-1/2”
CARRIAGE, SS 1
217 NB034000 NUT, HEX, 3/8”-16, SS 1
218 NB026400 PIN, CLEVIS, 1/4” X 3/4”, SS
(24”, 48” models) 2
(low profile models) 6
219 NB026500 PIN, COTTER, 3/32 X 1”, SS 2
220 MP104900 TREAD, PEDAL, NON-SLIP 1
221 MP239000 BRACKET, BREAK-AWAY, SQ.
34” WELD. 1
222 NB047100 NUT, JAM, 1/2-20 UNF 2
223 MP232800 KNOB, LOCK, KNURLED 2
224 MP232900 NUT, JAM, 1/2-20 UNF, KNURLED 2
225 MP233000 CASTER, SWIVEL, 1-5/8” DIA.
W/STUD 2
34” SQUEEGEE LIFT
BEFORE SERIAL #
63558

16
StripVac Frame Assembly

17
REF. PART # DESCRIPTION QTY.
STRIPVAC FRAME ASSEMBLY - SV000500
301 MP098000 CHASSIS, HYDROSTAR/
STRIPVAC 1
302 MP103500 WELDMENT, BUSHINGS, LIFT 1
303 NB031300 BOLT, HEX, 3/8 -16 X 5/8” 4
304 NB025200 WASHER, FLAT, 3/8”, SS 12
305 MP096200 CASTER, 4”, COLSON 1
306 NB026600 BOLTS, HEX, 5/16-18 X 1, SS 2
307 NB030800 BOLTS, CARRIAGE, 5/16-18 X 1,
SS 4
308 NB026300 NUT, LOCK, 5/16”, SS 6
309 NB025100 WASHER, FLAT, 5/16”, SS 12
310 NB026700 WASHER, LOCK, 5/16, SS 6
311 MP138400 WHEEL, 12” 2
312 MP146600 HANDLE, STRIPVAC
(STANDARD MODEL) 1
MP146700 HANDLE, STRIPVAC,
LOW-PROFILE,ASM 1
313 MP116500 BRACKET, MOUNT, CHARGER 1
314 NB034000 NUT, HEX, 3/8-16, SS 4
315 NB026900 WASHER, LOCK, 3/8”, SS 8
316 MP101200 PLATE, MOUNT, HANDLE,
WELDMENT 1
317 MP116600 PLATE, SUPPORT, TANK,
WELDMENT (24”, 48” models) 1
MP158600 PLATE, SUPPORT, TANK,
WELDMENT (low profile models) 1
318 NB031200 BOLT, 5/16-18 X 5/8”, SS 4
319 NB027000 ROLLER, PIVOT, TANK 2
320 MP101800 HINGE, LH 1
REF. PART # DESCRIPTION QTY.
321 MP101900 HINGE, RH 1
322 NB029400 BOLT, PAN HD, 5/16”-18 X 5/8”
SS 8
323 MP115200 MOTOR, VACUUM, 3-STAGE, 24 V1
324 NB030500 BOLT, HEX, 1/4-20 X 1-1/2, SS 3
325 NB025900 NUT, LOCK, 1/4”, SS 3
326 NB025400 WASHER, FLAT, 1/4”, SS 6
327 MP119600 SWITCH, BREAKER, 24V, 25A,
ROCKER 1
328 MP119800 HOUSING, SWITCH (MODIFIED) 1
329 HAP8026 CONNECTOR, SY120 W/6 GA.
CONTACTS 1
330 NB034500 NUT, LOCK, #6, SS 2
331 NB034300 BOLT, #6-32 X 1” PAN HEAD, SS 2
332 NB034400 WASHER, FLAT, #6, SS 2
333 NB4381 SCREW, DRILL KWIK, #8 X 3/4,
SS 4
334 MP124600 CLIP, SPRING, HOSE 1
335 MP115300 HEYCO, RELIEF, STRAIN, 5/8” 1
336 NB026200 BOLT, STRIPPER,
3/8 X 5/16-18 X 1/2”, SS 2
337 MP120400 BOOT, COVER, SWITCH 1
338 NB030100 WASHER, FLAT, #10, SS 2
339 MP137400 BRACKET, SUPPORT, WELD 4
(2 EACH SIDE)
340 NB038100 BUSHING, 1/2 OD X 0.41 ID
X 0.96 L 4
341 MP138300 BUSHING,ADAPTER, WHEEL 2
StripVac Frame Assembly Parts List

18
StripVac Tank Assembly
052308
