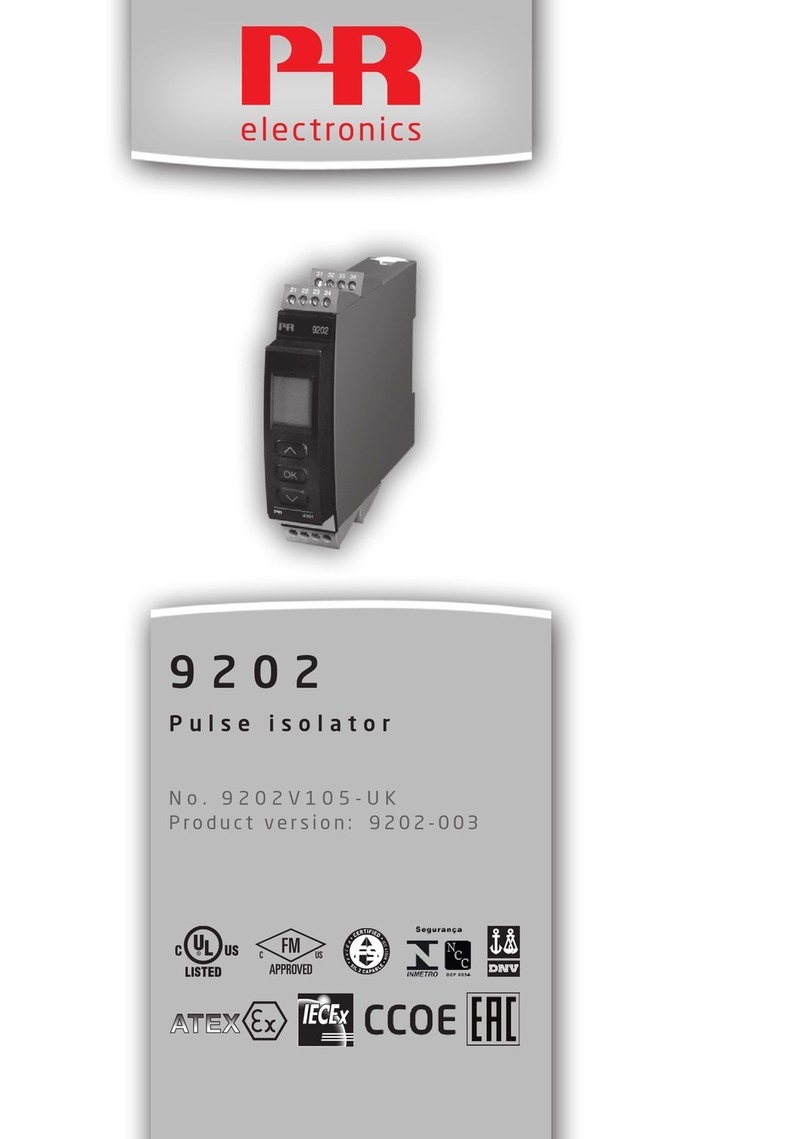

Product manual
9202
Pulse isolator
TEMPERATURE | I.S. INTERFACES | COMMUNICATION INTERFACES | MULTIFUNCTIONAL | ISOLATION | DISPLAY
No. 9202V107-UK
Product version: 9202-003

Communication
Display
I.S. Interface
Isolation
Multifunction
Temperature
6 Product Pillars
to meet your every need
With our innovative, patented technologies, we make signal conditioning smarter and simpler. Our portfolio is composed of six
product areas, where we offer a wide range of analog and digital devices covering over a thousand applications in industrial
and factory automation. All our products comply with or surpass the highest industry standards, ensuring reliability in even
the harshest of environments and have a 5-year warranty for greater peace of mind.
Individually outstanding, unrivalled in combination
Our range of temperature transmitters and sensors provides the highest level of signal integrity from the
measurement point to your control system. You can convert industrial process temperature signals to analog, bus or
digital communications using a highly reliable point-to-point solution with a fast response time, automatic self-
calibration, sensor error detection, low drift, and top EMC performance in any environment.
Our unique range of single devices covering multiple applications is easily deployable as your site standard. Having
one variant that applies to a broad range of applications can reduce your installation time and training, and greatly
simplify spare parts management at your facilities. Our devices are designed for long-term signal accuracy, low
power consumption, immunity to electrical noise and simple programming.
We provide inexpensive, easy-to-use, future-ready communication interfaces that can access your PR installed base
of products. All the interfaces are detachable, have a built-in display for readout of process values and diagnostics,
and can be configured via push-buttons. Product specific functionality includes communication via Modbus and
Bluetooth and remote access using our PR Process Supervisor (PPS) application, available for iOS and Android.
Our display range is characterized by its flexibility and stability. The devices meet nearly every demand for display
readout of process signals, and have universal input and power supply capabilities. They provide a real-time
measurement of your process value no matter the industry, and are engineered to provide a user-friendly and
reliable relay of information, even in demanding environments.
We deliver the safest signals by validating our products against the toughest safety standards. Through our
commitment to innovation, we have made pioneering achievements in developing I.S. interfaces with SIL 2 Full
Assessment that are both efficient and cost-effective. Our comprehensive range of analog and digital intrinsically
safe isolation barriers offers multifunctional inputs and outputs, making PR an easy-to-implement site standard.
Our backplanes further simplify large installations and provide seamless integration to standard DCS systems.
Our compact, fast, high-quality 6 mm isolators are based on microprocessor technology to provide exceptional
performance and EMC-immunity for dedicated applications at a very low total cost of ownership. They can be
stacked both vertically and horizontally with no air gap separation between units required.

9202 - Product version 9202-003 3
Pulse isolator
9202
Table of contents
Warning ................................................................................................ 4
Symbol identification .................................................................................... 4
Safety instructions ...................................................................................... 4
How to demount system 9000 ........................................................................... 5
Advanced features ...................................................................................... 6
Application ............................................................................................. 6
Technical characteristics ................................................................................. 6
Applications - 9202Axxx ................................................................................ 7
Applications - 9202Bxxx................................................................................. 8
PR 45xx display / programming front ..................................................................... 9
Mounting / demounting the PR 45xx ..................................................................... 9
Order ................................................................................................... 10
Accessories ............................................................................................. 10
Technical data .......................................................................................... 10
Configuration of cable fault check ........................................................................ 12
Hardware / software error ............................................................................... 12
Function description..................................................................................... 13
Connections ............................................................................................ 14
Block diagram ........................................................................................... 15
Signal error and cable fault indications without display front ............................................... 16
Configuration / operating the function keys ............................................................... 17
Routing diagram ........................................................................................ 18
Routing diagram, advanced settings (ADV.SET) ............................................................ 19
Help text overview ...................................................................................... 20
ATEX Installation Drawing................................................................................ 21
IECEx Installation Drawing ............................................................................... 24
FM Installation Drawing.................................................................................. 27
UL Installation Drawing .................................................................................. 30
Desenho de instalaçao INMETRO ......................................................................... 35
Document history ....................................................................................... 37

4 9202- Product version 9202-003
Warning
The following operations should only be carried out on a disconnected device and under ESD-safe
conditions:
General mounting, wire connection and disconnection.
Troubleshooting the device.
Repair of the device and replacement of circuit breakers must be done by PR electronics A/S only.
Warning
Do not open the front plate of the device as this will cause damage to the connector for the display /
programming front PR 45xx.
This device contains no DIP-switches or jumpers.
Symbol identification
Triangle with an exclamation mark: Read the manual before installation and commissioning of the
device in order to avoid incidents that could lead to personal injury or mechanical damage. arning/
demand. Potentially lethal situations.
The CE mark proves the compliance of the device with the essential requirements of the directives.
The double insulation symbol shows that the device is protected by double or reinforced insulation.
Ex devices have been approved acc. to the ATEX directive for use in connection with installations in
explosive areas. See installation drawings in appendix.
Safety instructions
Definitions
Hazardous voltages have been defined as the ranges: 75 to 1500 Volt DC, and 50 to 1000 Volt AC.
Technicians are qualified persons educated or trained to mount, operate, and also trouble-shoot technically correct and in
accordance with safety regulations.
Operators, being familiar with the contents of this manual, adjust and operate the knobs or potentiometers during normal
operation.
Receipt and unpacking
Unpack the device without damaging it and check whether the device type corresponds to the one ordered. The packing
should always follow the device until this has been permanently mounted.
Environment
Avoid direct sun light, dust, high temperatures, mechanical vibrations and shock, and rain and heavy moisture. If necessary,
heating in excess of the stated limits for ambient temperatures should be avoided by way of ventilation.
The device must be installed in pollution degree 2 or better.
The device is designed to be safe at least under an altitude up to 2 000 m.

9202 - Product version 9202-003 5
Mounting
Only technicians, who are familiar with the technical terms, warnings, and instructions in the manual and who are able to
follow these, should connect the device. Should there be any doubt as to the correct handling of the device, please contact
your local distributor or, alternatively,
PR electronics A/S
www.prelectronics.com
The use of stranded wires is not permitted for mains wiring except when wires are fitted with cable ends.
Descriptions of input / output and supply connections are shown in the block diagram and on the side label.
The device is provided with field wiring terminals and shall be supplied from a Power Supply having double / reinforced
insulation. A power switch shall be easily accessible and close to the device. The power switch shall be marked as the
disconnecting unit for the device.
For installation on Power Rail 9400 the power is supplied by Power Control Unit 9410.
Year of manufacture can be taken from the first two digits in the serial number.
Calibration and adjustment
During calibration and adjustment, the measuring and connection of external voltages must be carried out according to the
specifications of this manual. The technician must use tools and instruments that are safe to use.
Normal operation
Operators are only allowed to adjust and operate devices that are safely fixed in panels, etc., thus avoiding the danger of
personal injury and damage. This means there is no electrical shock hazard, and the device is easily accessible.
Cleaning
When disconnected, the device may be cleaned with a cloth moistened with distilled water.
Liability
To the extent the instructions in this manual are not strictly observed, the customer cannot advance a demand against PR
electronics A/S that would otherwise exist according to the concluded sales agreement.
How to demount system 9000
Picture 1:
By lifting the bottom lock, the device is detached from the DIN rail.

6 9202- Product version 9202-003
Advanced features
• Configuration and monitoring by way of detachable display front (PR 45xx).
• Selection of direct or inverted function for each channel via PR 45xx.
• Advanced monitoring of internal communication and stored data.
• Optional redundant supply via power rail and/or separate supply.
• SIL 2 functionality is optional and must be activated in a menu point.
Application
• 9202Axxx can be mounted in the safe area and in zone 2 / Class 1, Division 2, Group A, B, C, D.
• 9202Bxxx can be mounted in the safe area and in zone 2 / Class 1, Division 2 and receive signals from zone 0, 1, 2 and
zone 20, 21, 22 including M1 / Class I/II/III, Division 1, Group A-G.
• Pulse isolator for transmission of signals to the safe area from NAMUR sensors and mechanical switches installed in the
hazardous area.
• Monitoring of error events and cable breakage via the individual status relay and/or a collective electronic signal via the
power rail.
• The 9202 has been designed, developed and certified for use in SIL 2 applications according to the requirements of IEC
61508.
• Suitable for the use in systems up to Performance Level “d” according to ISO-13849.
Technical characteristics
• 1 green and 2 yellow/red front LEDs indicate operation status and malfunction.
• 2.6 kVAC galvanic isolation between input, output and supply.
Pulse isolator
9202
• Interface for NAMUR sensors and switches
• Extended self-diagnostics and detection of cable fault
• 1 or 2 channels
• Can be supplied separately or installed on power rail, PR type 9400
• SIL 2-certified via Full Assessment

14
13
12
11
44
43
42
41
54
53
52
51
31
32
33
34
NAMUR
Opto +
Opto -
Opto -
Opto +
NAMUR
Rp
Rs
Rp
-
+
Rp
Rs
Rp
-
+
9202 - Product version 9202-003 7
Applications - 9202Axxx
Zone 2 & Cl. 1, Div. 2, gr. A-D or Safe Area
Rail, supply +
Rail, supply -
Power rail
Status relay signal
Channel 2
Mechanical
switch
Device status
Device status
Supply -
Supply +19.2...31.2 VDC
N.C.
Supply via power rail
Output signals:Input signals:
Channel 1
Mechanical
switch
No connection
No connection
Power connection:
Relay
Relay
Relay
Relay
Ch. 2
Ch. 1
Ch. 1:
N.O. or
N.C.
Ch. 2:
N.O. or
N.C.

44
43
42
41
54
53
52
51
NAMUR
NAMUR
Rp
Rs
Rp
-
+
Rp
Rs
Rp
-
+
14
13
12
11
31
32
33
34
Opto +
Opto -
Opto -
Opto +
8 9202- Product version 9202-003
Applications - 9202Bxxx
Zone 0, 1, 2,
20, 21, 22, M1 &
Cl. I/II/III, Div. 1
gr. A-G Zone 2 & Cl. 1, Div. 2, gr. A-D or Safe Area
Channel 2
Mechanical
switch
Input signals:
Channel 1
Mechanical
switch
Rail, supply +
Rail, supply -
Power rail
Status relay signal
Device status
Device status
Supply -
Supply +19.2...31.2 VDC
N.C.
Supply via power rail
No connection
No connection
Power connection:
Relay
Relay
Relay
Relay
Ch. 2
Ch. 1
Ch. 1:
N.O. or
N.C.
Ch. 2:
N.O. or
N.C.
Output signals:

OK
4501


1
3

4
2
3
4
9202 - Product version 9202-003 9
PR 45xx display / programming front
Functionality
The simple and easily understandable menu structure and the explanatory help texts guide you
effortlessly and automatically through the configuration steps, thus making the product very easy to
use. Functions and configuration options are described in the section ”Configuration / operating the
function keys”.
Application
• Communications interface for modification of operational parameters in 9202.
• When mounted in the process, the display shows process values and device status.
Technical characteristics
• LCD display with 4 lines:
Line 1 (H=5.57 mm) shows status for each channel (OK or error).
Line 2 (H=3.33 mm) shows output for channel 1 (ON / OFF).
Line 3 (H=3.33 mm) shows output for channel 2 (ON / OFF).
Line 4 shows whether the device is SIL-locked. Static dot = SIL-locked and flashing dot = not SIL-
locked.
Line 4 also indicates status for relay 1 and relay 2.
• In order to protect the configuration against unauthorised changes, access to the menus can be
blocked by a password.
Mounting / demounting the PR 45xx
1: Insert the tabs of the PR 45xx into the holes at the top of the device.
2: Hinge the PR 45xx down until it snaps into place.
Demounting of the PR 45xx
3: Push the release button on the bottom of the PR 45xx and hinge the the PR 45xx out and up.
4: With the PR 45xx hinged up, remove from holes at the top of the device.

10 9202- Product version 9202-003
Accessories
4501 = Display / programming front
4511 = Communication enabler
9400 = Power rail
9404 = Module stop for rail
9410 = Power control unit
9421 = Power supply 24 V - Ex nA nC
Technical data
Environmental conditions
Specifications range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20°C to +60°C
Storage temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . -20°C to +85°C
Calibration temperature. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20...28°C
Relative humidity . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 95% RH (non-cond.)
Protection degree . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IP20
Installation in . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Pollution degree 2 & overvoltage category II.
Mechanical specifications
Dimensions (HxWxD) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109 x 23.5 x 104 mm
Dimensions (HxWxD) w/ 4501 / 451x . . . . . . . . . . . . . . . . . . . . . . . 109 x 23.5 x 116 / 131 mm
Weight approx. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170 g
Weight incl. 4501 / 451x (approx.) . . . . . . . . . . . . . . . . . . . . . . . . . 185 g / 200 g
DIN rail type. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DIN EN 60715 - 35 mm
Wire size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.13...2.08 mm2/ AWG 26...14 stranded wire
Screw terminal torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 Nm
Vibration. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IEC 60068-2-6
2...13.2 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±1 mm
13.2...100 Hz . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . ±0.7 g
Common electrical specifications
Supply voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19.2...31.2 VDC
Fuse . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 400 mA SB / 250 VAC
Max. required power is the maximum power needed at terminals 31 and 32.
Max. power dissipation is the maximum power dissipated by the device.
If the 9202 is used with the 45xx, then add 40 mW to the max. power dissipation and 70 mW to the max. required power for each device
with the 45xx.
Order
Example: 9202B2B
Type Description Max. power
dissipation
Max. required
power
9202x1Ax 1 ch., opto ≤ 1.2 W ≤ 1.1 W
9202x1Bx 2 ch., opto ≤ 1.6 W ≤ 1.5 W
9202x2Ax 1 ch., relay N.O. ≤ 1.2 W ≤ 1.3 W
9202x2Bx 2 ch., relay N.O. ≤ 1.8 W ≤ 1.9 W
9202x3Ax 1 ch., relay N.C. ≤ 1.2 W ≤ 1.3 W
9202x3Bx 2 ch., relay N.C. ≤ 1.8 W ≤ 1.9 W
Type Associated
apparatus Version Unit channels I.S. / Ex approvals
9202 No
Yes
: A
: B
Opto
Relay N.O.
Relay N.C.
: 1
: 2
: 3
Single
Double
: A
: B
ATEX, IECEx, FM,
INMETRO, EAC-Ex
cULus, ATEX, IECEx, FM,
INMETRO, EAC-Ex
: -
: -U9

9202 - Product version 9202-003 11
Isolation - test / working:
Inputs / outputs / supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 kVAC / 300 VAC reinforced isolation
Output 1 to output 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 kVAC / 150 VAC reinforced isolation
Status relay to supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1.5 kVAC / 150 VAC reinforced isolation
Programming . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Communication enabler 4511 /
Programming front 4501
Response time for cable fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 200 ms
Auxiliary supplies:
NAMUR supply . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8 VDC / 8 mA
Inputs
Sensor types:
NAMUR according to. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . EN 60947-5-6
Mechanical switch with series (Rs) and parallel (Rp) resistance:
Rs. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 750 Ω
Rp . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 15 kΩ
Frequency range . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0...5 kHz
Min. pulse length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 0.1 ms
Input resistance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Nom. 1 kΩ
Trig level, signal . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 1.2 mA, > 2.1 mA
Trig level, cable fault . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 0.1 mA, > 6.5 mA
Outputs
Relay outputs in safe area
Max. switch frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 Hz
Max. voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 VAC / 30 VDC
Max. current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 A AC / 2 A DC
Max. power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 500 VA / 60W
Status relay in safe area
Max. voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 125 VAC / 110 VDC
Max. current. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 0.5 A AC / 0.3 A DC
Max. power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62.5 VA / 32 W
Opto, NPN outputs
Max. switch frequency . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5 kHz
Min. pulse length. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . > 0,1 ms
Max. load, current / voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80 mA / 30 VDC
Voltage drop at 80 mA . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . < 2.5 VDC
Observed authority requirements
EMC. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/30/EU
LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/35/EU
ATEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2014/34/EU
RoHS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2011/65/EU
Approvals
DNV-GL, Ships & Oshore . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TAA00000JD
ClassNK . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TA18527M
c UL us, UL 61010-1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . E314307
EAC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 020/2011
EAC LVD . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 004/2011
EAC Ex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . TR-CU 012/2011
I.S. / Ex
ATEX . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . KEMA 07ATEX0146X
IECEx . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . IECEx KEM 06.0039X
c FM us. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . FM19US0055X / FM19CA0028X
INMETRO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . DEKRA 16.0005X
c UL us, UL 913 (only 9202xxx-U9) . . . . . . . . . . . . . . . . . . . . . . . . E233311
EAC Ex . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . RU C-DK.HA65.B.00355/19
Functional Safety
SIL2 Certified & Fully Assessed acc. to IEC 61508

12 9202- Product version 9202-003
Configuration of cable fault check
Diagnostics
Cable fault detection
Hardware / software error
Cable fault check, independent detection and visualisation for each channel:
Device: Configuration, common for both channels Cable fault detection:
9202 CA.BR = Yes or CA.SH = Yes OFF
Else: ON
Cable fault detection (CA.BR, CA.SH):
Input Event Readout Limit
All Cable break CA.BR < 0.1 mA
All Short-circuited cable CA.SH > 6.5 mA
Readout at hardware error
Error search Readout Cause
Communications test 45xx and 9202 NO.CO Connection error
EEprom error - check configuration FL.ER Configuration error or crc mismatch,
recovery configuration is loaded
Hardware error DE.ER Invalid recovery configuration in device
Hardware error FC.ER Invalid code checksum in 45xx
EEprom error - check configuration CO.ER Invalid configuration (CRC or data)
Hardware error CA.ER Factory calibration error
Hardware error HW.ER HW setup - configuration mismatch
Hardware error OC.ER Main output controller communication error
Hardware error MS.ER Main internal supply out of bounds
Hardware error MI.ER Main initialisation selftest failed
Hardware error MC.ER Main flash or ram selftest failed
! All error indications in the display flash once per second. The help text explains the error.
In case of cable fault the backlight also flashes. This can be reset by pressing the 3key.
Errors affecting both channels are shown as error on channel 1 - and the line showing channel 2 is blank.
Hardware error can be reset in two ways. Either step through the menus (if the other channel is to stay in
operation) or power cycle the device.

9202 - Product version 9202-003 13
Function description
Examples of connections in connection drawing and block diagram (1)...(4)
(1) NAMUR sensor with cable error detection in case of cable disconnection or short-circuit.
(2) Mechanical contact with cable error detection in case of cable disconnection or short-circuit, when Rs and Rp are
mounted on the contact.
(3) Mechanical contact with cable error detection in case of cable disconnection, when Rp is mounted on the contact.
(4) Mechanical contact without cable error detection.

14 9202- Product version 9202-003
Connections
41 4342 44 41 4342 44 41 4342 44 41 4342 44
51 5352 54 51 5352 54 51 5352 54 51 5352 54
31 32 3433
91 92 93 94 95
+-
Rs
Rp
Rp
+-
Rs
Rp
Rp
+-
11 1312 14 11 1312 14 11 1312 14
+-
Rp= 15 kΩ
Rs= 750 Ω
11 1312 1411 1312 14 11 1312 14
Inputs:
Channel 1Channel 2
Supply and
status relay
Power rail
connections
N.C.
NC = no connection
Supply -
Supply +
Supply -
Supply +
NC NC
Error signal
NAMUR sensor,
cable fault (1)
Switch,
cable fault (2)
Switch,
no cable fault (4)
Switch, cable fault,
disconnection (3)
(1)...(4) = See function
description on page 12
NAMUR sensor,
cable fault (1)
Relay, N.C. Relay, N.O. Opto, NPN
Relay, N.C. Relay, N.O. Opto, NPN
Switch,
cable fault (2)
Switch,
no cable fault (4)
Switch, cable fault,
disconnection (3)
Channel 1Channel 2
Outputs:

44
43
42
41
54
53
52
51 9202
FLASH
CPU 31
14
12
11
32
34
33
13
VNAMUR
VNAMUR
9202x1 9202x2...x3
9202x1 9202x2...x3
NC*NC*
Rp = 15 kΩ
Rs = 750 Ω
Rs
Rp
Rs
Rp
Rp
Rp
(3) (4) (1)(2)
(3) (4) (1)(2)
1
 
 O F F
 
9202 - Product version 9202-003 15
Block diagram
Status relay N.C.
Status relay N.C.
Device status, Green
Switch,
cable error
Supply -
Power rail connections
Supply +24 VDC
Ch. 1 status, Yellow/Red
Ch. 2 status, Yellow/Red
NAMUR
sensor
Switch,
cable error
NAMUR
sensor
Channel 1
Channel 2
Opto + or relay N.O.
or relay N.C.
Opto - or relay N.O.
or relay N.C.
Opto + or relay N.O.
or relay N.C.
Opto - or relay N.O.
or relay N.C.
Channel 1
Channel 2
* NC = no connection
(1)...(4) = See function
description on page 13
Supply +
Supply -

16 9202- Product version 9202-003
Signal error and cable fault indications without display front
List of LED and error signal indications
Condition Green LED Ch. 1:
Yellow / Red
Ch. 2:
Yellow / Red Status relay, N.C. Power rail
signal status
Device OK Flashing Energized OFF
No supply OFF OFF OFF De-energized ON
Device defective OFF Red Red De-energized ON
Channel 1, relay energised Flashing Yellow Energized OFF
Channel 1, relay de-energised
at cable fault Flashing Red flashing De-energized ON (if activated)
Channel 1, relay de-energised Flashing OFF Energized OFF
Channel 2, relay energised Flashing Yellow Energized OFF
Channel 2, relay de-energised
at cable fault Flashing Red flashing De-energized ON (if activated)
Channel 2, relay de-energised Flashing OFF Energized OFF

9202 - Product version 9202-003 17
Configuration / operating the function keys
Documentation for routing diagram.
In general
When configuring the 9202, you will be guided through all parameters and you can choose the settings which fit the
application. For each menu there is a scrolling help text which is automatically shown in line 3 on the display.
Configuration is carried out by use of the 3 function keys:
1will increase the numerical value or choose the next parameter
2will decrease the numerical value or choose the previous parameter
3will save the chosen value and proceed to the next menu
When configuration is completed, the display will return to the default state 1.0. Pressing and holding 3will return to the
previous menu or return to the default state (1.0) without saving the changed values or parameters.
If no key is activated for 1 minute, the display will return to the default state (1.0) without saving the changed values or
parameters.
Further explanations
Password protection: Programming access can be blocked by assigning a password. The password is saved in the device in
order to ensure a high degree of protection against unauthorized modifications to the configuration. If the configured
password is not known, please contact PR electronics support - www.prelectronics.com/contact.
Cable fault information via display front 45xx
Cable fault (see limits in the table) is displayed as CA.BR (cable break) or CA.SH (cable short-circuited). Cable fault is shown
independently for each channel but the configuration is common for both channels. In case of cable fault the backlight flashes.
This can be reset by pressing the 3key. When the cable fault has been remedied, the module will return to normal operation.
Advanced functions
The unit gives access to a number of advanced functions which can be reached by answering “Yes” to the point “ADV.SET”.
Display setup: Here you can adjust the brightness contrast and the backlight. Setup of TAG numbers with 5 alphanumerics.
Selection of functional readout in line 2 and 3 of the display - choose between readout of digital output or tag no. When
selecting ”ALT” the readout toggles digital output and tag no.
Password: Here you can choose a password between 0000 and 9999 in order to protect the unit against unauthorised
modifications to the configuration. The unit is delivered default without password.
Language: In the menu ”LANG” you can choose between 7 different language versions of help texts that will appear in the
menu. You can choose between UK, DE, FR, IT, ES, SE and DK.
Power rail: In the menu ”RAIL” you can choose if errors in the module are transmitted to the central surveillance in the PR
9410 power control unit.
Safety Integrity Level (SIL): See Safety Manual for details.

0000
PASSW.
Txt 1
0000
9999
NO
ADV.SET
Txt 2
NO
YES
1 21 2
*1.1
 OFF
 ON
 
YES
ADV.SET
Txt 2
NO
YES
1 2
YES
CA.BR
Txt 4
NO
YES
1 2
YES
CA.SH
Txt 3
NO
YES
1 2
33
3
3
3
*1.0
1
DIR
CH2.FUN
Txt 7
DIR
INV
1 2
DIR
CH1.FUN
Txt 7
DIR
INV
1 2
33 3
 OFF
 CA.BR
 
Txt 18
 CA.BR
 ON
 
Txt 19
18 9202- Product version 9202-003
Routing diagram
If no key is activated for 1 minute, the display will return to the default state 1.0 without saving configuration changes.
1Increase value / choose next parameter
2Decrease value / choose previous parameter
3Save the chosen value and proceed to the next menu
Hold 3Back to previous menu / return to menu 1.0 without saving.
Continued on the page
Routing diagram ADV.SET
*1.0 Default state.
Line 1 shows status for channel 1 and channel 2.
Line 2 shows status for sensor 1.
Line 3 shows status for sensor 2.
Line 4 indicates whether the device is SIL-locked.
*1.1 Only if password-protected.
Line 1 symbols:
= OK. Flashing = error.
Line 2 and 3 symbols:
Input frequency > 1 Hz =  
Line 4 symbols:
Static dot = SIL-locked
Flashing dot = Not SIL-locked
Power up
Red text signifies safety
parameters in a SIL configuration.
See safety manual for details
To default
state 1.0
Error indication, examples

DISP
SETUP
Txt 6
DISP, PASS,
LANG, RAIL,
SIL
3
CONTRA
Txt 9
9
0
1 21 2
TAG1
TAGNO
Txt 11
9
A
1 2
9
LIGHT
Txt 10
9
0
1 2
D.OUT
DISP
Txt 12
ALT
TAG
D.OUT
1 2
TAG2
TAGNO
Txt 11
9
A
1 2
3 3 333 3
PASS
SETUP
Txt 6/1
YES
EN.PASS
Txt 15
YES
NO
1 2
0000
NEW.PAS
Txt 16
9999
0000
1 2
333
NO
LANG
SETUP
Txt 6/2
UK
LANGUA
Txt 17
DE, DK, ES, FR,
IT, SE, UK
1 2
33
RAIL
SETUP
Txt 6/3
YES
RAIL.ER
Txt 17
YES
NO
1 2
33
*1.2
SIL
SETUP
Txt 6/4
YES
EN.SIL
Txt 14
YES
NO
1 2
3LOCK
CONFIG
Txt 13
LOCK
OPEN
1 2
2008
NEW.PAS
Txt 16
0000
9999
1 2
3 3 3 3
SIL.OK
33
NO
9202 - Product version 9202-003 19
*1.2 If password has been set.
Routing diagram, advanced settings (ADV.SET)
To default
state 1.0

20 9202- Product version 9202-003
Help text overview
[01]
[02]
[03]
[04]
[05]
[06]
[6/1]
[6/2]
[6/3]
[6/4]
[07]
[09]
[10]
[11]
[12]
[13]
[14]
[15]
[16]
[17]
[18]
[19]
Set correct password [ PASS ]
Enter advanced setup [ ADV.SET ]
Enable cable short circuit error indication [ CA.SH ]
Enable cable breakage error indication? [ CA.BR ]
Enable rail status signal output? [ RAIL.ER ]
Enter language setup [ SETUP ]
Enter password setup [ SETUP ]
Enter display setup [ SETUP ]
Enter rail setup [ SETUP ]
Enter SIL setup [ SETUP ]
Select Direct channel function [ CH1.FUN ] [CH2.FUN ]
Select Inverted channel function [ CH1.FUN ] [ CH2.FUN ]
Adjust LCD contrast [ CONTRA ]
Adjust LCD backlight [ LIGHT ]
Write a 5-character channel TAG [ ’TAGON ] [ ”TAGON ]
Show Output state in display [ D.OUT ]
Show TAG in display
Alternate information shown in display
Configuration SIL status (Open / Locked) [ CONFIG ]
Enable SIL configuration lock [ EN.SIL ]
Enable Password protection [ EN.PASS ]
Set New password [ NEW.PAS ]
Select Language [ LANGUA ]
Cable short circuit [ ICA.SH ] [ IIOFF ]
Cable breakage [ ION ] [ IICA.BR ]
