PRECILUM SOPHIA 15 WHITE User manual
SOPHIA 15 WHITE
SOPHIA 24 WHITE
SOPHIA 30 WHITE
SOPHIA 54 WHITE
INSTRUCTIONS MANUAL
ON/OFF or DALI
TABLE OF CONTENTS
SOPHIA INSTRUCTIONS MANUAL v1.1 1
1. INTRODUCTION
2. SAFETY AND OPERATION
3. INSTALLATION
4. CONNECTION DIAGRAMS
5. CARE AND MAINTENANCE
. TECHNICAL SPECIFICATION
7. WARRANTY STATEMENT
2
5
12
13
14
15
FOR YOUR OWN SAFETY PLEASE READ THIS INSTRUCTION
MANUAL CAREFULLY BEFORE BEGINNING SETUP AND
INSTALLATION.
LED
Electrostatic Sensitive Device
(EDS)
WWW.PRECILUM.COM
1. INTRODUCTION
2
SOPHIA WHITE - exterior luminaire with high-power OSRAM LED
TECH OLOGY. Passive cooling of LED with optimised heat sink
geometry. o multiple shadows, energy-efficient LEDs with very good
colour rendering. The SOPHIA WHITE represents a combination of a
balanced design and technology from a Czech manufacturer. The use of
quality materials and precision manufacturing offers a professional
lighting solution. OSRAM LED’s with a life expectancy of 100,000 hrs
give a choice of fantastic ilumination. The attractive and compact design
provides a truly versatile lighting system. It is idealy suited to use in
fasade ilumination and architectural monuments ilumination.
It made using highest quality materials and construction methods,
bringing the flexibility to outdoor application. This powerful lighting
fixture is ideally suited to use in landscape and building illumination
and IP66 ensures safe operation in even the most demanding areas.
The product in basic form is not suitable for environments with
elevated salt content (seaside environments, winter salting, etc.).
Products from the "Marine" range are designed for this environment. It
is also possible to coat this base product with a protective coating.
1.1 About the product
WWW.PRECILUM.COMSOPHIA INSTRUCTIONS MANUAL v1.1
●Consider the respective national norms during the installation!
●Do not install the fixture near high inflammable liquids or materials.
●Do not looking directly into the LED light beam at close range.
●Turn off the power prior to light fixture installation!
●The light fixture may be installed only by a qualified person!
●The light fixture must be wired according to respective electrical
standards.
●The manufacturer shall not be liable for any modifications of the
product of incorrect installation of the product.
●ever install the luminaire on rain, fog or high humidity.
2. SAFETY AND OPERATION
5
CAUTION - DANGEROUS VOLTAGE CONSTITUTING A RISK OF
ELECTRIC SHOCK IS PRESENT WITHIN THIS UNIT
CAUTION - THE POWER SUPPLY MUST BE UNPLUG FROM THE
MAINS POWER BEFORE CONNECTING ANY CABLES TO AVOID
DAMAGING THE PRODUCT
CAUTION – FOR YOUR OWN SAFETY AVOID LOOKING DIRECTLY
INTO THE LED LIGHT SOURCE
ANY PERSONS WHO INSTALLING THIS PRODUCT MUST BE
QUALIFIED FOR THE HANDLING OF ELECTRICAL
EQUIPMENT AND INSTALLATION MUST BE PERFORMED WITH
LOCAL STANDARTS AND REGULATIONS
WWW.PRECILUM.COMSOPHIA INSTRUCTIONS MANUAL v1.1

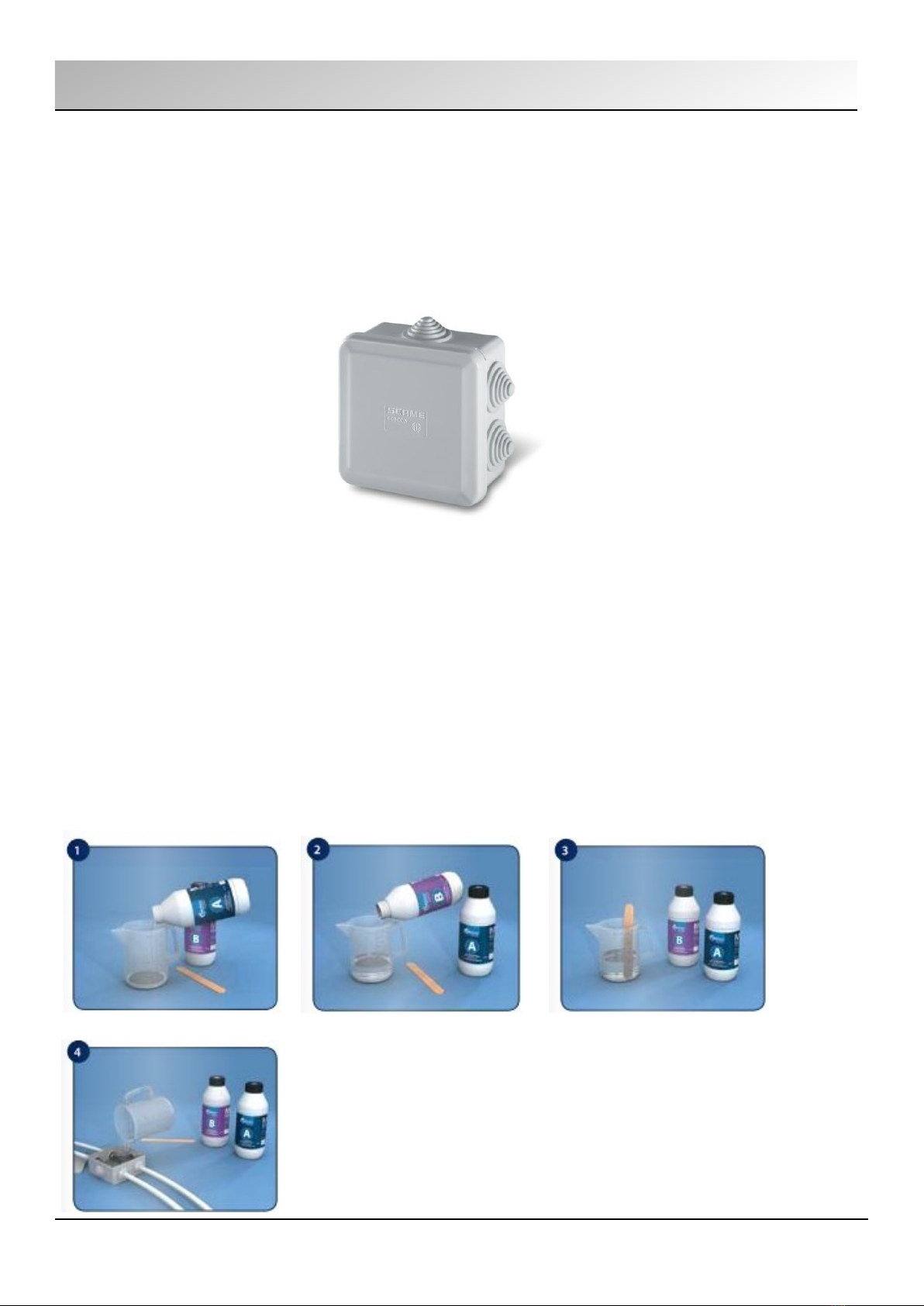

Use a SCAME IP box or similar (not included).
Must be made a waterproof connection of at least IP68. We strongly
recommend to use special two components silicone GEL for sealing
junction boxes containing electrical connections. If the IP rating of the
connection is not observed, the complaint will not be accepted!
For example:
https://www.etelec.com/prodotto/mpgel/
Video tutorial:
https://www.youtube.com/watch?v=tj6ksKdzuE0
PRECILUM requirement:
3. INSTALLATION
10
3.3 IP connection
WWW.PRECILUM.COMSOPHIA INSTRUCTIONS MANUAL v1.1
3. INSTALLATION
11
3.3 IP connection

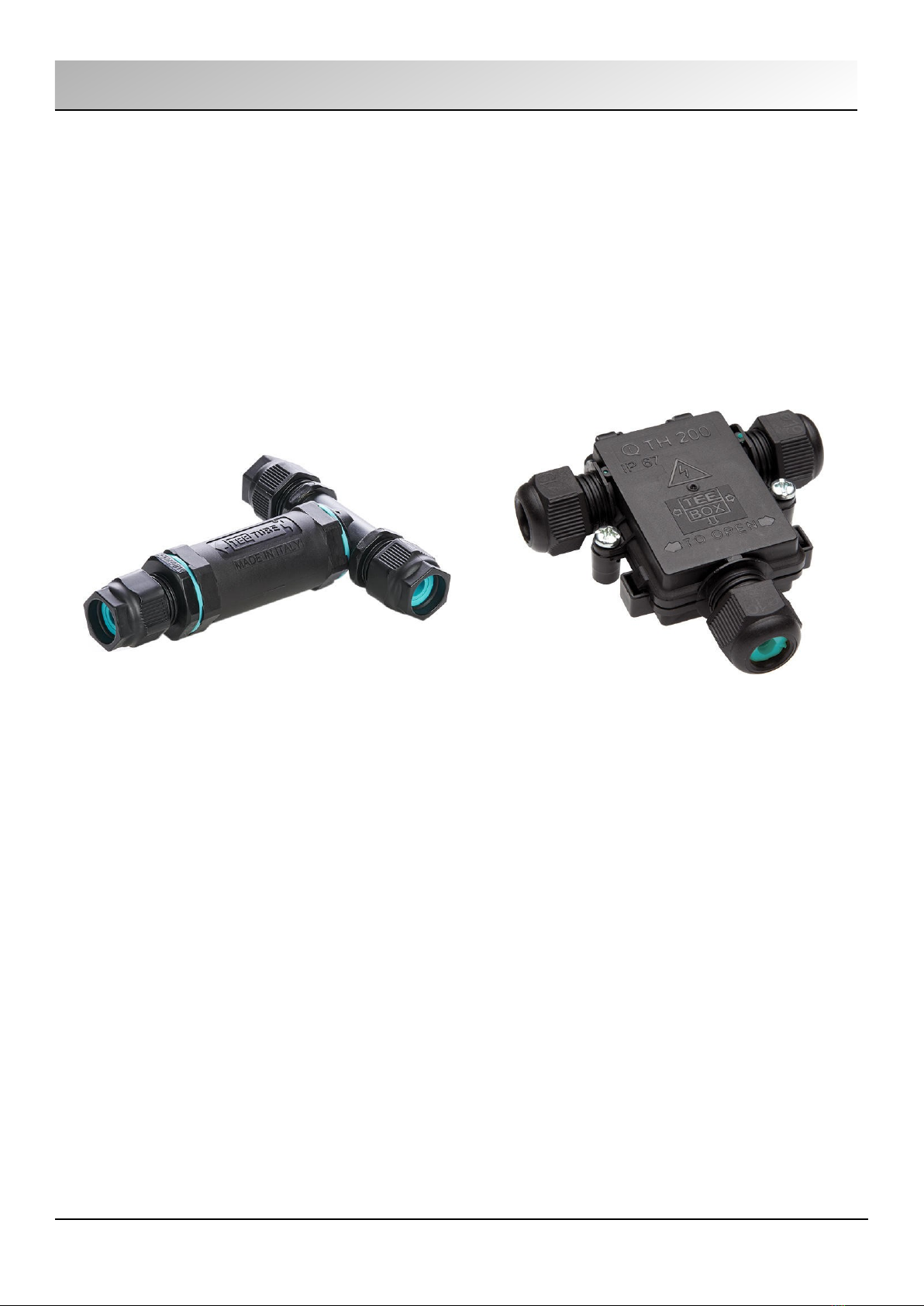

Use a TECH O® IP circular junction connector (TeeTube®) or TECH O®
IP juction box (TeeBox®). ot included!
●3 poles (O /OFF) TeeTube® (THR.390.S3T):
●5 poles (DALI) TeeTube® (THB.402.C1F.R):
●3 poles (O /OFF) TeeBox® (THR.200.S3M):
●5 poles (DALI) TeeBox® (THB.200.E5E):
TeeTube® TeeBox®
PRECILUM recommendation:
WWW.PRECILUM.COMSOPHIA INSTRUCTIONS MANUAL v1.1
Clean the front transparent cover at least every 6 months. Use a moist,
lint-free cloth. ever use alcohol or solvents.
A scheduled maintenance programme must be carried out on the
installation and the fittings regardless of their IP rating or application –
these must include the following operations:
●Clean the fittings from dirt that may be deposited in the heads of the
screws by following the installation instructions attached to each
fitting.
●Check that the screws are not loose on the various components of
the luminaire (glass frame, cable entry , ...).
●Check each cable gland, and cable for damage and that the cable
gland has not come loose.
●For each Isolation Class 1 fitting check that the earth cable has not
come loose. The clip must not show signs of oxidation,damage or
become loose.
●For class 2 fittings check any eventual plastic / isolating covering in
order to verify any damage.
●Check that all the seals are in good condition and that they are not
damaged or split.
The internal components such as the ballasts, transformers, washers
and screws must not show clear signs of oxidation or rust.
Clear traces of rust and oxidation will indicate the presence of water
inside the luminaire.
In case of damage the components must be replaced by original
components and spare parts before using the fitting.
We also recommend to check the fitting at least once a year or within
the prescribed maintenance schedule period depending on the type of
installation.
5. CARE AND MAINTENANCE
13
PRECILUM™ PRODUCTS ARE OF SUPERIOR DESIGN AND
QUALITY AND SHOULD BE TREATED WITH CARE. THE
RECOMMENDATIONS BELOW WILL HELP FULFILL GAIN GOOD
USE AND LONGEVITY FROM THE PRODUCTS.
WWW.PRECILUM.COMSOPHIA INSTRUCTIONS MANUAL v1.1
See 3.1 Installation of fixture
Spot, arrow, Medium, Wide, Flood, Oval, Assym.
High power OSRAM LEDs
2700K, 3000K, 4000K, 5700K
See datasheet
230V 50Hz AC
Electronic control gear TRIDO IC
SOPHIA 15
23W
SOPHIA 24
45W
SOPHIA 30
60W
SOPHIA 54
95W
100 000 hrs./L70 @25°C
-30°C/+45°C
Housing: extruded aluminium
Cover: clear tempered glass
See dimensional drawing
IP66
SOPHIA 15: 2,8 kg
SOPHIA 24: 4,5 kg
SOPHIA 30: 4,5 kg
SOPHIA 54: 7,5 kg
See website
. TECHNICAL SPECIFICATION
14
Mounting:
Optical system:
LED device:
LED colour:
Lumen output:
Input voltage:
Driver type:
Max. power conpusion:
Service lifetime:
Operation ambient temp:
Materials:
Dimensions:
Enviroment:
Weight:
Accesories:
WWW.PRECILUM.COMSOPHIA INSTRUCTIONS MANUAL v1.1
