PRECISE FLIGHT Pulselite 1210 User manual

Revision: J February 1, 2007 Page 1
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
INSTALLATION
REPORT NO. PPRI-3000
Document Number: 015PMAN0003
Aircraft Serial Number:
STC Number: SA4005NM
SA00701SE
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
Pulselite® Model 1210 / 2405-2A Installation Manual
FAA STC Number SA4005NM
FAA STC Number SA00701SE
NOTICE
These documents must be kept with the Aircraft Records
THIS DOCUMENT CONTAINS PROPRIETARY INFORMATION ON THE PRECISE FLIGHT, INC.
(PFI) COMPANY AND ITS RECEIPT OR POSSESSION DOES NOT CONVEY ANY RIGHTS TO
REPORDUCE, DISCLOSE ITS CONTENTS, OR TO MANUFACTURE, USE, OR SELL
ANYTHING IT MAY DESCRIBE. REPORDUCTION, DISCLOSURE, OR USE WITHOUT
SPECIFIC WRITTEN AUTHORIZATION OF PFI IS STRICTLY FORBIDDEN.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 2
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
TABLE OF CONTENTS
Table of Contents ...................................................................................................................... 2
List of Tables ............................................................................................................................. 3
List of Figures............................................................................................................................ 3
Revisions ................................................................................................................................... 4
List of Active Pages ................................................................................................................... 5
1.0 Overview.............................................................................................................................. 6
1.1 Introduction ...................................................................................................................... 6
1.2 Product Description.......................................................................................................... 6
1.2.1 Pulselite Control Unit Specifications .......................................................................... 7
1.3 Installation Overview........................................................................................................ 7
1.4 Pulselite Model 1210 Installation Kit Contents ................................................................. 8
1.4.1 Unpacking and Inspection ......................................................................................... 8
1.5 How to Use This Manual and Read the Drawings............................................................ 8
1.5.1 Notes and Warnings .................................................................................................. 8
1.5.2 List of Abbreviations .................................................................................................. 9
1.5.3 Drawing Interpretation ............................................................................................... 9
1.5.4 Parts Lists................................................................................................................ 10
1.6 Manual Revisions...........................................................................................................10
2.0 Installation Instructions ...................................................................................................... 11
2.1 General .......................................................................................................................... 11
2.2 Installation Approval Basis............................................................................................. 11
2.3 List of Tools.................................................................................................................... 12
2.3.1 List of Supplies ........................................................................................................ 12
2.4 Pulselite Control Unit Installation ................................................................................... 12
2.4.1 Cooling Considerations ........................................................................................... 12
2.4.2 Control Unit Location Considerations ...................................................................... 12
2.4.3 Pulselite Control Unit Installation............................................................................. 13
2.5 Electrical Installation ...................................................................................................... 14
2.5.1 Installation Considerations ...................................................................................... 14
2.5.2 Wiring Considerations ............................................................................................. 14
2.5.3 Control Unit Wiring .................................................................................................. 15
2.6 Switch Installation .......................................................................................................... 16
2.7 Diode Installation............................................................................................................ 17
2.8 Typical Installation Examples......................................................................................... 18
3.0 Testing............................................................................................................................... 20
3.1 Installation Testing ......................................................................................................... 20
3.2 EMI/FRI Testing ............................................................................................................. 20
3.2.1 Test Procedures ...................................................................................................... 21
3.2.2 Testing Conditions................................................................................................... 21
3.2.3 Ground Communications Test................................................................................. 21
3.2.4 Ground Navigation Systems Test ............................................................................ 22

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 3
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
3.2.5 Ground Weather Radar Test ................................................................................... 24
3.2.6 Ground Autopilot and Flight Director Test ............................................................... 24
3.2.7 Conclusion...............................................................................................................25
4.0 Documentation .................................................................................................................. 26
5.0 Trouble Shooting Guide.....................................................................................................27
5.1 Pulselite Fails To Operate.............................................................................................. 27
5.2 Additional Technical Assistance..................................................................................... 27
5.3 Return Authorization ...................................................................................................... 27
5.4 Warranty Service............................................................................................................ 27
LIST OF TABLES
Table 1- List of Abbreviations .................................................................................................... 9
Table 2 - Sample Parts List ..................................................................................................... 10
Table 3 - Tools Used ............................................................................................................... 12
Table 4 - Supplies Used .......................................................................................................... 12
Table 5 - Pulselite Wire............................................................................................................ 16
LIST OF FIGURES

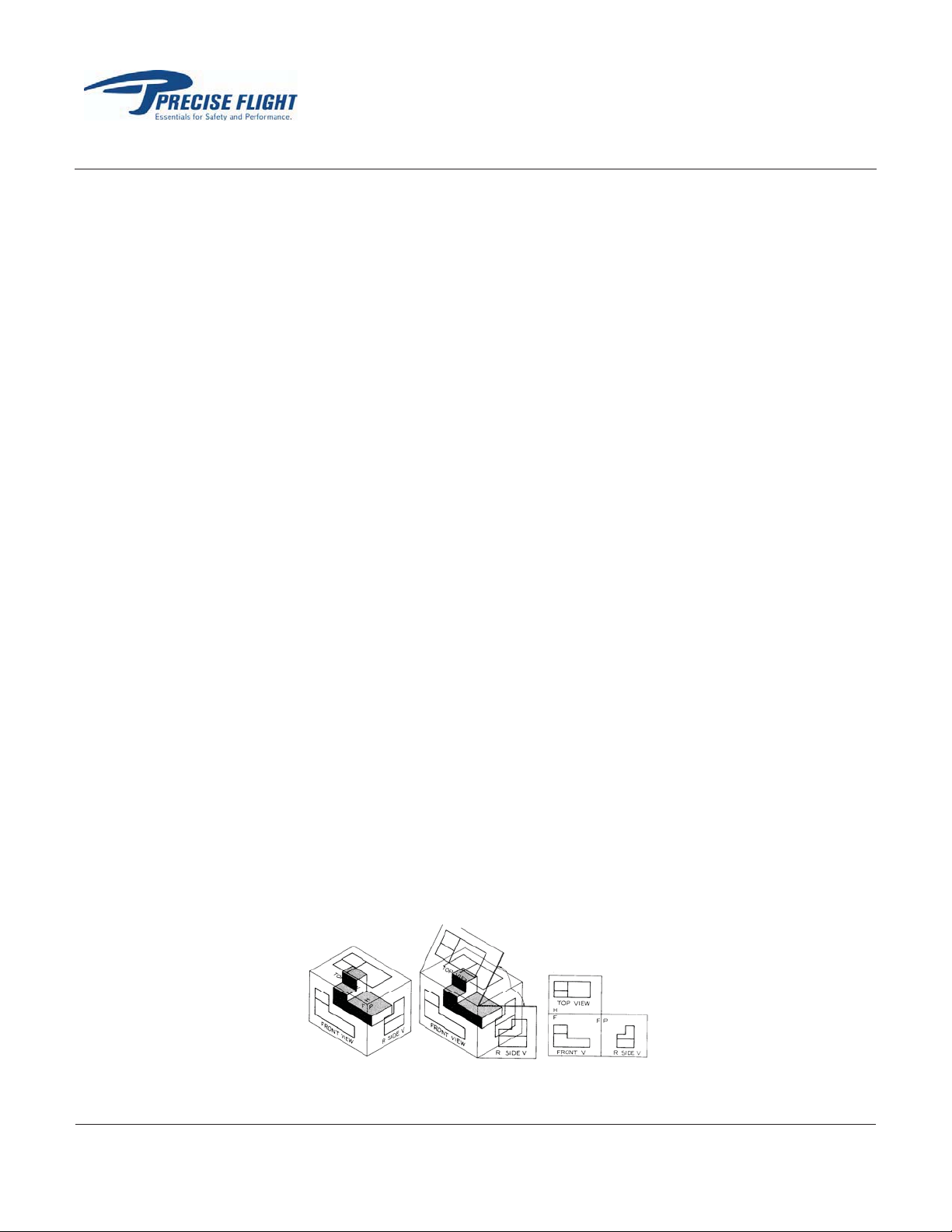

Figure 1 - Third Angle Projection Example ................................................................................ 9
Figure 2 - Pulselite Control Unit Dimensions ........................................................................... 13

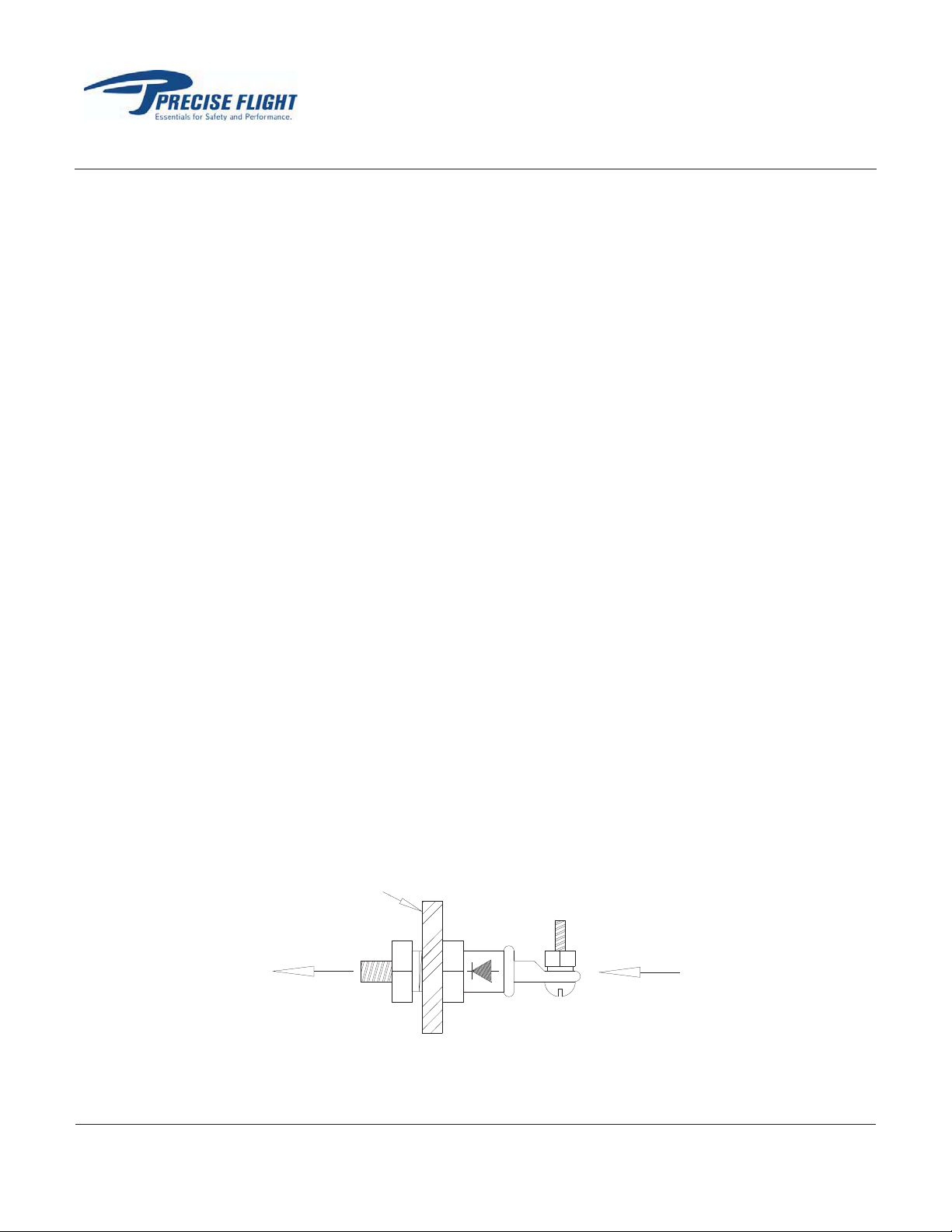

Figure 3 - Diode Installation..................................................................................................... 17

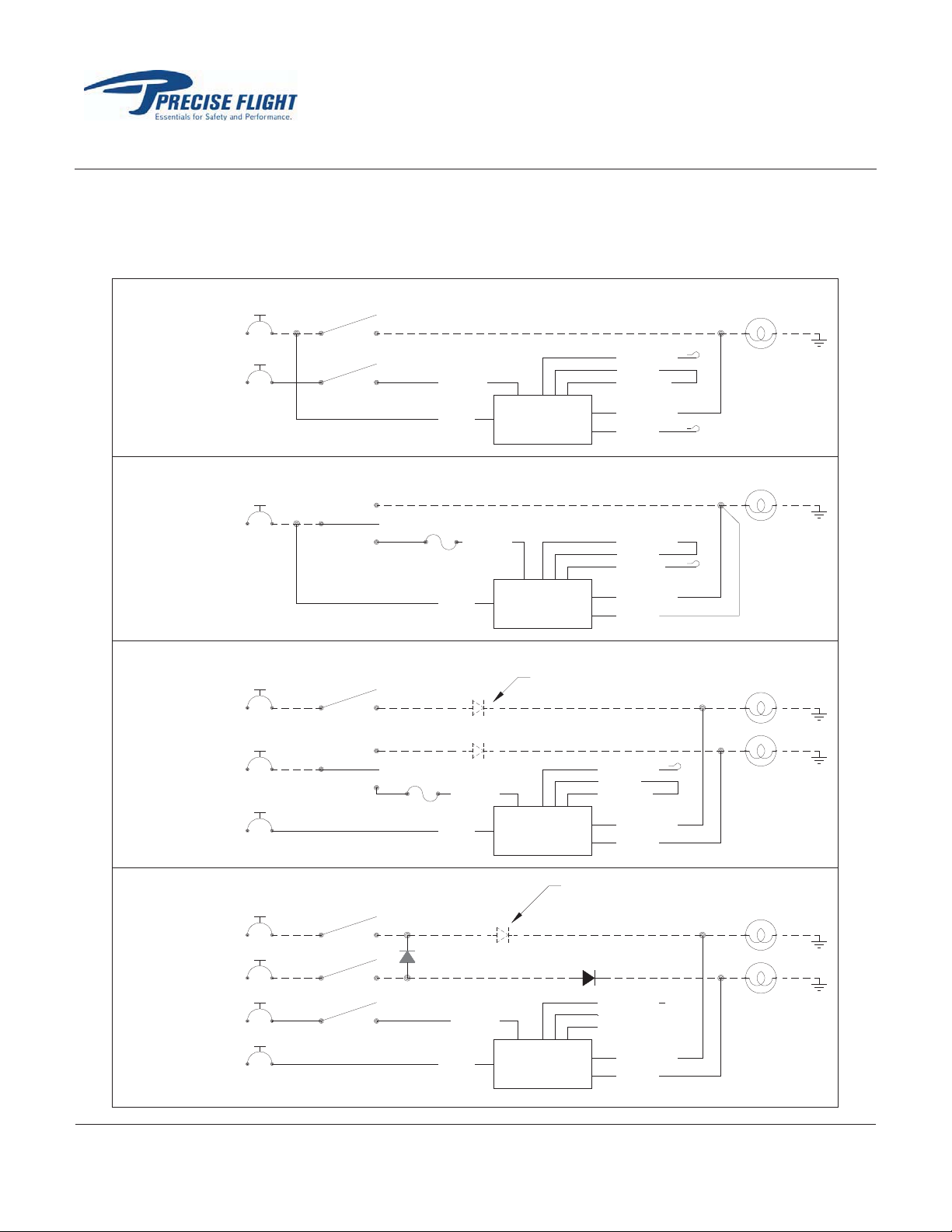

Figure 4 - Typical Installations ................................................................................................. 19

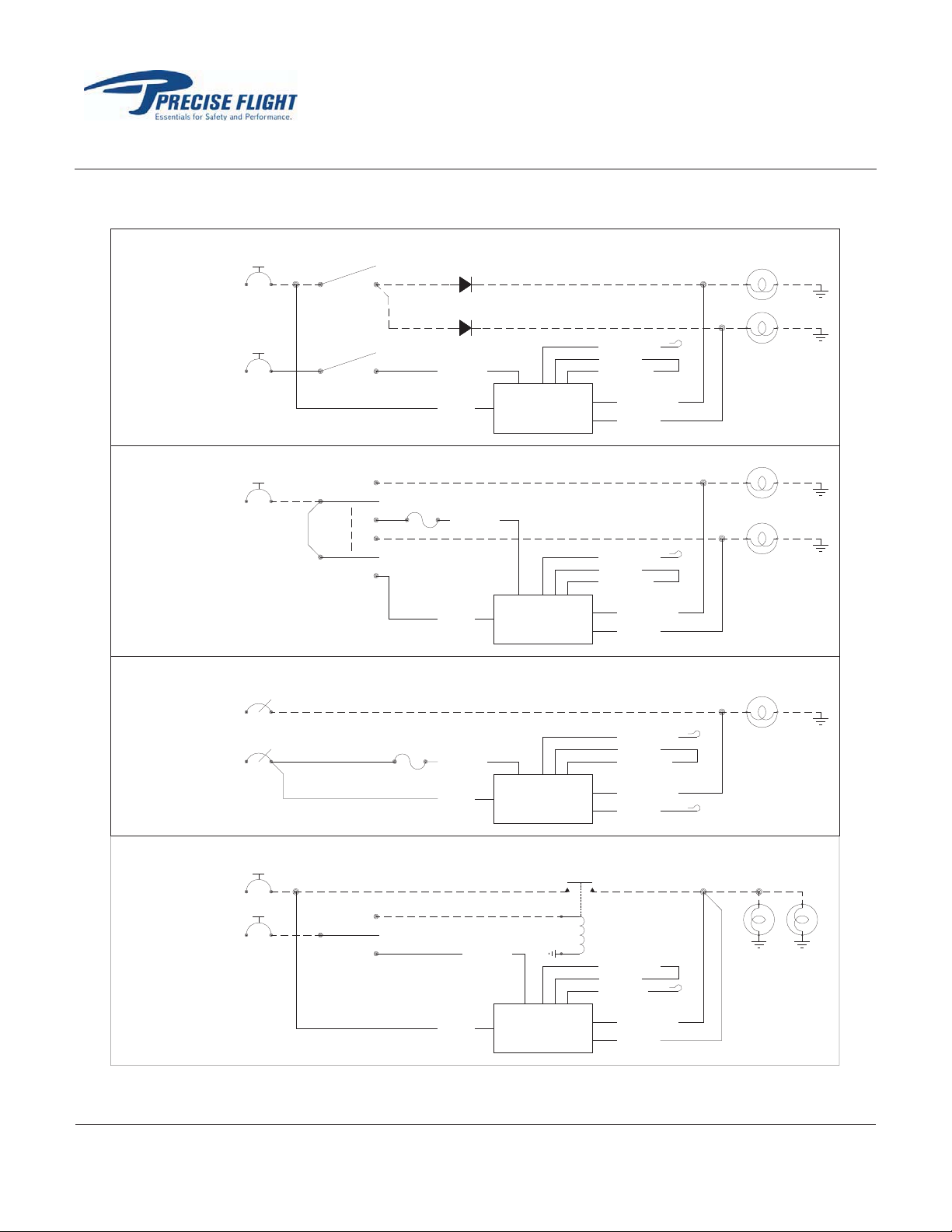

Figure 5 - Typical Installations ................................................................................................. 19
Figure 6 - Suggested FAA Form 337 Description of Work Statement ..................................... 26

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 4
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
REVISIONS
Rev. DESCRIPTION OF CHANGES Author Date Approved
By
Approved
Date
-Original Release - - - -
A (1) Delete note on mounting location. Change weight
typing error
- - CGL 5/16/1989
B (2) Removed mount bracket from DWG# PL-32478.
Eliminate wire spec. Mil-W-5086
- - CGL 9/18/1989
C (3) Add updated AML dated 3/26/90
Redraw & Renumber DWG# PL-32478 to
000P043M dated 8/29/90
Minor word correction for clarity
Made minor corrections, changed physical DWG#
000P053M to reflect new heatsink design
- - JFP 8/9/1991
D (4) Removed warranty statement
Removed STC & AFM Supplement, Move drawing
data to Appendix A, Include packing list
Changed model number
Changed installation instructions
- - DJT 5/12/1993
E (5) Corrected DWG# 000P023M to show correct diode
placement
- - RPB 5/9/1994
F (6) All pages Revised & Rewritten - - STP 8/27/1996
G (7) Added list of Active Pages, Revised Page numbers.
Added text, added Continued Airworthiness
- - STP 10/28/1996
H (8) Added STC # for Robinson R22 & R44, Added
Robinson R22 & R44 packing list
- - STP 5/26/1999
I (9) Revised AC43.13-1A to -1B. Revised 337
statement.
- - EWL 11/22/1999
J (10) Updated installation document format. Added how
to use manual and drawings section. Added
wiring & switch considerations. Added wiring
examples. Added Pass/Fail blocks to the EMI
RFI testing, Revised COMM. test blocks.
Removed Appendix with packing slip, and
installation drawing. ICA information moved to
PFI document 000PMAN0002.
DJC 02/01/2007 JNS 5/16/2007

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 5
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
LIST OF ACTIVE PAGES
ORIGINAL ADDED PAGES
PAGE REV PAGE REV PAGE REV PAGE REV
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J
J

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 6
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
1.0 OVERVIEW
1.1 INTRODUCTION
This manual contains information regarding the physical, mechanical, and electrical characteristics,
as well as installation information pertaining to the Precise Flight Pulselite® Model 1210 / 2405-2A
Control Unit. For maintenance and repair information, contact Precise Flight Inc.
1.2 PRODUCT DESCRIPTION
The Precise Flight Inc. Pulselite® system is a solid-state electrical switching unit that pulses the
aircraft’s existing external lights, such as the Landing, Taxi, Recognition, Logo, or Hover Lights.
The lights are pulsed in variety of patterns at 45 or 90 times per minute to create an illusion of
exaggerated motion. This illusion enhances aircraft recognition in flight, similar to the manner that
the flashing lights on an emergency vehicle do for automobiles.
The Pulselite® system does not effect normal operation of the aircraft lighting system. The
Pulselite simply bridges the existing aircraft light switches and/or relays allowing the pilot to turn on
his external lights at any time, by moving the original light switches to the ON position. When the
pilot switches the applicable external lights off and the Pulselite is switched to PULSE, the Pulselite
function will resume. The original external lighting switch(es), and any additional Pulselite control
switch(es), need to be switched off to extinguish the lights.
The Pulselite connects easily to an aircraft's external lighting system, and may be installed on a
wide variety of aircraft with differing light sequence combinations.
The control circuit of the Pulselite requires 12 or 24 VDC. The two controlled power circuits pulse
DC Power to the aircraft lamps with loads no greater than 125 Watts per channel (or approximately
10 Amps @ 12 VDC or approximately 10 Amps @ 24 VDC).
Precise Flight recommends that the landing lights be turned on steady (full time) when the aircraft
is within 200' AGL at night. Due to possible disorientation, the Pulselite should not be operated at
night in clouds or on the ground. The landing lights may be turned on steady by simply switching
the original landing/taxi/recognition lights on.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 7
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
1.2.1 Pulselite® Control Unit Specifications
x Control Unit weight: .065 lb (0.29kg)
x Cooling: Radiation and Convection
x Dimensions: 4.75in (W), 3.0in (D), 1.25in (H)
12.06cm (W), 7.62cm (D), 3.18cm (H)
x Control Unit Operating Voltage: 11VDC - 29VDC
x Control Unit Operating Current: 0.02 Amps
x Lamp – Capacity: 125 Watts MAXIMUM per channel
10A Max @12VDC
5A Max @ 24VDC
x Available Lamp Outputs: 2 Channels
x Pulse Frequency: Approximately 45 Pulses per minute – Low Rate
Approximately 90 Pulses per minute – High Rate
x Ambient Operating Temp: +5°F to +158°F (-15°C to +70º)
x Sequence Operation: 2 lights Alternating pulse
Or 2 lights pulsing Simultaneously
1.3 INSTALLATION OVERVIEW
1. Read through the entire manual, and become familiar with the drawings, before beginning any
part of the installation process.
2. Verify Pulselite installation kit (See section 1.4)
3. Mount the control unit to the aircraft.
4. Route and terminate the wires with the appropriate connectors.
5. Install the Pulselite circuit breaker and switches in the cockpit.
6. Functionally check the Pulselite® System.
7. Filling out necessary FAA paperwork and logbook entries to return the aircraft to service.
8. Complete and return the warranty card to Precise Flight, Inc.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 8
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
1.4 PULSELITE®MODEL 1210 INSTALLATION KIT CONTENTS
The Pulselite® Model 1210 / 2405-2A Kit may contain the following items.
Item Inventoried Description
1 Pulselite Control Unit Model Unit
2 Copy of the Supplemental Type Certificate
3 Generic Rocker Switch
4 Fuse
5 Fuse Holder
6 Diode Set
7 Placard
8 Butt Splices
9 Ring Terminals
10 Installation Manual (This Manual)
11 Warranty Card
12 Screws and washers
13 Bundle Ties
1.4.1 Unpacking and Inspection
Exercise care when unpacking the equipment. Make a visual inspection of the unit for evidence of
damage incurred during shipment. If a claim for damage is to be made, save the shipping
container to substantiate the claim. The claim should be filed with the transportation company.
Retain the container and packaging material after the equipment has been removed, should
equipment storage or reshipment become necessary.
1.5 HOW TO USE THIS MANUAL AND READ THE DRAWINGS
1.5.1 Notes and Warnings
Because of the uniqueness of this installation in existing aircraft, Precise Flight has added notes,
cautions, and warnings to the installation manual.
NOTE
Notes are used to emphasize certain steps to prevent problems with the installation.
We, at Precise Flight, have added these notes to prevent problems before they occur
based on our experience installing these systems, or from ‘your’ feedback.
!CAUTION !
Cautions are used if aircraft damage can occur due to a missed step.
Please remember, we only have these in key locations based on previous
experience. It is the installer’s responsibility to make sure the installation is
done correctly, and to airworthiness standards.
!! WARNING !!
Warnings are used to emphasize a part of the installation where if done
incorrectly can pose a serious hazard to the installer or the pilot.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 9
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
1.5.2 List of Abbreviations
This section is to provide the reader with a complete state of the abbreviations used in this
document and installation.
Table 1- List of Abbreviations
A/R As Required
AC Advisory Circular
AOG
AMM
Aircraft On Ground
Airplane Maintenance Manual
BL Butt Line
CB Circuit Breaker
DC Direct Current
FAA Federal Aviation Administration
FS or STA Fuselage Station (Flight Station)
IAW In Accordance With
ICA Instructions for Continued Airworthiness
IR Initial Release
Lb, lbs Pounds
PCU or PLCU Pulselite Control Unit
PFI Precise Flight, Inc.
MM Maintenance Manual
(Implies aircraft manufactures maintenance manual)
N/A or ‘-‘ Not Applicable
N/C No Connect
SWPM Standard Wiring Practices Manual
RETR
V
Retractable
Volts
VAC Volts Alternating Current
VDC Volts Direct Current
WDM Wiring Diagram Manual
WL Water Line
WS Wing Station
1.5.3 Drawing Interpretation
All drawings produced by Precise Flight Inc, are based on ASME Y14.5-1994 standards,
measurements in Inches, and Third Angle Projection. Information on the drawings including notes,
parts, etc. are part of the FAA approved design and in most cases do include important installation
and manufacturing information.
Third Angle Projection is the method drawing views are produced as shown below.
Figure 1 - Third Angle Projection Example
(Earle, James “Engineering Design Graphics”)

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 10
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
1.5.4 Parts Lists
A source of possible confusion when reading drawings is the proper interpretation of the parts list
or Bill of Materials (BOM). This STC includes multiple aircraft models and lamp/switch
configurations in the same drawing package. Because of the differences, special care must be
taken to make sure the correct installation is used.
- 1 - - - SM-1000-003 RELAY SOCKET (MIL-S-12883/52) 18
- 1 - - - X-E4N-300M RELAY, NONLATCH, 2P, 5A LEACH (OR SIMILAR) 17
- 1 - - AS12007-2 1N1184 DIODE KIT DIODE SET ----- 16
- 1 - - - 1210 PULSELITE CONTROL UNIT 1210 ----- 15
-- - - - ----- ----- ----- 14
-- <1> - EL02585 DDM24W7SA197 (OR EQUIV) CONNECTOR (PART OF 3060S PULSELITE KIT) 13
-- 1 - - 3060S PULSELITE CONTROL UNIT 3060S ----- 12
-- - - - ----- ----- ----- 11
-- - <1> EL02749 M83723/75W1610N CONNECTOR (PART OF 3060 PULSELITE KIT) 10
-- - 1 - 3060 PULSELITE CONTROL UNIT 3060 ----- 9
-- - - - ----- ----- ----- 8
- 1 - - - 590P0003 (SHEET 4) 1210 WIRING DIAGRAM ----- 7
-- 1 - - 590P0003 (SHEET 3) 3060S WIRING DIAGRAM ----- 6
-- - 1 - 590P0003 (SHEET 2) 3060 WIRING DIAGRAM ----- 5
-- - - - ----- ----- ----- 4
- \ - - - 590P0003-3 PULSELITE 1210 INSTALLATION ----- 3
- - \ - - 590P0003-2 PULSELITE 3060S INSTALLATION ----- 2
- - - \ - 590P0003-1 PULSELITE 3060 INSTALLATION ----- 1
-4 -3 -2 -1
QTY REQD CODE PART NO. DESCRIPTION MATERIAL/MFG. ITEM
Table 2 - Sample Parts List
This chart shows the kit part number 590P0003-3 as an example.
Starting at line 3 of the Bill of Materials, from part number 590P0003-3, the installer moves to the
left until a “\” marks that applicable installation. Follow the -3 column up to see if another
installation or quantity of parts is required. Then follow the chart back to the right to find the
drawing/part number for the applicable installation. Some installations or diagrams listed as
optional are left to the discretion of the installing agency. Drawings are shown in this example, but
parts work on the same principle on the other installation drawings.
The Code numbers are PFI reference only inventory codes and do not supersede the part
numbers. The installations kit parts may be identified with by one or more of the following: drawing
number, PFI Code, or MS/NAS/AN number.
1.6 MANUAL REVISIONS
To ensure the maintenance of your existing aircraft fleet, possible revisions to this manual may
require updating over the life of the aircraft. Per the applicable Federal Aviation Regulations, an
update process is required to properly maintain these instructions in addition to the aircraft itself.
Because of this, it is imperative to complete the registration card for the aircraft once the system is
installed.
REVISIONS CAN BE MADE BY A SERVICE LETTER FROM PRECISE FLIGHT, AN AIRWORTHINESS DIRECTIVE AS
ISSUED BY THE ADMINISTRATOR, BY SINGLE PAGE UPDATES, OR A COMPLETE REPLACEMENT OF ALL PAGES
OF THE MANUAL.IT MUST BE CLEARLY NOTED AS TO THE REVISION LEVEL OF THE PAGES LISTED IN THE LIST
OF ACTIVE PAGES.IF A SINGLE SHEET(S) IS REPLACED, REPLACE THE LIST OF ACTIVE PAGES WITH THE NEW
ONE PROVIDED, OR UPDATE THE LIST MANUALLY AND INITIAL AND DATE THE LIST.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 11
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
2.0 INSTALLATION INSTRUCTIONS
Read all installation instructions prior to starting the installation or modifying the aircraft. If
necessary, please contact Precise Flight Incorporated at [phone] and ask for Pulselite
assistance, or write us at the address above, if you have any questions.
2.1 GENERAL
This section contains interconnect diagrams, mounting dimensions, and other information
pertaining to a Pulselite installation.
NOTE
It is the installer’s responsibility to verify that the installation of the Pulselite®
Control system will not interfere with any existing modification on the aircraft
prior to starting the installation. Contact Precise Flight if there appears to be
an installation conflict.
2.2 INSTALLATION APPROVAL BASIS
The person who performs or supervises the installation of the Pulselite® Model 1210 / 2405-2A,
may be required to prepare FAA form 337. See Section 4 for a Sample Description of Work
Accomplished. Data that can be used as a basis for approval for return to service are:
A. AC 43.13-1B or later FAA approved revision: Acceptable Methods, Techniques and
Practices, Aircraft Inspection and Repair.
B. AC 43.13-2A or later FAA approved revision: Acceptable Methods, Techniques and
Practices, Aircraft Alterations
C. FAA approved Manufacturer's Installation Instructions.
Equipment installation procedures do not differ significantly among various aircraft. The installation
and operation of the Pulselite® Model 1210 / 2405-2A does not affect the aircraft operation or
performance.
The Sample Description of Work Accomplished, in Section 4 of this manual, is suggested language
provided as a convenience to the installing agency. The information and wording should be
modified to correctly describe the particular installation.
NOTE
Precise Flight Inc. can assume no responsibility for the alteration of the
airframe or electrical system.
NOTE
It is the responsibility of the installer to get all required approvals for the
parts of the installation that are outside the scope or design of the data
supplied per this STC.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 12
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
2.3 LIST OF TOOLS
Commonly used Tools for Pulselite Installation.
Table 3 - Tools Used
Abrasive Pad
AC 43.13-2B Chapter 11 (or later revision)
Deburring Tool
Drill Motor
Drills: Various
Pencil
Rivnut Insertion Tool
Ruler: 12 inch (minimum)
Screwdriver: Slot and Phillips #1 and #2 tip
Tape Measure: 2 feet minimum
Volt Ohmmeter
Wire Crimper, Cutter, and Stripper
Wrenches: Various
2.3.1 List of Supplies
Commonly used Supplies for Pulselite Installation:
Table 4 - Supplies Used
“Caterpillar” protective Grommet
Double Sided Tape
Bundle Ties
Lacing Cord
Teflon Sleeving
2.4 PULSELITE CONTROL UNIT INSTALLATION
Listed below are considerations to be examined before installing the Pulselite® Model 1210 / 2405-
2A. Close attention to these suggestions will assure optimum performance when completed.
2.4.1 Cooling Considerations
Allow approximately ½” of space around the control unit for adequate convective cooling. This is
required so the heat sink fins may dissipate heat at the proper rate. Make every effort to locate
control unit away from heat sources, as elevated operating temperatures reduce reliability.
2.4.2 Control Unit Location Considerations
A. Select a location for the Pulselite Control Unit which is suitably ventilated for avionics.
!! WARNING !!
The Pulselite®Model 1210 / 2405-2A is not approved for use in a potentially
explosive environment (refer to AC 43.13-2B or later FAA approved revision,
Chapter 2 - Radio Installation) Locate Pulselite away from fire hazard zones,
highly explosive or corrosive areas, potentially hazardous fluid areas; e.g.
water, fuel, hydraulic fluid, or oxygen units, etc.
B. The Pulselite Control unit must be installed in a structurally substantiated location. If a location
is already defined for your specific aircraft make and model per the PFI STC drawing package,
this is an approved location. All other locations require a separate approval; this is the
responsibility of the installer.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 13
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
C. Avoid mounting the Pulselite Control unit in potentially wet locations such as gear wells or in a
belly compartment subject to splash.
2.4.3 Pulselite Control Unit Installation
TOOLS REQUIRED
Abrasive Pad Deburring Tool Screwdriver Philips #2
E Size Drill, Drill Aircraft Maintenance/Service Manual -
PARTS REQUIRED
Part Number Qty Description PFI Code Number
1210 (PFI p/n 015P001A-2) 1Model 1210 Pulselite Control Unit -
4 Screws -
4 Nuts or Lock nuts -
4 Washers -
4 Lock Washers -
The Pulselite Control Unit can be installed in any axis. If the Pulselite Control Unit is mounted on a
vertical surface, install the unit using the four (4) supplied pan head screws, nuts and washers
supplied with kit, or equivalent screws and nutplates. Burnish at least one fastener location to
insure proper ground.
4.45
[113.03]
(REF)
0.25
[6.35]
(REF)
2.50
[63.50]
(REF)
3.00
[76.20]
4.78
[121.29]
1.23
[31.12]
Figure 2 - Pulselite Control Unit Dimensions

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 14
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
2.5 ELECTRICAL INSTALLATION
2.5.1 Installation Considerations
Lamps to pulse: Landing lights are the most commonly pulsed lamps due to their higher output.
Taxi, Recognition and Wingtip lights may also be pulsed, or a combination of any. Pulsing
Navigation lights is not advised.
Pulsing a Landing and Taxi lights mounted immediately adjacent to each other in the aircraft’s
nose may, at a distance, merely seem to flicker when pulsed in the Alternate, or wig-wag mode. It
is advisable to pulse lamps closer than one and one-half feet apart in the Simultaneous mode, i.e.
on and off at the same time. Greater separation between pulsed lamps provides better
conspicuity.
The Alternate mode will also be easier on the aircrafts electrical system. Two 125 watt lamps
illuminated at alternate times result in a single constant 4 ½ amp load to a 28 volt aircraft. The
resulting overall load to the electrical system is less than that produced when turning both lamps
on steady. The same two lamps pulsing simultaneously will cause an 9 amp load to pulse on and
off. This may cause some interior lamps to dim and the ammeter needle to jump. While this
should not present a problem or real cause for concern, it may be distracting.
Some lighting circuits may be easier to wire for the Simultaneous mode. For example, wiring a
single channel or two paralleled Pulselite channels, in the Simultaneous mode is the easiest way to
pulse two wing tip lights wired to a single pole toggle switch. To pulse the same lights in the
Alternate mode, either install a two pole switch or install two diodes to isolate the lamps.
If pulsing gear mounted or other retractable lights, additional circuitry may be required to prevent
the light from being illuminated when the gear is retracted or the lamp is in an enclosed
compartment. Care must also be exercised to prevent the extend/retract motors from being
pulsed.
2.5.2 Wiring Considerations
All wiring must be secured to prevent chafing and faulting connections. Refer to FAA AC43.13-2B,
or later FAA approved revision, for wiring installation best practices.
NOTE
Precise Flight recommends Mil-W-22759 wiring be used in the Pulselite
Installation.
!! WARNING !!
Do Not Use Aluminum Wire for the Pulselite Installation.
The Pulselite installation requires certain wiring precautions in addition to the standard wiring
practices for the aircraft.
A. Observe proper cable routing, i.e. avoid tie-wrap joining power lines to antenna leads. Avoid
close proximity to navigation equipment. Where it is necessary to cross Pulselite wiring over

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 15
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
other wires, cross at a right angle and avoid running lamp supply or output wires in parallel to
radio, communication equipment or storm scope wiring. Ensure an adequate ground for the
Pulselite Control unit and its case.
B. Be sure that all connections are sound, i.e. avoid frayed or split conduit ends. Poor, loose or
corroded connections can cause electrical noise and degraded operation.
C. Avoid sharp bends or undue strain on cables.
2.5.3 Control Unit Wiring
After the Pulselite Control Unit has been properly mounted, determine the lighting pulse mode.
Find the total wattage of the lamp(s) connected to the Pulselite Control Unit. Divide the highest
total wattage by the voltage. The result will be the highest amperage rating on the Pulselite
Control Unit. Amperages should not exceed 10 amps per channel @ 12 VDC or 5 amps per
channel @ 24 VDC or 125 Watts per channel. See Example below.
A
VD
C
W16.4
12
50
Determine the amperage on individual channels. Proper wire and circuit protection should be
observed.
x Approved wire specification is MIL-W- 22759/16 or equivalent.
x Fuse specification is MIL-F-15160 or equivalent.
x Circuit breaker specification is MIL-C-5809 or equivalent.
A. GROUND: To protect the Pulselite control unit and insure proper installation, it is important
to check that the ground wire (black wire) is properly grounded to the aircraft frame.
Chassis of unit should be mounted to airframe and interfaces burnished to ensure a good
ground. If the Pulselite Control Unit cannot be mounted to A/C structure, attach a bonding
jumper per AC43.13-1B or later FAA approved revision Section 3 Par. 452.
B. CONTROL POWER: Power input for the Pulselite Control Unit is through the white wire.
Use at least 22 gauge wire for this circuit. To protect this wire, a circuit breaker or inline
fuse is required. This circuit breaker or fuse should not exceed 1 to 5 amps. This protected
control power may come off the existing lamp control switch if room is not available in the
circuit breaker panel.
C. PULSE RATE SELECT: Making a connection between the two brown wires will change the
rate of pulse from approximately 45 pulses per minute to approximately 90 pulses per
minute. If the pulse rate is left at 45, cap and stow the two brown wires.
D. MODE SELECT: Making a connection between the gray wire and the violet wire will pulse
the two connected lights alternately. Making a connection between the gray wire and the
orange wire will pulse the lights simultaneously.
E. LAMP INPUT POWER: The red wire is attached to either an existing external light circuit
breaker or a new circuit breaker of the same value as the existing external light circuit

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 16
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
breakers. Refer to Typical Installation Examples. Fuse holders are not recommended
for Lamp Input Power.
F. CHANNEL 1 OUTPUT: The yellow wire is attached to an aircraft external light.
G. CHANNEL 2 OUTPUT: The blue wire is attached to an aircraft external light.
H. Cap and stow all wires not utilized in the installation.
I. Route wires neatly and tie wrap to complete electrical installation.
PULSELITE WIRE TABLE
COLOR GAUGE FUNCTION
RED 12 LAMP INPUT POWER
YELLOW 16 CHANNEL 1 OUTPUT
BLUE 16 CHANNEL 2 OUTPUT
WHITE 22 CONTROL UNIT POWER
BROWN 22 PULSE RATE SELECT
BROWN 22 PULSE RATE SELECT
BLACK 22 GROUND
ORANGE 22 SIMULTANOUS MODE
GRAY 22 MODE SELECT
VIOLET 22 ALTERNATE MODE
Table 5 - Pulselite Wire
2.6 SWITCH INSTALLATION
In general, it is preferable to retain original switch functionality. An existing landing light switch,
supplemented with an additional Pulselite switch, is easily operated by a pilot familiar with the
aircraft but not the Pulselite system.
The wide variety of switch styles used makes it impossible for Precise Flight to supply an
appropriate switch for every aircraft. An ON-OFF switch is provided with the Pulselite kit however
it may be preferable to install a customer supplied switch that more closely matches the existing
aircraft switch style. An ON-OFF rocker or toggle switch similar to the existing Landing light switch
may be installed for Pulselite control.
Where panel space is at a premium, a two position ON-OFF Landing, Taxi or Recognition light
switch can usually be replaced with a three position ON-OFF-PULSE switch. For systems using
circuit breaker switches, a separate breaker switch would be required. These switches must have
a lamp load rating appropriate for the light to be pulsed. Due to the high inrush associated with
incandescent lamps, the lamp load rating of a switch may be 20-25% of the listed resistive load
rating.
A. A switch is required for activation of the Pulselite Control Unit. The switch should be
rated for 3 amps at 12 or 28 VDC.
B. The switch(es) should be located near the existing aircraft landing light switches.

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 17
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
C. Install placard (supplied with kit) next to switch. You may have your instrument panel
engraved to provide switch identification.
2.7 DIODE INSTALLATION
High current diodes are supplied with some Pulselite kits to isolate the outputs where appropriate.
The use of diodes is not usually required when using a two pole switch, or when pulsing both
lamps simultaneously.
Where a single pole switch is used to control two lamps that are to be pulsed alternately, the
diodes prevent one channel from feeding back to the common switch connection and lighting both
lamps at the same time. The diodes are installed between the switch and the lamps, with the
Pulselite output wires on the lamp side of the diode. Power flows through both diodes to illuminate
both lamps when the light switch is in the steady on position.
Some aircraft use a mechanically interlocking switch, or a switch and diode arrangement to
illuminate both landing and taxi lights when the switch is in the landing position. A single diode
would be required in this case to prevent pulsed power to the landing light from feeding power to
the taxi light as well.
If the Pulselite is used to pulse two lamps, normally fed from differing busses of a multiple buss
system, a diode must be installed to prevent voltage from the Pulselite’s lamp input power (Red
wire) from back-feeding into the other buss.
The body of the stud mounted diodes provided is electrically hot, with the threaded stud being the
cathode connection. Because battery voltage will be present on the diode, it must not be allowed
to come in contact with metal or other wiring. When diodes are required, it is recommended they
be mounted on a phenolic insulator secured to the aircraft. This phenolic insulates the diodes from
aircraft ground and from each other. Heavy current through the diodes can cause them to become
very hot, use a heat resistant material, not acrylic.
PLEASE NOTE: WHEN DIODES ARE USED THE ENTIRE DIODE
ASSEMBLY MUST BE INSULATED FROM AIRCRAFT GROUND.
INSULATOR
TO
LIGHTS
OUTPUT (CATHODE) INPUT (ANODE)
1N1184 DIODE
35A 100V MIN. (OR SIMILAR)
FROM
SWITCH
Figure 3 - Diode Installation

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 18
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
2.8 TYPICAL INSTALLATION EXAMPLES
The following are only a few of many possible wiring scenarios.
YELLOW
BLUE
WHITE
LANDING
PULSE3A
(EXISTING AIRCRAFT WIRING)
ORANGE
VIOLET
GRAY
YELLOW
BLUE
RED
WHITE
1200 SERIES
PULSELITE
ORANGE
VIOLET
GRAY
RED 1200 SERIES
PULSELITE
HIGH
WATTAGE
LAMP
LIGHT CB
PULSELITE CB
LIGHT CB STEADY
OFF
PULSE
5A MAX
YELLOW
BLUE
WHITE
ORANGE
VIOLET
GRAY
RED 1200 SERIES
PULSELITE
TAXI CB TAXI
LANDING CB
LANDING
YELLOW
BLUE
ORANGE
VIOLET
GRAY
RED 1200 SERIES
PULSELITE
TAXI CB TAXI
LANDING CB
PULSELITE CB
WHITE
5A MAX
(ORIGINAL EQUIPMENT DIODE
UTILIZED IN SOME SYSTEMS)
NEW DIODE
REQUIRED FOR
ALTERNATE PULSE
d.) 2 LIGHT SYSTEM WITH PULSELITE SWITCH
LANDING SWITCH TURNS ON LANDING & TAXI LIGHTS
c.) LANDING LIGHT SWITCH REPLACED WITH 3 POSITION SWITCH
ALTERNATE OR SIMULTANEOUS MODE
PULSELITE CB
a.) ADDITIONAL PULSELITE SWITCH INSTALLED
b.) EXISTING SWITCH REPLACED WITH 3 POSITION STEADY-OFF-PULSE SWITCH
LANDING
5A MAX PULSE
PULSE
CONTROL CB
STEADY
OFF
PULSE
DIODES MAY BE REQUIRED ON
ONE OR BOTH LAMP WIRES TO
PREVENT CROSSED BUSSES
AN ADDITIONAL ISOLATION DIODE MAY
BE REQUIRED TO PREVENT PULSELITE
CB FROM BACK-FEEDING OTHER BUSS

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 19
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
Figure 4 - Typical Installations
ORANGE
VIOLET
GRAY
YELLOW
BLUE
RED
WHITE
1200 SERIES
PULSELITE
5A
MAX
YELLOW
BLUE
WHITE
LANDING
PULSE ORANGE
VIOLET
GRAY
RED 1200 SERIES
PULSELITE
LIGHT CB
PULSELITE CB
LIGHT CB
CONTROL CB
MATCH EXISTING LT CB
YELLOW
BLUE
WHITE
WINGTIP
PULSE
3A
ORANGE
VIOLET
GRAY
RED 1200 SERIES
PULSELITE
LIGHT CB
PULSELITE CB
YELLOW
BLUE
WHITE
ORANGE
VIOLET
GRAY
RED 1200 SERIES
PULSELITE
LIGHT CB
STEADY
OFF
PULSE
5A MAX
STEADY
OFF
PULSE
NEW DIODES REQUIRED
FOR ALTERNATE PULSE
e.) WINGTIPS WITH 1 POLE SWITCH
f.) WINGTIPS WITH 2 POLE SWITCH
g.) ADDITIONAL PULSELITE CIRCUIT BREAKER SWITCH INSTALLED
h.) EXISTING CONTROL SWITCH REPLACED WITH 3 POSITION SWITCH
5A MAX
Figure 5 - Typical Installations

Installation Report:
Document Number:
PPRI-3000
015PMAN0003
63354 POWELL BUTTE ROAD
BEND, OR 97701
800- 547-2558
STC SA4005NM, SA00701SE PULSELITE® 1210 INSTALLATION MANUAL
Revision: J February 1, 2007 Page 20
File: 015PMAN0003J Pulselite 1210 Installation Manual.DOC
3.0 TESTING
3.1 INSTALLATION TESTING
The following test procedure will evaluate the installation in the aircraft:
1. Check connections and wiring before applying power
2. Insure the grey wire is attached to either the violet or orange wire, with remaining wire
capped.
3. Turn aircraft power ON.
4. With the existing Landing / Taxi / Recognition Light Switch OFF, Switch the Pulselite
Unit to ON and verify that the appropriate Landing / Taxi / Recognition Lights are flashing
on the aircraft.
5. Switch the appropriate Landing/ Taxi / Recognition Lights ON utilizing the existing switch
and verify that the lights remain on without flashing.
6. Switch the Pulselite Control Unit and the existing Landing/ Taxi / Recognition Light
switches OFF and verify that the Landing/ Taxi/ Recognition Lights are OFF.
3.2 EMI/FRI TESTING
The following is an outline for determining that no detrimental Electro Magnetic Interference (EMI)
or Radio Frequency Interference is caused by the installation of a Precise Flight Pulselite product
per FAR §23.1431, §25.1431, §27.1431, or §29.1431.
These procedures are not necessarily all encompassing in that they may not include all of the
equipment installed in the airplane. If electronic and navigation equipment is installed which is not
included in this document, consult the equipment manufacturer, an FAA approved repair station
rated in the equipment involved ,or an FAA Avionics Inspector for applicable test procedures.
The evaluation will be with a series of equipment checks, on the ground, to determine that no
detrimental EMI/RFI effects are introduced into the aircraft by the Pulselite system.
The electrical systems installed in the aircraft will be referred to as the Pulselite system in this
procedure.
The following tests should be performed by personnel familiar with aircraft systems and proper
operation as well as the Pulselite equipment and its proper operation.
Any and all discrepancies shall be noted. Any discrepancies noted during these procedures must
be reported to Precise Flight, Inc. and evaluated for cause, extent and as to what corrective action
should be taken to correct the problem. The aircraft may not be flown after discrepancies are
found unless the Pulselite system is disconnected at the aircraft bus until such time as the
problems have been corrected and the aircraft has successfully passed the ground portion of this
test. Only then may the aircraft be flown to complete this test.
A record of this test must be recorded in the aircraft logbook. The entry should include date,
aircraft time, and results including any discrepancies note. The ground test results shall be
recorded in the permanent aircraft records by the installing mechanic or a mechanic with the
proper ratings. A copy of the following pages with the test results is recommended to be kept as
