Predator 57322 Assembly instructions

Visit our website at: http://www.harborfreight.com
Email our technical support at: [email protected] 57322
Pump sold
separately
Owner’s Manual & Safety Instructions
Save This Manual Keep this manual for the safety warnings and precautions, assembly,
operating, inspection, maintenance and cleaning procedures. Write the product’s serial number in the
back of the manual near the assembly diagram (or month and year of purchase if product has no number).
Keep this manual and the receipt in a safe and dry place for future reference. 21d
When unpacking, make sure that the product is intact
and undamaged. If any parts are missing or broken,
please call 1-888-866-5797 as soon as possible.
Copyright© 2020 by Harbor Freight Tools®. All rights reserved.
No portion of this manual or any artwork contained herein may be reproduced in
any shape or form without the express written consent of Harbor Freight Tools.
Diagrams within this manual may not be drawn proportionally. Due to continuing
improvements, actual product may differ slightly from the product described herein.
Tools required for assembly an d se rv ic e may n ot b e in cl uded.
Read this material before using this product.
Failure to do so can result in serious injury.
SAVE THIS MANUAL.

Page 2 For technical questions, please call 1-888-866-5797. Item 57322
IMPORTANT SAFETY INFORMATION
Read all safety warnings and instructions.
Failure to follow the warnings and instructions may result in serious injury.
Save all warnings and instructions for future reference.
1. Keep work area clean and well lit.
Cluttered or dark areas invite accidents.
2. Stay alert, watch what you are doing and
use common sense when assembling the
Wheel Kit. Do not assemble while you are
tired or under the influence of drugs, alcohol
or medication. A moment of inattention
may result in serious personal injury.
3. Use personal protective equipment. Always wear
eye protection. Safety equipment such as
dust mask, non-skid safety shoes, hard hat,
or hearing protection used for appropriate
conditions will reduce personal injuries.
4. Dress properly. Do not wear loose clothing or
jewelry. Keep your hair, clothing and gloves
away from moving parts. Loose clothes, jewelry
or long hair can be caught in moving parts.
5. Turn off and allow water pump to cool
completely before assembling the
Wheel Kit onto a water pump.
6. Support the water pump on a raised platform so
that the Wheels and feet can easily be attached.
7. Assemble wheel kit completely before
attempting to use water pump. Do not
partially install kit, or use only part of the kit.
8. Do not roll water pump on uneven
surfaces, or on inclines.
9. Inspect before moving. Do not move
if parts loose, bent, or damaged.
10. Turn off before moving water pump. Do not
move water pump while in operation or hot.
11. Secure water pump properly before
transporting on a vehicle.
12. Maintain labels and nameplates on the tool.
These carry important safety information.
If unreadable or missing, contact
Harbor Freight Tools for a replacement.
13. This product is not a toy.
Keep it out of reach of children.
SAVE THESE INSTRUCTIONS.

Page 3For technical questions, please call 1-888-866-5797.Item 57322
Assembly Instructions
Read the ENTIRE IMPORTANT SAFETY INFORMATION section at the beginning of this
manual including all text under subheadings therein before set up or use of this product.
TO PREVENT SERIOUS INJURY FROM ACCIDENTAL OPERATION:
Turn the Power Switch of the water pump off before assembly.

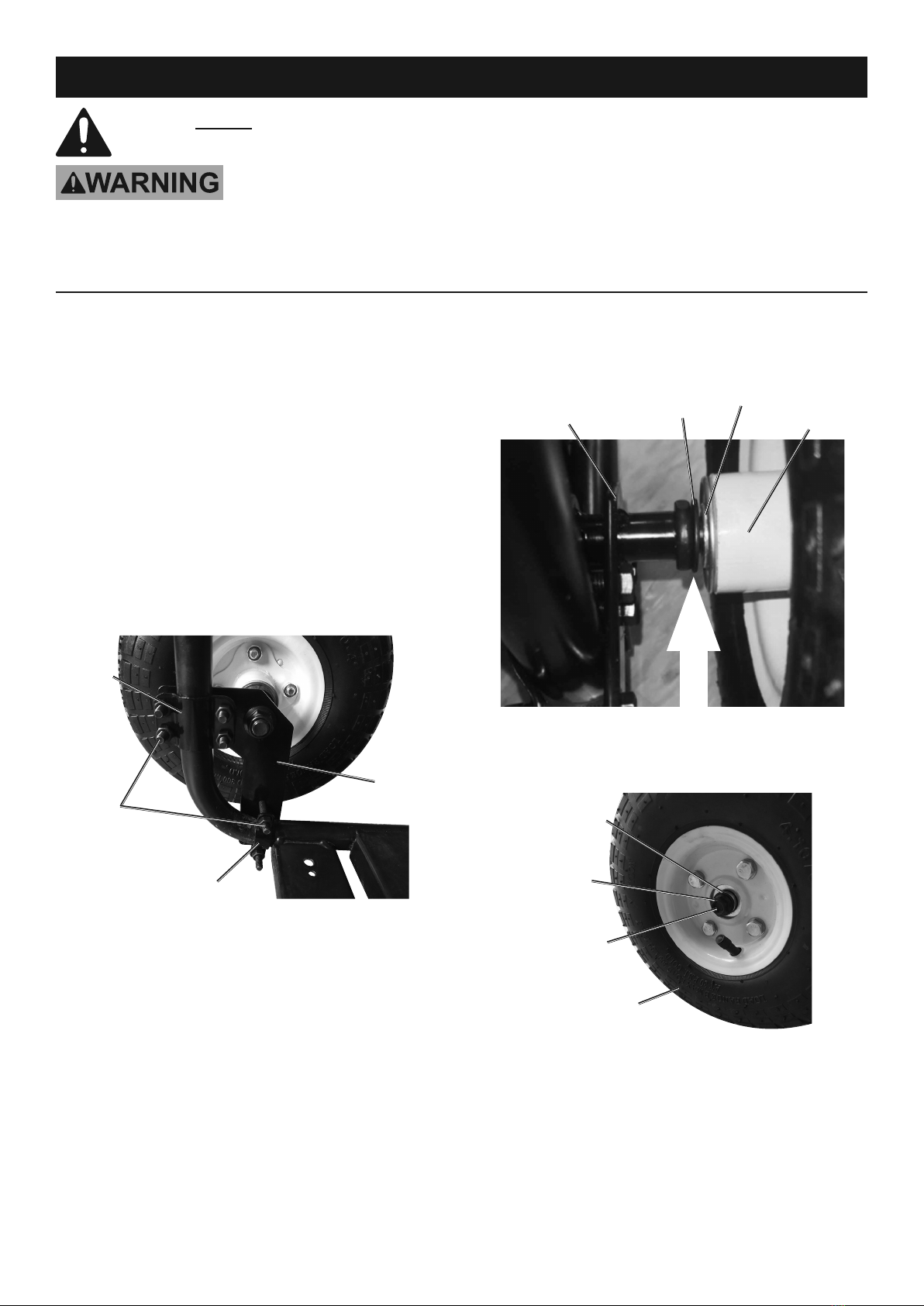

Installing the Wheels
1. Place the Axle Support (12) outside the pump frame
so that the end with two holes is on the bottom
and the Axle extends away from the frame.
2. Make sure that the Axle Support is aligned
as shown, with the four holes near the top
and the two holes near the bottom.
3. Place the Lower Bracket (15), that has two
holes, around the frame’s tube near the
bottom of the Support. Secure it with two
Wheel Bracket Bolts (19), Spring Washers (21),
Washers (20), and M6 Nuts (17).
4. Place the Upper Bracket (16), that has
four holes, around the frame’s tube near
the top of the Support. Secure it with four
Wheel Bracket Bolts (19), Spring Washers (21),
Washers (20), and M6 Nuts (17).
Wheel
Bracket
Bolt (19)
Axle
Support
(12)
Lower
Bracket (15)
Upper
Bracket
(16)
5. Tighten all Bolts and Nuts securely and evenly.
Each Bracket should be centered across
the frame tube after tightening.
6. Install the other Axle Support on the other side
of the pump’s frame. Make sure it is aligned as
a mirrored image of what is shown so that the
Lower Bracket is on the bottom and the Axle
extends out away from the pump frame.
7. Before installing Wheel (3), install Steel
Spacer Washer (24) on Axle (5) as indicated
by arrow. Repeat on other side.
Lower Bracket Axle Flange
Steel Spacer
Washer (24)
Wheel Hub
8. Install a Wheel on each Axle, securing
each in place with an Axle Washer (2) and
Axle Nut (1). Repeat on other side.
Axle (5)
Wheel (3)
Axle
Washer (2)
Axle
Nut (1)

Page 4 For technical questions, please call 1-888-866-5797. Item 57322
Installing the Foot Support
1. Remove the two existing feet/cushions
from under the front of the pump frame
and the hardware that secures them.
2. Secure the feet/cushions to the middle holes of
the Foot Support (11) using the hardware that
secured them to the pump frame previously.
3. Secure the Foot Support under the front of
the pump frame, where the feet/cushions
were installed previously. Attach it using
two Short Bolts (23), Spring Washers (21),
Washers (20), and M6 Nuts (17).
existing
foot
existing
foot
Foot
Support
(11)
Short Bolt (23)
Figure A:
Installing the Handle
1. Attach the Crossbar (13) handle assembly to the
pump frame using one Crossbar Bracket (14)
on each end secured with 4 Bolts (18), Spring
Washers (21), Washers (20), and M6 Nuts (17).
2. After the Crossbar is in place and adjusted
properly, tighten the Bolts and Nuts securely.
Crossbar (13)
Bolt (18)
Crossbar
Bracket (14)
Figure B:

Page 5For technical questions, please call 1-888-866-5797.Item 57322
Maintenance
TO PREVENT SERIOUS INJURY FROM TOOL FAILURE:
Do not use damaged equipment. If abnormal noise or vibration
occurs, have the problem corrected before further use.
1. BEFORE EACH USE, inspect the general condition
of the wheels and hardware. Check for loose
parts, misalignment or binding of moving parts,
cracked or broken parts, and any other condition
that may affect safe operation of assembly.
2. AFTER USE, wipe external
surfaces with a clean cloth.
Record Product’s Serial Number Here:
Note: If product has no serial number, record month and year of purchase instead.
Note: Some parts are listed and shown for illustration purposes only, and are not available
individually as replacement parts. Specify UPC 792363573221 when ordering parts.

Page 6 For technical questions, please call 1-888-866-5797. Item 57322
17 17
4
17 17
13
21
17 17
17 17 9
21
21
20
14 21
21
23
18
11
17
20
21
23
3
6
12
15
20
5
17
20
19
16
6
2
51
18
17
20
10
3
2
1
21
19
19
17 17
24
24
PLEASE READ THE FOLLOWING CAREFULLY
THE MANUFACTURER AND/OR DISTRIBUTOR HAS PROVIDED THE PARTS LIST AND ASSEMBLY DIAGRAM
IN THIS MANUAL AS A REFERENCE TOOL ONLY. NEITHER THE MANUFACTURER OR DISTRIBUTOR
MAKES ANY REPRESENTATION OR WARRANTY OF ANY KIND TO THE BUYER THAT HE OR SHE IS
QUALIFIED TO MAKE ANY REPAIRS TO THE PRODUCT, OR THAT HE OR SHE IS QUALIFIED TO REPLACE
ANY PARTS OF THE PRODUCT. IN FACT, THE MANUFACTURER AND/OR DISTRIBUTOR EXPRESSLY
STATES THAT ALL REPAIRS AND PARTS REPLACEMENTS SHOULD BE UNDERTAKEN BY CERTIFIED AND
LICENSED TECHNICIANS, AND NOT BY THE BUYER. THE BUYER ASSUMES ALL RISK AND LIABILITY
ARISING OUT OF HIS OR HER REPAIRS TO THE ORIGINAL PRODUCT OR REPLACEMENT PARTS
THERETO, OR ARISING OUT OF HIS OR HER INSTALLATION OF REPLACEMENT PARTS THERETO.
Parts List and Diagram
Parts List
Part Description Qty
1 M10 Axle Nut 2
2 M10x20 Axle Washer 2
3 Wheel 2
4 Handle 1
5 Axle 2
6 M12 Nut 2
7 Handle Bracket 1
8 M8x16 Bolt 4
9 M8 Nut 1
10 M8x45 Bolt 1
11 Foot Support 1
12 Axle Support 2
Part Description Qty
13 Crossbar 1
14 Crossbar Bracket 2
15 Lower Bracket 2
16 Upper Bracket 2
17 M6 Nut 22
18 M6x25 Bolt 8
19 M6x30 Wheel Bracket Bolt 12
20 Washer 22
21 Spring Washer 22
22 M8x64 Pin 1
23 M6x15 Short Bolt 2
24 Steel Spacer Washer 2

Page 7For technical questions, please call 1-888-866-5797.Item 57322
17 17
4
17 17
13
21
17 17
17 17 9
21
21
20
14 21
21
23
18
11
17
20
21
23
3
6
12
15
20
5
17
20
19
16
6
2
51
18
17
20
10
3
2
1
21
19
19
17 17
24
24
Assembly Diagram
