Premier AV TV-1108V-SD User manual

Premier AV TV-1108V-SD
Mini Scart Freeview Receiver
USER’S MANUAL
(DIGITAL TERRESTRIAL RECEIVER)
English

Index
1. INTRODUCTION.............................................................................1
1.1. Features..................................................................................1
1.2. Safety Information...................................................................1
2. PRODUCT OVERVIEW..............................................................
..... 5
2.1. Main Unit.................................................................................5
2.2. Remote Control Unit............................................................
.... 6
3. SETTING UP...................................................................................7
3.1. Connecting to a TV.........................................................
........ 7

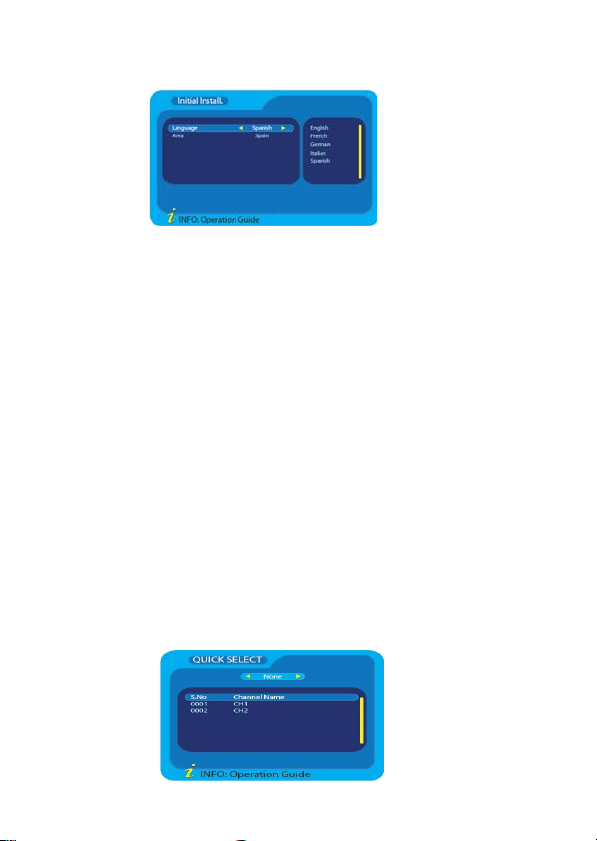

3.2. DIGITAL TV Channels Initial Installation.................................8
4. DVB-T BASIC OPERATION............................................................8
4.1. Channel List......................................................................
....... 8

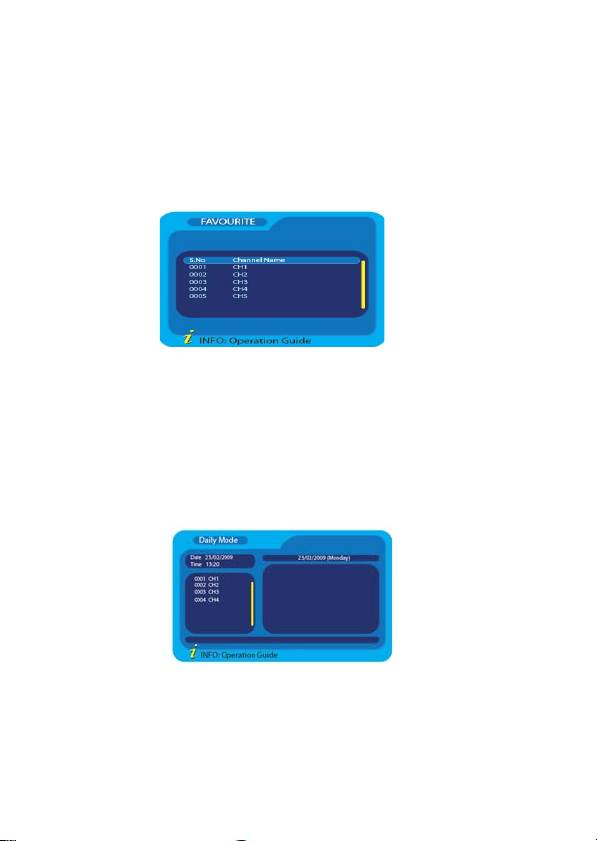

4.2. Favourite List........................................................................
... 9
4.3. Electronic Program Guide (EPG)............................................9
4.4. Soundtrack and Subtitles Selection..................................
..... 10
4.5. Displaying Program Information..........................................
.. 10
4.6. DVB-T Recording..................................................................10
5. MAIN MENU..................................................................................10
6. DVB-T ...................................................................................11
6.1. Channel Manager...............................................................
... 11
6.1.1. Channel Organizer....................................................
.. 11
6.1.2. Channel sorting.........................................................
.. 12
6.1.3. Channel Grouping.....................................................
.. 12
6.1.4. Edit Channels..........................................................
.... 12
6.1.5. Delete All..................................................................
... 13

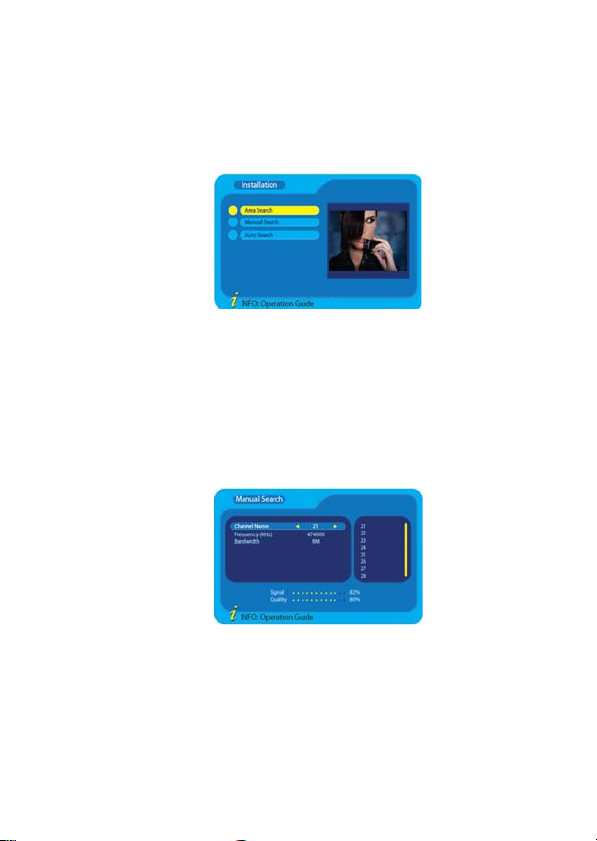

6.2. Installation.............................................................................13
6.2.1. Auto Search................................................................13
6.2.2. Manual Search.........................................................
... 13
6.2.3. Area Search................................................................13

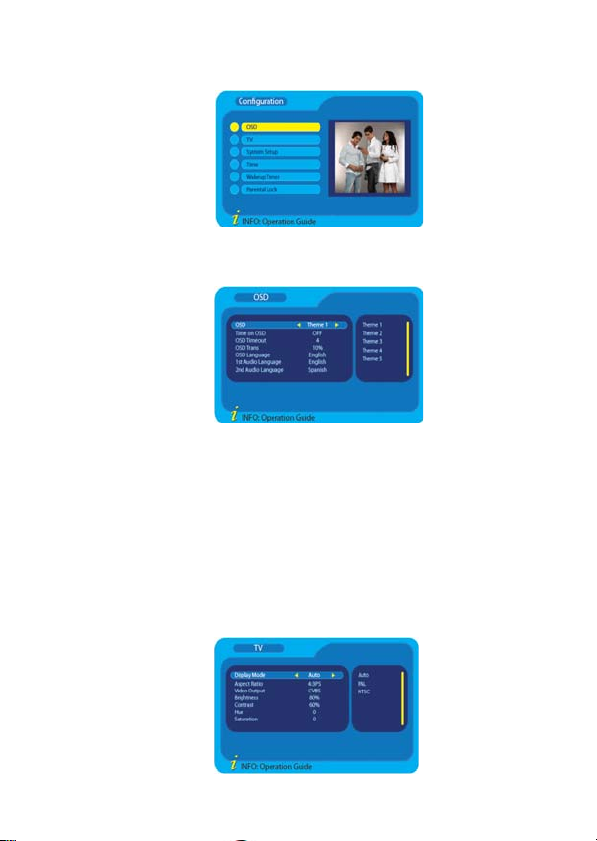

6.3. Configuration.....................................................................
.... 14

6.3.1. OSD............................................................................14
6.3.2. TV...............................................................................14
6.3.3. System Setup........................................................
...... 15
6.3.4. Time...........................................................................
. 15
6.3.5. Wakeup Timer........................................................
..... 16
6.3.6. Parental Lock............................................................
.. 16
6.4. Software Upgrade.................................................................16
6.5. Factory Default...................................................................
... 16
6.6. Version................................................................................
.. 16
7. MOVIE, MUSIC AND PHOTO.......................................................16
8. GAMES.....................................................................................
..... 17
9. RECORDING............................................................................
..... 17
9.1. Timer Recording ..............................................................
..... 17
9.2. Playback of Recorded Contents(MPEG-2)......................
...... 18
10. DISK MANAGER.......................................................................
.. 19
11. TROUBLE SHOOTING..........................................................
...... 19
12. SPECIFICATIONS.........................................................................20

1
1. INTRODUCTION

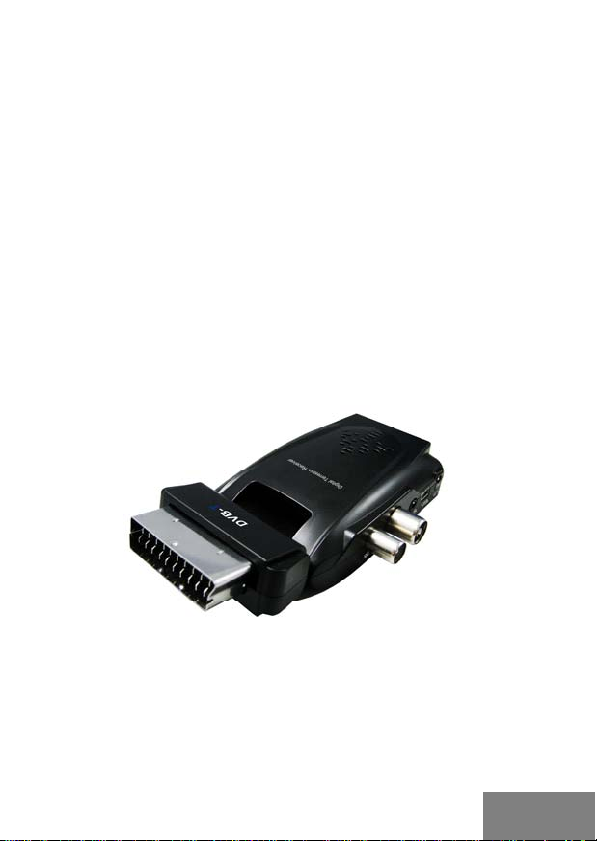

The Premier AV TV-1108V-SD is a Super Mini Set-top box being able to
receive all Freeview DVB-T signals (over 100 TV and Radio channels).
Plug a Scart shaped device to one of the scart ports of your TV and
connect the Aerial/Power plugs to this device and your TV,then it displays
initial set-up menu thru your TV so you just can follow to install main
features step by step. The hinged device is designed to be fit nicely to even
confined space i.e. where Scart ports are located in your TV and the
Infrared (IR) lead connected to the device makes you navigate through all
menu options through a remote. Using USB Flash Memory stick being
connected to the USB lead of the device, you are able to record DVB-T
channel programs as well as playback Movie files, MP3, MPEG-2 video
contents & etc.
Whats in the box : TV-1108V-SD unit, Remote, IR lead, User Manual,
Power Plug, USB lead
1.1. Features
●Receive all Freeview DVB-T signals (over 100 TV and Radio channels)
●Plug and Play, User-friendly installation
●Recording DVB-T TV programs via USB Flash Memory Stick
●Supports Favourite lists, Teletext, EPG and Subtitle
●Super-Mini scart shaped device being hinged to a 180 degree and an
Infrared (IR) lead to interact with a remote
1.2. Safety Information
To ensure reliable and safe operation of this equipment, please read carefully
all the instructions in this user guide, especially the safety information below.
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT
REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

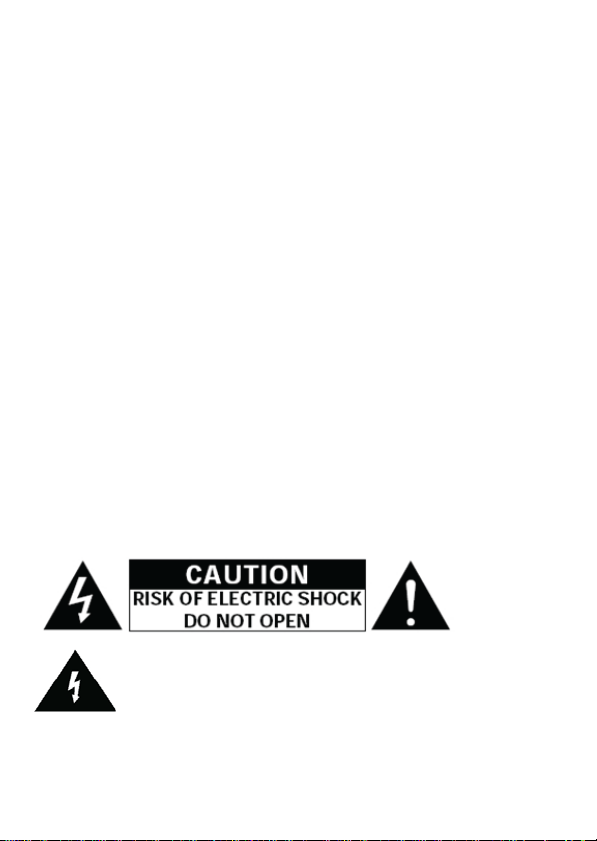

The lightening flash with arrowhead symbol, within an equilateral
triangle is intended to alert the user to the presence of
un-insulated “dangerous voltage” within the products enclosure
that may be of sufficient magnitude to constitute a risk of electric
shock to the persons.

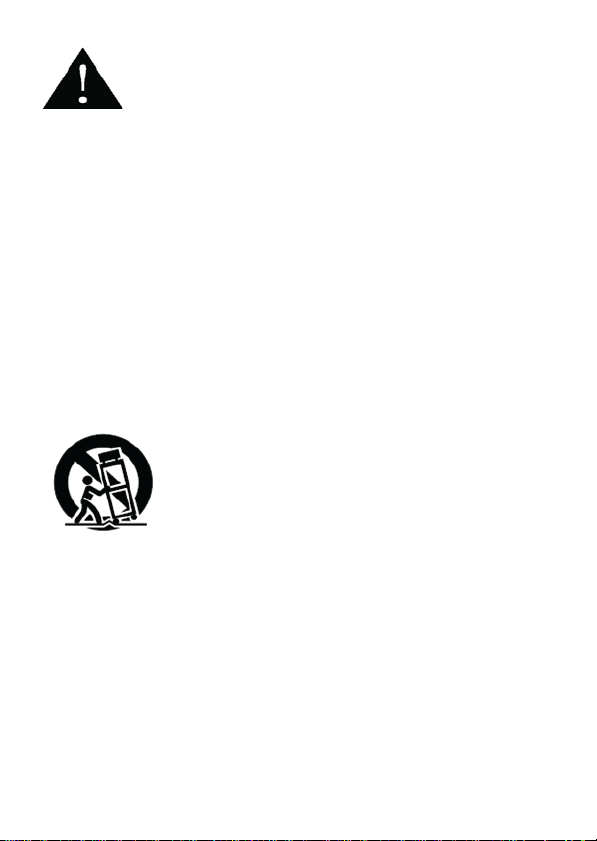

The exclamation point within an equilateral triangle is intended to alert the user
to the presence of important operating and maintenance (servicing) instructions
in the literature accompanying the appliance.

2
WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE.
CAUTION: Use of controls or adjustments or performance of
procedures other than those specified herein may result in
hazardous radiation exposure.
Please, carefully study this manual and always keep it available. There are,
however, some installation and operation precautions which you should be
aware of:
(1) READ INSTRUCTIONS: All the safety and operating instructions should be
read before the product is operated.
(2) RETAIN INSTRUCTIONS: The safety and operating instructions should be
retained for future reference.
(3) HEED WARNINGS: All warnings on the product and in the operating
instructions should be adhered to.
(4) FOLLOW INSTRUCTIONS: All operating and use instructions should be followed .
(5) CLEANING: Unplug this product from the wall outlet before cleaning.
Do not use liquid cleaners or aerosol cleaners. Use a damp cloth for cleaning .
(6) ATTACHMENTS: Do not use attachments not recommended by the product
manufacturer as they may cause hazards.
(7) WATER AND MOISTURE: Do not use this product near water – for example ,
near a bath tub, wash bowl, kitchen sink, or laundry tub - in a wet basement
or near a swimming pool and the like.
(8) ACCESSORIES: Do not place this product on an unstable cart, stand, tripod,
bracket or table. The product may fall, causing serious
injury to a child or adult and serious damage to the product.
Use only with a cart, stand, tripod, bracket or table
recommended by the manufacturer or sold with the
product. Any mounting of the product should follow the
manufacturer’s instructions and should use a mounting
accessory recommended by the manufacturer. A product
and cart combination should be moved with care: Quick
steps, excessive force and uneven surfaces may cause the product and cart
combination to overturn.
(9) VENTILATION: Slots and openings in the cabinet are provided for ventilation
and to ensure reliable operation of the product and to protect it from
overheating, and these openings must not be blocked or covered. The
openings should never be blocked by placing the product on a bed, sofa, rug,
or other similar surface. This product should not be placed in a built-in
installation such as a bookcase or rack unless proper ventilation is provided
or the manufacturer’s instructions have been adhered to.
(10) POWER SOURCES: This product should be operated only from the type of
power source indicated on the marking label. If you are not sure of the type
of power supply to your home, consult your product dealer or local power
company. For products intended to operate from battery power, or other
sources, refer to the operating instructions.
