Pressalit MATRIX R2120 User manual

MATRIX wash basin lifter – Operation and maintenance manual en
MATRIX vaskeophæng – Brugs- og vedligeholdelsesvejledning dk
MATRIX Waschtisch-Lifter – Gebrauchs- und Pegeanleitung de
MATRIX support de lavabo – Manuel d’utilisation et d’entretien fr
MATRIX muurframe voor wastafel – Gebruiks- en onderhoudshandleiding nl
MATRIX upphängning till tvättställ – Bruks- och underhållsanvisning sv
MATRIX oppheng til servant – Bruks- og vedlikeholdsveiledning no
MATRIX soporte de lavabo - Instrucciones de uso y mantenimiento es
MATRIX wspornik umywalki – Instrukcja obsługi i konserwacji pl
MATRIX 󳣽 - 操作和维护手册 中文
يلاةعارMATRIX
ةيبرعلا
R2120 - R2121
R2140 - R2141
R2142 - R2143
R4820, R482019
R4825, R482519
R4826, R4840
R484019, R4842
R484219, R4845
R484519, R4847
R484719
R2120 - R2121
R2140 - R2141
R2142 - R2143
R4820, R482019
R4825, R482519
R4826, R4840
R484019, R4842
R484219, R4845
R484519, R4847
R484719

en The guarantee covers faults or defects in material or manufacture within a period of 5 years.
Products are subject to minor technical modi cations and design deviations. E. & O.E.
dk Garantien dækker i 5 år fra fakturadato for materiale- og fabrikationsfejl. Der tages forbe-
hold for trykfejl, tekniske ændringer og modelafvigelser.
de Die Garantie gilt für drei Jahre ab Rechnungsdatum für Material- und Herstellungsfehler.
Druckfehler, technische Änderungen und Modellabweichungen vorbehalten.
fr La garantie couvre les vices de fabrication et de matériaux pour une durée de 5 ans à partir
de la date de facturation. Sous réserve de modi cations techniques et d’erreurs d’impression.
nl De garantie is tot 5 jaar na factuurdatum geldig voor materiaal- en fabricagefouten. Onder
voorbehoud van drukfouten, technische wijzigingen en modelafwijkingen.
sv Garantin gäller i 5 år från fakturadatum för material- och fabrikationsfel. Med reservation
för tryckfel, tekniska ändringar och modellavvikelser.
no Garantien gjelder i 5 år fra fakturadato for material- og fabrikasjonsfeil. Med forbehold for
trykkfeil, tekniske endringer og modellforskjeller.
es La garantía cubre fallos de material o fabricación durante los tres años posteriores a partir
de la fecha de factura. Mantenemos reservas en caso de problemas de presión, modi caci-
ones técnicas y variaciones de modelo.
pl Pięcoletnia gwarancja obejmuje usterki oraz wady produkcyjne i materiałowe. Produkty
mogą ulec nieznacznym zmianom technicznym i projektowym. Zastrzegamy sobie prawo
do błędów i pominięć.
中文 保修涵盖 5 年内出现的材料或制造故障或缺陷。产品的技术和设计可能稍微发生变
化，恕不另行通知。
ةيبرعلا 5

English ................................................................ 13
Dansk ................................................................. 28
Deutsch ............................................................... 43
Français ............................................................... 58
Nederlands ............................................................ 73
Svenska................................................................ 88
Norsk................................................................. 103
Español............................................................... 118
Język polski ............................................................ 133
中文 148
 163

3

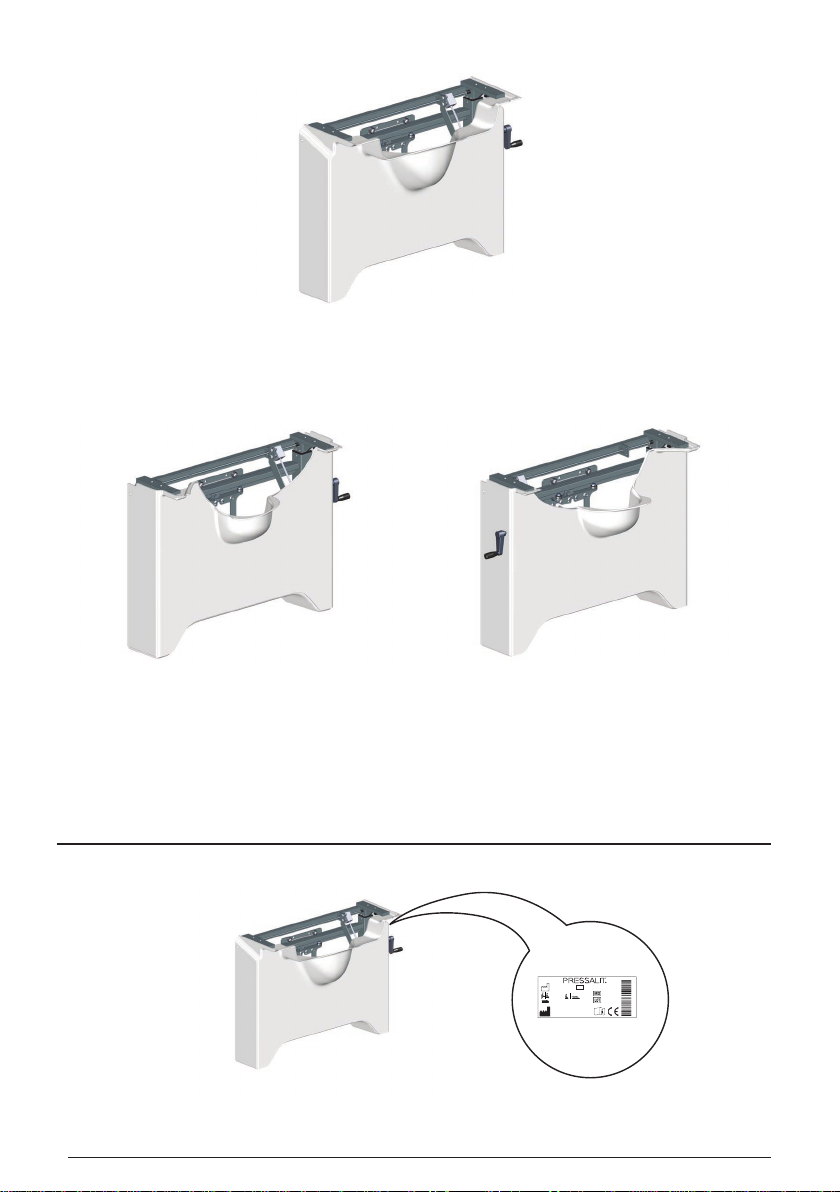

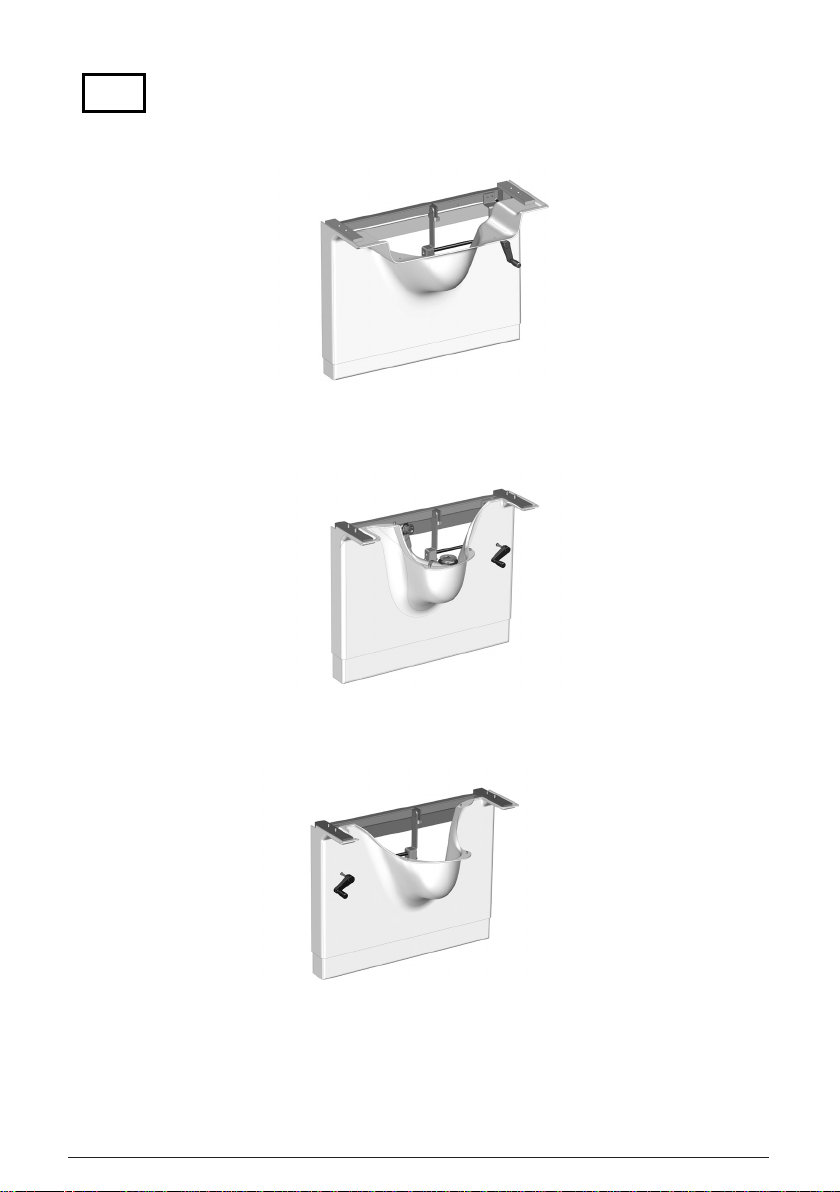

R4820, R4825, R4826
R4840, R4845
R4842, R4847
REF

4
R482019, R482519
R484019, R484519 R484219, R484719
PressalitA/S, Pressalitvej 1
DK-8680 Ry [phone]
pressalit.com
REF
++
++
==
YYYY-MM-DD RZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
xxx kg
xxx lbs
xxx kg
xxx lbs

5
R482019, R484019, R484219
R482519, R484519, R484719
kg
lbs
++
R4820, R4825, R4826 19 kg / 42 lbs
150 kg / 330 lbs
R4840, R4842, R4845, R4847 15 kg / 33 lbs
R482019, R482519
R484019, R484519
R484219, R484719
20,5 kg / 45 lbs

6

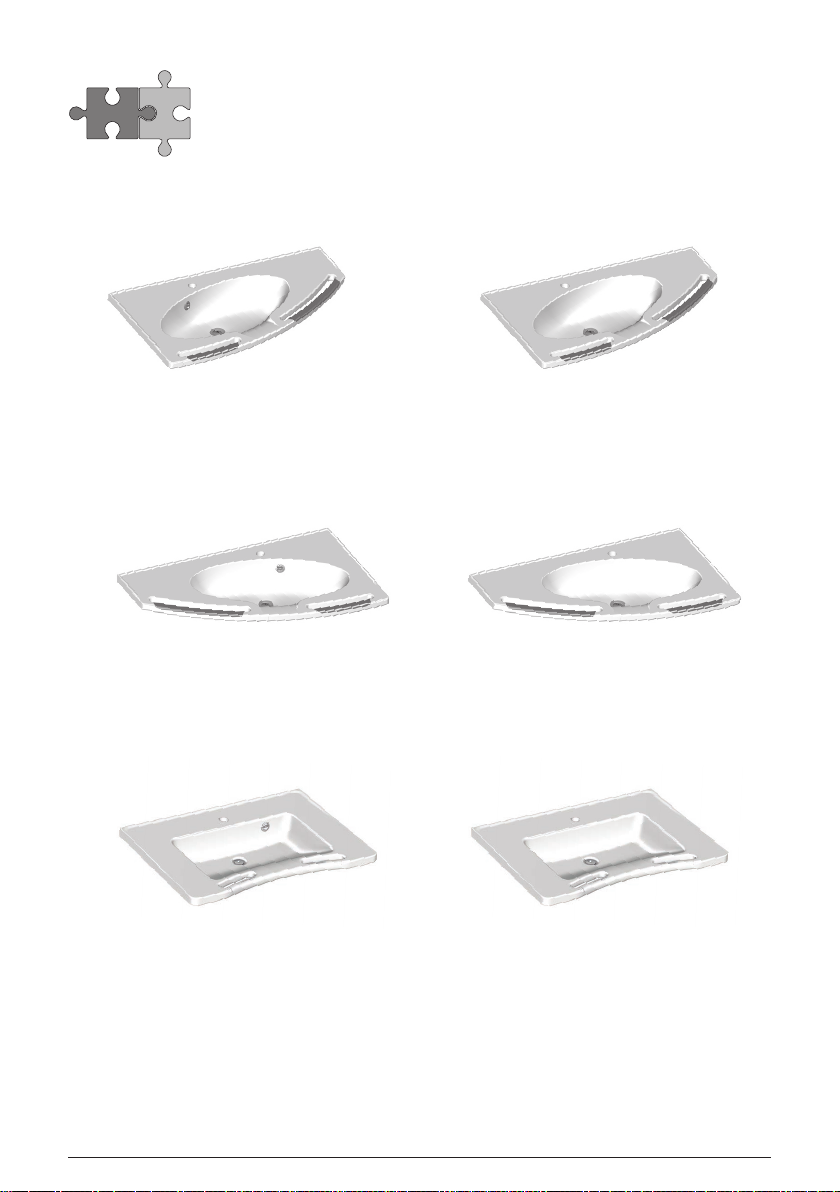

R2140 > R4840, R4845,
R484019, R484519
R2141 > R4840, R4845,
R484019, R484519
R2142 > R4842, R4847,
R484219, R484719
R2143 > R4842, R4847,
R484219, R484719
R2120 > R4820, R4825, R4826,
R482019, R482519
R2121 > R4820, R4825, R4826,
R482019, R482519

7

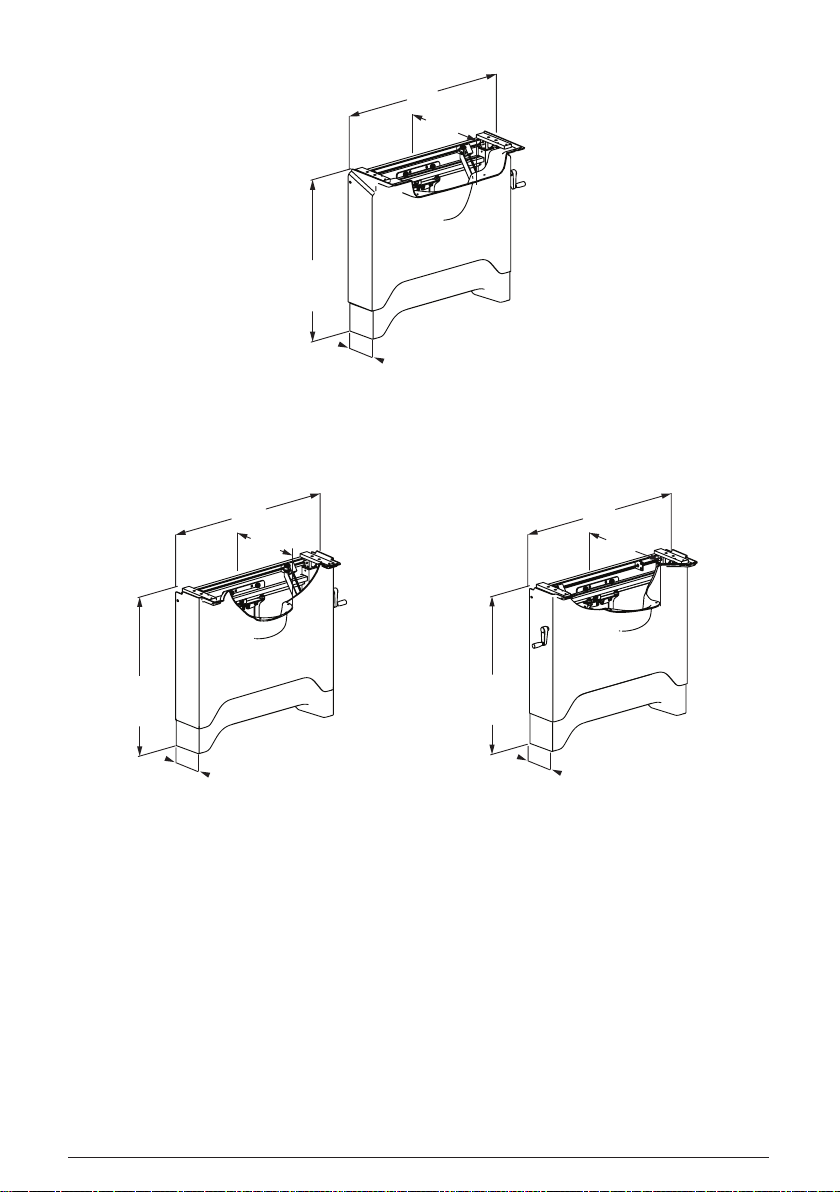

760
325
max
710
min
510
82
R4820, R4825, R4826
760
290
81 188
max
710
min
510
82
760
290
81
188
max
710
min
510
82
R4840, R4845 R4842, R4847
mm

8
802
324
max
910
min
610
16
5
R482019, R482519
802
305
max
910
min
610
16
5
802
305
max
910
min
610
16
5
R484019, R484519 R484219, R484719

9

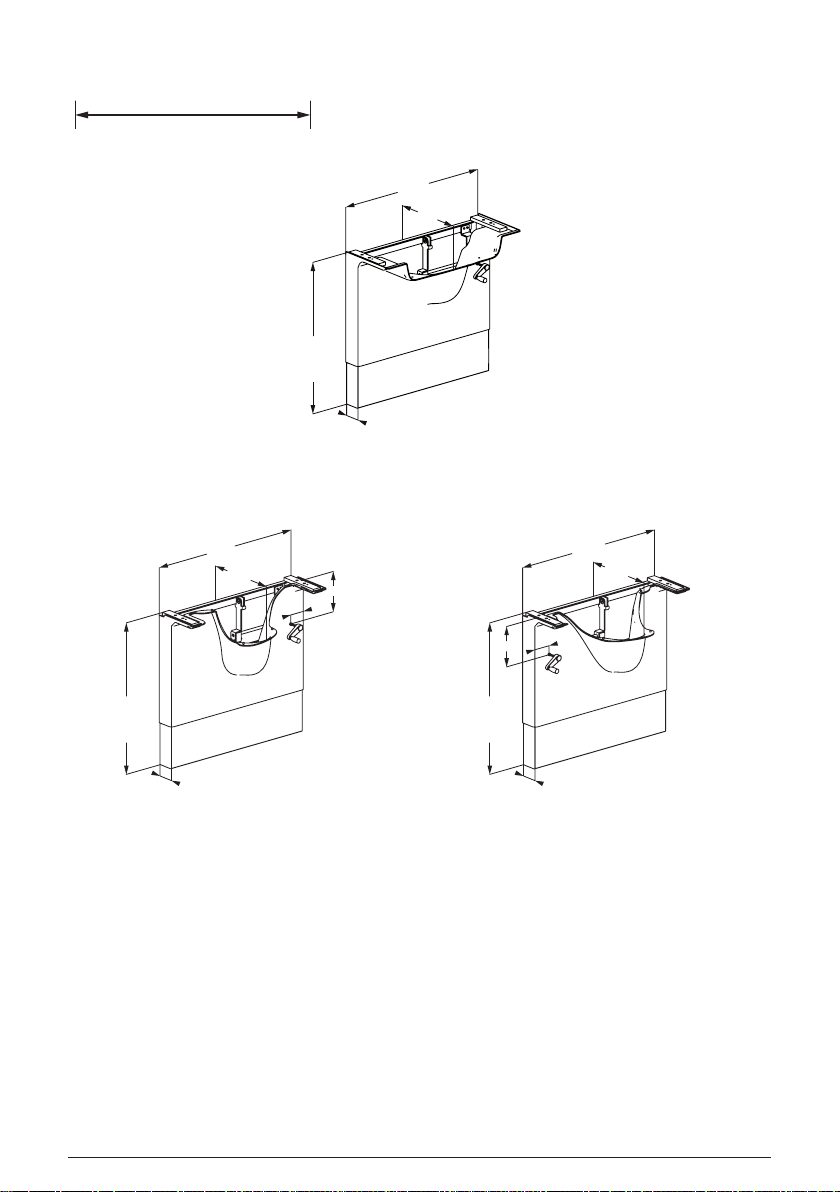

780
165
550
780
145
550

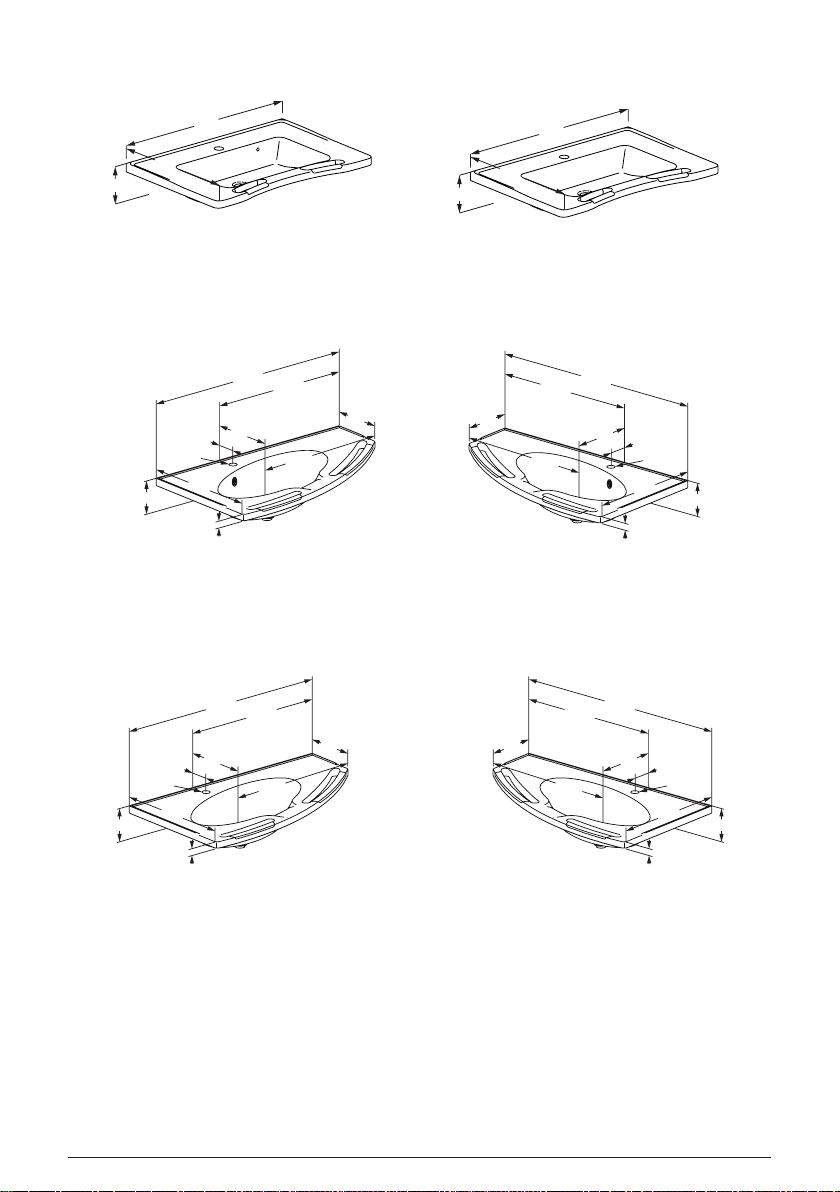

R2120 R2121
1000
640
235
230
158
71
Ø
36
32
595
571
1000
640
235
230
158
71
Ø36
32
595
571
R2140 R2142
1000
158
640
595
71
571
Ø36
32
235
230
71
571
235
230
1000
158
640
595
Ø36
32
R2141 R2143

10

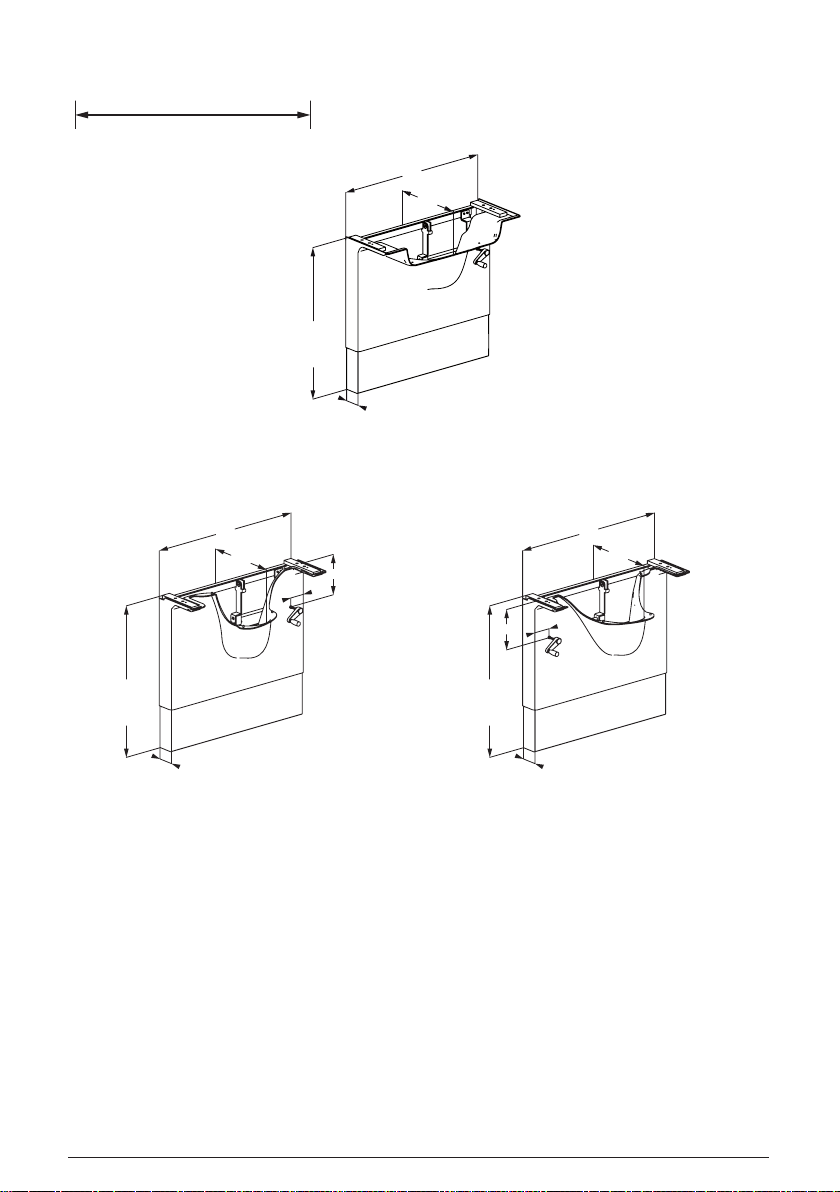

29.92
12.8
max
27.95
min
20.08
3.23
R4820, R4825, R4826
29.92
11.42
3.19 7.4
max
27.95
min
20.08
3.23
29.92
11.42
3.19
7.4
max
27.95
min
20.08
3.23
R4840, R4845 R4842, R4847
inch

11
31.57
12.76
max
35.83
min
24.02
6.5
R482019, R482519
31.57
12.01
max
35.83
min
24.02
6.5
31.57
12.01
max
35.83
min
24.02
6.5
R484019, R484519 R484219, R484719

12
30.75
6.5
21.63
30.75
5.75
21.63
R2120 R2121
39.38
6.25
25.25
23.38
2.75
22.5
Ø
1.25
1.25
9.25
9
2.75
22.5
9.25
9
39.38
6.25
25.25
23.38
Ø
1.25
1.25
R2140 R2142
39.38
6.25
25.25
23.38
2.75
22.5
Ø
1.25
1.25
9.25
9
2.75
22.5
9.25
9
39.38
6.25
25.25
23.38
Ø
1.25
1.25
R2141 R2143

13
en
Content
Mounting instruction .................................................13
Symbols used in this manual...........................................14
General safety ........................................................15
Safety distances ......................................................16
Intended use .........................................................18
Intended operator profile .........................................18
Intendeduserprofile.............................................18
Operating environment...........................................18
Contraindications for use .........................................18
Operating instructions ................................................19
Sideways adjustment.............................................20
Cleaning.............................................................21
Maintenance ........................................................22
Maintenance inspection .........................................22
Product label.........................................................25
Trouble-shooting .....................................................26
Disposal and recycling ................................................26
Original instructions
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from pressalit.com.

14
en
Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING WARNING indicates a potentially
hazardous situation which, if not
avoided, could result in death or
serious injury.
!CAUTION CAUTION indicates a potentially
hazardous situation which, if not
avoided, may result in minor or
moderate injury. It may also be used
to alert against unsafe practices.
IMPORTANT IMPORTANT indicates important
information about handling and use
of the product.
NOTICE NOTICE is used to address practices
not related to personal safety.
Head injury
warning
Hands injury
warning
Genitialia injury
warning
Feet injury
warning
REF
++
Compatible
products
Article number/
versions Product weight Max. user weight

15
en
General safety
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our mounting instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.

ISO 17966:2016
Max 120 mm (4.72")
Min 300 mm (11.81")
Max 60 mm (2.36")
Min 300 mm (11.81")
Max 8 mm (0.31")
Min 25 mm (0.98")
Max 4 mm (0.16")
Min 25 mm (0.98")
Max 35 mm (1.38")
Min 120 mm (4.72")
Max 25 mm (0.98")
Min 120 mm (4.72")
Max 8 mm (0.31")
Min 75 mm (2.95")
Max 8 mm (0.31")
Min 75 mm (2.95")
16
en

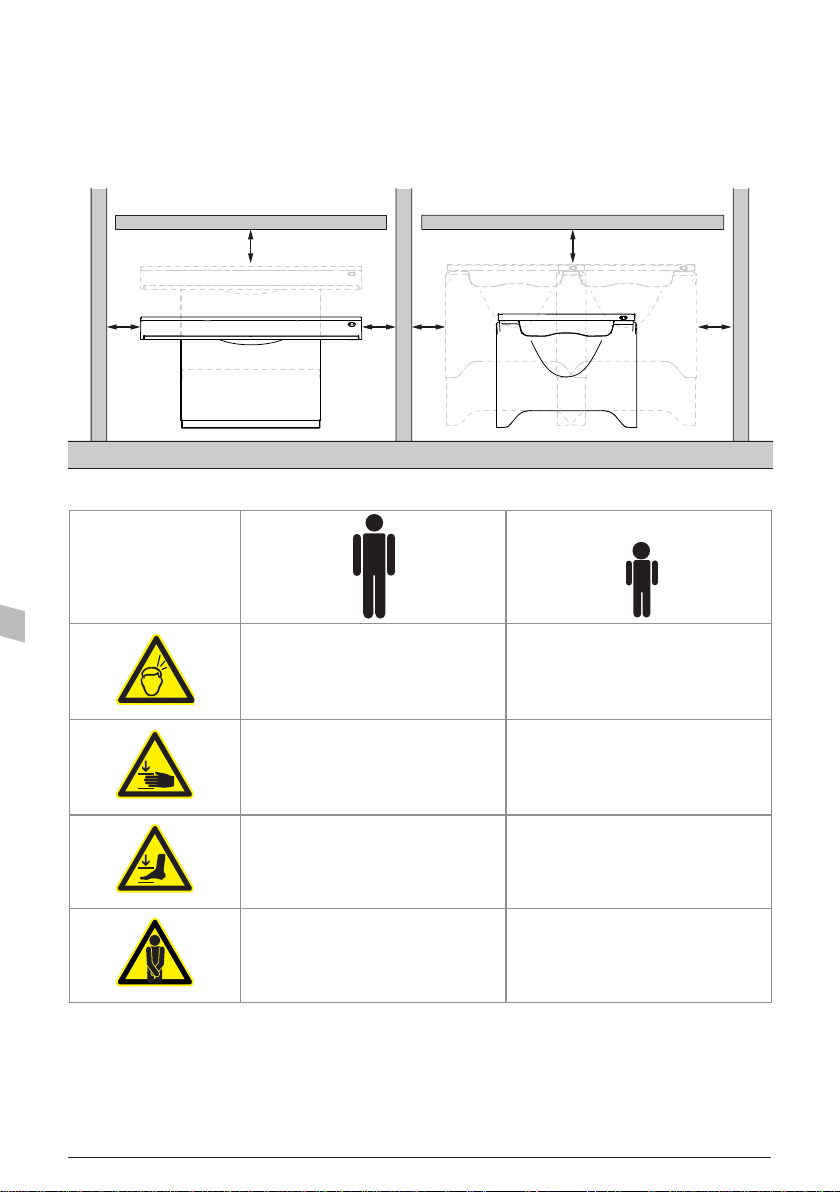

Safety distances
Make sure that the wash basin lifter is at safe distance from surrounding
objects. Check the distances before any use.

Max 120/60 mm
Max 4.72/2.36"
Max 8/4 mm
Max 0.31/0.16"
Max 35/25 mm
Max 1.38/0.98"
Max 8 mm
Max 0.31"
Min 300 mm
Min 11.81"
Min 25 mm
Min 0.98"
Min 120 mm
Min 4.72"
Min 75 mm
Min 2.95"
/
17
en
!WARNING
If the unit moves within the safety distances, you must keep an especially
close eye on surrounding people and objects to avoid crushing hazards.

18
en
This product is intended for optimum ergonomics at a wash basin, for both
seated and standing users with disabilities.
Intended operator profile
The product can be used by all - adults, children, young and old.
Intended user profile
The product can be used by all - adults, children, young and old.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room.
The product is intended to be used at room temperature, in private homes,
nursing homes and hospitals under normal working conditions.
Contraindications for use
People who are not capable of keeping their balance in an upright position
are not recommended to use this wash basin lifter.
Intended use
!CAUTION
The surface of the product may become hot and / or cold if exposed to
external sources of heat or cold (e.g. sunlight or frost).
NOTICE
Any serious incident that has occurred in relation to the product should be
reported to the manufacturer and the health authorities.

19
en
!CAUTION
Never place objects underneath the wash basin.
Operating instructions
Take care to avoid injury to
hands when in the vicinity of
moving mechanical parts.
Turn the crank handle clockwise
to raise the wash basin, and
counterclockwise to lower it.
The wash basin lifter models R4820,
R4825, R4826, R4840, R4845, R4842
and R4847 can be adjusted 200 mm
(7.87") up and down.
Max load is 150 kg/330 lbs.
Raise
Lower

20
en
The wash basin lifter models
R482019, R482519, R484019,
R484519, R484219 and R484719
can be adjusted
300 mm (11.81") up and down,
and also 500 mm in total
(19.69") to either the left or
right.
Sideways adjustment
!CAUTION
Make sure the locking mechanism is properly engaged before any use or
height adjustment. This is ensured by pushing the wash basin lifter a little
to the right or left until a click is heard.
Max load is 150 kg/330 lbs.
Unlock the sliding mechanism by pressing and
holding the side adjustment button to either
the left or right.
Grasp the handles of the sink and push the wash basin lifter to either the left
or right. The lifter slides quite easily, so you don’t have to use much effort.
When the wash basin lifter is in the desired position, release the side
adjustment button and the lifter will lock in place with a click.
Be careful not to injure your
feet when moving the wash
basin lifter sideways
500 mm (19.69")
