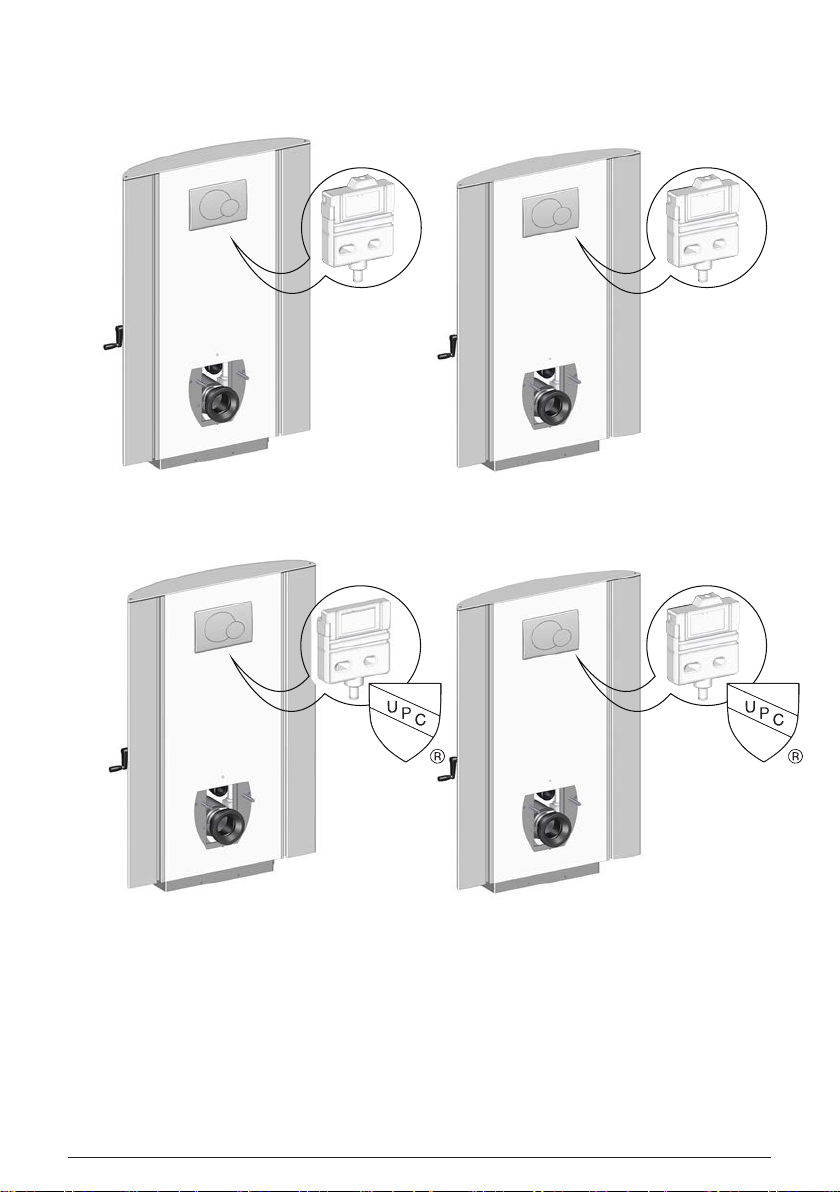

REF
SELECT TL1
R8012 R8022
R8032 R8042

4
SELECT TL2
R8112 R8122
R8132 R8142

5
R371370 R371470
R371385 R371485

6

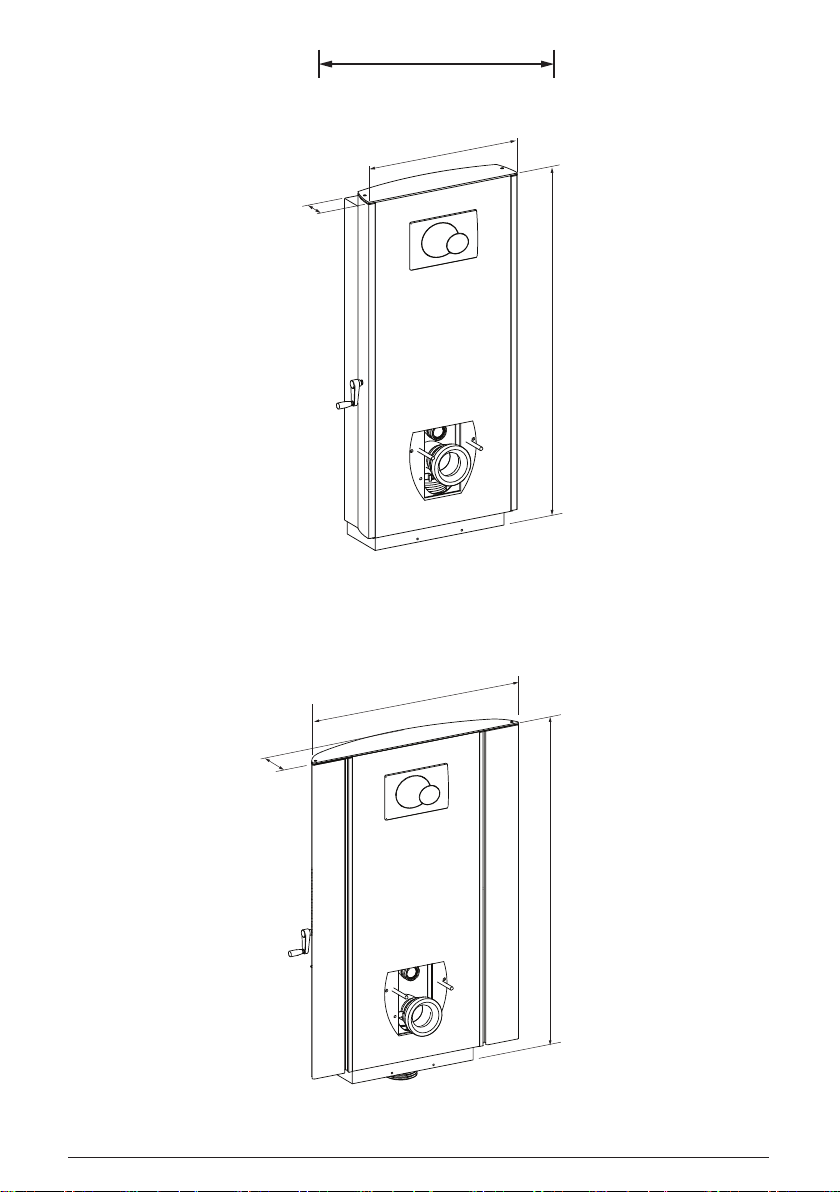

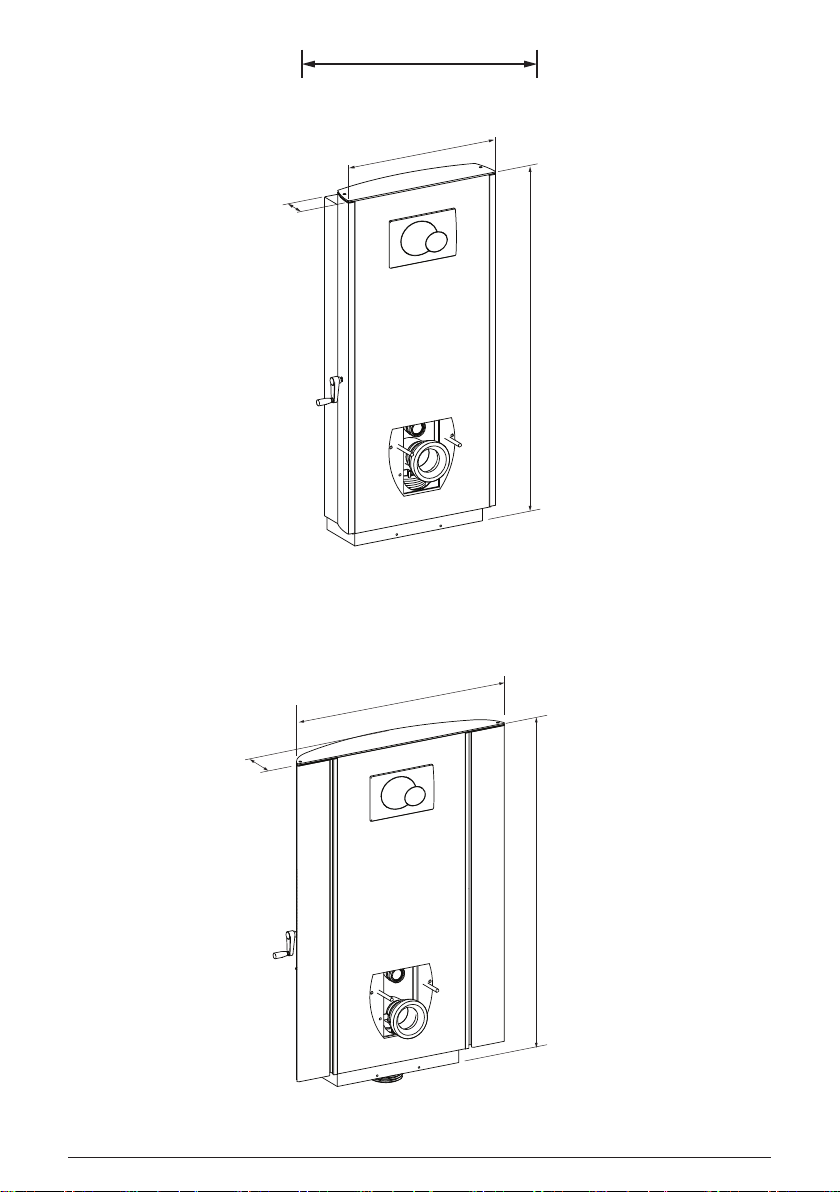

1209
555
220
1252
817
220
mm
R8012, R8022, R8032, R8042
R8112, R8122, R8132, R8142

7
47.6
21.85
8.66
49.29
32.17
8.66
inch
R8012, R8022, R8032, R8042
R8112, R8122, R8132, R8142

8
en
Content
Mounting instruction ..................................................8
Symbols used in this manual............................................9
General safety ........................................................10
Product label.........................................................11
Intended use .........................................................12
Intended operator profile ...........................................12
Operating environment.............................................12
Operating instructions ................................................13
Support arms (optional)...............................................14
Cleaning.............................................................15
To remove limescale................................................15
Maintenance.........................................................16
Maintenance inspection ............................................16
Technical data........................................................17
Trouble-shooting .....................................................18
Disposal and recycling ................................................18
Original instructions
Mounting instruction
A mounting instruction is included with the product. It can also
be downloaded from www.pressalit.com.

9
en

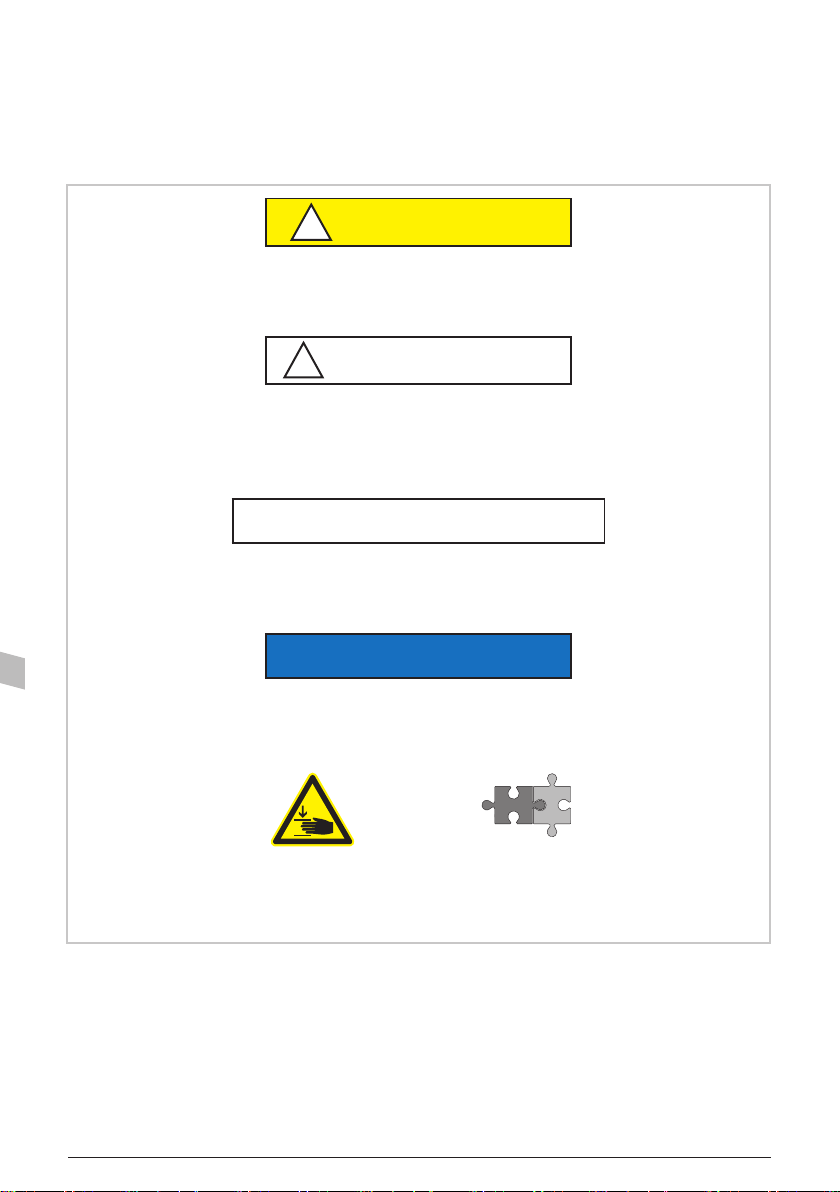

Symbols used in this manual
The following symbols are used in this manual as well as the associated
documentation supplied with the product.
!WARNING
WARNING indicates a potentially hazardous situation which, if not
avoided, could result in death or serious injury.
!CAUTION
CAUTION indicates a potentially hazardous situation which, if not avoided,
may result in minor or moderate injury. It may also be used to alert against
unsafe practices.
IMPORTANT
IMPORTANT indicates important information about handling and use of
the product.
NOTICE
NOTICE is used to address practices not related to personal safety.
Hand injury warning Compatible products

10
en
General safety
!CAUTION
• Please comply with these instructions to avoid the product becoming
damaged or destroyed.
• Do not perform repairs, disassembly, or assembly operations,
extensions, re-adjustments or modifications to this product. These
must be carried out by Pressalit or by persons authorized by Pressalit
only.
• Never allow children to operate this product unless under supervision.
The product is not intended for play.
• Never use the product if it is defective or damaged. Do not use a
defective product before it has been repaired.
!WARNING
• Read and understand the manual completely before use. Keep the
manual close to the unit.
• Comply with this manual to avoid accidents involving serious personal
injury.
• Never use or handle this product in other ways than are specified in
this manual, as this can put your safety at risk and cause damage to the
product.
• Make sure that everyone who is to install or use the product and its
systems has the necessary information and access to this manual.
NOTICE
• The information in this manual is based on correct fitting of the
product in accordance with our Assembly instruction.
• Pressalit cannot be held liable if the product is used in any way which
differs from that described in the guide.
• We reserve the right to amend this manual without prior notice.

11
en
①Production date
②Article number
③Medical device
④Batch code
⑤GS1-128 barcode
⑥Name and address of manufacturer
⑦Maximum user weight
⑧Max load
⑨Consult manual for use
⑩These products are CE-marked in accordance with relevant
requirements in:
- Regulation (EU) 2017/745 (5 April 2017) on medical devices.
- Council Directive 2006/42/EC (of 17 May 2006) on machinery.
A declaration of conformity can be found at www.pressalit.com.
Pressalit A/S, Pressalitvej 1
DK-8680 Ry [phone]

REF
⑥⑦⑧⑨⑩
①②③④⑤
++
++
==
YYYY-MM-DD RZZZZYYYXXX-X
(01)0XXXXXXXXXXXXX(10)YYMMDD
xxx kg
xxx lbs
xxx kg
xxx lbs
Product label

12
en
Intended use
This product is intended for optimum ergonomics at a toilet, for both seated
and standing users with disabilities.
Intended operator profile
The product can be used by all - adults, children, young and old.
Operating environment
For indoor use in a wet environment, such as a bathroom or wash room. The
product is intended to be used at room temperature in private homes, nursing
homes and hospitals under normal working conditions.

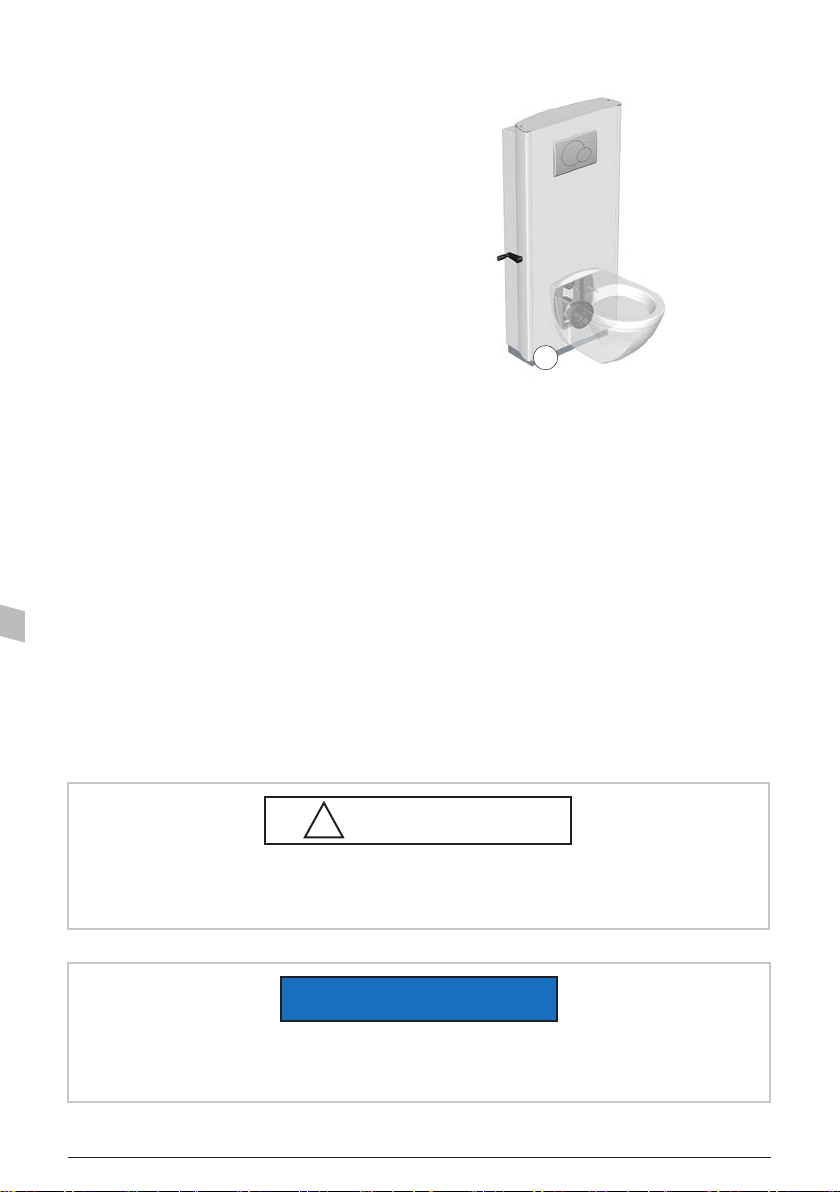

Product label placement ①.
1
NOTICE
Any serious incident that has occurred in relation to the product should be
reported to the manufacturer and the health authorities.
!CAUTION
The surface of the product may become hot and / or cold if exposed to
external sources of heat or cold (eg sunlight or frost).

13
en
!CAUTION
Never place objects underneath the toilet.
Operating instructions
The toilet lifter can be adjusted 300 mm
/ 11⁄” up and down.
Max user weight: 200 kg / 440 lbs
Max load: 235 kg / 518 lbs
Lower
Raise
Turn the crank handle clockwise to raise the toilet, and
counterclockwise to lower it.
Take care to
avoid injury to
hands when in the
vicinity of moving
mechanical parts.

14
en
Support arms (optional)
The toilet lifters model R8112, R8122,
R8132 and R8142 can be equipped
with support arms.
The support arms can be folded up
and down. Fold them up when not
in use.
The support arms can also be
adjusted 240 mm / 8⁄ inches in
height.
1
To adjust upwards, pull the support
arm upwards.
To adjust the support arm
downwards, pinch the locking
button ①and pull the support arm
a little bit upwards while holding
the button. Then move the support
arm downwards. Release the locking
button to secure the support arm in
place.
Make sure that the locking button pin
is engaged in the notch.
Click

15
en
Cleaning
IMPORTANT
• Do not use an autoclave or other type of steam cleaner.
• Avoid aggressive cleaning agents containing acids
• Never spray the product directly with a high pressure cleaner.
• Avoid use of abrasive, corrosive or chlorine-based cleaning or
disinfecting products.
The product is to be cleaned with hot water or a mild soapy cleaning agent.
A list of suitable cleaning agents tested by Pressalit can be found on
www.pressalit.com.
!CAUTION
Always read the material safety data sheet (MSDS) and supplied
instructions of the cleaning, disinfecting or de-scaling agent and comply
with instructions for safe use, dilution, rinsing, drying, handling and
storage of the agent.
To remove limescale
To remove limescale marks on the aluminium parts, use 3 parts 30%
household vinegar to 7 parts water and afterwards wipe the parts with a cloth
wrung out in clean water.
In countries with relatively high levels of lime in the water supply, it may be
necessary to remove limescale deposits from the aluminium parts using a
de-scaling agent such as acetic acid. Test this first on a area that is not visible
when the product is in use.

16
en
Maintenance
Expected service life of the toilet lifter is 10 years, provided that maintenance
is carried out once a year as described below.
It is recommended on a monthly basis to adjust the product to its maximum
positions up and down to lubricate the internal parts.
Maintenance inspection
Take the toilet to its highest position.
Remove the lower cover plate ①(can
be clicked off).

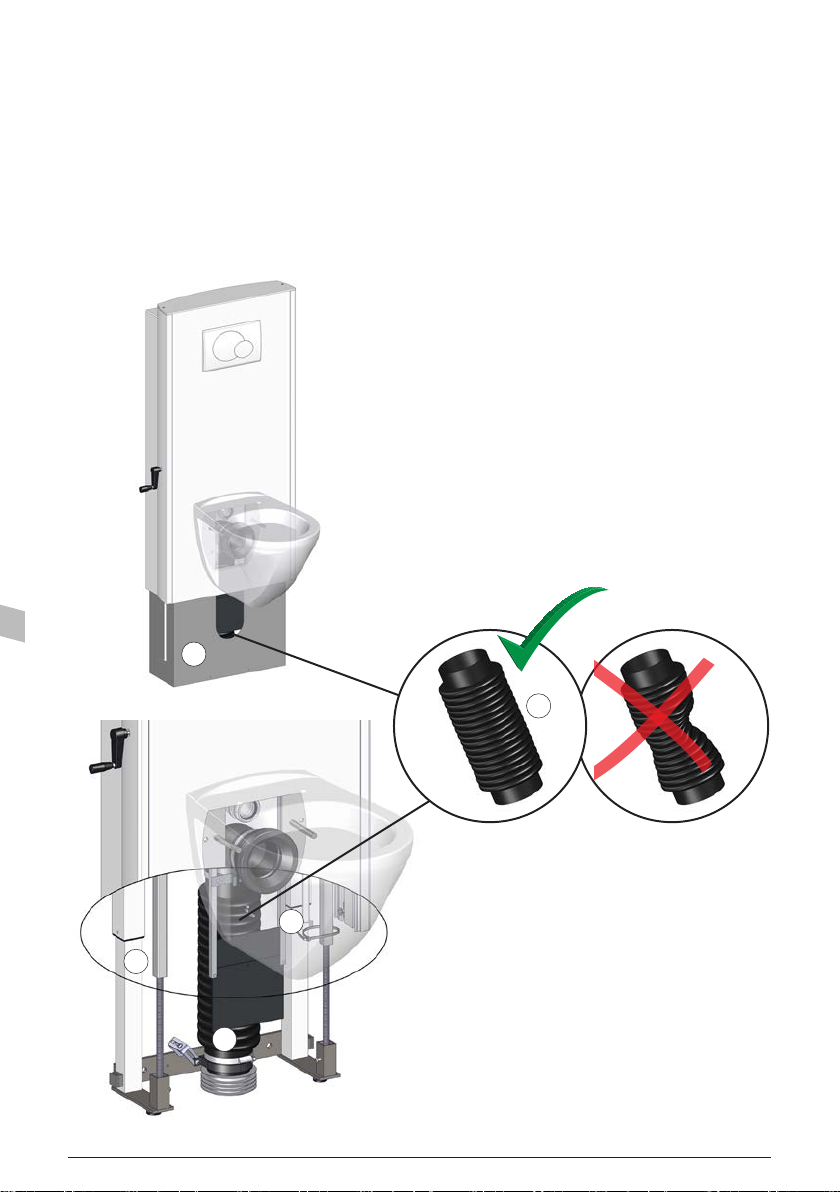

Ensure that the flexible outlet hose ②
can move freely when the toilet is
height adjusted. The flexible outlet
must be symmetrical when stretched
out.
Lubricate the inner square tubes ③on
all 4 sides as far as can be reached.
Take the toilet to its lowest position, and
then run it to the top position again to
distribute the lubricant.
Reattach the lower cover plate.
1
2
3
3
2

17
en
Max user weight 200 kg / 440 lbs
Max load 235 kg / 518 lbs
Product weight
R8012, R8022
R8032, R8042 52,3 kg / 117,50 lbs
R8112, R8122
R8132, R8142 58,3 kg / 128,52 lbs
Technical data

18
en
Trouble-shooting
Symptom Cause Action
The product runs up
and down unevenly.
The inner square
tubes are not properly
lubricated.
Oil the inner square
tubes as described under
”Maintenance”.
The toilet doesn’t
flush properly.
The flexible hose
might be squeezed.
Ensure that the flexible
hose is in the right
position as described
under “Maintenance”.
Contact Pressalit A/S or your local dealer if the problem cannot be remedied.
Do not attempt to repair the product yourself, as this will invalidate the
guarantee.
Disposal and recycling
The unit contains reusable materials. There are no known hazards or risks
associated with disposal of the product. All components can be discarded
after having been cleaned and disinfected.
When disposing of the product, we recommend that it be disassembled and
broken down into different waste groups for recycling or combustion.
The following table provides information on the recycling and handling of the
product.
Recyclable
components Material
Steel Steel can be recycled by being melted down and
included as a secondary material in the production of
new steel.
Plastics Use plastic sorting and recycling systems where they
are locally available, otherwise incinerating plastic
has the added benefit of generating energy which can
be used for, for example, combined heat and power
production.

dkdk
19
Indhold
Monteringsvejledning.................................................19
Symboler, der er anvendt i denne vejledning ............................20
Generel sikkerhed ....................................................21
Produktmærkning ....................................................22
Tilsigtet brug .........................................................23
Tilsigtet personaleprofil.............................................23
Betjeningsmiljø ...................................................23
Betjeningsinstruktioner ...............................................24
Toiletstøtter (tilbehør).................................................25
Rengøring ...........................................................26
Sådan fjernes kalkaflejringer .........................................26
Vedligeholdelse.......................................................27
Vedligeholdelsesinspektion .........................................27
Tekniske data ........................................................28
Fejlfinding ...........................................................29
Bortskaffelse og genbrug ..............................................29
Monteringsvejledning
Der følger en monteringsvejledning med dette produkt. Den
kan også downloades fra www.pressalit.com.

dk
20
Symboler, der er anvendt i denne vejledning
Følgende symboler er anvendt i denne vejledning og i den tilhørende
dokumentation, der følger med produktet.
!ADVARSEL
ADVARSEL angiver en potentielt farlig situation, som, hvis den ikke
undgås, kan medføre dødsfald eller alvorlig personskade.
!FORSIGTIG
FORSIGTIG angiver en potentielt farlig situation, som, hvis den ikke
undgås, kan medføre større eller mindre personskade. Det kan også bruges
til at advare om usikre fremgangsmåder.
VIGTIGT
VIGTIGT angiver vigtige oplysninger om håndtering og anvendelse af
produktet.
BEMÆRK
BEMÆRK vedrører fremgangsmåder, der ikke er forbundet med personlig
sikkerhed.
Advarsel om
håndskade
Kompatible
produkter
