Prestel FM-42 User manual

Operating Instructions
1
4x2 HDMIMatrix,Support3D
Operating Instructions
Dear Customer
Thank you for purchasing this product. For optimum performance and safety, please read these
instructions carefully before connecting, operating or adjusting this product. Please keep this manual
for future reference.
FEATURES
4 HDMI inputs,2 HDMI standard outputs,
High Denition Audio support: Dolby TrueHD,and DTS-HD Master Audio
The 2 HDMI output ports can be from the same or different sources.
Manual or remote select source input signal to different sink.

Auto Signal Enhancement feature can improve signal quality after long distance transmission.
With remote controller
High-denition Resolutions support: HDTV - up to 1080p .
Support 3D video format(Side-by-Side Horizontal )
Supports 30/36bit deep color display
NOTICE
Our company reserve the right to make changes in the hardware, packaging and any accompanying
documentation without prior written notice.
TABLEOF CONTENTS
Specifications
PackageContents
PanelDescriptions
Connecting andOperating
Maintenance
ProductService
Warranty

Operating Instructions
2

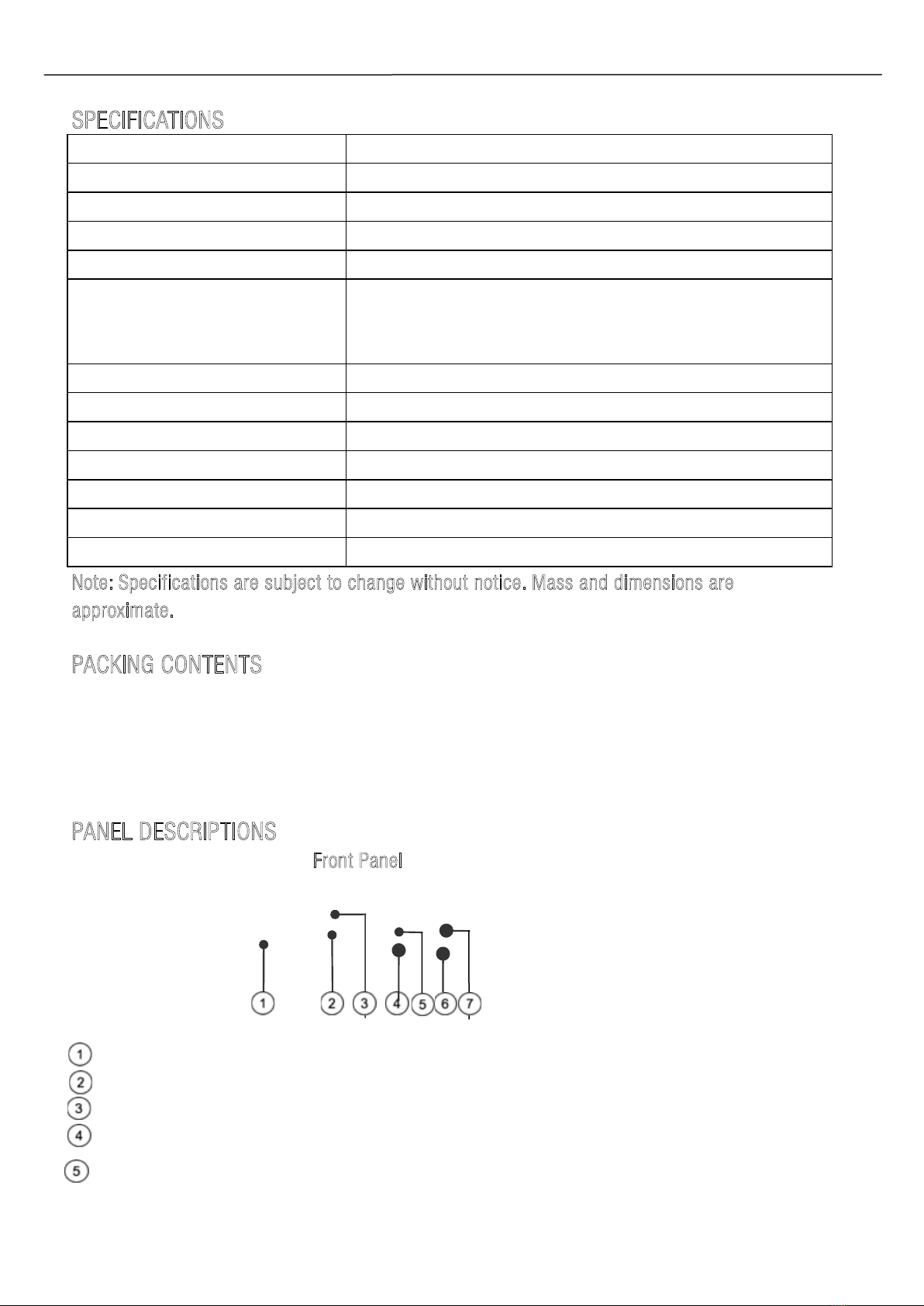

SPECIFICATIONS
Operating Temperature Range -5 to +35 (℃+23 to +95 )℉
Operating Humidity Range 5 to 90%RH (No Condensation)
Input Video Signal 0.5-1.0 Volts P-P
Input DDC Signal 5 volts p-p(TTL)
Data transfer speed rate 6.75Gbps(Maximum)
Video Format Supported
DTV/HDTV:
480i/576i/480P/576P/720P/1080i/1080P
3D video support((Side-by-Side Horizontal )
Video Output HDMI +HDCP2.0
Support Video Color Format xv-YCC/deep color 36bit
Support Audio Format DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD
Transmission Distance 15m(Maximum)over standard HDMI cable/26AWG
Power consumption 5watts(Maximum)
Dimension (L×W×H) 115x60x32mm
Net Weight 245g
Note:Specificationsaresubjecttochange withoutnotice. Massand dimensions are
approximate.
PACKINGCONTENTS
1) Main Unit. 4x2 HDMI Matrix
2) 5VDC 2A Power Supply.
3) Operating Instructions
4) Infrared Remote Controller
PANELDESCRIPTIONS
FrontPanel
Remote
IR Receiver
OutputB Select Button:Press the " Switch B" button to switch signal source from input 1 to 4.
OutputA Select Button: Press the " Switch A" button to switch signal source from input 1 to 4
Indicator of HDMI output B :A red LED light will illuminate when output B works.
Indicator of HDMI output A:A blue LED light will illuminate when output A works.

Operating Instructions
3
2) ServicingPersonnel:Do not attempt to service the unit beyond that described in these operating
instructions. Refer all other servicing to authorized servicing personnel.
4).Use the remote controller or press buttons to select input signal source for output A and output B
Indicator of OutputA's input source:The corresponding blue LED light will illuminate according to
which input you connect.
3) Replacementparts: When parts need replacing ensure the servicer uses parts specied by the
manufacturer or parts that have the same characteristics as the original parts. Unauthorized
substitutes may result in re, electric shock, or other hazards.
4) Safetycheck:After repairs or service, ask the servicer to perform safety checks to conrm that
the unit is in proper working condition.
Indicator of OutputB's Input source:The corresponding red LED light will illuminate according to
which input you connect.
2).Connect the cables from your displays (monitor or projector) into the HDMI outs of the output A
and output B.
Clean this unit with a soft, dry cloth. Never use alcohol, paint thinner of benzine to clean this unit.
1) Damagerequiringservice:The unit should be serviced by qualied service personnel if:
Left Panel Rear panel RightPanel
(d)The unit does not operate normally or exhibits a marked change in performance;
Output A port Power input Input ports Output B port
3).Plug the 5VDC power supply into Power input and the unit is ready to use .
1).Connect the HDMI signal sources(Such as PS3,STB etc) into HDMI input.
(a)The DC power supply cord or AC adaptor has been damaged;
Please resetpowerwhenthere isno signal.
(e)The unit has been dropped or the cabinet damaged.
Connecting and Operating
Attention:Insert/Extract cable gently.
MAINTENANCE
PRODUCTSERVICE
(b)Objects or liquids have gotten into the unit;
(c)The unit has been exposed to rain;

Operating Instructions
4
WARRANTY
If your product does not work properly because of a defect in materials or workmanship, our Company
(referred to as "the warrantor" ) will , for the length of the period indicated as below,
(Parts(2)Year ,Labor(90) Days) which starts with the date of original purchase ("Limited Warranty
period"), at its option either(a) repair your product with new or refurbished parts, or (b) replace it with a
new of a refurbished product. The decision to repair or replace will be made by the warrantor.
During the "Labor" Limited Warranty period there will be no charge for labor.
During the "Parts" warranty period, there will be no charge for parts. You must mail-in your product
during the warranty period. This Limited Warranty is extended only to the original purchaser and only
covers product purchased as new. A purchase receipt or other proof of original purchase date is
required for Limited Warranty service.
Mail-InService
When shipping the unit carefully pack and send it prepaid, adequately insured and preferably in the
original carton. Include a letter detailing the complaint and provide a day time phone and/or email
address where you can be reached.
LIMITED WARRANTYLIMITSANDEXCLUSIONS
1) This Limited Warranty ONLY COVERS failures due to defects in materials or workmanship, and
DOES NOT COVER normal wear and tear or cosmetic damage. The Limited Warranty ALSO DOES NOT
COVER damages which occurred in shipment, or failures which are caused by products not supplied
by warrantor,or failures which result from accidents,misuse,abuse,neglect, mishandling,
misapplication, alteration, faulty installation, set-up adjustments, misadjustment of consumer controls,
improper maintenance, power line surge, lightning damage, modication, or service by anyone other
than a Factory Service center or other Authorized Servicer, or damage that is attributable to acts of
God.
2) THERE ARE NO EXPRESS WARRANTIES EXCEPT AS LISTED UNDER "LIMITED WARRANTY
COVERAGE".THE WARRANTOR IS NOT LIABLE FOR INCIDENTAL OR CONSEQUENTIAL DAMAGES
RESULTING FROM THE USE OF THIS PRODUCT, OR ARISING OUT OF ANY BREACH OF THIS WARRNTY.
(As examples, this excludes damages for lost time, cost of having someone remove or re-install an
installed unit if applicable, travel to and from the service, loss of or damage to media or images, data
or other recorded content. The items listed are not exclusive, but are for illustration only.)
3) PARTS AND SERVICE, WHICH ARE NOT COVERED BY THIS LIMITED WARRANTY, ARE YOUR
RESPONSIBILITY.
