USER MANUAL
Prestel FM-42H2A
4×2 HDMI 2.0 18Gbps Matrix Switcher

Thank you for purchasing this product
For optimum performance and safety, please read these instructions carefully
before connecting, operating or adjusting this product. Please keep this
manual for future reference.
Surge protection device recommended
This product contains sensitive electrical components that may be damaged
by electrical spikes, surges, electric shock, lighting strikes, etc. Use of surge
protection systems is highly recommended in order to protect and extend the
life of your equipment.
Table of Contents
1. Introduction...........................................................................................
2. Features.................................................................................................
3. Package Contents...............................................................................
4. Specifications.......................................................................................
5. Operation Controls and Functions......................................................
5.1. Front Panel...................................................................................
5.2. Rear Panel....................................................................................
5.3. Connecting to the Matrix............................................................
5.4. Using the Matrix............................................................................
5.5. IR Pin Definition.............................................................................
6. IR Remote..............................................................................................
7. Using the Built-In Web Interface..........................................................
8. ASCII control command......................................................................
9. Application Example............................................................................
1
1
1
2
3
3
4
5
6
7
8
9
18
24

1. Introduction
2. Features
☆HDMI 2.0, HDCP 2.2 / HDCP 1.4 and DVI 1.0 compliant
☆Four 18G HDMI 2.0 video inputs supporting up to 4K60 444 resolution
☆Two 18G HDMI 2.0 video outputs supporting up to 4K60 444 resolution
☆Both outputs can be individually scaled for 4K→1080p or HDBaseT mode
☆Automatic RS232, CEC and IR control of the display device power state
☆Two sets of de-embedded audio analogue and TosLink outputs, for both
outputs
☆ARC decoding to the TosLink audio outputs only
☆Test Pattern mode for testing output signal integrity to the display
☆Built-in Web GUI for LAN control
☆Four methods of control: Front panel, RS232, IR and LAN
3. Package Contents
1 / 24
This product is an 18G HDMI video switcher with 4 HDMI inputs and 2 scaling
HDMI outputs. Each input and output supports up to 4K60 444 HDMI 18G
video. The outputs can be individually scaled for 1080p or HDBaseT
compatibility. De-embedded audio as analogue L+R and optical TosLink is
available for both outputs. The Matrix Switcher can automatically control the
display device using RS232, CEC or IR when the last input signal is lost, or
when the first video input is detected. This switcher can be controlled from
the front panel, RS232, IR, or LAN.
Qty Item
4×2 HDMI 2.0 18Gbps Matrix Switcher
12V/1A Locking Power Adapter
IR Remote
Mounting Ears
IR Blaster Cables (1.5 meters)
20~60KHz IR Receiver Cable (1.5 meters)
3-pin Phoenix Connectors
User Manual
1
1
1
2
2
1
5
1

4. Specifications
Technical
HDMI Compliance HDMI 2.0
HDCP Compliance HDCP 2.2 and HDCP 1.4
Video Resolution
4K2K 50/60Hz 4:4:4
4K2K 50/60Hz 4:2:0
4K2K 30Hz 4:4:4
1080p, 1080i, 720p, 720i, 480p, 480i
All HDMI 3D TV formats
All PC resolutions including 1920 x 1200
Color Space RGB, YCbCr4:4:4, YCbCr4:2:2, YCbCr 4:2:0
Color Depth 8-bit, 10-bit, 12-bit [1080P, 4K30Hz, 4K60Hz (YCbCr 4:2:0)]
8-bit [4K60Hz (YCbCr4:4:4)]
HDMI Audio Formats
PCM2.0/5.1/7.1CH, Dolby Digital/Plus/EX, Dolby True HD,
DTS, DTS-EX,DTS-96/24, DTS High Res, DTS-HD Master
Audio, DSD
Optical Audio Formats PCM2.0, Dolby Digital / Plus, DTS
L/R Audio Formats PCM2.0CH
(Note: If ARC function is turned on, the audio port will mute.)
ESD Protection Human-body Model: ±8kV (Air-gap discharge),
±4kV (Contact discharge)
Video Bandwidth 18 Gbps
HDR formats HDR10, HDR10+, Dolby Vision, HLG
Output Scaling 4K to 1080p
4K to HDBaseT (Down-scale to no more than 10.2Gbps)
3D Support Yes
Audio Frequency
Response 20Hz to 20kHz, ±3dB
RS232 Control 57600, No parity, 8 data bits, 1 stop bit, No handshaking
RS232-A and
RS232-B
Configurable from 4800 to 115200 baud; 7 or 8 bits; none,
odd or even parity and 1 or 2 stop bits.
2 / 24

Resolution / Cable
length
1050g
Input: AC100~240V 50/60Hz
Output: DC12V/1A (Locking connector)
4.3W (max)
0°C ~ 40°C / 32°F ~ 104°F
-20°C ~ 60°C / -4°F ~ 140°F
Power Supply
Dimensions
Weight
Metal Enclosure
Operating
Temperature
Storage Temperature
Relative Humidity 20~90% RH (non-condensing)
Power Consumption
Color Black
218mm(W)×140mm(D)×43mm(H)
Housing
Mechanical
4K60 -
Feet / Meters
4K30 -
Feet / Meters
HDMI IN / OUT 32ft / 10M16ft / 5M
The use of “Premium High Speed HDMI” cable is highly recommended.
1080P60 -
Feet / Meters
50ft / 15M
Connections
Input Ports 4×HDMI Type A [19-pin female]
Output Ports
2×HDMI Type A [19-pin female]
2×L/R audio out [3-pin phoenix connector]
2×OPTICAL audio out [S/PDIF]
2×RS232 A/B [3-pin phoenix connector]
Control port
1×LAN [RJ45]
3×RS232 [3-pin phoenix connector]
1×IR IN [3.5mm Stereo Mini-jack]
2×IR OUT A/B [3.5mm Stereo Mini-jack]
3 / 24

Out A / Out B
5.2 Rear Panel
Tx Rx Tx Rx Tx Rx RL RL
OPTICAL OPTICAL
AUDIO OUT AAUDIO OUT B
A B
12V
IR IN
RS232
LAN
BA4321
SOURCE
CONTROL
DISPLAY
RS232-A RS232-B IR OUT
45 6 78
123

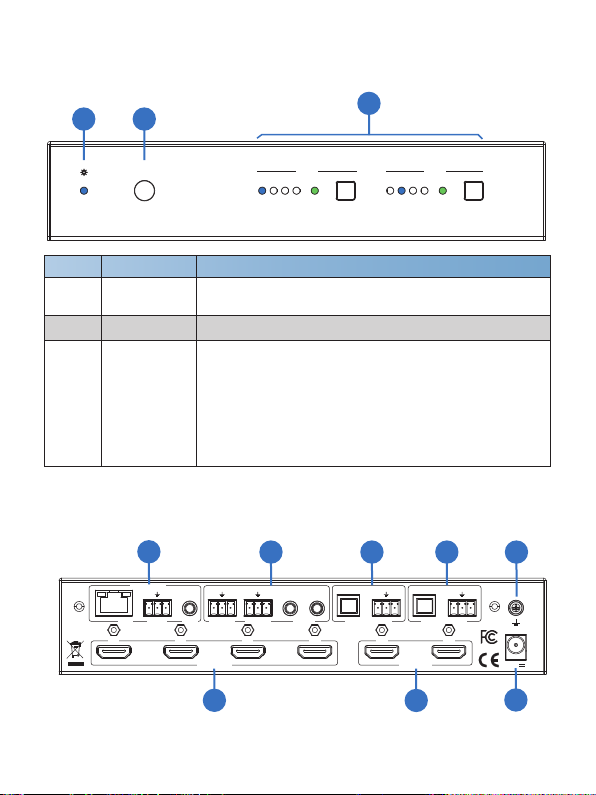

5. Operation Controls and Functions
5.1 Front Panel
Number Function descriptionName
1 Power LED Blue LED indicates that the unit is powered.
Red LED indicates that the unit is in standby mode.
Out A Out B
1 2 3 4 Auto1 2 3 4 Auto
IR
18Gbps HDMI 4x2 Matrix
1 2
3
2 IR Sensor IR input for remote control of the switcher
3
LED and button for each output
■ LED 1 to LED 4: Blue LED Indicates when the input is
selected for the respective output.
■ Auto LED: Green when Auto detection mode is enabled.
▪ Press to select the desired input.
▪ Press and hold for 3 seconds to toggle the Auto
detection mode.
4 / 24

CONTROL
SOURCE HDMI Source inputs 1 to 4
DISPLAY HDMI outputs for displays A and B.
12V Plug DC 12V/1A power supply into the unit and connect
the adapter to an AC outlet.
Number Function descriptionName
1
2
3
4
LAN (RJ45): Control port for LAN control or accessing
the built-in Web GUI.
RS232: 3-pin pluggable connector for RS232 control of
the Matrix.
IR IN: IR Eye input for IR control of the Matrix.
5
RS232-A /
RS232-B
3-pin pluggable connectors for RS232 of the display
devices.
IR OUT A /
IR OUT B IR eye output for IR control of the display devices.
6AUDIO OUT A
TosLink connector for optical audio from HDMI Output A
3-pin pluggable connector for stereo audio from HDMI
Output A
7 AUDIO OUT B
TosLink connector for optical audio from HDMI Output B.
3-pin pluggable connector for stereo audio from HDMI
Output B.
8 Earthing Point Screw terminal for earthing the Matrix.
1. Connect the desired HDMI input sources.
2. Connect the desired HDMI display devices.
3. Connect any CONTROL inputs that may be required: LAN, RS232, or IR IN.
4. Connect any Display control port: RS232-A, RS232-B, IR OUT A or IR
OUT B.
5. Connect any audio devices to either the Optical or L+R outputs.
6. Connect the 12V DC PSU.
5.3 Connecting to the Matrix
5 / 24

5.4 Using the Matrix
The Power LED provides the following indications:
Colour Description
Blue The Matrix is active and fully controllable
Red
The Matrix is in standby mode, this state can be
changed by using RS232 or LAN commands, or from
the Web GUI interface.
5.4.2 Auto LED and Button
5.4.1 Power LED and Standby Mode
The green AUTO LED for both outputs A and B is lit when that channel has
its Auto Detection mode active. Auto Detection mode will detect any new
HDMI signals and immediate switch to the input. If the currently selected
input is removed then the switcher will switch to the next available input, or
remain on the current input if there are no active HDMI input signals.
The change the Auto Detection mode, press and hold the button for that
channel for 3 seconds until the Auto LED changes state.
5.4.3 Selecting Inputs
Manual Selection of the inputs is done by briefly pressing the push button
repeatedly for that channel until the desired input is selected. Manual
selection is always possible, irrespective of the Auto LED state. Selected
inputs that have no signal will be indicated by a flashing LED.
6 / 24

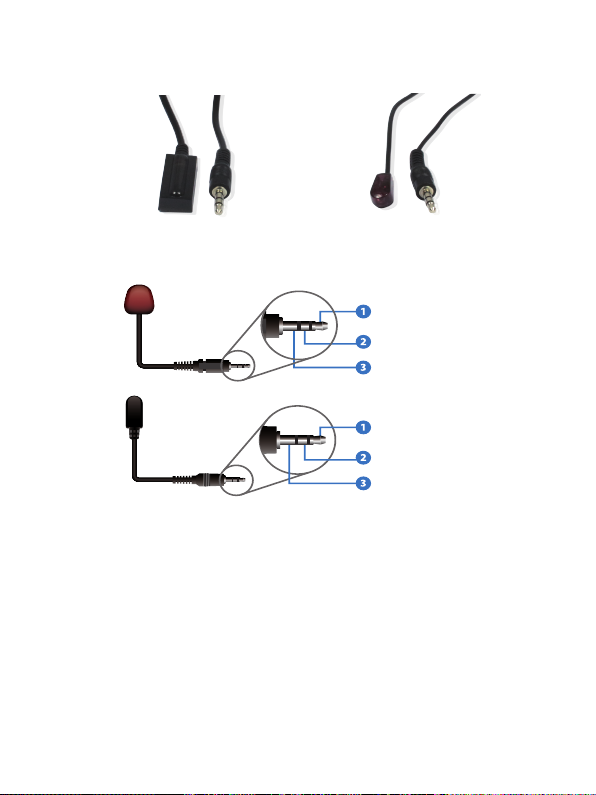

IR Receiver and Blaster pin’s definition as below:
IR RECEIVER IR BLASTER
5.5 IR Pin Definition
IR Blaster
IR Receiver
IR Blaster Signal
Power
NC
IR Signal
Power
Grounding
7 / 24

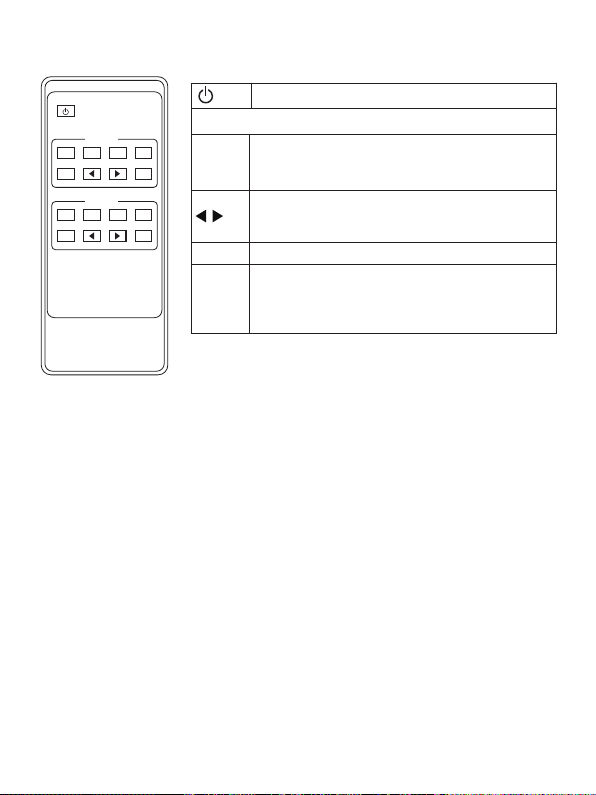

HDMI Matrix Remote
1 2 3 4
AUTO
AUTO 4K/HD
4K/HD
Output A
1 2 3 4
Output B
6. IR Remote
Power on the product or set it to standby mode.
Select input source signal to Out A / B port output,
corresponding Out A / B LED on the front panel
illuminates in blue.
Output A / B
1/2/3/4
Select the last or next input source signal to OUT
A / B port output, corresponding Out A / B LED
on the front panel illuminates in blue.
AUTO Turn on / off AUTO function.
4K/HD
Select Out A / B 4k→1080P downscale output.
For example, if source is 4K but TV only supports
1080P, the input resolution with 4K will downscale
to 1080P to TV output.
8 / 24

7. Using the Built-In Web Interface
The Matrix has a built-in web interface to provide a means of controlling or
configuring various settings. There are seven pages available, each of which
will be outlined in detail in the following sections.
The seven pages are:
1. Status – Displays information about the firmware and IP settings

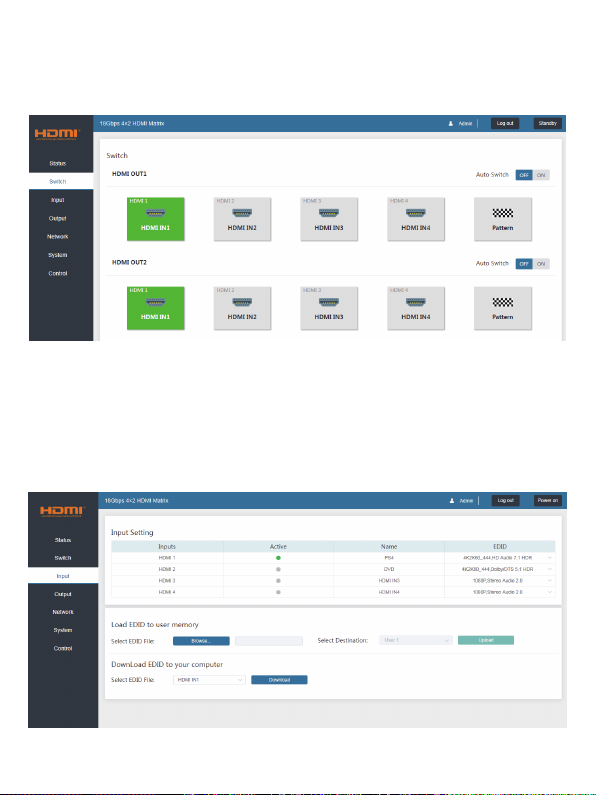

2. Switch – Control the video routing and enabling the test pattern mode
3. Input – Displays information about the input signals and EDID settings

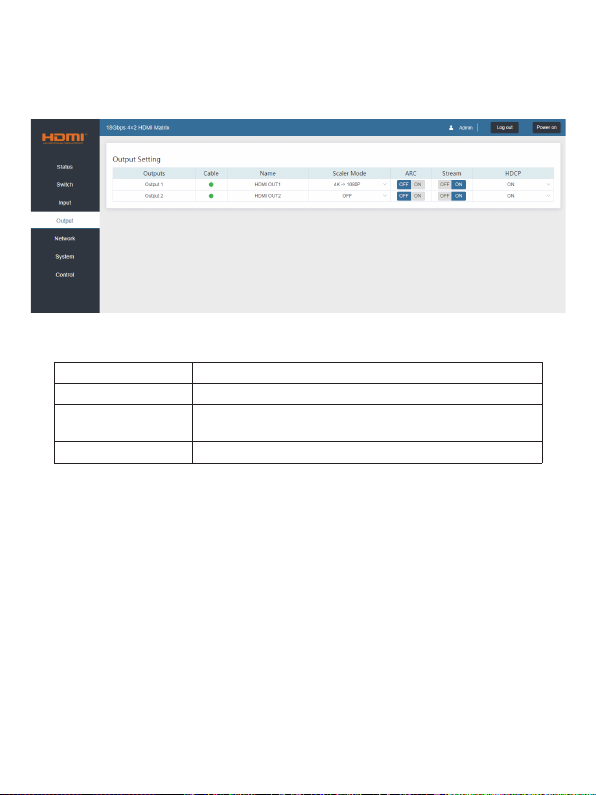

4. Output – Displays information about the output signals and scaler options

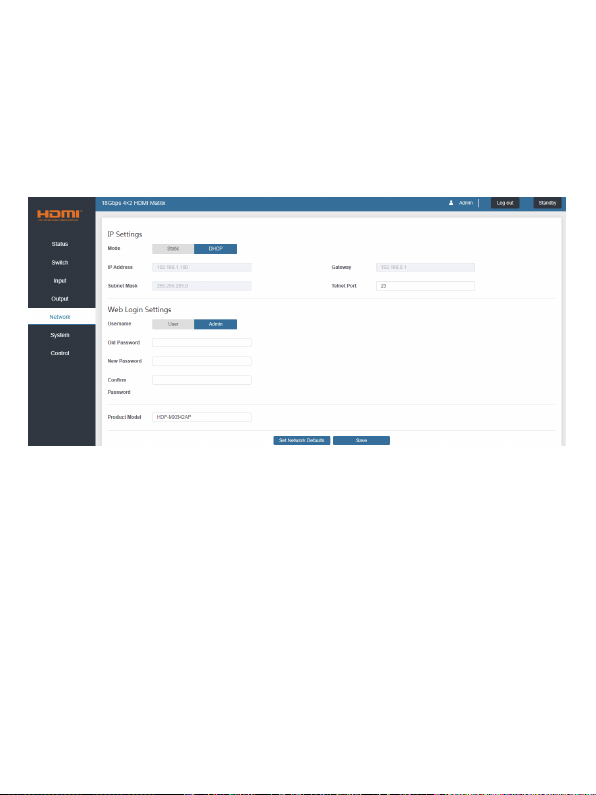

5. Network – Allows basic network setting management and login options

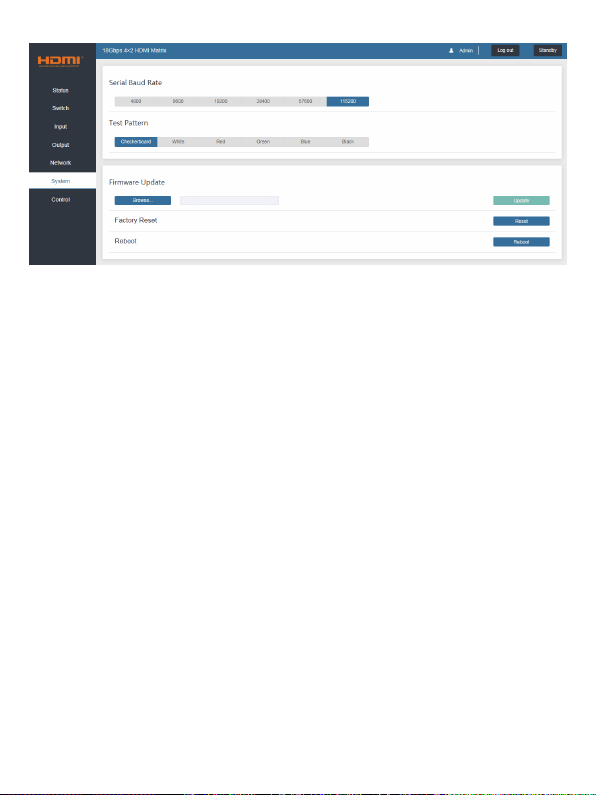

6. System – Serial baudrate, test pattern setting and firmware update
7. Control – Auto Power Control Settings and Commands
Note these seven pages are only accessible in Admin mode, when User
mode is used only the Status and Switch pages are available.

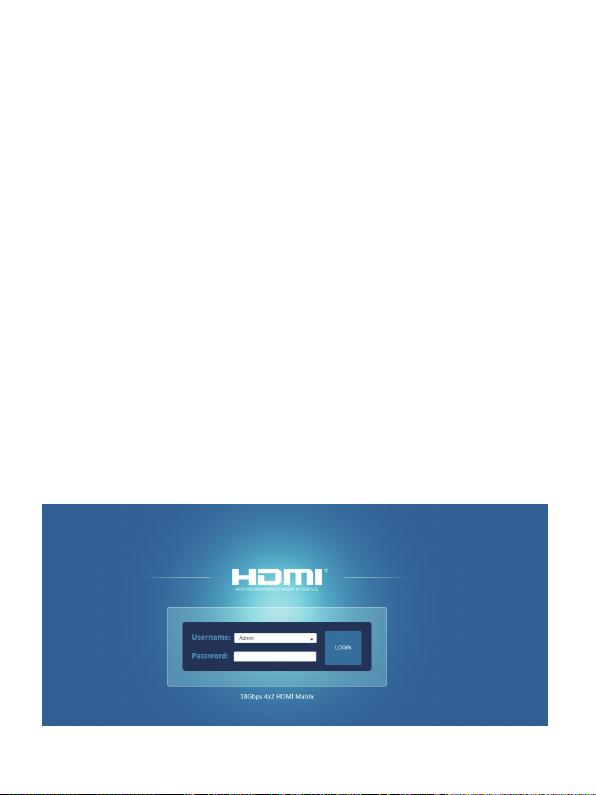

To access the web interface, enter the IP address of the Matrix into
the address bar of any web browser. If the IP address is not known, use the
RS232 commands given in the Network Settings section “r ip addr!” to
discover the IP address of the Matrix or set the product to factory default
status and IP address reset to default 192.168.1.100. After entering the IP
address the following log in screen will appear:
9 / 24

Select the Username from the list and enter the password. The default
passwords are:
Username User Admin
Password user admin
After entering the log in details, click the LOGIN button and the following
Status page will appear.
■Status Page
The Status page provides basic information about the product Model name,
the installed firmware versions and the network settings. This page is visible
in both User and Admin modes.
The buttons at the top right of the web interface are always available and
provide the following functions:
●The Log out button will disconnect the current user from the session
and display the log in screen.
●The Power On button changes the power status of the Matrix between
On and Stand-by mode.
10 / 24

■Switch page
■Input page
The Switch page allows selection of the inputs sources, set the Auto Switch
mode and to enable the test pattern mode.
The Input page provide information about which inputs are connected and
have a signal present. The inputs can be giving more meaningful names, if
desired. The EDID column provides a list of EDID options for each individual
input.
11 / 24

The following EDID options are available in any of the EDID drop-down lists:
1080P, Stereo Audio 2.0
1080P, Dolby/DTS 5.1
1080P, HD Audio 7.1
1080I, Stereo Audio 2.0
1080I, Dolby/DTS 5.1
1080I, HD Audio 7.1
3D, Stereo Audio 2.0
3D, Dolby/DTS 5.1
3D, HD Audio 7.1
4K2K30_444, Stereo Audio 2.0
4K2K 30Hz_444 Dolby/DTS 5.1
4K2K 30Hz_444 HD Audio 7.1
4K2K 60Hz_420 Stereo Audio 2.0
4K2K 60Hz_420 Dolby/DTS 5.1
4K2K 60Hz_420 HD Audio 7.1
4K2K 60Hz_444 Stereo Audio 2.0
4K2K 60Hz_444 Dolby/DTS 5.1
4K2K 60Hz_444 HD Audio 7.1
4K2K60_444,Stereo Audio 2.0 HDR
4K2K60_444,Dolby/DTS 5.1 HDR
4K2K60_444,HD Audio 2.0 HDR
USER1
USER2
Copy from OUT 1
Copy from OUT 2
Note that the User 1 and User 2 are global EDID memories only. Any inputs
that is set to one of these memories will always use the same EDID data from
User 1 or User 2 respectively.
This page also provides a means of sending a binary EDID image file to
either User 1 or User 2 EDID memories:
1. Select the binary EDID image file on your PC by click on the Browse button.
2. Select either User 1 or User 2 from the drop-down list.
3. Click the Upload button.
The EDID data from any input or from the User 1 and User 2 locations can
be read and stored on your PC.
12 / 24

■Output page
The Output page provides information about the signal status of the outputs.
The outputs can also be assigned meaningful names, is desired.
The scaler mode menu provides the following options:
Off
4K→1080P
HDBT Mode
Auto
No scaling.
Downscale to 1080p, if needed.
Downscale to no more than 10.2Gbps for HDBaseT
compliance.
Scale to match the display requirements.
The ARC buttons enable or disable the ARC decoding to the analogue
audio outputs.
The Stream buttons enable or disable the output signal for the respective
output.
The HDCP buttons enable or disable HDCP at the respective HDMI output.
13 / 24

■Network page
■System page
The Network page allows the configuration of the network settings. Note that
the IP address boxes are only accessible when the Mode button is set to
Static.
The log in passwords can be changed s on this page.
Note that any changes to this page will require the new details into the web
browser and/or the log in screen.
The system page allows setting of the control RS232 port baud rate and
changing the test pattern output.
This page is also used to install new firmware updates, restore the factory
default settings and reboot the Matrix.
14 / 24

■Control page
The Control page is used to set the RS232 or IR display device power on/off
commands for the Automatic Power Switching mode. When this mode is
enabled, the display power off and power on commands will be sent from
RS232-A/RS232-B or IR-A/IR-B outputs after the defined Power Off Timeout
and Power On Timeout values respectively.
The Control page has three modes: RS232, CEC or IR. Power On and Power
Off commands can only be entered for the RS232 and IR modes. The
CEC mode power on and power off commands are provided by default and
cannot be changed. Only use CEC mode with displays that support CEC
commands.
15 / 24

▪RS232 Setting 1 and RS232 Setting 2
Select the desired tab and configure the RS232 port settings to match the
display device requirements. Select either ASCII or HEX for the command
format and enter the Power Off and Power On commands with the appropriate
command termination mode: None, CR, LR or CRLF.
If the display device is connected to the respective RS232-A or RS232-B port,
use the Test buttons to confirm that the command is correct. Once the
command is valid, use the Save button to store those commands in the Matrix.
Note that ASCII commands can use any ASCII character, but HEX command
must use hexadecimal notation using hexadecimal value pairs separated by
spaces.
16 / 24

▪ IR Setting 1 and IR Setting 2
This page requires that the IR commands are available in plain text files
using the CCF IR code format.
1. Select the desired IR Control Setting tab.
2. Click the Load button to load the respective IR command. If the display
device only support a power toggle IR command, then use the same file
for both the Power On and Power Off modes.
3. Use the Test button to confirm that the command functions.
4. Click the Save button to save both IR commands to the Matrix.
17 / 24

8. ASCII control command
The Matrix also supports ASCII control. You need to a RS-232 phoenix conn-
ector male head to RS-232 female head with DB9 serial cable and a RS-232
male head with DB9 to USB male head serial cable. The phoenix connector
male head is connected the RS-232 port of the Matrix, and the USB head of
the serial cable is connected a PC. Open any of a Serial Command tool on
PC such as “Docklight” to send command to control the Matrix. Please see the
following connection diagram.

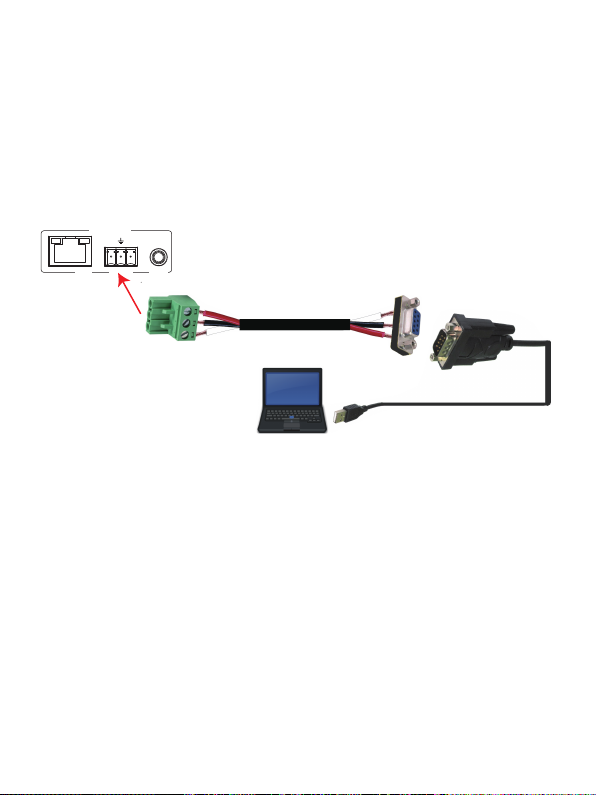

RS-232 to USB cable
TX
Gound
RX
3-pin Phoenix Connector
RS-232
PC
Figure 1: 3-pin phoenix connector to USB
Tx Rx
IR IN
RS232
LAN
CONTROL
Important:
1. All messages sent to the Matrix must be terminated with an exclamation
mark (!). Any carriage return that is present after the end of the
command will be ignored.
2. All spaces shown in the commands are required.
3. All response messages are terminated by a CR/LF sequence.
4. When all four inputs are requested by the same command, the
response will report each input on a separate line.
5. When both outputs are requested by the same command, the response
will report each output on a separate line.
18 / 24
