Prestige Venus W36 User manual

Venus W36 LED Moving
Wash
USER MANUAL
36*10W RGBW QUAD-COLOR
4 IN 1 LED

2"
Venus W36 LED Moving Wash – User Manual
TABLE OF CONTENTS
1. Summary 3!
Product Introduction 3"
Content List 3"
2. Safety Information 3!
Safety notes 3"
Safety instructionS 4"
3. Product diagram 4!
4. Features 5!
5. DMX Control 6!
14CH 6"
10CH: 7"
6. Display Operation Instructions 8!
7. Menu InstructionS 9!
8. XLR cable connecting 10!
XRL cable 10"
9. Wiring Diagram 11!
10. Trouble Shooting 12!
11. Technical Specifications 13!

3"
Venus W36 LED Moving Wash – User Manual
1. SUMMARY
Thank you for purchasing our Venus W36 LED Moving Wash. Please read these
instructions carefully before operating the system to avoid any possible damage or
misuse.
PRODUCT INTRODUCTION
The Venus W36 LED Moving Wash has a light source that uses 36 high powered 4-
in-110W LED lights, each made up of R, G, B, and W LEDs which can be
independently dimmed and altered. This fixture has a long life span, low power
consumption, good colour mixing effects and high brightness. The built-in programs
include dimming, strobe, gradual change, fading etc. settings. It is recommended that
an international standard DMX 512 signal is used for best results.
.
CONTENT LIST
oLED moving head light (x1)
oBracket (x1)
oDMX signal cable (x1)
oPower in cable (x1)
oThe usermanual (x1)
oWarranty Card (x1)
2. SAFETY INFORMATION
SAFETY NOTES
Seek advice from a professional prior to authoring any repairs
Always ensure the system is disconnected from the power source before assembling,
deconstructing and moving
Avoid direct eye exposure when in use

4"
Venus W36 LED Moving Wash – User Manual
SAFETY INSTRUCTIONS
Ensure the power supply voltage corresponds with the required voltage for the lights,
and is within the range of the requested technical restrictions.
Before installing,check the lights’fasteners and mechanical structuresare in good
condition and there is no apparent damage.
This light is designed for indoor and outdoor use, however the working
temperature must be kept below 50 degrees.
The fixtures can be mounted in any position,provided there is adequate room for
ventilation. Make sure there are no inflammable and explosive items within 0.5 meters
of the fixture.
The yellow/green cables are for earthling safety. These should not flicker when fixture
is in use.

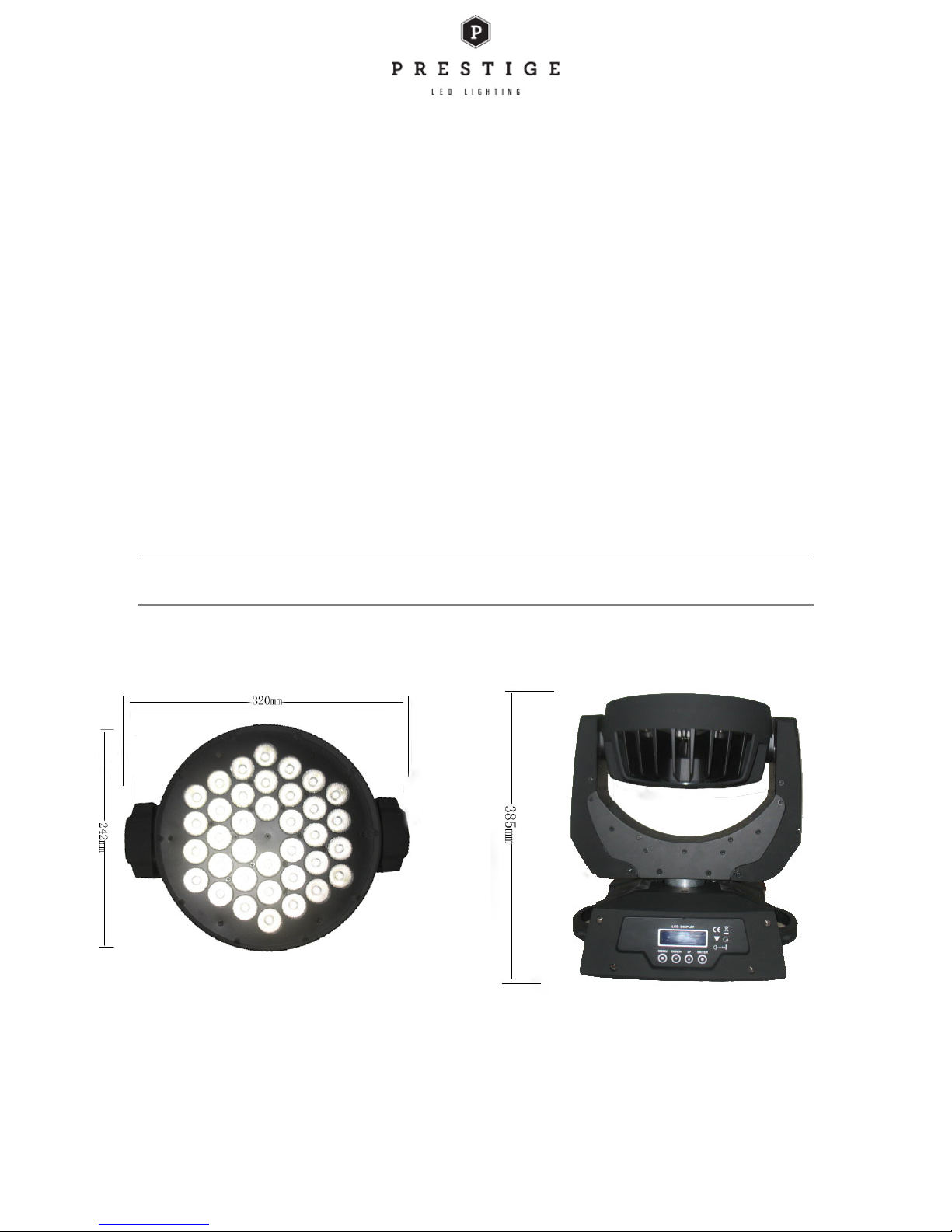

3.PRODUCT DIAGRAM

5"
Venus W36 LED Moving Wash – User Manual
4. FEATURES
oUseshigh quality LED lighting sources which have a low power consumption,
high brightness, stable performance and long life span.
oEach colored LED has 256 dimming settings. The RGB can make over 16.7
million colors. The color mixing is enhanced with White LEDs
oLinear dimming 0%-100% -Strobe, gradual change, jumping change
oDMX512 Controller，4 button set DMX ID address with LCD display
oMaster slave/interconnected multi-machine control
oLens degree: 25º, 45º options
oUses a switching power supply to protect the LED and enhance the
performance
oPan 540 degrees, Tilt 270 degrees, reset
oDMX channels optional

6"
Venus W36 LED Moving Wash – User Manual
5. DMX CONTROL
14CH
Channel
DMX Value
Function
1CH
0—255
General dimming
2CH
0—255
Red dimming
3CH
0—255
Green dimming
4CH
0—255
Blue dimming
5CH
0—255
White
6CH
0—10
11—255
Strobe off
Strobe speed
7CH
0—20
21—30
31—40
41—50
51—60
61—70
71—80
81—90
91—100
101—110
111—120
121—130
131—140
141—150
151—160
161—170
171—180
181—190
191—200
201—210
211—220
221—255
Invalid
AUTO 1
AUTO 2
AUTO 3
AUTO 4
AUTO 5
AUTO 6
AUTO 7
AUTO 8
AUTO 9
AUTO 10
CUSTOM 1
CUSTOM 2
CUSTOM 3
CUSTOM 4
CUSTOM 5
CUSTOM 6
CUSTOM 7
CUSTOM 8
CUSTOM 9
CUSTOM 10
keep
CH8
0—255
Automatic speed（fast-slow
）
CH9
0-255
Pan 0--450°
CH10
0-255
Tilt 0--270°

7"
Venus W36 LED Moving Wash – User Manual
CH11
0-255
Pan fine 0—2.1 degrees
CH12
0-255
Tilt fine 0—1.0 degree
CH13
0-255
X/Y speed（fast-slow）
CH14
0-254
255-255
invalid
reset
10CH:
Channel
DMX Value
Function
1CH
0—255
General dimming
2CH
0—255
Red dimming
3CH
0—255
Green dimming
4CH
0—255
Blue dimming
5CH
0—255
White
6CH
0—10
11—255
Strobe off
Strobe speed
CH7
0-255
Pan 0--450°
CH8
0-255
Tilt 0--270°
CH9
0-255
X/Y speed（fast-slow）
CH10
0-254
255-255
invalid
reset

8"
Venus W36 LED Moving Wash – User Manual
6. DISPLAY OPERATION INSTRUCTIONS

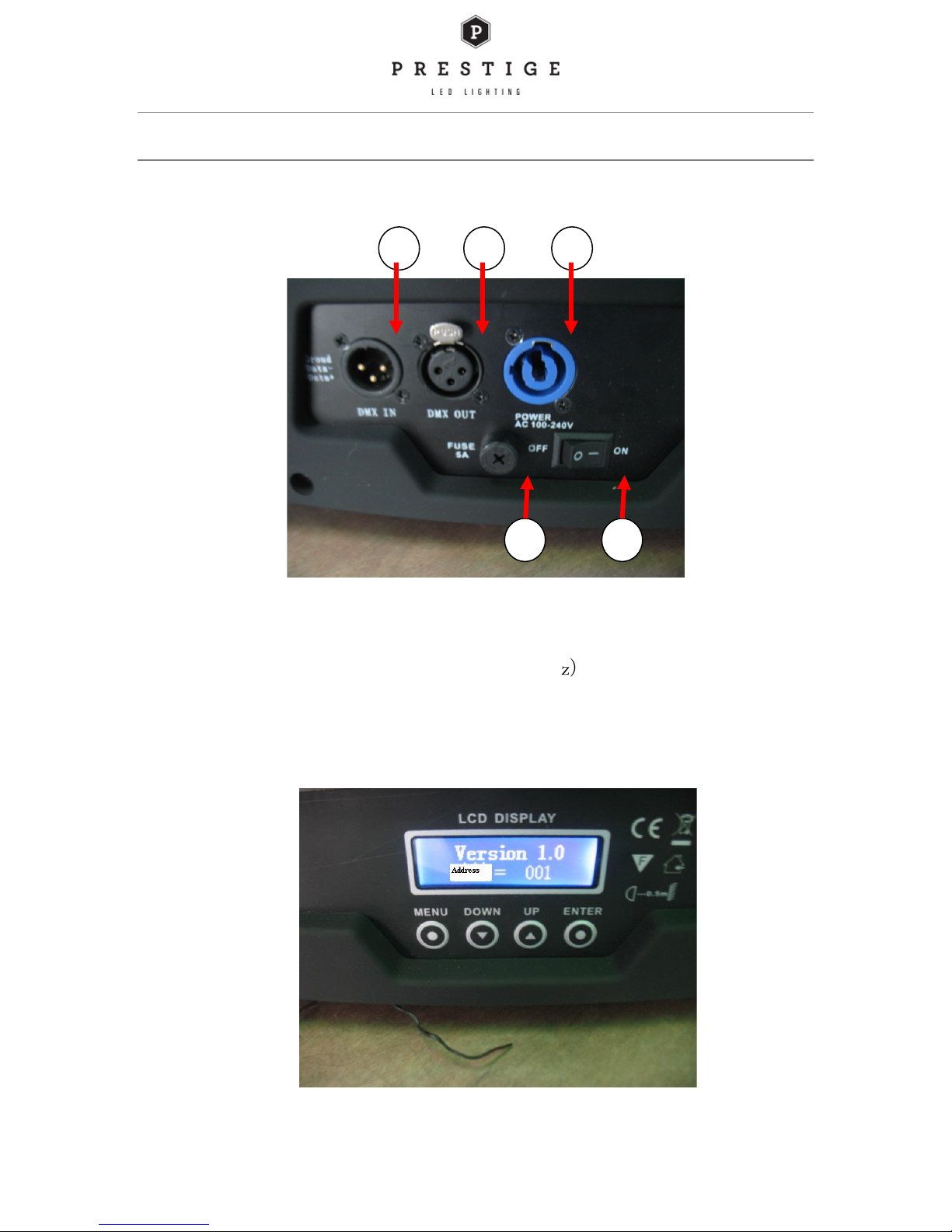

Back：
1: DMX512 DMX-IN XLR socket
2: DMX512 DMX-OUT XLR socket
3: AC POWER-IN socket（AC100-240V，50-60Hz）
4: FUSE：5A
5: Power switch (ON/OFF)
Front:
1
2
3
4
5
MENU: Access the menu or return to the
previous menu option
ENTER: Select the current menu option
UP: Increase menu selection
DOWN: Decrease menu selection

9"
Venus W36 LED Moving Wash – User Manual
7. MENU INSTRUCTIONS
1：Press the menu or enter button
2：Press the up and down buttons to choose to desired functions
(Address)
(Address=)
A001-A512
(x Reverse)
(option)
(Y Reverse)
NO/YES
(XY Exchange)
(Language)

English
(lightness)
1-32
(Display)
constant open
(poorlight)
dim
off
LOGO
NO/YES
[menu]
ch1
0--255
(man Control)
ch12
(Sound)
(program run)
(Test operation)
(Auto)
(Resume default)
(enter)
(Fixture reset)
(enter)

10"
Venus W36 LED Moving Wash – User Manual
8. XLR CABLE CONNECTING
XRL CABLE
The standard connection of the XRL should have one end connecting to the male
plug, and the other connecting to the female.
As below: pin 1 -ground, pin 2 -negative signal, pin 3 -positive signal
Note: In order to avoid failures and interference with signal transmission, connect a
resistance 120（1/4W）at the end of the DMX connection as shown below:
The conversion between 3 pin and 5 pin XLR.
If the output cable of the DMX512 controller is a 5PIN, a5PIN to 3PIN cable is
necessary.

11"
Venus W36 LED Moving Wash – User Manual
9. WIRING DIAGRAM

12"
Venus W36 LED Moving Wash – User Manual
10. TROUBLE SHOOTING
Problem
Suggestions
The light won’t turn
on
Check if the power plug is working normally
Check if the light switch is off or on
Check if the power supply is working normally
The DMX is not
controlling the light
Check if the DMX cable is connected to the light properly
Check if the DMX512 controller is working normally.
Check if the DMX cable is damaged.
Check if the light is in DMX mode (Addr:001).
The display is not
working
When the electricity is connected, the LED should flash once. If this is
not the case, check the power switch and transformer.
Check if the power input of the IC board is working.
Check if the cable connected to the display is secure.
Change the main board to ensure that it is working properly.
Change the display.
The LED is not
light
When the electricity is connected, the LED should flash once. If this is
not the case, check the power switch and transformer.
Check if the power input of the IC board is working.
Check if the cable connected to the display is secure.
Change the main board to ensure that it is working properly.
Some of the LEDs
are not light
Check if the LEDs are secure, as the LED is connected by LEDs in
series.
Use the multimeter (diode) to check if the LED is bright or not. If not,
the LED will need replacing.
Check constant current IC is working properly (compared with the
normal IC).

13"
Venus W36 LED Moving Wash – User Manual
Single color LEDs
are always light/not
light at all
Check if the voltage of the input end of corresponding color is
working.
Change the IC control board.
Note: Seek advice from a professional prior to authoring any repairs
11. TECHNICAL SPECIFICATIONS
oInput voltage：AC 100V-240V/47-63HZ
oOutput voltage：DC24V
oConsume：260W
oLamp Type：High Power LED (10w)
oLamp Spec：RGBW 4-in-1 LED (36 pcs)
oConstant current drive: 500Ma(single color drive)
oRefresh Rate: above 400HZ
oLife Span: above 50000 hours
oControl Signal：DMX512, master and slaver, sound activated
oControl mode：stand alone/ DMX/ master and slaver
oChannel：14CH,10CH
oColor effect: R,G,B,W color mixing
oFunction Effect：dimmer, strobe, eotic, fade, sound activated
oPan 540 degrees, Tilt 270 degrees, reset
oPan fine 2.1 degrees, Tilt fine 1.0 degree
oBeam Angle: 25° or 45°
oCooling mode: Fan cooling
oProtection rate:IP20
oAnti-electricity intension：1.5KV
oInsulation Resistance：＞２M
oSize:：320*242*385mm
oNet Weight：9.5KG
