PREVOST H3-45 VIP User manual

COACH MANUFACTURER
OWNER’S MANUAL
VIP
PA1541
(2nd edition)

FOREWORD 1
This PREVOST Private Coach Owner's Manual
has been prepared to thoroughly acquaint you,
the owner, with vehicle equipment and features
in order to fully appreciate and safely enjoy your
vehicle. Of course, you are anxious to drive your
new private coach and test its features, but first
please read this publication carefully to help
ensure enjoyable and trouble free operation.
This book should be kept inside the vehicle at all
times for convenient reference. It is also
suggested that it remains with the vehicle at the
time of resale. Please notify PREVOST CAR
INC. when the vehicle's ownership is transferred
so that our records can be kept up to date. Do
this by filling out the appropriate form at the end
of this manual.
The specifications, descriptions and figures
given are based on the latest information
available at printing time. And because at
PREVOST we are constantly striving to improve
our products, we reserve the right to make
changes at any time without notice and/or
obligation on our part.
Please note that this publication applies to
factory-prepared, conversion-ready luxury
private coaches, manufactured by PREVOST
CAR INC. It describes and explains the
equipment and options available for installation
in our factory. Therefore, there may be
equipment described herein that is not installed
on your vehicle. This publication also does not
cover equipment installed by your interior
designer or system manufacturer.
This manual, or portions thereof, cannot be
reproduced in any form whatsoever, in whole or
in part, without the written consent of PREVOST
CAR INC.
The following words are used to emphasize
particularly important information:
WARNING
Identifies instructions which, if not followed,
could result in serious personal injury or loss
of life.
CAUTION
Denotes instructions which, if not followed,
could cause serious damage to vehicle
components.
NOTE
Indicates supplementary information needed
to fully understand and complete an
instruction.
For your own safety and to ensure prolonged
service life of your private coach, heed our
cautions, warnings and notes. Ignoring them
could result in extensive damage and/or serious
personal injury.

SAFETY PRECAUTIONS 3
To ensure safe and reliable operation, heed the
following safety precautions.
SAFE OPERATING PRACTICES
oOperation and maintenance of the vehicle
must be performed only by qualified
personnel.
oBefore driving, conduct a walk around
inspection and check that all baggage
compartment doors and equipment access
doors are securely shut.
oMake sure good visibility is maintained at all
times. Keep windshields clean and free of
obstructions.
oAdjust the driver's seat so that all controls
can be reached easily.
oAlways wear the safety belt when driving.
oCheck the instrument panel frequently. Do
not operate the vehicle when dials or
indicators are not in their normal operating
condition.
oAlways pay attention to pedestrians passing
in front and behind the vehicle. Always yield
to pedestrians at pedestrian walkways.
oDo not drive over obstacles on the road.
Empty boxes, piles of leaves, and snowdrifts
could conceal hidden dangers that could
damage the vehicle suspension and
underbody.
oWhen turning or changing lanes, signal your
intention well in advance.
oWhen approaching to make a right turn,
reduce the space between the vehicle and
the curb to make sure another vehicle
cannot pass on the right. Since the vehicle
makes wide turns, allow enough space to
make safe turns.
oSwitch from high beams to low beams when
meeting or following other vehicles within
500 feet (150 meters).
oNever leave the vehicle unattended with the
engine running, or with the key in the
ignition. Turn off the engine, remove keys
and apply the parking brake before leaving
the vehicle.
oShut-off the engine before refueling, adding
oil, performing maintenance or servicing
tasks, unless stated otherwise.
oFuel is highly flammable and explosive. Do
not smoke when refueling. Keep away from
open flames or sparks.
oDo not run the engine or HVAC system with
access doors left open. Close compartment
doors before operating any equipment.
oDo not remove the surge tank filler cap or
the cooling system pressure cap when the
engine is hot. Let the engine cool down
before removing filler caps.
oDo not attempt to push or pull-start a vehicle
equipped with an automatic transmission.
oThe service life of the vehicle depends on
the kind of maintenance it receives. Always
record any problems and report them
immediately to maintenance personnel.
oDo not use the trailer hitch before reading
the safety, technical and operational
requirements on page 14 of this manual.
DEFENSIVE DRIVING PRACTICES
oFor city driving, allow a four to six second
travel interval between your vehicle and the
vehicle ahead. Increase this travel interval
to six to eight seconds for highway driving.
Increase time interval for driving at night or
in foul weather.
oBe prepared to stop when approaching an
intersection. The stopping distance of the
vehicle increases with the weight and
speed.
oEstablish eye-to-eye contact with other
drivers and with pedestrians. Use, high
beam and low beam headlights, turn signals
and horn as needed.
oOn highway, don't stare at the road ahead.
Keep your eyes moving. Check mirrors and
dashboard instruments frequently.
oTo keep the vehicle from drifting across
lanes during highway driving, always look
over the horizon on the road ahead.
oAdjust your speed to road conditions, traffic
and visibility. Never exceed the posted
speed limits.
oIf another vehicle is following close behind,
reduce your speed to let the vehicle pass.
oFor additional information about safe
operation and defensive driving practices,

4 SAFETY PRECAUTIONS
contact the local department of motor
vehicles authority.
OTHER PRECAUTIONS
WARNING
Prior to working on a system inside vehicle,
make sure to cut electrical power and air
supply. A component could be supplied with
electricity even if the ignition switch is set to
the OFF position and/or a component could
be pressurized even if air tanks are emptied.
Always refer to the appropriate wiring and
pneumatic diagrams prior to working on
electrical and/or pneumatic systems.
NOTE
When the ignition switch is set to the OFF
position, the electrical components are not
energized except for the CECM (Chasis
Electronic Control Module), the battery
equalizer, the preheater system and some
electronic modules; which are energized during
15 minutes after the ignition has been set to the
OFF position. Prior to working on one of these
electrical components, set the battery master
switch in the main power compartment to the
OFF position. If the vehicle will not be operated
for a long period (more than 2 weeks), it is
recommended, in order to prevent the batteries
from discharging, to trip the main circuit
breakers located in the main power
compartment to stop the small current drawn by
the radio preset station memory, the CECM
memory and the instrument cluster clock. Note
that the radio station presets will be erased,
same thing for the diagnostic codes history and
the instrument cluster clock will have to be
reset.
CAUTION
Prior to arc welding on the vehicle, refer to
section 00-GENERAL of your maintenance
manual. Precautions have to be taken to
avoid costly damage to the electronic
components.

VEHICLE EXTERIOR 5
H3-45 VIP EXTERIOR VIEW 18532
1. Engine air intake
2. Engine R.H. side access door
3. Main power compartment
4. Baggage compartment
5. Fuel filler door
6. A/C condenser compartment or baggage
compartment
7. Entrance door
8. Rear spoiler
9. Retractable back up camera (optional)
10. Engine compartment rear door

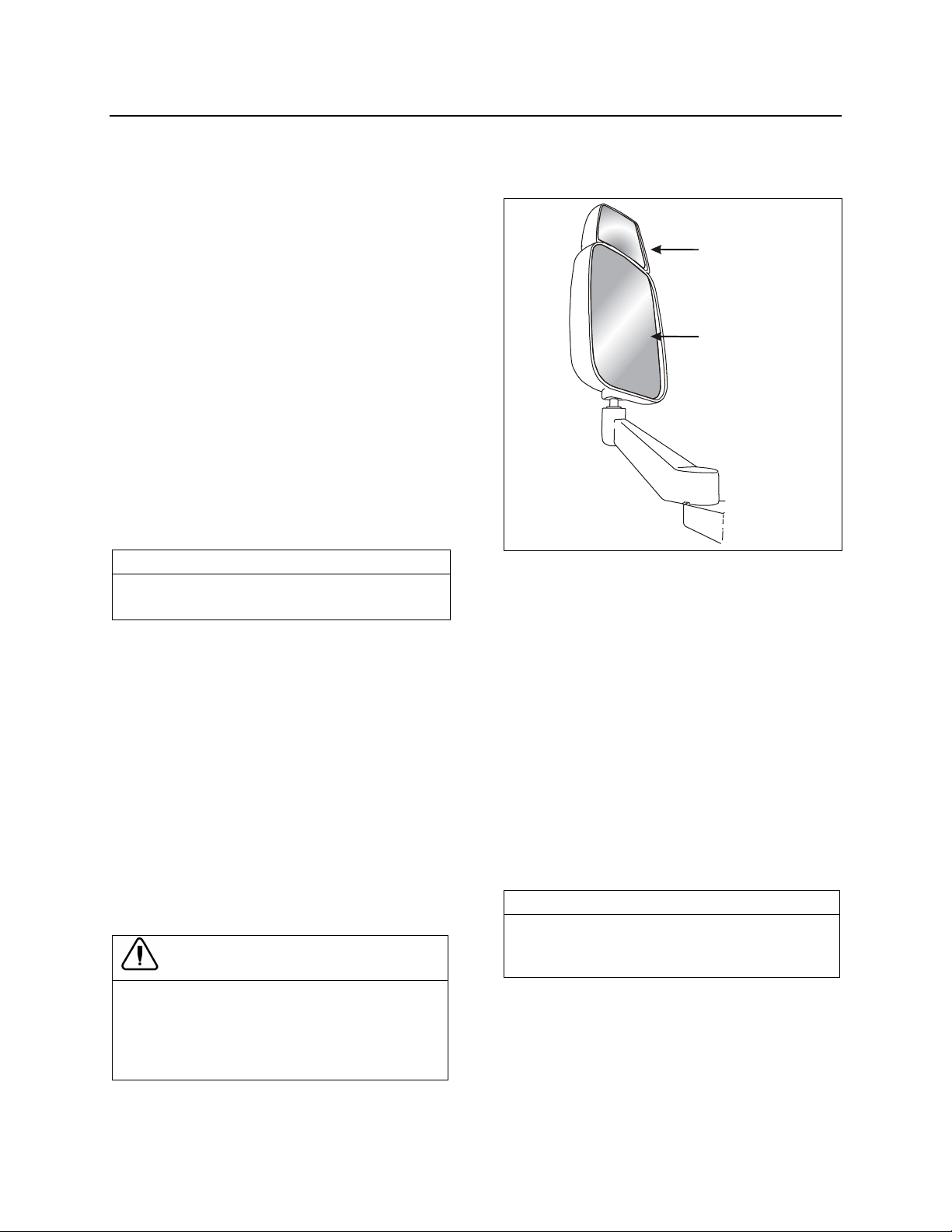

11. Rear-view mirrors
12. Reclining bumper compartment
13. Front electrical and service compartment
14. Driver’s power window
15. Front Slide-out (Optional)
16. Heating, ventilating and air conditioning
compartment (HVAC) or baggage
compartment
17. Rear Slide-out (Optional)
18. Engine radiator door

6 VEHICLE EXTERIOR

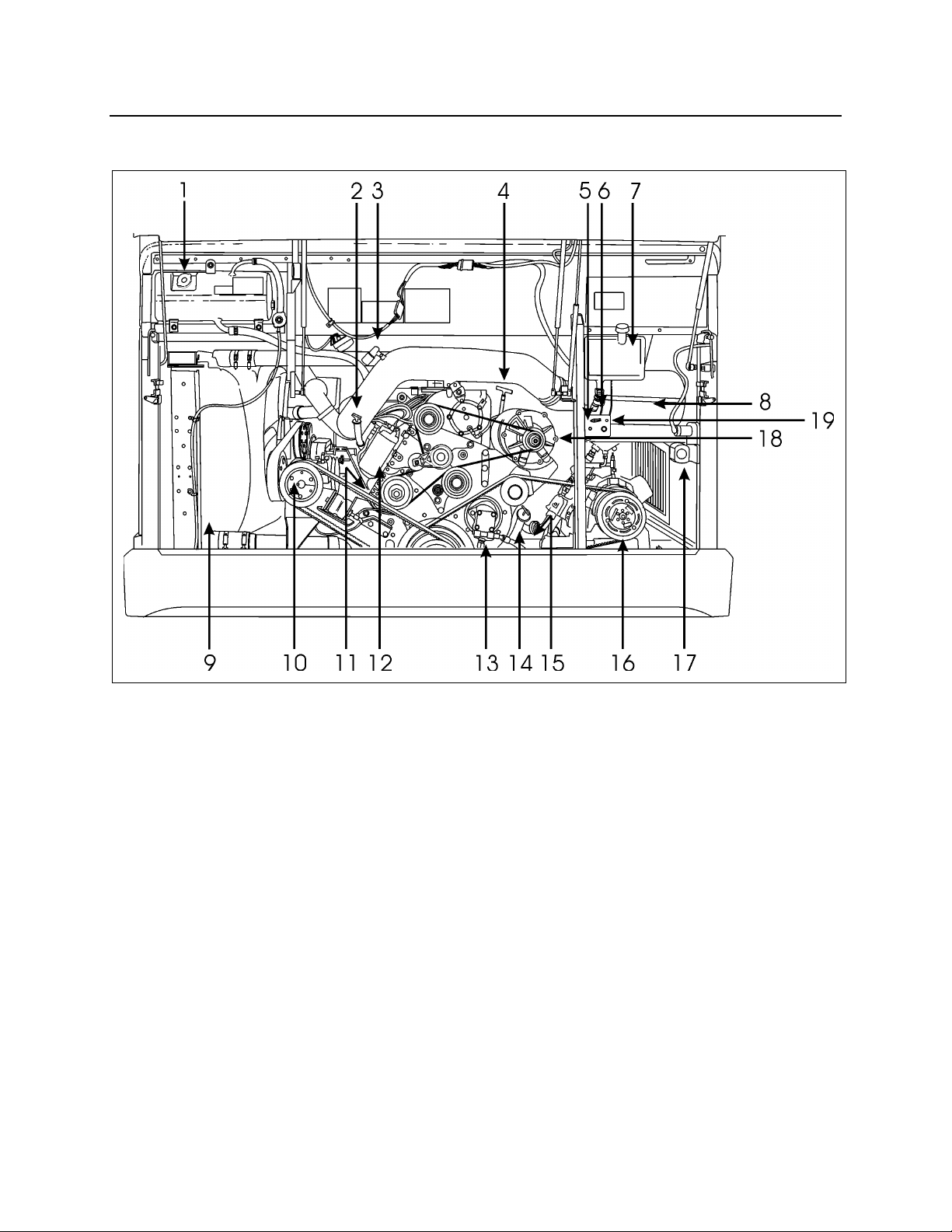

ENGINE COMPARTMENT COMPONENTS
01123
1. Coolant surge tank and filler cap ;
2. Transmission oil dipstick ;
3. Air cleaner restriction indicator ;
4. Engine oil dipstick ;
5. Starter selector switch & Rear start push-
button switch;
6. Belt tensioner control valve ;
7. Engine oil reserve tank ;
8. Air filter ;
9. Radiator and fan shroud ;
10. Radiator fan gearbox ;
11. Engine oil filters ;
12. Engine coolant filter/conditioner ;
13. Steering pump ;
14. Engine oil filler cap ;
15. Primary and secondary fuel filters ;
16. A/C compressor, central system ;
17. Back-up alarm ;
18. Alternator ;
19. Engine compartment lighting switch

VEHICLE EXTERIOR 7
ENGINE COMPARTMENT
ENGINE R.H. SIDE ACCESS DOOR
The engine R.H. side access door provides
access to the following:
oEngine compartment rear door release lever ;
oBooster block terminals ;
oFuel Pro 382 filtration system (optional) ;
oPower steering fluid reservoir ;
oWet air tank drain valve ;
oPrimary and secondary systems air supply
fill valve ;
oCold weather starting fluid bottle (ether)
(optional).
This door can be locked/unlocked using the
exterior compartment key. Lift up protector cover
to gain access to the lock. Pull up the door
handle to release the latch and then pull the
door open. To keep the door open, engage the
safety catch on top of the door. Release the
safety catch before closing the door.
The lighting in the engine compartment turns on
automatically when that door is open if the
engine compartment light switch is set to ON.
Opening handle Lock
DOOR HANDLE 18184B
WARNING
Unless otherwise stated, do not run the
engine when the engine compartment curb-
side door is open.
ENGINE COMPARTMENT REAR DOOR
To open engine compartment rear door, you
must first open engine compartment curb-side
door then push up on the door latch release
lever, place hand on the upper right of the rear
door and pull rearward.
DOOR LATCH RELEASE LEVER 18331
The engine compartment rear door provides
access to the following:
oEngine;
oAlternator(s);
oCompressor(s);
oBelt tensioner control valve (see chapter 7,
Care and Maintenance);
oStarter selector switch (see chapter 5,
Starting and Stopping Procedures);
oPlates and certifications
oEngine coolant surge tank;
oAir cleaner restriction indicator;
oEngine oil dipstick;
oEngine oil reserve tank;
oAutomatic transmission oil dipstick;
oEngine coolant filler cap.
Always engage the safety catch when the engine
compartment rear door is open. Release the
catch before closing the door.
The lighting in the engine compartment turns on
automatically when that door is open if the
engine compartment light switch is set to ON.

8 VEHICLE EXTERIOR
Use this switch to turn off the light if not required
when the door is open. When that door is open,
a telltale light illuminates on the telltale panel.
WARNING
Pressurized cylinders assist the engine
compartment rear door opening. To avoid
injury when opening, do not stand at the rear
of the coach. Stand clear when opening the
engine compartment rear door.
WARNING
Unless otherwise stated, do not run the
engine when the engine compartment rear
door is open.
MAIN POWER COMPARTMENT
(BATTERIES)
The main power compartment provides access
to the following :
o(4) 12 volts Batteries ;
oMain circuit breakers for 12-volt and 24-volt
electrical systems ;
oBattery charger (optional) ;
oVanner battery equalizer ;
oBattery master relay & battery master switch ;
oVoltage regulator (Delco alternator) ;
oTransmission Control Module (TCM) ;
oElectronic ground stud ;
oMultiplex modules: I/O-A, I/O-B ;
oRear fuse box (VECR) & spare fuses ;
oRelays and diodes.
The compartment door can be locked/unlocked
using the exterior compartment key. Turn the key
in the lock to open the door.
The lighting in the compartment turns ON
automatically when the door is open. If the main
power compartment door is open, a telltale light
will illuminate on the central dashboard.

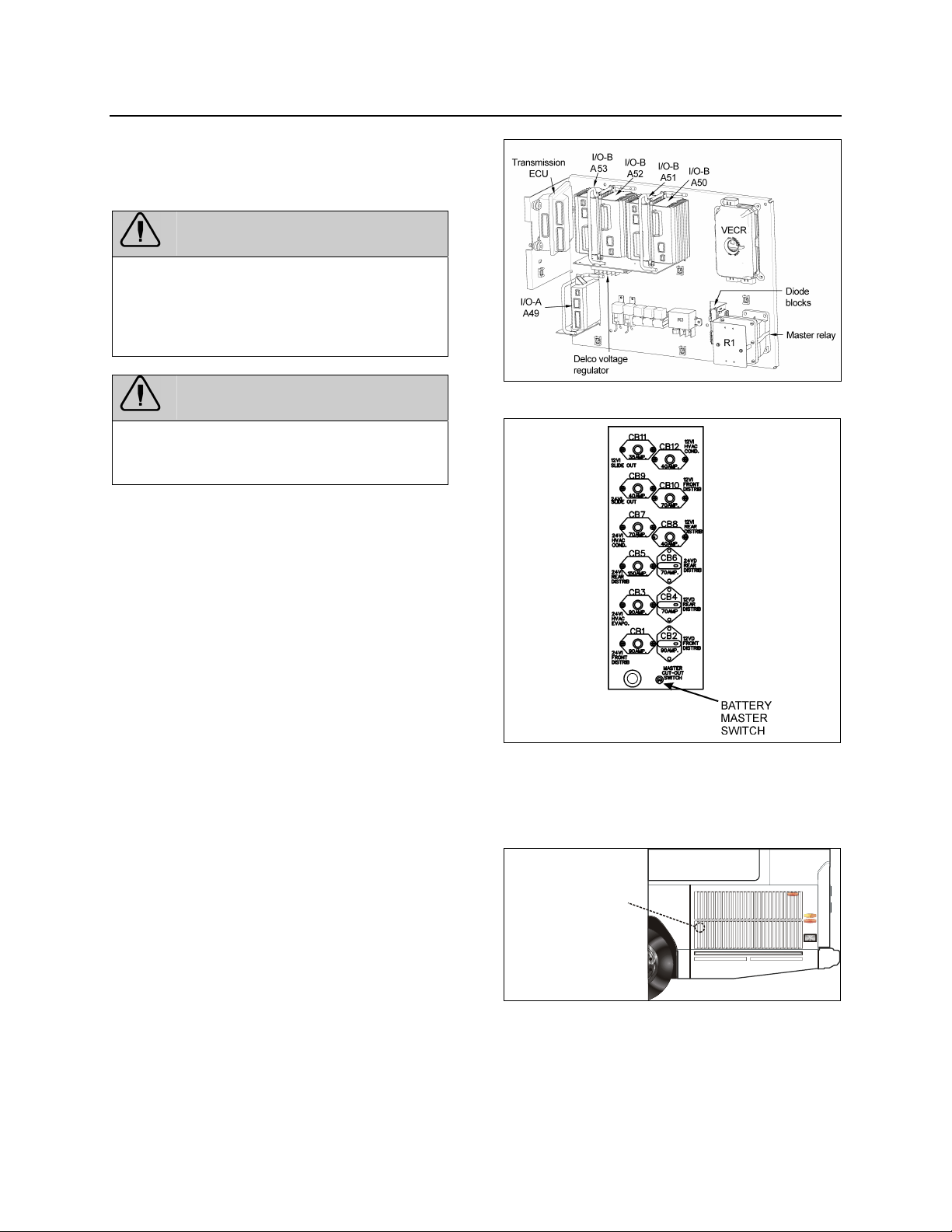

VIEW OF UPPER MAIN POWER COMPARTMENT 06598
MAIN CIRCUIT BREAKERS 12-VOLT & 24-VOLT 06605
ENGINE RADIATOR DOOR
Open the engine radiator door by pushing on the
release latch.
The radiator door
release latch is
located behind
the first louver
RADIATOR DOOR RELEASE LATCH LOCATION 18529
CONDENSER COMPARTMENT
(Optional Central A/C System)
Pull the A/C condenser door release latch located
inside the adjacent baggage compartment to
partly open the condenser door. Push on the

VEHICLE EXTERIOR 9
safety hook, accessible through the opening, to
open the door.
NOTE
The locking device must be unbolted to fully
swing open condenser compartment door.
CAUTION
Close baggage compartment door before
opening completely condenser compartment
door.
ACCESS TO THE CONDENSER COMPARTMENT 18311
CONDENSER COMPARTMENT (WITH CENTRAL A/C
SYSTEM ONLY) 22170
EVAPORATOR COMPARTMENT
(Optional Central A/C System only)
The evaporator compartment door release latch
is located on the left side of the baggage
compartment and to the right of the HVAC
compartment door. Pull the release latch then
pull the HVAC compartment door open.
The HVAC compartment contains relays, diodes
and an I/O-B multiplex module mounted on a
panel located on the R.H. side wall when facing
the compartment.
EVAPORATOR COMPARTMENT ACCESS 18306
EVAPORATOR COMPARTMENT (WITH CENTRAL A/C
SYSTEM ONLY) 22225

10 VEHICLE EXTERIOR

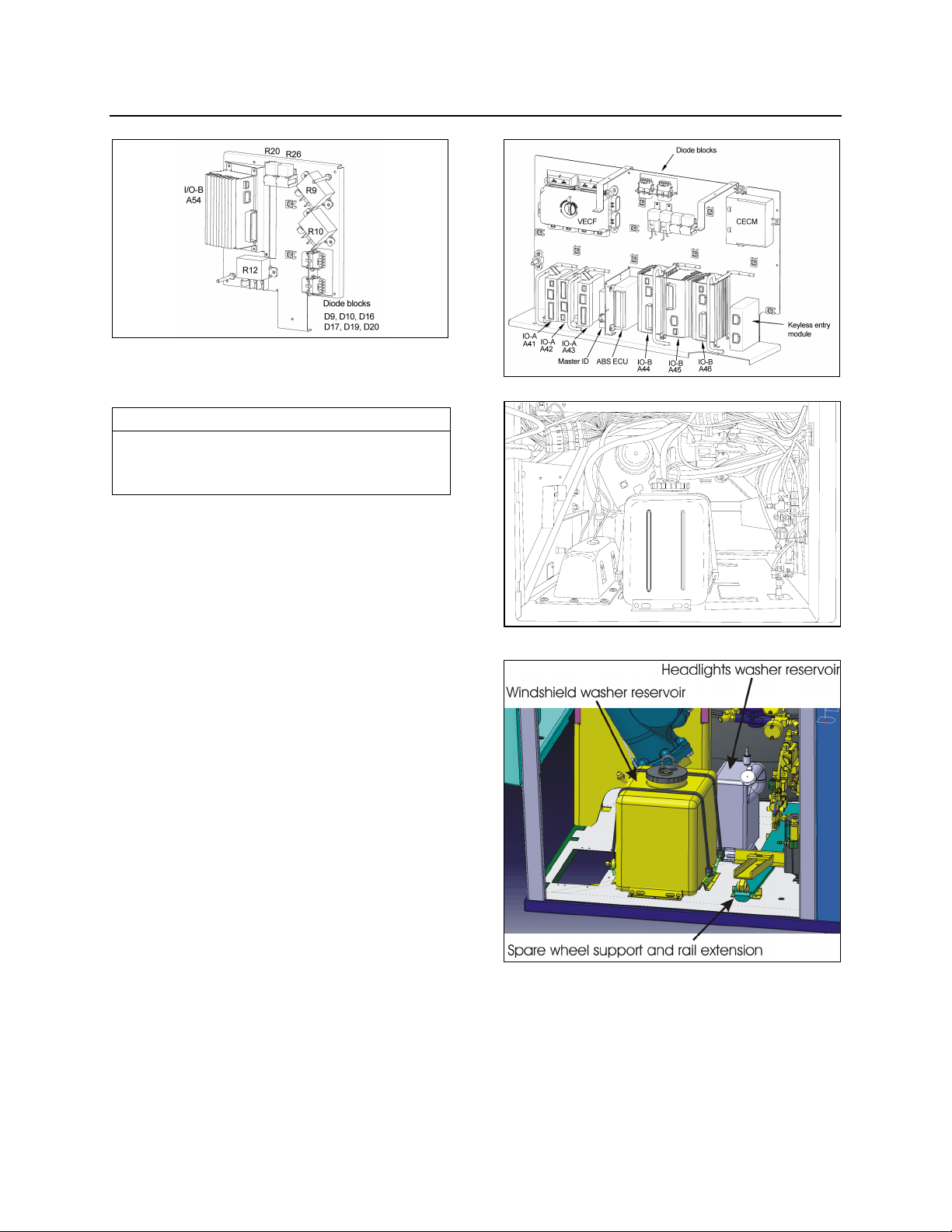

HVAC COMPONENTS PANEL
Each relay or resistor is identified to facilitate its
location.
NOTE
It is important to keep the evaporator
compartment door closed while checking the
HVAC system to prevent faulty readings.
FRONT ELECTRICAL AND SERVICE
COMPARTMENT
The front electrical and service compartment
provides access to the following:
oABS electronic control module ;
oRelays ;
oWindshield washer reservoir ;
oHeadlights washer reservoir;
oReclining bumper compartment opening lever ;
oAccessory air tank drain valve ;
oElectronic ground stud ;
oMultiplex modules: I/O-A, I/O-B ;
oCECM & Master ID
oFront fuse box (VECF) & spare fuses ;
oKeyless entry module ;
oAccessory air tank fill valve.
The front electrical & service compartment door
can be locked/unlocked with the exterior
compartment key. Lift protector cover to access
the lock. Pull up door handle to release the
latch then pull the door open.
FRONT ELECTRICAL & SERVICE COMPARTMENT 06595
FRONT ELECTRICAL & SERVICE COMPARTMENT 14050
FRONT ELECTRICAL & SERVICE COMPARTMENT
The lighting in the front electrical & service
compartment turns on automatically when the
door is open.

VEHICLE EXTERIOR 11
RECLINING BUMPER
COMPARTMENT
The front bumper can be tilted downward to give
access to the compartment. Pull the opening
handle located in the front electrical and service
compartment to unlock. Tilt down the bumper to
access the compartment. Push the bumper back
up firmly in place to lock in position.
RECLINING BUMPER OPENING HANDLE IN FRONT
ELECTRICAL & SERVICE COMPARTMENT 06602
WARNING
The compartment behind the bumper is not
designed for storage. Never store loose
objects in this compartment since they can
interfere with the steering linkage mechanism.
Use care when opening or closing the
reclining bumper compartment to prevent
personal injury
BAGGAGE COMPARTMENTS
The baggage compartment doors can be locked/
unlocked using the exterior compartment key.
Lift up the cover to gain access to the lock. Pull
up door handle to release the latch and then pull
the door open. Pressurized cylinders assist the
opening and closing of the baggage
compartment doors and hold the doors open.
The lighting in the baggage compartment turns
on automatically when the door is opened.
When a baggage compartment door is open, a
telltale light illuminates on the telltale panel.
WARNING
To avoid injury, keep hands clear of door
edge and door frame when closing.
NOTE
To prevent theft and vandalism, always lock
all doors before leaving the vehicle
unattended.
NOTE
The baggage compartment doors can also be
locked / unlocked using:
•The central locking system switch on the
L.H. dashboard (refer to "Controls &
Instruments" chapter).
•The keyless entry system.
•The remote entry transmitter (refer to
"Controls & Instruments" chapter).
FUEL FILLER DOORS
Both fuel filler doors can be locked/unlocked
using the exterior compartment key. Turn the key
in the lock to remove.
It is recommended to refuel from the curb-side
whenever possible, to avoid spilling fuel into the
evaporator compartment. Any amount of fuel
vapor in this compartment will be carried right up
into the cabin by the Central HVAC System
fresh air intake.
NOTE
Provided the vehicle is parked on level
ground, an automatic nozzle will automatically
shut off when tank is approximately 95% full.
CAUTION
Do not fill to more than 95% of the tank
capacity. Do not "top off" the tank, doing so
may result in fuel spillage when the fuel
expands.
ENTRANCE DOOR
INSIDE OPERATION
Lock or unlock the entrance door from the inside
by actuating the front entrance door rocker
switch on the R.H. dashboard panel. Also, you
can lock or unlock the entrance door by sliding
its lock lever.

12 VEHICLE EXTERIOR
NOTE
If the alarm system is armed, unlocking the
entrance door from the inside by sliding its
lock lever will not disarm the alarm system.
The alarm will sound.
NOTE
For complete information concerning the
Remote Keyless Entry & Anti-theft Alarm
System, refer to the document included in
your vehicle “publication box”.
DOOR LOCK LEVER INSIDE THE VEHICLE 18187
OUTSIDE OPERATION
The first way of locking/unlocking the entrance
door from the outside is the front entrance door
lock key provided with the vehicle. Turn key
counterclockwise to lock or clockwise to unlock
the entrance door and disarm the intrusion
protection and anti-theft system.
NOTE
The stepwell lights and entrance overhead
light turn on as the door opens.
NOTE
For complete information concerning the
Keyless Entry System & Anti-theft Alarm
System, refer to the document included in
your vehicle’s “publication box”.
DOOR HANDLE & KEYLESS ENTRY SYSTEM KEYBOARD
18597
KEYLESS ENTRY SYSTEM
By this system, you can lock or unlock the
entrance door and the baggage compartment
doors. Unlocking the entrance door using the
keyless entry system will also disarm the
intrusion protection and anti-theft system. The
keyboard is located below the outside entrance
door handle. The microprocessor/relay module
is pre-programmed by the manufacturer and this
code can not be deleted. Moreover, you can
program your own entry code (e.g. a birthday or
part of a social security number).
The manufacturer's code is:
oOn your owner's wallet card;
oTaped to the keyless module in the front
electrical & service compartment;
oThree stickers are joined to your owner's
wallet card.
When you use the keyless entry system, the
keyboard illuminates. Do not push the buttons
with a key, pencil or any other hard object as it
could damage the buttons. Although each button
is provided with two digits separated by a
vertical line, there is only one contact per button.
Press in center of button, i.e. between the two
digits.
You must unlock the entrance door before you
unlock the baggage compartment doors. If you
let more than five seconds pass between the
numbers you press, the system shuts down, and
you have to enter your code again. If the keyless
entry system does not work properly, use the
key or the remote entry transmitter to lock or
unlock entrance door or the baggage
compartment doors.

VEHICLE EXTERIOR 13
KEYLESS OPERATING INSTRUCTIONS
1) To unlock the entrance door, enter the five
numbers of the code. After pressing the
fifth number, the stepwell lights and
entrance overhead light turn on and the
door unlocks. During the night, press any
button to illuminate the keyboard and then
enter the code.
When pressing any button, the keyboard
lights up for five seconds.
2) To unlock the baggage and service
compartment doors, press button 3·4 within
five seconds after the code that unlocks the
entrance door.
3) To lock the entrance door, the baggage
compartment doors and arm the intrusion
protection and anti-theft system all at the
same time, press buttons 7·8 and 9·0
simultaneously.
NOTE
The intrusion protection and anti-theft system
will be set after a 30 seconds delay.
For additional information, refer to "Other
Features" chapter.
EXTERIOR REAR VIEW MIRRORS
The coach is equipped with flat-type and
convex-type rear-view mirrors. Convex mirrors
give a wide angle view. Objects viewed in
convex-type rear-view mirrors appear smaller
and are actually closer than they appear.
To provide good visibility in cold weather, the
mirrors are equipped with heating elements that
are activated by a rocker switch located on the
dashboard. Refer to "Controls & Instruments"
chapter. Thermostats are used to prevent
continuous operation of the heating elements.
CAUTION
Do not attach stick-on type convex mirror
accessories to the heated mirror glass. This
could impede uniform heat distribution on the
mirror surface and could break the mirror
glass.
ELECTRICALLY ADJUSTED MIRROR
(RAMCO)
Conve
x
Flat
RAMCO REAR-VIEW MIRROR 18443
Electrically adjusted mirrors are adjusted by the
outside mirror controls located on the L.H.
control panel. Refer to "Controls & Instruments"
chapter. Manual adjustment is also possible.
Adjust the side-view mirrors until the side of the
vehicle is visible. Adjust the flat-type mirror until
the road behind is in full view.
RETRACTABLE BACK-UP CAMERA
An optional back-up camera is available which
provides the driver with visual assistance when
backing-up. The back-up camera is mounted in
a retractable housing. For additional information,
refer to "Controls & Instruments" and ‘Care and
maintenance’ chapters.
NOTE
A switch located in the rear electric
compartment is used to retract the back-up
camera for cleaning or maintenance.
110-120 VOLTS CONNECTOR
This connector is used with a 110-120 volt
supply and is connected to the optional engine
block heater. Refer to "Starting And Stopping
Procedures" chapter.

14 VEHICLE EXTERIOR
TRAILER HITCH
Your vehicle may be equipped with a factory
installed trailer hitch which has been designed to
meet the following rating:
oMaximum gross trailer weight: 20,000 lbs
(9072 kg)
oMaximum tongue weight at 6 ½ inches
(165 mm) or less from coupling receiver :
1,500 lbs (680 kg)
WARNING
The draw bar and the ball used for towing the
trailer should be rated for 20,000 lb capacity
or more.
WARNING
Pulling a trailer weighing more than the
recommended maximum gross weight may
cause engine and transmission overheating,
and also possible hitch failure.
TRAILER HITCH 18487
NOTE
Pulling a trailer over long distances is
considered as a "severe operating condition"
for the vehicle and therefore, power plant
requires more frequent servicing.
CAUTION
The minimum requirement for a trailer
weighing up to 20,000 lbs when coupled to a
20,000 lb Prevost Trailer Hitch is as per the
following:
A) Trailer must comply with Federal Motor
Carrier Safety Regulations 393.52
regarding trailer breaking capability.
B) The trailer coupling attachments meet the
following minimum static test load
requirements :
oLongitudinal tension and compression:
(1.5 x GVWR of trailer)
oTransverse thrust : (0.5 x GVWR of
trailer)
oVertical tension and compression: (0.5 x
GVWR of trailer)
Loads indicated must be applied without
incurring loss of attachments or distortion or
failure which could affect the safe towing of
trailer.
C) The ball and trailer coupling should meet
the following minimum test load
requirements without incurring failure :
oLongitudinal tension and compression :
(Gross Trailer Weight of trailer x 3)
oTransverse thrust : (Gross Trailer Weight
of trailer x 1)
oVertical tension and compression : (Gross
Trailer Weight of trailer x 1.3)
In this case, failure is identified as the point at
which the coupling or ball will accept no
additional test load without separation of the
ball from the coupling ball socket, or the
occurrence of a metal fracture of either
coupling ball or coupling assembly, which
results in separation of the ball from the
coupling ball socket.
D) Two lengths of safety chain shall be used.
The strength rating (minimum breaking
force) of each individual chain and its
connecting means shall be equal to, or
exceed the trailer GVWR.
E) Towing vehicle must be equipped with
engine or transmission retarder. The
engine or the transmission retarder on the
vehicle must be functional at all time (to
be inspected frequently).
This hitch must be used for recreational use
only.

VEHICLE INTERIOR 15
DRIVER'S SEAT - "DELIVERY"
The driver's "delivery" seat is standard and legal
only for driving the vehicle on its initial delivery.
It is a conventional van seat equipped with
tracks for fore and aft adjustments.
DRIVER'S AND NAVIGATOR'S SEATS
- ISRI (OPTIONAL)
Two distinct ISRI model driver's and navigator's
seats may be supplied with your vehicle: both
with a sophisticated air suspension system, one
being pneumatically operated, while the other is
electrically operated. Both seats may be
equipped with lumbar supports, heated cushions
and adjustable armrests. Seats can be adjusted
to the desired driving position by following the
instructions listed below:

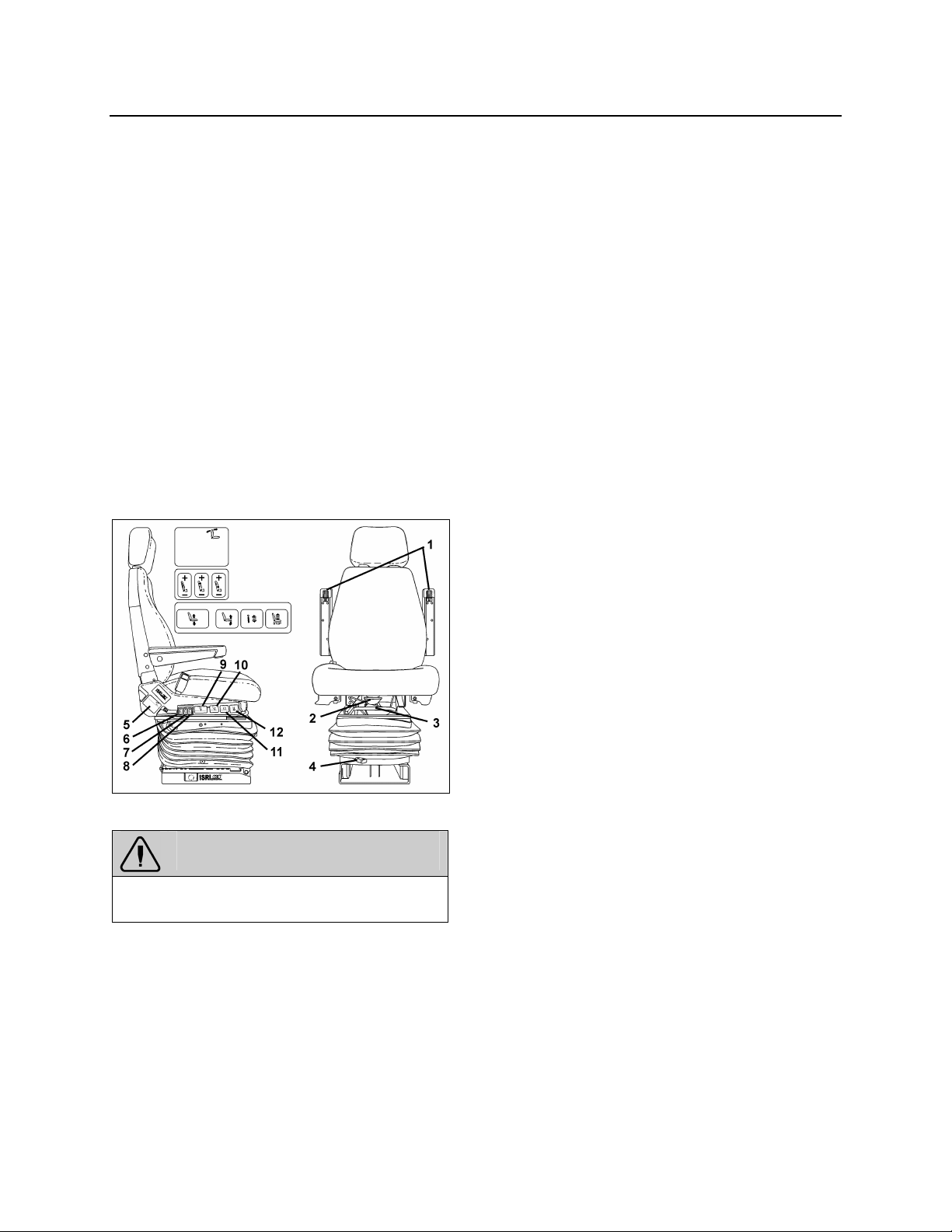

PNEUMATIC ISRI SEATS
PNEUMATIC DRIVER’S SEAT 18385
WARNING
Never try to adjust seat while driving vehicle
as this could result in loss of vehicle control.
Armrest (1)
Rotate control knob to select desired arm-resting
angle. When not in use, raise armrest parallel
with backrest.
Seat Cushion (2)
Provides optimum comfort and support for any
leg shape or size. Adjustable to 50mm length.
Fore-and-aft (3)*
Pull handle up and slide seat forwards or
backwards to adjust distance between seat and
dashboard.
Isolator (4)
Reduces horizontal vibration, ensuring smooth
ride.
Backrest (5)
Lift lever to select proper adjustment angle of
backrest.
Air Side Bolster (6)
Offers desired side support to avoid body
sideway.
Air Lumbar (7) (8)
Provides back support with upper and lower
settings, ensuring comfort during lengthy sitting.
Air Height Adjustment (9)
Moves seat up or down independently of other
seat settings. 100mm total travel.
Adjustable Seat Recline (10)
Allows easy adjustment of four-setting
inclination.
Adjustable Shock Absorber (11)
Choose stiff or soft ride infinitely.
Quick Air Release (12)
Exhausts all air from suspension, allowing for
easy entry/exit. Returns seat to previous
position.

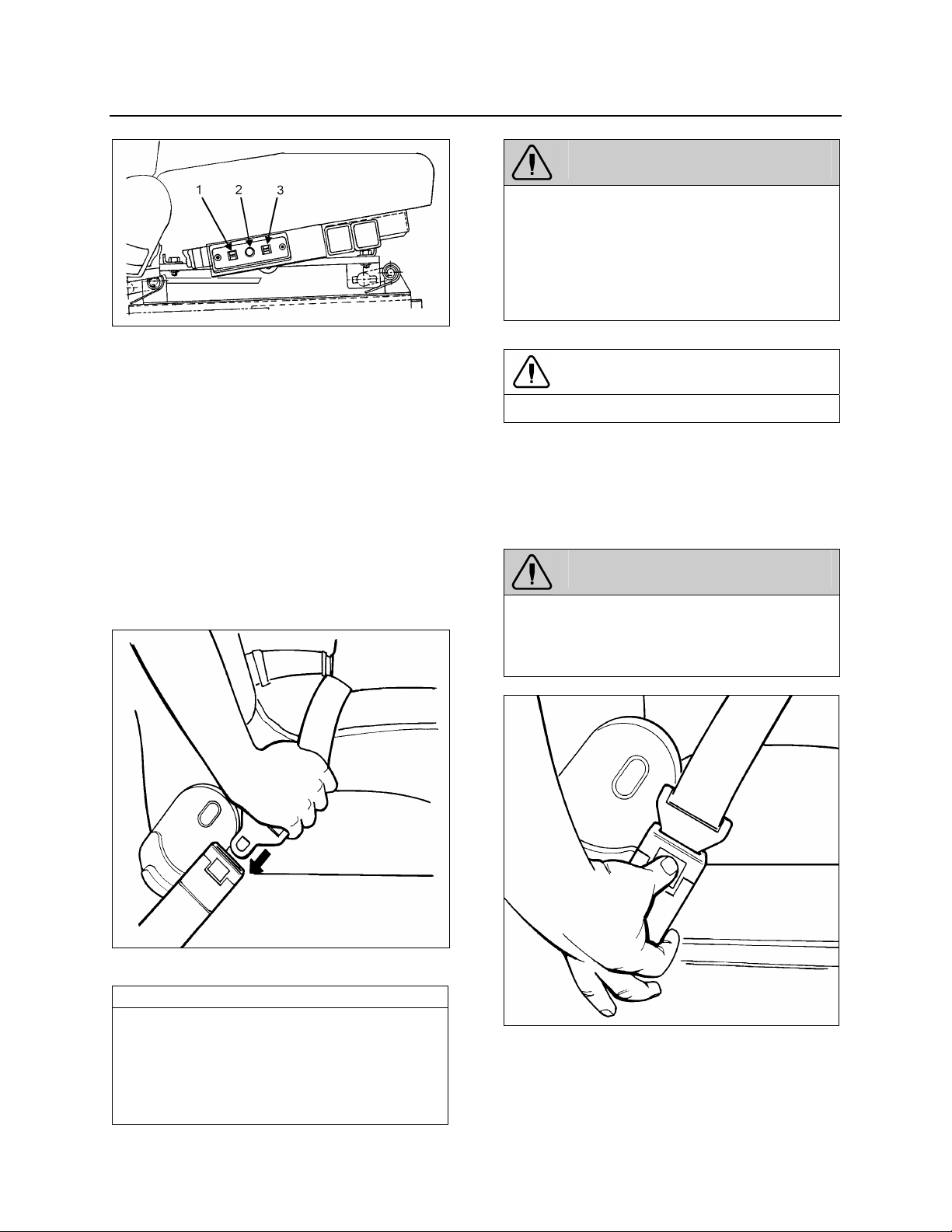

ELECTRIC ISRI SEATS
Adjust electric seats as follows:
Tilt (rear) (1)
Pull switch up to raise rear section of seat. Push
switch down to lower rear section of seat.
Fore-and-aft/Up-Down (2)
Push switch towards dashboard to move seat
forwards or back to move seat backwards. Pull
switch up to raise seat or push switch down to
lower seat.

16 VEHICLE INTERIOR
SEAT CONTROLS 18040
Tilt (front) (3)
Pull switch up to raise front section of seat. Push
switch down to lower front section of seat.
SAFETY BELTS
The driver’s seat is equipped with a retractable
safety belt as required by State, Provincial and
Federal regulations. To fasten, pull seat belt out
of the retractor and insert the latch plate into the
buckle until it clicks. No special adjustment is
required since the reel device is self-adjusting. If
seat belt operation becomes defective, report to
Manufacturer's Service Center.
SEATBELT 18028
NOTE
The safety belt must be pulled out slowly and
continuously, otherwise it will lock the reel
before the latch plate reaches the buckle. If
this happens, allow the belt to retract
completely and repeat the procedure
correctly.
WARNING
A snug fit with the lap belt positioned low on
the hips is necessary to ensure motorist's
safety. The belt should not be worn twisted.
Avoid pinching belt and/or belt hardware in
seat mechanism. Do not wear belt over rigid
or breakable objects, such as eyeglasses,
pens or keys as these may cause injuries.
CAUTION
Never bleach or dry-clean safety belt.
To unfasten belt, press the red button in center
of buckle and allow belt to retract. If the belt
does not fully retract, pull it out and check for
kinks or twists. Make sure that it remains
untwisted as it retracts.
WARNING
Safety belts should always be worn by
motorists using seats supplied with belts since
this is required by most State and Provincial
laws.
SEATBELT 18029
STEERING WHEEL ADJUSTMENT
Push on the valve button with the left foot to
unlock the steering wheel for tilt and telescopic
adjustment.

VEHICLE INTERIOR 17
WARNING
Do not adjust the steering wheel while the
vehicle is moving. Loss of control could
result. Park the vehicle safely and apply
parking brakes before adjusting the steering
wheel.

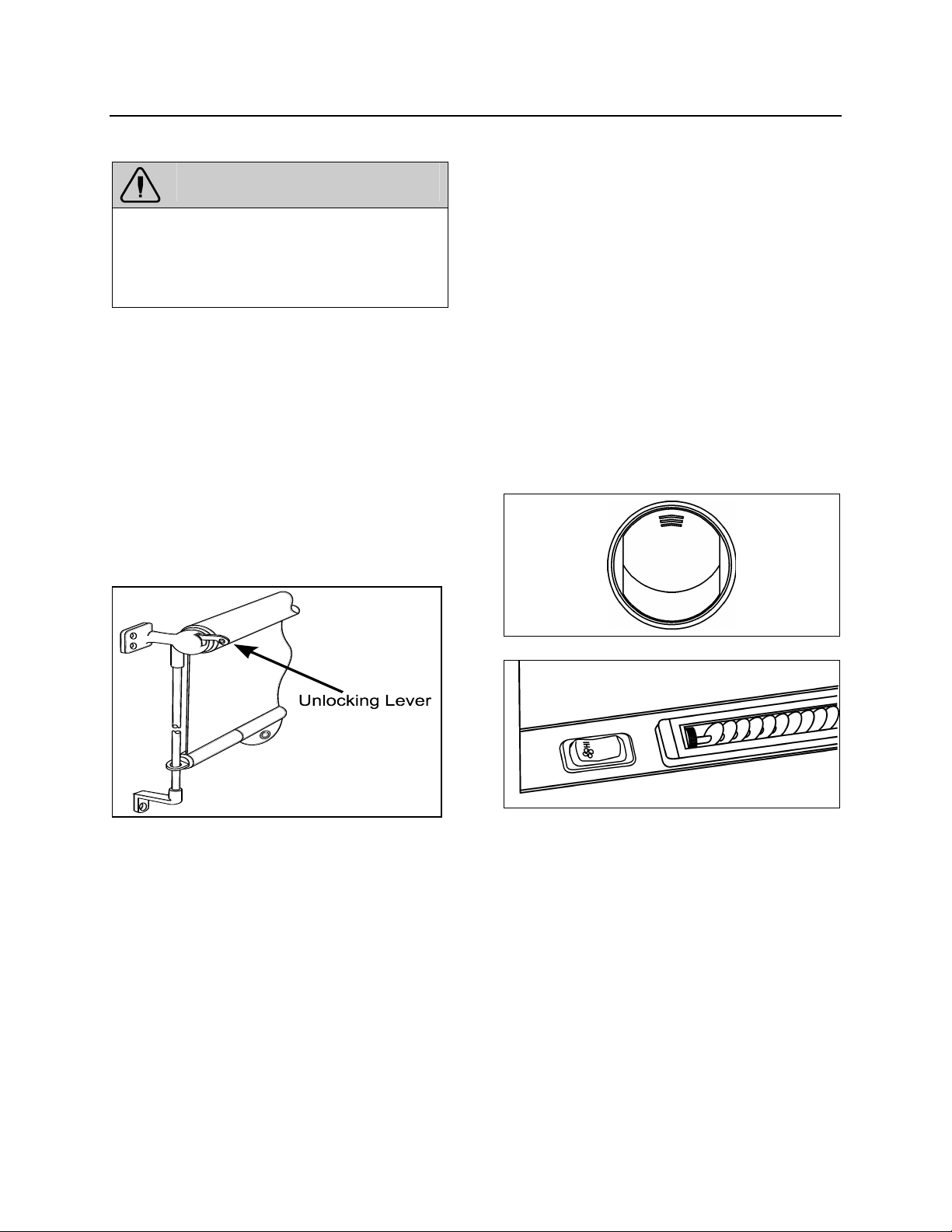

SUNSHADES (BLINDS)
This vehicle is provided with two electrically
operated sunshades which are installed on both
sides of the windshield. Push up or down the
appropriate switch to raise or lower the shade to
the desired position.
Moreover, an optional spring release type
sunshade is provided for the driver's window to
protect him from side glare. To operate, pull
down the shade by its hem to the appropriate
position and release it. It will remain
automatically in position. To lift, depress the
unlocking lever.
SPRING RELEASE SUNSHADE 23019
INSIDE MIRRORS
Two mirrors are located in the driver’s area. The
left overhead mirror provides visibility in the
critical area on the R.H. side of the private
coach. Adjust the left overhead mirror to see
through the front cabin windows. The central
mirror allows the driver to see in the central
cabin aisle.
ADJUSTABLE HVAC REGISTERS
The HVAC system has adjustable registers to
control air flow around the driver’s and
navigator’s area.
•Three are located on the dashboard, two on
the R.H. side and one on the left (refer to
Controls & Instruments chapter).
•Two more registers are located near the
steering wheel column, under the dashboard.
These registers are not adjustable but may
be electrically open or closed by means of
the HVAC control panel.
•Three auxiliary unit registers are located
behind the driver (with small HVAC system
only).
•For the navigator, two adjustable registers
are located near the entrance door, at bottom
of first lateral window (refer to Controls &
Instruments chapter).
Use the HVAC control panel to set air
temperature.
DASHBOARD AIR REGISTER 22287
NAVIGATOR’S AIR REGISTER & FAN SPEED CONTROL
SWITCH 22286
WINDOWS
The vehicle is equipped with single pane or
double pane (thermos) windows. There are two
automobile-like power windows and a possible
combination of three types of side windows, all
of them flush-mounted to the structure: fixed,
awning and sliding windows. Following is a
description and operating instructions for these
types of windows:
DRIVER’S POWER WINDOW
The driver's area is equipped with a power
window. The window is controlled by a rocker
switch located on the L.H. control panel. Refer to
Chapter 3, Controls & Instruments.

18 VEHICLE INTERIOR

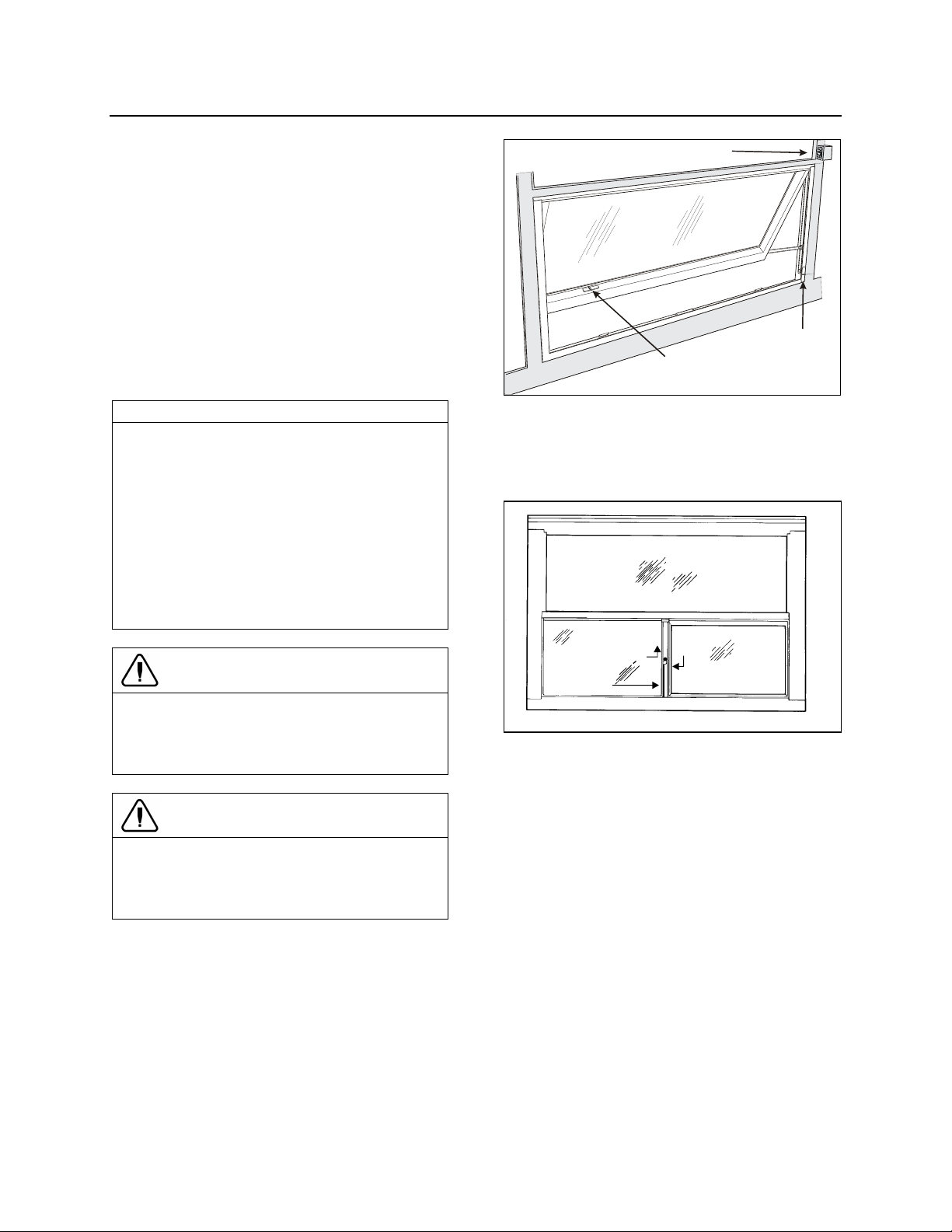

FIXED WINDOWS
These windows are either fastened or glued to
the structure and form an integral part of the
body of the vehicle, helping reduce vibration and
noise. Fixed windows cannot be opened.
AWNING WINDOWS
To open or close an electrically-operated awning
window, use the rocker switch button located on
the wall, next to the window. After closing the
window, maintain the rocker switch button
depressed to latch the window.
NOTE
The awning window electrical circuit is
equipped with a thermistor protecting the
components from overheating. If the awning
window is opened and closed repeatedly,
causing overheating of the components, the
thermal protection will interrupt the operation
of the window for a short while to permit
cooling down of the components. This feature
also prevents personal injuries and damages
to the components if something obstructs the
window movement.
CAUTION
Avoid holding the rocker switch button
depressed after the window has reached its
full opened position or after the window has
been latched.
CAUTION
Never try to open or close the awning window
by pulling or pushing directly on the window,
this could damage the opening mechanism
gearbox.
A telltale light on the dashboard illuminates
when an awning window is opened. Refer to
“Controls And Instruments” chapter for more
information.
Manual latch
release handle
Opening/closing
rocker switch button
Track release
handle
ELECTRIC AWNING WINDOW 18585
SLIDING WINDOWS
Unlatch and pull the sliding window inwards,
then slide open. Reverse operation to close.
UNLOCK
HANDLE
LOCK
SLIDING WINDOW 18206
